Schematic and parts book for power-flite C131-7 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | No Image | Handle, 2 Piece - Upper | X1000A | $97.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | WASHER, No 10 INT TOOTH LOCK SS | 7CY001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Screw 10-24x1/2 Phil Pan St Type F Zinc | X8207 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Actuator, Thumb Switch All Metal Handle Assembly | X8914 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Spring, Thumb Actuator Metal Handle Assembly | X8915 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Handle Grip 1dia fits all Metal Handle Assy | X8941 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | SCREW, 10-24 X 1/4 SOCKET SET | X8995 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Cord,Floor Machine,50 IN,Black,14/3 SJTOW | X8989 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Handle Clamp Knob, Plastic | X8016 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Slot and 2-7/16 Offset | X8027L | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Spacer Handle Metal FM 1/2ID 3/4OD 1in | X8107 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | SCREW 1/4-20 X 3/4 FLAT PHIL MS ZINC | X8265 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Washer, Countersunk | X8020 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Wheel, Black 5 X 1-1/4 | X8024 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Spring Washer, 1 OD X 1/2 ID X .0190-.022 | X8101 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Ring Retaining Ext. E 1/2(Heavy Duty) | 3470 | $0.00Read more |
| 18 | No Image | Axle, Wheel 0.5 Dia. Classic Floor Machines | X9575 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Pin, Pivot Metal Floor Machine | X8977 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | SCREW 1/4-20 X 1-3/4 HEX CAP GRADE 5 ZP | 72455A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | WASHER, 1/4 SPLIT LOCK ZP | X8212 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Housing, 13 In Brush W/Bumper Metal Floor Machine | X1149 | $206.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Base, Motor Metal | X8966 | $176.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Motor Floor Mach 120/240VAC 1.5hp Chrome w/Gearbox | X8980TI | $1,049.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 |  | Spacer, Mtr Cover Mtl Fm Only | X8106 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Cover, Motor Metal Painted | X8965 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | SCREW, 10-32 X 1 PHIL FLAT MS SS | X8266 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Cam Lever, Assembled Sell X8012A | X1184 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Washer, Cam W/Slot | X8028 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Hole and 2-7/16 Offset | X8027R | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | Clamp, Handle Lock, Diecast | X1456 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Cord Floor Machine 50Ft Yellow14/3 SJTW | M1369B | $96.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Switch, Momentary On/Off Part Number X1039 for Cleanmax Models CM-WAV | X1039 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | No Image | Strain Relief, Metal Small | SR37 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Washer, Strain Relief | SR36 | $4.99Add to cart |
| 37 |  | Nut Conduit 1/2 Part Number X8008N for Cleanmax Models CM-WAV | X8008N | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Insulation Sheet All Metal Handle Assy 2.5x2x0.15 | X8923 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | Motor Label | X8412C | $0.00Read more |
| 40 | No Image | LABEL DISCONNECT POWER CORD BEFORE SERVICING | X8413 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | LABEL GROUND SYMBOL | X9214 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | Handle Label | X8815BBLK | $0.00Read more |
| 43 | No Image | Label, Powrflite W/O Shadow | X8401A | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | No Image | Label Qualified Made In The USA 1.618 X 1.618 | X1003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | Label Serial Number 2X2 Plain | X8459 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | No Image | LABEL WARNING METAL HANDLE ASSY | X8418A | $2.99Read more |
| 47 | No Image | Handle, 2 Piece - Lower | X1000B | $38.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | No Image | Cord Hook,Floor Machine,Plated | X8013 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | No Image | Carriage Bolt, 5/16 - 18 X 2 , Zinc | X2272 | $0.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Nut 5/16 Lock with Nylon Insert Zinc | X8248 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | No Image | Circuit Breaker 15a with Nuts Floor Machine | X8023 | $1.99Read more |
| 52 | No Image | Washer, Curved 1.5In | X2273 | $0.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Handle, 2 Piece - Upper | X1000A | $97.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | WASHER, No 10 INT TOOTH LOCK SS | 7CY001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Screw 10-24x1/2 Phil Pan St Type F Zinc | X8207 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Actuator, Thumb Switch All Metal Handle Assembly | X8914 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Spring, Thumb Actuator Metal Handle Assembly | X8915 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Handle Grip 1dia fits all Metal Handle Assy | X8941 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Circuit Breaker 15a with Nuts Floor Machine | X8023 | $1.99Read more |
| 8 | No Image | SCREW, 10-24 X 1/4 SOCKET SET | X8995 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | | Cord,Floor Machine,50 IN,Black,14/3 SJTOW | X8989 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Handle Clamp Knob, Plastic | X8016 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Slot and 2-7/16 Offset | X8027L | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Spacer Handle Metal FM 1/2ID 3/4OD 1in | X8107 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | SCREW 1/4-20 X 3/4 FLAT PHIL MS ZINC | X8265 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Washer, Countersunk | X8020 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Wheel, Black 5 X 1-1/4 | X8024 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Spring Washer, 1 OD X 1/2 ID X .0190-.022 | X8101 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Ring Retaining Ext E 1/2 Heavy Duty | 03470 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Axle, Wheel 0.5 Dia. Classic Floor Machines | X9575 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Pin, Pivot Metal Floor Machine | X8977 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | | SCREW 1/4-20 X 1-3/4 HEX CAP GRADE 5 ZP | 72455A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | WASHER, 1/4 SPLIT LOCK ZP | X8212 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Housing, 13 In Brush W/Bumper Metal Floor Machine | X1149 | $206.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | | Base, Motor Metal | X8966 | $176.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Motor Floor Mach 120/240VAC 1.5hp Chrome w/Gearbox | X8980TI | $1,049.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | | Spacer, Mtr Cover Mtl Fm Only | X8106 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Cover, Motor Metal Painted | X8965 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | SCREW, 10-32 X 1 PHIL FLAT MS SS | X8266 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Cam Lever, Assembled Sell X8012A | X1184 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Washer, Cam W/Slot | X8028 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Hole and 2-7/16 Offset | X8027R | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Clamp, Handle Lock, Diecast | X1456 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | Cord Floor Machine 50Ft Yellow14/3 SJTW | M1369B | $96.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | | Switch, Momentary On/Off Part Number X1039 for Cleanmax Models CM-WAV | X1039 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Strain Relief, Metal Small | SR37 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | Washer, Strain Relief | SR36 | $4.99Add to cart |
| 38 | | Nut Conduit 1/2 Part Number X8008N for Cleanmax Models CM-WAV | X8008N | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | Insulation Sheet All Metal Handle Assy 2.5x2x0.15 | X8923 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | Motor Label | X8412C | $0.00Read more |
| 41 | No Image | LABEL DISCONNECT POWER CORD BEFORE SERVICING | X8413 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | LABEL GROUND SYMBOL | X9214 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | No Image | Handle Label | X8815BBLK | $0.00Read more |
| 44 | No Image | Label, Powrflite W/O Shadow | X8401A | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | Label Qualified Made In The USA 1.618 X 1.618 | X1003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | No Image | Label Serial Number 2X2 Plain | X8459 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | No Image | LABEL WARNING METAL HANDLE ASSY | X8418A | $2.99Read more |
| 48 | No Image | Handle, 2 Piece - Lower | X1000B | $38.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | No Image | Cord Hook,Floor Machine,Plated | X8013 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | No Image | SCREW, 5/16-18X2 HEX CAD PLATED | X1035 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | | Nut 5/16 Lock with Nylon Insert Zinc | X8248 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| XX | No Image | Union Mix Brush W/Up2P Clutch Plate | 613P | $0.00Read more |
| 1 |  | Driver Pad w/Clutch Plate 11 Fits 13 Machine | 613DP | $160.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

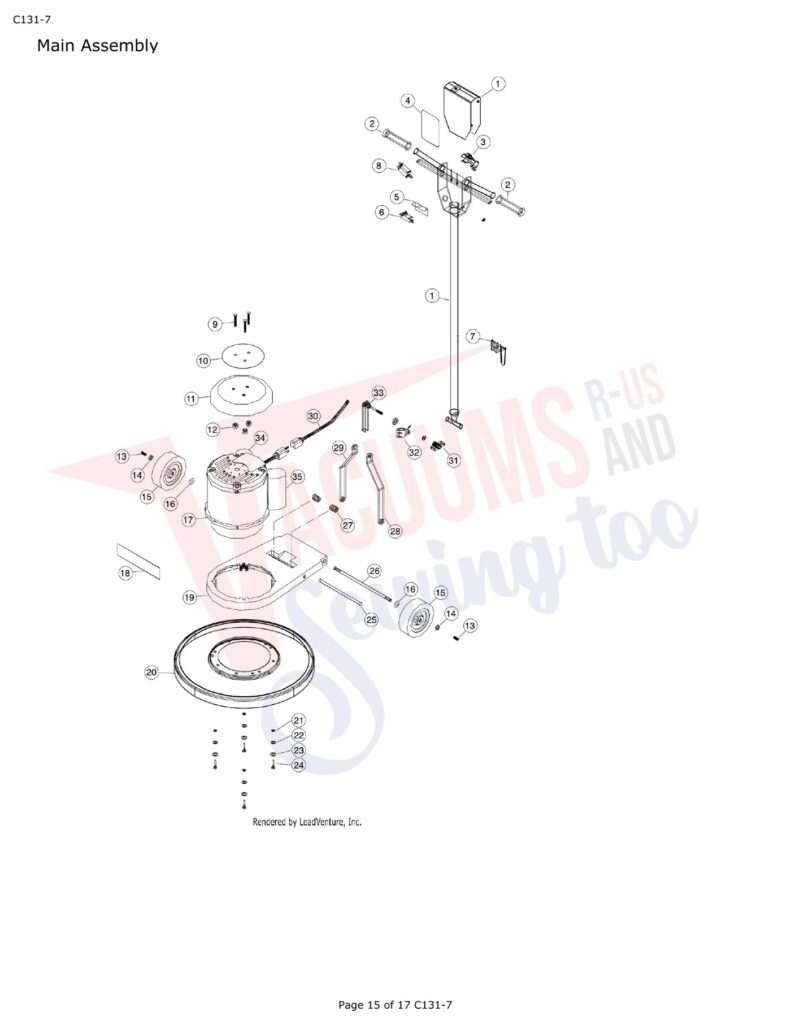

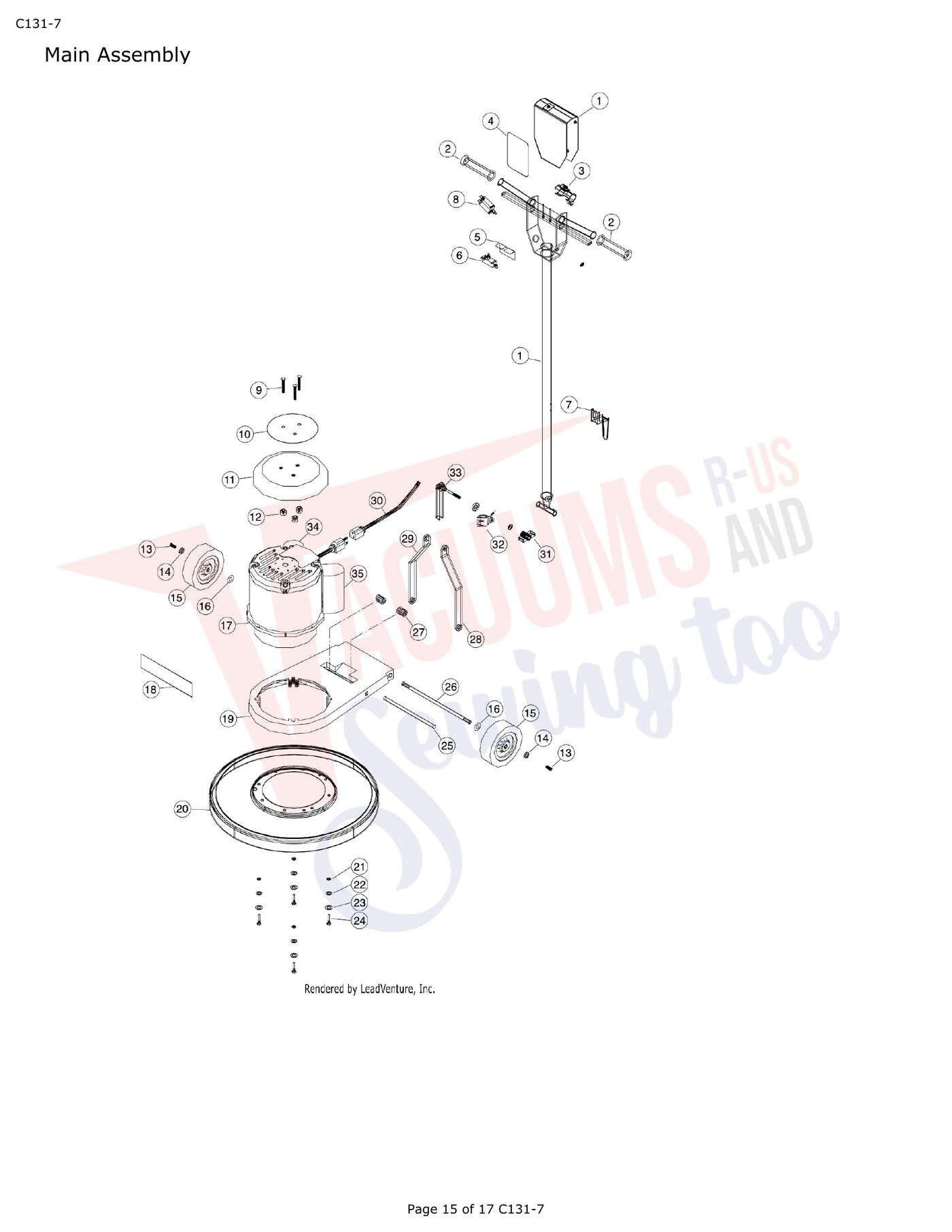

| # | Part image | Description | SKU | Price |
| Not Shown |  | Cord 50 ft 14/3 STJW Yellow Metal Strain Relief | M1369AS | $147.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX |  | Metal Handle Assy All Floor Machines/Burnishers | M86003 | $402.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | HANDLE ASMB COMPLETE ORB1420 | X8911K | $635.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Handle Grip 1dia fits all Metal Handle Assy | X8941 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Actuator, Thumb Switch All Metal Handle Assembly | X8914 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Label | X8927 | $0.00Read more |
| 5 | No Image | Insulation Sheet All Metal Handle Assy 2.5x2x0.15 | X8923 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | | Switch, Momentary On/Off Part Number X1039 for Cleanmax Models CM-WAV | X1039 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Cord Hook,Floor Machine,Plated | X8013 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Circuit Breaker 15a with Nuts Floor Machine | X8023 | $1.99Read more |
| 9 | No Image | SCREW, 10-32 X 1 PHIL FLAT MS SS | X8266 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Motor Label | X8412C | $0.00Read more |
| 11 | No Image | Cover, Motor Metal Painted | X8965 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | Spacer, Mtr Cover Mtl Fm Only | X8106 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | SCREW 1/4-20 X 3/4 FLAT PHIL MS ZINC | X8265 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Washer, Countersunk | X8020 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Wheel, Black 5 X 1-1/4 | X8024 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Spring Washer, 1 OD X 1/2 ID X .0190-.022 | X8101 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Motor 120/240 Vac 60 Hz 1Hp | X8981 | $0.00Read more |
| 18 | No Image | Label | X8400A | $0.00Read more |
| 19 | | Base, Motor Metal | X8966 | $176.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Housing, 13 In Brush W/Bumper Metal Floor Machine | X1149 | $206.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | WASHER, 1/4 SPLIT LOCK ZP | X8212 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | | SCREW 1/4-20 X 1-3/4 HEX CAP GRADE 5 ZP | 72455A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | | Pin, Pivot Metal Floor Machine | X8977 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Axle, Wheel 0.5 Dia. Classic Floor Machines | X9575 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Spacer Handle Metal FM 1/2ID 3/4OD 1in | X8107 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Brace, Handle Left M Style With Rectangle Slot | X8807L | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Brace, Handle Right M Style With Circle Holes | X8807R | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Cord,Floor Machine,50 IN,Black,14/3 SJTOW | X8989 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Handle Clamp Knob, Plastic | X8016 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | Clamp, Handle Lock, Diecast | X1456 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Cam Lever, Assembled Sell X8012A | X1184 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Capacitor FM VAC 1hp 1-1/2hp 450UF Start | X8953 | $73.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Capacitor,Floor Machine,240,VAC,60UF,Run | X8038 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
