Schematic and parts book for Panasonic V9635, V9647 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

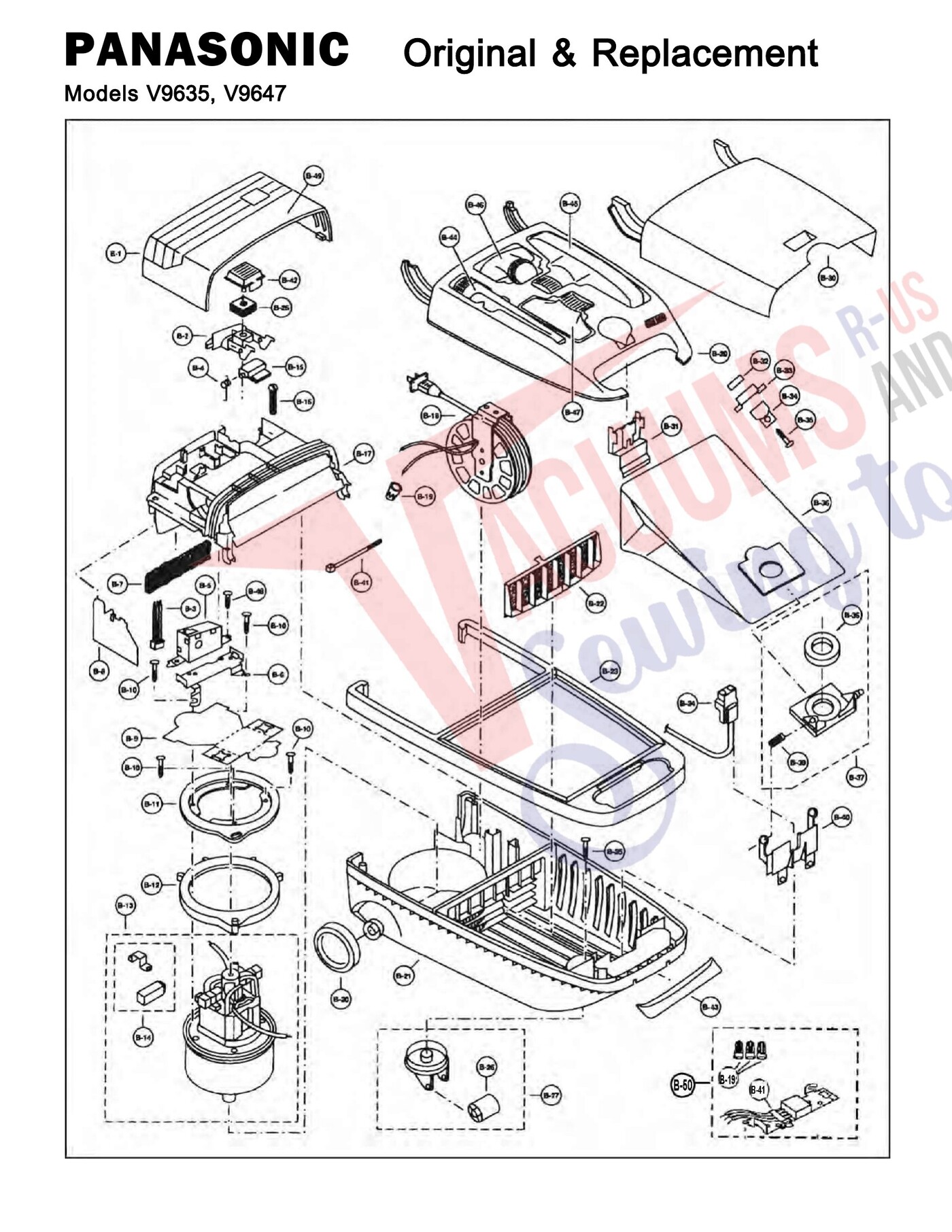

| # | Part image | Description | SKU | Price |
| XX | Not Available | Button Toggle V9635 | 415-3790 | Not Available |
| XX | Not Available | Switch Toggle V9635 (Not Shown) | 34158 | Not Available |
| XX | Not Available | Lead Switch v9635 (Not Shown) | 706-941 | Not Available |
| XX | Not Available | Variable Speed Control V9647 | 34156 | Not Available |
| 1 | Not Available | Canopy Cover V9635 | 48HGEZR014 | Not Available |
| 1 | Not Available | Canopy Cover V9647 | 48HABFZR014 | Not Available |
| 2 | Not Available | Frame Cord V9635 | NLA | Not Available |
| 2 | Not Available | Frame Cord V9647 | 77209 | Not Available |
| 3 | Not Available | Order Key # B-50 | NLA | Not Available |
| 4 | Not Available | Spring Cord Lock | 414-9726 | Not Available |
| 5 | Not Available | Variable Speed Control V9647 | NLA | Not Available |
| 6 | Not Available | Order Key# B-50 | NLA | Not Available |
| 7 | Not Available | Filter Rear Exhaust | 18075 | Not Available |
| 8 | Not Available | Motor Protector (Shield) | 415-3813 | Not Available |
| 9 | Not Available | Shield Motor V9635 | NLA | Not Available |
| 9 | Not Available | Shield Motor v9647 | 93F-WJZ0U00 | Not Available |
| 10 | Not Available | Screw # 10 - 16 x 3/4 | 681-624 | Not Available |
| 12 | Not Available | Mount Motor | 706-821 | Not Available |
| 13 | Not Available | Motor | 60186 | Not Available |
| 14 | Not Available | Carbon Brush Ass'y | 63070 | Not Available |
| 15 | Not Available | Cord Lock | 748-005 | Not Available |
| 16 | Not Available | Screw #8-18 x 1 7/8 | 681-550 | Not Available |
| 17 | Not Available | Canopy | 50HABFZV004 | Not Available |
| 18 | Not Available | Cord Reel | 30780 | Not Available |
| 19 | Not Available | Wire Nut | SS-3270 | Not Available |
| 20 | Not Available | Wheel Rear 3 1/2" Diameter | 71335 | Not Available |
| 21 | No Image | Hose Squeegee Mid Chem Resist | 75175 | $313.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Filter Secondary | NLA | Not Available |
| 23 | Not Available | Furniture Guard | 415-6211 | Not Available |
| 24 | Not Available | Receptacle v9635 | 414-7243 | Not Available |
| 24 | Not Available | Receptacle v9647 | 90EABFZV004 | Not Available |
| 25 | Not Available | Pin Caster Retainer | 71385 | Not Available |
| 26 | Not Available | Wheel Caster | NLA | Not Available |
| 27 | Not Available | Caster Swivel Assembly | 71080 | Not Available |
| 28 | Not Available | Spring Brake Button V9635 | 77GGFZ000 | Not Available |
| 28 | Not Available | Foam Brake Button V9647 | NLA | Not Available |
| 29 | Not Available | Hood | 75750 | Not Available |
| 30 | Not Available | Tool Storage Cover | 74PSPZR014 | Not Available |
| 31 | Not Available | Release Lid | NLA | Not Available |
| 32 | Not Available | Packing (indicator) | 09MYUZ0000 | Not Available |
| 33 | Not Available | Performance indicator Unit | 98MUWZV006 | Not Available |
| 34 | Not Available | Bracket | 415-6363 | Not Available |
| 35 | Not Available | Screw | XTN4+10BFY | Not Available |
| 36 | Not Available | Paper Bag C5 3 Pk | MC150M | Not Available |
| 36 | Not Available | Paper bag C5 DVC 3 Pk | KER-14551 | Not Available |
| 36 | Not Available | Paper bag C5 ENV 3 Pk | KER-14550 | Not Available |
| 37 | Not Available | Mount Bag | 415-5800 | Not Available |
| 38 | No Image | GASKET Part Number: 706017 for Kenmore | 706017 | $10.60Read more |
| 39 | Not Available | Spring Bag Mount | 706-024 | Not Available |
| 40 | Not Available | insert Strike | NLA | Not Available |
| 41 | Not Available | Tie Cable | 596-702 | Not Available |
| 42 | Not Available | Button Cord Reel V9635 | 414-8750 | Not Available |
| 42 | Not Available | Button Cord Reel V9647 | NLA | Not Available |
| 43 | Not Available | Grip Handle | NLA | Not Available |
| 44 | No Image | CAP, HANDLE METAL CPU1 CPU2 Part Number: 54.030 for Carpet Pro | 54030 | $1.78Read more |
| 45 | Not Available | Floor Brush | 55010 | Not Available |
| 46 |  | Motor sponge Part Number 53.035 for Cleanmax Models CMC-1N | 53035 | |
| 47 | Not Available | Fabric Brush | 52030 | Not Available |
| 48 | Not Available | Screw V9647 Only | 681-297 | Not Available |
| 49 | Not Available | Ornamental Plate V9647 Only | 21TABFZ0U00 | Not Available |

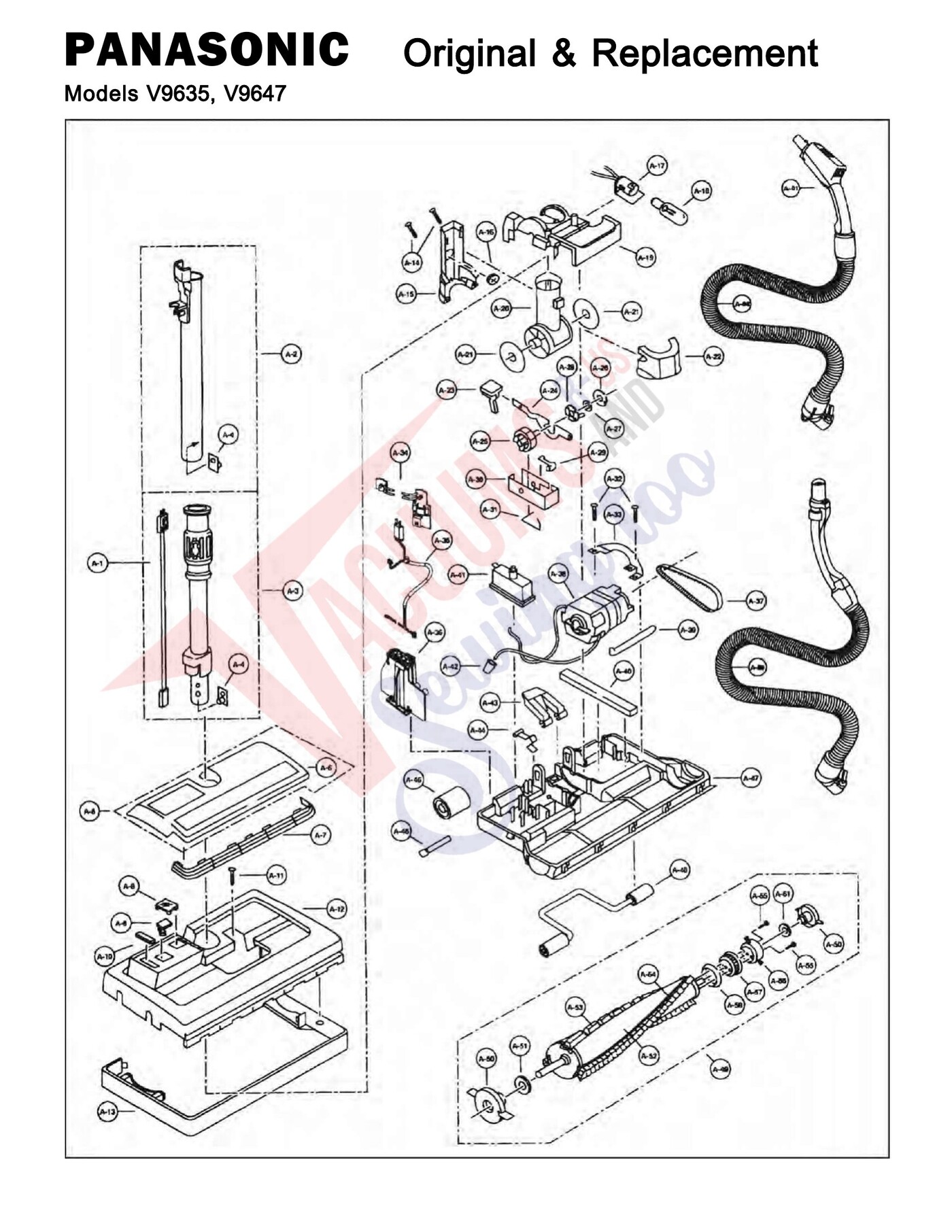

| # | Part image | Description | SKU | Price |
| XX | Not Available | Hose Only v9647 | 73664 | Not Available |
| XX | Not Available | Lead Wire v9647 | 36024 | Not Available |
| XX | Not Available | Hose switch V9647 | 34157 | Not Available |
| XX | Not Available | decorative Plate v9647 (Not shown) A-45 P-747-117 Roller Rear | 21ZABFZ0000 | Not Available |
| 1 | Not Available | Cord v9635 | NLA | Not Available |
| 1 | Not Available | Cord v9647 | 30052 | Not Available |
| 2 | Not Available | Wand Assembly Upper v9635 | 50045 | Not Available |
| 2 | Not Available | Wand Assembly Upper v9647 | 50055 | Not Available |
| 3 | Not Available | Wand Assembly Lower With | 50050 | Not Available |
| 3 | Not Available | Wand Assembly Lower With | 50060 | Not Available |
| 4 | Not Available | Button Lock | 725-419 | Not Available |
| 5 | Not Available | Light Cover | NLA | Not Available |
| 6 | Not Available | Nameplate | 21ZADJZ0000 | Not Available |
| 7 | Not Available | Lens Front | 744-119 | Not Available |
| 8 | Not Available | Lens Height Adjustment | 21HGJZ0000 | Not Available |
| 8 | Not Available | P-742-006 Axle Rear | A-46 | Not Available |
| 9 | Not Available | Extension Button | 415-5355 | Not Available |
| 10 | Not Available | Window dust sensor | 33MGJZ0000 | Not Available |
| 11 | Not Available | screw 8-18 x 17/ | 681-550 | Not Available |
| 12 | Not Available | Nozzle Cover | 73192 | Not Available |
| 13 | Not Available | Furniture Guard | 74065 | Not Available |
| 14 | Not Available | screw | XTN4+24BFY | Not Available |
| 15 | Not Available | Rear Cover | NLA | Not Available |
| 16 | Not Available | Button Wand Release | 13DABFZV06 | Not Available |
| 17 | Not Available | Bulb socket | 93HABFZ0000 | Not Available |
| 18 |  | Bulb, Double Pole 505-1CR Part Number: 1650 S for Kirby | 1650S | $18.06Read more |
| 19 | Not Available | swivel Cap Assembly v9635 | NLA | Not Available |
| 19 | Not Available | swivel Cap Assembly v9647 | 25QMGZR014 | Not Available |
| 20 | Not Available | swivel Elbow | 72425 | Not Available |
| 21 | Not Available | seal | 742-019 | Not Available |
| 22 | Not Available | Front Cover | NLA | Not Available |
| 23 | Not Available | Pad Foot Pedal | 747-280 | Not Available |
| 24 | Not Available | Lever Indicator | 747-287 | Not Available |
| 25 | Not Available | Cam Indicator | 747-291 | Not Available |
| 26 | Not Available | Thrust Washer (Not shown) | 722-909 | Not Available |
| 27 | Not Available | Washer | 725-635 | Not Available |
| 28 | Not Available | Catch Indexing | 722-955 | Not Available |
| 29 | Not Available | Ratchet Catch (Not shown) | 742-016 | Not Available |
| 30 | Not Available | Indicator Block | 742-015 | Not Available |
| 31 | Not Available | spring | 725-775 | Not Available |
| 32 | Not Available | screw 8-18 x 1 5/8 | 681-297 | Not Available |
| 33 | Not Available | Motor Bracket | 705-093 | Not Available |
| 34 | Not Available | PCB"B" Unit | 85VGJZ00 | Not Available |
| 35 | Not Available | Lead Wire "A" Unit | NLA | Not Available |
| 36 | Not Available | PCB Assembly | 87GGJZU001 | Not Available |
| 37 | Not Available | Belt CB5 2 Pk | MC320B | Not Available |
| 37 |  | Belt, Kenmore Geared Power Nozzle | KER-1075 | $6.00Add to cart |
| 38 | Not Available | Motor | 60520 | Not Available |
| 39 | Not Available | spring Motor Adjust | 742-002 | Not Available |
| 40 | Not Available | Gasket Motor | 705-309 | Not Available |
| 41 | Not Available | Circuit Breaker | 742-332 | Not Available |
| 42 | Not Available | Wire Nut | SS-3270 | Not Available |
| 43 | Not Available | Handle Release | NLA | Not Available |
| 44 | Not Available | Lifter | 742-013 | Not Available |
| 45 | Not Available | Roller Rear | 747-117 | Not Available |
| 47 | Not Available | Base | 72150 | Not Available |
| 48 | Not Available | Axle Assembly Front | 744-029 | Not Available |
| 49 |  | Motor 10 Amp Part Number 20.085 for Cleanmax Models CMC-QD | 20085 | |
| 50 | Not Available | Bearing End Cap Assembly | 20538 | Not Available |
| 51 | Not Available | Washer | 681-424 | Not Available |
| 52 | Not Available | Agitator Body | 742-478 | Not Available |
| 53 | Not Available | Beater Bar sold Each | NLA | Not Available |
| 54 | Not Available | Brush strip sold Each | 22040 | Not Available |
| 55 | Not Available | screw | 681-605 | Not Available |
| 56 | Not Available | Edge Cleaning Brush | 20815 | Not Available |
| 57 | Not Available | Agitator Pulley | 20665 | Not Available |
| 58 | Not Available | Brush sprocket Flange | 742-031 | Not Available |
| 59 | Not Available | Hose Assembly v9635 | 40472 | Not Available |
| 60 | Not Available | Hose Assembly v9647 | NLA | Not Available |
| 61 | Not Available | Handle Ass'y Hose V9647 | NLA | Not Available |
