Schematic and parts book for Panasonic V7572, V7582 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

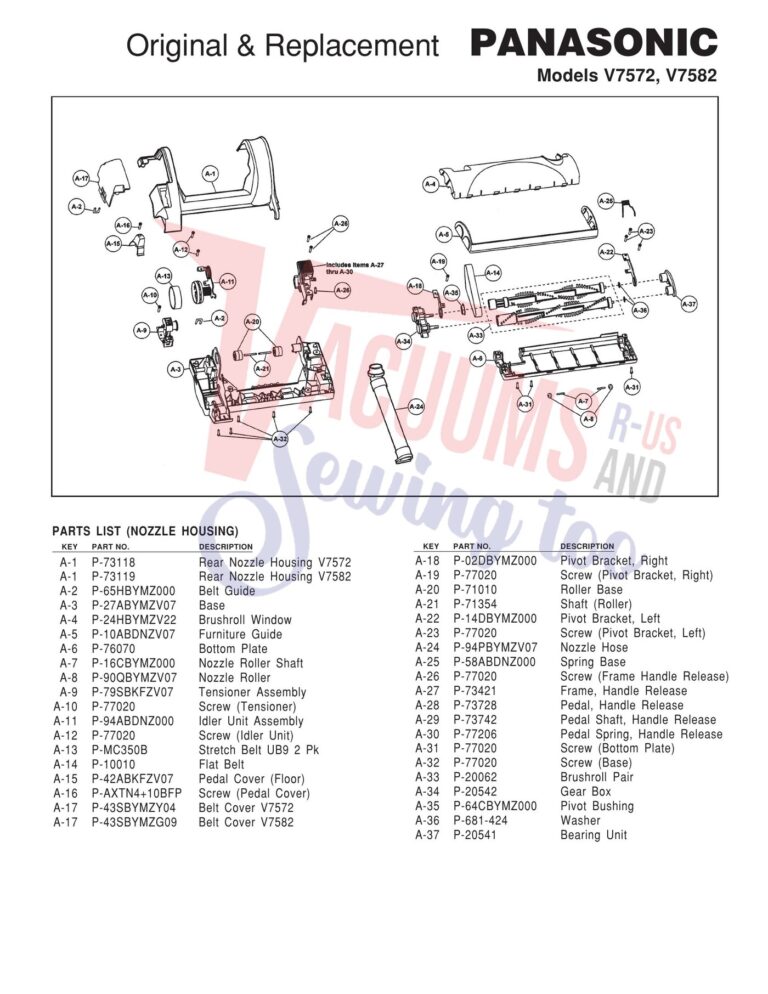

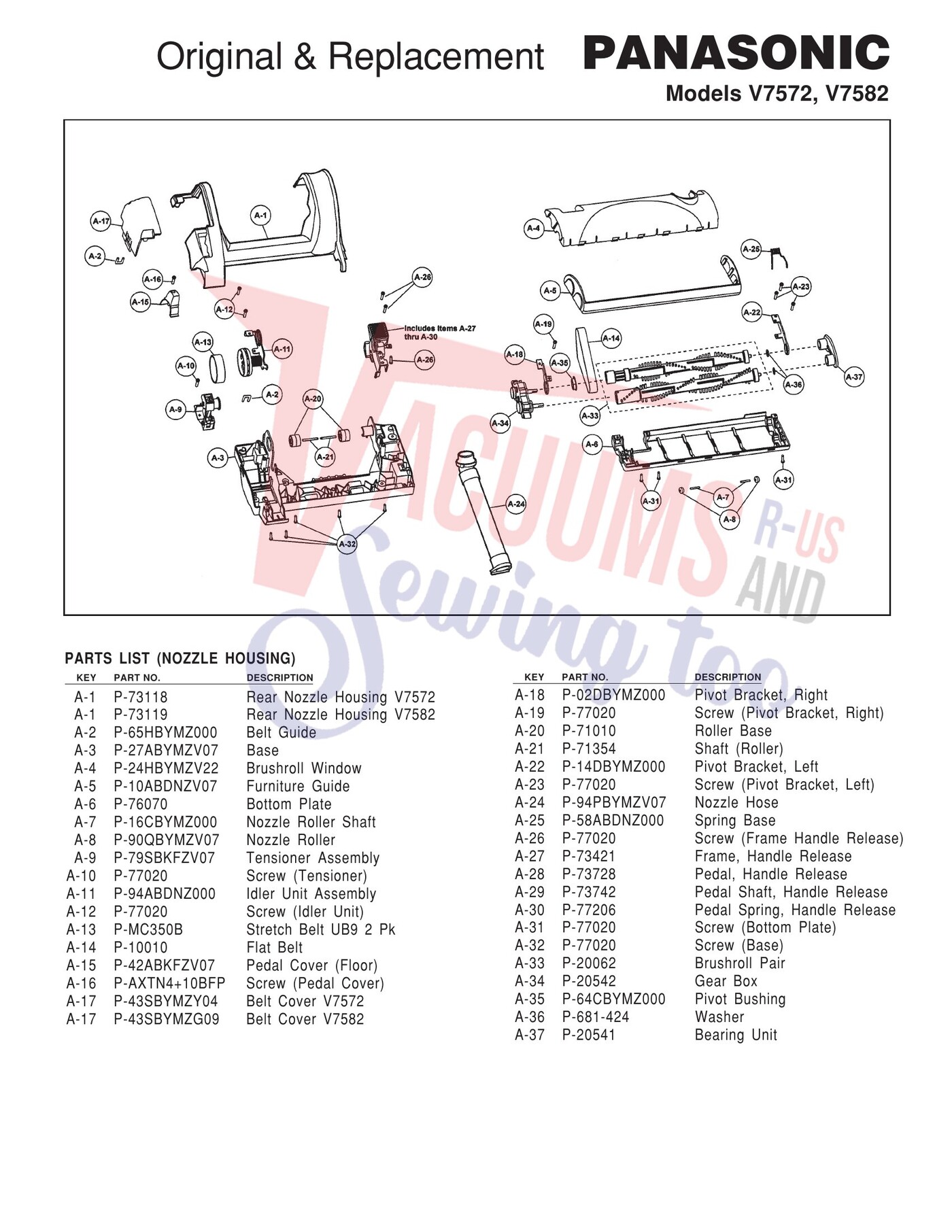

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Rear Nozzle Housing V7572 | 73118 | Not Available |
| 1 | Not Available | Rear Nozzle Housing V7582 | 73119 | Not Available |
| 2 | Not Available | Belt Guide | 65HBYMZ000 | Not Available |
| 3 | Not Available | Base | 27ABYMZV07 | Not Available |
| 4 | Not Available | Brushroll Window | 24HBYMZV22 | Not Available |
| 5 | Not Available | Furniture Guide | 10ABDNZV07 | Not Available |
| 6 | Not Available | Bottom Plate | 76070 | Not Available |
| 7 | Not Available | Nozzle Roller Shaft | 16CBYMZ000 | Not Available |
| 8 | Not Available | Nozzle Roller | 90QBYMZV07 | Not Available |
| 9 | Not Available | Tensioner Assembly | 79SBKFZV07 | Not Available |
| 10 | Not Available | Screw (Tensioner) | 77020 | Not Available |
| 11 | Not Available | Idler Unit Assembly | 94ABDNZ000 | Not Available |
| 12 | Not Available | Screw (Idler Unit) | 77020 | Not Available |
| 13 | Not Available | Stretch Belt UB9 2 Pk | MC350B | Not Available |
| 14 | Not Available | Flat Belt | 10010 | Not Available |
| 15 | Not Available | Pedal Cover (Floor) | 42ABKFZV07 | Not Available |
| 16 | Not Available | Screw (Pedal Cover) | AXTN4+10BFP | Not Available |
| 17 | Not Available | Belt Cover V7572 | 43SBYMZY04 | Not Available |
| 17 | Not Available | Belt Cover V7582 | 43SBYMZG09 | Not Available |
| 18 | Not Available | Pivot Bracket Right | 02DBYMZ000 | Not Available |
| 19 | Not Available | Screw (Pivot Bracket Right) | 77020 | Not Available |
| 20 | Not Available | Roller Base | 71010 | Not Available |
| 21 | Not Available | Shaft (Roller) | 71354 | Not Available |
| 22 | Not Available | Pivot Bracket Left | 14DBYMZ000 | Not Available |
| 23 | Not Available | Screw (Pivot Bracket Left) | 77020 | Not Available |
| 24 | Not Available | Nozzle Hose | 94PBYMZV07 | Not Available |
| 25 | Not Available | Spring Base | 58ABDNZ000 | Not Available |
| 26 | Not Available | Screw (Frame Handle Release) | 77020 | Not Available |
| 27 | Not Available | Frame Handle Release | 73421 | Not Available |
| 28 | Not Available | Pedal Handle Release | 73728 | Not Available |
| 29 | Not Available | Pedal Shaft Handle Release | 73742 | Not Available |
| 30 | Not Available | Pedal Spring Handle Release | 77206 | Not Available |
| 31 | Not Available | Screw (Bottom Plate) | 77020 | Not Available |
| 32 | Not Available | Screw (Base) | 77020 | Not Available |
| 33 | Not Available | Brushroll Pair | 20062 | Not Available |
| 34 | Not Available | Gear Box | 20542 | Not Available |
| 35 | Not Available | Pivot Bushing | 64CBYMZ000 | Not Available |
| 36 | Not Available | Washer | 681-424 | Not Available |
| 37 | Not Available | Bearing Unit | 20541 | Not Available |

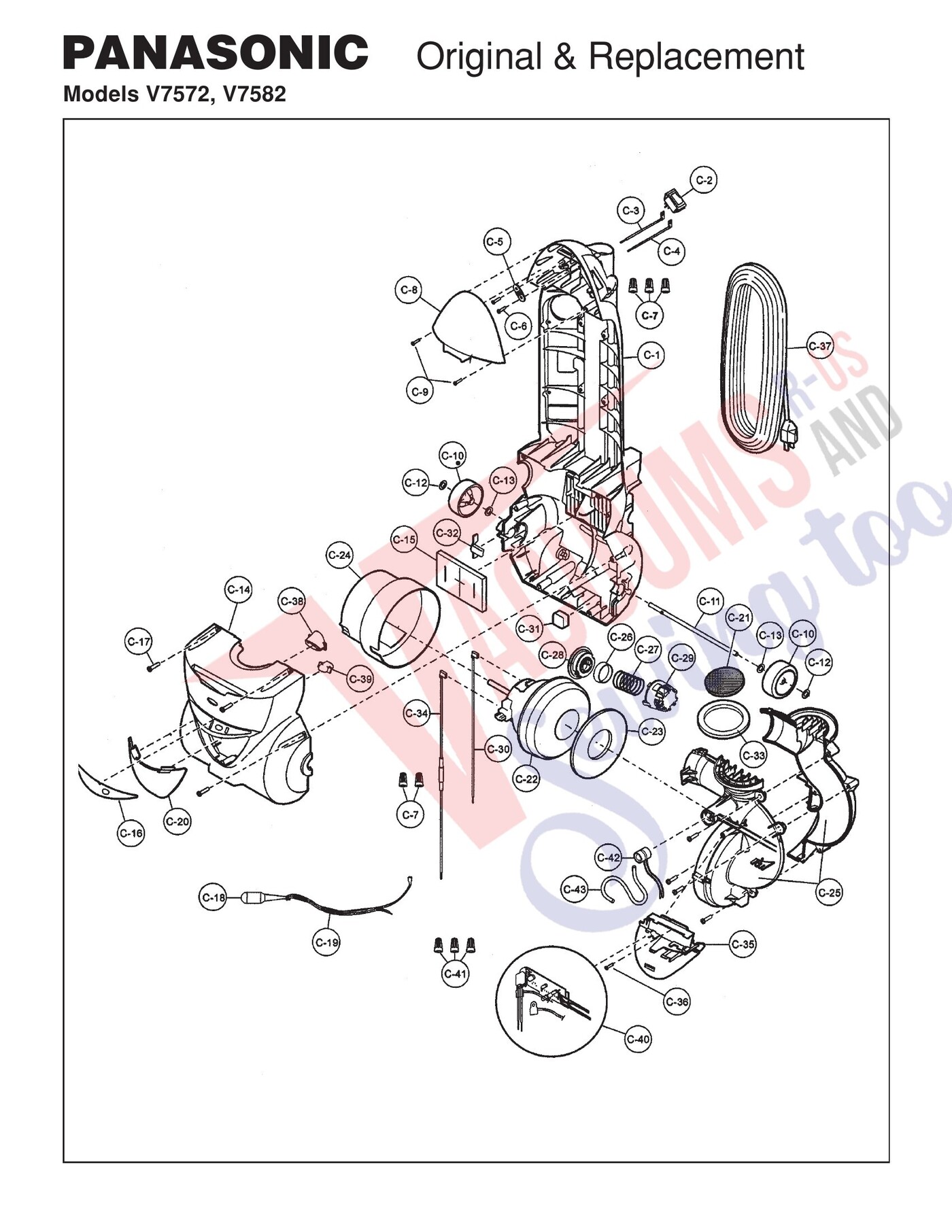

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment V7572 | 75316 | Not Available |
| 1 | Not Available | Dust Compartment V7582 | 75329 | Not Available |
| 2 | Not Available | Switch On/Off | 34015 | Not Available |
| 3 | Not Available | Lead Wire Black | 44GBRMZ000 | Not Available |
| 4 | Not Available | Lead Wire Black with Receptacle | 44GBHFHZ000 | Not Available |
| 5 | Not Available | Cord Stopper | 62E-J20 | Not Available |
| 6 | Not Available | Screw (Cord Stopper) | 77020 | Not Available |
| 7 | No Image | :( WIRE NUT, ORANGE MED 22- 14 TO 2 X 16 GA Part Number: 25882 for M&A | 25882 | $0.67Read more |
| 8 | Not Available | Switch Cover V7572 | 03EBYSZY04 | Not Available |
| 8 | Not Available | Switch Cover V7582 | 03EBYNZG09 | Not Available |
| 9 | Not Available | Screw (Switch Cover) | 77020 | Not Available |
| 10 | Not Available | Wheel (Fuse Assembly Motor) | 71065 | Not Available |
| 11 | Not Available | Shaft (Wheel) | 16CBDNZ000 | Not Available |
| 12 | Not Available | Stopper (Wheel) | 71500 | Not Available |
| 13 | Not Available | Washer (Wheel) | 77118 | Not Available |
| 14 | No Image | Axle, Wheel, Squeegee | 75016 | $160.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Label, Control, Traction | 75081 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Packing (Rear Cover) Window V7582 | 02LBRMZ000 | Not Available |
| 16 | Not Available | Ornamental Plate V7572 | 21TBFHZ000 | Not Available |
| 16 | Not Available | Ornamental Plate V7582 | 21TBDNZ000 | Not Available |
| 17 | Not Available | Screw (Motor Cover) | 77020 | Not Available |
| 18 | Not Available | Bulb | FA-3515 | Not Available |
| 19 | Not Available | Bulb Socket | 93HBYMZ000 | Not Available |
| 20 | Not Available | Window | 21HBDNZ000 | Not Available |
| 21 | Not Available | Secondary Filter | 18041 | Not Available |
| 22 | Not Available | Fan Motor Unit | 60003 | Not Available |
| 23 | Not Available | Seal (Fan Motor) | 22FBFHZ000 | Not Available |
| 24 | Not Available | Motor Support (Rear) | 03FBDNZ000 | Not Available |
| 25 | Not Available | Motor Support | 84CBRMZV07 | Not Available |
| 26 | Not Available | Protector | 69KJMZV07 | Not Available |
| 27 | Not Available | Spring (Protector) | 70KAGZR00 | Not Available |
| 28 | Not Available | Support (Protector) | 18MJMZV07 | Not Available |
| 29 | Not Available | Case (Protector) | 68KJMZV07 | Not Available |
| 30 | Not Available | Lead Wire (Motor) | 43GBDNZ000 | Not Available |
| 31 | Not Available | Sound Absorber | 08QBDNZ000 | Not Available |
| 32 | Not Available | Plastic Holder | 75930 | Not Available |
| 33 | Not Available | Suction Seal | 22EBRMZ000 | Not Available |
| 34 | Not Available | Lead Wire | 99WBDNZ000 | Not Available |
| 35 | Not Available | Bulb Holder | 29FBDN4W03 | Not Available |
| 36 | Not Available | Screw (Bulb Holder) | 77020 | Not Available |
| 37 | Not Available | Power Cord V7572 | 97EADGZV06 | Not Available |
| 37 | Not Available | Power Cord V7582 | 97EAEEZV06 | Not Available |
| 38 | Not Available | Performance Indicator | 08MBRLZ000 | Not Available |
| 39 | Not Available | Dirt Sensor Window V7582 | 08MBDNZ000 | Not Available |
| 40 | Not Available | P.C.B. V7582 | 87GBFHZ000 | Not Available |
| 41 | No Image | :( WIRE NUT, ORANGE MED 22- 14 TO 2 X 16 GA Part Number: 25882 for M&A | 25882 | $0.67Read more |
| 42 | Not Available | Performance Indicator V7582 | 96MBRLZ000 | Not Available |
| 43 | Not Available | Vac Switch Tube V7582 | 62PBRMZ000 | Not Available |

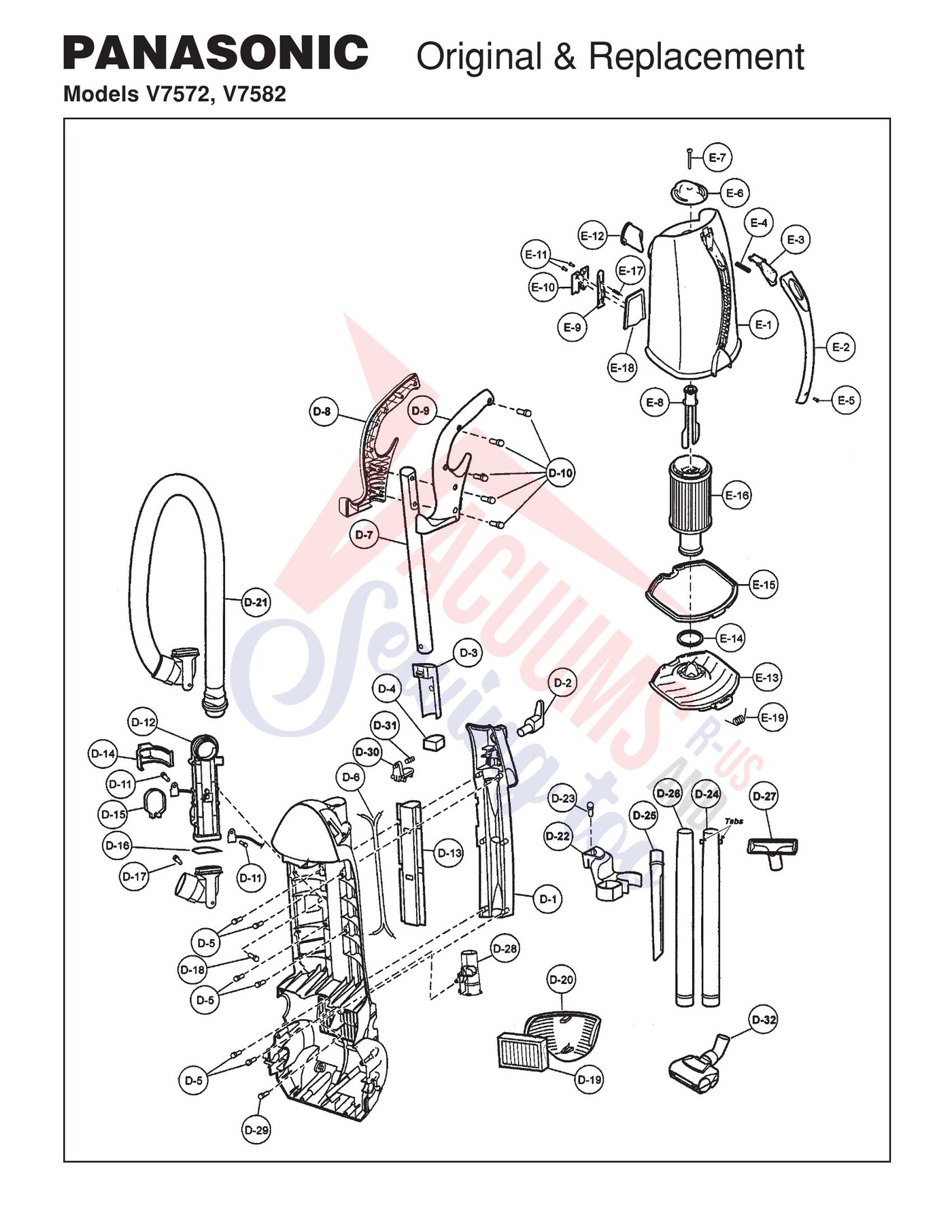

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle Cover V7572 | 76BBRNZV07 | Not Available |
| 1 | Not Available | Filter Case | 42KBRMZV24 | Not Available |
| 1 | Not Available | Handle Cover V7582 | 76BBRMZV07 | Not Available |
| 2 | Not Available | Cover Handle | 06BBRNZV07 | Not Available |
| 2 | Not Available | Upper Storage Cord Hook | 70842 | Not Available |
| 3 | Not Available | Button Release | 13DBRNZV07 | Not Available |
| 3 | Not Available | Handle Seal V7572 | 53BBRNZV07 | Not Available |
| 3 | Not Available | Handle Seal V7582 | 53BBVEZV07 | Not Available |
| 4 | Not Available | Spring Release Button | 18DBRMZ000 | Not Available |
| 4 | Not Available | Stopper (Handle) | 57BRNZ000 | Not Available |
| 5 | Not Available | Screw Handle Cover | AXTN4+10BFP | Not Available |
| 5 | Not Available | Screw (Handle Cover) | 77020 | Not Available |
| 6 | Not Available | Knob | 35KBRMZG08 | Not Available |
| 6 | Not Available | Wire Cord | 37G-V020U | Not Available |
| 7 | Not Available | Screw Knob | 73BZAZ00 | Not Available |
| 7 | Not Available | Handle Pipe V7572 | 64BBRNZ000 | Not Available |
| 7 | Not Available | Handle Pipe V7582 | 64BBYNZ000 | Not Available |
| 8 | Not Available | Cam Cleaning | 61KBRMZ000 | Not Available |
| 8 | Not Available | Handle (Right) | 22BBYMZV07 | Not Available |
| 9 | Not Available | Latch Arm | 08DBRMZV07 | Not Available |
| 9 | Not Available | Handle (Left) | 23BBYMZV07 | Not Available |
| 10 | Not Available | Cover (Latch) | 48HBRNZV07 | Not Available |
| 10 | Not Available | Screw (Handle) | 77020 | Not Available |
| 11 | Not Available | Screw (Latch Cover) | AXTN3+BFY | Not Available |
| 11 | Not Available | Screw (Attach Handle) | 73BAMAZ000 | Not Available |
| 12 | Not Available | Valve Grommet | 45KBRMZV07 | Not Available |
| 12 | Not Available | Tube (Air Path) V7572 | 30JBRMZV07 | Not Available |
| 12 | Not Available | Tube (Air Path) V7582 | 30JBRNZV07 | Not Available |
| 13 | Not Available | Lid Dust Bin | 02HBRMZV07 | Not Available |
| 13 | Not Available | Handle Tube | 69BBRNZ000 | Not Available |
| 14 | Not Available | Seal Filter | 74EBLSZ000 | Not Available |
| 14 | Not Available | Cover (Dirt Sensor) | 48HBDNZV07 | Not Available |
| 15 | Not Available | Seal Dust Bin Lid | 74EBRNZV07 | Not Available |
| 15 | Not Available | Cover (Suction Inlet) | 75640 | Not Available |
| 16 | Not Available | Filter | 18042 | Not Available |
| 16 | Not Available | Packing (Suction Inlet) | 75ABDNZ000 | Not Available |
| 17 | Not Available | Spring Latch Arm | 18DBRNZ000 | Not Available |
| 17 | Not Available | Screw (Suction Inlet) | 77020 | Not Available |
| 18 | Not Available | Cover (Latch/Bottom) | 48HBRMZV07 | Not Available |
| 18 | Not Available | Screw (Air Path Tube) | 77020 | Not Available |
| 19 | Not Available | Spring Dust Bin Lid | 18DBVPZ000 | Not Available |
| 19 | Not Available | Exhaust Filter (HEPA) | 18046 | Not Available |
| 19 |  | Kenmore EF-2 HEPA Filter - 471194 | KER1805 | $10.99Add to cart |
| 20 | Not Available | Filter Cover | 41KBRNZU01 | Not Available |
| 21 | Not Available | Hose | 73626 | Not Available |
| 22 | Not Available | Attachment Holder | 32RBRMZV07 | Not Available |
| 23 | Not Available | Screw (Attachment Holder) | 77020 | Not Available |
| 24 | Not Available | Wand with Tabs | 40PBRLZV06 | Not Available |
| 25 | Not Available | Crevice Tool | 54017 | Not Available |
| 26 | Not Available | Wand | 40PBRKZV06 | Not Available |
| 27 | Not Available | Dusting Brush V7572 | 53020 | Not Available |
| 27 | Not Available | Dusting Brush V7582 | 63RBKHZV06 | Not Available |
| 28 | Not Available | Connector Pipe | 25PBYNZV07 | Not Available |
| 29 | Not Available | Screw (Connector Pipe) | 77020 | Not Available |
| 30 | Not Available | Handle Button Unit V7582 | 75712 | Not Available |
| 31 | Not Available | Spring (Handle) V7582 | 55BBDNZ000 | Not Available |
| 32 | Not Available | Turbo Brush V7582 | 36PBYMZ000 | Not Available |
