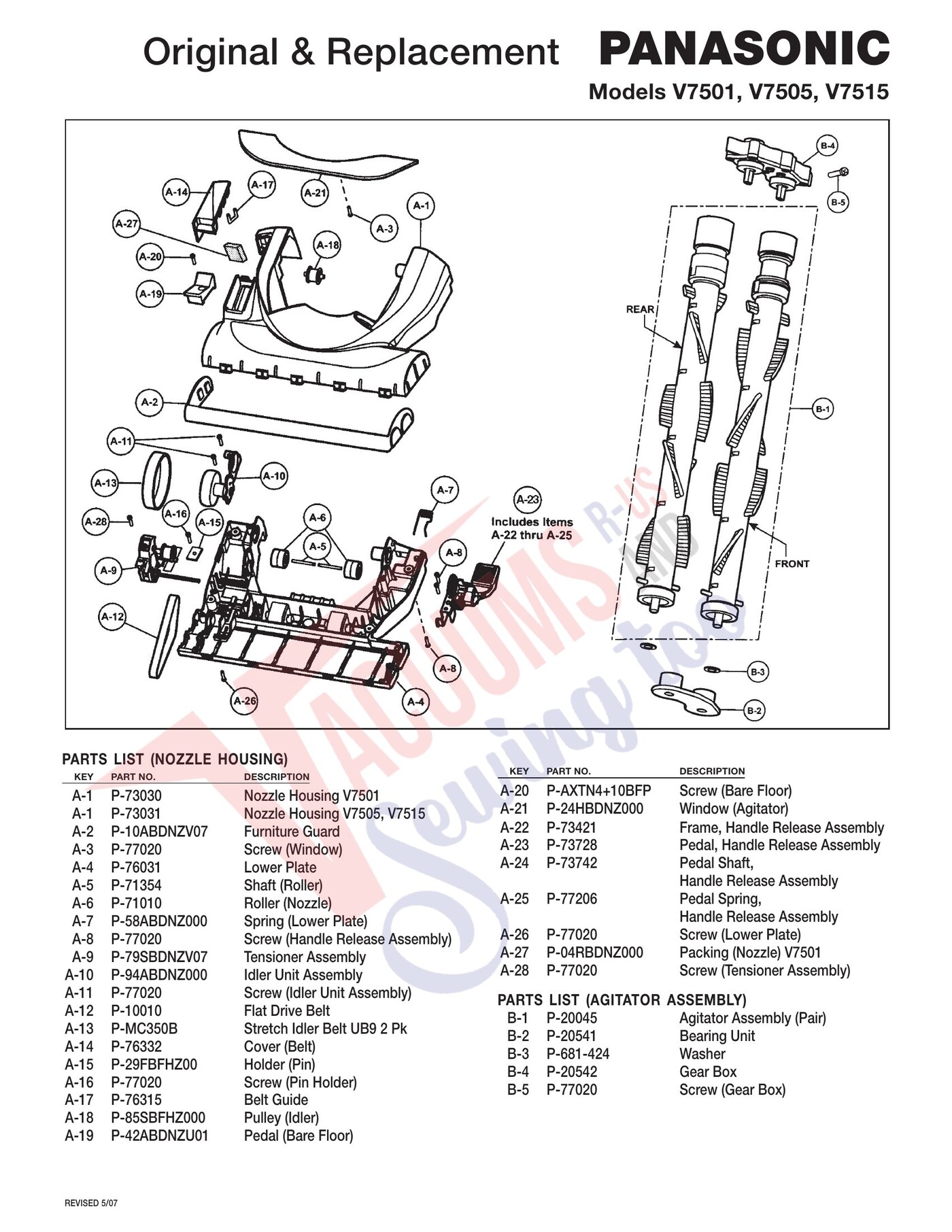

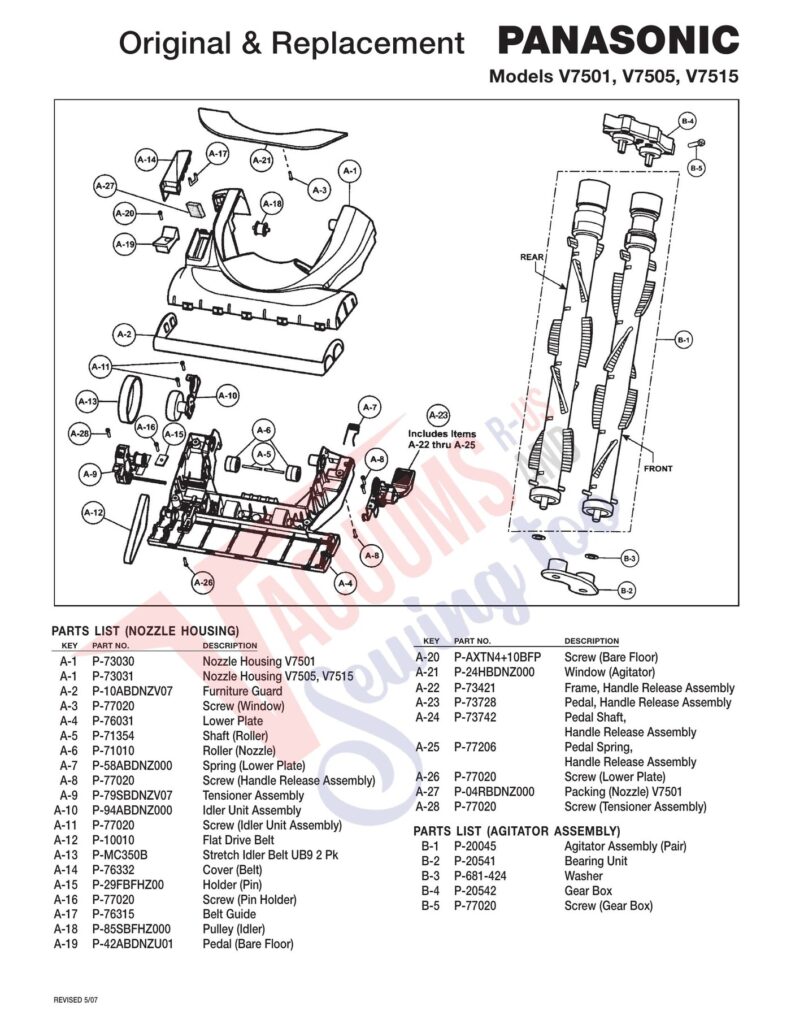

Schematic and parts book for Panasonic V7501, V7505, V7515 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing v7501 | 73030 | Not Available |
| 1 | Not Available | Nozzle Housing v7505 v7515 | 73031 | Not Available |
| 1 | Not Available | Agitator Assembly (Pair) | 20045 | Not Available |
| 2 | Not Available | Furniture Guard | 10ABDNZV07 | Not Available |
| 2 | Not Available | Bearing Unit | 20541 | Not Available |
| 3 | Not Available | screw (Window) | 77020 | Not Available |
| 3 | Not Available | Washer | 681-424 | Not Available |
| 4 | Not Available | Lower Plate | 76031 | Not Available |
| 4 | Not Available | Gear Box | 20542 | Not Available |
| 5 | Not Available | shaft (Roller) Handle Release Assembly | 71354 | Not Available |
| 5 | Not Available | screw (Gear Box) | 77020 | Not Available |
| 6 | Not Available | Roller (Nozzle) | 71010 | Not Available |
| 7 | Not Available | spring (Lower Plate) Handle Release Assembly | 58ABDNZ000 | Not Available |
| 8 | Not Available | screw (Handle Release Assembly) | 77020 | Not Available |
| 9 | Not Available | Tensioner Assembly | 79SBDNZV07 | Not Available |
| 10 | Not Available | idler Unit Assembly | 94ABDNZ000 | Not Available |
| 11 | Not Available | screw (idler Unit Assembly) | 77020 | Not Available |
| 12 | Not Available | Flat drive Belt | 10010 | Not Available |
| 13 | Not Available | stretch idler Belt UB9 2 Pk | MC350B | Not Available |
| 14 | Not Available | Cover (Belt) | 76332 | Not Available |
| 15 | Not Available | Holder (Pin) | 29FBFHZ00 | Not Available |
| 16 | Not Available | screw (Pin Holder) | 77020 | Not Available |
| 17 | Not Available | Belt Guide | 76315 | Not Available |
| 18 | Not Available | Pulley (idler) | 85SBFHZ000 | Not Available |
| 19 | Not Available | Pedal (Bare Floor) | 42ABDNZU01 | Not Available |
| 20 | Not Available | screw (Bare Floor) | AXTN4+10BFP | Not Available |
| 21 | Not Available | Window (Agitator) | 24HBDNZ000 | Not Available |
| 22 | Not Available | Frame Handle Release Assembly | 73421 | Not Available |
| 23 | Not Available | Pedal Handle Release Assembly | 73728 | Not Available |
| 24 | Not Available | Pedal shaft | 73742 | Not Available |
| 25 | Not Available | Pedal spring | 77206 | Not Available |
| 26 | Not Available | screw (Lower Plate) | 77020 | Not Available |
| 27 | Not Available | Packing (Nozzle) v7501 | 04RBDNZ000 | Not Available |
| 28 | Not Available | screw (Tensioner Assembly) | 77020 | Not Available |

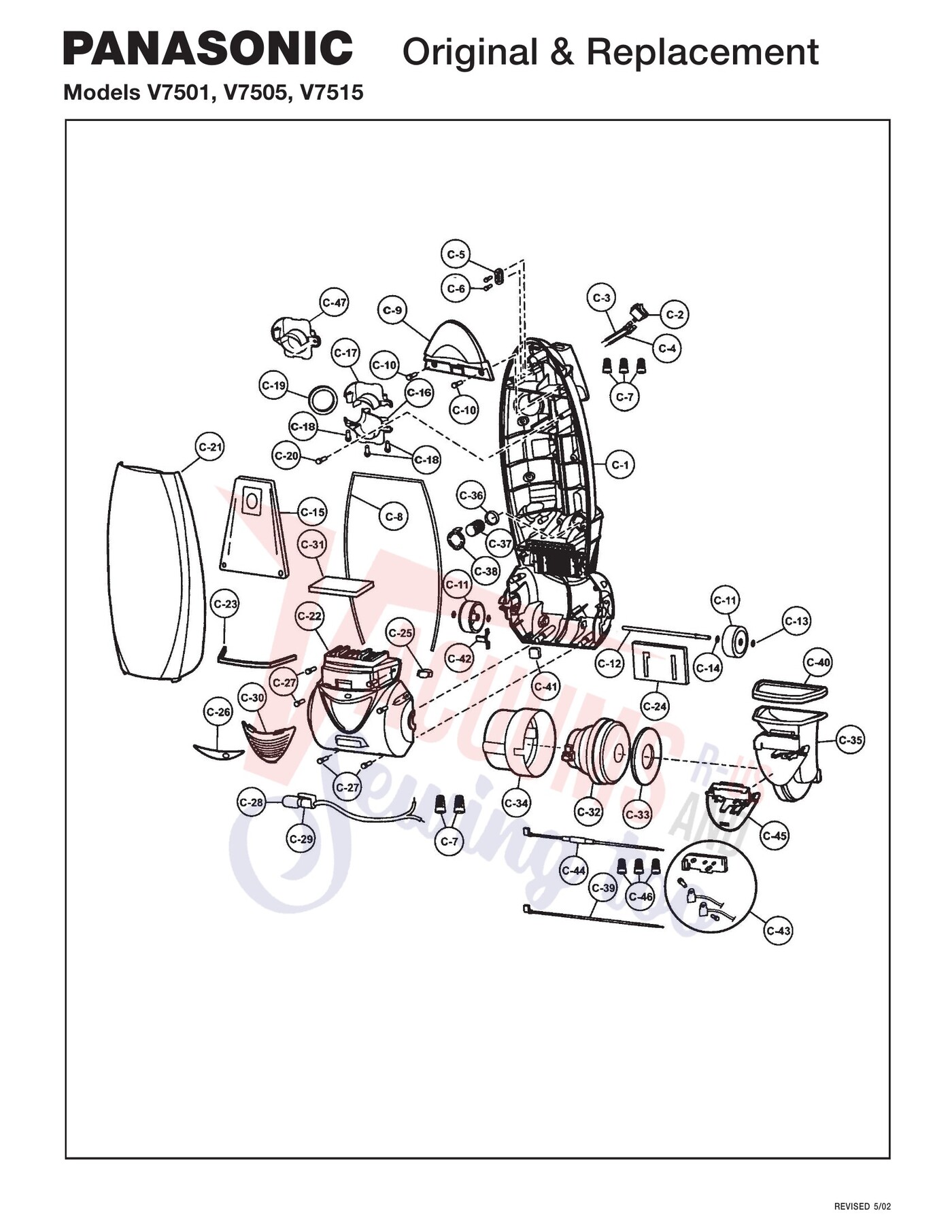

| # | Part image | Description | SKU | Price |
| 1 | Not Available | dust Compartment | 75207 | Not Available |
| 2 | Not Available | ON/OFF switch | 34015 | Not Available |
| 3 | Not Available | Lead Wire Black | 44GBDNZ000 | Not Available |
| 4 | Not Available | Lead Wire Black with Receptacle | 44GBFHZ000 | Not Available |
| 5 | Not Available | Cord stopper | 62E-J20 | Not Available |
| 6 | Not Available | screw (Cord stopper) | 77020 | Not Available |
| 7 | Not Available | Wire connectors | SS-3270 | Not Available |
| 8 | Not Available | Packing (dust Container) | 66KBDNZ000 | Not Available |
| 9 | Not Available | switch Cover v7501 | 03EBDNZU01 | Not Available |
| 9 | Not Available | switch Cover 7505 v7515 | 03EBDNZM09 | Not Available |
| 10 | Not Available | screw (switch Cover) | 77020 | Not Available |
| 11 | Not Available | Wheel | 71065 | Not Available |
| 12 | Not Available | shaft (Wheel) | 16CBDNZ000 | Not Available |
| 13 | Not Available | stopper (Wheel) | 71500 | Not Available |
| 14 | Not Available | Washer (Wheel) | 77118 | Not Available |
| 15 | Not Available | dust Bag (Type U6) 3 Pk | MC141M | Not Available |
| 15 |  | Paper Bag, DVC Style U6 Microlined 10Pk Part Number: 456799 for Panasonic Replacement | 456799 | $14.59Read more |
| 15 | Not Available | Paper bag u6 envirocare 3 Pk | PR-1431 | Not Available |
| 16 | Not Available | Bag supporter (Bottom) v7505 v7515 | 10KBDNZV07 | Not Available |
| 17 | Not Available | Bag supporter (Top) v7505 v7515 | 10KBFHZV07 | Not Available |
| 18 | Not Available | screw (Bag supporter) | 77020 | Not Available |
| 19 | Not Available | Packing (Air Outlet) | 75ABFHZ000 | Not Available |
| 20 | Not Available | screw (Bag supporter) v7501 | 77020 | Not Available |
| 21 | Not Available | dust Cover v7501 | 60KBPMZUU1 | Not Available |
| 21 | Not Available | dust Cover v7505 v7505 v7515 | 60KBFHZMU9 | Not Available |
| 21 | Not Available | dust Cover v7515 | 60KBDNZMU9 | Not Available |
| 22 | No Image | Key, Replacement, Scrubber | 75073 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Kit Valve Scrubber Replacement | 75074 | $331.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | seal (Motor Case) | 74EBFHZ000 | Not Available |
| 24 | Not Available | Packing (Rear Cover) | 02LBDNZ000 | Not Available |
| 25 | Not Available | Led Lens v7515 | 08MBDNZ000 | Not Available |
| 26 | Not Available | Ornamental Plate v7505 | 21TBFHZ000 | Not Available |
| 26 | Not Available | Ornamental Plate v7515 | 21TBDNZ000 | Not Available |
| 27 | Not Available | screw (Motor Case) | 77020 | Not Available |
| 28 |  | Bulb, Double Pole 505-1CR Part Number: 1650 S for Kirby | 1650S | $18.06Read more |
| 29 | Not Available | Bulb socket | 93HAMMZ000 | Not Available |
| 30 | Not Available | Window | 21HBDNZ000 | Not Available |
| 31 | Not Available | secondary Filter | 18045 | Not Available |
| 32 | Not Available | Fan Motor Unit | 60182 | Not Available |
| 33 | Not Available | seal (Fan Motor) | 22FBFHZ000 | Not Available |
| 34 | Not Available | Motor support (Rear) | 03FBDNZ000 | Not Available |
| 35 | Not Available | Motor support (Front) | 02FBDNZ000 | Not Available |
| 36 | Not Available | Protector | 69KJMZV07 | Not Available |
| 37 | Not Available | spring (Protector) | 70KAMAZW00 | Not Available |
| 38 | Not Available | Cover (Protector) | 68KAJDZV07 | Not Available |
| 39 | Not Available | Lead Wire Motor | 43GBDNZ000 | Not Available |
| 40 | Not Available | suction seal | 22FBDNZ000 | Not Available |
| 41 | Not Available | sound Absorber | 08QBDNZ000 | Not Available |
| 42 | Not Available | Plastic Holder | 75930 | Not Available |
| 43 | Not Available | P.C.B. Assembly v7515 | 87GBFHZ000 | Not Available |
| 44 | Not Available | Lead Wire (Fuse Assembly Motor) | 99WBDNZ00 | Not Available |
| 44 | Not Available | Lead Wire (Fuse Assembly Motor) | 99WBDNZ000 | Not Available |
| 45 | Not Available | Bulb - Holder | 29FBDNZW03 | Not Available |
| 46 | Not Available | connector Wire V7515 | SS-3270 | Not Available |
| 47 | Not Available | Bag supporter v7501 | 11KBDNZV07 | Not Available |

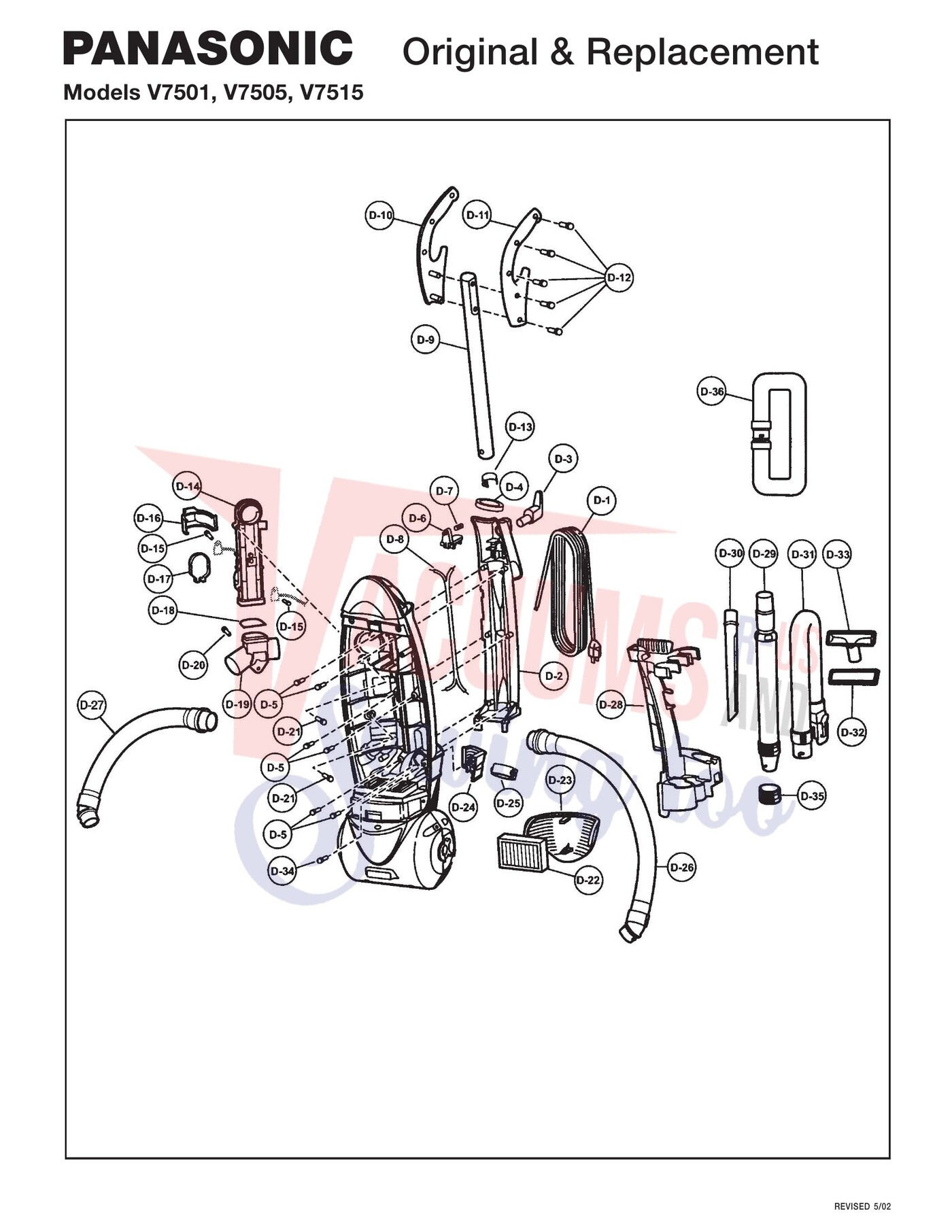

| # | Part image | Description | SKU | Price |
| XX | Not Available | screw (Connector Pipe) | 77020 | Not Available |
| 1 | Not Available | Power Cord v7501 v7505 d- | 97EADGZV06 | Not Available |
| 1 | Not Available | Power Cord v7515 d- | 97EAEEZV06 | Not Available |
| 1 |  | Cord Gray W/ Polorized Plug fit all fit-all | FA3035 | $32.99Read more |
| 2 | Not Available | Handle Cover d- | 76BBDNZV07 | Not Available |
| 3 | Not Available | Upper storage Cord Hook d- | 70842 | Not Available |
| 4 | Not Available | Handle seal d- | 72DBDNZV07 | Not Available |
| 5 | Not Available | screw (Handle Cover) d- | 77020 | Not Available |
| 6 | Not Available | Handle Button Unit d- | 75712 | Not Available |
| 7 | Not Available | spring (Handle) d- | 55BBDNZ000 | Not Available |
| 8 | Not Available | Wire Cord d- | 37G-V200U | Not Available |
| 9 | Not Available | Handle Pipe d- | 64BBFHZ000 | Not Available |
| 10 |  | HOUSING, PIVOT EXL PN Part Number: 70286 for Compact | 70286 | $11.16Read more |
| 11 | | HOUSING, PIVOT EXL PN Part Number: 70286 for Compact | 70286 | $11.16Read more |
| 12 | Not Available | screw (Handle) d- | 77020 | Not Available |
| 13 | Not Available | spring (Handle) d- | 23FBDNZ000 | Not Available |
| 14 | Not Available | Tube (Air Path) v7501 v7505 d- | 30JBDNZV07 | Not Available |
| 14 | Not Available | Tube (Air Path) v7515 d- | 30JBFHZV07 | Not Available |
| 15 | Not Available | screw (P.C.B. Assembly) v7515 d- | AXTN3+8BFY | Not Available |
| 16 | Not Available | Cover (dirt sensor) d- | 48HBDNZV07 | Not Available |
| 17 | Not Available | Cover (suction inlet) | 75640 | Not Available |
| 18 | Not Available | Packing (Connector Pipe) | 75ABDNZ000 | Not Available |
| 19 | Not Available | Connector Pipe | 52PBDNZV07 | Not Available |
| 21 | Not Available | screw (Air Path Tube) | 77020 | Not Available |
| 22 | Not Available | exhaust Filter (HePA) | 18046 | Not Available |
| 23 | Not Available | Filter Cover | 41KBDNZU01 | Not Available |
| 24 | Not Available | Hose Hook Hanger | 53PBDNZV07 | Not Available |
| 25 | Not Available | Hose Ring | 43PBDNZV07 | Not Available |
| 26 | Not Available | Nozzle Hose Left (Long) | 73619 | Not Available |
| 27 | Not Available | Nozzle Hose Right (short) | 73622 | Not Available |
| 28 | Not Available | Tool Caddy Assembly | 69PBDNZV07 | Not Available |
| 29 | Not Available | Telescopic Wand | 50042 | Not Available |
| 30 | Not Available | Crevice Tool | 54017 | Not Available |
| 31 | Not Available | Hose Unit | 73621 | Not Available |
| 32 | Not Available | Brush Holder | 52500 | Not Available |
| 33 | Not Available | Fabric Brush | 52025 | Not Available |
| 34 | Not Available | screw (Hose Hook Hanger) | 77020 | Not Available |
| 35 | Not Available | suction inlet Control | 54PYUZV06 | Not Available |
| 36 | Not Available | Hose stretch With “J” Lock | 40005 | Not Available |
