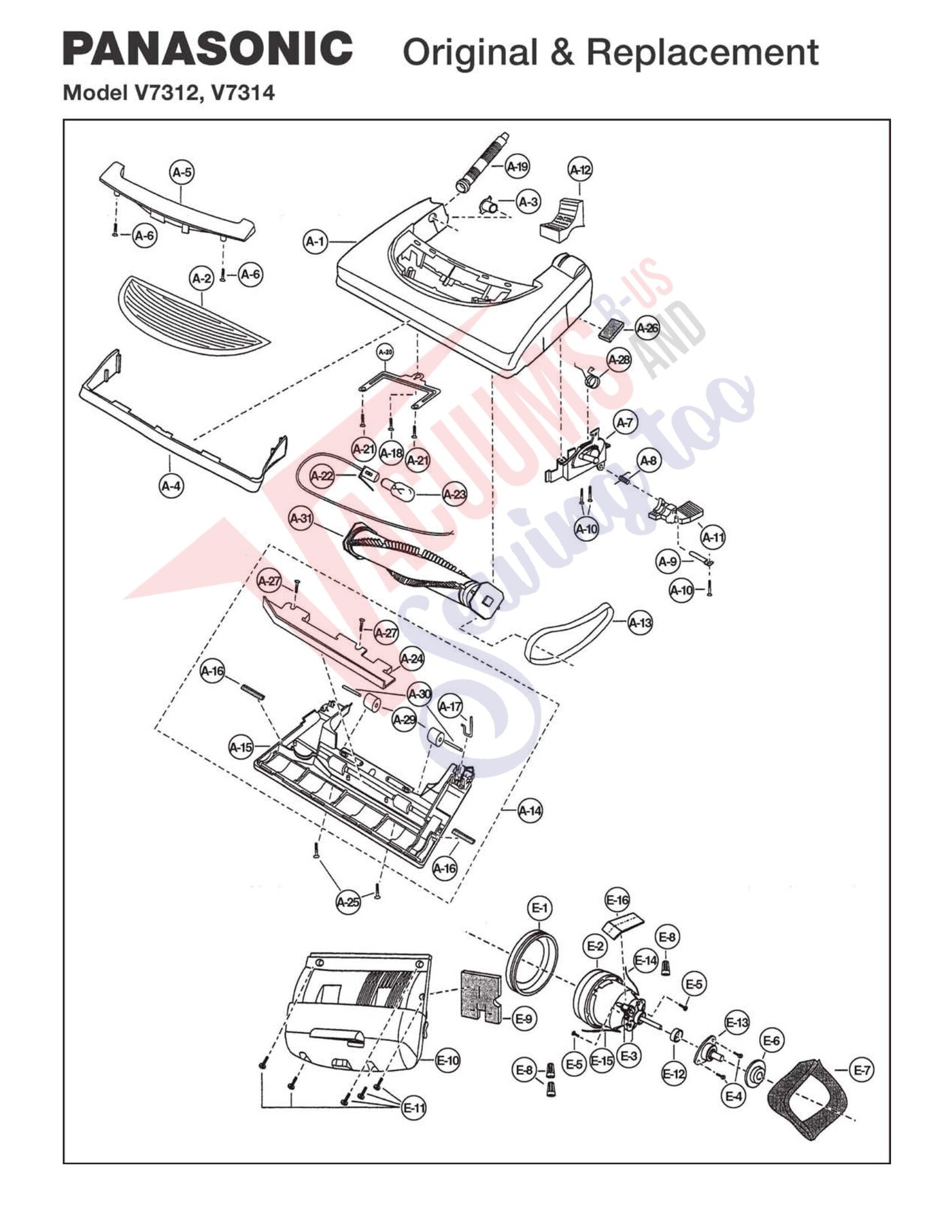

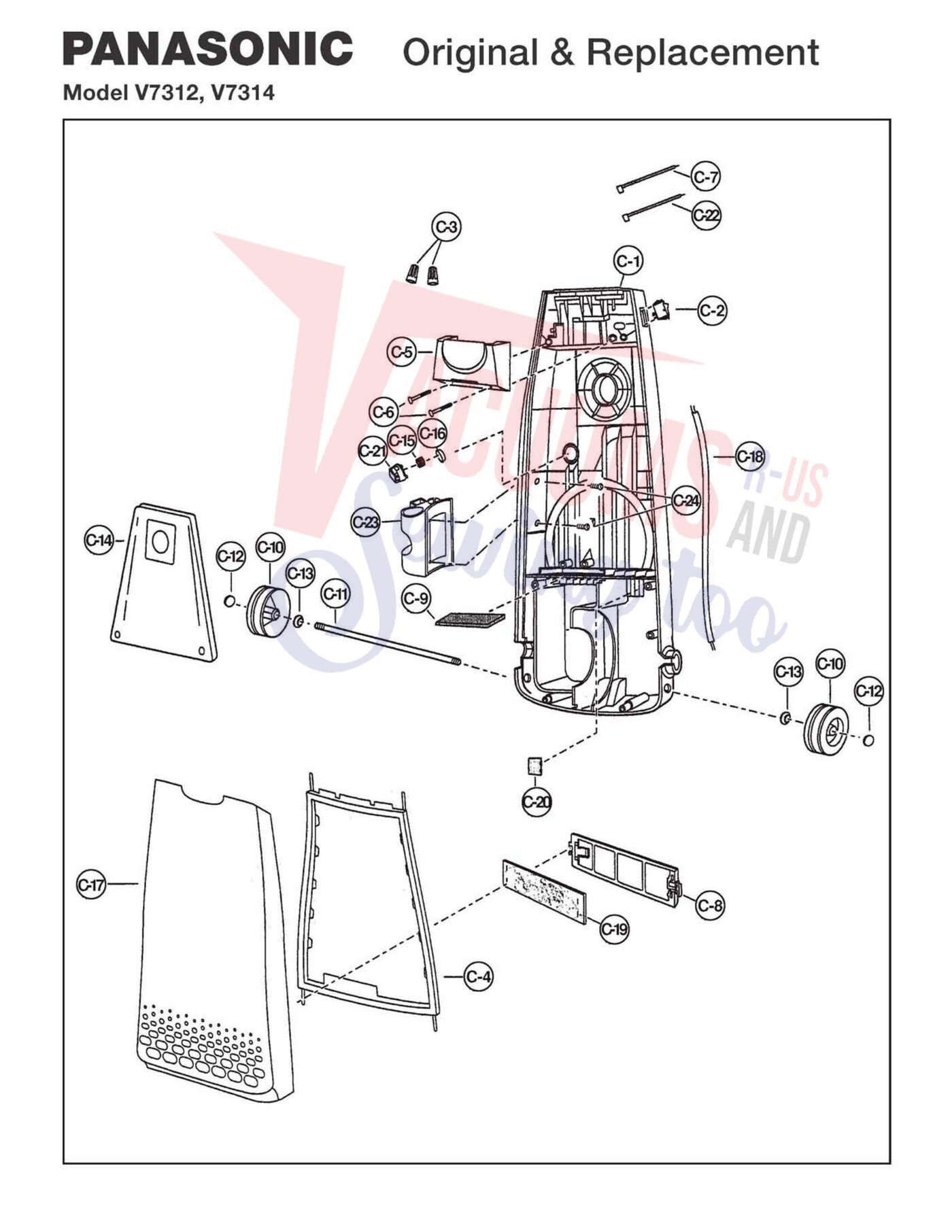

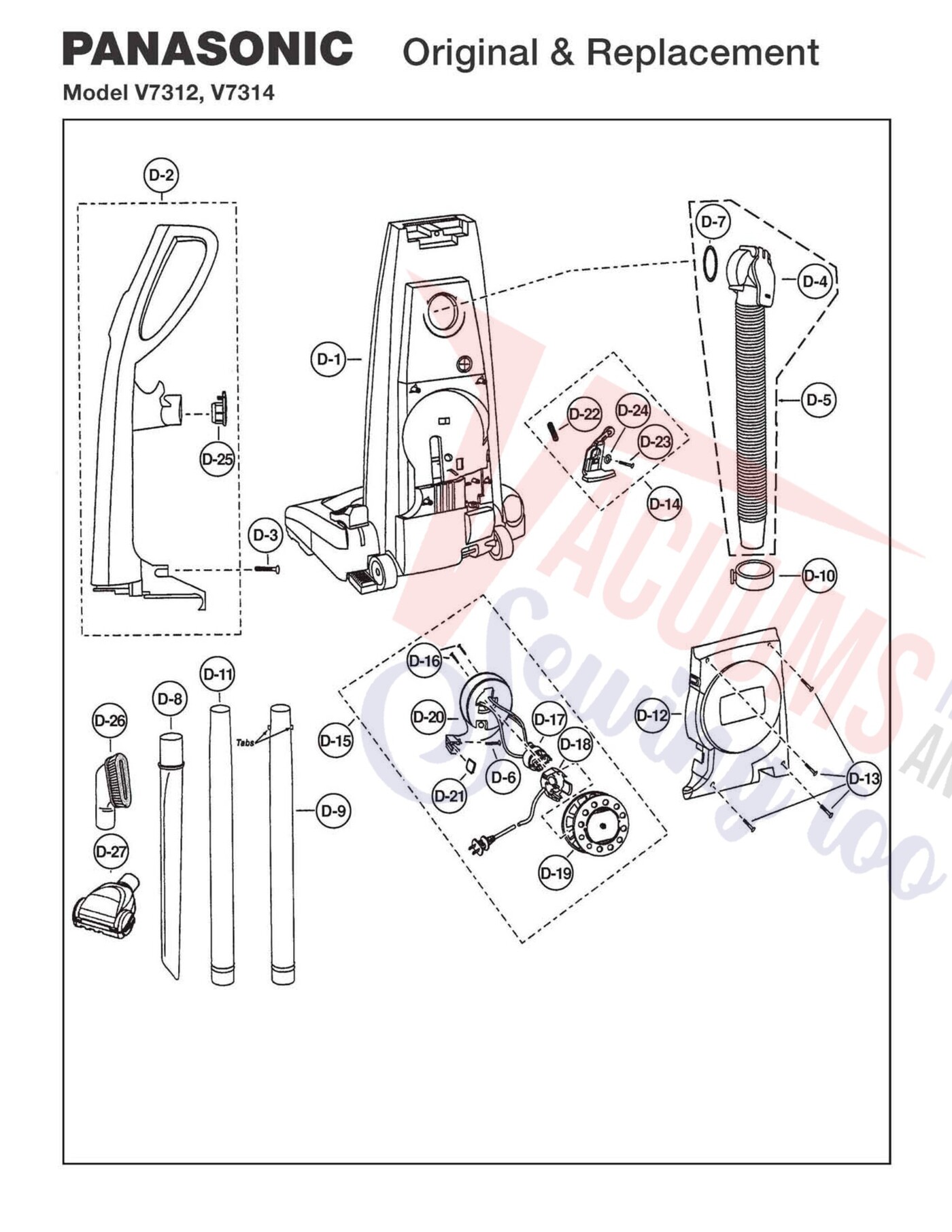

Schematic and parts book for panasonic V7312, V7314 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | No Image | COVER, BRUSHROLL MOTOR 5892 Part Number: 73151 for Eureka | 73151 | $7.14Read more |
| 1 | Not Available | Motor support Rubber (Front) | 76768 | Not Available |
| 1 | Not Available | Nozzle Housing v7314 | 73165 | Not Available |
| 2 | Not Available | Fan Motor Unit v7312 | 60154 | Not Available |
| 2 | Not Available | Window | 75825 | Not Available |
| 2 | Not Available | Fan Motor Unit v7314 | 60164 | Not Available |
| 3 | Not Available | shaft (Plastic) | 73900 | Not Available |
| 3 | Not Available | Carbon Brush Assembly | 63033 | Not Available |
| 4 | Not Available | Furniture Guard | 74051 | Not Available |
| 4 | Not Available | screw (Flange) | AXTN4+10FFY | Not Available |
| 5 | Not Available | Light Cover v7312 | 24HAFVZG0F | Not Available |
| 5 | Not Available | screw (Carbon Brush Assembly) | 68AAKEZ00 | Not Available |
| 5 | Not Available | Light Cover v7314 | 24HAFVZN04 | Not Available |
| 6 | Not Available | Motor support Rubber (Rear) | 03FAFYZ00 | Not Available |
| 6 | Not Available | screw (Light Cover) | AXTN4+20BFY | Not Available |
| 7 | Not Available | Noise suppressor | 99GAMMZ00 | Not Available |
| 7 | Not Available | Belt Lifter Ass'y | 55900 | Not Available |
| 8 | Not Available | Wire connector | SS-3270 | Not Available |
| 8 | Not Available | spring (Pedal) | 77206 | Not Available |
| 9 | Not Available | Packing (Rear Cover) | 02LATEZ00 | Not Available |
| 9 | Not Available | shaft (Pedal) | 73741 | Not Available |
| 10 | No Image | Plug Hole 1 Inch Black | 75099 | $13.99Read more |
| 10 | Not Available | screw | AXTN4+14BFY | Not Available |
| 11 | Not Available | screw (Motor Case) | 77020 | Not Available |
| 11 | Not Available | Pedal (Black) | 73728 | Not Available |
| 12 | Not Available | Ring spacer v7312 | 53MAKEZ00 | Not Available |
| 12 | Not Available | Ring spacer v7314 | 53MCMZZ000 | Not Available |
| 12 | Not Available | Foot Pedal Cover | 42AAFYZV06 | Not Available |
| 13 | Not Available | Flange | 25SAFYZ00 | Not Available |
| 13 | Not Available | Belt UB8 2Pk | MC270BV | Not Available |
| 13 |  | Sub for SKU: PR-1011 Belt,Panasonic Style UB8 7300 Series Uprights | PR-1010 | $10.99Read more |
| 13 |  | Compatible alternateBelt, Sharp Upright All Twin Energy Models Part Number: 12523 for Sharp Replacement More Product Details | 12523 | $36.49Add to cart Special order — allow 2-4 weeks. |
| 13 |  | Compatible alternateMC-V270B Compact Belt for Kenmore type UB8 2Pk compat with eureka NEU192 More Product Details | PR-1011 | $6.00Add to cart |
| 14 | Not Available | Lead Wire (Motor) | 38GARTZ00 | Not Available |
| 14 | Not Available | Lower Plate Assembly | 76058 | Not Available |
| 15 | Not Available | Lead Wire Assembly | 36030 | Not Available |
| 15 | Not Available | Lower Plate | 27AATDZV07 | Not Available |
| 16 | Not Available | Cooling Guide | 41FATCZ00 | Not Available |
| 16 | Not Available | Packing (Lower Plate) | 19AARKZV00 | Not Available |
| 17 | Not Available | Belt Cover | 43SAFVZ00 | Not Available |
| 18 | Not Available | screw (slider support) | 77012 | Not Available |
| 19 | Not Available | Nozzle Hose | 72404 | Not Available |
| 20 | Not Available | slider support | 53KAFVZ00 | Not Available |
| 21 | Not Available | screw (slider support) | 77020 | Not Available |
| 22 | Not Available | socket (Bulb) | 93HURZ00 | Not Available |
| 23 | Not Available | Bulb | FA-3515 | Not Available |
| 24 | Not Available | Body (Lower Plate) | 06AAJUZ00 | Not Available |
| 25 | Not Available | screw (Lower Plate) | 77012 | Not Available |
| 26 | Not Available | Packing (Nozzle) | 04RAFWZ00 | Not Available |
| 27 | Not Available | screw (Body Lower Plate) | 77020 | Not Available |
| 28 | Not Available | spring (shifter Return) | 73427 | Not Available |
| 29 | Not Available | Wheel | 71010 | Not Available |
| 30 | Not Available | shaft (Wheel) | 71354 | Not Available |
| 31 | No Image | Adaptor Pipe | 20022 | $0.00Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment | 75324 | Not Available |
| 2 | Not Available | On-Off switch U6 Microfiltration 3 Pk | 34015 | Not Available |
| 3 | Not Available | Wire connector | SS-3270 | Not Available |
| 4 | Not Available | Packing (Dust Container) u6 Microlined DVO 3 Pk | 66NAFVZV07 | Not Available |
| 5 | Not Available | switch Cover v7312 | 03EAFVZG0F | Not Available |
| 5 | Not Available | switch Cover v7314 U6 Microfiltration ENV 3 Pk | 03EAFYZN04 | Not Available |
| 6 | Not Available | screw (switch Cover) | 77020 | Not Available |
| 7 | Not Available | Lead Wire (Black) | 44GYVZU00 | Not Available |
| 8 | No Image | Battery Gauge | 18460 | $0.00Read more |
| 9 | Not Available | secondary Filter (Foam) | 18074 | Not Available |
| 10 | Not Available | Wheel | 71125 | Not Available |
| 11 | Not Available | shaft (Wheel) | 71375 | Not Available |
| 12 | Not Available | stopper (Wheel) | 71500 | Not Available |
| 13 | Not Available | Washer (Wheel) | 77118 | Not Available |
| 14 | Not Available | Paper Bag | MC141M | Not Available |
| 14 | Not Available | Paper Bag | PR-1471 | Not Available |
| 14 | Not Available | Paper Bag | PR-14313 | Not Available |
| 15 | Not Available | Protector spring | 70KAGZZR00 | Not Available |
| 16 | Not Available | Protector | 50522 | Not Available |
| 17 | Not Available | Dust Cover v7312 | 60KBZEZG0F | Not Available |
| 17 | Not Available | Dust Cover v7314 | 60KBZEZNU4 | Not Available |
| 18 | Not Available | Wire Cord | 37G-V200U | Not Available |
| 19 | Not Available | Exhaust Filter (HEPA) 2 Pk | MC190H | Not Available |
| 20 | Not Available | Rear Cover Packing | 02LATDZ00 | Not Available |
| 21 | Not Available | Protector Cover | 68KAJDZV06 | Not Available |
| 22 | Not Available | Lead Wire (Black) | 44GTDZU00 | Not Available |
| 23 | Not Available | Wand Holder | 70PATCZV07 | Not Available |
| 24 | Not Available | screw (Wand Holder) | 77020 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment | 75324 | Not Available |
| 2 | Not Available | Handle Assembly v7312 | 95BBADZG0F | Not Available |
| 2 | Not Available | Handle Assembly v7314 | 95BBADZN04 | Not Available |
| 3 | Not Available | screw (Handle) | 73BZAZ00 | Not Available |
| 4 | Not Available | Cover (suction inlet) | 75690 | Not Available |
| 5 | Not Available | Hose v7312 | 73609 | Not Available |
| 5 | Not Available | Hose v7314 | 73611 | Not Available |
| 6 | Not Available | screw (Bracket) | 77020 | Not Available |
| 7 | Not Available | Packing (suction inlet) | 64HAMMZ00 | Not Available |
| 8 | Not Available | Crevice Tool | 54017 | Not Available |
| 9 | Not Available | Extension Wand (With Tabs) | 50040 | Not Available |
| 10 | Not Available | Hose Ring | 43PAFXZV06 | Not Available |
| 11 | Not Available | Extension Wand (Without Tabs) | 50030 | Not Available |
| 12 | Not Available | Cord Reel Cover | 36NATCZV07 | Not Available |
| 13 | Not Available | screw (Cord Reel Cover) | 77020 | Not Available |
| 14 | Not Available | Brake Lever Assembly | 94NATCZG08 | Not Available |
| 15 | No Image | Transaxle Bracket | 30765 | $0.00Read more |
| 16 | Not Available | screw (Cord Reel Assembly) | 77020 | Not Available |
| 17 | Not Available | Contact Base Assembly | 19NATCZ00 | Not Available |
| 18 | Not Available | Contact Disc Assembly | 98NAKTZ00 | Not Available |
| 19 | Not Available | Cord Reel Hub Assembly | 01NAKTZ00 | Not Available |
| 20 | Not Available | Bracket (Cord Reel) | 04AATCZV06 | Not Available |
| 21 | Not Available | Cord Guide | 14NATCZ00 | Not Available |
| 22 | Not Available | spring (Brake Lever) | 47NATCZ00 | Not Available |
| 23 | Not Available | screw (Brake Lever) | 77020 | Not Available |
| 24 | Not Available | Washer (Brake Lever) | 77120 | Not Available |
| 25 | Not Available | Handle Cover | 07BATCZV07 | Not Available |
| 26 | Not Available | Dusting Brush | 53020 | Not Available |
| 27 | Not Available | Turbo Hand Tool v7314 | 80SCNFZV07 | Not Available |
