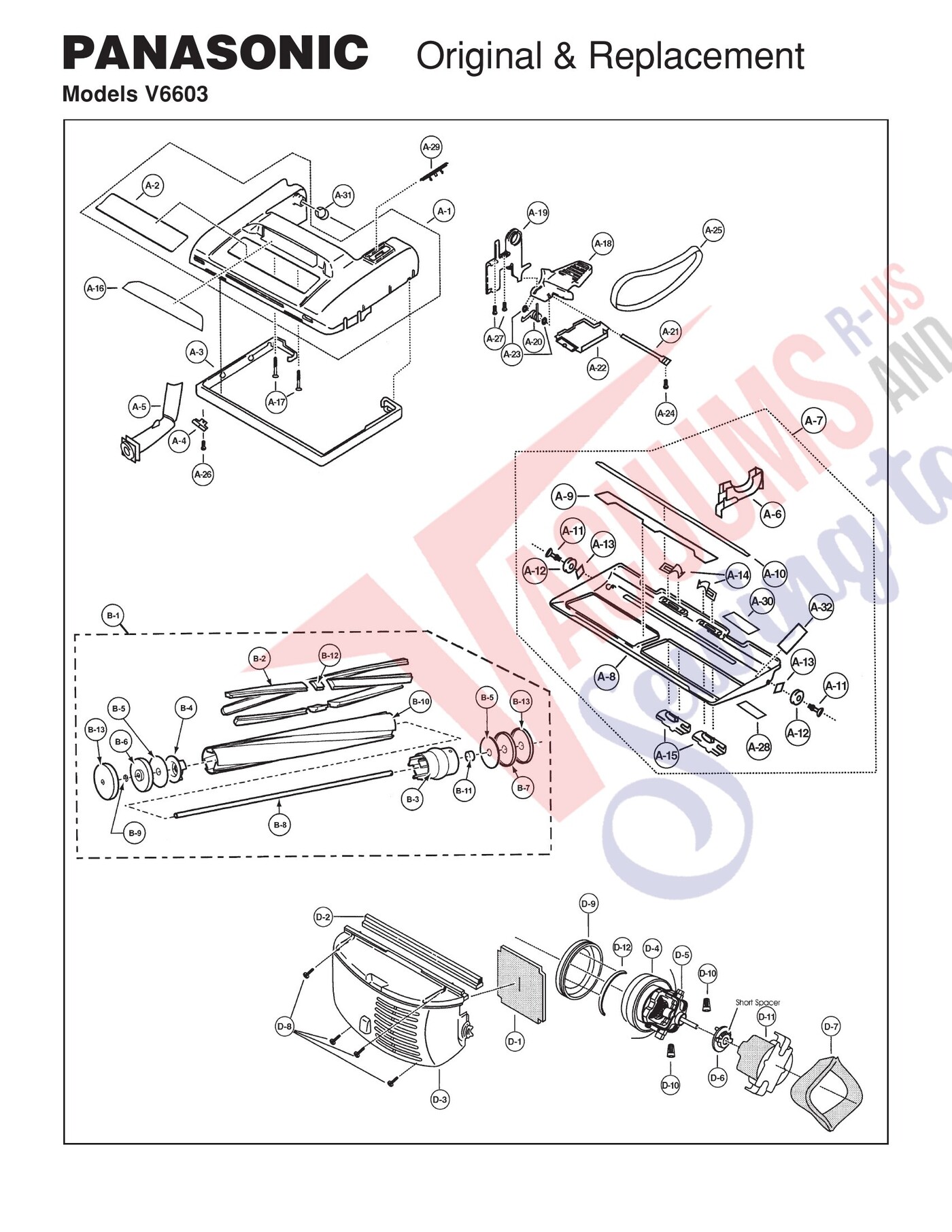

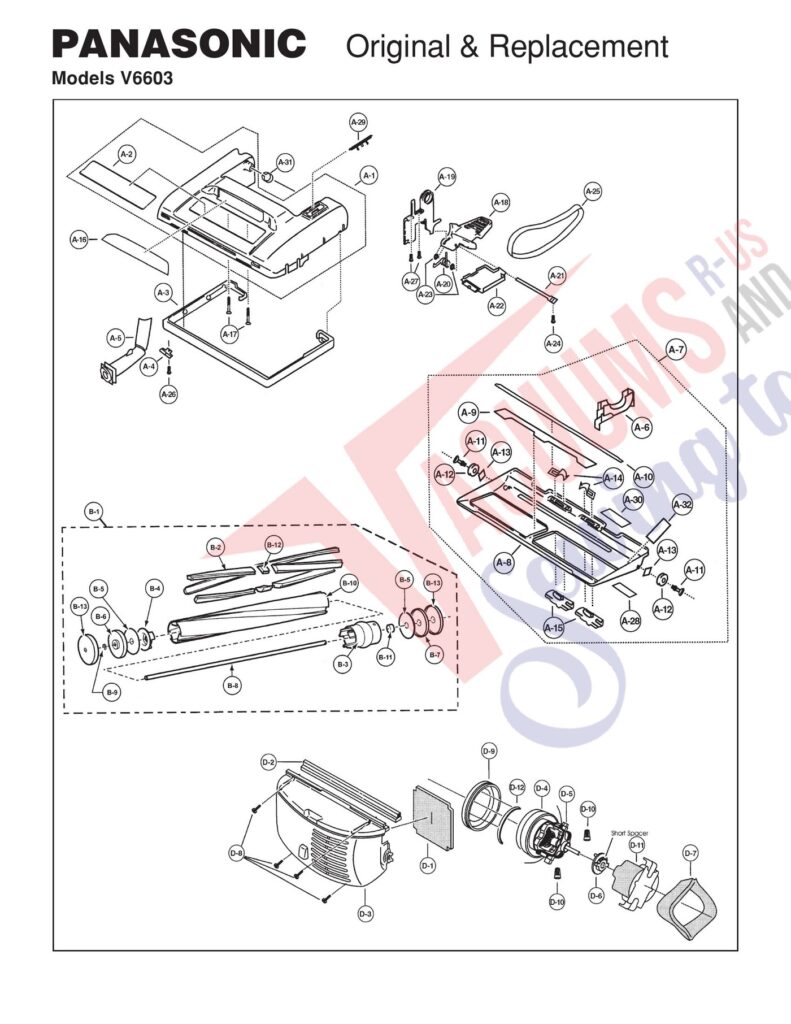

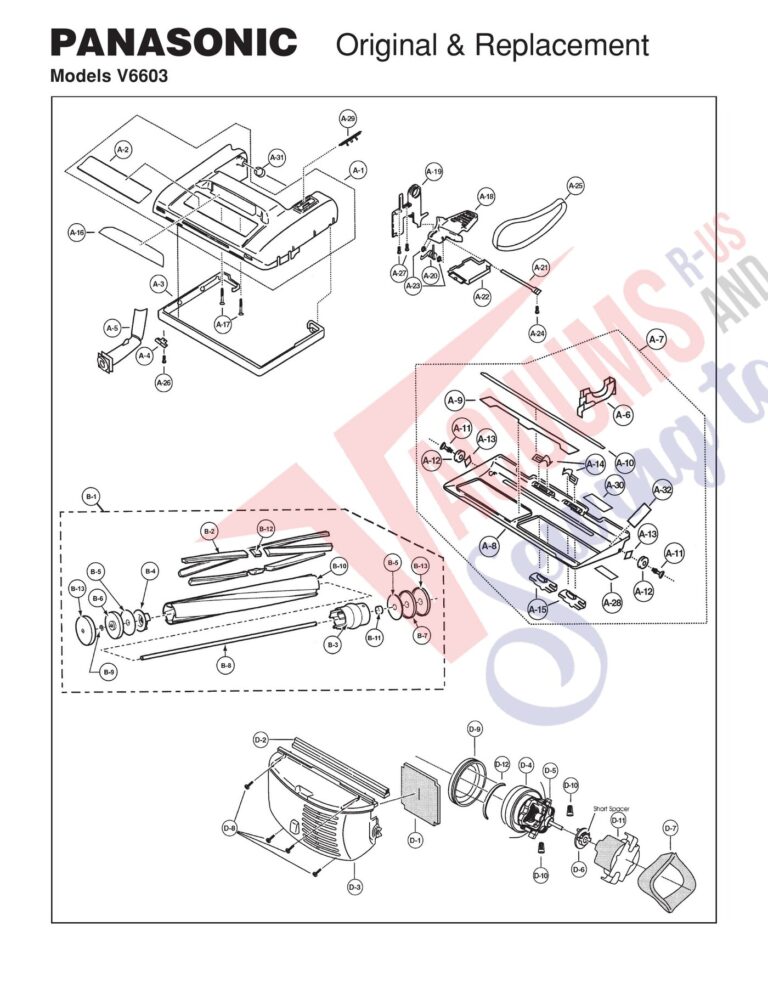

Schematic and parts book for Panasonic V6603 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing | 73116 | Not Available |
| 1 | Not Available | Rear Cover Packing | 18300 | Not Available |
| 1 | Not Available | Brushroll Assembly | 20047 | Not Available |
| 2 | Not Available | Top Mark | 02TCBZZ000 | Not Available |
| 2 | Not Available | Motor Case Packing | 19FV3ZV06 | Not Available |
| 2 | Not Available | Brush Strip (4 Pk) | 22030 | Not Available |
| 3 | Not Available | Furniture Guard | 74045 | Not Available |
| 3 | No Image | Rubber Mount | 75089 | $0.00Read more |
| 3 | Not Available | Agitator Pulley | 29SBVNZ000 | Not Available |
| 4 | Not Available | Hose Fitting Plate | 27S-V30 | Not Available |
| 4 | Not Available | Fan Motor Unit | 60115 | Not Available |
| 4 | Not Available | Agitator Holder | 41SBVNZ000 | Not Available |
| 5 | Not Available | Nozzle Pipe | 73435 | Not Available |
| 5 | Not Available | Carbon Brush (Set) | 63045 | Not Available |
| 5 | Not Available | Filter | 44KBVNZ000 | Not Available |
| 6 | Not Available | Belt Cover | 76330 | Not Available |
| 6 | Not Available | Motor Support Rubber (Rear) | 03FTDZ00 | Not Available |
| 6 | Not Available | End Cap (Inside Non-Belt End) | 20550 | Not Available |
| 7 | Not Available | Bottom Plate Assembly | 76043 | Not Available |
| 7 | Not Available | Noise Suppressor | 99G-L310X | Not Available |
| 7 | No Image | HOUSING, REAR 9875 Part Number: 02055-1 for Eureka | 20551 | $28.71Read more |
| 8 | Not Available | Lower Plate Only | 27AARGZ00 | Not Available |
| 8 | Not Available | Screw | 77020 | Not Available |
| 8 | Not Available | Brushroll Shaft | 57RBYXZ000 | Not Available |
| 9 | Not Available | Packing Bottom Plate Front | 76125 | Not Available |
| 9 | Not Available | Motor Support Rubber (Front) | 76925 | Not Available |
| 9 | Not Available | E-Clip | 23FBVNZ000 | Not Available |
| 10 | Not Available | Packing Bottom Plate Back | 76127 | Not Available |
| 10 | Not Available | Wire Nut | SS-3270 | Not Available |
| 10 | Not Available | Brush Holder | 56RBYYZ000 | Not Available |
| 11 | Not Available | Roller Shaft | 76845 | Not Available |
| 11 | Not Available | Motor Shroud | 93FTEZ0U | Not Available |
| 11 | Not Available | Spacer | 74SBYXZ000 | Not Available |
| 12 | Not Available | Roller (Floor Nozzle) | 90RJMZ00 | Not Available |
| 12 | Not Available | Spacer Long | 53MTEZ00 | Not Available |
| 12 | Not Available | Spacer (Brushes) | 34SBYYZ000 | Not Available |
| 13 | Not Available | Spring Nut (Push On) | 77150 | Not Available |
| 13 | Not Available | Brushroll End Cap | 20523 | Not Available |
| 14 | Not Available | Stop Latch Spring | 70NYUZ00 | Not Available |
| 15 | Not Available | Latch | 76145 | Not Available |
| 16 | Not Available | Window | 21H1LZU03 | Not Available |
| 17 | Not Available | Screw (Nozzle Housing) | 68A-V30 | Not Available |
| 18 | Not Available | Pedal | 47A-V30U | Not Available |
| 19 | Not Available | Frame | 73419 | Not Available |
| 20 | Not Available | Pedal (Spring) | 77207 | Not Available |
| 21 | Not Available | Pedal Shaft | 73741 | Not Available |
| 22 | Not Available | Rear Belt Cover | 73430 | Not Available |
| 23 | Not Available | E-Clip | 77105 | Not Available |
| 24 | Not Available | Screw (Pedal Shaft) | XTN4+20BFY | Not Available |
| 25 | Not Available | Belt UB4 2Pk | MC260B | Not Available |
| 25 | Not Available | Belt UB4 | SHR-1000 | Not Available |
| 26 | Not Available | Screw (Hose Fitting Plate) | 77020 | Not Available |
| 27 | Not Available | Screw (Frame) | XTN4+20BFY | Not Available |
| 28 | Not Available | Caution Label | 08Z-V30 | Not Available |
| 29 | Not Available | Cover Plate | 24ATDZU03 | Not Available |
| 30 | Not Available | Caution Label | 07ZADFZ00 | Not Available |
| 31 | Not Available | Body Supporter | 02C-1L0 | Not Available |
| 32 | Not Available | Packing (Bottom Plate) | 39AARGZ00 | Not Available |

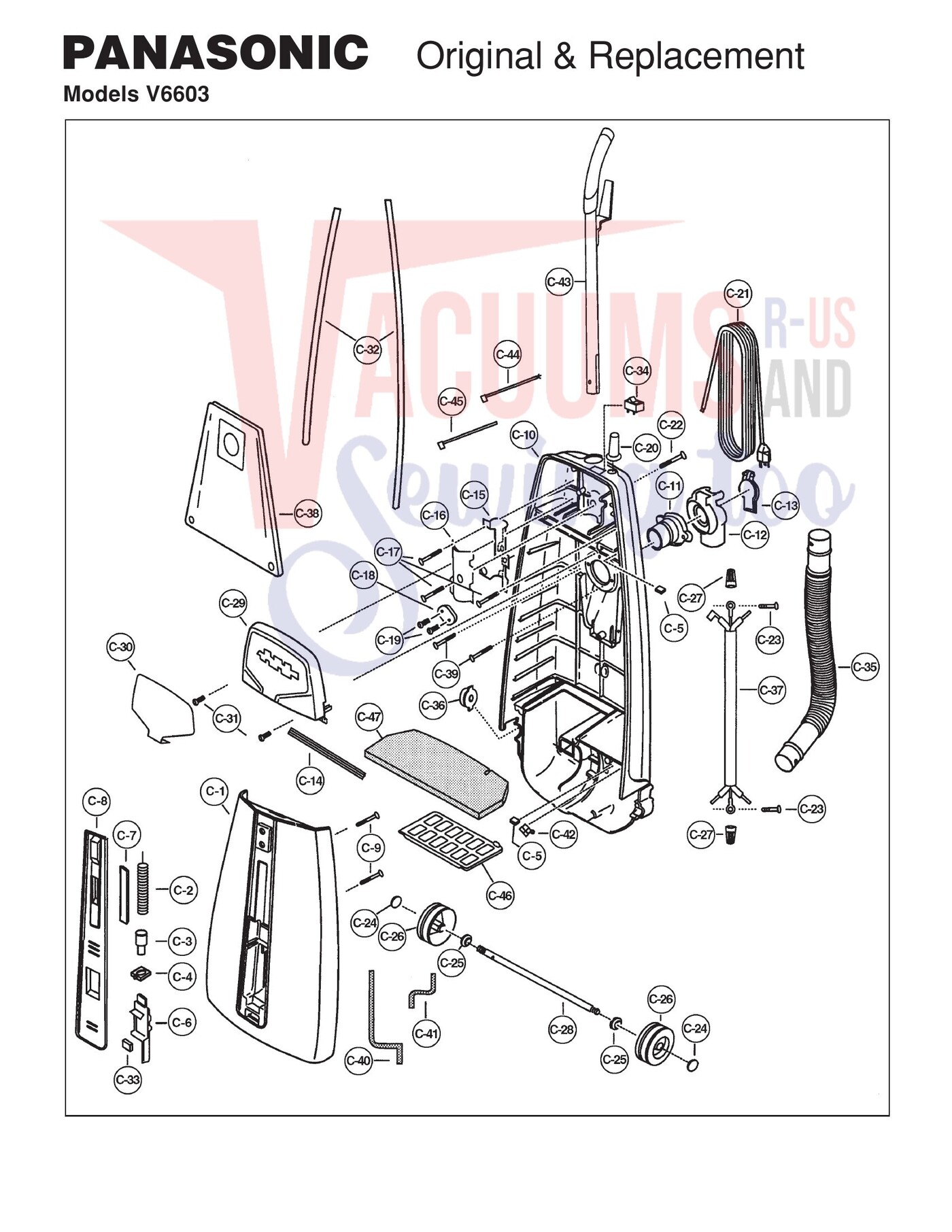

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Cover | 60KCBZZU03 | Not Available |
| 2 | Not Available | Indicator Spring | 04M-1L0 | Not Available |
| 3 | Not Available | Indicator Lead | 97M-V30 | Not Available |
| 4 | Not Available | Indicator Lead Supporter | 20M-V30 | Not Available |
| 5 | Not Available | Tight Packing | 81A-1L000 | Not Available |
| 6 | Not Available | Suction Control Lever | 06MV31V07 | Not Available |
| 7 | Not Available | Indicator Window | 08M-V30 | Not Available |
| 8 | Not Available | Front Cover | 01HCBZZU03 | Not Available |
| 9 | Not Available | Screw (Dust Cover) | 77020 | Not Available |
| 10 | Not Available | Dust Container | 75330 | Not Available |
| 11 | Not Available | Suction Inlet Packing | 75415 | Not Available |
| 12 | Not Available | Suction Inlet | 60HF74V07 | Not Available |
| 13 | Not Available | Cover | 75627 | Not Available |
| 14 | Not Available | Packing (Switch Cover) | 73KV3ZV06 | Not Available |
| 15 | Not Available | Handle Supporter | 53B-1LZ00 | Not Available |
| 16 | Not Available | Handle Fitting | 69B-V3000 | Not Available |
| 17 | Not Available | Screw (Handle Supporter) | 77020 | Not Available |
| 18 | Not Available | Cord Stopper | 62ETEZU01 | Not Available |
| 19 | Not Available | Screw | 77020 | Not Available |
| 20 | Not Available | Rubber Protector | 51E4GZU01 | Not Available |
| 21 | Not Available | Power Cord | 94EAPPZY02 | Not Available |
| 22 | Not Available | Handle Screw | 77045 | Not Available |
| 23 | Not Available | Screw (Grounding) | AXYN4+E10FFY | Not Available |
| 24 | Not Available | Stopper Wheel | 71500 | Not Available |
| 25 | Not Available | Washer | 77118 | Not Available |
| 26 | Not Available | Wheel | 71125 | Not Available |
| 27 | Not Available | Wire Nut | SS-3270 | Not Available |
| 28 | Not Available | Roller Shaft | 16CXVZ00 | Not Available |
| 29 | Not Available | Switch Cover | 03E9GZU03 | Not Available |
| 30 | Not Available | Ornamental Plate | 21CTBZZ000 | Not Available |
| 31 | Not Available | Screw | 77020 | Not Available |
| 32 | Not Available | Packing (Dust Container) | 66K-V30J | Not Available |
| 33 | Not Available | Packing (Indicator) | 09M-V30 | Not Available |
| 34 | Not Available | Switch | 414-7938 | Not Available |
| 35 | Not Available | Nozzle Hose | 73652 | Not Available |
| 36 | Not Available | Plastic Shaft | 25S-V31W | Not Available |
| 37 | Not Available | Jumper Cord | 64ETDZVU0 | Not Available |
| 38 | Not Available | Paper Bag U6 3Pk | MC141B | Not Available |
| 38 |  | Paper Bag, DVC Style U6 Microlined 10Pk Part Number: 456799 for Panasonic Replacement | 456799 | $14.59Read more |
| 39 | Not Available | Screw (Suction Inlet Packing) | 77020 | Not Available |
| 40 | Not Available | Packing (Left) | 40AYUZV00 | Not Available |
| 41 | Not Available | Packing (Right) | 39AYUZV00 | Not Available |
| 42 | Not Available | Cord Stopper | 62E-M10 | Not Available |
| 43 | Not Available | Handle Assembly | 95BTEXVU7 | Not Available |
| 44 | Not Available | Lead Wire | 44GTDZU00 | Not Available |
| 45 | Not Available | Cable Tie | BI-8017 | Not Available |
| 46 | Not Available | Filter Supporter | 18420 | Not Available |
| 47 | Not Available | HEPA Secondary Filter 2 Pk | MC198H | Not Available |
