Schematic and parts book for Panasonic V5315, V5325, V5335, V5355 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

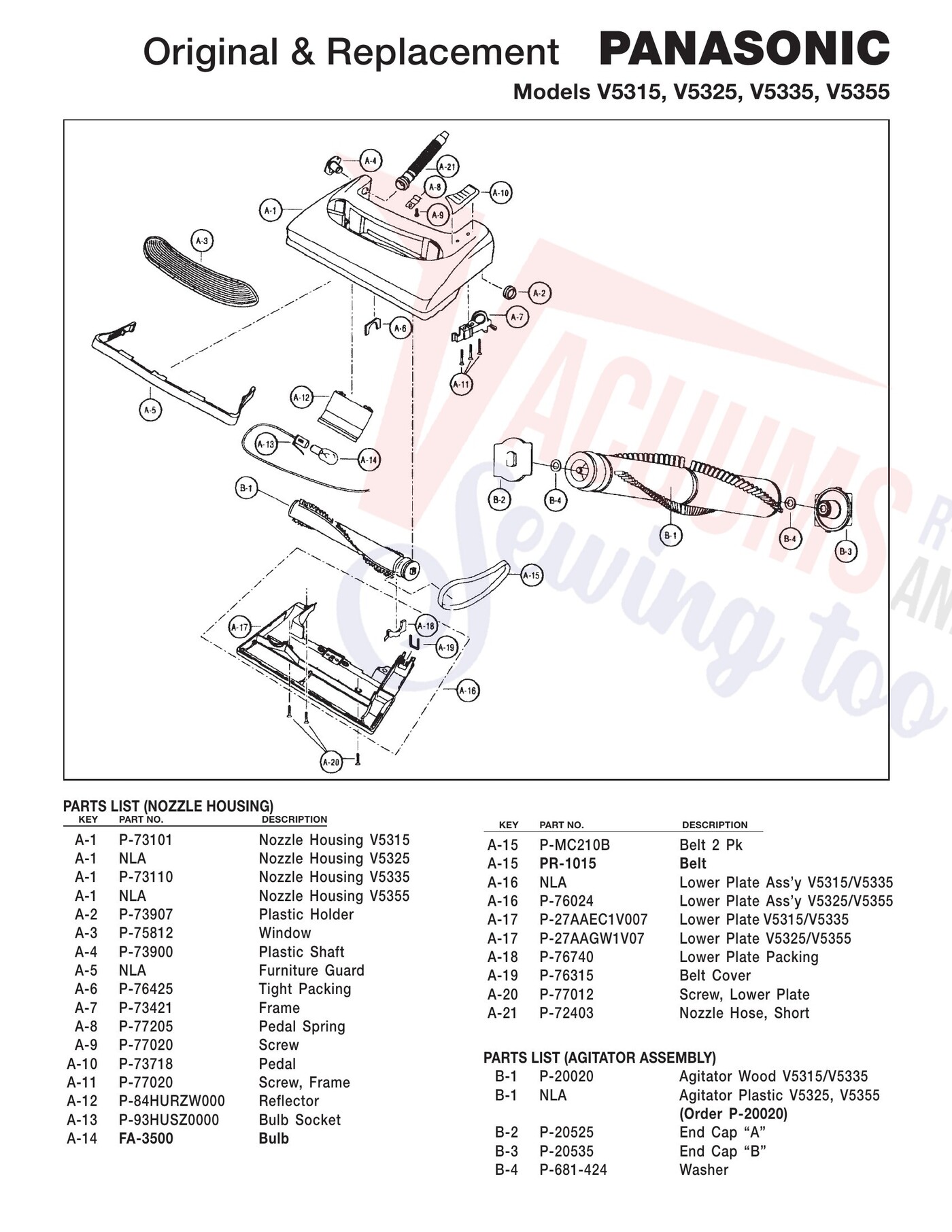

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing V5315 | 73101 | Not Available |
| 1 | Not Available | Nozzle Housing V5325 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing V5335 | 73110 | Not Available |
| 1 | Not Available | Nozzle Housing V5355 | NLA | Not Available |
| 1 | Not Available | Agitator Wood V5315/V5335 | 20020 | Not Available |
| 1 | Not Available | Agitator Plastic V5325 V5355 | NLA | Not Available |
| 2 | Not Available | Plastic Holder | 73907 | Not Available |
| 2 | Not Available | End Cap “A” | 20525 | Not Available |
| 3 | Not Available | Window | 75812 | Not Available |
| 3 | Not Available | End Cap “B” | 20535 | Not Available |
| 4 | Not Available | Plastic Shaft | 73900 | Not Available |
| 4 | Not Available | Washer | 681-424 | Not Available |
| 5 | Not Available | Furniture Guard | NLA | Not Available |
| 6 | Not Available | Tight Packing | 76425 | Not Available |
| 7 | Not Available | Frame | 73421 | Not Available |
| 8 | Not Available | Pedal Spring | 77205 | Not Available |
| 9 | Not Available | Screw | 77020 | Not Available |
| 10 | Not Available | Pedal | 73718 | Not Available |
| 11 | Not Available | Screw Frame | 77020 | Not Available |
| 12 | Not Available | Reflector | 84HURZW000 | Not Available |
| 13 | Not Available | Bulb Socket | 93HUSZ0000 | Not Available |
| 14 |  | Bulb, Double Pole 505-1CR Part Number: 1650 S for Kirby | 1650S | $18.06Read more |
| 15 | Not Available | Belt 2 Pk | MC210B | Not Available |
| 15 | Not Available | Belt | PR-1015 | Not Available |
| 16 | Not Available | Lower Plate Ass’y V5315/V5335 | NLA | Not Available |
| 16 | Not Available | Lower Plate Ass’y V5325/V5355 | 76024 | Not Available |
| 17 | Not Available | Lower Plate V5315/V5335 | 27AAEC1V007 | Not Available |
| 17 | Not Available | Lower Plate V5325/V5355 | 27AAGW1V07 | Not Available |
| 18 | Not Available | Lower Plate Packing | 76740 | Not Available |
| 19 | Not Available | Belt Cover | 76315 | Not Available |
| 20 | Not Available | Screw Lower Plate | 77012 | Not Available |
| 21 | Not Available | Nozzle Hose Short | 72403 | Not Available |

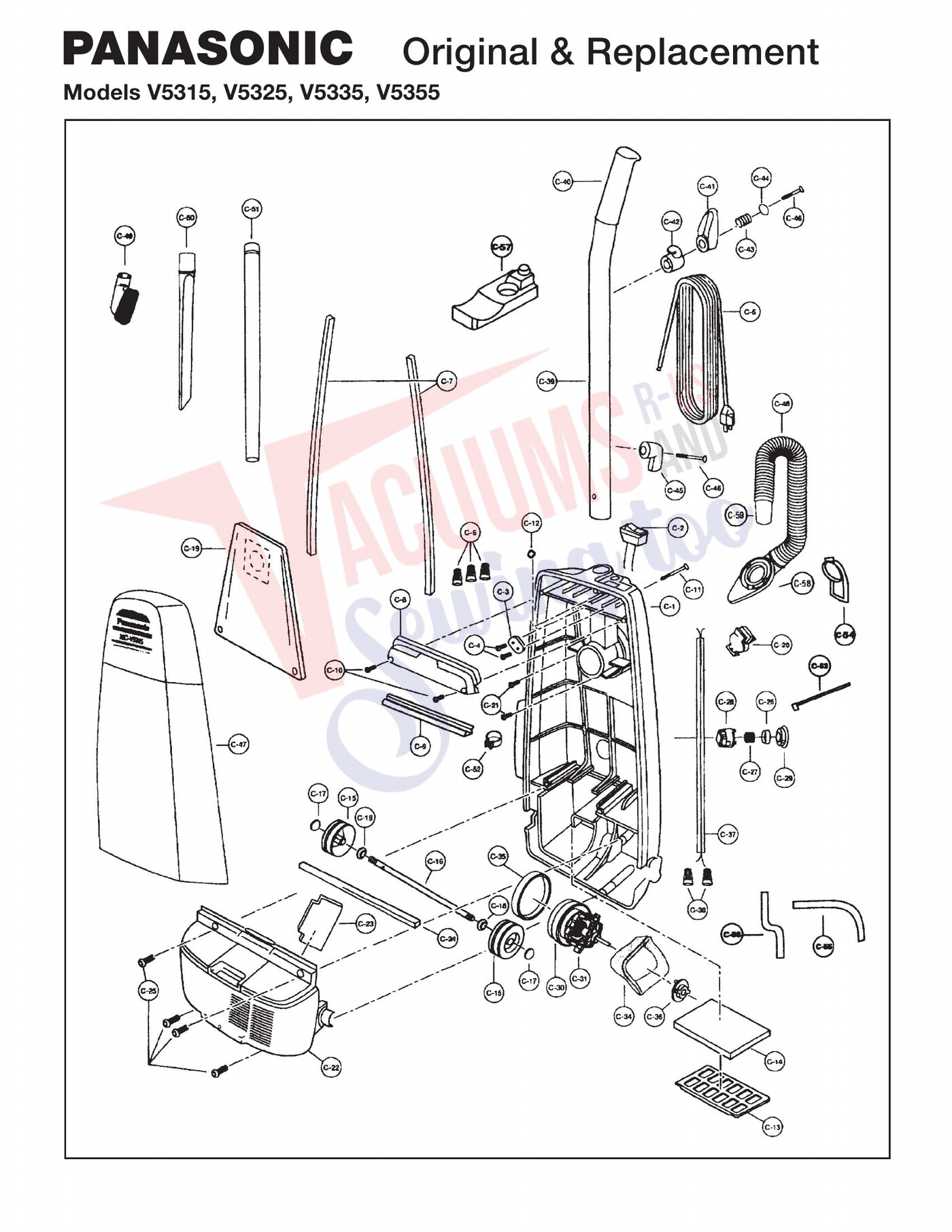

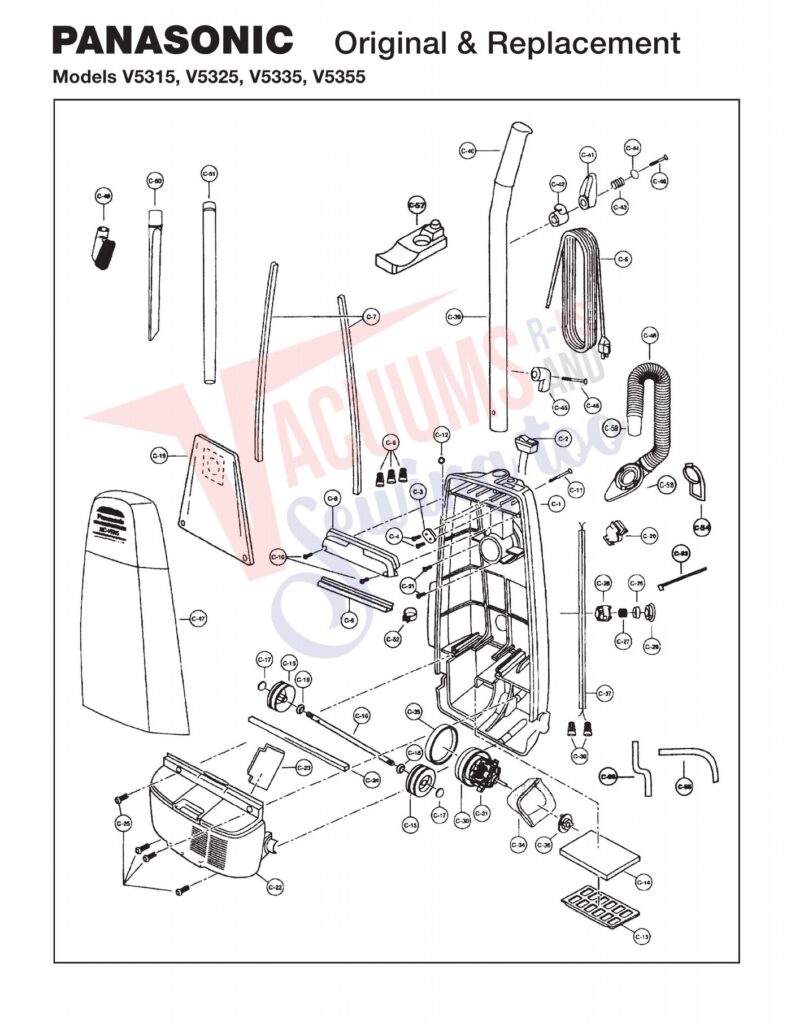

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment Unit | NLA | Not Available |
| 1 | No Image | Harness, Power, Traction, S-20 | 75253 | $694.99Read more |
| 2 | Not Available | On/Off Switch (Not Illustrated) | 34100 | Not Available |
| 3 | Not Available | Cord Stopper | 62E-J20 | Not Available |
| 4 | Not Available | Screw (Not Illustrated) | 77020 | Not Available |
| 5 | Not Available | Power Cord V5315 | 97EADFZV006 | Not Available |
| 5 | Not Available | Power Cord V5325 | 97EAGMZ06 | Not Available |
| 5 | Not Available | Power Cord V5335 | 97EAEEZV006 | Not Available |
| 5 | Not Available | Power Cord V5355 | 97EADGZV06 | Not Available |
| 6 | Not Available | Wire connector | SS-3270 | Not Available |
| 7 | Not Available | Dust Container Packing | 66KV01V006 | Not Available |
| 8 | Not Available | Switch Cover | 03EV04V006 | Not Available |
| 9 | Not Available | Switch Cover Packing | 73KV0ZV006 | Not Available |
| 10 | Not Available | Screw | 77020 | Not Available |
| 11 | Not Available | Handle Screw V5315 V5335 | 77043 | Not Available |
| 12 | Not Available | Nut | 21B-170 | Not Available |
| 13 | Not Available | Filter Supporter | 18420 | Not Available |
| 14 | Not Available | Secondary Filter Electrostatic 2 Pk | MC181E | Not Available |
| 15 | Not Available | Roller | 71125 | Not Available |
| 16 | Not Available | Roller Shaft | 71375 | Not Available |
| 17 | Not Available | Stopper Wheel | 71500 | Not Available |
| 18 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Paper Bag 3 Pk | MC115P | Not Available |
| 19 | Not Available | Paper Bag u u3 DVc 3 Pk | PR-14005 | Not Available |
| 19 | Not Available | Paper Bag u u3 eNV 3 Pk | PR-1400 | Not Available |
| 20 | Not Available | Cover Suction Inlet V5375 V5335 | 75690 | Not Available |
| 21 | Not Available | Screw | 77020 | Not Available |
| 22 | Not Available | Motor Case V5315 | NLA | Not Available |
| 22 | Not Available | Motor Case V5325 | 75043 | Not Available |
| 22 | No Image | -Lever Bracket Black/Brown | 75105 | $30.00Read more |
| 22 | No Image | Cable, Lift, Clevis | 75044 | $59.99Read more |
| 23 | Not Available | Rear Cover Packing | 76850 | Not Available |
| 24 | Not Available | Motor Case Packing V5325 V5355 | 19FV0ZV006 | Not Available |
| 25 | Not Available | Screw | 77020 | Not Available |
| 26 | Not Available | Protector | 50522 | Not Available |
| 27 | Not Available | Protector Spring | 77220 | Not Available |
| 27 | Not Available | Protector Spring V5335 | 70KJMZ0000 | Not Available |
| 28 | Not Available | Protector Case | 75682 | Not Available |
| 29 | Not Available | Protector Supporter | 50525 | Not Available |
| 30 | Not Available | Motor Unit V5315 | 60135 | Not Available |
| 30 | Not Available | Motor Unit | NLA | Not Available |
| 30 | Not Available | Motor unit V5325 V5335 V5355 | PR-6011 | Not Available |
| 31 | Not Available | Carbon Brush V5315 | 63045 | Not Available |
| 31 | Not Available | Carbon Brush | 63052 | Not Available |
| 32 | Not Available | Brush Retainer Bracket | 02D-V300U | Not Available |
| 33 | Not Available | Screw (Brush) | 40D-V300U | Not Available |
| 34 | No Image | Wire Tie 15 Blk | 18706 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | Not Available | Motor Support Rubber Front | 76768 | Not Available |
| 36 | Not Available | Motor Support Rubber Rear | 76769 | Not Available |
| 37 | Not Available | Wire Cord | 37G-V02GU | Not Available |
| 38 | Not Available | Wire connector | SS-3270 | Not Available |
| 39 | No Image | COLLAR, FLOOR TOOL Part Number: 70124 for Compact | 70124 | $2.59Read more |
| 40 | Not Available | Handle Grip | 50BTE1VU06 | Not Available |
| 41 | Not Available | Upper Cord Storage Hook | 70818 | Not Available |
| 42 | Not Available | Cord Storage Base | 70915 | Not Available |
| 43 | Not Available | Cord Hook Spring | 77200 | Not Available |
| 44 | Not Available | Washer | 77120 | Not Available |
| 45 | Not Available | Lower Cord Storage Hook | 70867 | Not Available |
| 46 | Not Available | Screw | 77040 | Not Available |
| 47 | Not Available | Dust Cover V5315 | 60KAEDZBU13 | Not Available |
| 47 | Not Available | Dust Cover V5325 | 60KAGTZPU1 | Not Available |
| 47 | Not Available | Dust Cover V5335 | 60KAEEZGU06 | Not Available |
| 47 | Not Available | Dust Cover V5355 | 60KAGVZU5 | Not Available |
| 48 | Not Available | Stretch Hose V5315 V5335 | NLA | Not Available |
| 48 | Not Available | Hose V5325 | 73651 | Not Available |
| 48 | Not Available | Hose V5355 | 73656 | Not Available |
| 49 | Not Available | Dusting Brush | 53020 | Not Available |
| 50 | Not Available | Crevice Tool | 54017 | Not Available |
| 51 | Not Available | Wand | 50030 | Not Available |
| 52 | Not Available | Hose Hook | 75921 | Not Available |
| 53 | Not Available | Wire Tie V5325 V5355 | 596-702 | Not Available |
| 54 | Not Available | Cover Suction Inlet | 75690 | Not Available |
| 55 | Not Available | Packing Right V5325 V5355 | 39AYUZV00 | Not Available |
| 56 | Not Available | Packing Left V5325 V5355 | 40AYUZV00 | Not Available |
| 57 | Not Available | Hose Holder V5325 V5355 | 70500 | Not Available |
| 58 | Not Available | Suction Inlet V5325 V5355 | 60HJPZV06 | Not Available |
| 59 | Not Available | Hose Adaptor V5325 V5355 | 58PZF1V06 | Not Available |
