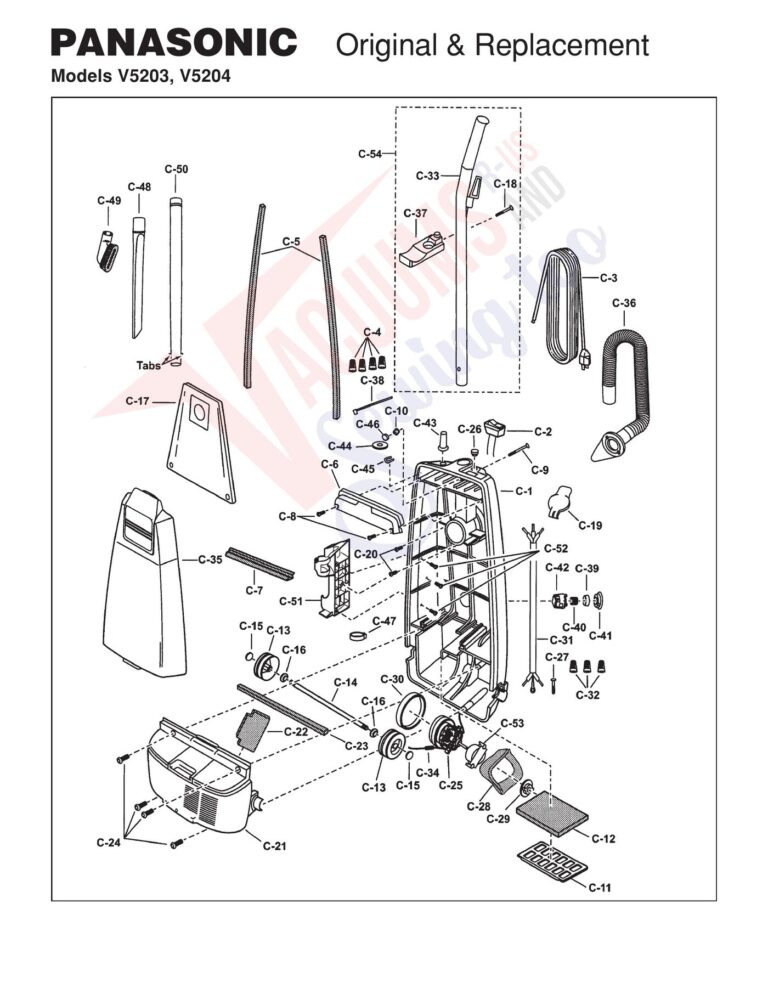

Schematic and parts book for Panasonic V5203, V5204 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

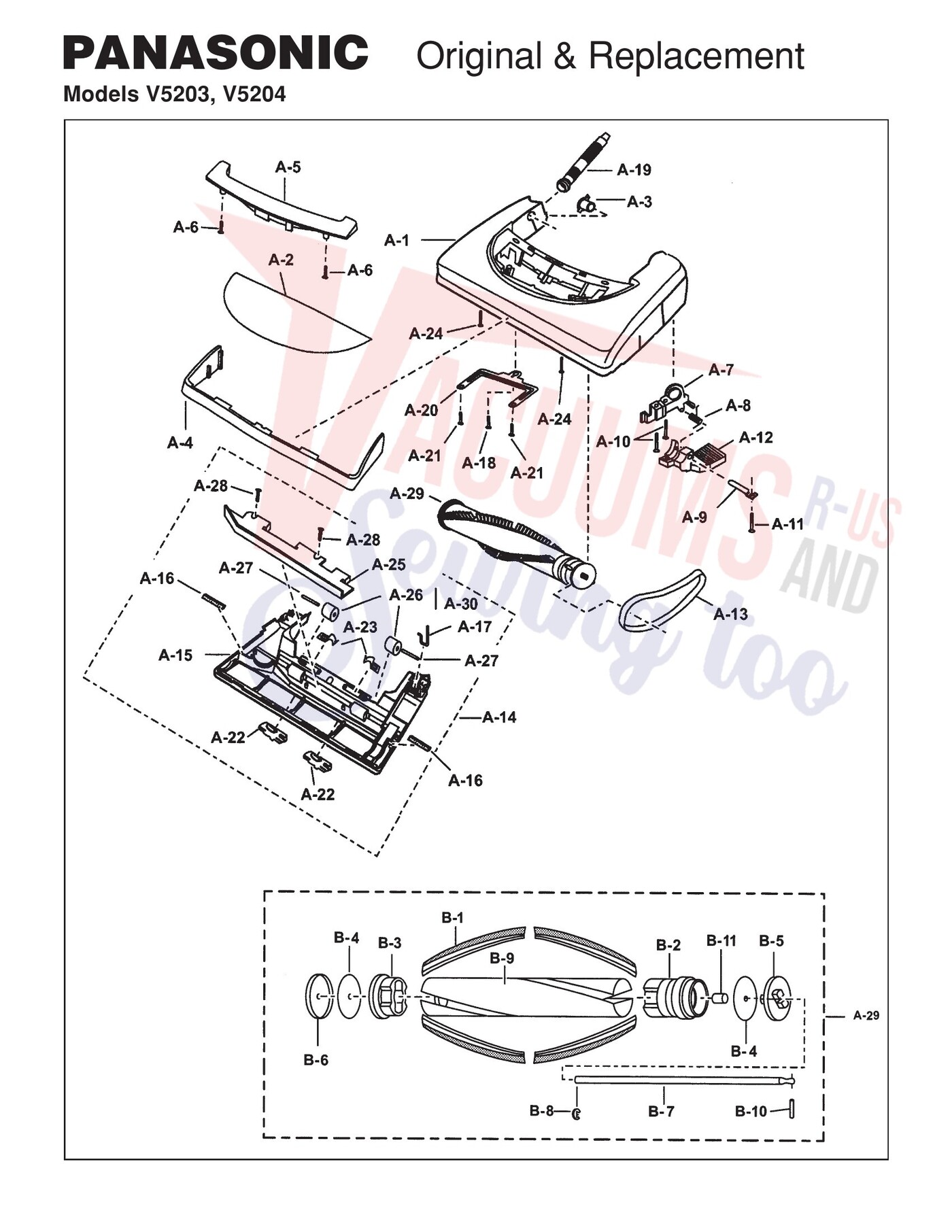

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing | 73063 | Not Available |
| 1 | Not Available | Brush Strip (set of 4) | 85RBFT0000 | Not Available |
| 2 | Not Available | Window | 21HAFVZU03 | Not Available |
| 2 | Not Available | Pulley Brushroll | 29SARGZ00 | Not Available |
| 3 | Not Available | Plastic Shaft | 73900 | Not Available |
| 3 | Not Available | Holder Brushroll | 41SJM100 | Not Available |
| 4 | Not Available | Furniture Guard | 10AAGZV07 | Not Available |
| 4 | Not Available | Filter Brushroll | 20640 | Not Available |
| 5 | Not Available | Light Cover | 24HAFVZU03 | Not Available |
| 5 | Not Available | End Cap Belt Side | 20522 | Not Available |
| 6 | Not Available | Screw Light Cover | AXTN4+20BFY | Not Available |
| 6 | Not Available | End Cap Non-Belt Side | 20521 | Not Available |
| 7 | Not Available | Frame | 73421 | Not Available |
| 7 | Not Available | Shaft Brushroll | 57RATEZ00 | Not Available |
| 8 | Not Available | Pedal Spring | 77206 | Not Available |
| 8 | Not Available | E-Clip | 77105 | Not Available |
| 9 | Not Available | Pedal Shaft | 73741 | Not Available |
| 9 | Not Available | Holder Brush | 84RJMZ00 | Not Available |
| 10 | Not Available | Screw Pedal Assembly | AXTN4+10BFY | Not Available |
| 10 | Not Available | Pin Spring | XPL16A8WFR | Not Available |
| 11 | Not Available | Screw Pedal Assembly | 77020 | Not Available |
| 11 | Not Available | Spacer | 74SATEZ00 | Not Available |
| 12 | Not Available | Pedal Handle Release | 73728 | Not Available |
| 13 | Not Available | Belt UB8 2PK | MC270BV | Not Available |
| 13 |  | Sub for SKU: PR-1011 Belt,Panasonic Style UB8 7300 Series Uprights | PR-1010 | $10.99Read more |
| 13 |  | Compatible alternateBelt, Sharp Upright All Twin Energy Models Part Number: 12523 for Sharp Replacement More Product Details | 12523 | $36.49Add to cart Special order — allow 2-4 weeks. |
| 13 |  | Compatible alternateMC-V270B Compact Belt for Kenmore type UB8 2Pk compat with eureka NEU192 More Product Details | PR-1011 | $6.00Add to cart |
| 14 | Not Available | Bottom Plate Assembly | 76059 | Not Available |
| 15 | Not Available | Bottom Plate Only | 27ABKUZV07 | Not Available |
| 16 | Not Available | Bottom Plate Packing | 19AARKZV00 | Not Available |
| 17 | Not Available | Belt Cover | 43SAFVZ00 | Not Available |
| 18 | Not Available | Screw Slider Support | 77012 | Not Available |
| 19 | Not Available | Nozzle Hose V5203 | 72406 | Not Available |
| 19 | Not Available | Nozzle Hose V5204 | 72404 | Not Available |
| 20 | Not Available | Slider Support | 53KAFVZ00 | Not Available |
| 21 | Not Available | Screw Slide Support | 77020 | Not Available |
| 22 | Not Available | Latch Lower Plate | 76416 | Not Available |
| 23 | Not Available | Stop Latch Spring | 70NYUZ00 | Not Available |
| 24 | Not Available | Screw Latch | 68A-V30 | Not Available |
| 25 | Not Available | Body Lower Plate | 06AAJUZ00 | Not Available |
| 26 | Not Available | Wheel | 71010 | Not Available |
| 27 | Not Available | Roller Shaft | 71354 | Not Available |
| 28 | Not Available | Screw Lower Plate | 77020 | Not Available |
| 29 |  | Motor Assembly CPU1T Part Number 20.063 for Simplicity Models SHD-1T | 20063 | $247.49Read more |
| 29 | No Image | Axle | 20052 | $0.00Read more |
| 30 | Not Available | Belt Guard V5204 | 43SAFXZ00 | Not Available |

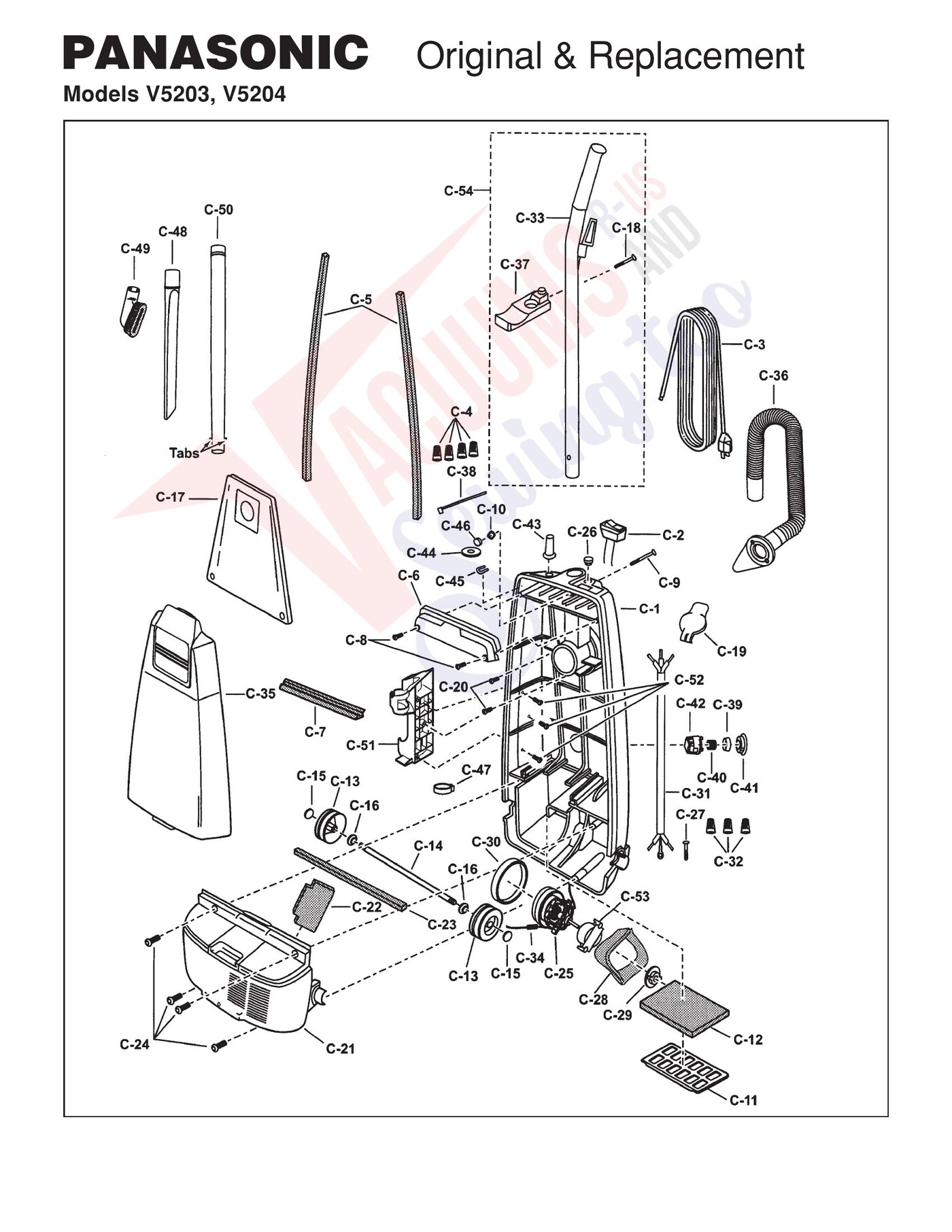

| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw .31-18 x 1.5In | 75303 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Switch Includes | 34100 | Not Available |
| 3 | Not Available | Power Cord | 94EAPNZY02 | Not Available |
| 4 | Not Available | Wire Nut | SS-3270 | Not Available |
| 5 | Not Available | Packing Dust Container | 66KV01V06 | Not Available |
| 6 | Not Available | Switch Cover (Incl. C-46) | 03EV07V06 | Not Available |
| 7 | Not Available | Packing Switch Cover | 73KV0ZV06 | Not Available |
| 8 | Not Available | Switch Cover Screw | 77020 | Not Available |
| 9 | Not Available | Screw Handle | 77043 | Not Available |
| 10 | Not Available | Nut Handle Screw | 21B-170 | Not Available |
| 11 | Not Available | Supporter Filter | 18420 | Not Available |
| 12 | Not Available | HEPA Filter Secondary | 18020 | Not Available |
| 12 | Not Available | HEPA Filter Secondary 2 Pk | MC191H | Not Available |
| 13 | Not Available | Wheel | 71125 | Not Available |
| 14 | Not Available | Roller Shaft | 71375 | Not Available |
| 15 | Not Available | Wheel Stopper | 71500 | Not Available |
| 16 | Not Available | Washer | 77118 | Not Available |
| 17 | Not Available | Paper Bag U6 3PK | MC141M | Not Available |
| 17 |  | Paper Bag, DVC Style U6 Microlined 10Pk Part Number: 456799 for Panasonic Replacement | 456799 | $14.59Read more |
| 18 | Not Available | Screw Hose Holder | AXTN4+45BFY | Not Available |
| 19 | Not Available | Cover Inlet | 75690 | Not Available |
| 20 | Not Available | Screw Inlet | 77020 | Not Available |
| 21 | No Image | Motor, Gear, Brush | 75084 | $1,707.99Read more |
| 22 | Not Available | Packing Rear Cover | 76850 | Not Available |
| 23 | Not Available | Packing Motor Case | 19FJPZV06 | Not Available |
| 24 | Not Available | Screw Motor Cover | XTN4+20BFY | Not Available |
| 25 | Not Available | Fan Motor | 60141 | Not Available |
| 26 | Not Available | Cover Cap V5203 | 38HAPNZ0U | Not Available |
| 27 | Not Available | Screw Ground | AXYN4+E10FFY | Not Available |
| 28 | Not Available | Noise Suppressor | 99GAMMZ00 | Not Available |
| 29 | Not Available | Motor Support Rear | 03F-V00 | Not Available |
| 30 | Not Available | Motor Support Front | 76768 | Not Available |
| 31 | Not Available | Jumper Cord | 37GTEZ0U | Not Available |
| 32 | Not Available | Wire Nut | SS-3270 | Not Available |
| 33 | Not Available | Handle | 64BATNZ00 | Not Available |
| 34 | Not Available | Motor Lead Assembly | 99WARGZ00 | Not Available |
| 35 | Not Available | Dust Cover | 60KCCAZUU3 | Not Available |
| 36 | Not Available | Stretch Hose | 73637 | Not Available |
| 37 | Not Available | Hose Holder | 23PJPZV07 | Not Available |
| 38 | Not Available | Cable Tie | SS-8017 | Not Available |
| 39 | Not Available | Motor Protector | 50522 | Not Available |
| 40 | Not Available | Protector Spring Silver | 70KJMZ00 | Not Available |
| 41 | Not Available | Protector Support | 50525 | Not Available |
| 42 | Not Available | Protector Case | 75682 | Not Available |
| 43 | Not Available | Rubber Protector | 51E4GZU01 | Not Available |
| 44 | Not Available | Flat Washer | AXWE10J223FE | Not Available |
| 45 | Not Available | Cord Retainer | 06WAPNZ00 | Not Available |
| 46 | Not Available | Packing | 61LAGMZ00 | Not Available |
| 47 | Not Available | Hose Hook | 53RJPZV07 | Not Available |
| 48 | Not Available | Crevice Tool | 54017 | Not Available |
| 49 | Not Available | Dusting Brush | 53020 | Not Available |
| 50 | Not Available | Wand Extension | 50040 | Not Available |
| 51 | Not Available | Wand Holder | 75928 | Not Available |
| 52 | Not Available | Screw Tool Holder | 77020 | Not Available |
| 53 | Not Available | Cap Motor | 93FTEZ0U | Not Available |
| 54 | Not Available | Handle Assembly | 95BATNZV07 | Not Available |
