Schematic and parts book for panasonic MC-V7710, MCV7710 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

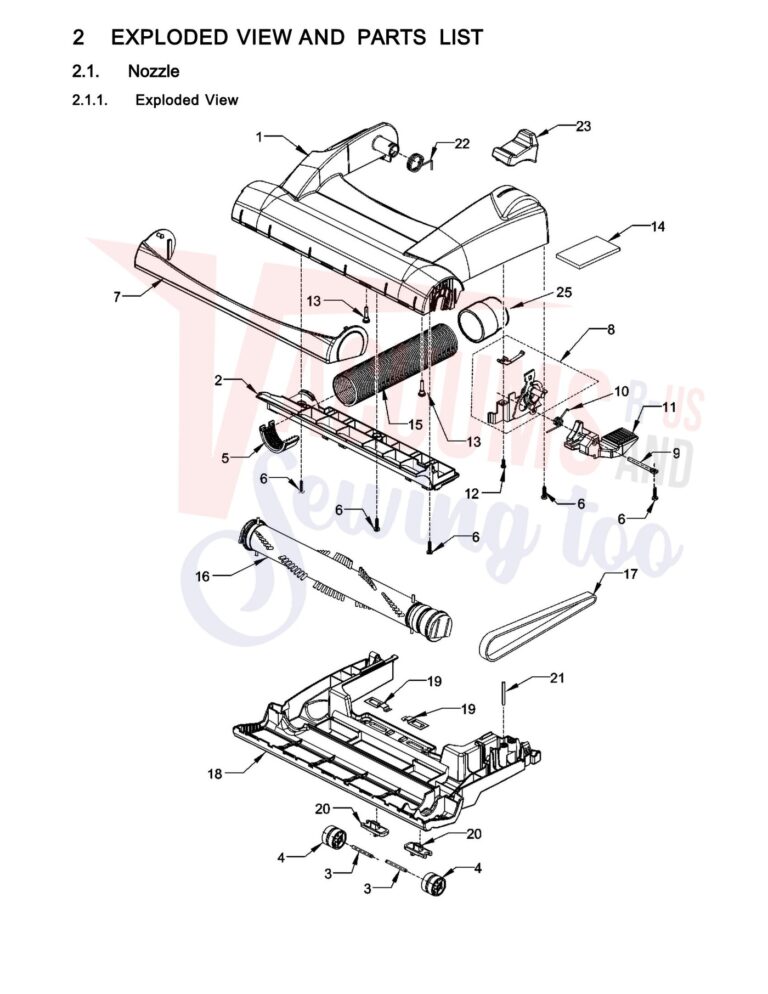

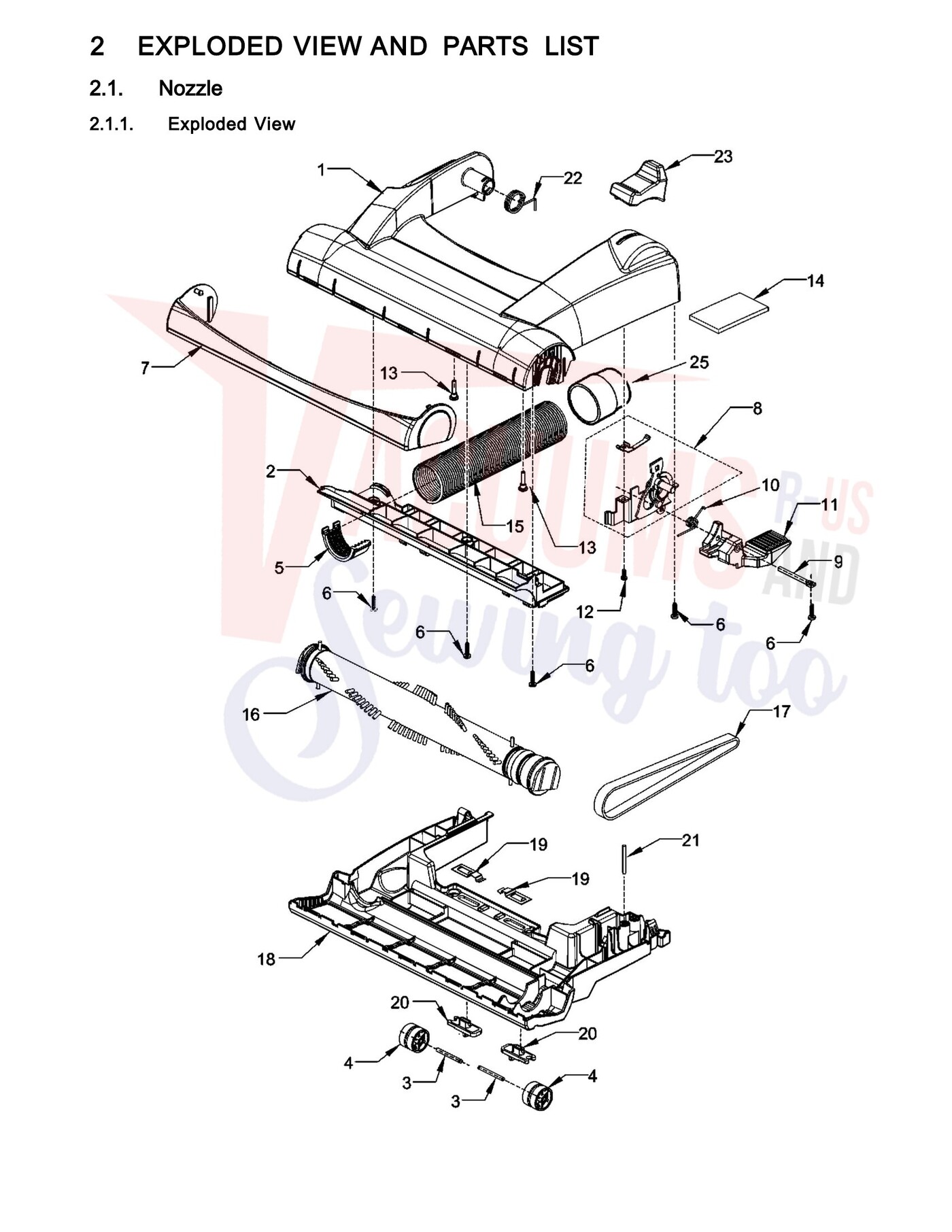

| # | Part image | Description | SKU | Price |
| 2 | Not Available | Upper Body | AC02ACNFZV07 | Not Available |
| 3 | Not Available | Roller Shaft | AC16CNXZ00 | Not Available |
| 4 | Not Available | Nozzle Roller Assembly | AC93QAGZZV06 | Not Available |
| 5 | Not Available | Body Cap | AC12ACNFZV07 | Not Available |
| 7 | No Image | Bumper, UG471 Part Number: AC10ACKPZV06 for Panasonic | AC10ACKPZV06 | $19.17Read more |
| 8 |  | Handle Release Assembly - Panasonic Mc-V5269 - Upright For: panasonic | AC92BAMAZ000 | $59.91Read more |
| 9 | Not Available | Pedal Shaft | AMC51A-V30 | Not Available |
| 10 |  | SPRING, HANDLE RELEASE 5995, 7300 SERIES Part Number: AC58AAFVZ00 for Panasonic | AC58AAFVZ00 | $19.78Read more |
| 11 | Not Available | Pedal | AC47A2VZV06 | Not Available |
| 13 | No Image | SCREW, NOZZLE HOUSING 10 PACK Part Number: AMC68A-V30 for Panasonic | AMC68AV30 | $6.66Read more |
| 14 | Not Available | Nozzle Packing (Foam) | AC04RANPZV06 | Not Available |
| 15 |  | HOSE, NOZZLE Part Number: AC34PCNFZV06 for Panasonic | AC34PCNFZV06 | $9.96Read more |
| 16 | Not Available | Agitator Unit | A-20088 | Not Available |
| 18 | Not Available | Lower Plate | 76098 | Not Available |
| 19 | Not Available | Stop Latch Spring | AC70NYUZ00 | Not Available |
| 20 | Not Available | Latch | AMC68N-AV0K | Not Available |
| 21 | Not Available | Belt Guard | AC43SAFXZ000 | Not Available |
| 22 | Not Available | Floor Nozzle Spring | AC40RCNFZ000 | Not Available |
| 23 | No Image | COVER, HANDLE RELEASE PEDAL V5269 V7600 Part Number: AC42AAFYZV06 for Panasonic | AC42AAFYZV06 | $9.06Read more |
| 24 | Not Available | Hose Plug B | AC29QBKHZV06 | Not Available |

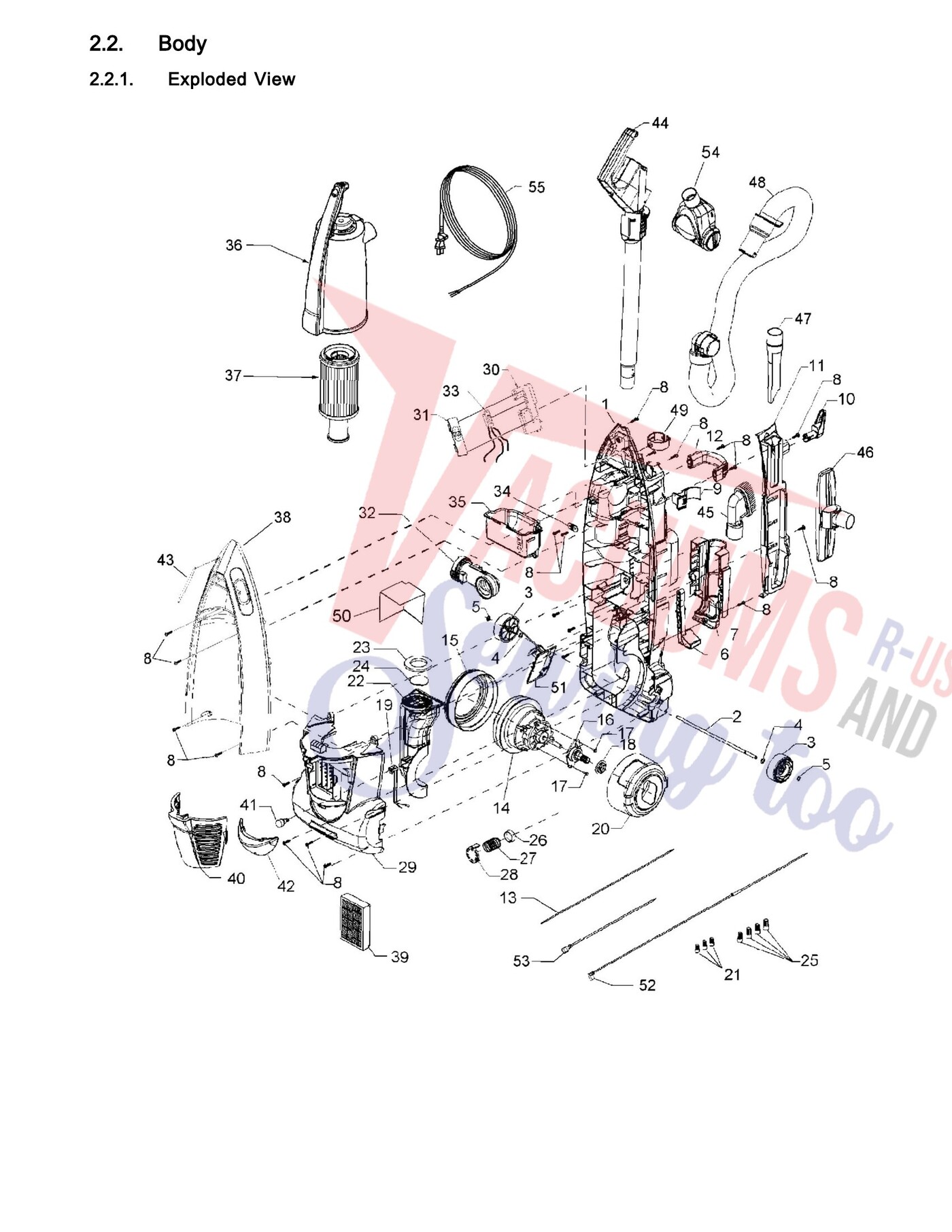

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment | AC40KCNFZV07 | Not Available |
| 2 | Not Available | Roller Shaft | AC16CUSZ00 | Not Available |
| 3 | Not Available | Wheel Unit | AC99CBSAZV06 | Not Available |
| 4 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Stopper Wheel | AC74SUSZ00 | Not Available |
| 6 | No Image | PEDAL, WAND RELEASE V7710 Part Number: AC70QCNFZV02 for Panasonic | AC70QCNFZV02 | $2.48Read more |
| 7 | Not Available | Cover | AC48HCNFZV07 | Not Available |
| 9 | Not Available | Hose Holder | AC23PCNFZV07 | Not Available |
| 10 | Not Available | Upper Cord Storage Hook | AC53EZAZV07 | Not Available |
| 11 | Not Available | Attachment Holder | AC32RCNFZV07 | Not Available |
| 12 | Not Available | Carry Handle | AC01BCNFZV07 | Not Available |
| 13 | Not Available | Lead Wire M Black | AACC4433GGBBXXZZZZ000000 | Not Available |
| 15 | Not Available | Motor Support Rubber | AMC02F-E00 | Not Available |
| 16 | Not Available | Flange | AC25SAFYZ00 | Not Available |
| 18 | Not Available | Motor Support Rubber | AC03FAFYZ00 | Not Available |
| 19 | Not Available | Bulb Socket | AC93HBYMZ000 | Not Available |
| 20 | Not Available | Motor Support Rear | AC03FCNFZ000 | Not Available |
| 21 | Not Available | Wire Nut | AC13EATMZ000 | Not Available |
| 22 | Not Available | Motor Support Cover | AC63FCNFZV07 | Not Available |
| 23 | Not Available | Dust Packing | AC74KBKHZ000 | Not Available |
| 24 | Not Available | Secondary Filter | AC37KBKGZ000 | Not Available |
| 25 | Not Available | Wire Nut | AMC-1CTCE23 | Not Available |
| 26 | Not Available | Protector | AC69KJMZV07 | Not Available |
| 27 | Not Available | Protector Spring | AC70KCNFZG00 | Not Available |
| 28 | Not Available | Protector Case | AC68KAJDZV07 | Not Available |
| 29 | Not Available | Motor Case | AC09FCNFZR0W | Not Available |
| 30 | Not Available | Body Supporter | AC13ACUTZV07 | Not Available |
| 31 | Not Available | Switch Knob | AC04ECUTZV02 | Not Available |
| 32 | Not Available | Air Guide Unit | AC98VCUTZ000 | Not Available |
| 33 | Not Available | 3-Position Switch | AC98ECUTZ000 | Not Available |
| 34 | Not Available | Cord Stopper | AMC62E-J20 | Not Available |
| 35 | Not Available | Tool Caddy | AC66PCNFZV07 | Not Available |
| 36 | Not Available | Dust Bin Assembly | AC85KCNFZ000 | Not Available |
| 37 | Not Available | Primary Filter | 18542 | Not Available |
| 38 | Not Available | Dust Cover | 75398 | Not Available |
| 39 | Not Available | Exhaust Filter Hepa | 18047- | Not Available |
| 40 | No Image | FILTER, EXHAUST COVER V7720 Part Number: AC41KCNFZVU7 for Panasonic | AC41KCNFZVU7 | $15.47Read more |
| 41 | Not Available | Bulb Light | AC28GBKHZ000 | Not Available |
| 42 | Not Available | Window | AC21HCNFZ000 | Not Available |
| 43 | Not Available | Label | AC31ZCUTZ000 | Not Available |
| 44 | Not Available | Handle Unit | AC85BCNFZ000 | Not Available |
| 45 | No Image | DUST BRUSH, V7710 Part Number: AC88RCNFZV06 for Panasonic | AC88RCNFZV06 | $11.22Read more |
| 46 | Not Available | Floor Nozzle Brush | AC86RCNFZV06 | Not Available |
| 47 | Not Available | Crevice Tool | AC60RCNFZV06 | Not Available |
| 48 | Not Available | Hose Unit Stretch | 73688 | Not Available |
| 49 | Not Available | Hose Ring | AC43PAFXZV06 | Not Available |
| 50 | Not Available | Cooling Guide | AC41FCUTZ000 | Not Available |
| 51 | Not Available | P.C.B. Assembly | AC85VCUTZ000 | Not Available |
| 52 | Not Available | Lead Assembly (NMK) | AC88WCNFZ000 | Not Available |
| 53 | Not Available | Lead Wire Motor | AC43GCNFZ000 | Not Available |
| 54 | Not Available | Air Turbine Assembly | AC80SCNFZV07 | Not Available |
| 55 | Not Available | Power Cord | AC87EBZXZV06 | Not Available |
