Schematic and parts book for panasonic MC-V7600, MCV7600 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

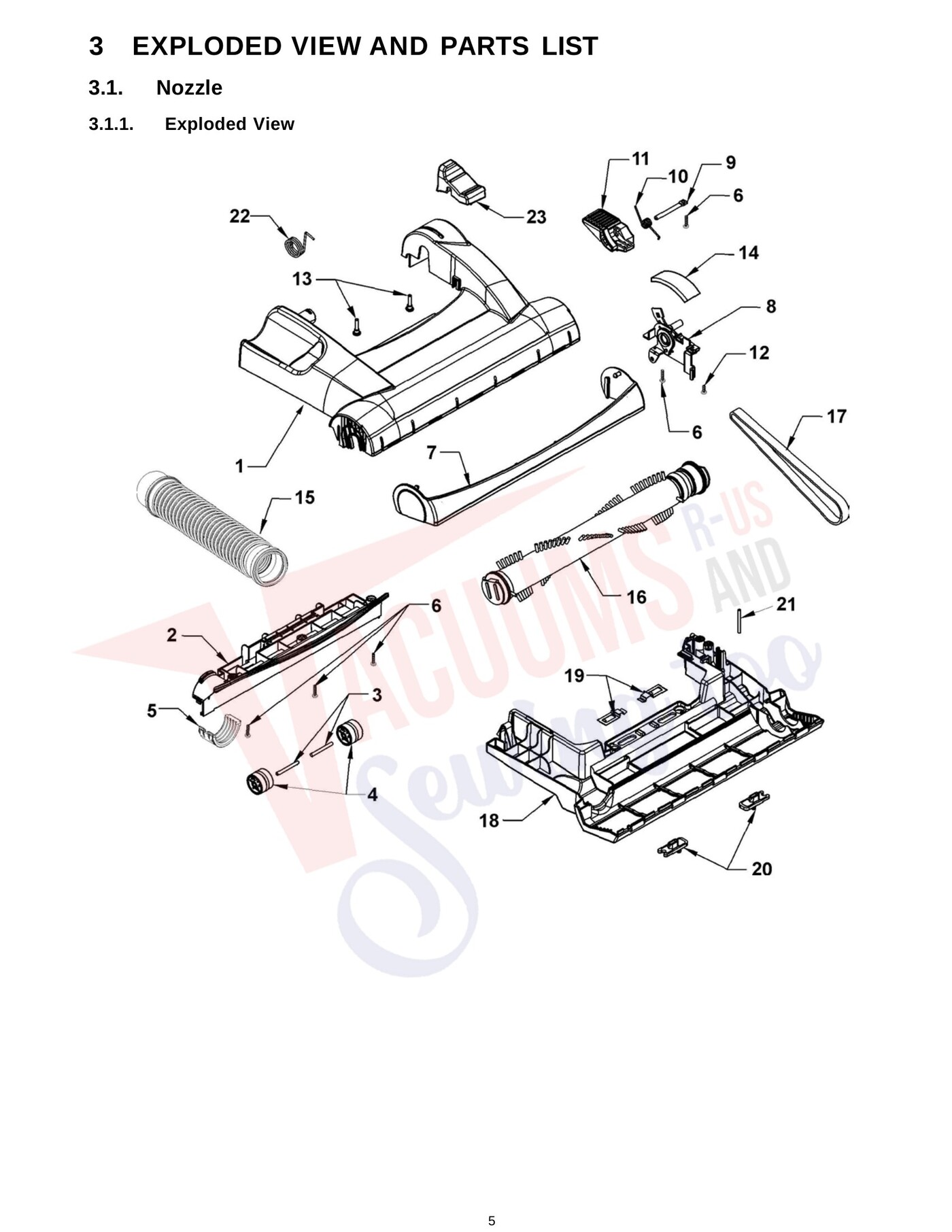

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing | 73198 | Not Available |
| 2 | Not Available | Upper Body | AC02ACNFZV07 | Not Available |
| 3 | Not Available | Roller Shaft | AC16CNXZ00 | Not Available |
| 4 |  | Wheel, Front V321/V225/V7314 2Pk Part Number: AC90QNGZV06 for Panasonic | AC90QNGZV06 | $20.33Read more |
| 5 | Not Available | Body Cap | AC12ACNFZV07 | Not Available |
| 7 | No Image | Bumper, UG471 Part Number: AC10ACKPZV06 for Panasonic | AC10ACKPZV06 | $19.17Read more |
| 8 |  | Handle Release Assembly - Panasonic Mc-V5269 - Upright For: panasonic | AC92BAMAZ000 | $59.91Read more |
| 9 | Not Available | Shaft (Pedal) | AMC51A-V30 | Not Available |
| 10 | Not Available | Pedal Spring | AMC58A-2V0 | Not Available |
| 11 | Not Available | Pedal (Gray) | AC47A2VZV06 | Not Available |
| 13 | No Image | SCREW, NOZZLE HOUSING 10 PACK Part Number: AMC68A-V30 for Panasonic | AMC68AV30 | $6.66Read more |
| 14 | Not Available | Nozzle Packing | AC04RANPZV06 | Not Available |
| 15 | Not Available | Nozzle Hose | AC34PCKRZV06 | Not Available |
| 16 | Not Available | Agitator Assembly | 20088 | Not Available |
| 18 | Not Available | Lower Plate | AC27ACKPZV06 | Not Available |
| 19 | No Image | SPRING, BOTTOM PLATE 6200 SERIES Part Number: AMC70N-V30 for Panasonic | AMC70NV30 | $4.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Latch | AMC68N-AV0K | Not Available |
| 21 | Not Available | Belt Guard | AC43SAFXZ000 | Not Available |
| 22 | Not Available | Spring (Floor Nozzle) | AC40RCKPZ000 | Not Available |
| 23 | No Image | COVER, HANDLE RELEASE PEDAL V5269 V7600 Part Number: AC42AAFYZV06 for Panasonic | AC42AAFYZV06 | $9.06Read more |

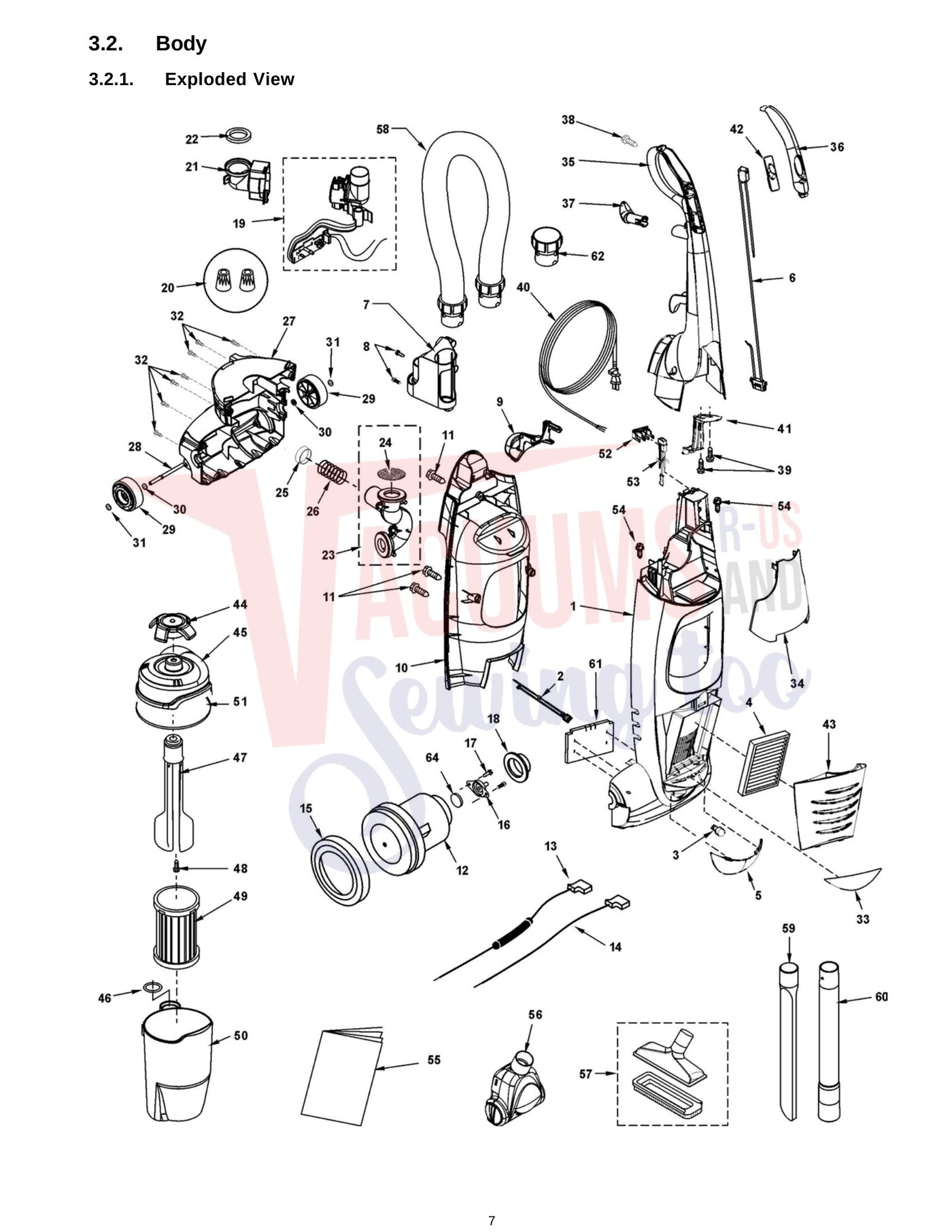

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment | AC40KBKGZC06 | Not Available |
| 2 | Not Available | Bulb Socket | AC93HBKHZ000 | Not Available |
| 3 | Not Available | Light Bulb | AC28GBKHZ000 | Not Available |
| 4 | Not Available | Exhaust Filter (HEPA) | 18052 | Not Available |
| 5 | Not Available | Light Lens | AC21HBKHZ000 | Not Available |
| 6 | Not Available | Lead Wire | AC67VBWEZ000 | Not Available |
| 7 | Not Available | Wand Holder | AC70PCKPZV06 | Not Available |
| 9 | Not Available | Fastener (Dust Bin) | AC15KBKHZV06 | Not Available |
| 10 | Not Available | Dust Cover | AC60KBKHZV06 | Not Available |
| 13 | Not Available | Lead Wire Assembly | AC99WBDNZ000 | Not Available |
| 14 | Not Available | Lead Wire | AC43GAWYZ000 | Not Available |
| 15 | Not Available | Motor Support Rubber | AMC02F-E00 | Not Available |
| 16 | Not Available | Flange | AC25SAFYZ00 | Not Available |
| 18 | Not Available | Motor Support Rubber | AC03FAFYZ00 | Not Available |
| 19 | Not Available | Front Body Unit | AC81JCKPZV06 | Not Available |
| 20 | Not Available | Wire Nut | AMC-1CTCE23 | Not Available |
| 21 | Not Available | Air Inlet Guide | AC61HCKPZV06 | Not Available |
| 22 | Not Available | Packing (Inlet Guide) | AC19HBKHZ000 | Not Available |
| 23 | Not Available | Motor Cover Assembly | AC93FBUXZ000 | Not Available |
| 24 | Not Available | Secondary Filter | 18032 | Not Available |
| 25 | Not Available | Protector | AC69KJMZV06 | Not Available |
| 26 | Not Available | Protector Spring | AC70KAMAZW00 | Not Available |
| 27 | No Image | Tube Distribution S-20 Orb | 75119 | $192.99Read more |
| 28 | Not Available | Roller Shaft | AC16CUSZ00 | Not Available |
| 29 | Not Available | Wheel | AC99CBSAZV06 | Not Available |
| 30 | Not Available | Washer | XWG6E115FY | Not Available |
| 31 | Not Available | Wheel Stopper | AC74SUSZ00 | Not Available |
| 33 | Not Available | Ornamental Plate | AC21TBUXZ000 | Not Available |
| 34 | Not Available | Tool Storage Cover | AC74PCRUZVUN | Not Available |
| 35 | Not Available | Handle | AC64BBKFZC06 | Not Available |
| 36 | No Image | COVER, HANDLE V7600 Part Number: AC76BBKGZV06 for Panasonic | AC76BBKGZV06 | $9.65Read more |
| 37 | Not Available | Upper Cord Storage Hook | AC53EBKHZV06 | Not Available |
| 40 | Not Available | Power Cord | AC97EBZXZV06 | Not Available |
| 41 | Not Available | Handle Supporter | AC53BBKHZU01 | Not Available |
| 42 | Not Available | Switch Knob | AC04EBKFZCU6 | Not Available |
| 43 | Not Available | Filter Cover | AC41KBKHZVUN | Not Available |
| 44 | Not Available | Knob | AC35KBKHZV06 | Not Available |
| 45 | Not Available | Lid | AC20HBKHZV06 | Not Available |
| 46 | Not Available | Seal (Air Path) | AC74EBDNZ000 | Not Available |
| 47 | Not Available | Knocking Cam | AC61KBKGZ000 | Not Available |
| 49 | Not Available | Filter | AC95KBRSZ000 | Not Available |
| 50 | Not Available | Filter Case | AC42KCRUZVUT | Not Available |
| 51 |  | GASKET, DIRT CUP LID 7600 UPRIGHT Part Number: AC13BBKHZ000 for Panasonic | AC13BBKHZ000 | $4.23Read more |
| 52 | Not Available | Holder | AC11DBKHZU01 | Not Available |
| 53 | Not Available | Lead Wire (Body) | AC68VBWEZ000 | Not Available |
| 55 | Not Available | Operating Instructions | AC01ZCRUZ000 | Not Available |
| 56 | Not Available | Air Turbine Assembly | AC80SCNFZV07 | Not Available |
| 57 | Not Available | Combination Brush Assembly | AC63RBKHZVU6 | Not Available |
| 58 | Not Available | Hose Assembly | 73689 | Not Available |
| 59 |  | Cervice Tool, Gray Friction Fit Long Part Number: AC60RZFZVU6 for Panasonic | AC60RZFZVU6 | $15.64Read more |
| 60 |  | WAND, W/TABS 7522 7571 Part Number: AC40PBRLZV06 for Panasonic | AC40PBRLZV06 | $27.87Read more |
| 61 | Not Available | Exhaust Filter | 18049 | Not Available |
| 62 | Not Available | Hose Plug | AC30QCKPZV06 | Not Available |
