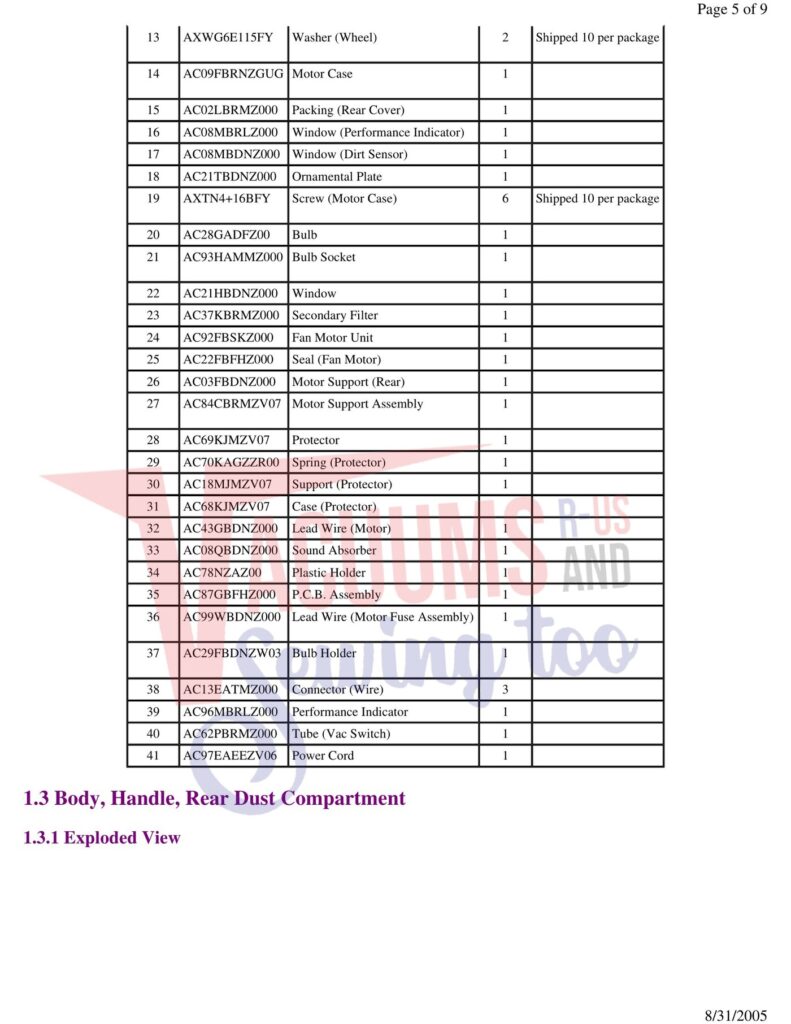

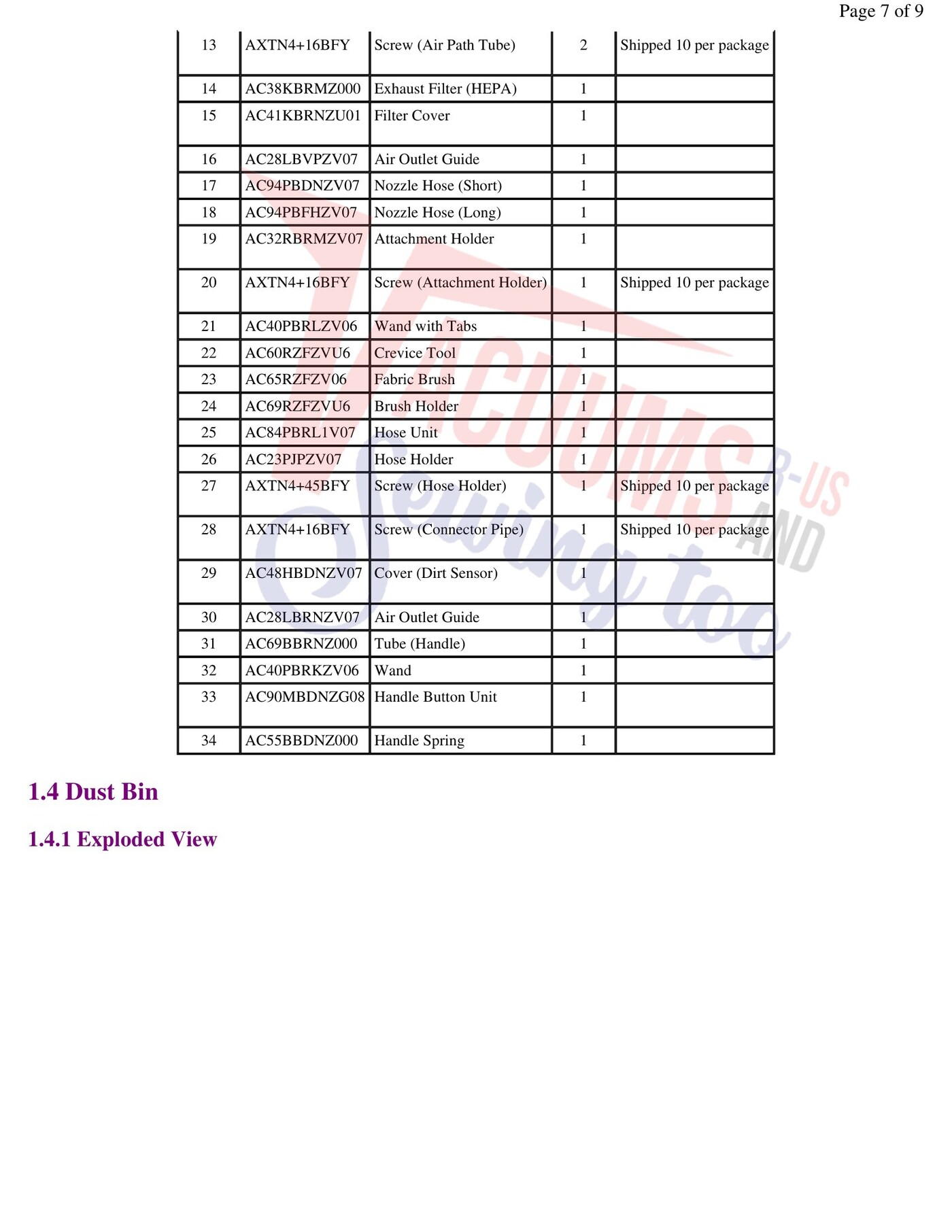

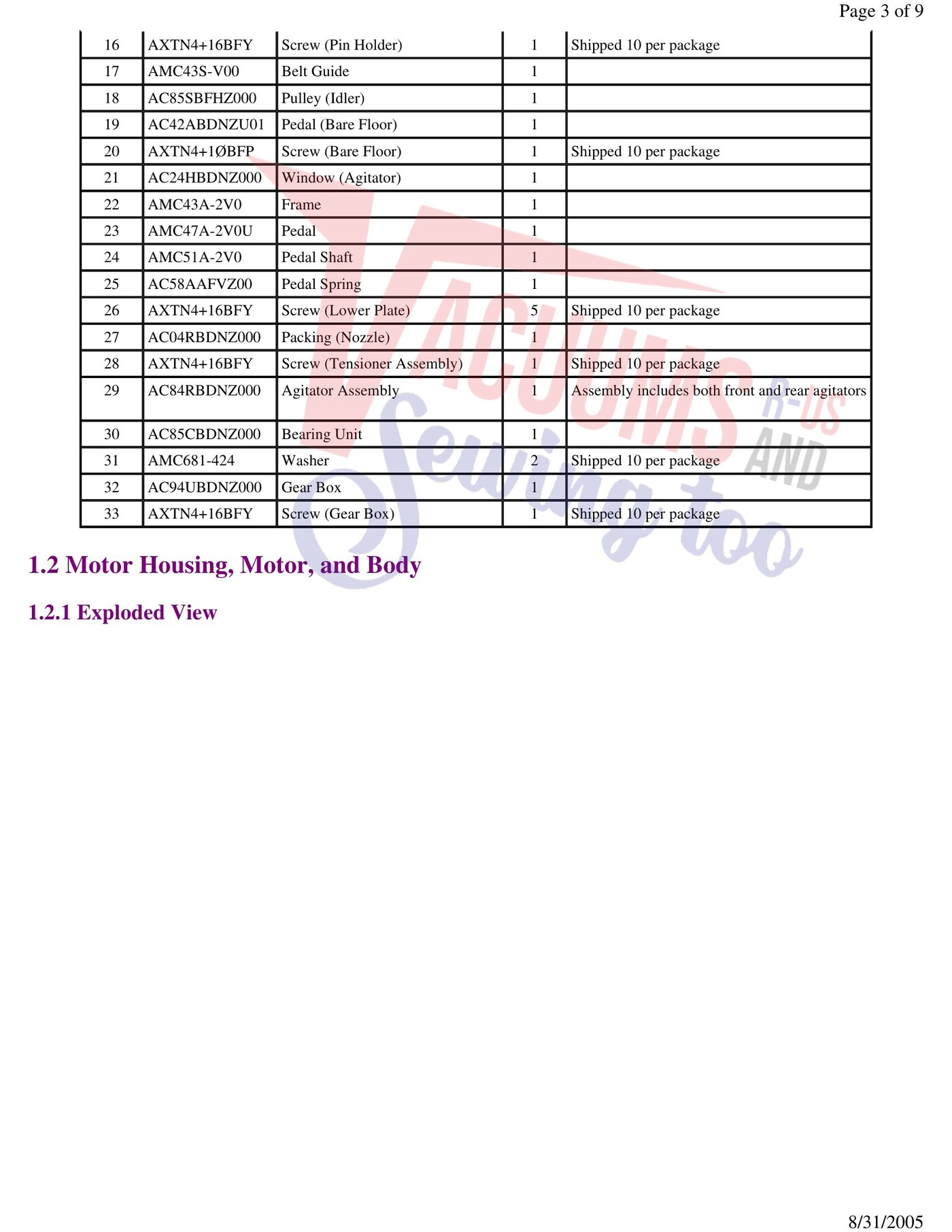

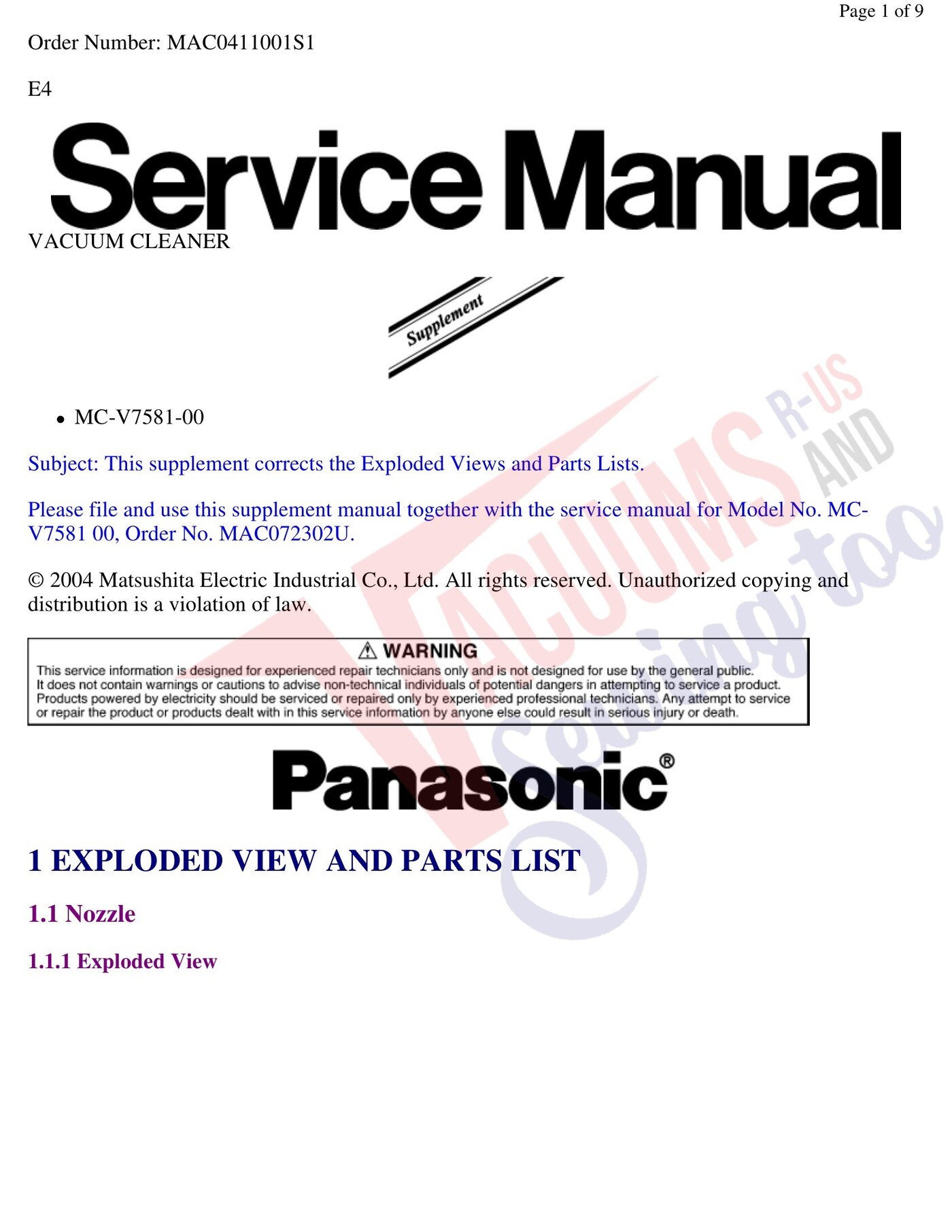

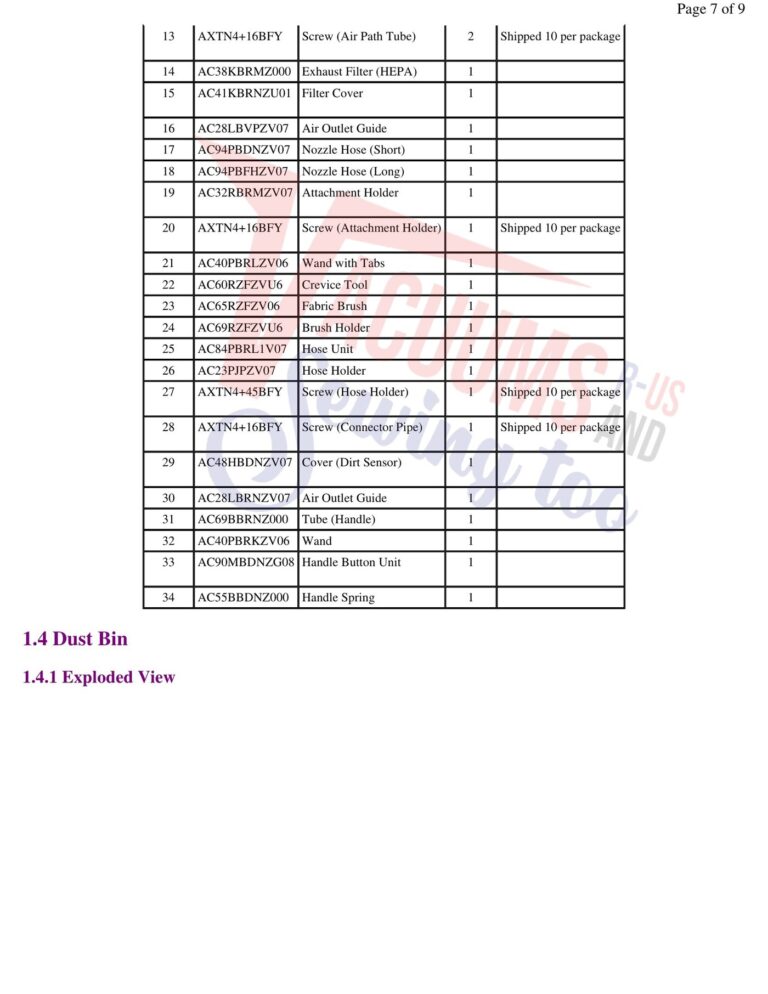

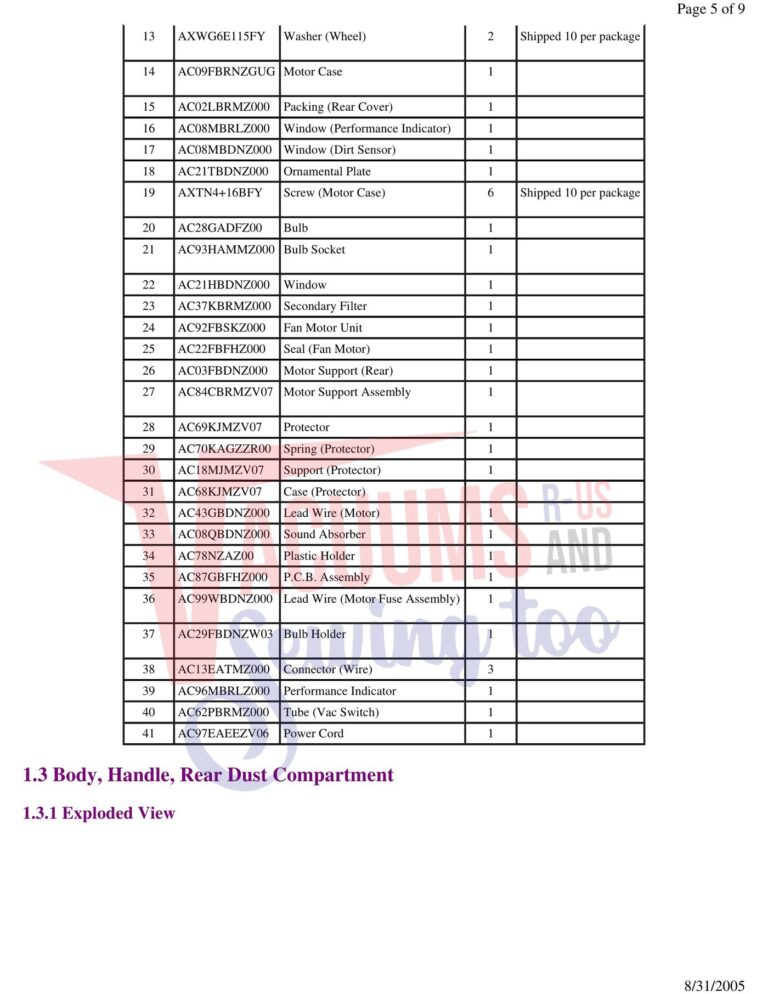

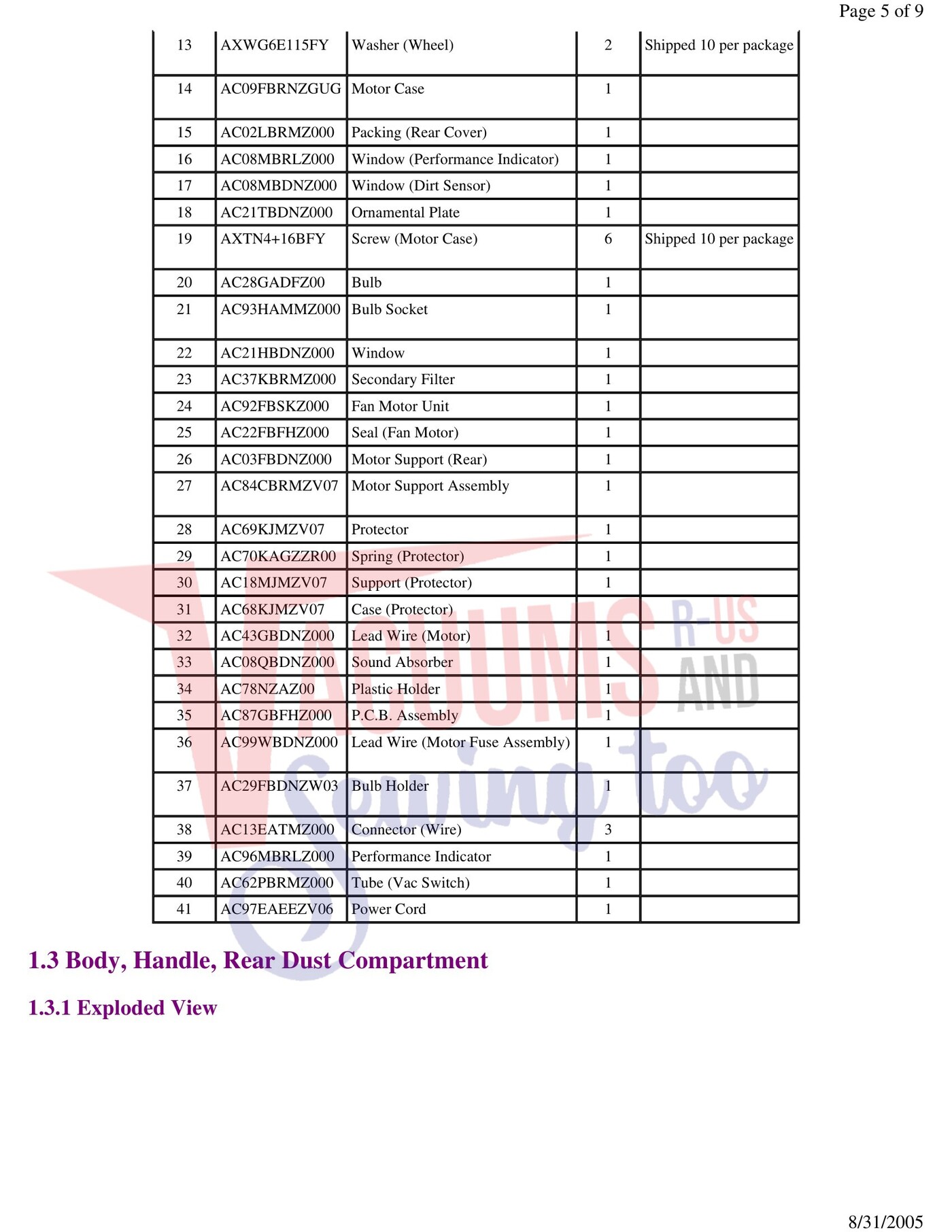

Schematic and parts book for Panasonic MC-V7581 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing | AC01ABPMZGUG | Not Available |
| 2 | No Image | BUMPER, V7582 UPRT Part Number: AC10ABDNZV07 for Panasonic | AC10ABDNZV07 | $30.78Read more |
| 4 | Not Available | Lower Plate | AC27ABDNZV07 | Not Available |
| 5 | Not Available | Shaft (Roller) | AC16CNXZ00 | Not Available |
| 6 |  | Wheel, Front V321/V225/V7314 2Pk Part Number: AC90QNGZV06 for Panasonic | AC90QNGZV06 | $20.33Read more |
| 7 | Not Available | Spring (Lower Plate) | AC58ABDNZ000 | Not Available |
| 9 | Not Available | Tensioner Assembly | AC79SBDNZV07 | Not Available |
| 10 | Not Available | Idler Unit Assembly | AC94ABDNZ000 | Not Available |
| 12 |  | Belt, Panasonic Flat Drive V7500 Part Number: AC28SBFHZ000 for Panasonic | AC28SBFHZ000 | $34.85Read more |
| 13 | Not Available | Stretch Belt | AC28SBLSZ000 | Not Available |
| 14 | No Image | COVER, BELT V7581 Part Number: AC43SBDNZG0G for Panasonic | AC43SBDNZG0G | $28.92Read more |
| 15 | Not Available | Holder (Pin) | AC29FBFHZ00 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment | AC40KBRNZV07 | Not Available |
| 2 | Not Available | ON/OFF Switch | AC01EYVZV06 | Not Available |
| 3 | Not Available | Lead Wire (Black) | AC44GBRMZ000 | Not Available |
| 4 | Not Available | Lead Wire (Black | AC44GBFHZ000 | Not Available |
| 5 | Not Available | Cord Stopper | AMC62E-J20 | Not Available |
| 7 | Not Available | Wire Connectors | AMC-1CTCE23 | Not Available |
| 8 | Not Available | Switch Cover | AC03EBRNZGUG | Not Available |
| 10 | No Image | WHEEL, REAR MC6601 V7500 SERIES Part Number: AC01CV0ZVUB for Panasonic | AC01CV0ZVUB | $10.96Read more |
| 11 | Not Available | Shaft (Wheel) | AC16CBDNZ000 | Not Available |
| 12 | Not Available | Stopper (Wheel) | AC74SUSZ00 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | COVER, HANDLE V7581 Part Number: AC76BBRMZV07 for Panasonic | AC76BBRMZV07 | $38.75Read more |
| 2 | Not Available | Upper Storage | AC53EZAZV07 | Not Available |
| 3 | Not Available | Handle Seal | AC53BBVEZV07 | Not Available |
| 4 | Not Available | Stopper (Handle) | AC57BBRNZ000 | Not Available |
| 6 | Not Available | Wire Cord | AMC37G-V020U | Not Available |
| 7 | Not Available | Handle Pipe | AC64BBRMZ000 | Not Available |
| 8 | Not Available | Handle (A) | AC22BBDNZV07 | Not Available |
| 9 | Not Available | Handle (B) | AC23BBRLZV07 | Not Available |
| 11 | Not Available | Tube (Air Path) | AC56PBVPZV07 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Filter Case | AC42KBRMZV0N | Not Available |
| 2 | Not Available | Handle Cover | AC06BBRMZG0G | Not Available |
| 3 | Not Available | Release Button | AC13DBRNZV07 | Not Available |
| 4 | No Image | SPRING, DUST BINN LID V7572/82 Part Number: AC18DBRMZ000 for Panasonic | AC18DBRMZ000 | $7.00Read more |
| 6 | Not Available | Knob | AC35KBRMZG08 | Not Available |
| 7 | Not Available | Screw (Knob) | AC73BZAZ00 | Not Available |
| 8 | Not Available | Cam Knocking | AC61KBRMZ000 | Not Available |
| 9 | Not Available | Latch Arm | AC08DBRMZV07 | Not Available |
| 10 | No Image | SPRING, BUTTON RELEASE V7572 V7582 Part Number: AC18DBRNZ000 for Panasonic | AC18DBRNZ000 | $6.43Read more |
| 11 | Not Available | Cover (Latch/Bottom) | AC48HBRNZV07 | Not Available |
| 13 | Not Available | Valve Grommet | AC45KBRMZV07 | Not Available |
| 14 | Not Available | Lid (Dust Bin) | AC02HBRMZV07 | Not Available |
| 15 | Not Available | Seal (Filter) | AC74EBLSZ000 | Not Available |
| 16 | Not Available | Seal (Dust Bin | AC74EBRNZV07 | Not Available |
| 17 | No Image | FILTER, DUST CUP 7571 Part Number: AC95KBRNZ000 for Panasonic | AC95KBRNZ000 | $80.06Read more |
