Schematic and parts book for Panasonic MC-V5745 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

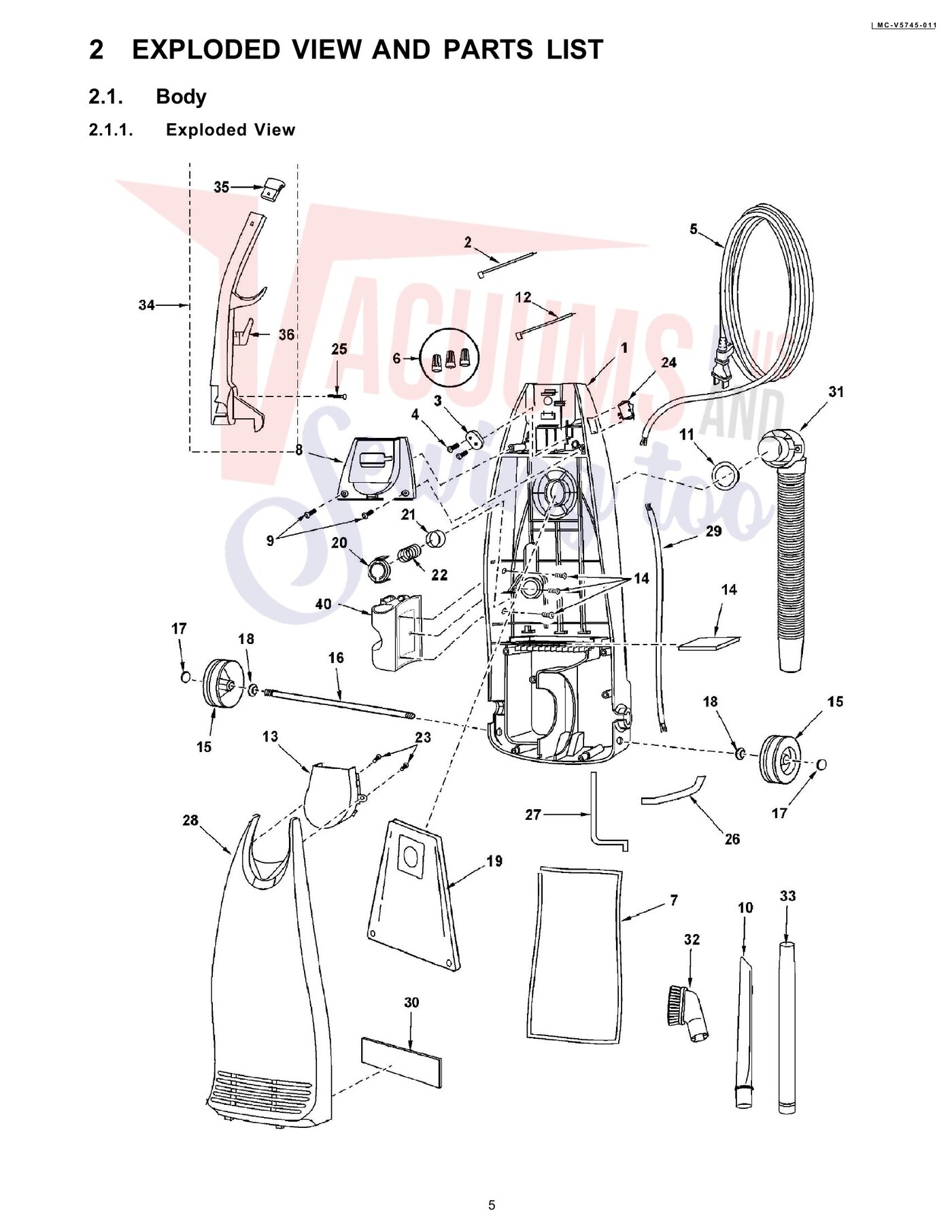

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment Unit | AC78KBJEZV07 | Not Available |
| 2 | Not Available | Lead Wire | AC44GYVZU00 | Not Available |
| 3 | Not Available | Cord Stopper | AMC62E-J20 | Not Available |
| 5 | Not Available | Power Cord | AC97EADG1V06 | Not Available |
| 6 | Not Available | Wire Connector | AMC-1CTCE23 | Not Available |
| 7 | Not Available | Packing (Dust Compartment) | AC66KAJFZ00 | Not Available |
| 8 | No Image | COVER, SWITCH V5745 Part Number: AC03EAJDZV06 for Panasonic | AC03EAJDZV06 | $29.89Read more |
| 10 |  | Cervice Tool, Gray Friction Fit Long Part Number: AC60RZFZVU6 for Panasonic | AC60RZFZVU6 | $15.64Read more |
| 12 | Not Available | Lead Wire | AC44GTDZU00 | Not Available |
| 13 | Not Available | Front Cover | AC21TAJDZV07 | Not Available |
| 14 | Not Available | Secondary Filter (Foam) | AC37KAJDZ00 | Not Available |
| 15 | Not Available | Wheel | AMC01C-V00U | Not Available |
| 16 | Not Available | Shaft (Wheel) | AC16CUSZ00 | Not Available |
| 17 | Not Available | Stopper (Wheel) | AC74SUSZ00 | Not Available |
| 18 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Dust Bag (Electrostatic) | AC16KJYZ00 | Not Available |
| 20 | No Image | COVER, V5740 Part Number: AC68KAJDZV06 for Panasonic | AC68KAJDZV06 | $44.02Read more |
| 21 | Not Available | Protector | AC69KJMZV06 | Not Available |
| 22 | No Image | SPRING, PROTECTION V5740 Part Number: AC70KAGZZR00 for Panasonic | AC70KAGZZR00 | $3.47Read more |
| 24 | Not Available | On-Off Switch | AC01EYVZV06 | Not Available |
| 25 | Not Available | Handle Screw | AC73BZAZ00 | Not Available |
| 26 | Not Available | Packing (Right) | AC39AAJFZV00 | Not Available |
| 27 | Not Available | Packing (Left) | AC40AYUZV00 | Not Available |
| 28 | Not Available | Dust Cover | AC60KCRPZCU2 | Not Available |
| 29 | Not Available | Wire Cord | AMC37G-V200U | Not Available |
| 30 | Not Available | Exhaust Filter (HEPA) | AC30KATWZ00 | Not Available |
| 31 | Not Available | Hose | AC84PASKZV06 | Not Available |
| 32 | Not Available | Dusting Brush | AC88RYUZV06 | Not Available |
| 33 | Not Available | Extension Wand (Without Tabs) | AC40PZG1V06 | Not Available |
| 34 | Not Available | Handle | AC64BAJDZV07 | Not Available |
| 35 | Not Available | Handle Cap | AC76BAJDZV07 | Not Available |
| 36 | Not Available | Upper Cord Storage Hook | AC53EZAZV07 | Not Available |
| 37 | Not Available | Wand (With Tabs) | AC40PJPZV06 | Not Available |
| 38 | Not Available | Hose Ring | AC43PAFXZV07 | Not Available |
| 39 | Not Available | Handle Assembly | AC95BAJDZV07 | Not Available |
| 40 | Not Available | Wand Holder | AC70PAJDZV07 | Not Available |

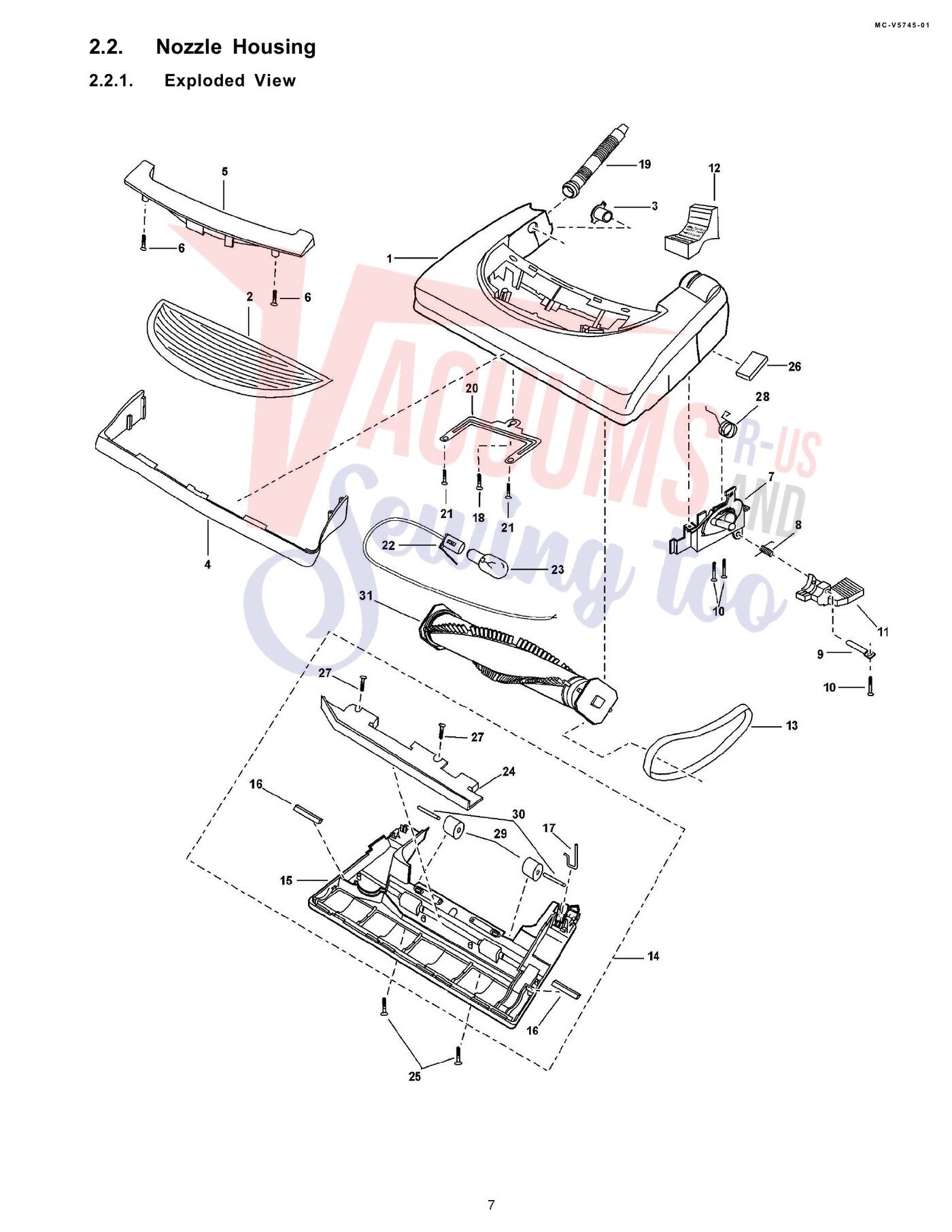

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing | AC01ACRPZCU2 | Not Available |
| 2 | Not Available | Window | AC21HAFVZ00 | Not Available |
| 3 | Not Available | Shaft (Plastic) | AMC25S-V00 | Not Available |
| 4 |  | BUMPER, V7305 V7365 V7385 UPRIGHT Part Number: AC10AAGZZV07 for Panasonic | AC10AAGZZV07 | $27.63Read more |
| 5 | Not Available | Light Cover | AC24HAFVZC02 | Not Available |
| 7 | Not Available | Carpet/Bare Floor Release Assembly | AC92BAFWZU01 | Not Available |
| 8 |  | SPRING, HANDLE RELEASE 5995, 7300 SERIES Part Number: AC58AAFVZ00 for Panasonic | AC58AAFVZ00 | $19.78Read more |
| 9 | Not Available | Shaft (Pedal) | AMC51A-V3 | Not Available |
| 11 | Not Available | Pedal (Black) | AMC47A-2V0U | Not Available |
| 12 | No Image | COVER, HANDLE RELEASE PEDAL V5269 V7600 Part Number: AC42AAFYZV06 for Panasonic | AC42AAFYZV06 | $9.06Read more |
| 13 | Not Available | Belt | AC28SJPZ00 | Not Available |
| 14 | Not Available | Lower Plate Assembly | AC91AAKWZV07 | Not Available |
| 15 | Not Available | Lower Plate | AC27AAKWZV07 | Not Available |
| 16 | Not Available | Packing (Lower Plate) | AC19AARKZV00 | Not Available |
| 17 | Not Available | Belt Cover | AC43SAFVZ00 | Not Available |
| 18 |  | SCREW, UPPER CORD HOOK 6602 BASE PLATE V5745 Part Number: AC68AZAZ00 for Panasonic | AC68AZAZ00 | $32.15Read more |
| 19 |  | Hose, Black Nozzle Short Blow Molded Part Number: AC34PAJDZV06 for Panasonic | AC34PAJDZV06 | $40.07Read more |
| 20 | Not Available | Slider Support | AC53KAFVZ00 | Not Available |
| 22 | Not Available | Socket (Bulb) | AC93HURZ00 | Not Available |
| 23 | Not Available | Bulb | AC28GADFZ00 | Not Available |
| 24 | Not Available | Body (Lower Plate) | AC06AAJUZ00 | Not Available |
| 25 | | SCREW, UPPER CORD HOOK 6602 BASE PLATE V5745 Part Number: AC68AZAZ00 for Panasonic | AC68AZAZ00 | $32.15Read more |
| 26 | Not Available | Packing (Nozzle) | AC04RAFWZ00 | Not Available |
| 28 | No Image | SPRING, SHIFTER RETURN RUG/FLOOR V7300'S Part Number: AC81HAGZZ00 for Panasonic | AC81HAGZZ00 | $5.01Read more |
| 29 |  | Wheel, Front V321/V225/V7314 2Pk Part Number: AC90QNGZV06 for Panasonic | AC90QNGZV06 | $20.33Read more |
| 30 | Not Available | Shaft (Wheel) | AC16CNXZ00 | Not Available |
| 31 | Not Available | Agitator Unit | AC84RBZEZ000 | Not Available |

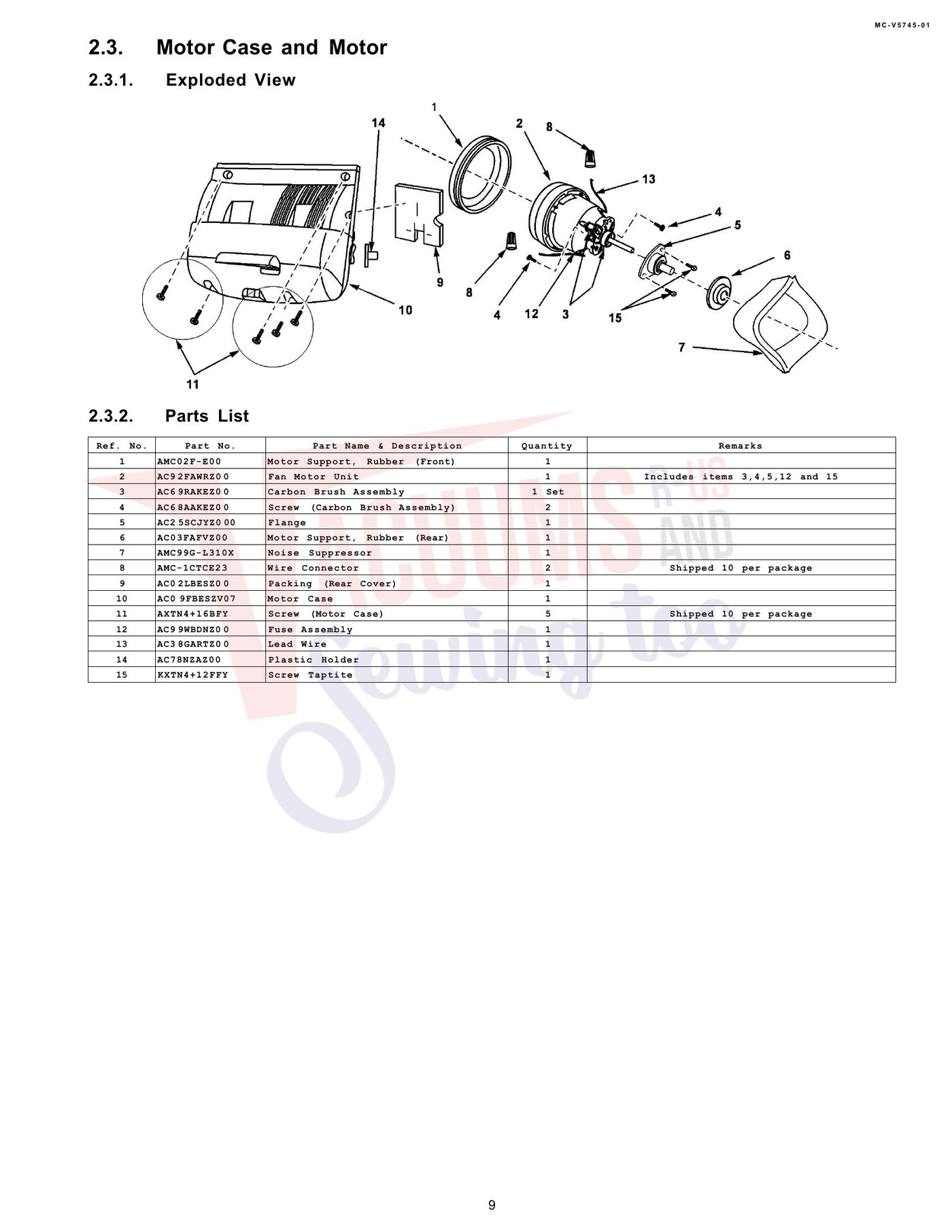

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor Support Rubber (Front) | AMC02F-E00 | Not Available |
| 2 | Not Available | Fan Motor Unit | AC92FAWRZ0 | Not Available |
| 3 | Not Available | Carbon Brush Assembly | AC69RAKEZ0 | Not Available |
| 4 | Not Available | Screw (Carbon Brush Assembly) | AC68AAKEZ0 | Not Available |
| 5 | Not Available | Flange | AC25SCJYZ0 | Not Available |
| 6 | Not Available | Motor Support Rubber (Rear) | AC03FAFVZ00 | Not Available |
| 7 | Not Available | Noise Suppressor | AMC99G-L310X | Not Available |
| 8 | Not Available | Wire Connector | AMC-1CTCE23 | Not Available |
| 9 | Not Available | Packing (Rear Cover) | AC02LBESZ0 | Not Available |
| 10 |  | Housing-Panasonic Mc-V5737 Motor For: panasonic | AC09FBESZV07 | $27.06Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Fuse Assembly | AC99WBDNZ0 | Not Available |
| 13 | Not Available | Lead Wire | AC38GARTZ0 | Not Available |
| 14 | Not Available | Plastic Holder | AC78NZAZ00 | Not Available |
