Schematic and parts book for panasonic MC-V5271 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

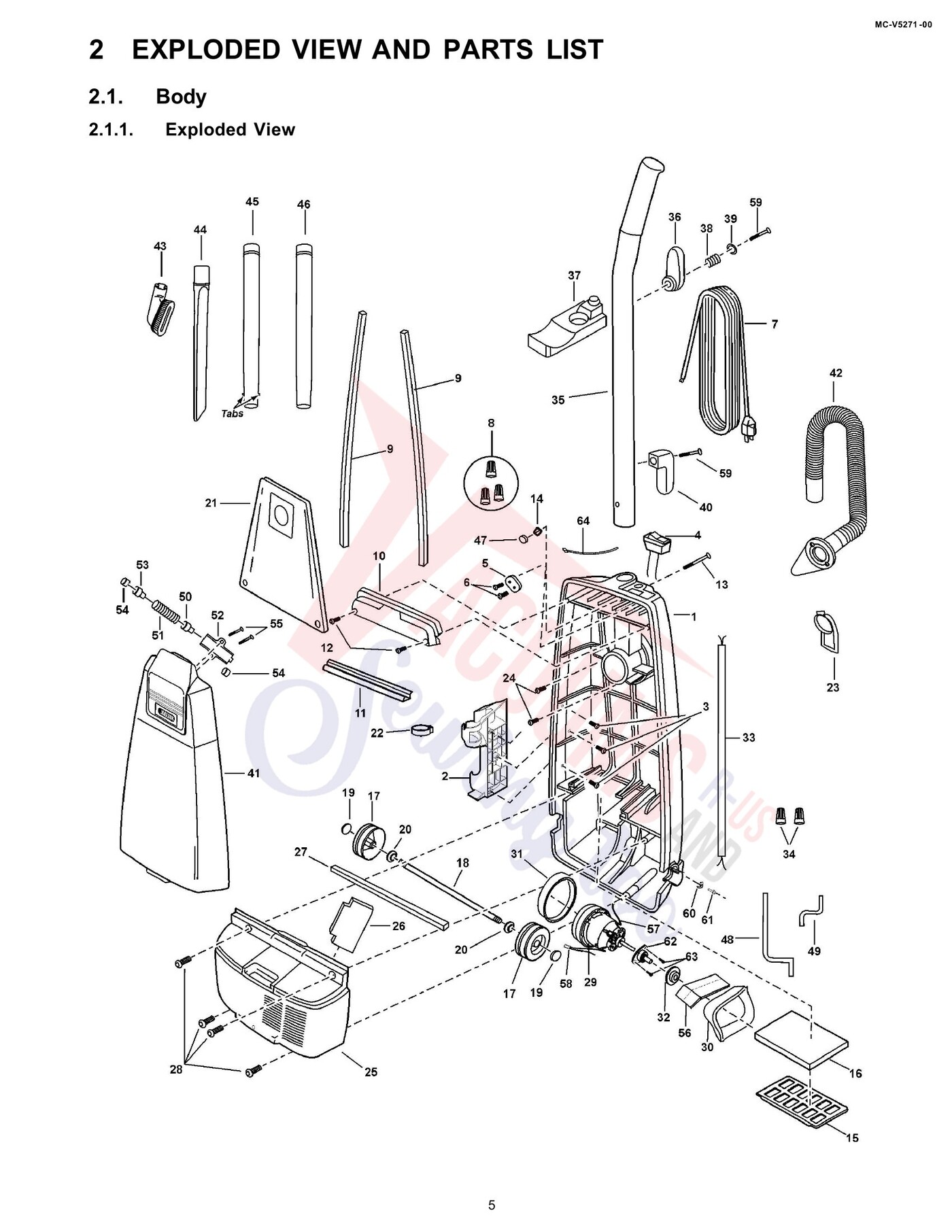

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment | AC78KDABZV07 | Not Available |
| 2 | Not Available | Wand Holder | AC70PJPZV07 | Not Available |
| 4 | Not Available | On-Off Switch | AMC98E-V010U | Not Available |
| 5 | Not Available | Cord Stopper | AMC62E-J20 | Not Available |
| 7 | Not Available | Power Cord | AC97EBZXZV06 | Not Available |
| 8 | Not Available | Wire Connector | AMC-1CTCE23 | Not Available |
| 9 | No Image | GASKET, DUST COMPARTMENT V5207 Part Number: AC66KV01V06 for Panasonic | AC66KV01V06 | $5.98Read more |
| 10 | Not Available | Switch Cover | AC03EV07V06 | Not Available |
| 11 | Not Available | Packing (Switch Cover) | AC73KV0ZV06 | Not Available |
| 13 |  | SCREW, HANDLE 5100 SERIES AMC73B-V00 Part Number: AMC73B-V00 for Panasonic | AMC73BV00 | $4.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Nut (Handle Screw) | AMP21B-17 | Not Available |
| 15 | Not Available | Filter Supporter | AMC32K-V00 | Not Available |
| 16 | Not Available | Secondary Filter (HEPA) | AC37KAAEZ00 | Not Available |
| 17 | Not Available | Wheel | AC99CBSAZV06 | Not Available |
| 18 | Not Available | Shaft (Wheel) | AC16CUSZ00 | Not Available |
| 19 | Not Available | Stopper (Wheel) | AC74SUSZ00 | Not Available |
| 20 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Dust Bag (Type U6) | AC16KCRRZ000 | Not Available |
| 22 | Not Available | Hose Hook | AC53RJPZV07 | Not Available |
| 23 |  | COVER, INLET 6815/6855/ 9901 GRAY Part Number: AC02HYUZV06 for Panasonic | AC02HYUZV06 | $9.65Read more |
| 25 | Not Available | Motor Case | AC09FBFTZM0F | Not Available |
| 26 | Not Available | Packing (Rear Cover) | AMC02L-V00 | Not Available |
| 27 | Not Available | Packing (Motor Case) | AC19FARSZV06 | Not Available |
| 29 | Not Available | Fan Motor Unit | AC92FBFTZ00 | Not Available |
| 30 | Not Available | Noise Suppressor | AC99GAMMZ00 | Not Available |
| 31 | Not Available | Motor Support (Front) | AMC02F-E00 | Not Available |
| 32 | Not Available | Motor Support Rubber (Rear) | AC03FAFYZ00 | Not Available |
| 33 | Not Available | Wire Cord | AMC37G-V200U | Not Available |
| 34 | Not Available | Wire Connector | AMC-1CTCE23 | Not Available |
| 35 | Not Available | Handle | AC64BCZZZV07 | Not Available |
| 36 | Not Available | Upper Cord Storage Hook | AC53EV0ZV07 | Not Available |
| 37 | Not Available | Hose Holder | AC23PJP1V07 | Not Available |
| 38 | Not Available | Spring (Cord Hook) | AMC76N-F7 | Not Available |
| 39 | Not Available | Washer (Cord Storage Hook) | AMC58B-F7 | Not Available |
| 40 | Not Available | Lower Cord Storage Hook | AC54EV0ZV07 | Not Available |
| 41 | No Image | DUST COVER Part Number: AC60KCRJZMUF for Panasonic | AC60KCRJZMUF | $54.23Read more |
| 42 | Not Available | Hose | AC84PJPZV06 | Not Available |
| 43 | Not Available | Dusting Brush | AC88RYUZV06 | Not Available |
| 44 |  | Cervice Tool, Gray Friction Fit Long Part Number: AC60RZFZVU6 for Panasonic | AC60RZFZVU6 | $15.64Read more |
| 45 | Not Available | Wand (With Tabs) | AC40PJPZV06 | Not Available |
| 46 | Not Available | Wand (Extension) | AC40PZG1V06 | Not Available |
| 47 | Not Available | Packing (Insulator) | AC61LAGMZ00 | Not Available |
| 48 | Not Available | Packing (Right) | AC39AARSZV00 | Not Available |
| 49 | Not Available | Packing (Left) | AC40AARSZV00 | Not Available |
| 50 | Not Available | Lead (Indicator) | AMC03M-68ZR0 | Not Available |
| 51 | No Image | SPRING, INDICATOR Part Number: AC04MRFZ00 for Panasonic | AC04MRFZ00 | $6.09Read more |
| 52 | Not Available | Body (Indicator) | AC15MVZ00 | Not Available |
| 53 | Not Available | Cap (Indicator) | AMC17M-V2 | Not Available |
| 54 | Not Available | Packing (Indicator) | AMC09M-L30 | Not Available |
| 56 | Not Available | Cooling Guide | AC41FATCZ00 | Not Available |
| 57 | Not Available | Lead Wire (Motor) | AC38GARTZ00 | Not Available |
| 58 |  | Lead Wire Assy-Motor / Pan Mc-V7367/ Mc-V7377 For: panasonic | AC98WAUDZ00 | $21.48Read more |
| 60 | Not Available | Locking Cam | AC83DDAAZU00 | Not Available |
| 62 | Not Available | Motor Flange | AC25SAFYZ00 | Not Available |
| 64 | Not Available | Tie Cable | AMC596-702 | Not Available |
| # | Part image | Description | SKU | Price |

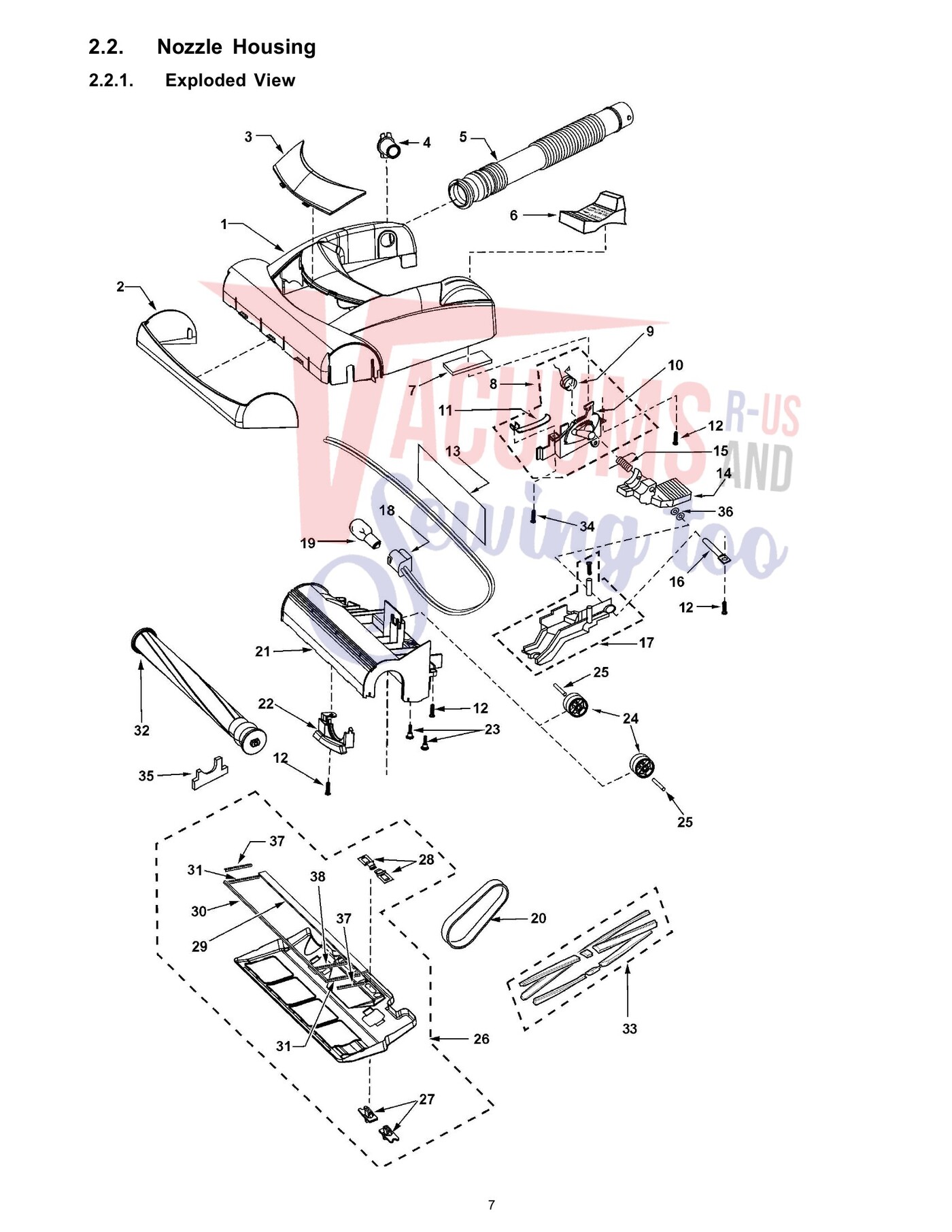

| 1 | Not Available | Nozzle Housing | AC01ACRSZMUF | Not Available |
| 2 |  | Bumper, Dark Gray Rubber V5210 Part Number: AC10ACRSZV07 for Panasonic | AC10ACRSZV07 | $28.81Read more |
| 3 | Not Available | Window | AC21HCRSZ000 | Not Available |
| 4 | Not Available | Plastic Shaft | AMC25S-V00 | Not Available |
| 5 |  | Hose, Black Nozzle Short Blow Molded Part Number: AC34PAJDZV06 for Panasonic | AC34PAJDZV06 | $40.07Read more |
| 6 | No Image | COVER, HANDLE RELEASE PEDAL V5269 V7600 Part Number: AC42AAFYZV06 for Panasonic | AC42AAFYZV06 | $9.06Read more |
| 7 | Not Available | Nozzle Packing | AC04RANPZV06 | Not Available |
| 8 |  | Handle Release Assembly - Panasonic Mc-V5269 - Upright For: panasonic | AC92BAMAZ000 | $59.91Read more |
| 9 | No Image | SPRING, SHIFTER RETURN RUG/FLOOR V7300'S Part Number: AC81HAGZZ00 for Panasonic | AC81HAGZZ00 | $5.01Read more |
| 10 | Not Available | Bracket Assembly | AC43AAFY200 | Not Available |
| 11 | No Image | SPRING, HANDLE RELEASE PEDAL FRAME Part Number: AC57AAFWZ00 for Panasonic | AC57AAFWZ00 | $6.04Read more |
| 13 | Not Available | Reflector | AC84HBZTZ000 | Not Available |
| 14 | No Image | PEDAL, FOOT UPRIGHT V5261/V5271 METAL Part Number: AC47ADAAZM0E for Panasonic | AC47ADAAZM0E | $6.66Read more |
| 15 |  | SPRING, HANDLE RELEASE 5995, 7300 SERIES Part Number: AC58AAFVZ00 for Panasonic | AC58AAFVZ00 | $19.78Read more |
| 16 | Not Available | Shaft (Pedal) | AMC51A-V3 | Not Available |
| 17 | Not Available | Belt Cover Assembly | AC11S2VZW00 | Not Available |
| 18 | Not Available | Bulb Socket | AC93HURZ00 | Not Available |
| 19 | Not Available | Bulb | AC28GADFZ00 | Not Available |
| 20 | Not Available | Belt | AC28SJPZ00 | Not Available |
| 21 | Not Available | Body (Upper) | AC02ACRS1W0H | Not Available |
| 22 |  | Cap-Panasonic Mc-V5271 Body For: panasonic | AC12ACRSZW0H | $10.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Screws | AMC68A-V3 | Not Available |
| 24 | Not Available | Wheel | AC93QAGZZV06 | Not Available |
| 25 | Not Available | Shaft (Wheel) | AC16CNXZ00 | Not Available |
| 26 | Not Available | Lower Plate Assembly | AC91ACRS1000 | Not Available |
| 27 | Not Available | 0K Latch (Lower Plate) | AMC68N-V3 | Not Available |
| 28 | Not Available | Spring (Stop Latch) | AC70NYUZ00 | Not Available |
| 29 | Not Available | Packing (Lower Plate) | AC74ACRSZ000 | Not Available |
| 30 | Not Available | Packing (Lower Plate) | AC74ACRRZ000 | Not Available |
| 31 | Not Available | Packing (Lower Plate) | AMC39A-2V0 | Not Available |
| 32 |  | Brushroll, Metal V5203, V5204 V5278 & V7388 Part Number: AC92SBVNZ000 for Panasonic | AC92SBVNZ000 | $98.23Read more |
| 33 | Not Available | Brush Unit | AC85RBFT1000 | Not Available |
| 35 | Not Available | Agitator Holder Assembly | AC82ACRRZV07 | Not Available |
| 36 | Not Available | Washer | AC62FAVGZ00 | Not Available |
| 37 | Not Available | Packing (Lower Plate) | AC75ACRSZ000 | Not Available |
| 38 | Not Available | Packing (Lower Plate) | AC75AAWRZV00 | Not Available |
