Schematic and parts book for panasonic MC-V5261 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

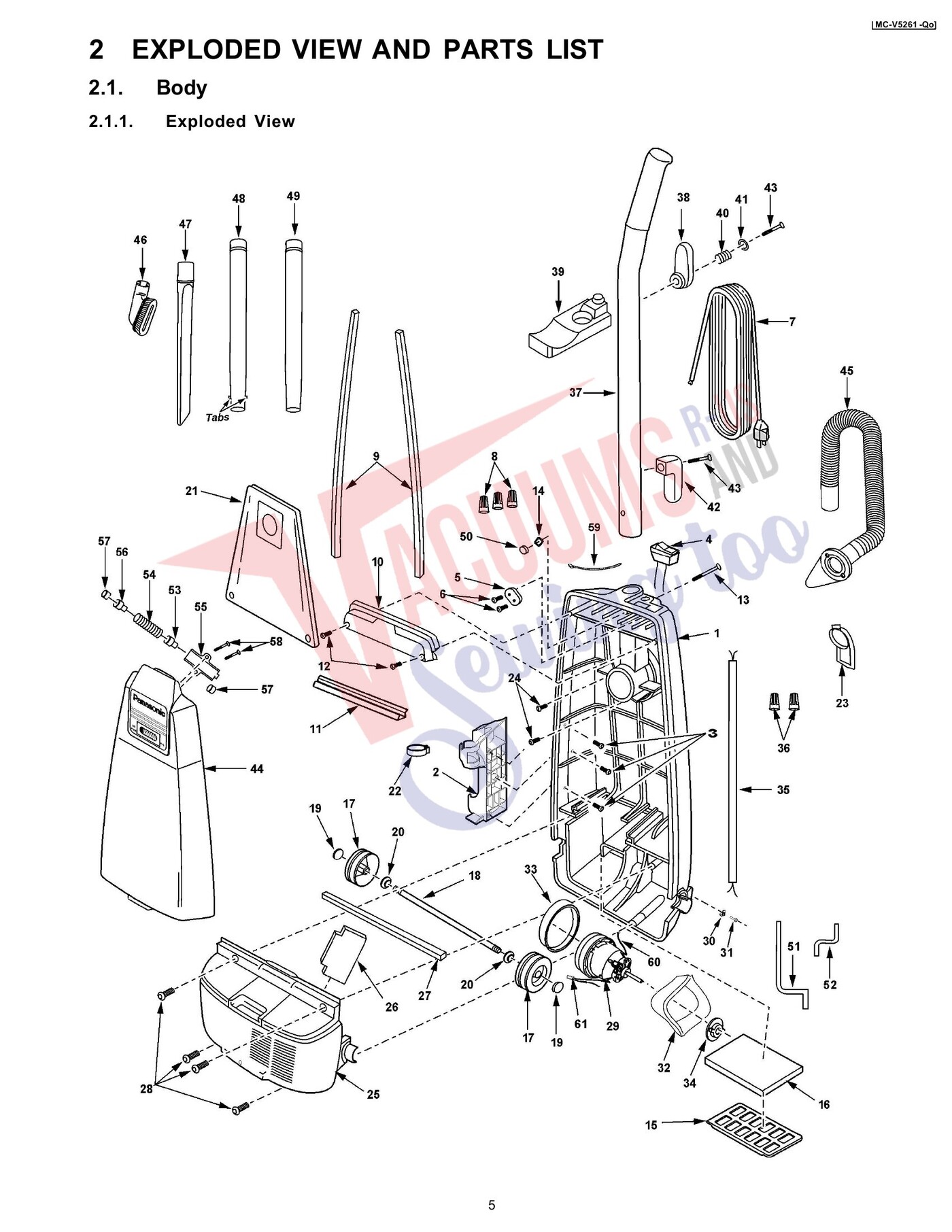

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment | AC78KDAAZV07 | Not Available |
| 2 | Not Available | Wand Holder | AC70PJPZV07 | Not Available |
| 4 | Not Available | On-Off Switch | AMC98E-V010U | Not Available |
| 5 | Not Available | Cord Stopper | AMC62E-J20 | Not Available |
| 7 | Not Available | Power Cord | AC97EAEEZV06 | Not Available |
| 8 | Not Available | Wire Connnector | AMC-1CTCE23 | Not Available |
| 9 | No Image | GASKET, DUST COMPARTMENT V5207 Part Number: AC66KV01V06 for Panasonic | AC66KV01V06 | $5.98Read more |
| 10 | Not Available | Switch Cover | AC03EV07V06 | Not Available |
| 11 | Not Available | Packing (Switch Cover) | AC73KV0ZV06 | Not Available |
| 13 |  | SCREW, HANDLE 5100 SERIES AMC73B-V00 Part Number: AMC73B-V00 for Panasonic | AMC73BV00 | $4.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Nut-Panasonic 5100 Handle Bolt - 10Pk For: panasonic | AMP21B170 | $4.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Filter Supporter | AMC32K-V00 | Not Available |
| 16 | Not Available | Secondary Filter (HEPA) | AC37ZAAEZ00 | Not Available |
| 17 | Not Available | V00U Wheel | AMC01C | Not Available |
| 18 | Not Available | Shaft (Wheel) | AC16CUSZ00 | Not Available |
| 19 | Not Available | Stopper (Wheel) | AC74SUSZ00 | Not Available |
| 20 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Dust Bag (Type U6) | AC16KBYTZ000 | Not Available |
| 22 | Not Available | Hose Hook | AC53RJPZV07 | Not Available |
| 23 |  | COVER, INLET 6815/6855/ 9901 GRAY Part Number: AC02HYUZV06 for Panasonic | AC02HYUZV06 | $9.65Read more |
| 25 |  | Motor Cover - Panasonic Mc-V5261 Platinum Upright For: panasonic | AC09FDAAZM0F | $29.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Packing (Rear Cover) | AMC02L-V00 | Not Available |
| 27 | Not Available | Packing (Motor Case) | AC19FARSZV06 | Not Available |
| 29 | Not Available | Fan Motor Unit | AC92FARSZ00 | Not Available |
| 30 | Not Available | Cam | AC83DDAAZU00 | Not Available |
| 32 | Not Available | Noise Suppressor | AC99GAMMZ00 | Not Available |
| 33 | Not Available | Motor Support (Front) | AMC02F-E00 | Not Available |
| 34 | Not Available | Motor Support Rubber (Rear) | AMC03F-V00 | Not Available |
| 35 | Not Available | Wire Cord | AMC37G-V200U | Not Available |
| 36 | Not Available | Wire Connector | AMC-1CTCE23 | Not Available |
| 37 | Not Available | Handle | AC64BCZZZV07 | Not Available |
| 38 | Not Available | Upper Cord Storage Hook | AC53EV0ZV07 | Not Available |
| 39 | Not Available | Hose Holder | AC23PJP1V07 | Not Available |
| 40 | Not Available | Spring (Cord Hook) | AMC76N-F70 | Not Available |
| 41 |  | Washer For Cord Hook-5100/6200 Series-Oem Panasonc
10 Pack For: panasonic | AMC58BF70 | $13.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | Not Available | Lower Cord Storage Hook | AC54EV0ZV07 | Not Available |
| 44 | No Image | DUST COVER Part Number: AC60KCRJZMUF for Panasonic | AC60KCRJZMUF | $54.23Read more |
| 45 | Not Available | Hose | AC84PJPZV06 | Not Available |
| 46 | Not Available | Dusting Brush | AC88RYUZV06 | Not Available |
| 47 |  | Cervice Tool, Gray Friction Fit Long Part Number: AC60RZFZVU6 for Panasonic | AC60RZFZVU6 | $15.64Read more |
| 48 | Not Available | Wand (With Tabs) | AC40PJPZV06 | Not Available |
| 49 | Not Available | Wand (Extension) | AC40PZG1V06 | Not Available |
| 50 | Not Available | Packing (Insulator) | AC61LAGMZ00 | Not Available |
| 51 | Not Available | Packing (Right) | AC39AARSZV00 | Not Available |
| 52 | Not Available | Packing (Left) | AC40AARSZV00 | Not Available |
| 53 | Not Available | Lead (Indicator) | AMC03M-68ZR0 | Not Available |
| 54 | No Image | SPRING, INDICATOR Part Number: AC04MRFZ00 for Panasonic | AC04MRFZ00 | $6.09Read more |
| 55 | Not Available | Body (Indicator) | AC15MVZ00 | Not Available |
| 56 | Not Available | Cap (Indicator) | AMC17M-V20 | Not Available |
| 57 | Not Available | Packing (Indicator) | AMC09M-L30 | Not Available |
| 59 | Not Available | Tie cable | AMC596-702 | Not Available |
| 60 | Not Available | Lead Wire (Motor) | AC38GARTZ00 | Not Available |
| 61 |  | Lead Wire Assy-Motor / Pan Mc-V7367/ Mc-V7377 For: panasonic | AC98WAUDZ00 | $21.48Read more |

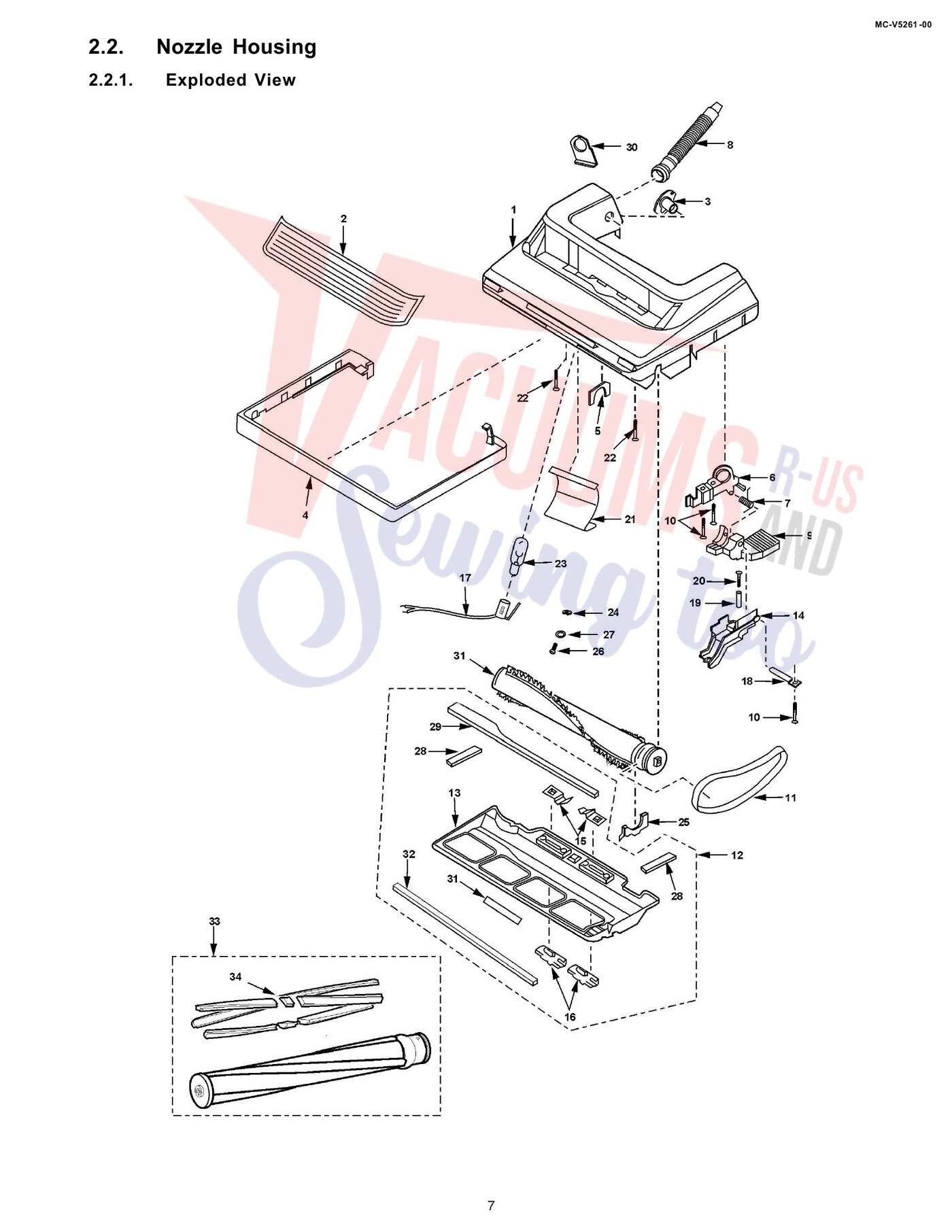

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing | AC01ACRJZMUF | Not Available |
| 2 | Not Available | Window | AMC21H-2X0 | Not Available |
| 3 | Not Available | Shaft (Plastic) | AMC25S-V00 | Not Available |
| 4 | Not Available | Furniture Guard | AC10A2VZV07 | Not Available |
| 5 | Not Available | Packing (Nozzle) | AMC81A-V00 | Not Available |
| 6 | No Image | Frame-Trip Lever/Pan Mc5210 For: panasonic | AMC43A2V0 | $38.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Spring (Pedal) | AMC58A-2V0 | Not Available |
| 8 |  | Hose, Black Nozzle Short Blow Molded Part Number: AC34PAJDZV06 for Panasonic | AC34PAJDZV06 | $40.07Read more |
| 9 | No Image | PEDAL, FOOT UPRIGHT V5261/V5271 METAL Part Number: AC47ADAAZM0E for Panasonic | AC47ADAAZM0E | $6.66Read more |
| 11 | Not Available | Belt | AC28SJPZ00 | Not Available |
| 12 | Not Available | Lower Plate Assembly | AC91AADGZ00 | Not Available |
| 13 | Not Available | Lower Plate | AC27AADGZ00 | Not Available |
| 14 | Not Available | Belt Cover (Rear) | AMC11S-2V0W | Not Available |
| 15 | Not Available | Stop Latch Spring | AC70NYUZ00 | Not Available |
| 16 | Not Available | Latch | AMC68N-V30K | Not Available |
| 17 | Not Available | Bulb Socket | AC93HURZ00 | Not Available |
| 18 | Not Available | Pedal Shaft | AMC51A-2V0 | Not Available |
| 19 | Not Available | Spacer | AMC74S-Z100G | Not Available |
| 21 | Not Available | Reflector | AC84HURZW00 | Not Available |
| 22 | No Image | SCREW, NOZZLE HOUSING 10 PACK Part Number: AMC68A-V30 for Panasonic | AMC68AV30 | $6.66Read more |
| 23 | Not Available | Bulb | AC28GADFZ00 | Not Available |
| 25 | Not Available | Agitator Holder | AMC82A-2V0 | Not Available |
| 27 | | Washer For Cord Hook-5100/6200 Series-Oem Panasonc
10 Pack For: panasonic | AMC58BF70 | $13.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | Packing (Lower Plate Right) | AMC39A-2V0 | Not Available |
| 29 | Not Available | Packing (Lower Plate Back) | AMC74A-2V0 | Not Available |
| 30 | Not Available | Hose Supporter | AMC24P-2V0 | Not Available |
| 31 | Not Available | Warning Label | AC07ZADFZ00 | Not Available |
| 32 | Not Available | Packing (Lower Plate Front) | AC74AAAEZ00 | Not Available |
| 33 | Not Available | Agitator Assembly | AC92SBYYZ000 | Not Available |
| 34 | No Image | BRUSH STRIP, MCV5261 SET OF 3 Part Number: AC85RJM2U00 for Panasonic | AC85RJM2U00 | $65.65Read more |
