Schematic and parts book for Panasonic MC-V5241 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

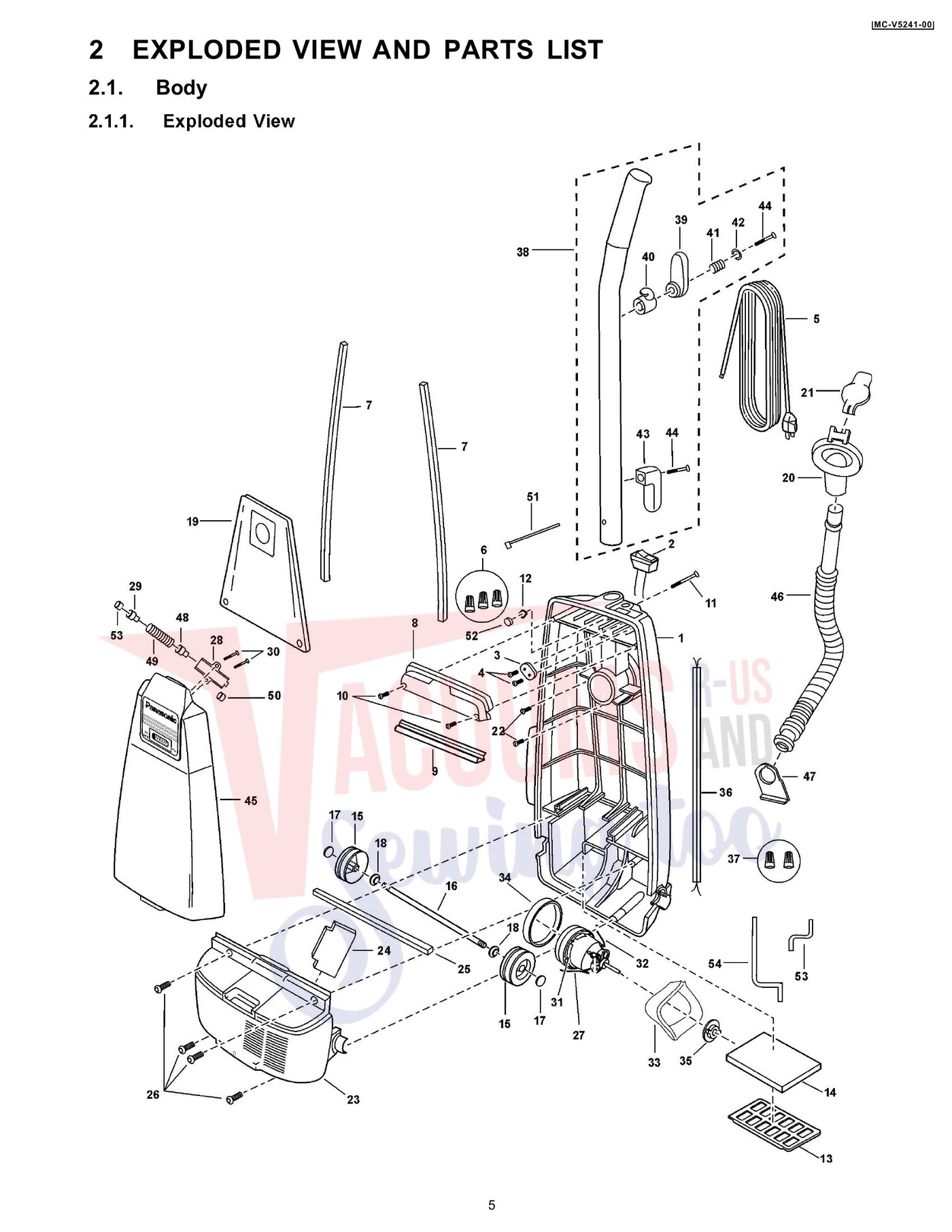

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment | AC40KARSZV07 | Not Available |
| 2 | Not Available | On-Off Switch | AMC98E-V010U | Not Available |
| 3 | Not Available | Cord Stopper | AMC62E-J20 | Not Available |
| 5 | Not Available | Power Cord | AC97EAEEZV06 | Not Available |
| 6 | Not Available | Wire Connector | AMC-1CTCE23 | Not Available |
| 7 | No Image | GASKET, DUST COMPARTMENT V5207 Part Number: AC66KV01V06 for Panasonic | AC66KV01V06 | $5.98Read more |
| 8 | Not Available | Switch Cover | AC03EV07V06 | Not Available |
| 9 | Not Available | Packing (Switch Cover) | AC73KV0ZV06 | Not Available |
| 11 |  | SCREW, HANDLE 5100 SERIES AMC73B-V00 Part Number: AMC73B-V00 for Panasonic | AMC73BV00 | $4.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Nut (Handle Screw) | AMP21B-17 | Not Available |
| 13 | Not Available | Filter Supporter | AMC32K-V00 | Not Available |
| 14 | Not Available | Secondary Filter (HEPA) | AC37KAAEZ00 | Not Available |
| 15 | Not Available | Wheel | AMC01CVZV07 | Not Available |
| 16 | Not Available | Shaft (Wheel) | AC16CUSZ00 | Not Available |
| 17 | Not Available | Stopper (Wheel) | AC74SUSZ00 | Not Available |
| 18 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Dust Bag (Type U6) | AC16KBYTZ000 | Not Available |
| 20 | Not Available | Suction Inlet | AC60HF74VU6 | Not Available |
| 21 | Not Available | Cover (Suction Inlet) | AMC02H-F70E | Not Available |
| 23 | No Image | COVER, MOTOR V5241 Part Number: AC09FARSZM0F for Panasonic | AC09FARSZM0F | $39.42Read more |
| 24 | Not Available | Packing (Rear Cover) | AMC02L-V00 | Not Available |
| 25 | Not Available | Packing (Motor Case) | AC19FARSZV06 | Not Available |
| 27 |  | Lead Wire Assy-Motor / Pan Mc-V7367/ Mc-V7377 For: panasonic | AC98WAUDZ00 | $21.48Read more |
| 28 | Not Available | Body(Indicator) | AC15MVZ00 | Not Available |
| 29 | Not Available | Cap(Indicator) | AMC17M-V2 | Not Available |
| 31 | Not Available | Fan Motor Unit | AC92FARSZ00 | Not Available |
| 32 | Not Available | Lead Wire (Motor) | AC38GARTZ00 | Not Available |
| 33 | Not Available | Noise Suppressor | AC99GAMMZ00 | Not Available |
| 34 | Not Available | Motor Support (Front) | AMC02F-E00 | Not Available |
| 35 | Not Available | Motor Support Rubber (Rear) | AMC03F-V00 | Not Available |
| 36 | Not Available | Wire Cord | AMC37G-V200U | Not Available |
| 37 | Not Available | Wire Connector | AMC-1CTCE23 | Not Available |
| 38 | Not Available | Handle | AC95BCZZZV07 | Not Available |
| 39 | Not Available | Upper Cord Storage Hook | AC53EV0ZV07 | Not Available |
| 40 | No Image | BASE, CORD HOOK V5009 Part Number: AC55EV0ZV07 for Panasonic | AC55EV0ZV07 | $10.36Read more |
| 41 | Not Available | Spring (Cord Hook) | AMC76N-F7 | Not Available |
| 42 | Not Available | Washer (Cord Storage Hook) | AMC58B-F7 | Not Available |
| 43 | Not Available | Lower Cord Storage Hook | AC54EV0ZV07 | Not Available |
| 45 | No Image | DUST COVER Part Number: AC60KCRJZMUF for Panasonic | AC60KCRJZMUF | $54.23Read more |
| 46 | Not Available | Hose | AC34PV02V06 | Not Available |
| 47 | Not Available | Hose Supporter | AMC24P-2V0 | Not Available |
| 48 | Not Available | Lead (Indicator) | AMC03M-68ZR0 | Not Available |
| 49 | No Image | SPRING, INDICATOR Part Number: AC04MRFZ00 for Panasonic | AC04MRFZ00 | $6.09Read more |
| 50 | Not Available | Packing (Indicator) | AMC09M-L30 | Not Available |
| 51 | Not Available | Wire Tie | AMC596-702 | Not Available |
| 52 | Not Available | Packing (Insulator) | AC61LAGMZ00 | Not Available |
| 53 | Not Available | Packing (Right) | AC39AARSZV00 | Not Available |
| 54 | Not Available | Packing (Left) | AC40AARSZV00 | Not Available |
| # | Part image | Description | SKU | Price |

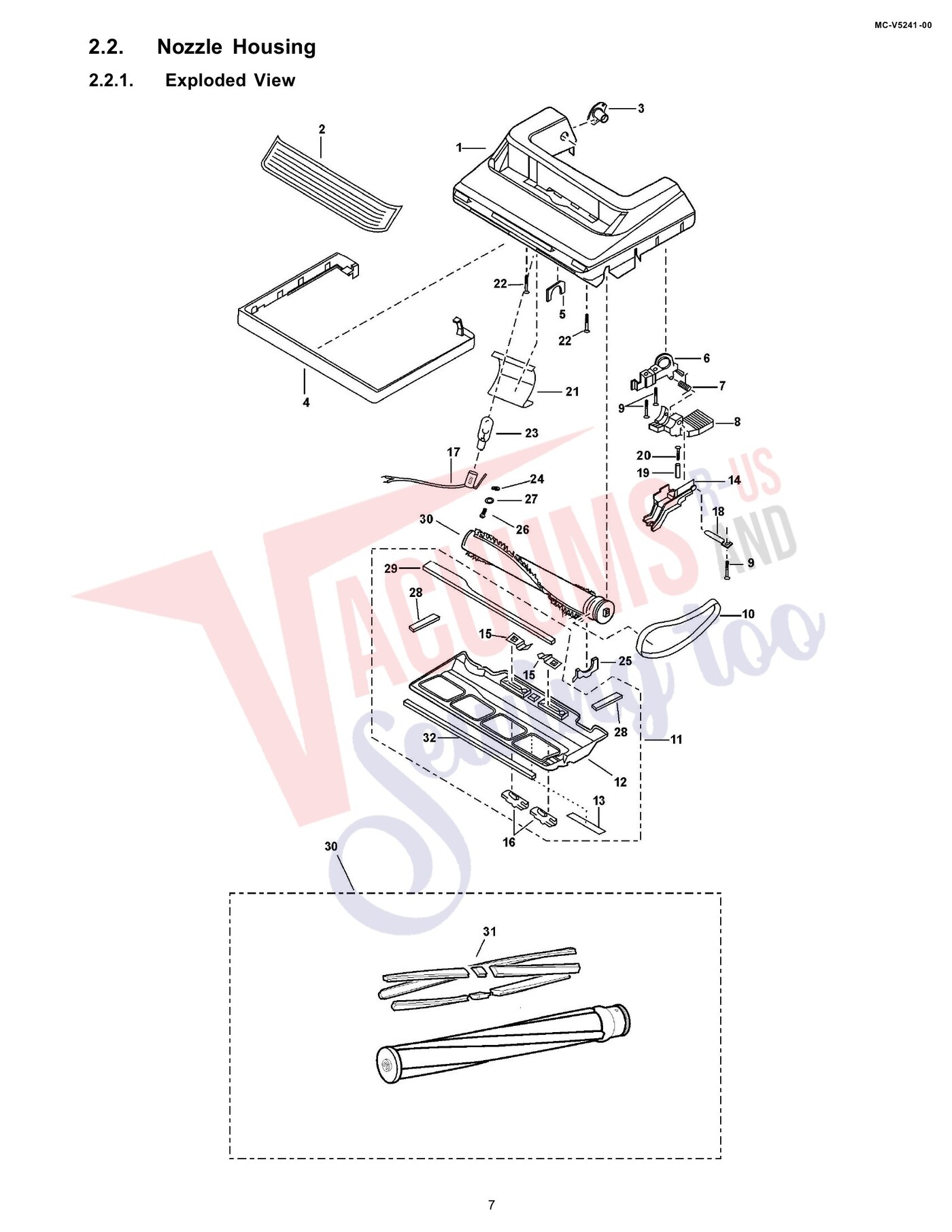

| 1 | Not Available | Nozzle Housing | AC01ACRJZMUF | Not Available |
| 2 | Not Available | Window | AMC21H-2X0 | Not Available |
| 3 | Not Available | Shaft (Plastic) | AMC25S-V00 | Not Available |
| 4 | Not Available | Furniture Guard | AC10A2VZV07 | Not Available |
| 5 | Not Available | Packing (Nozzle) | AMC81A-V00 | Not Available |
| 6 | No Image | Frame-Trip Lever/Pan Mc5210 For: panasonic | AMC43A2V0 | $38.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Spring (Pedal) | AMC58A-2V0 | Not Available |
| 8 |  | Pedal, Blk Handle Release MC-V413/MC-V5210 Part Number: AC47A2VZV07 for Panasonic | AC47A2VZV07 | $10.03Read more |
| 10 | Not Available | Belt | AC28SJPZ00 | Not Available |
| 11 | Not Available | Lower Plate Assembly | AC91AADGZ00 | Not Available |
| 12 | Not Available | Lower Plate | AC27AADGZ00 | Not Available |
| 13 | Not Available | Warning Label | AC07ZADFZ00 | Not Available |
| 14 | Not Available | Belt Cover (Rear) | AMC11S-2V0W | Not Available |
| 15 | Not Available | Stop Latch Spring | AC70NYUZ00 | Not Available |
| 16 | Not Available | 0K Latch | AMC68N-V3 | Not Available |
| 17 | Not Available | Bulb Socket | AC93HURZ00 | Not Available |
| 18 | Not Available | Pedal Shaft | AMC51A-2V0 | Not Available |
| 19 | Not Available | Spacer | AMC74S-Z100G | Not Available |
| 21 | Not Available | Reflector | AC84HURZW00 | Not Available |
| 22 | Not Available | Screw (Nozzle) | AMC68A-V3 | Not Available |
| 23 | Not Available | Bulb | AC28GADFZ00 | Not Available |
| 25 | Not Available | Agitator Holder | AMC82A-2V0 | Not Available |
| 27 | Not Available | Washer | AMC58B-F7 | Not Available |
| 28 | Not Available | Packing (Lower Plate Right) | AMC39A-2V0 | Not Available |
| 29 | Not Available | Packing (Lower Plate Back) | AMC74A-2V0 | Not Available |
| 30 | Not Available | Agitator Assembly | AC92SBYYZ000 | Not Available |
| 31 | No Image | BRUSH STRIP, MCV5261 SET OF 3 Part Number: AC85RJM2U00 for Panasonic | AC85RJM2U00 | $65.65Read more |
| 32 | Not Available | Packing (Lower Plate Front) | AC74AAAEZ00 | Not Available |
