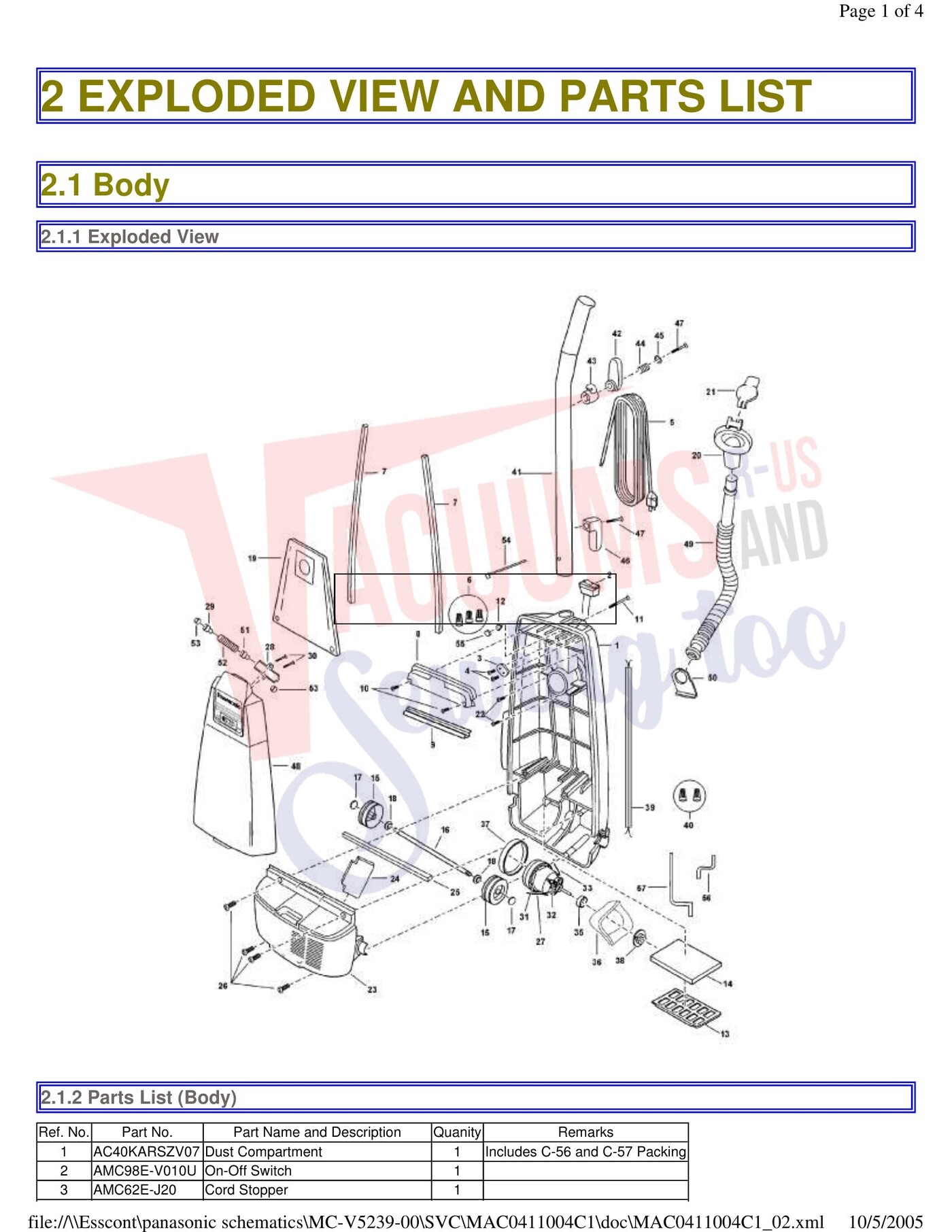

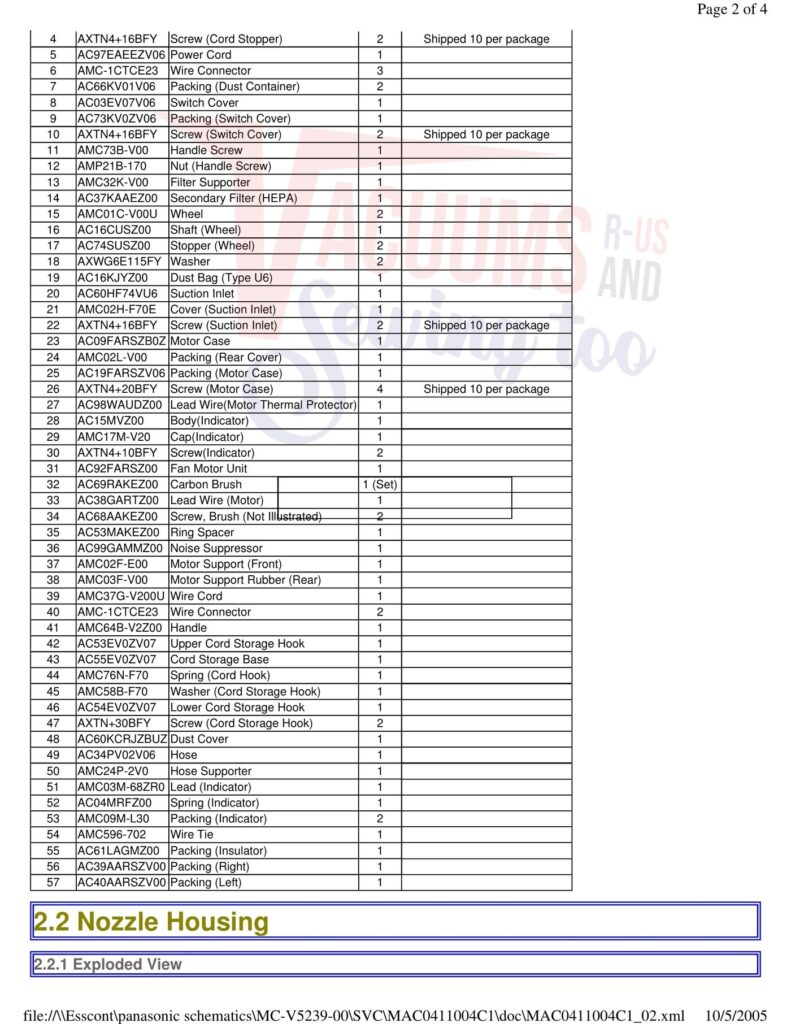

Schematic and parts book for Panasonic MC-V5239 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment 1 Includes C-56 and C-57 Packing | AC40KARSZV07 | Not Available |
| 2 | Not Available | On-Off Switch | AMC98E-V010U | Not Available |
| 3 | Not Available | Cord Stopper | AMC62E-J20 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing | AC01ACRJZBUZ | Not Available |
| 2 | Not Available | Window | AMC21H-2X0 | Not Available |
| 3 | Not Available | Shaft (Plastic) | AMC25S-V00 | Not Available |
| 4 | Not Available | Furniture Guard | AC10A2VZV07 | Not Available |
| 5 | Not Available | Packing (Nozzle) | AMC81A-V00 | Not Available |
| 6 | No Image | Frame-Trip Lever/Pan Mc5210 For: panasonic | AMC43A2V0 | $38.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Spring (Pedal) | AMC58A-2V0 | Not Available |
| 8 | Not Available | Pedal | AMC47A-2V0U | Not Available |
| 10 | Not Available | Belt | AC28SJPZ00 | Not Available |
| 11 | Not Available | Lower Plate Assembly | AC91AADGZ00 | Not Available |
| 12 | Not Available | Lower Plate 1 Includes 13 Label | AC27AADGZ00 | Not Available |
| 13 | Not Available | Warning Label | AC07ZADFZ00 | Not Available |
| 14 | Not Available | Belt Cover (Rear) | AMC11S-2V0W | Not Available |
