Schematic and parts book for Panasonic MC-ULS15 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |

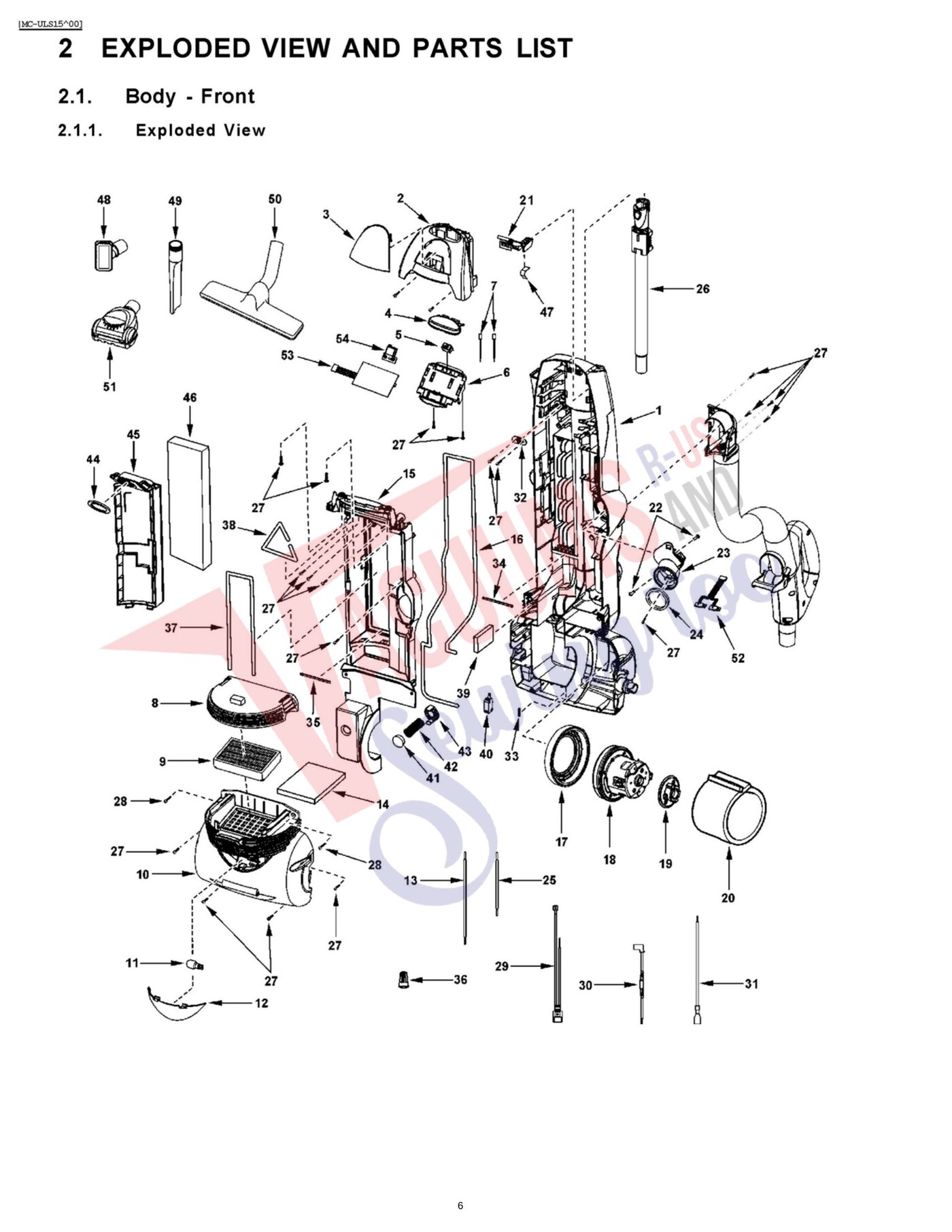

| 1 | Not Available | Dust Compartment | AC40KDKEZV07 | Not Available |
| 2 | Not Available | Switch Cover | AC03EDKEZS04 | Not Available |
| 3 | Not Available | Lens | AC08MDKEZUU4 | Not Available |
| 4 | Not Available | Switch Button | AC05EDKDZSU1 | Not Available |
| 5 | Not Available | 0 0 0 Switch ON/OFF | AC01EDDRZ | Not Available |
| 6 | Not Available | 0 0 Switch Support | AC12EDKEZ0 | Not Available |
| 8 | Not Available | Filter Cover | AC41KDKEZV0 | Not Available |
| 10 | Not Available | FDKE ZS04 Motor Case | AC09 | Not Available |
| 11 | Not Available | Bulb | AC28GBKHZ0 | Not Available |
| 12 | Not Available | 0 0 0 Window | AC21HCXWZ | Not Available |
| 13 | Not Available | 0 0 0 Wire | AC85WDDWZ | Not Available |
| 14 | Not Available | LCXWZ 000 Rear Cover Packing | AC02 | Not Available |
| 15 | Not Available | Dust Cover | AC60KDKEZV07 | Not Available |
| 16 | Not Available | 0 0 0 Body Packing | AC19ACPTZ | Not Available |
| 17 | Not Available | FCJNZ0 0 0 Motor Support Rubber Front | AC02 | Not Available |
| 18 | Not Available | CDKE Z000 Fan Motor Unit | AC84 | Not Available |
| 20 | Not Available | 0 0 0 Noise Suppressor | AC99GAMMZ | Not Available |
| 21 | Not Available | Fastener | AC15KCXWZV04 | Not Available |
| 23 | Not Available | Bag Supporter Assembly | AC10KDKEZV0 | Not Available |
| 24 | Not Available | 0 0 Suction Inlet Packing | AC64HDKEZ0 | Not Available |
| 25 | Not Available | 0 0 Lead Wire - White | AC43GBKGZ0 | Not Available |
| 26 | Not Available | Extension Wand Assembly | AC99PCXWZV07 | Not Available |
| 29 | Not Available | Bulb Socket | AC93HCHDZ000 | Not Available |
| 30 | Not Available | 0 0 Lead Assembly | AC99WDKEZ0 | Not Available |
| 31 | Not Available | 0 0 0 Lead Wire - White | AC85WDGWZ | Not Available |
| 32 | Not Available | Cord Stopper | AMC62E-J2 | Not Available |
| 33 | Not Available | Body Packing | AC19ADDSZ 000 | Not Available |
| 36 | Not Available | Wire Nut | AMC-1CTCE23 | Not Available |
| 37 | Not Available | Packing | AC66KDKEZ000 | Not Available |
| 38 | Not Available | Packing | AC66KDKDZ000 | Not Available |
| 39 | Not Available | 0 0 Filter | AC25JDKEZ0 | Not Available |
| 40 |  | SWITCH, ON/OFF V7337/9901 INSIDE DUST COMPARTMENT Part Number: AC98EYUZ00 for Panasonic | AC98EYUZ00 | $10.55Read more |
| 42 | No Image | SPRING, 5485 Part Number: AC70KBXZZY00 for Panasonic | AC70KBXZZY00 | $3.68Read more |
| 43 | Not Available | Protector Case | AC68KAJDZV0 | Not Available |
| 44 | Not Available | Dust Packing | AC74KDHKZ0 | Not Available |
| 45 | Not Available | KDKE Z000 Filter Supporter | AC32 | Not Available |
| 46 | Not Available | KDKE Z000 Semi Filter Unit | AC92 | Not Available |
| 47 | Not Available | 0 0 0 Spring Release Button | AC18DCXWZ | Not Available |
| 48 | Not Available | Combination Brush | AC63RDDRZV0 | Not Available |
| 50 | Not Available | Floor Brush | AC96RCNFZV06 | Not Available |
| 51 | Not Available | Air Turbine | AC80SCWZZV0N | Not Available |
| 52 | Not Available | 0 0 PCB Assembly | AC87GDHHZ0 | Not Available |
| 53 | Not Available | 0 0 Dirt Sensor PCB | AC87GDHKZ0 | Not Available |
| 54 | Not Available | Unit | AC47VDGMZ 000LED | Not Available |
| # | Part image | Description | SKU | Price |

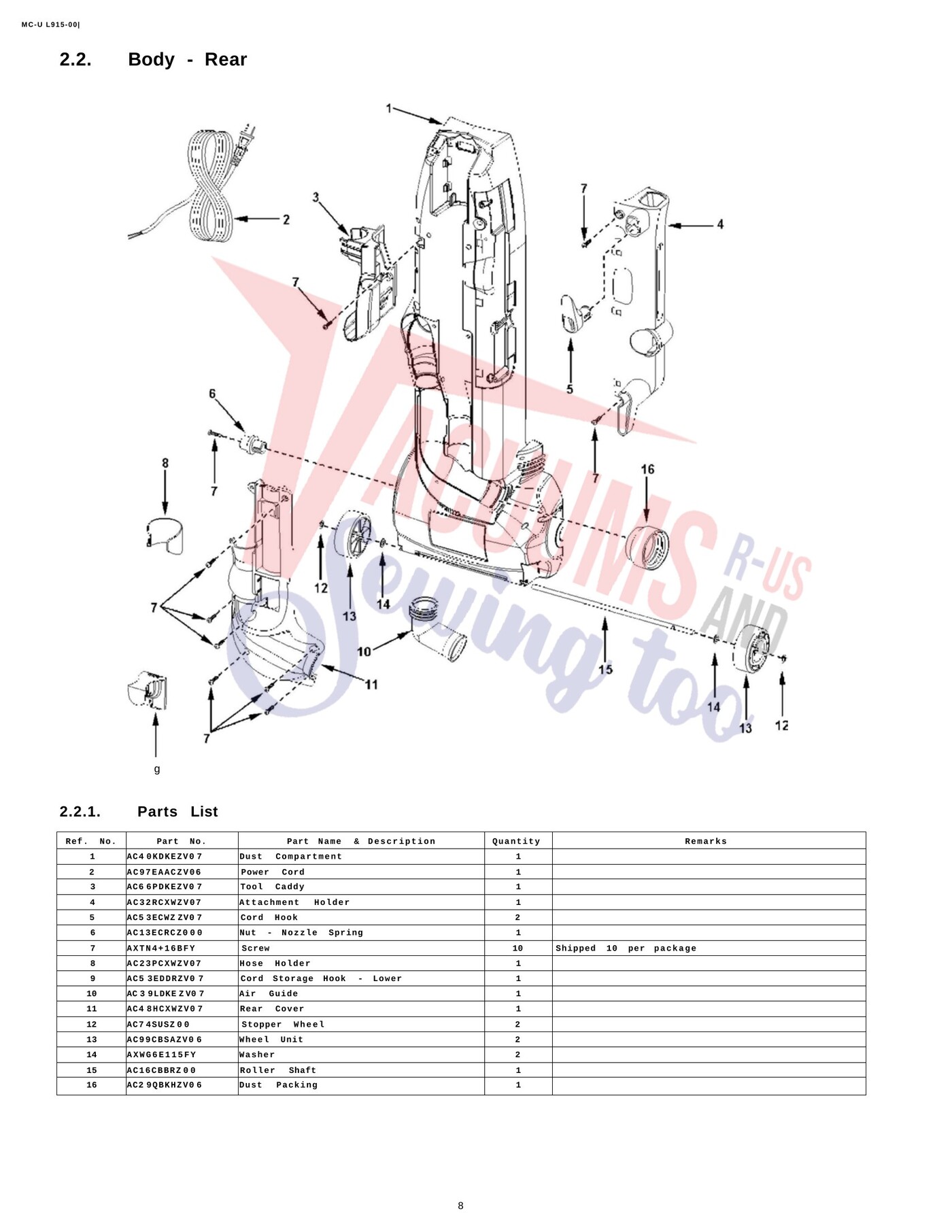

| 1 | Not Available | Dust Compartment | AC40KDKEZV0 | Not Available |
| 2 | Not Available | Power Cord | AC97EAACZV06 | Not Available |
| 3 | Not Available | Tool Caddy | AC66PDKEZV0 | Not Available |
| 4 | Not Available | Attachment Holder | AC32RCXWZV07 | Not Available |
| 5 | Not Available | ZV0 7 Cord Hook | AC53ECWZ | Not Available |
| 6 | Not Available | 0 0 Nut - Nozzle Spring | AC13ECRCZ0 | Not Available |
| 8 | Not Available | Hose Holder | AC23PCXWZV07 | Not Available |
| 9 | Not Available | Cord Storage Hook - Lower | AC53EDDRZV0 | Not Available |
| 11 | Not Available | Rear Cover | AC48HCXWZV0 | Not Available |
| 12 | Not Available | 0 0 Stopper Wheel | AC74SUSZ | Not Available |
| 13 | Not Available | Wheel Unit | AC99CBSAZV0 | Not Available |
| 14 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | 0 0 Roller Shaft | AC16CBBRZ | Not Available |
| 16 | Not Available | Dust Packing | AC29QBKHZV0 | Not Available |
| # | Part image | Description | SKU | Price |

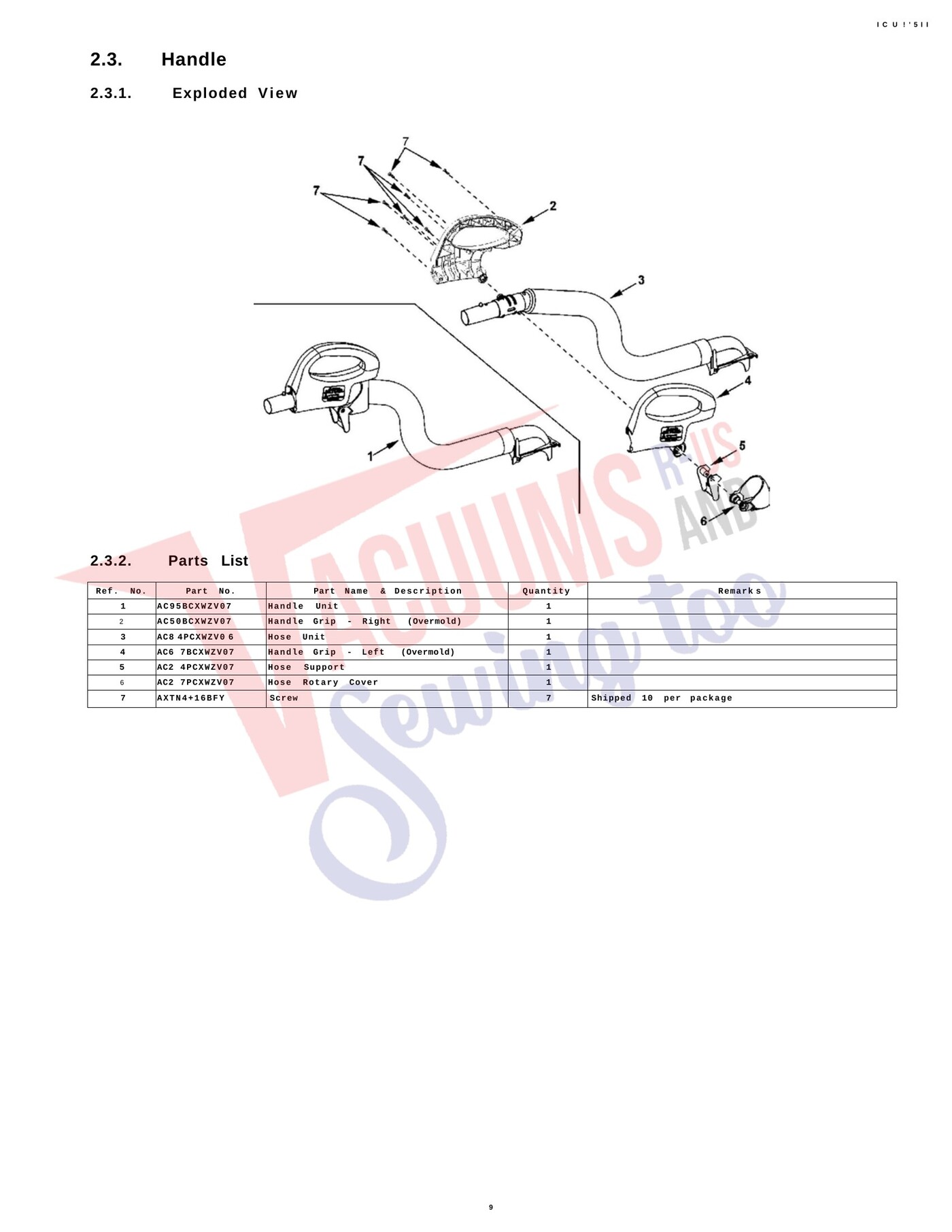

| 1 | Not Available | Handle Unit | AC95BCXWZV07 | Not Available |
| 2 | Not Available | Handle Grip - Right (Overmold) | AC50BCXWZV07 | Not Available |
| 3 | Not Available | Hose Unit | AC84PCXWZV0 | Not Available |
| 4 | Not Available | Handle Grip - Left (Overmold) | AC67BCXWZV07 | Not Available |
| 5 | Not Available | Hose Support | AC24PCXWZV07 | Not Available |
| 6 | Not Available | Hose Rotary Cover | AC27PCXWZV07 | Not Available |
| # | Part image | Description | SKU | Price |

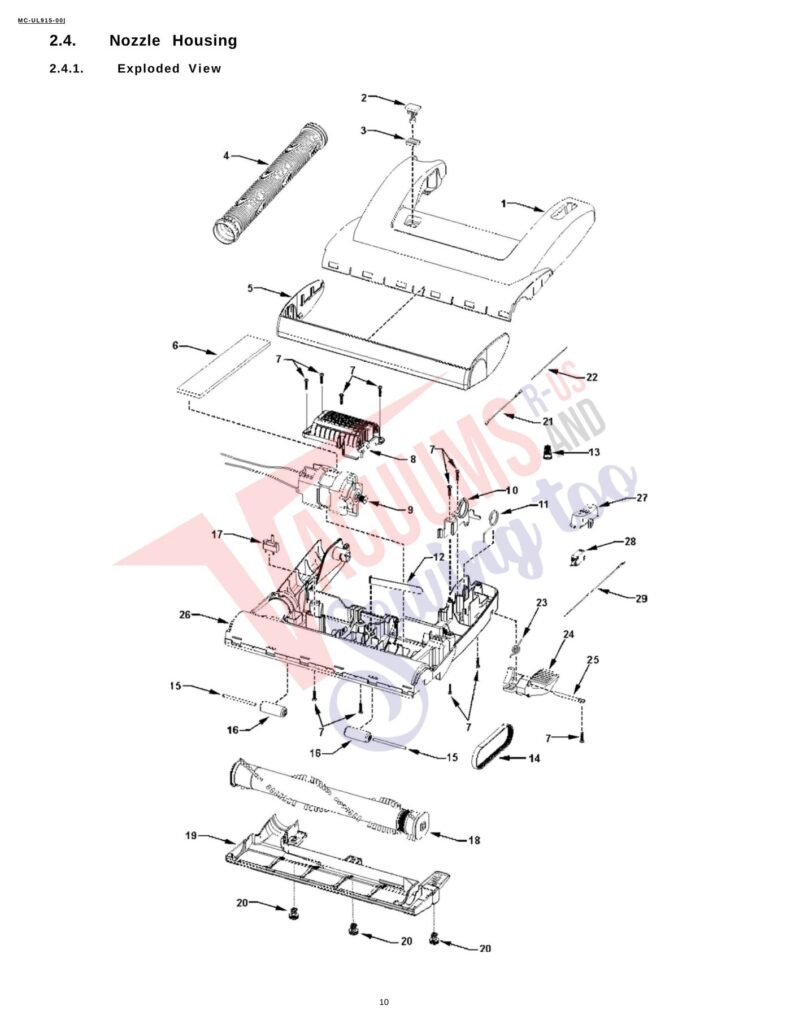

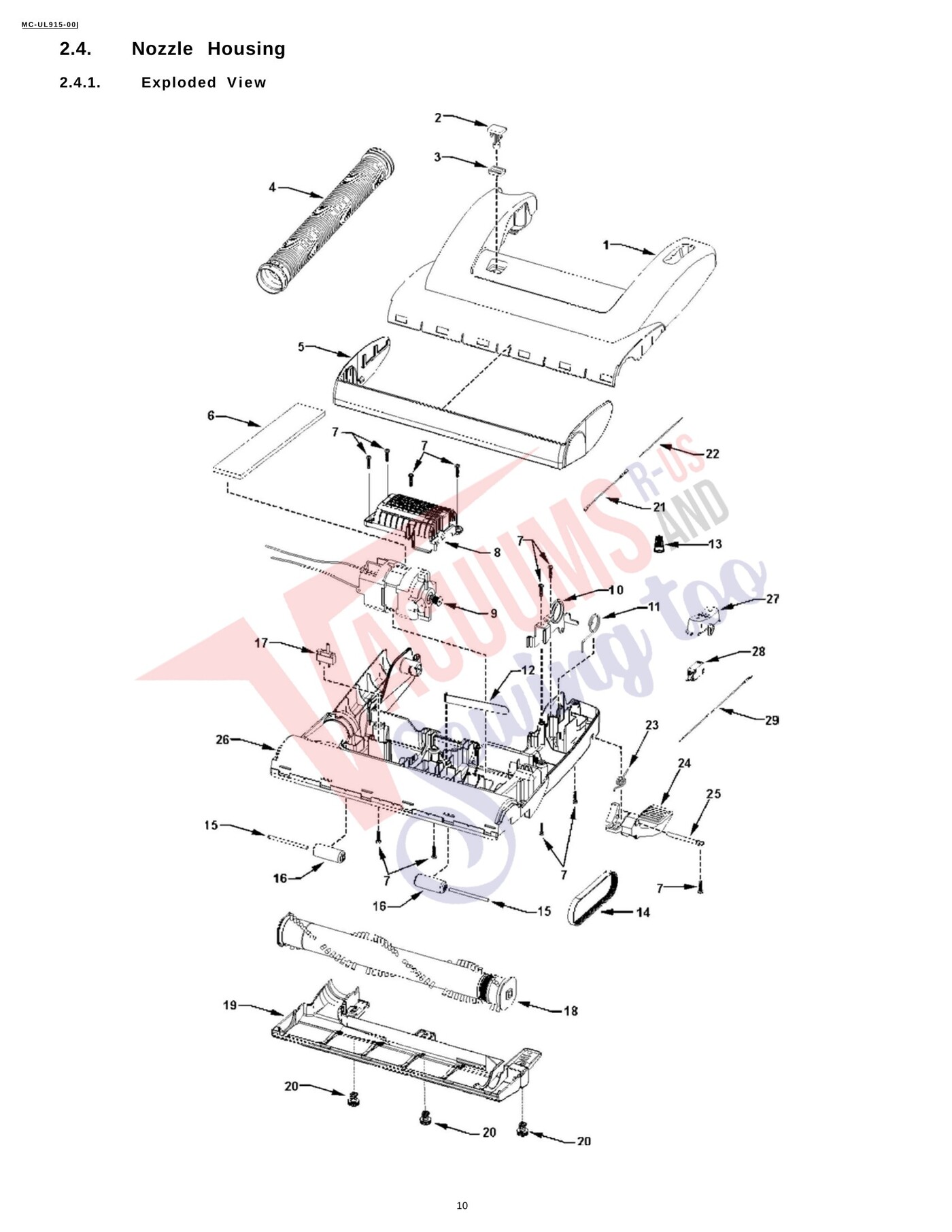

| 1 | No Image | HOUSING, NOZZLE MCUL915- 00 Part Number: AC01ADKEZSU4 for Panasonic | AC01ADKEZSU4 | $60.22Read more |
| 2 | Not Available | Button | AC13DCXWZVU4 | Not Available |
| 4 | Not Available | Nozzle Pipe | AC34PCRAZV0 | Not Available |
| 5 | Not Available | Furniture Guard | AC10ACXWZV0 | Not Available |
| 6 | No Image | GASKET, PN MOTOR V9658 Part Number: AC747156 for Panasonic | AC747156 | $7.18Read more |
| 8 | Not Available | 0 0 0 Motor Cap | AC26FCXWZ | Not Available |
| 9 | Not Available | Motor Assembly | AC90FCUZZ000 | Not Available |
| 10 | No Image | Frame-Trip Lever/Pan Mc5210 For: panasonic | AMC43A2V0 | $38.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | SPRING, MOTOR ADJUST POWER NOZZLE 9647 Part Number: AMC742-002 for Panasonic | AMC742002 | $38.56Read more |
| 13 | Not Available | Wire Nut | AMC-1CTCE2 | Not Available |
| 14 | Not Available | SCXWZ 000 Belt | AC2 | Not Available |
| 15 | Not Available | 0 0 Roller Shaft | AC16CBBRZ | Not Available |
| 16 | Not Available | Wheel | AC99CCXWZV0 | Not Available |
| 17 | Not Available | 0 0 0 Overload Protector | AC76KDGSZ | Not Available |
| 18 | Not Available | SDJSZ000 Agitator Assembly | AC92 | Not Available |
| 19 | Not Available | Lower Plate | AC27ACXWZV0 | Not Available |
| 20 |  | Nozzle Latch - Panasonic Mc-Ug787 Opti Flo For: panasonic | AC08DDBVZV07 | $4.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | GDKD Z000 Lead Wire - Black | AC85 | Not Available |
| 22 | Not Available | Lead Wire - White | AC85WDCAZ 000 | Not Available |
| 23 | Not Available | 0 0 Pedal Spring | AC58AAFVZ | Not Available |
| 24 | Not Available | Pedal | AC47A2VZV0 | Not Available |
| 25 | Not Available | Pedal Shaft | AMC51A-2V0 | Not Available |
| 26 | Not Available | Lower Body | AC03ACXWZV0 | Not Available |
| 27 | Not Available | Switch Pedal / Button | AC05EDKEZV04 | Not Available |
| 28 | | SWITCH, ON/OFF V7337/9901 INSIDE DUST COMPARTMENT Part Number: AC98EYUZ00 for Panasonic | AC98EYUZ00 | $10.55Read more |
| 29 | Not Available | Lead Wire - Black | AC85GDKFZ000 | Not Available |
| # | Part image | Description | SKU | Price |

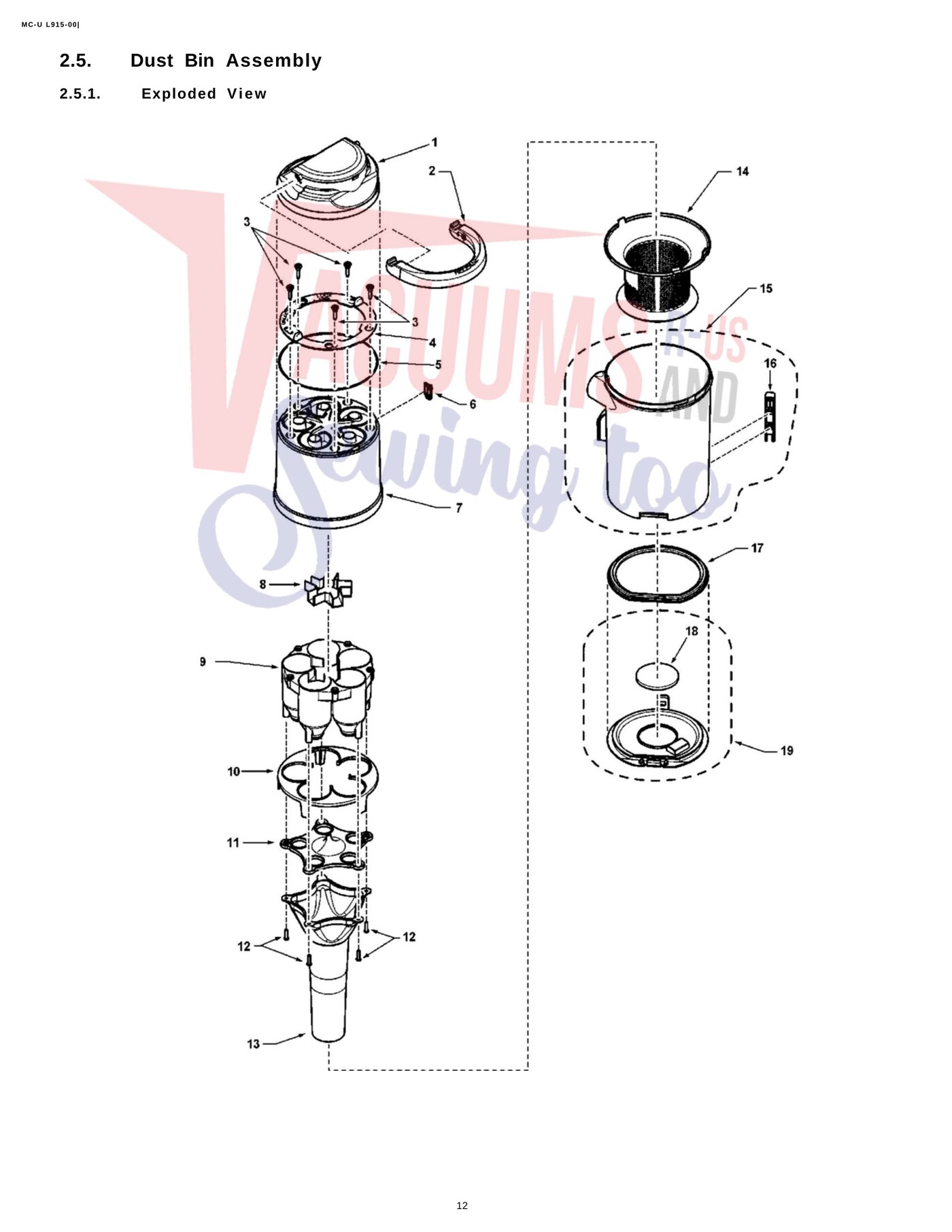

| 1 | Not Available | Lid | AC20HDKEZV0Q | Not Available |
| 2 | Not Available | Handle | AC64BDGMZV07 | Not Available |
| 3 | No Image | SCREW, NOZZLE HOUSING 10 PACK Part Number: AMC68A-V30 for Panasonic | AMC68AV30 | $6.66Read more |
| 4 | Not Available | Fastner | AC15KDHKZV04 | Not Available |
| 5 | Not Available | Air Path Seal | AC74EDHKZ0 | Not Available |
| 6 | Not Available | Locking Cam | AC83DDHKZV04 | Not Available |
| 7 | Not Available | Dust Box Terminal | AC75KDKEZVUQ | Not Available |
| 8 | Not Available | Air Guide Blade | AC21VDGMZU0 | Not Available |
| 9 | Not Available | Air Guide | AC39LDGMZV0 | Not Available |
| 10 | Not Available | S 01 Partition Plate | AC73HDGMZ | Not Available |
| 11 | Not Available | Gasket | AC04LDGMZV0 | Not Available |
| 13 | Not Available | Supporter Unit | AC36KDKEZV0 | Not Available |
| 15 | Not Available | Filter Case | AC42KDKEZ0U0 | Not Available |
| 16 | Not Available | Slider | AC48KDGNZV0 | Not Available |
| 17 | Not Available | Dust Box Packing | AC73KDGMZV0 | Not Available |
| 18 | Not Available | Dust Packing | AC74KDGMZ 000 | Not Available |
| 19 | Not Available | Dust Box Plate | AC25KDGMZ 00 | Not Available |
