Schematic and parts book for Panasonic MC-UL910 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

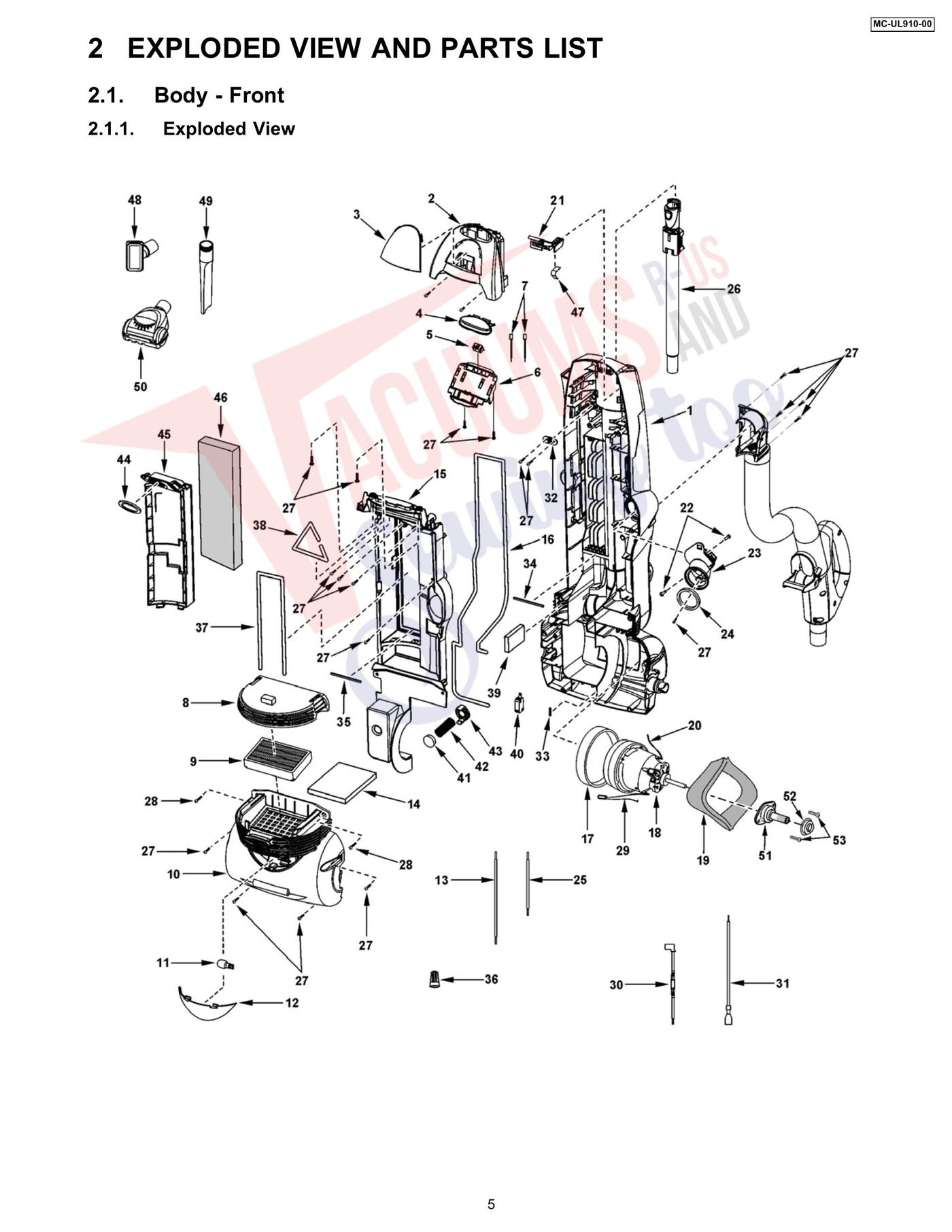

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment | AC40KDKEZV07 | Not Available |
| 2 | Not Available | Switch Cover | AC03ECXWZW0H | Not Available |
| 3 | Not Available | Lens | AC08MDKDZV07 | Not Available |
| 4 | Not Available | Switch Button | AC05EDKDZSU1 | Not Available |
| 5 | Not Available | Switch ON/OFF | AC01EDDRZ000 | Not Available |
| 6 | Not Available | Switch Support | AC12EDKEZ000 | Not Available |
| 7 | Not Available | Lead Wire Unit - Black | AC85GCXWZ000 | Not Available |
| 8 | Not Available | Filter Cover | AC41KDKEZW0H | Not Available |
| 9 |  | FILTER, MOTOR CASE MCUL915 Part Number: AC38KAXVZ000 for Panasonic | AC38KAXVZ000 | $29.92Read more |
| 10 | Not Available | Motor Case | AC09FDKDZW0H | Not Available |
| 11 | Not Available | Bulb | AC28GBKHZ000 | Not Available |
| 12 | Not Available | Window | AC21HCXWZ000 | Not Available |
| 13 | Not Available | Wire | AC85WDDWZ000 | Not Available |
| 14 | Not Available | Rear Cover Packing | AC02LCXWZ000 | Not Available |
| 15 | Not Available | Dust Cover | AC60KDKEZV07 | Not Available |
| 16 | Not Available | Body Packing | AC19ACPTZ000 | Not Available |
| 17 | Not Available | Motor Support Rubber Front | AMC02F-E00 | Not Available |
| 18 | Not Available | Fan Motor Unit | AC92FCHSZ000 | Not Available |
| 19 | Not Available | Noise Suppressor | AC99GAMMZ00 | Not Available |
| 20 | Not Available | Lead Wire - Motor | AC85WDJKZ000 | Not Available |
| 21 | Not Available | Fastener | AC15KCXWZV04 | Not Available |
| 23 | Not Available | Bag Supporter Assembly | AC10KDKEZV07 | Not Available |
| 24 | Not Available | Suction Inlet Packing | AC64HDKEZ000 | Not Available |
| 25 | Not Available | Lead Wire - White | AC43GBKGZ000 | Not Available |
| 26 | Not Available | Extension Wand Assembly | AC99PCXWZV07 | Not Available |
| 29 | Not Available | Bulb Socket | AC93HCHDZ000 | Not Available |
| 30 | Not Available | Lead Assembly | AC99WDKEZ000 | Not Available |
| 31 | Not Available | Lead Wire - White | AC85WDDWZ000 | Not Available |
| 32 | Not Available | Cord Stopper | AMC62E-J20 | Not Available |
| 33 | Not Available | Body Packing | AC19ADDSZ000 | Not Available |
| 35 | Not Available | Packing | AC75ADKEZ000 | Not Available |
| 36 | Not Available | Wire Nut | AMC-1CTCE23 | Not Available |
| 37 | Not Available | Packing | AC66KDKEZ000 | Not Available |
| 38 | Not Available | Packing | AC66KDKDZ000 | Not Available |
| 39 | Not Available | Filter | AC25JDKEZ000 | Not Available |
| 40 |  | SWITCH, ON/OFF V7337/9901 INSIDE DUST COMPARTMENT Part Number: AC98EYUZ00 for Panasonic | AC98EYUZ00 | $10.55Read more |
| 41 | Not Available | Protector | AC69KJMZV07 | Not Available |
| 42 | Not Available | Protector Spring | AC70KDKDZV00 | Not Available |
| 43 | Not Available | Protector Case | AC68KAJDZV07 | Not Available |
| 44 | Not Available | Dust Packing | AC74KDHKZ000 | Not Available |
| 45 | Not Available | Filter Supporter | AC32KDKEZ000 | Not Available |
| 46 | Not Available | Semi Filter Unit | AC92KDKEZ000 | Not Available |
| 47 | Not Available | Spring Release Button | AC18DCXWZ000 | Not Available |
| 48 | Not Available | Combination Brush | AC63RDDRZV06 | Not Available |
| 49 | Not Available | Crevice Tool | AC60RAKZZV06 | Not Available |
| 50 | Not Available | Air Turbine | AC80SCWZZV0N | Not Available |
| 51 | Not Available | Flange | AC25SCWZZ000 | Not Available |
| 52 | Not Available | Motor Support Rear | AC03FAFYZ000 | Not Available |

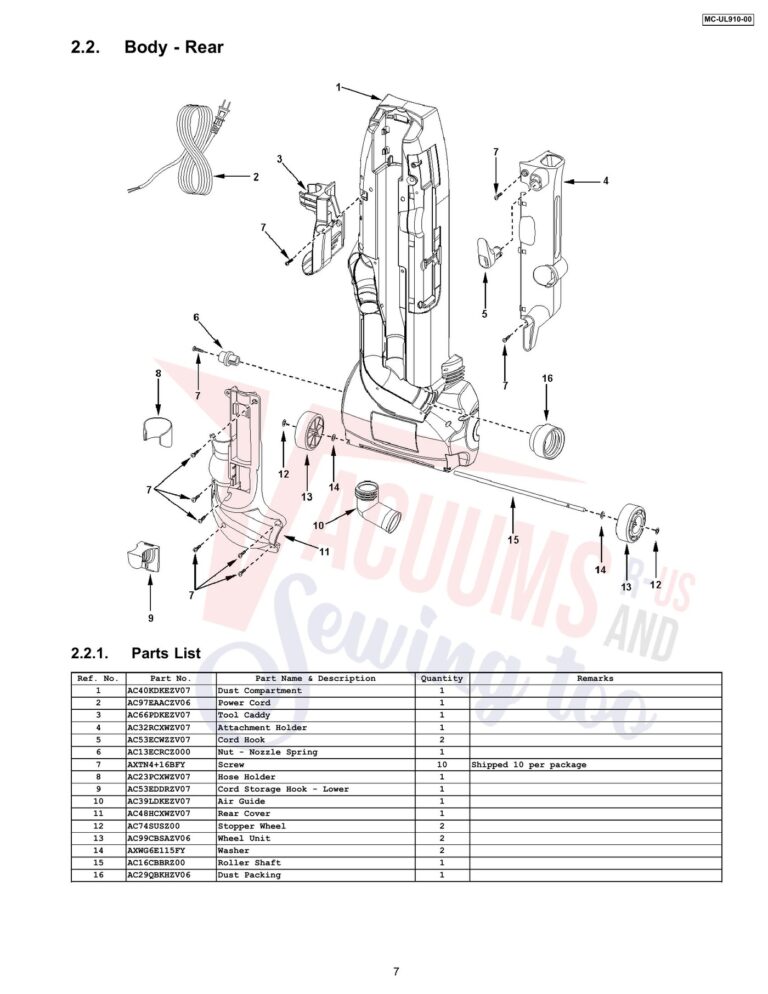

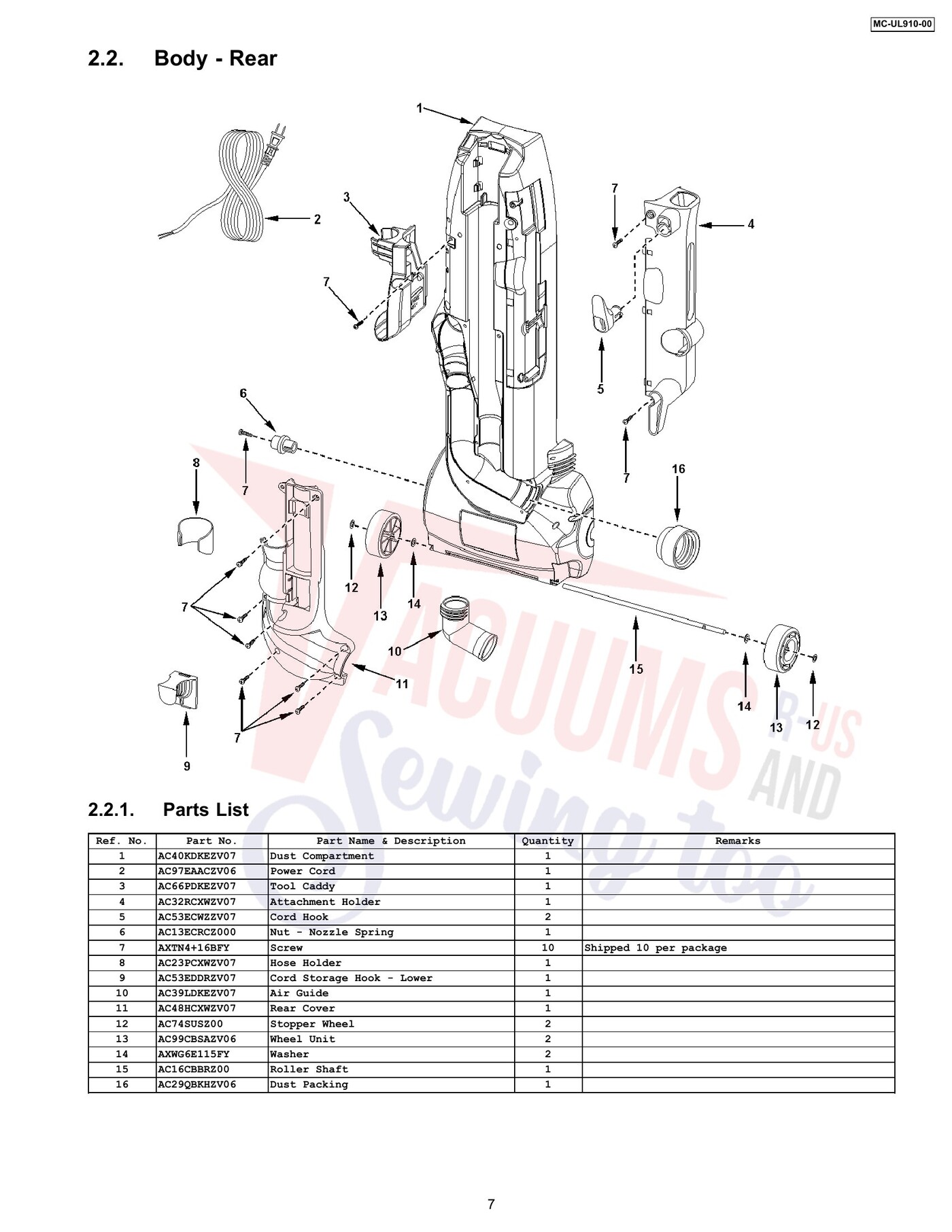

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment | AC40KDKEZV07 | Not Available |
| 2 | Not Available | Power Cord | AC97EAACZV06 | Not Available |
| 3 | Not Available | Tool Caddy | AC66PDKEZV07 | Not Available |
| 4 | Not Available | Attachment Holder | AC32RCXWZV07 | Not Available |
| 5 | Not Available | Cord Hook | AC53ECWZZV07 | Not Available |
| 6 | Not Available | Nut - Nozzle Spring | AC13ECRCZ000 | Not Available |
| 8 | Not Available | Hose Holder | AC23PCXWZV07 | Not Available |
| 9 | Not Available | Cord Storage Hook - Lower | AC53EDDRZV07 | Not Available |
| 10 | Not Available | Air Guide | AC39LDKEZV07 | Not Available |
| 11 | Not Available | Rear Cover | AC48HCXWZV07 | Not Available |
| 12 | Not Available | Stopper Wheel | AC74SUSZ00 | Not Available |
| 13 | Not Available | Wheel Unit | AC99CBSAZV06 | Not Available |
| 14 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Roller Shaft | AC16CBBRZ00 | Not Available |
| 16 | Not Available | Dust Packing | AC29QBKHZV06 | Not Available |

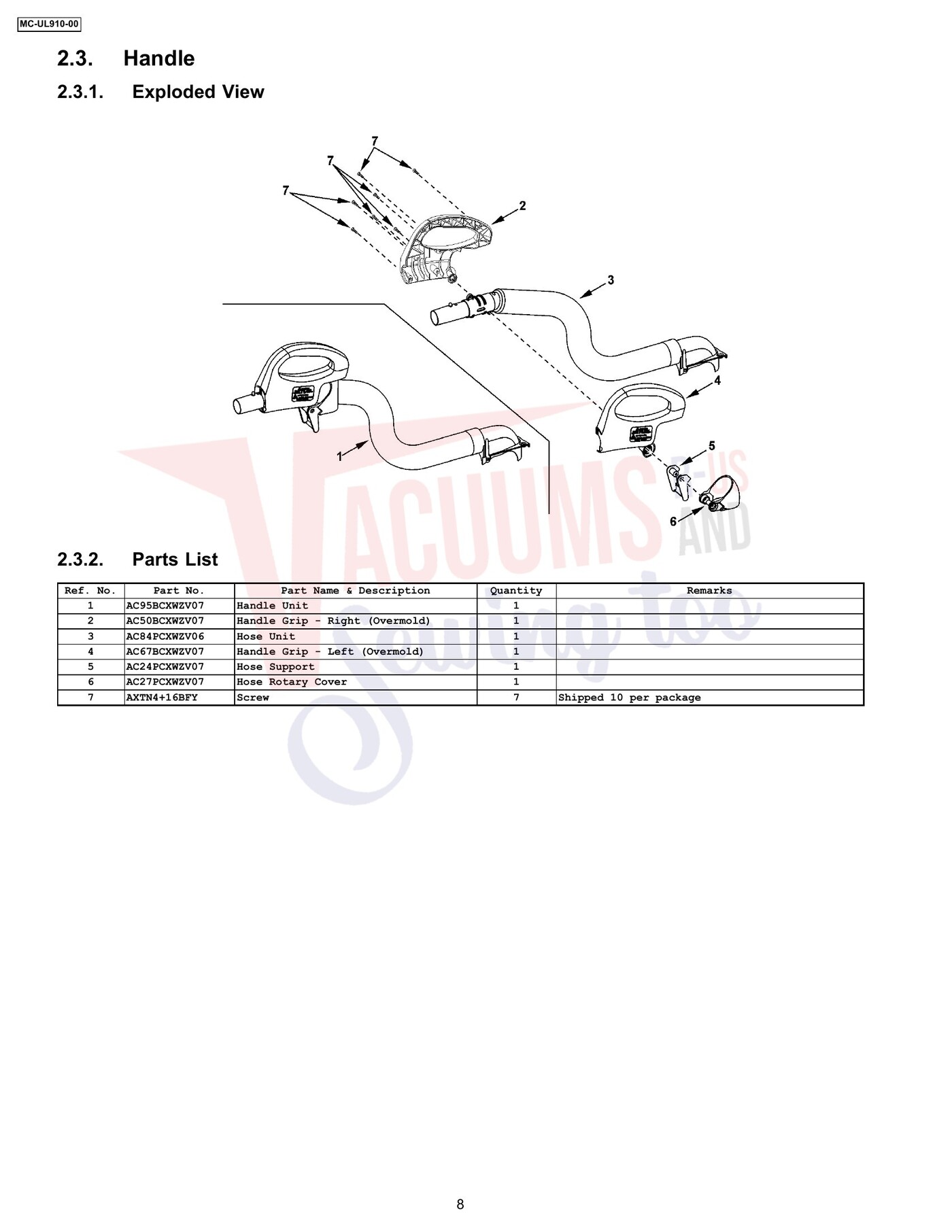

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle Unit | AC95BCXWZV07 | Not Available |
| 2 | Not Available | Handle Grip - Right (Overmold) | AC50BCXWZV07 | Not Available |
| 3 | Not Available | Hose Unit | AC84PCXWZV06 | Not Available |
| 4 | Not Available | Handle Grip - Left (Overmold) | AC67BCXWZV07 | Not Available |
| 5 | Not Available | Hose Support | AC24PCXWZV07 | Not Available |
| 6 | Not Available | Hose Rotary Cover | AC27PCXWZV07 | Not Available |

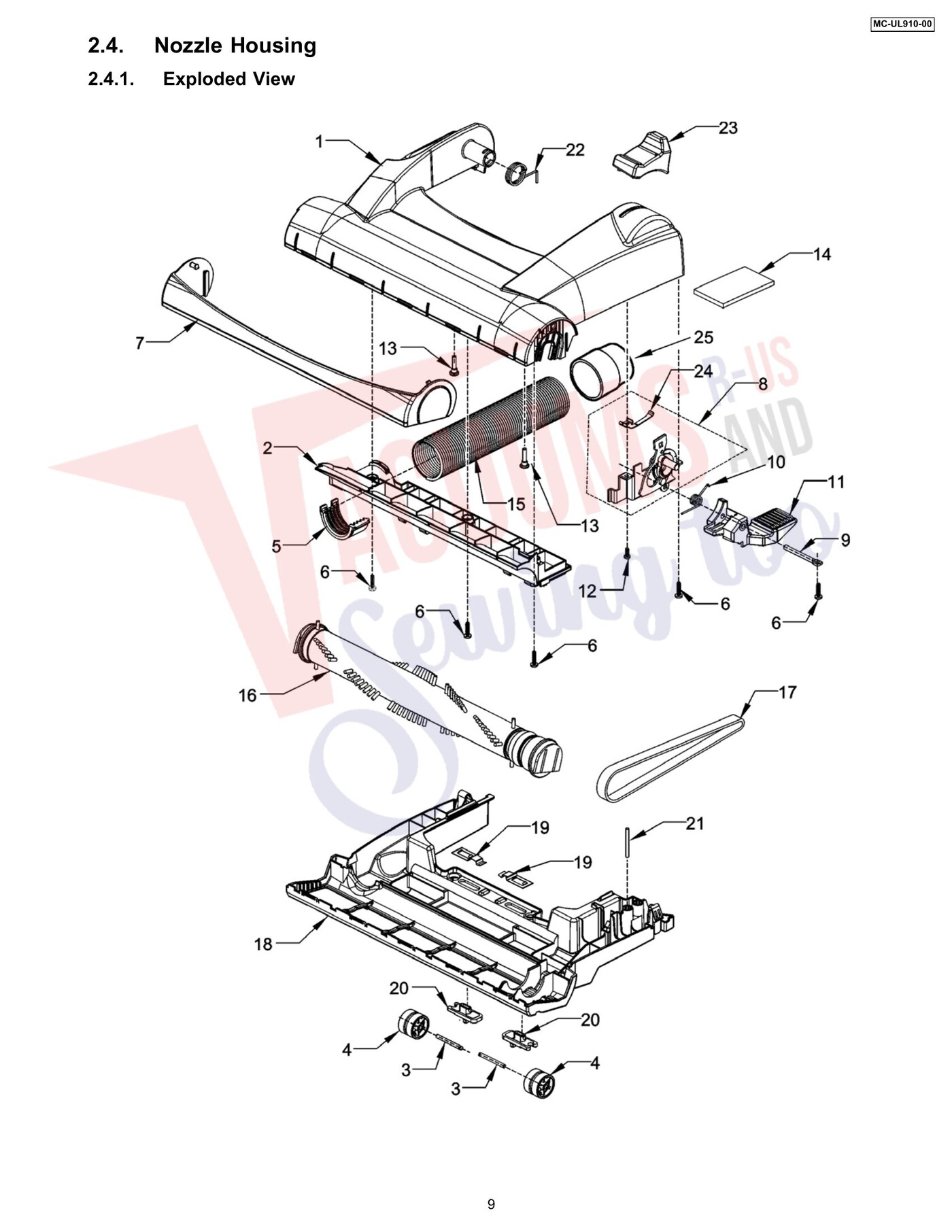

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing | AC01ADKDZWUH | Not Available |
| 2 | Not Available | Upper Body | AC02ACNFZV07 | Not Available |
| 3 | Not Available | Roller Shaft | AC16CNXZ00 | Not Available |
| 4 | No Image | WHEEL, NOZZLE UG693 Part Number: AC99QCYBZV06 for Panasonic | AC99QCYBZV06 | $5.98Read more |
| 5 | Not Available | Body Cap | AC12ACNFZV07 | Not Available |
| 7 | Not Available | Furniture Guard | AC10ACWZZV06 | Not Available |
| 8 | Not Available | Handle Release Assembly | AC30FAMAZ000 | Not Available |
| 9 | Not Available | Pedal Shaft | AMC51A-V30 | Not Available |
| 10 |  | SPRING, HANDLE RELEASE 5995, 7300 SERIES Part Number: AC58AAFVZ00 for Panasonic | AC58AAFVZ00 | $19.78Read more |
| 11 | Not Available | Pedal | AC47A2VZV06 | Not Available |
| 13 | No Image | SCREW, NOZZLE HOUSING 10 PACK Part Number: AMC68A-V30 for Panasonic | AMC68AV30 | $6.66Read more |
| 14 | Not Available | Nozzle Packing (Foam) | AC04RANPZV06 | Not Available |
| 15 |  | HOSE, NOZZLE Part Number: AC34PCNFZV06 for Panasonic | AC34PCNFZV06 | $9.96Read more |
| 16 | Not Available | Agitator Unit | AC84RCKPZ000 | Not Available |
| 17 | Not Available | Belt | AC28SJPZ00 | Not Available |
| 18 | Not Available | Lower Plate | AC27ACKPZV07 | Not Available |
| 19 | No Image | SPRING, BOTTOM PLATE 6200 SERIES Part Number: AMC70N-V30 for Panasonic | AMC70NV30 | $4.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Latch | AMC68N-AV0K | Not Available |
| 21 | Not Available | Belt Guard | AC43SAFXZ000 | Not Available |
| 22 | Not Available | Floor Nozzle Spring | AC40RCNFZ000 | Not Available |
| 23 | No Image | COVER, HANDLE RELEASE PEDAL V5269 V7600 Part Number: AC42AAFYZV06 for Panasonic | AC42AAFYZV06 | $9.06Read more |
| 24 | Not Available | Spring | AC57AAWFZ00 | Not Available |
| 25 | Not Available | Hose Plug B | AC29QBKHZV06 | Not Available |

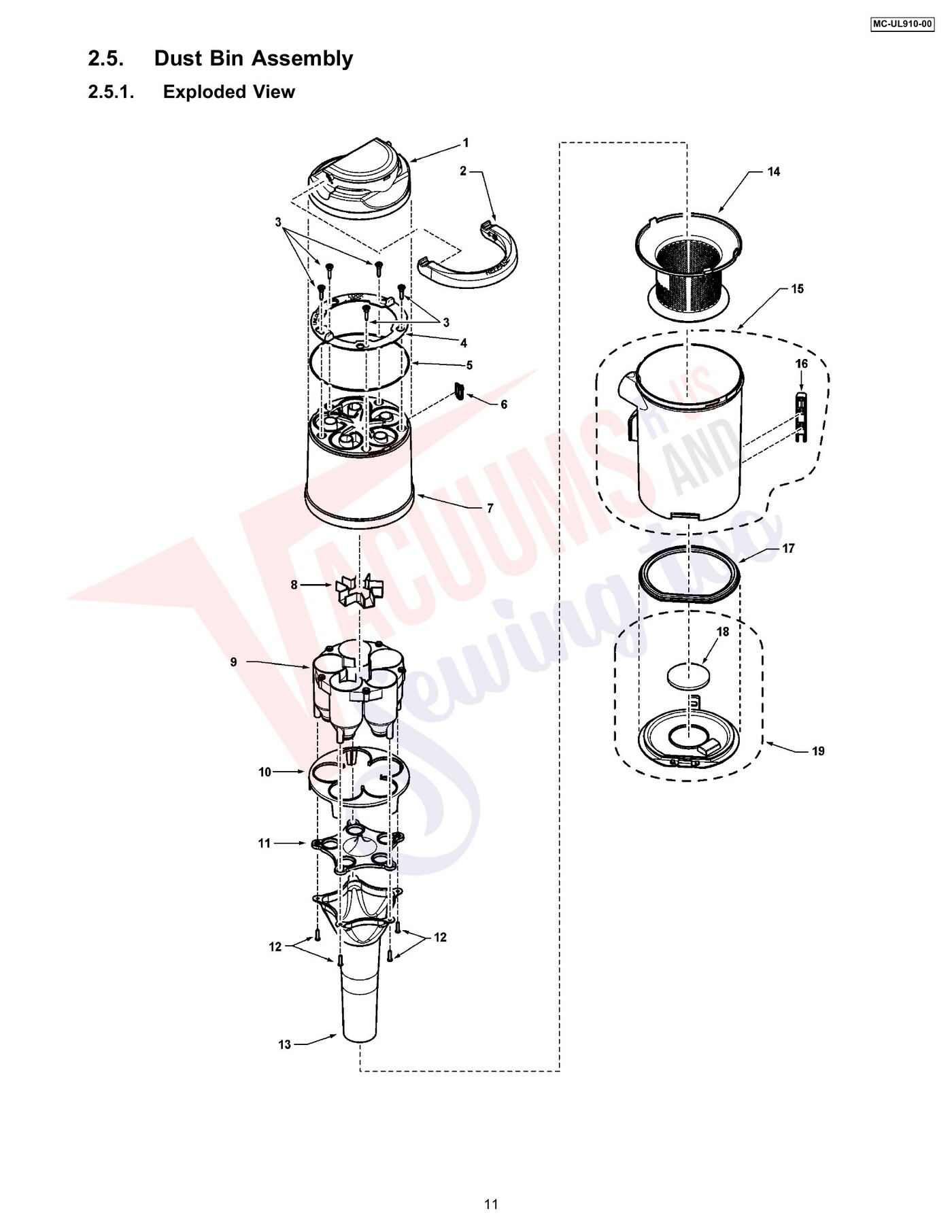

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Lid | AC20HDKEZV0Q | Not Available |
| 2 | Not Available | Handle | AC64BDGMZV07 | Not Available |
| 3 | No Image | SCREW, NOZZLE HOUSING 10 PACK Part Number: AMC68A-V30 for Panasonic | AMC68AV30 | $6.66Read more |
| 4 | Not Available | Fastner | AC15KDHKZV04 | Not Available |
| 5 | Not Available | Air Path Seal | AC74EDHKZ000 | Not Available |
| 6 | Not Available | Locking Cam | AC83DDHKZV04 | Not Available |
| 7 | Not Available | Dust Box Terminal | AC75KDKEZVUQ | Not Available |
| 8 | Not Available | Air Guide Blade | AC21VDGMZU03 | Not Available |
| 9 | Not Available | Air Guide | AC39LDGMZV04 | Not Available |
| 10 | Not Available | Partition Plate | AC73HDGMZS01 | Not Available |
| 11 | Not Available | Gasket | AC04LDGMZV04 | Not Available |
| 13 | Not Available | Supporter Unit | AC36KDKEZV04 | Not Available |
| 14 | Not Available | Pre-Filter | AC43KDKEZS01 | Not Available |
| 15 | Not Available | Filter Case | AC42KDKEZ0U0 | Not Available |
| 16 | Not Available | Slider | AC48KDGNZV07 | Not Available |
| 17 | Not Available | Dust Box Packing | AC73KDGMZV06 | Not Available |
| 18 | Not Available | Dust Packing | AC74KDGMZ000 | Not Available |
| 19 | Not Available | Dust Box Plate | AC25KDGMZ000 | Not Available |
