Schematic and parts book for Panasonic MC-UL815 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

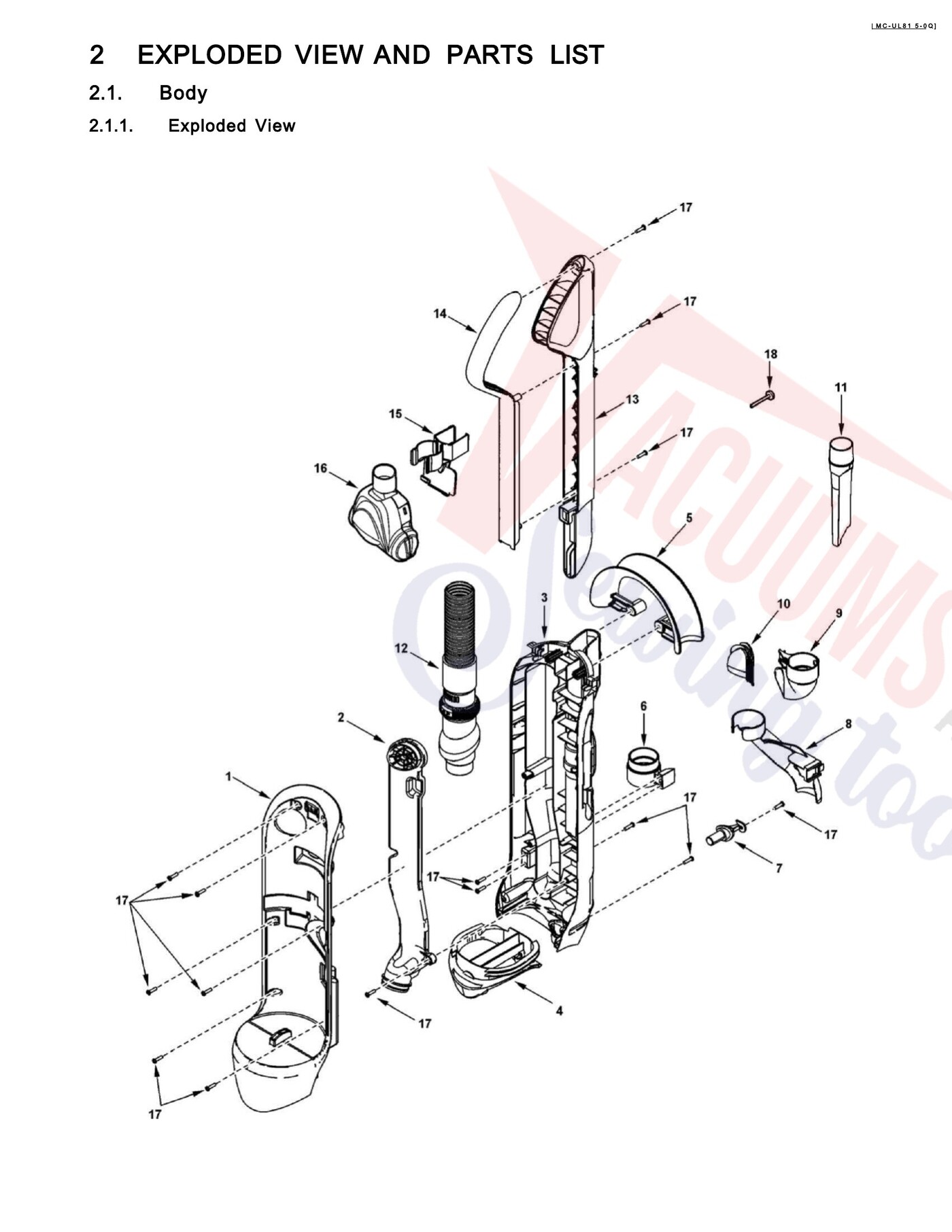

| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST COVER (DECO) | AC60KDNYZUU3 | Not Available |
| 2 | Not Available | AIR GUIDE | AC39LDNYZV07 | Not Available |
| 3 | Not Available | DUST COMPARTMENT | AC40KDNYZV07 | Not Available |
| 4 | Not Available | BODY COVER | AC24ADNYZG0U | Not Available |
| 5 | Not Available | HANDLE | AC01BDNYZV07 | Not Available |
| 6 | Not Available | PDNY ZV0 7 EXTENSION WAND HOLDER | AC70 | Not Available |
| 7 | Not Available | PIN | AC10UDNYZV07 | Not Available |
| 8 | Not Available | PDNY ZV0 7 HOSE COVER | AC19 | Not Available |
| 9 | Not Available | HOSE ADAPTER | AC58PDMTZV07 | Not Available |
| 10 | Not Available | VALVE GROMMET | AC45KDMTZU00 | Not Available |
| 11 | Not Available | CREVICE TOOL | AC60RCNFZV07 | Not Available |
| 12 | No Image | WAND, UL810 Part Number: AC84PDMTZV07 for Panasonic | AC84PDMTZV07 | $47.82Read more |
| 13 | Not Available | HANDLE GRIP LEFT | AC23BDNYZV07 | Not Available |
| 14 | Not Available | HANDLE GRIP RIGHT | AC22BDNYZU03 | Not Available |
| 15 | Not Available | LOCK CLIP | AC82DDNYZV07 | Not Available |
| 16 | No Image | TURBO TOOL, UG327 UG810 UG815 Part Number: AC80SCRZZV0N for Panasonic | AC80SCRZZV0N | $41.62Read more |
| 18 | Not Available | HANDLE SCREW 1 SHIPPED 10 PER PACKAGE | AC73BZAZ00 | Not Available |

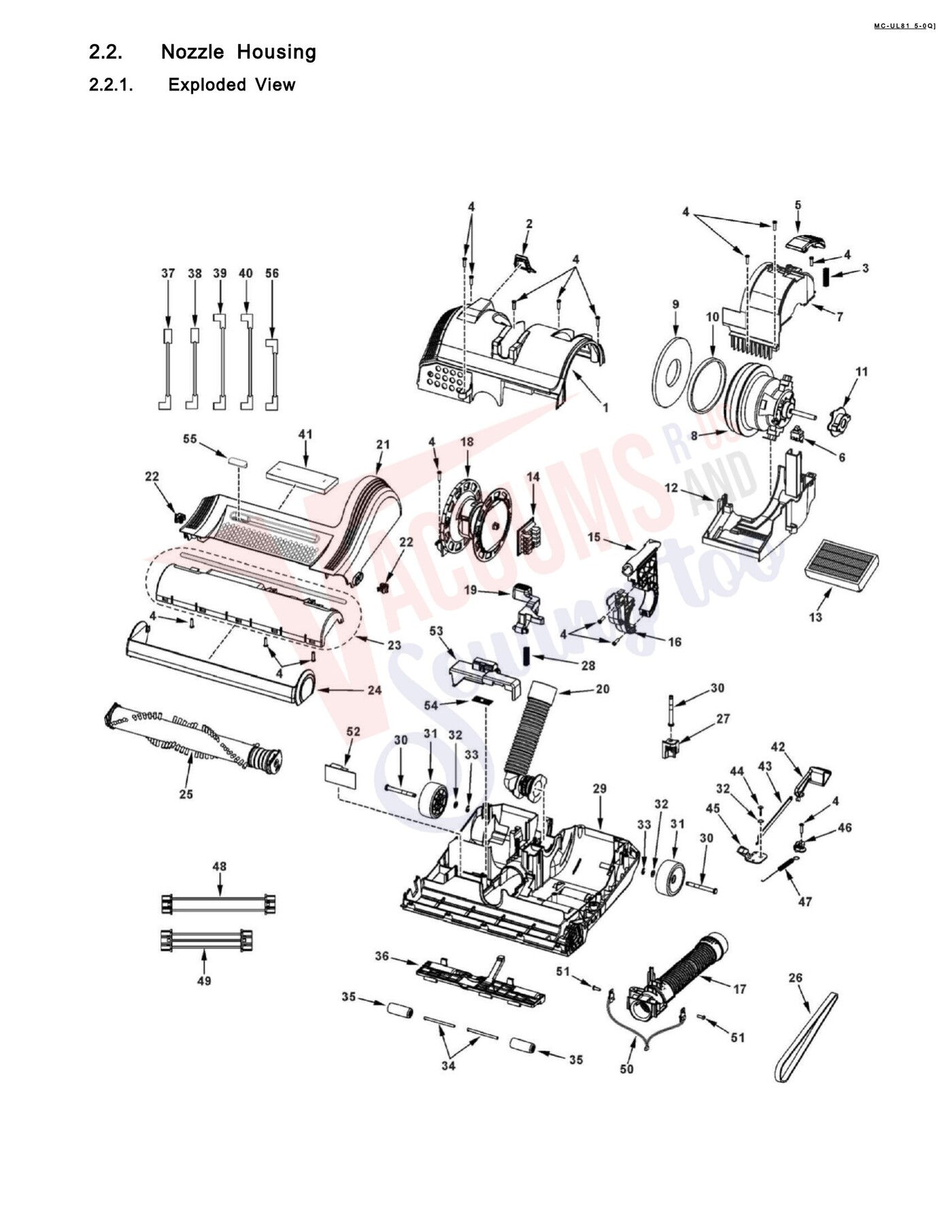

| # | Part image | Description | SKU | Price |
| 1 | Not Available | BODY PLATE (DECO) | AC06ADNYZUU3 | Not Available |
| 2 | Not Available | CORD GUIDE | AC14NDNYZG0U | Not Available |
| 3 | Not Available | 000 SPRING | AC23DDEVZ | Not Available |
| 5 | Not Available | SWITCH BUTTON | AC05EDNYZM0L | Not Available |
| 6 | Not Available | ON/OFF SWITCH | AC01EDDRZ000 | Not Available |
| 7 | Not Available | MOTOR SHIELD | AC58FDPAZU00 | Not Available |
| 8 | No Image | MOTOR, MCUL810 Part Number: AC92FDNYZ000 for Panasonic | AC92FDNYZ000 | $158.20Read more |
| 9 | Not Available | DUST PACKING | AC74KBKHZ000 | Not Available |
| 10 | Not Available | BELT-FLAT | AC28SJPZ00 | Not Available |
| 11 | Not Available | MOTOR SUPPORT RUBBER (REAR) | AC03FDNYZ000 | Not Available |
| 12 | Not Available | FILTER SUPPORTER | AC32KDPAZU00 | Not Available |
| 13 | Not Available | EXHAUST FILTER (HEPA) | AC38KDDJZ000 | Not Available |
| 14 | Not Available | OVERLOAD PROTECTOR | AC76FDPAZ000 | Not Available |
| 15 | Not Available | NOZZLE ARM | AC21RDNYZG0U | Not Available |
| 16 | Not Available | BODY CAP | AC12ADNYZG0U | Not Available |
| 17 | Not Available | NOZZLE HOSE UNIT (A) | AC91PDPBZV07 | Not Available |
| 18 | Not Available | CORD REEL ASSEMBLY | AC99NDNYZV07 | Not Available |
| 19 | No Image | PEDAL, HANDLE RELEASE MCUL815 Part Number: AC47ADPAZV04 for Panasonic | AC47ADPAZV04 | $5.23Read more |
| 20 | Not Available | NOZZLE HOSE UNIT (B) | AC91PDPAZV07 | Not Available |
| 21 | No Image | HOUSING, NOZZLE MC-UL815 Part Number: AC01ADPAZUU3 for Panasonic | AC01ADPAZUU3 | $30.06Read more |
| 22 | Not Available | LATCH | AC08DDMTZV07 | Not Available |
| 23 | No Image | UPPER BODY - MCUL815 Part Number: AC02ADNYZCUQ for Panasonic | AC02ADNYZCUQ | $31.32Read more |
| 24 | Not Available | FURNITURE GUARD | AC10ADNYZV07 | Not Available |
| 25 | Not Available | AGITATOR ASSEMBLY | AC92SDNYZY05 | Not Available |
| 27 | Not Available | HOLDER | AC78ADNYZV0 | Not Available |
| 28 | Not Available | SPRING | AC71KDNYZ000 | Not Available |
| 29 | Not Available | LOWER PLATE | AC27ADNYZV0 | Not Available |
| 30 | Not Available | WHEEL SUPPORTER (AXLE) | AC02CDNYZ000 | Not Available |
| 31 | Not Available | WHEEL UNIT | AC99CDNYZU03 | Not Available |
| 32 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | RING CLIP | AC23FBVNZ000 | Not Available |
| 34 | Not Available | ROLLER SHAFT | AC16CBBRZ00 | Not Available |
| 35 | No Image | WHEEL UNIT, MCCG529 MCUG728 729 787 MCUL810 815 Part Number: AC99CCXWZV07 for Panasonic | AC99CCXWZV07 | $34.31Read more |
| 36 | Not Available | HDNY ZV0 7 HEIGHT ADJUST ACTUATOR | AC34 | Not Available |
| 37 | Not Available | BLACK LEAD WIRE UNIT | AC85GDNYZ000 | Not Available |
| 38 | Not Available | BLACK LEAD WIRE UNIT | AC85GDPAZ000 | Not Available |
| 39 | Not Available | BLACK LEAD WIRE UNIT | AC85GDNZZ000 | Not Available |
| 40 | Not Available | WHITE LEAD WIRE UNIT | AC85WDPBZ000 | Not Available |
| 41 | Not Available | SECONDARY FILTER | AC37KDNYZ000 | Not Available |
| 42 | No Image | PEDAL, BELT SHIFTER UL815 Part Number: AC47ADNYZ000 for Panasonic | AC47ADNYZ000 | $24.00Read more |
| 43 | Not Available | LEVER GUIDE | AC89LDNYZ000 | Not Available |
| 45 | Not Available | SHIFT LEVER | AC16UDNYZ000 | Not Available |
| 46 | Not Available | PEDAL COVER | AC42ADNYZ000 | Not Available |
| 47 | Not Available | 000 SPRING | AC23DDNYZ | Not Available |
| 48 | Not Available | WIRE HARNESS BAND (A) | AC66EDPBZ000 | Not Available |
| 49 | Not Available | WIRE HARNESS BAND (A) | AC66EDPAZ000 | Not Available |
| 50 | Not Available | P.C.B ASSEMBLY | AC87GDMUZ000 | Not Available |
| 52 | Not Available | PCB ASSEMBLY | AC87GDMTZ000 | Not Available |
| 53 | Not Available | COVER CAP | AC38HDPAZ000 | Not Available |
| 54 | Not Available | LED UNIT | AC47VDMUZ000 | Not Available |
| 55 | Not Available | PAZ VUS INDICATOR WINDOW (DECO) | AC08MD | Not Available |
| 56 | Not Available | WHITE LEAD WIRE UNIT | AC85WDPAZ000 | Not Available |

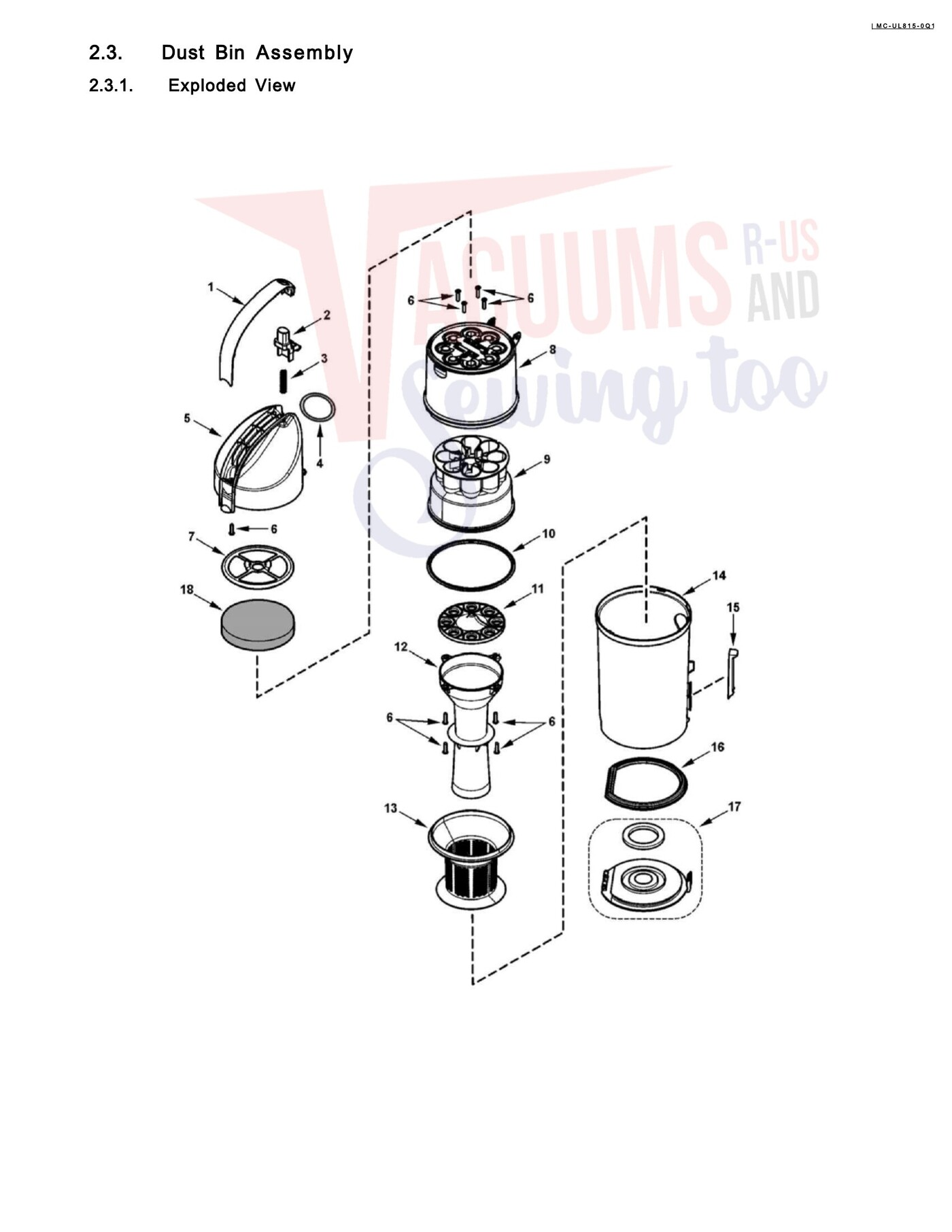

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE LID | AC14BDMTZU03 | Not Available |
| 2 | Not Available | PRESS BUTTON | AC64NDMTZM0L | Not Available |
| 3 | Not Available | SPRING | AC18DBRMZ 000 | Not Available |
| 4 | Not Available | SUCTION INLET PACKING | AC64HARTZ000 | Not Available |
| 5 | Not Available | LID | AC20HDPAZG0U | Not Available |
| 8 | Not Available | DUST BOX TERMINAL | AC75KDPAZ0U0 | Not Available |
| 9 | Not Available | AIR GUIDE | AC39LDPAZG0U | Not Available |
| 10 | Not Available | GASKET A | AC03LDMTZU00 | Not Available |
| 11 | Not Available | PARTITION ASSEMBLY | AC97LDMTZU00 | Not Available |
| 12 | Not Available | SUPPORTER UNIT | AC36KDMUZG0U | Not Available |
| 13 | Not Available | PRE-FILTER | AC43KDMTZG0Q | Not Available |
| 14 | Not Available | FILTER CASE | AC42KDNYZ0U0 | Not Available |
| 15 | Not Available | SLIDER | AC48KDGNZM0L | Not Available |
| 16 | Not Available | DUST PACKING | AC73KDMTZU00 | Not Available |
| 17 | Not Available | DUST BOX PLATE 1 INCLUDES PACKING | AC25KDMTZ000 | Not Available |
