Schematic and parts book for Panasonic MC-UL675 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |

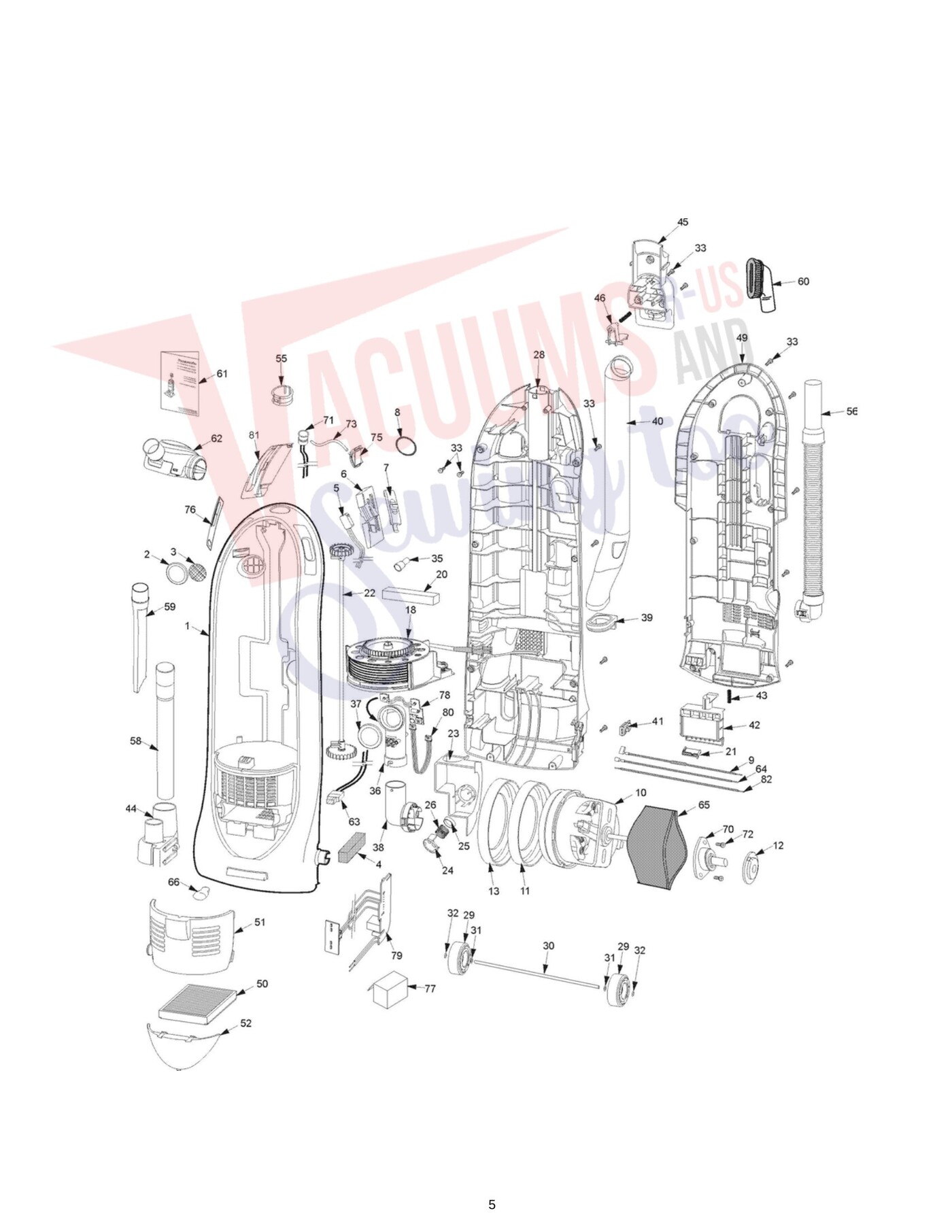

| 1 | No Image | COVER, MCUL675 Part Number: AC93KDDPZCUD for Panasonic | AC93KDDPZCUD | $206.76Read more |
| 2 | Not Available | DUST PACKING | AC74KDDEZ000 | Not Available |
| 3 | Not Available | SECONDARY FILTER | AC37KDBVZ000 | Not Available |
| 4 | No Image | FILTER, SECONDARY UL675 Part Number: AC37KDDEZ000 for Panasonic | AC37KDDEZ000 | $43.30Read more |
| 5 | Not Available | SWITCH ASSEMBLY | AC98EDDNZ000 | Not Available |
| 6 | Not Available | BODY SUPPORTER A | AC13ADBVZV07 | Not Available |
| 7 | Not Available | SWITCH KNOB | AC04EDBVZM0H | Not Available |
| 8 | Not Available | DUST PACKING | AC74KDDNZU00 | Not Available |
| 9 | Not Available | LEAD ASSEMBLY | AC99WCHRZ000 | Not Available |
| 10 | Not Available | FAN MOTOR UNIT (ECM) | AC92FCHSZ000 | Not Available |
| 11 | Not Available | MOTOR CAP | AC26FDDPZ000 | Not Available |
| 12 | Not Available | MOTOR SUPPORT RUBBER | AC03FAFYZ000 | Not Available |
| 13 | Not Available | MOTOR SUPPORT RUBBER | AC02FDBVZ000 | Not Available |
| 18 | Not Available | CORD REEL ASSEMBLY | AC99NDDPZV07 | Not Available |
| 20 | Not Available | PACKING | AC74EDDEZ000 | Not Available |
| 21 | Not Available | PLASTIC HOLDER | AC78NDBVZ000 | Not Available |
| 22 | Not Available | GEAR ASSEMBLY | AC94UDBVZ000 | Not Available |
| 23 | Not Available | AIR INLET GUIDE | AC61HDBVZ000 | Not Available |
| 24 | Not Available | PROTECTOR COVER | AC68KAJDZV07 | Not Available |
| 25 | Not Available | PROTECTOR | AC69KJMZV07 | Not Available |
| 26 | Not Available | PROTECTOR SPRING (FINISHED) | AC70KAMAZW00 | Not Available |
| 28 | Not Available | DUST COMPARTMENT | AC40KDDPZV07 | Not Available |
| 29 | Not Available | WHEEL UNIT | AC99CDBVZV06 | Not Available |
| 30 | Not Available | ROLLER SHAFT | AC16CUSZ00 | Not Available |
| 31 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | STOPPER WHEEL | AC74SUSZ00 | Not Available |
| 35 | Not Available | CONNECTOR (WIRE CRIMP) | AC44DCNZZ000 | Not Available |
| 36 | Not Available | AIR GUIDE | AC39LDBVZV07 | Not Available |
| 37 | Not Available | DUST PACKING | AC74KDBVZ000 | Not Available |
| 38 | Not Available | AIR GUIDE LEFT | AC54LDBVZV07 | Not Available |
| 39 | Not Available | SEAL | AC74EDBVZU00 | Not Available |
| 40 | Not Available | AIR GUIDE RIGHT | AC55LDBVZV07 | Not Available |
| 41 | Not Available | CORD GUIDE | AC14NCRAZV06 | Not Available |
| 42 | Not Available | C0RD REWIND BUTTON | AC46NDBVZM0H | Not Available |
| 43 | Not Available | SPRING | AC47NATCZ000 | Not Available |
| 44 | Not Available | EXTENSION WAND HOLDER | AC70PDBVZV07 | Not Available |
| 45 | Not Available | HANDLE CARRY | AC01BDBVZV07 | Not Available |
| 46 | Not Available | SERVICE BUTTON UNIT | AC90MDBVZM0H | Not Available |
| 49 | Not Available | C0VER | AC48HDBVZV07 | Not Available |
| 50 |  | FILTER, EXHAUST UL675 Part Number: AC38KDBVZ000 for Panasonic | AC38KDBVZ000 | $32.41Read more |
| 51 | Not Available | FILTER COVER | AC41KDDPZUU6 | Not Available |
| 52 | Not Available | WINDOW | AC21HDDPZ000 | Not Available |
| 55 | Not Available | HANDLE GROMMET | AC53BDBVZU03 | Not Available |
| 56 | No Image | HOSE, UL675 Part Number: AC84PDBVZV06 for Panasonic | AC84PDBVZV06 | $55.09Read more |
| 58 |  | WAND, W/TABS 7522 7571 Part Number: AC40PBRLZV06 for Panasonic | AC40PBRLZV06 | $27.87Read more |
| 59 |  | Cervice Tool, Gray Friction Fit Long Part Number: AC60RZFZVU6 for Panasonic | AC60RZFZVU6 | $15.64Read more |
| 60 | Not Available | DUSTING BRUSH UNIT | AC88RYUZV06 | Not Available |
| 61 | Not Available | OPERATING INSTRUCTIONS | AC01ZDDPZ000 | Not Available |
| 62 | Not Available | TURBINE UNIT | AC80SCWZZV0N | Not Available |
| 63 | Not Available | BULB SOCKET | AC93HDDPZ000 | Not Available |
| 64 | Not Available | LEAD WIRE WHITE | AC43GDDPZ000 | Not Available |
| 65 | Not Available | NOISE SUPPRESSOR | AC99GAMMZ00 | Not Available |
| 66 | Not Available | BULB LIGHT | AC28GBKHZ000 | Not Available |
| 70 | Not Available | FLANGE | AC25SCHRZ000 | Not Available |
| 71 | Not Available | PERFORMANCE INDICATOR | AC96MDDPZ000 | Not Available |
| 73 | Not Available | TUBE ADAPTER VAC SWITCH | AC62PDDPZ000 | Not Available |
| 75 | Not Available | FITTING A | AC40JDDPZ000 | Not Available |
| 76 | Not Available | LABEL A | AC31ZDDPZ000 | Not Available |
| 77 | Not Available | PARTITION BOARD | AC67HDDPZ000 | Not Available |
| 78 | Not Available | PCB DIRT SENSOR | AC87GDBVZ000 | Not Available |
| 79 | Not Available | PCB B UNIT | AC85BCREZ000 | Not Available |
| 80 | Not Available | WIRE HARNESS | AC67VDDPZ000 | Not Available |
| 81 | Not Available | INDICATOR WINDOW | AC08MDDPZ000 | Not Available |
| 82 | Not Available | LEAD WIRE WHITE | AC43GDDNZ000 | Not Available |
| # | Part image | Description | SKU | Price |

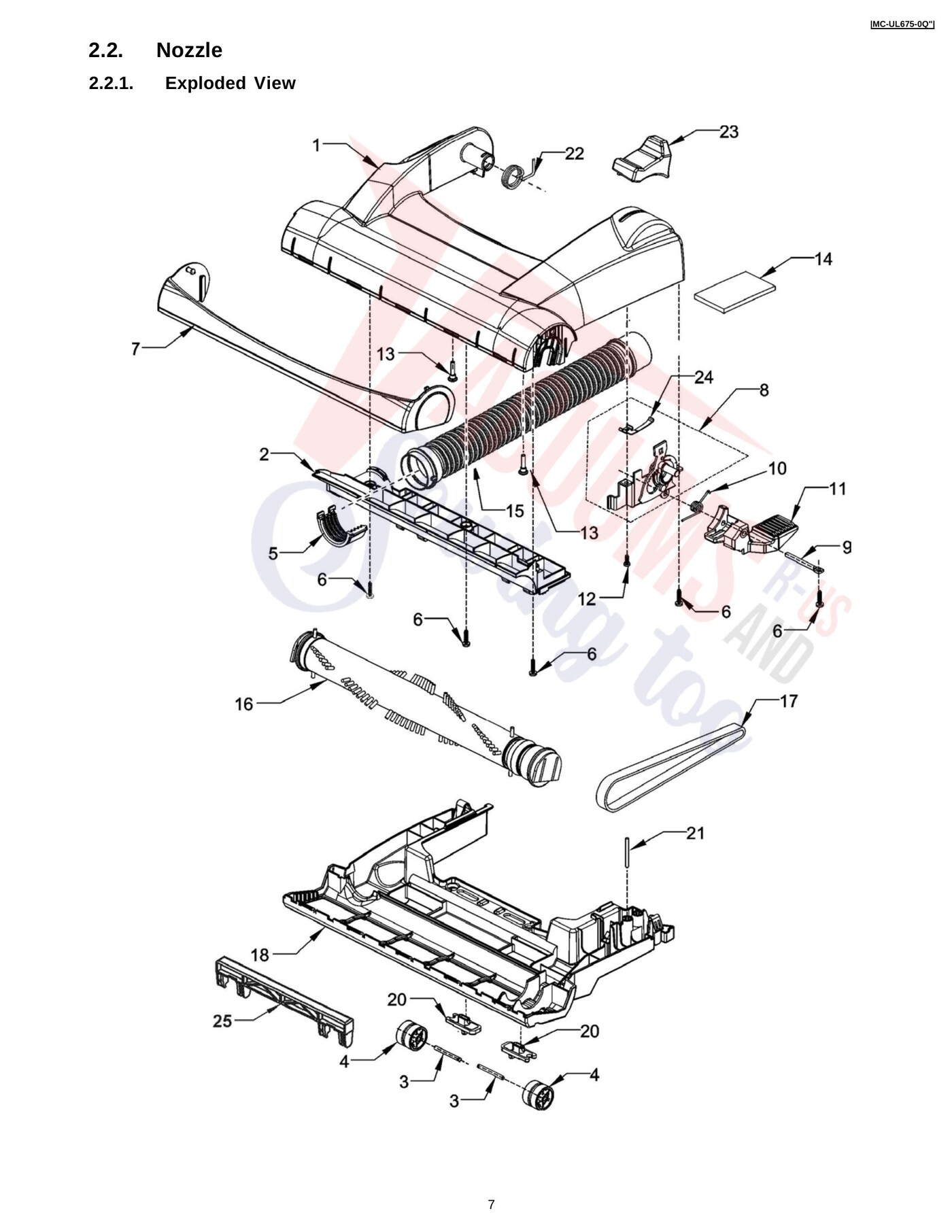

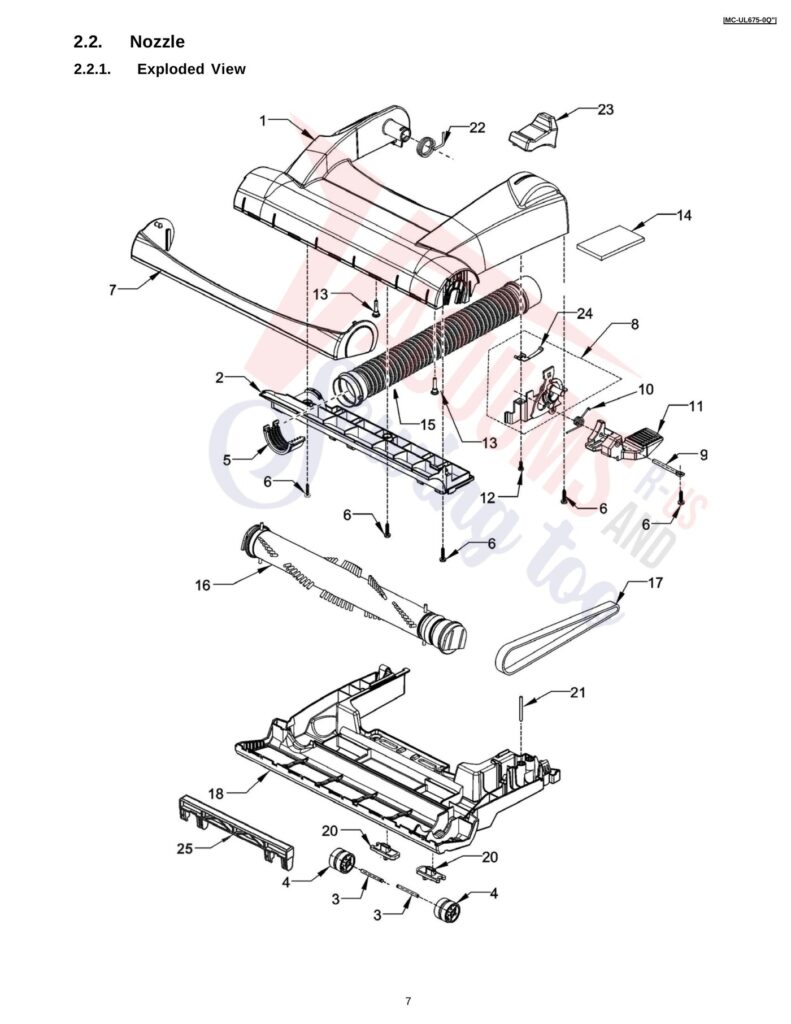

| 1 | No Image | HOUSING, NOZZLE UL675 Part Number: AC01ADDPZCUD for Panasonic | AC01ADDPZCUD | $74.96Read more |
| 2 | Not Available | Upper Body | AC02ACRAZV06 | Not Available |
| 3 | Not Available | Roller Shaft | AC16CNXZ00 | Not Available |
| 4 | No Image | WHEEL, NOZZLE UG693 Part Number: AC99QCYBZV06 for Panasonic | AC99QCYBZV06 | $5.98Read more |
| 5 | Not Available | Body Cap | AC12ACRAZV06 | Not Available |
| 7 | No Image | Bumper, UG471 Part Number: AC10ACKPZV06 for Panasonic | AC10ACKPZV06 | $19.17Read more |
| 8 |  | Handle Release Assembly - Panasonic Mc-V5269 - Upright For: panasonic | AC92BAMAZ000 | $59.91Read more |
| 9 | Not Available | Pedal Shaft | AMC-51A-V30 | Not Available |
| 10 |  | SPRING, HANDLE RELEASE 5995, 7300 SERIES Part Number: AC58AAFVZ00 for Panasonic | AC58AAFVZ00 | $19.78Read more |
| 11 | Not Available | Pedal | AC47A2VZV06 | Not Available |
| 13 | Not Available | Screw For Body | AMC68A-V3 | Not Available |
| 14 | Not Available | Nozzle Packing (Foam) | AC04RANPZV06 | Not Available |
| 15 | Not Available | Nozzle Hose | AC34PDDEZV06 | Not Available |
| 16 | Not Available | Agitator Unit | AC84RCKPZ000 | Not Available |
| 17 | Not Available | Belt | AC28SCZPZ000 | Not Available |
| 18 | Not Available | Lower Plate | AC27ACRAZV07 | Not Available |
| 20 | Not Available | Latch | AC68NCRAZV06 | Not Available |
| 21 | Not Available | Belt Guard | AC43SAFXZ000 | Not Available |
| 22 | Not Available | Floor Nozzle Spring | AC40RDDPZ000 | Not Available |
| 23 | Not Available | Foot Pedal Cover | AC42AAFY2V06 | Not Available |
| 24 | Not Available | Spring | AC57AAWFZ00 | Not Available |
| 25 | Not Available | Nozzle Roller Cam | AC61KDDHZV06 | Not Available |
| # | Part image | Description | SKU | Price |

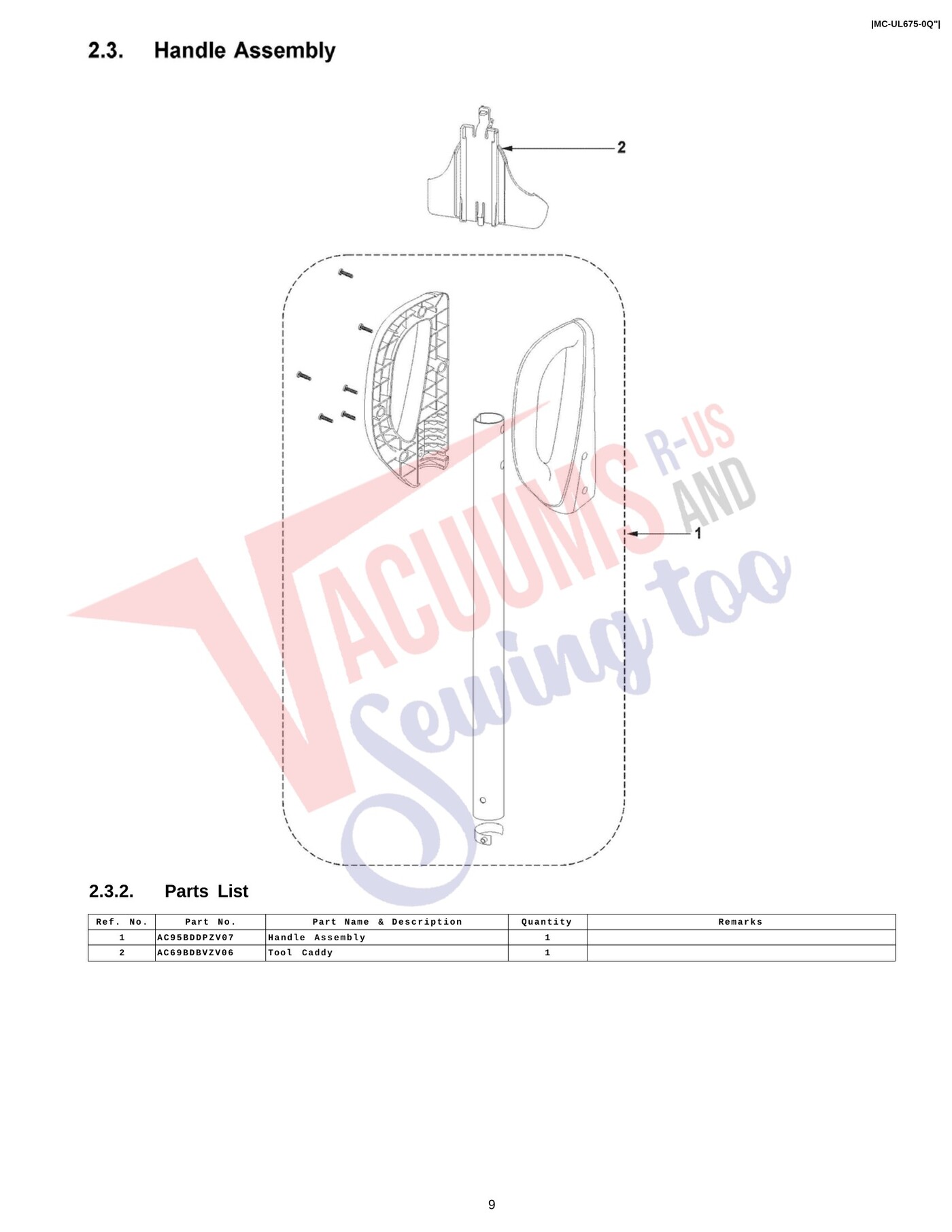

| 1 | Not Available | Handle Assembly | AC95BDDPZV07 | Not Available |
| 2 | Not Available | Tool Caddy | AC69BDBVZV06 | Not Available |
| # | Part image | Description | SKU | Price |

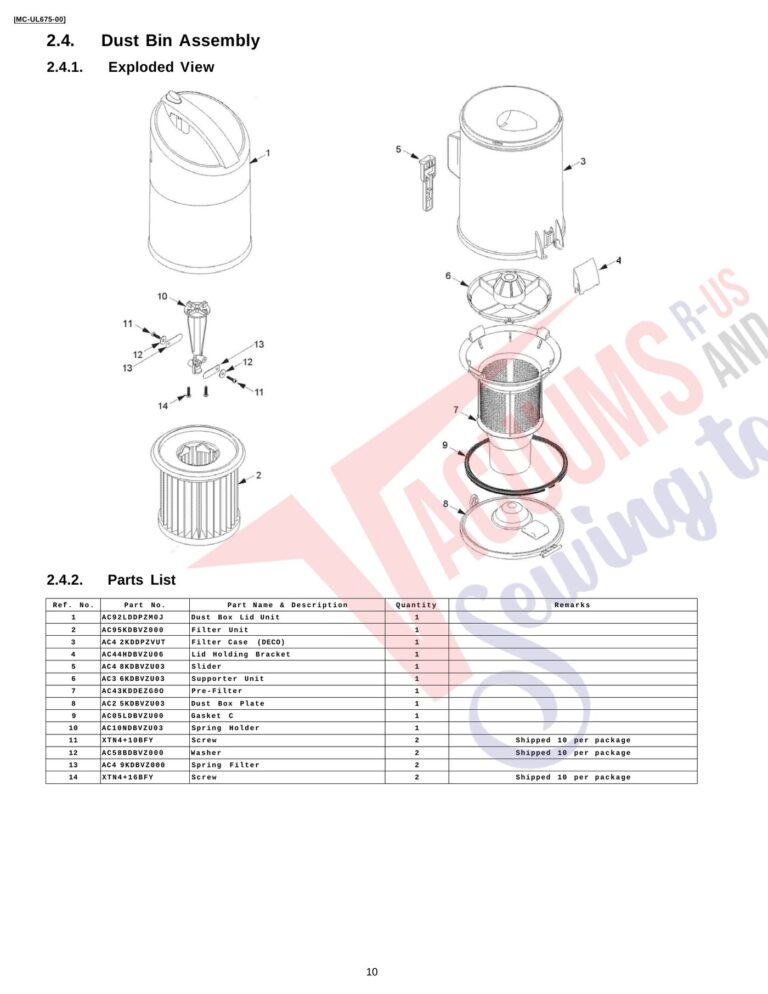

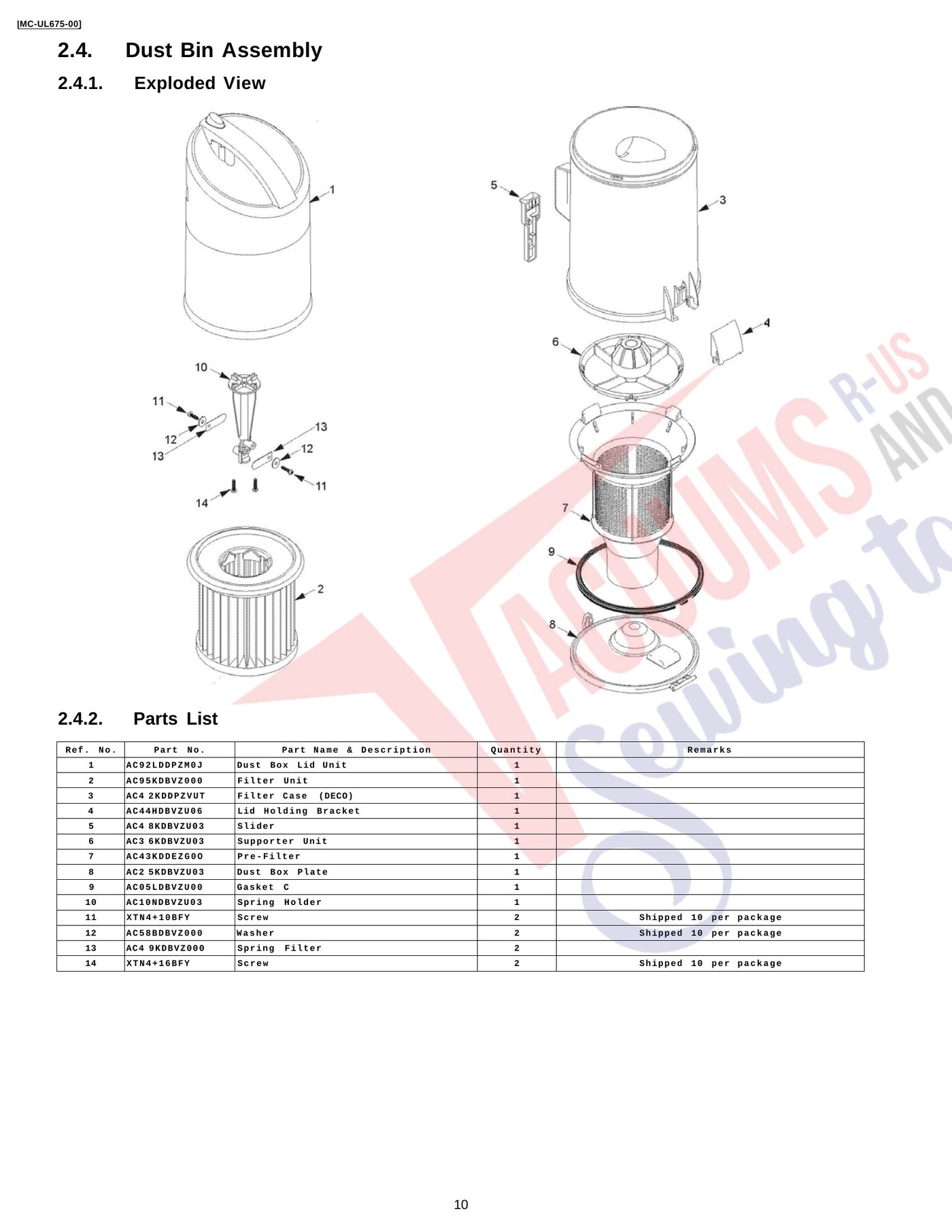

| 1 | Not Available | Dust Box Lid Unit | AC92LDDPZM0J | Not Available |
| 2 |  | Filter, Dirt Cup UL675/675 Round Pleated Part Number: AC95KDBVZ000 for Panasonic | AC95KDBVZ000 | $120.89Read more |
| 3 | Not Available | Filter Case (DECO) | AC42KDDPZVUT | Not Available |
| 4 | Not Available | Lid Holding Bracket | AC44HDBVZU06 | Not Available |
| 5 | Not Available | Slider | AC48KDBVZU03 | Not Available |
| 6 | Not Available | Supporter Unit | AC36KDBVZU03 | Not Available |
| 7 | Not Available | Pre-Filter | AC43KDDEZG0O | Not Available |
| 8 | Not Available | Dust Box Plate | AC25KDBVZU03 | Not Available |
| 9 | Not Available | Gasket C | AC05LDBVZU00 | Not Available |
| 10 | Not Available | Spring Holder | AC10NDBVZU03 | Not Available |
| 12 | Not Available | Washer 2 Shipped 10 per package | AC58BDBVZ000 | Not Available |
| 13 | Not Available | Spring Filter | AC49KDBVZ000 | Not Available |
| 14 | Not Available | XTN4+16BFY Screw 2 Shipped 10 per package | 10 | Not Available |
