Schematic and parts book for Panasonic MC-UG787 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

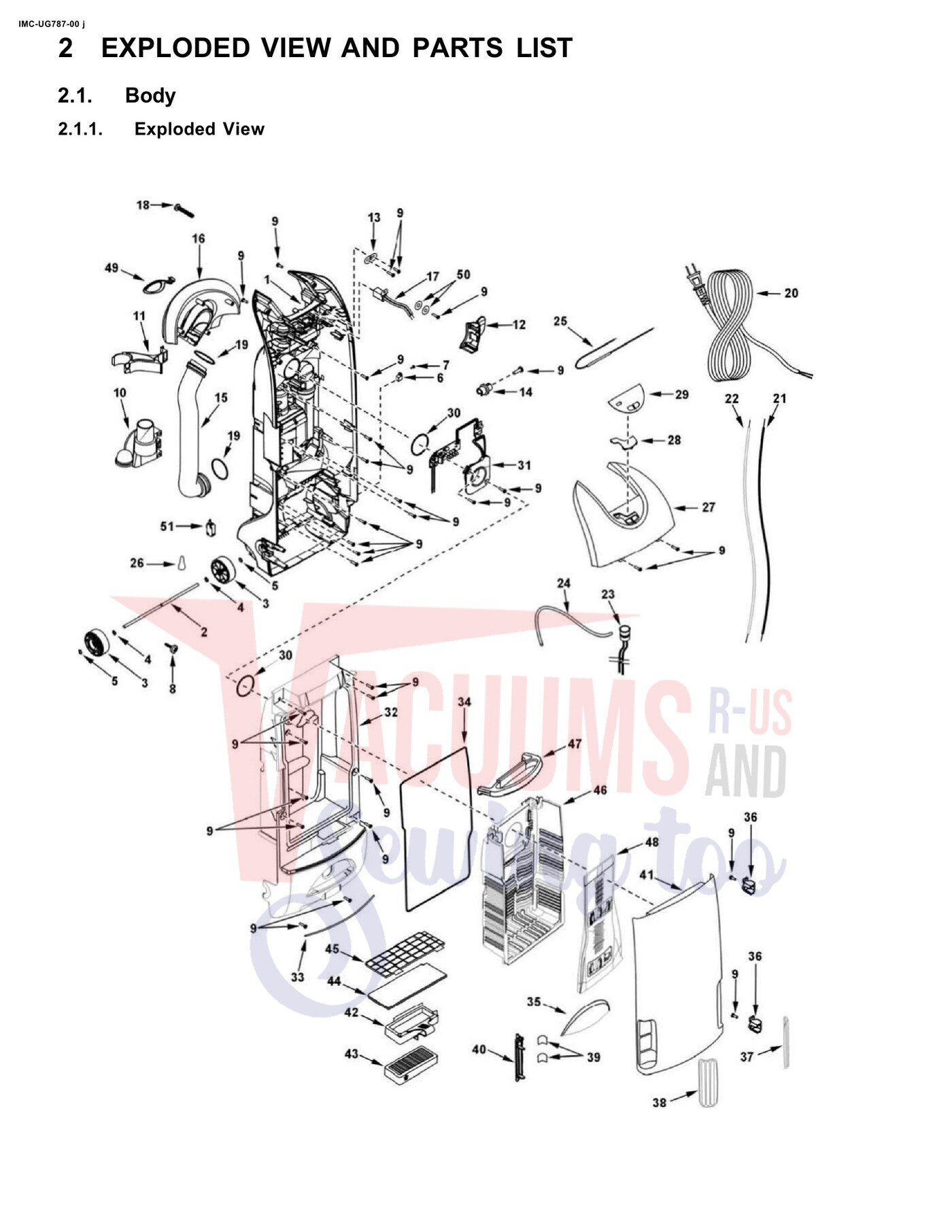

| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST COMPARTMENT | 75336 | Not Available |
| 2 | Not Available | ROLLER SHAFT | AC16CDDWZ000 | Not Available |
| 3 | Not Available | WHEEL UNIT | AC99CBSAZV06 | Not Available |
| 4 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | STOPPER WHEEL | AC74SUSZ00 | Not Available |
| 6 | Not Available | LOCKING CAM | AC83DDAAZU00 | Not Available |
| 8 |  | SCREW, UPPER CORD HOOK 6602 BASE PLATE V5745 Part Number: AC68AZAZ00 for Panasonic | AC68AZAZ00 | $32.15Read more |
| 10 | Not Available | WAND HOLDER | AC70PDDWZV07 | Not Available |
| 11 | Not Available | ATTACHMENT HOLDER | AC32RDDWZV07 | Not Available |
| 12 | Not Available | HOSE FITTING (HOSE SUPPORT) | AC24PDDWZV07 | Not Available |
| 13 | Not Available | CORD STOPPER (C62EJ2) | AMC62E-J20 | Not Available |
| 14 | Not Available | NUT (NOZZLE SPRING) | AC13ECRCZ000 | Not Available |
| 15 | Not Available | CONNECTOR PIPE | AC52PDDWZV07 | Not Available |
| 16 | Not Available | HOSE HOLDER | AC23PDDWZV07 | Not Available |
| 17 | Not Available | CONNECTOR PLUG UNIT | AC45VDFWZ000 | Not Available |
| 19 | Not Available | SEAL (AIR PATH) | AC74EDDWZ000 | Not Available |
| 20 | Not Available | POWER CORD 35' | AC97EAACZV06 | Not Available |
| 21 | Not Available | BLACK LEAD WIRE UNIT | AC85GDDWZ000 | Not Available |
| 22 | Not Available | WHITE LEAD WIRE UNIT | AC85WDDWZ000 | Not Available |
| 23 | Not Available | INDICATOR LIGHT SWITCH | AC96MAKTZ000 | Not Available |
| 24 | Not Available | TUBE VAC SWITCH | AC62PAKTZ000 | Not Available |
| 25 | Not Available | LEAD ASSEMBLY FUSE | AC99WCJCZ000 | Not Available |
| 26 | Not Available | WIRE NUT | AMC-1CTCE23 | Not Available |
| 27 | Not Available | SWITCH COVER (PAINTED) | AC03EDFWZG0S | Not Available |
| 28 | Not Available | INDICATOR WINDOW | AC08MDFWZ000 | Not Available |
| 29 | Not Available | ORNAMENTAL PLATE | AC21TDFWZ000 | Not Available |
| 30 | Not Available | SUCTION INLET PACKING | AC64HARTZ000 | Not Available |
| 31 | Not Available | PCB FINAL ASSEMBLY | AC88GDFWZ000 | Not Available |
| 32 | Not Available | DUST COVER (PAINTED) | AC60KDFWZG0S | Not Available |
| 33 | Not Available | DUST COMPARTMENT PACKING | AC66KDDXZ000 | Not Available |
| 34 | Not Available | DUST COVER PACKING | AC66KCRCZ000 | Not Available |
| 35 | Not Available | WINDOW | AC21HDDWZ000 | Not Available |
| 36 | Not Available | LID HOLDING BRACKET | AC44HDDWZV07 | Not Available |
| 37 | Not Available | AIR OUTLET GUIDE | AC28LDDXZV07 | Not Available |
| 38 | Not Available | AIR OUTLET GUIDE | AC28LDDWZV07 | Not Available |
| 39 | No Image | SPRING, UG773 Part Number: AC18DDDWZ000 for Panasonic | AC18DDDWZ000 | $6.92Read more |
| 40 | Not Available | FASTENER | AC15KDDWZM0H | Not Available |
| 41 | Not Available | COVER (DECO) | AC48HDDWZGUS | Not Available |
| 42 | Not Available | FILTER CASE | AC42KDDWZM0H | Not Available |
| 43 | Not Available | EXHAUST FILTER - HEPA | 18046 | Not Available |
| 44 | No Image | BRUSH POLY 13 DIA. | 18011 | $93.99Read more |
| 45 | Not Available | FILTER SUPPORTER | AC32KDDWZV07 | Not Available |
| 46 | Not Available | BAG BRACKET | AC03KDDWZV07 | Not Available |
| 47 | Not Available | HANDLE | AC64BDDWZM0H | Not Available |
| 49 | Not Available | COVER LID | AC02HDDWZV07 | Not Available |
| 50 |  | Washer For Cord Hook-5100/6200 Series-Oem Panasonc
10 Pack For: panasonic | AMC58BF70 | $13.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 |  | SWITCH, ON/OFF V7337/9901 INSIDE DUST COMPARTMENT Part Number: AC98EYUZ00 for Panasonic | AC98EYUZ00 | $10.55Read more |

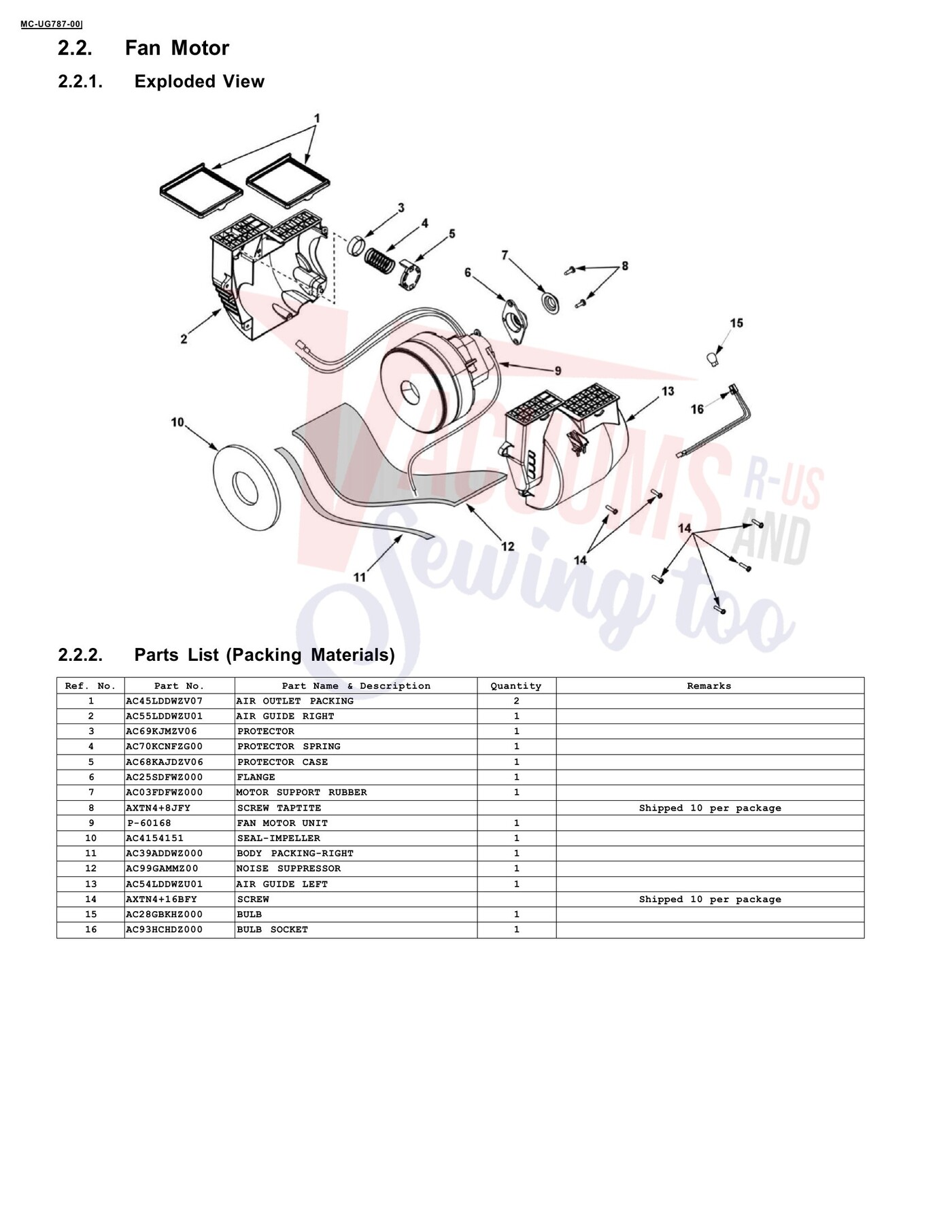

| # | Part image | Description | SKU | Price |
| 1 | Not Available | AIR OUTLET PACKING | AC45LDDWZV07 | Not Available |
| 2 | Not Available | AIR GUIDE RIGHT | AC55LDDWZU01 | Not Available |
| 3 | Not Available | PROTECTOR | AC69KJMZV06 | Not Available |
| 4 | Not Available | PROTECTOR SPRING | AC70KCNFZG00 | Not Available |
| 5 | No Image | COVER, V5740 Part Number: AC68KAJDZV06 for Panasonic | AC68KAJDZV06 | $44.02Read more |
| 6 | Not Available | FLANGE | AC25SDFWZ000 | Not Available |
| 7 | Not Available | MOTOR SUPPORT RUBBER | AC03FDFWZ000 | Not Available |
| 9 | Not Available | FAN MOTOR UNIT | 60168 | Not Available |
| 10 | Not Available | SEAL-IMPELLER | AC4154151 | Not Available |
| 11 | Not Available | BODY PACKING-RIGHT | AC39ADDWZ000 | Not Available |
| 12 | Not Available | NOISE SUPPRESSOR | AC99GAMMZ00 | Not Available |
| 13 | Not Available | AIR GUIDE LEFT | AC54LDDWZU01 | Not Available |
| 15 | Not Available | BULB | AC28GBKHZ000 | Not Available |
| 16 | Not Available | BULB SOCKET | AC93HCHDZ000 | Not Available |

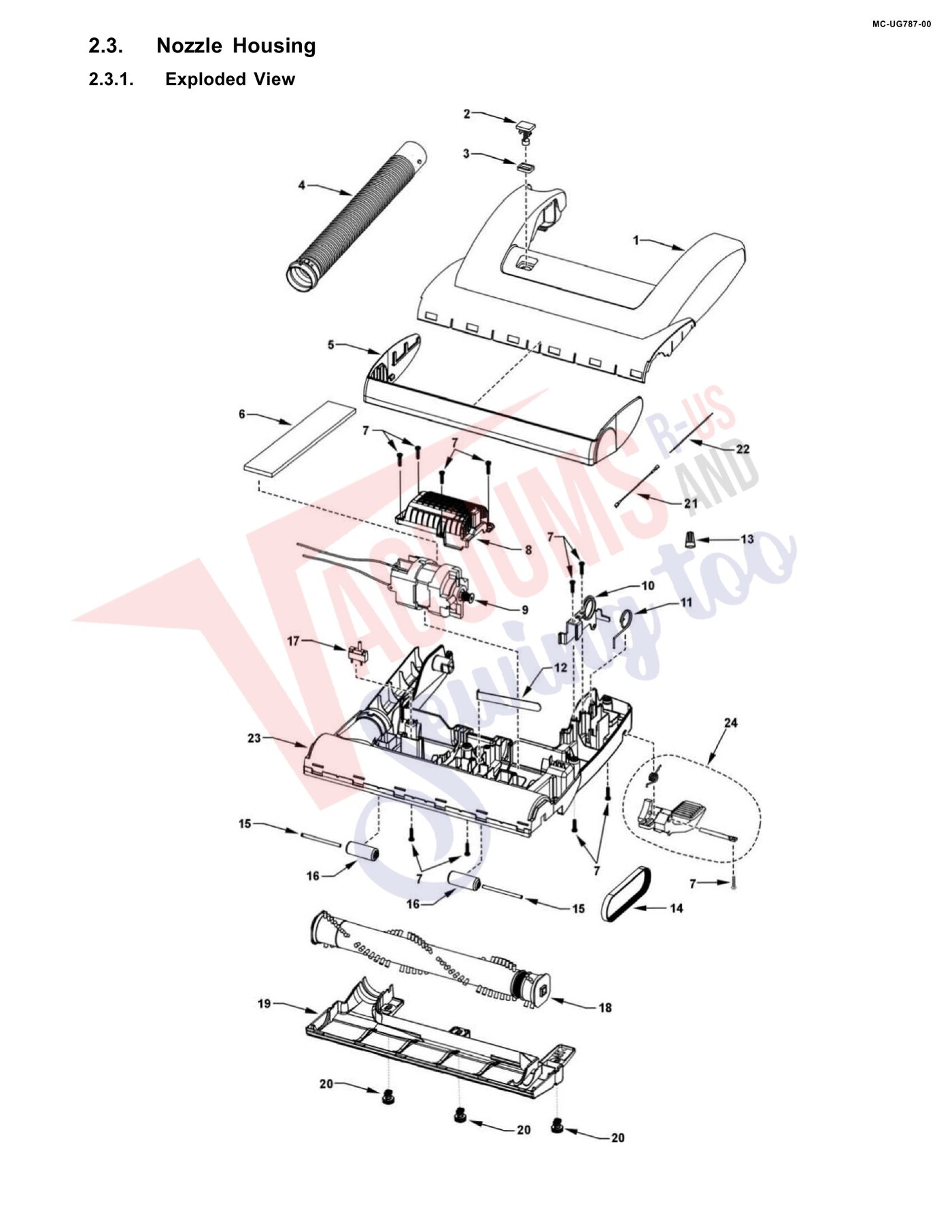

| # | Part image | Description | SKU | Price |
| 1 | No Image | HOUSING, NOZZLE UG787 Part Number: AC01ADFWZGUS for Panasonic | AC01ADFWZGUS | $41.68Read more |
| 2 | Not Available | BUTTON | AC13DCXWZMUH | Not Available |
| 3 | Not Available | PACKING | AC75ACXWZ000 | Not Available |
| 4 | Not Available | NOZZLE HOSE | AC34PDDEZV06 | Not Available |
| 5 | Not Available | FURNITURE GUARD | AC10ACXXWZV06 | Not Available |
| 6 | No Image | GASKET, PN MOTOR V9658 Part Number: AC747156 for Panasonic | AC747156 | $7.18Read more |
| 8 | Not Available | MOTOR CAP | AC26FCXWZ000 | Not Available |
| 9 | Not Available | MOTOR ASSEMBLY | AC90FCAMZ000 | Not Available |
| 10 | No Image | Frame-Trip Lever/Pan Mc5210 For: panasonic | AMC43A2V0 | $38.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | FLOOR NOZZLE SPRING | AC40RCXWZ000 | Not Available |
| 12 | No Image | SPRING, MOTOR ADJUST POWER NOZZLE 9647 Part Number: AMC742-002 for Panasonic | AMC742002 | $38.56Read more |
| 13 | Not Available | WIRE NUT | AMC-1CTCE23 | Not Available |
| 15 | Not Available | ROLLER SHAFT | AC16CBBRZ00 | Not Available |
| 16 | No Image | WHEEL UNIT, MCCG529 MCUG728 729 787 MCUL810 815 Part Number: AC99CCXWZV07 for Panasonic | AC99CCXWZV07 | $34.31Read more |
| 17 | Not Available | OVERLOAD PROTECTOR | AC76FCXWZ000 | Not Available |
| 18 | Not Available | AGITATOR ASSEMBLY | 20044 | Not Available |
| 19 | Not Available | LOWER PLATE | 76073 | Not Available |
| 20 |  | Nozzle Latch - Panasonic Mc-Ug787 Opti Flo For: panasonic | AC08DDBVZV07 | $4.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | LEAD WIRE-BLACK | AC38GDBVZ000 | Not Available |
| 22 | Not Available | LEAD WIRE-WHITE | AC43GBJAZ000 | Not Available |
| 23 | Not Available | LOWER BODY | 73213 | Not Available |
| 24 | Not Available | HANDLE RELEASE PEDAL ASSEMBLY | AC92BDFWZ000 | Not Available |

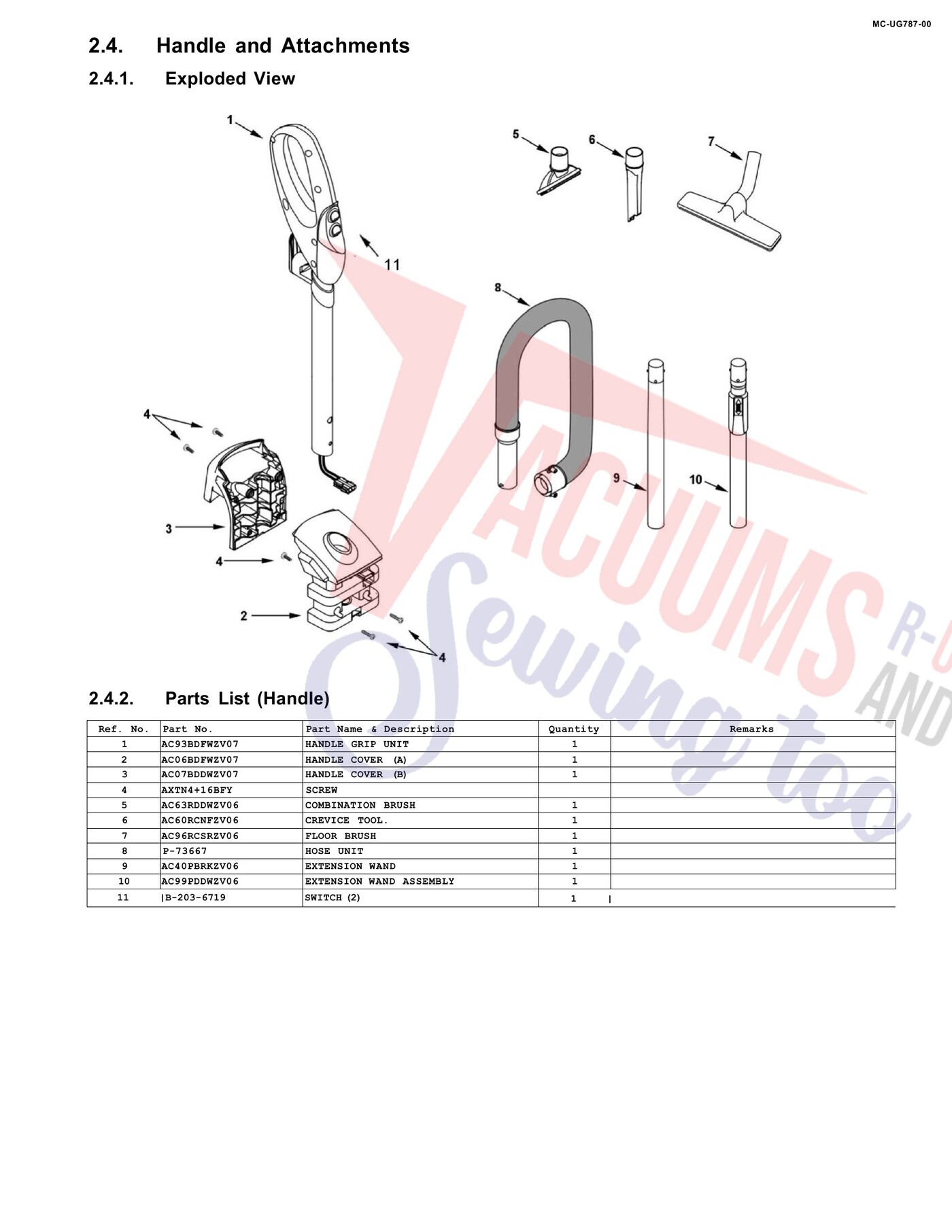

| # | Part image | Description | SKU | Price |
| 1 | No Image | HANDLE, UG787 Part Number: AC93BDFWZV07 for Panasonic | AC93BDFWZV07 | $108.00Read more |
| 2 | Not Available | HANDLE COVER (A) | AC06BDFWZV07 | Not Available |
| 3 | Not Available | HANDLE COVER (B) | AC07BDDWZV07 | Not Available |
| 5 | Not Available | COMBINATION BRUSH | AC63RDDWZV06 | Not Available |
| 6 | Not Available | CREVICE TOOL. | AC60RCNFZV06 | Not Available |
| 7 |  | FLOOR, BRUSH UG787 Part Number: AC96RCSRZV06 for Panasonic | AC96RCSRZV06 | $96.45Read more |
| 8 | Not Available | HOSE UNIT | 73667 | Not Available |
| 9 |  | Wand, Extension Short W/Tabs V5485 Part Number: AC40PBRKZV06 for Panasonic | AC40PBRKZV06 | $37.59Read more |
| 10 | No Image | WAND, UG775 Part Number: AC99PDDWZV06 for Panasonic | AC99PDDWZV06 | $84.19Read more |
