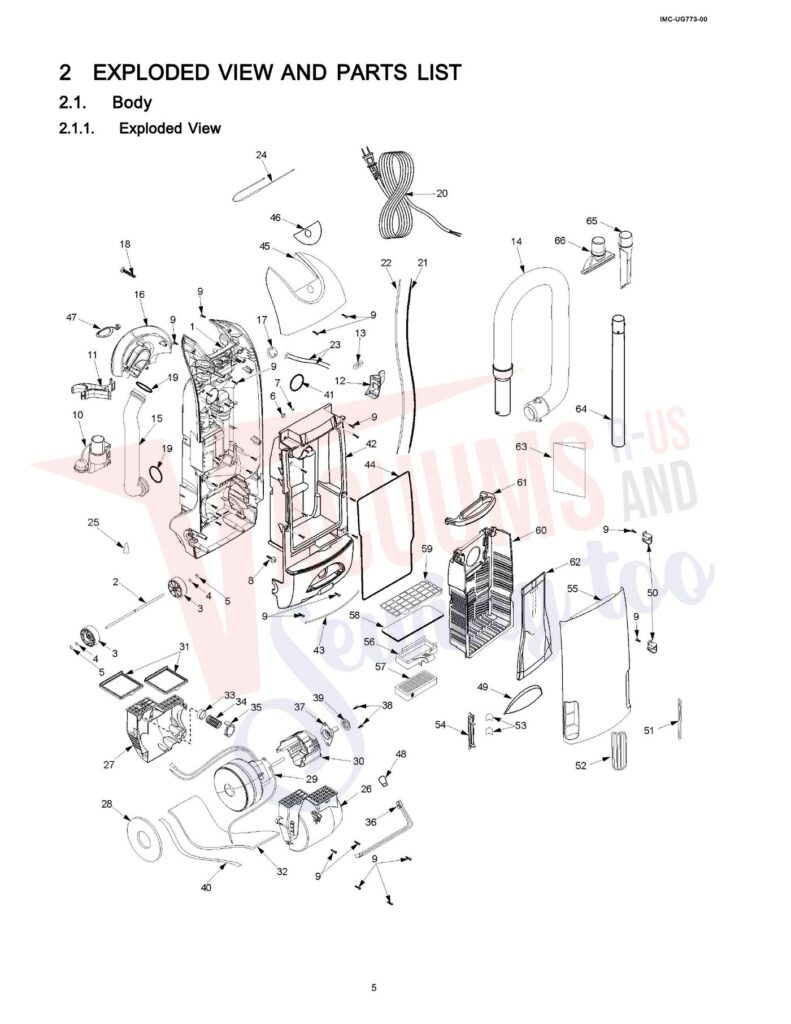

Schematic and parts book for panasonic MC-UG773 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

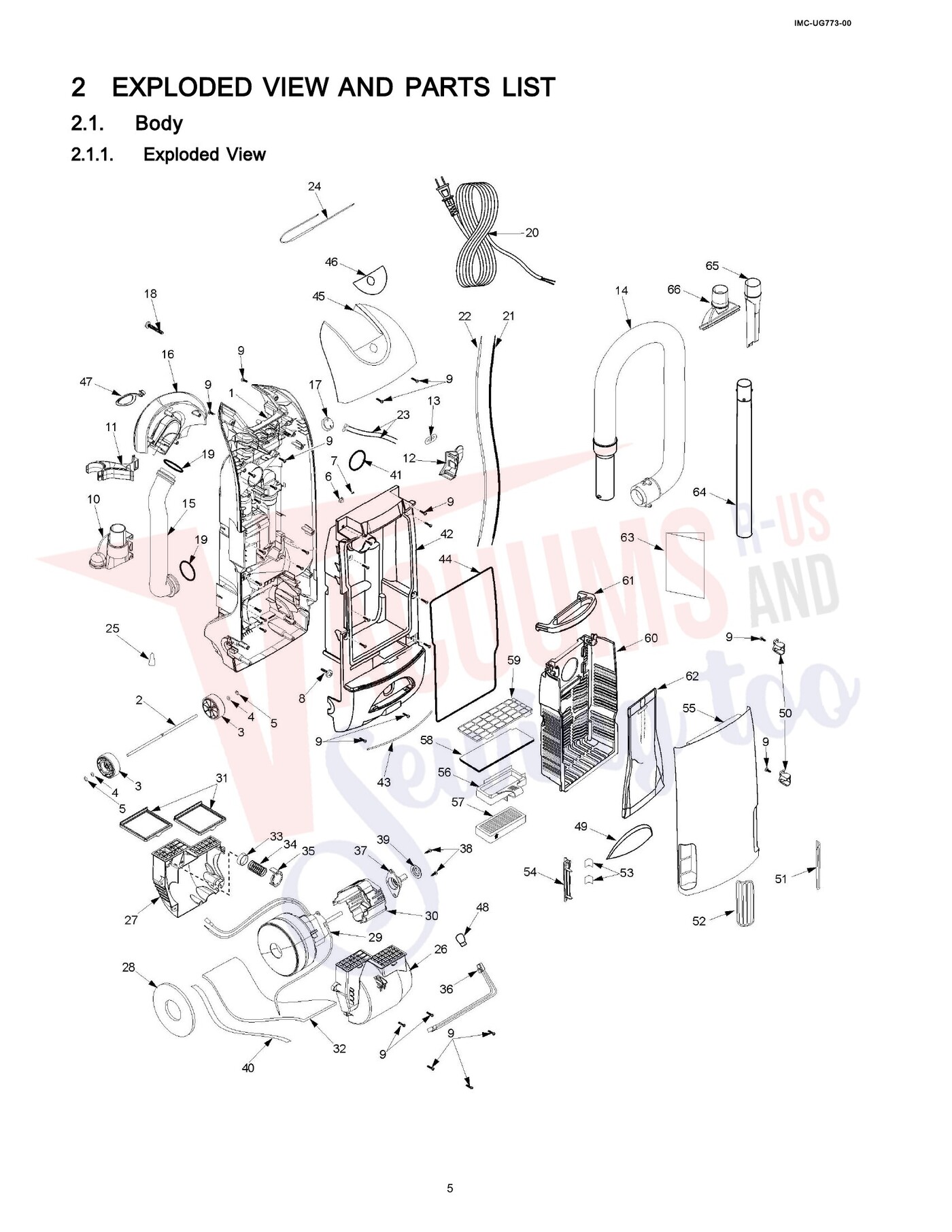

| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST COMPARTMENT | 75334 | Not Available |
| 2 | Not Available | ROLLER SHAFT | AC16CDDWZ000 | Not Available |
| 3 | Not Available | WHEEL UNIT | AC01CV0ZV06 | Not Available |
| 4 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | STOPPER WHEEL | AC74SUSZ00 | Not Available |
| 6 | Not Available | LOCKING CAM | AC83DDAAZU00 | Not Available |
| 8 |  | SCREW, UPPER CORD HOOK 6602 BASE PLATE V5745 Part Number: AC68AZAZ00 for Panasonic | AC68AZAZ00 | $32.15Read more |
| 10 | Not Available | WAND HOLDER | AC70PDDWZV07 | Not Available |
| 11 | Not Available | ATTACHMENT HOLDER | AC32RDDWZV07 | Not Available |
| 12 | Not Available | HOSE FITTING (HOSE SUPPORT) | AC24PDDWZV07 | Not Available |
| 13 | Not Available | CORD STOPPER (C62EJ2) | AMC62E-J20 | Not Available |
| 14 | Not Available | HOSE UNIT | 73667 | Not Available |
| 15 | Not Available | CONNECTOR PIPE | AC52PDDWZV07 | Not Available |
| 16 | Not Available | HOSE HOLDER | AC23PDDWZV07 | Not Available |
| 17 | No Image | SWITCH, ON/OFF MCUG773 Part Number: AC01EDDWZ000 for Panasonic | AC01EDDWZ000 | $14.15Read more |
| 19 | Not Available | SEAL (AIR PATH) | AC74EDDWZ000 | Not Available |
| 20 | Not Available | POWER CORD | AC97EAACZV06 | Not Available |
| 21 | Not Available | BLACK LEAD WIRE UNIT | AC85GDDWZ000 | Not Available |
| 22 | Not Available | WHITE LEAD WIRE UNIT | AC85WDDWZ000 | Not Available |
| 23 | Not Available | BLACK LEAD WIRE UNIT | AC85GDDXZ000 | Not Available |
| 24 | Not Available | KZ000 LEAD ASSEMBLY FUSE | AC99WCY | Not Available |
| 25 | Not Available | WIRE NUT | AMC-1CTCE23 | Not Available |
| 26 | Not Available | AIR GUIDE LEFT | AC54LDDWZU01 | Not Available |
| 27 | Not Available | AIR GUIDE RIGHT | AC55LDDWZU01 | Not Available |
| 28 | Not Available | SEAL-IMPELLER | AC4154151 | Not Available |
| 29 | Not Available | MOTOR | 60167 | Not Available |
| 30 | Not Available | MOTOR CAP | AC26FDDWZU01 | Not Available |
| 31 | Not Available | AIR OUTLET PACKING | AC45LDDWZV07 | Not Available |
| 32 | Not Available | MZ00 NOISE SUPPRESSOR | AC99GAM | Not Available |
| 33 | Not Available | PROTECTOR | AC69KJMZV06 | Not Available |
| 34 | Not Available | FZG00 PROTECTOR SPRING | AC70KCN | Not Available |
| 35 | Not Available | DZV06 PROTECTOR CASE | AC68KAJ | Not Available |
| 36 | Not Available | BULB SOCKET | AC93HDDWZ000 | Not Available |
| 37 | Not Available | KZ000 FLANGE | AC25SBS | Not Available |
| 39 | Not Available | MOTOR SUPPORT RUBBER | AC03FAFYZ00 | Not Available |
| 40 | Not Available | BODY PACKING RIGHT | AC39ADDWZ000 | Not Available |
| 41 | Not Available | SUCTION INLET PACKING | AC64HARTZ000 | Not Available |
| 42 | Not Available | DUST COVER (PAINTED) | AC60KDDXZC01 | Not Available |
| 43 | Not Available | DUST COMPARTMENT PACKING | AC66KDDXZ000 | Not Available |
| 44 | Not Available | DUST COVER PACKING | AC66KCRCZ000 | Not Available |
| 45 | Not Available | SWITCH COVER (PAINTED) | AC03EDDXZC01 | Not Available |
| 46 | Not Available | ORNAMENTAL PLATE | AC21TDDXZ000 | Not Available |
| 47 | Not Available | COVER LID | AC02HDDWZV07 | Not Available |
| 48 | Not Available | LIGHT BULB | AC28GBKHZ000 | Not Available |
| 49 | Not Available | WINDOW | AC21HDDWZ000 | Not Available |
| 50 | Not Available | LID HOLDING BRACKET | AC44HDDWZV07 | Not Available |
| 51 | Not Available | AIR OUTLET GUIDE | AC28LDDXZV07 | Not Available |
| 52 | Not Available | AIR OUTLET GUIDE | AC28LDDWZV07 | Not Available |
| 53 | No Image | SPRING, UG773 Part Number: AC18DDDWZ000 for Panasonic | AC18DDDWZ000 | $6.92Read more |
| 54 | Not Available | FASTENER | AC15KDDWZM0H | Not Available |
| 55 | Not Available | COVER | AC48HDDXZCU1 | Not Available |
| 56 | Not Available | FILTER CASE | AC42KDDWZM0H | Not Available |
| 57 | Not Available | EXHAUST FILTER HEPA | 18046 | Not Available |
| 58 | No Image | BRUSH POLY 13 DIA. | 18011 | $93.99Read more |
| 59 | Not Available | FILTER SUPPORTER | AC32KDDWZV07 | Not Available |
| 60 | Not Available | BAG BRACKET | AC03KDDWZV07 | Not Available |
| 61 | Not Available | HANDLE | AC64BDDWZM0H | Not Available |
| 63 | Not Available | OPERATING INSTRUCTIONS | AC01ZDDXZ000 | Not Available |
| 64 |  | Wand, Extension Short W/Tabs V5485 Part Number: AC40PBRKZV06 for Panasonic | AC40PBRKZV06 | $37.59Read more |
| 65 | Not Available | FZV06 CREVICE TOOL | AC60RCN | Not Available |
| 66 | Not Available | COMBINATION BRUSH | AC63RDDWZV06 | Not Available |

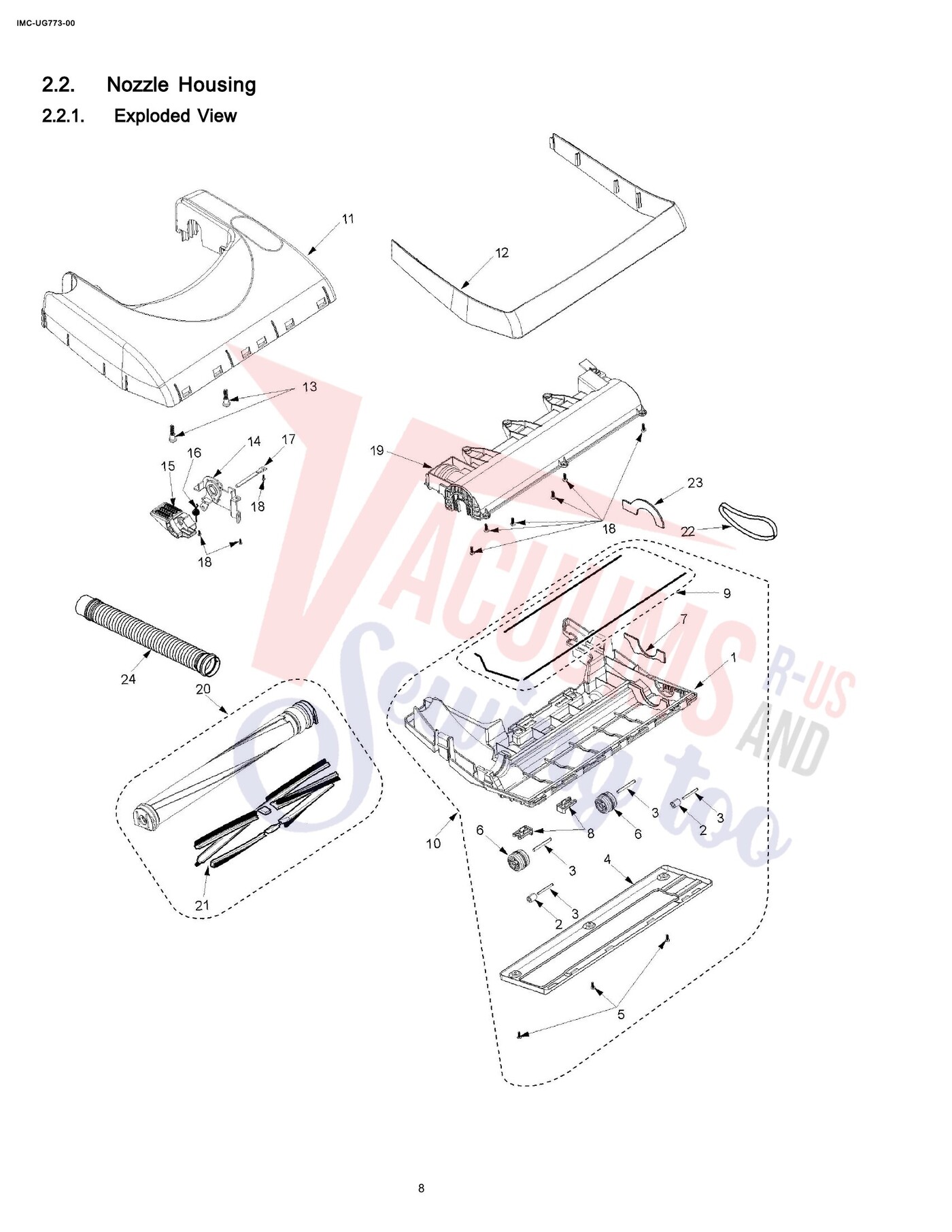

| # | Part image | Description | SKU | Price |
| 1 | Not Available | LOWER BODY | AC03ADDWZV07 | Not Available |
| 2 | Not Available | WHEEL | AC01CDDWZV07 | Not Available |
| 3 | Not Available | ROLLER SHAFT | AC16CNXZ00 | Not Available |
| 4 | Not Available | LOWER PLATE | AC27ADDWZ000 | Not Available |
| 6 |  | Wheel, Front V321/V225/V7314 2Pk Part Number: AC90QNGZV06 for Panasonic | AC90QNGZV06 | $20.33Read more |
| 7 | Not Available | FELT (LOWER) | AC11ADDXZ000 | Not Available |
| 8 | Not Available | LATCH | AC68NCYZZV06 | Not Available |
| 9 | Not Available | BODY PACKING | AC19ADDWZ000 | Not Available |
| 10 | Not Available | LOWER PLATE UNIT | 76071 | Not Available |
| 11 | Not Available | BODY NOZZLE HOUSING (DECO) | 73211 | Not Available |
| 12 | No Image | BUMPER GUARD FOR PAN MC-UG509 Part Number: AC10ADDWZV07 for Panasonic | AC10ADDWZV07 | $0.00Read more |
| 13 | No Image | SCREW, NOZZLE HOUSING 10 PACK Part Number: AMC68A-V30 for Panasonic | AMC68AV30 | $6.66Read more |
| 14 | Not Available | BRACKET | AC43AAFYZ00 | Not Available |
| 15 | Not Available | AAZM0E PEDAL | AC47AD | Not Available |
| 16 |  | SPRING, HANDLE RELEASE 5995, 7300 SERIES Part Number: AC58AAFVZ00 for Panasonic | AC58AAFVZ00 | $19.78Read more |
| 17 | Not Available | -YUZ000 0 PEDAL SHAFT | AMC51A | Not Available |
| 19 | No Image | HOUSING, BRUSHROLL MCCG773 Part Number: AC02ADDWZV07 for Panasonic | AC02ADDWZV07 | $35.81Read more |
| 20 | Not Available | AGITATOR ASSEMBLY | 20038 | Not Available |
| 21 | No Image | STRIP, BRUSH UG509 UG727 UG775 6PK Part Number: AC85RDDWZU01 for Panasonic | AC85RDDWZU01 | $109.93Read more |
| 23 | Not Available | FELT (UPPER) | AC11ADDWZ000 | Not Available |
| 24 | Not Available | NOZZLE HOSE | AC34PDDEZV06 | Not Available |

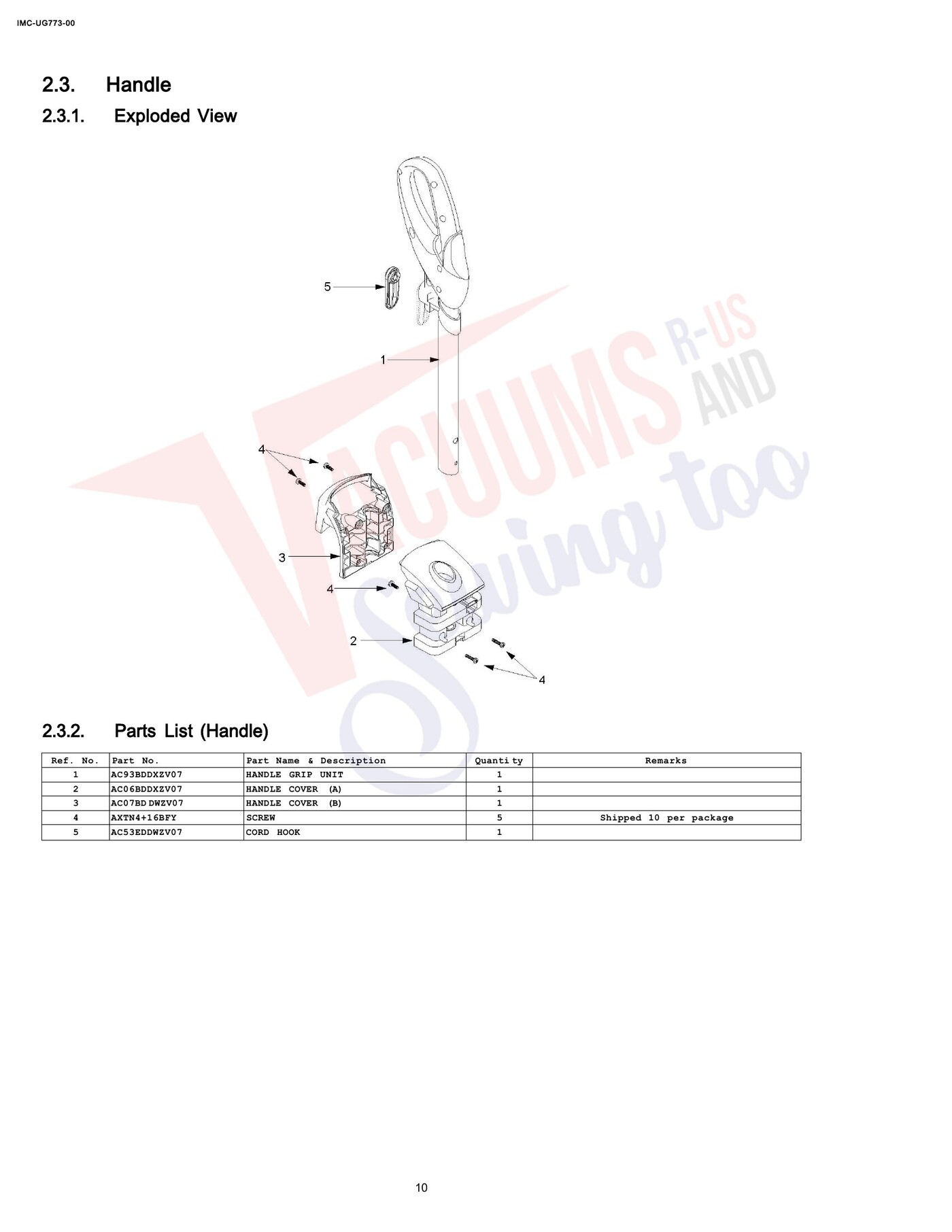

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE GRIP UNIT | AC93BDDXZV07 | Not Available |
| 2 | Not Available | HANDLE COVER (A) | AC06BDDXZV07 | Not Available |
| 3 | Not Available | DWZV07 HANDLE COVER (B) | AC07BD | Not Available |
| 5 | Not Available | CORD HOOK | AC53EDDWZV07 | Not Available |
