Schematic and parts book for Panasonic MC-UG729 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

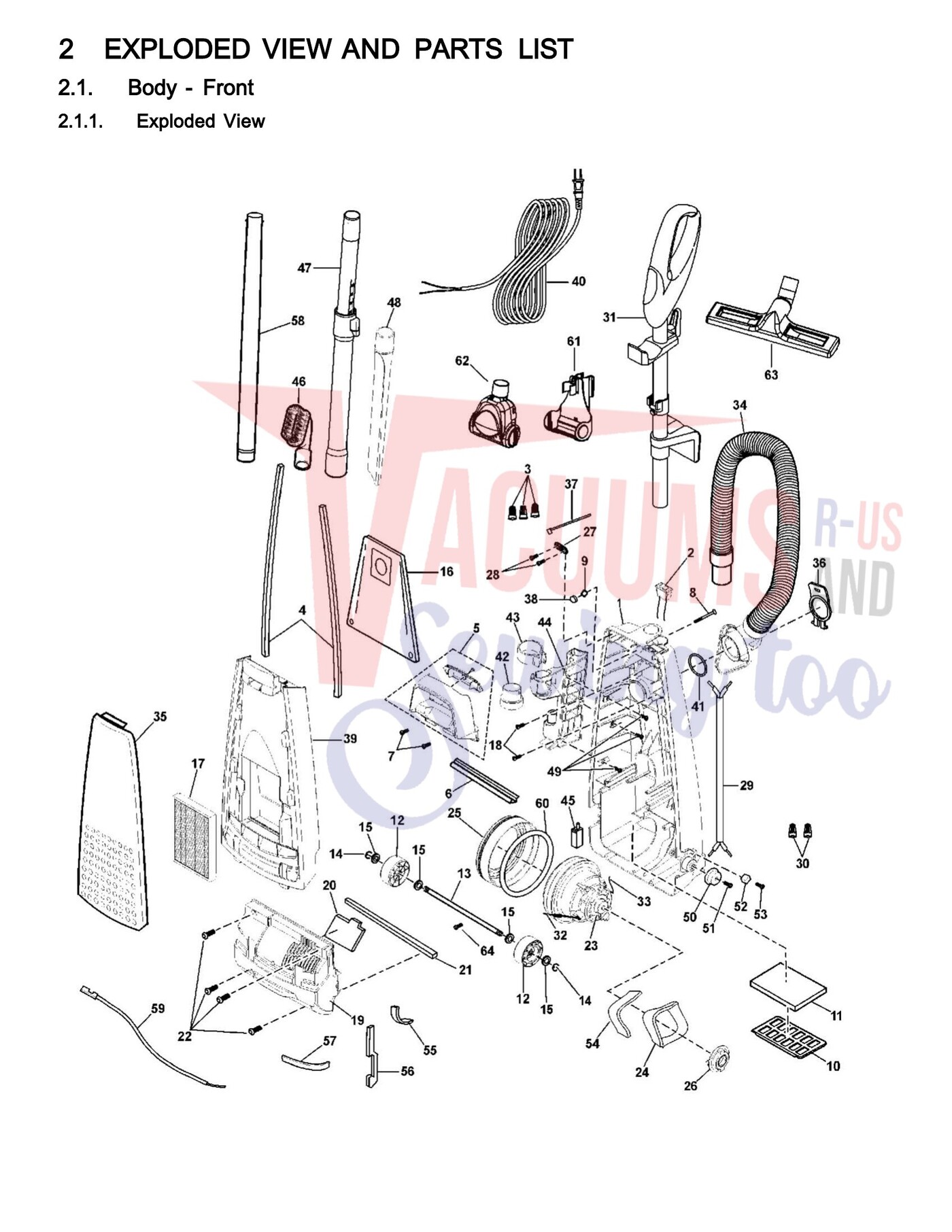

| # | Part image | Description | SKU | Price |
| 1 | No Image | COMPARTMENT, DUST MCUG729 Part Number: AC88KDUWZV07 for Panasonic | AC88KDUWZV07 | $119.86Read more |
| 2 |  | SWITCH, V215 Part Number: AC98EARFZ0U for Panasonic | AC98EARFZ0U | $12.73Read more |
| 3 | Not Available | WIRE CONNECTOR | AMC-1CTCE23 | Not Available |
| 4 | No Image | GASKET, DUST COMPARTMENT V5207 Part Number: AC66KV01V06 for Panasonic | AC66KV01V06 | $5.98Read more |
| 5 | Not Available | SWITCH COVER ASSEMBLY | AC03EDTBZG0U | Not Available |
| 7 | Not Available | HANDLE SCREW | AC73BDTBZ000 | Not Available |
| 8 |  | SCREW, HANDLE 5100 SERIES AMC73B-V00 Part Number: AMC73B-V00 for Panasonic | AMC73BV00 | $4.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Nut-Panasonic 5100 Handle Bolt - 10Pk For: panasonic | AMP21B170 | $4.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | FILTER SUPPORTER | AMC32K-V00 | Not Available |
| 11 |  | Filter, Secondary Foam Panasonic Part Number: AMC37K-V00 for Panasonic | AMC37KV00 | $4.63Read more |
| 12 |  | WHEEL FOR P-MCUG729 Part Number: AC99CBSAZV07 for Panasonic | AC99CBSAZV07 | $8.67Read more |
| 13 |  | Shaft-Panasonic Mc-Ug725 Optiflo Upright For: panasonic | AC16CDSSZ000 | $26.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | RING CLIP | AC23FBVNZ000 | Not Available |
| 15 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | DUST BAG (TYPE U12) | AC16KDDWZ000 | Not Available |
| 17 | Not Available | EXHAUST FILTER (HEPA) LARGE | AC38KCNPZ000 | Not Available |
| 19 | Not Available | MOTOR CASE (MACHINED) | AC09FDTBZG0U | Not Available |
| 20 | Not Available | REAR COVER PACKING | AC02LDTBZ000 | Not Available |
| 21 | Not Available | MOTOR CASE PACKING | AC19FJPZV06 | Not Available |
| 23 | Not Available | FAN MOTOR UNIT (CINDERSON) | AC92FDGWZ000 | Not Available |
| 24 | Not Available | NOISE SUPPRESSOR | AC99GAMMZ00 | Not Available |
| 25 | Not Available | MOTOR SUPPORT RUBBER (FRONT) | AC02FCPSZ000 | Not Available |
| 26 | Not Available | MOTOR SUPPORT RUBBER | AC03FDTBZ000 | Not Available |
| 27 | Not Available | CORD STOPPER | AC62ECWZZ000 | Not Available |
| 29 | Not Available | WIRE CORD | AMC37G-V200U | Not Available |
| 30 | Not Available | WIRE CONNECTOR | AMC-1CTCE23 | Not Available |
| 31 | Not Available | HANDLE ASSEMBLY | AC95BDUWZ000 | Not Available |
| 32 | Not Available | LEAD ASSEMBLY | AC99WDKEZ000 | Not Available |
| 33 | Not Available | WHITE LEAD WIRE UNIT | AC85WDGWZ000 | Not Available |
| 34 | Not Available | HOSE UNIT (STRETCH) | AC84PDUVZV07 | Not Available |
| 35 | No Image | COVER, FRONT UG729 Part Number: AC01HDUWZUU3 for Panasonic | AC01HDUWZUU3 | $58.56Read more |
| 36 | No Image | Cover, Model MCUG729 Part Number: AC02HYUZV07 for Panasonic | AC02HYUZV07 | $11.13Read more |
| 37 | Not Available | WIRE TIE | AMC596-702 | Not Available |
| 38 | Not Available | PACKING | AC61LAGMZ00 | Not Available |
| 39 | Not Available | DUST COVER | AC60KDTBZG0U | Not Available |
| 40 | Not Available | POWER CORD | AC97EAACZV07 | Not Available |
| 41 | Not Available | SUCTION INLET PACKING | AC64HDHKZ000 | Not Available |
| 42 | Not Available | HOSE PLUG B | AC29QDKVZV0 | Not Available |
| 43 | Not Available | HOSE HOOK | AC53RJPZV07 | Not Available |
| 44 | Not Available | WAND HOLDER | AC70PJPZV07 | Not Available |
| 45 |  | SWITCH, ON/OFF V7337/9901 INSIDE DUST COMPARTMENT Part Number: AC98EYUZ00 for Panasonic | AC98EYUZ00 | $10.55Read more |
| 46 | Not Available | DUSTING BRUSH | AC88RYUZV07 | Not Available |
| 47 |  | WAND, EXTENSION TELESCOPIC MCUG729 Part Number: AC99PDKFZV07 for Panasonic | AC99PDKFZV07 | $24.44Read more |
| 48 | Not Available | CREVICE TOOL | AC60RZFZV07 | Not Available |
| 50 | Not Available | NUT (NOZZLE SPRING) | AC13ECRCZ000 | Not Available |
| 52 | Not Available | LOCKING CAM | AC83DDAAZU00 | Not Available |
| 54 | Not Available | NOISE SUPPRESSOR | AC99GDUWZ000 | Not Available |
| 55 | Not Available | BODY PACKING | AC19ADKJZ000 | Not Available |
| 56 | No Image | GASKET, A MCUG729 Part Number: AC03LDUWZ000 for Panasonic | AC03LDUWZ000 | $11.05Read more |
| 57 | Not Available | BODY PACKING | AC19ADHKZ000 | Not Available |
| 58 | Not Available | EXTENSION WAND | AC40PGZZV07 | Not Available |
| 59 | Not Available | BLACK LEAD WIRE UNIT | AC85GDTCZ000 | Not Available |
| 60 | Not Available | PACKING | AC39ADDWZ000 | Not Available |
| 61 | Not Available | TOOL CADDY ASSEMBLY | AC69PDGEZV07 | Not Available |
| 62 | Not Available | CRZ ZV0N TURBINE UNIT | AC80S | Not Available |
| 63 |  | Floor Tool, U729 Part Number: AC96RCSRZV07 for Panasonic | AC96RCSRZV07 | $33.55Read more |
| # | Part image | Description | SKU | Price |

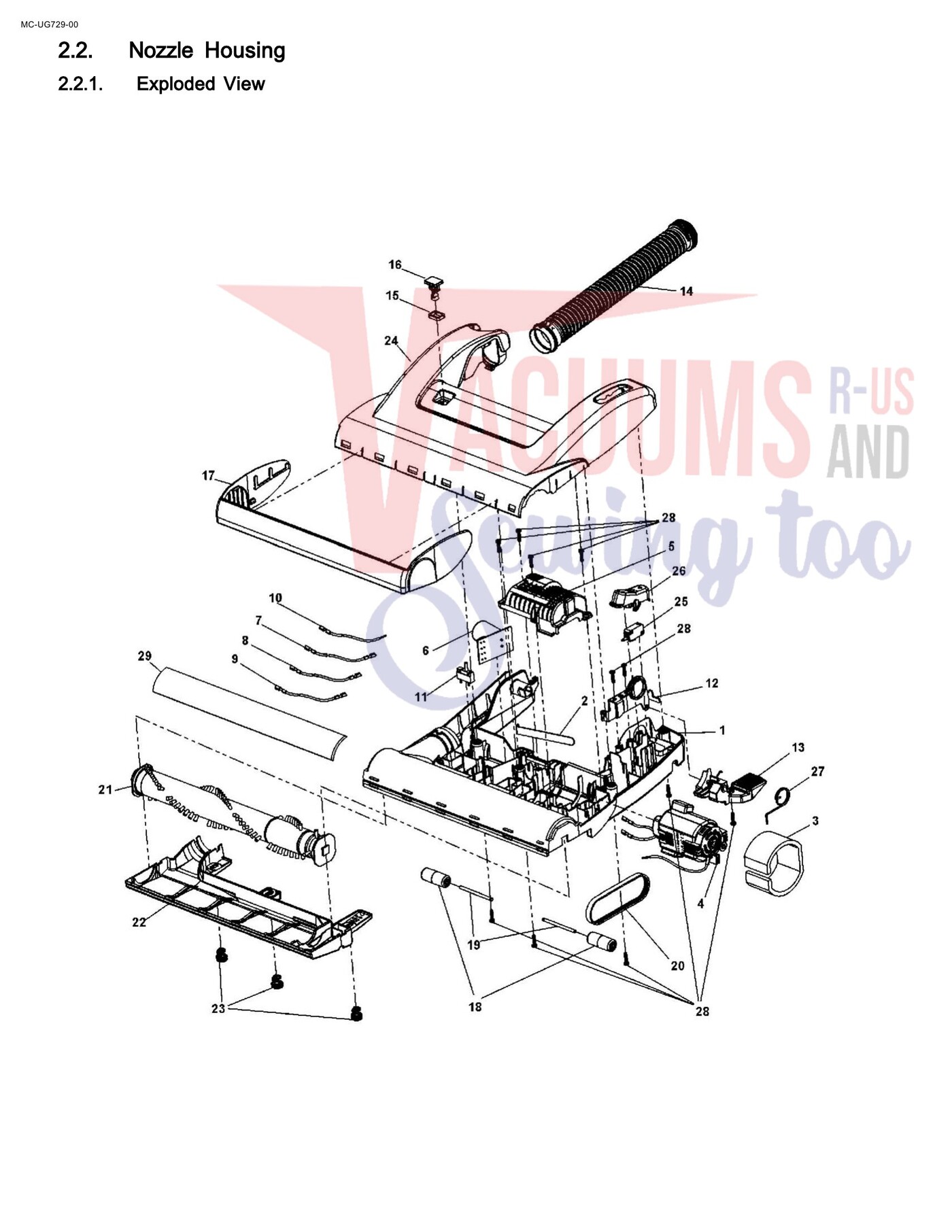

| 1 | No Image | HOUSING, BRUSHROLL MCGG529 MCUG728 729 787 MCUL915 Part Number: AC03ACXWZV07 for Panasonic | AC03ACXWZV07 | $57.35Read more |
| 2 | No Image | SPRING, MOTOR ADJUST POWER NOZZLE 9647 Part Number: AMC742-002 for Panasonic | AMC742002 | $38.56Read more |
| 3 | No Image | GASKET, PN MOTOR V9658 Part Number: AC747156 for Panasonic | AC747156 | $7.18Read more |
| 4 | Not Available | MOTOR ASSEMBLY COMPLETE | AC90FDUWZ000 | Not Available |
| 5 | Not Available | MOTOR CAP | AC26FCXWZ000 | Not Available |
| 6 | Not Available | PCB B UNIT (RECTIFIER) | AC85VDMTZ000 | Not Available |
| 7 | Not Available | BROWN LEAD WIRE UNIT | AC80GDTBZ000 | Not Available |
| 8 | Not Available | BLACK LEAD WIRE UNIT | AC85GDKDZ000 | Not Available |
| 9 | Not Available | BLACK LEAD WIRE UNIT | AC85GDKFZ000 | Not Available |
| 10 | Not Available | LEAD WIRE WHITE | AC85WDTBZ000 | Not Available |
| 11 | Not Available | OVERLOAD PROTECTOR | AC76KDGSZ000 | Not Available |
| 12 | No Image | Frame-Trip Lever/Pan Mc5210 For: panasonic | AMC43A2V0 | $38.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | HANDLE RELEASE ASSEMBLY | AC92BDFWZ000 | Not Available |
| 14 | Not Available | NOZZLE HOSE | AC34PCRAZV07 | Not Available |
| 15 | Not Available | PACKING | AC75ACXWZ000 | Not Available |
| 16 | Not Available | DDUWZ GUU BUTTON EXTENSION (DECO) | AC13 | Not Available |
| 17 | Not Available | FURNITURE GUARD | AC10ACXWZV0 | Not Available |
| 18 | No Image | WHEEL UNIT, MCCG529 MCUG728 729 787 MCUL810 815 Part Number: AC99CCXWZV07 for Panasonic | AC99CCXWZV07 | $34.31Read more |
| 19 | Not Available | SHAFT (WHEEL) ASSEMBLY COMPLETE | AC16CBBRZ00 | Not Available |
| 20 | Not Available | BELT | AC28SCXWZ000 | Not Available |
| 21 | Not Available | AGITATOR ASSEMBLY | AC92SDJSZ000 | Not Available |
| 22 | Not Available | LOWER PLATE | AC27ACXWZV07 | Not Available |
| 23 |  | Nozzle Latch - Panasonic Mc-Ug787 Opti Flo For: panasonic | AC08DDBVZV07 | $4.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | HOUSING, NOZZLE MCUG729 Part Number: AC01ADUWZUU3 for Panasonic | AC01ADUWZUU3 | $57.75Read more |
| 25 | Not Available | MAIN SWITCH ON/OFF | AC98EYUZ000 | Not Available |
| 26 | No Image | SWITCH BUTTON - MCGG529 Part Number: AC05EDKEZG0U for Panasonic | AC05EDKEZG0U | $11.51Read more |
| 27 | Not Available | FLOOR NOZZLE SPRING | AC40RCXWZ000 | Not Available |
| 29 | Not Available | NOISE SUPPRESSOR | AC66GDTCZ000 | Not Available |
