Schematic and parts book for Panasonic MC-UG725 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

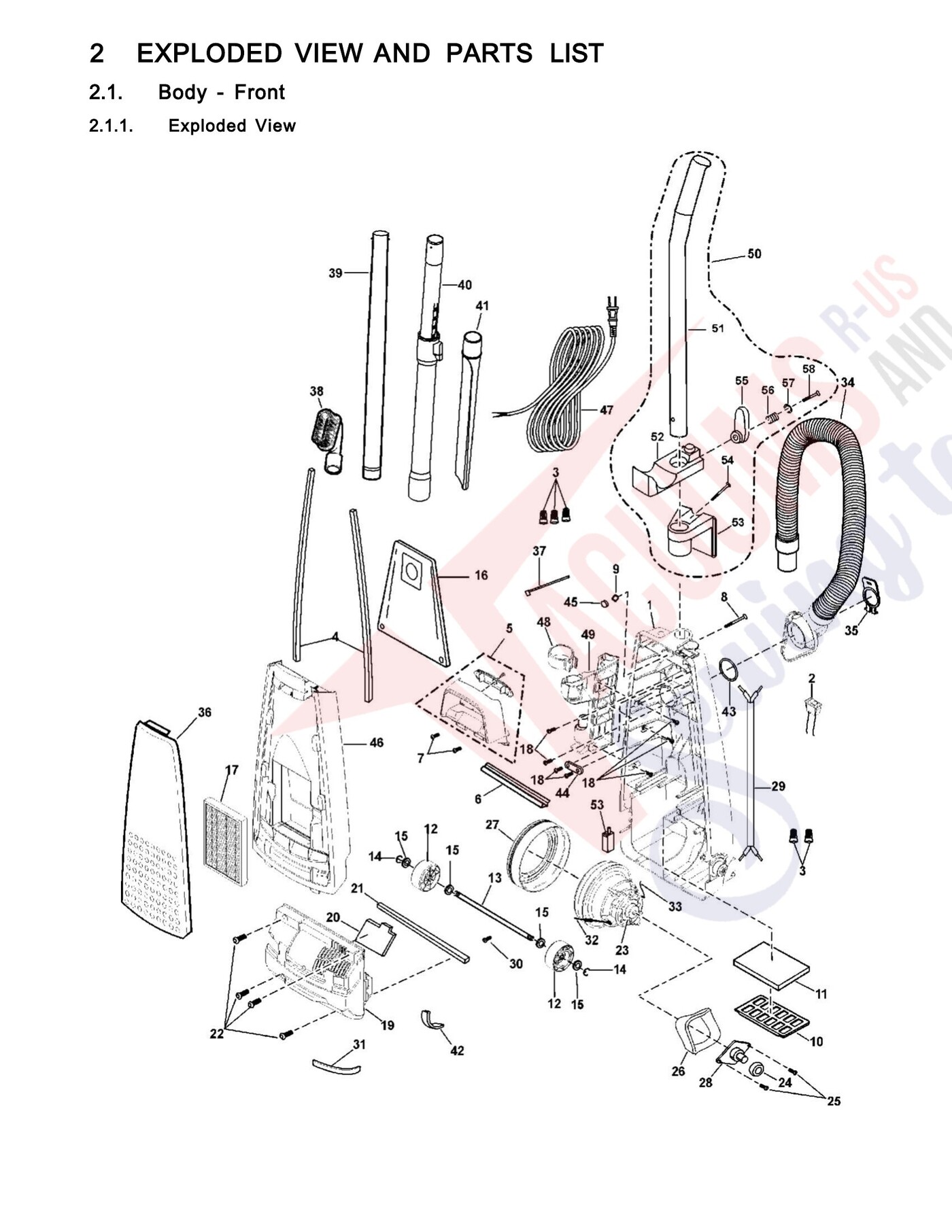

| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST COMPARTMENT UNIT | AC88KDKVZV07 | Not Available |
| 3 | Not Available | WIRE CONNECTOR | AMC-1CTCE23 | Not Available |
| 5 | Not Available | SWITCH COVER ASSEMBLY | AC03EDTBZR0W | Not Available |
| 6 | Not Available | PACKING (SWITCH COVER) | AC73KV0ZV06 | Not Available |
| 7 | Not Available | HANDLE SCREW | AC73BDTBZ000 | Not Available |
| 8 |  | SCREW, HANDLE 5100 SERIES AMC73B-V00 Part Number: AMC73B-V00 for Panasonic | AMC73BV00 | $4.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Nut-Panasonic 5100 Handle Bolt - 10Pk For: panasonic | AMP21B170 | $4.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | FILTER SUPPORTER | AMC32K-V00 | Not Available |
| 11 |  | Filter, Secondary Foam Panasonic Part Number: AMC37K-V00 for Panasonic | AMC37KV00 | $4.63Read more |
| 12 |  | WHEEL FOR P-MCUG729 Part Number: AC99CBSAZV07 for Panasonic | AC99CBSAZV07 | $8.67Read more |
| 13 |  | Shaft-Panasonic Mc-Ug725 Optiflo Upright For: panasonic | AC16CDSSZ000 | $26.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | RING CLIP | AC23FBVNZ000 | Not Available |
| 15 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | DUST BAG (TYPE U12) | AC16KDDWZ000 | Not Available |
| 17 | Not Available | EXHAUST FILTER (HEPA) LARGE | AC38KCNPZ000 | Not Available |
| 19 | Not Available | MOTOR CASE (MACHINED) | AC09FDUVZR0W | Not Available |
| 20 | Not Available | REAR COVER PACKING | AC02LDUVZ000 | Not Available |
| 21 | Not Available | MOTOR CASE PACKING | AC19FJPZV06 | Not Available |
| 23 |  | MOTOR, V7571 V5481 V5454 V5485 V5491 V7600 V5485 Part Number: AC92FBSKZ000 for Panasonic | AC92FBSKZ000 | $144.43Read more |
| 24 | Not Available | MOTOR SUPPORT RUBBER | AC03FAFYZ000 | Not Available |
| 26 | Not Available | NOISE SUPPRESSOR | AC99GAMMZ00 | Not Available |
| 27 | Not Available | MOTOR SUPPORT RUBBER | AC02FCWZZ000 | Not Available |
| 28 | Not Available | MOTOR FLANGE | AC25SBSKZ000 | Not Available |
| 29 | Not Available | WIRE CORD | AMC37G-V200U | Not Available |
| 31 | Not Available | BODY PACKING | AC19ADHKZ000 | Not Available |
| 32 | Not Available | LEAD ASSEMBLY | AC99WDEVZ000 | Not Available |
| 33 | Not Available | WHITE LEAD WIRE UNIT | AC38GDCNZ000 | Not Available |
| 34 | Not Available | HOSE UNIT (STRETCH) | AC84PDUVZV07 | Not Available |
| 35 | No Image | Cover, Model MCUG729 Part Number: AC02HYUZV07 for Panasonic | AC02HYUZV07 | $11.13Read more |
| 36 | Not Available | FRONT COVER (DECO) | AC01HDUUZUU3 | Not Available |
| 37 | Not Available | WIRE TIE | AMC596-702 | Not Available |
| 38 | Not Available | DUSTING BRUSH | AC88RYUZV07 | Not Available |
| 39 |  | WAND, EXTENSION TELESCOPIC MCUG729 Part Number: AC99PDKFZV07 for Panasonic | AC99PDKFZV07 | $24.44Read more |
| 40 | Not Available | EXTENSION WAND | AC40PZGZV07 | Not Available |
| 41 | Not Available | CREVICE TOOL | AC60RZFZV07 | Not Available |
| 42 | Not Available | BODY PACKING | AC19ADKJZ000 | Not Available |
| 43 | Not Available | PACKING | AC64HDHKZ000 | Not Available |
| 44 | Not Available | CORD STOPPER | AMC62E-J20 | Not Available |
| 45 | Not Available | PACKING | AC61LAGMZ00 | Not Available |
| 46 | No Image | Cover, Dust MCUG725 Part Number: AC60KDTBZR0W for Panasonic | AC60KDTBZR0W | $70.66Read more |
| 47 | Not Available | POWER CORD | AC97EBZXZV07 | Not Available |
| 48 | Not Available | HOSE HOOK | AC53RJPZV07 | Not Available |
| 49 | Not Available | WAND HOLDER | AC70PJPZV07 | Not Available |
| 50 | Not Available | HANDLE ASSEMBLY | AC95BDKXZV07 | Not Available |
| 51 | Not Available | HANDLE | AC64BDKXZ000 | Not Available |
| 52 | Not Available | HOSE HOLDER | AC23PJP1V07 | Not Available |
| 53 | Not Available | HANDLE GRIP | AC50BDEVZV07 | Not Available |
| 55 | Not Available | UPPER CORD STORAGE HOOK | AC53EV0ZV07 | Not Available |
| 56 | Not Available | SPRING (CORD HOOK) | AMC76N-F70 | Not Available |
| 57 |  | Washer For Cord Hook-5100/6200 Series-Oem Panasonc
10 Pack For: panasonic | AMC58BF70 | $13.95Add to cart Product is special order please allow 2-4 weeks for delivery. |

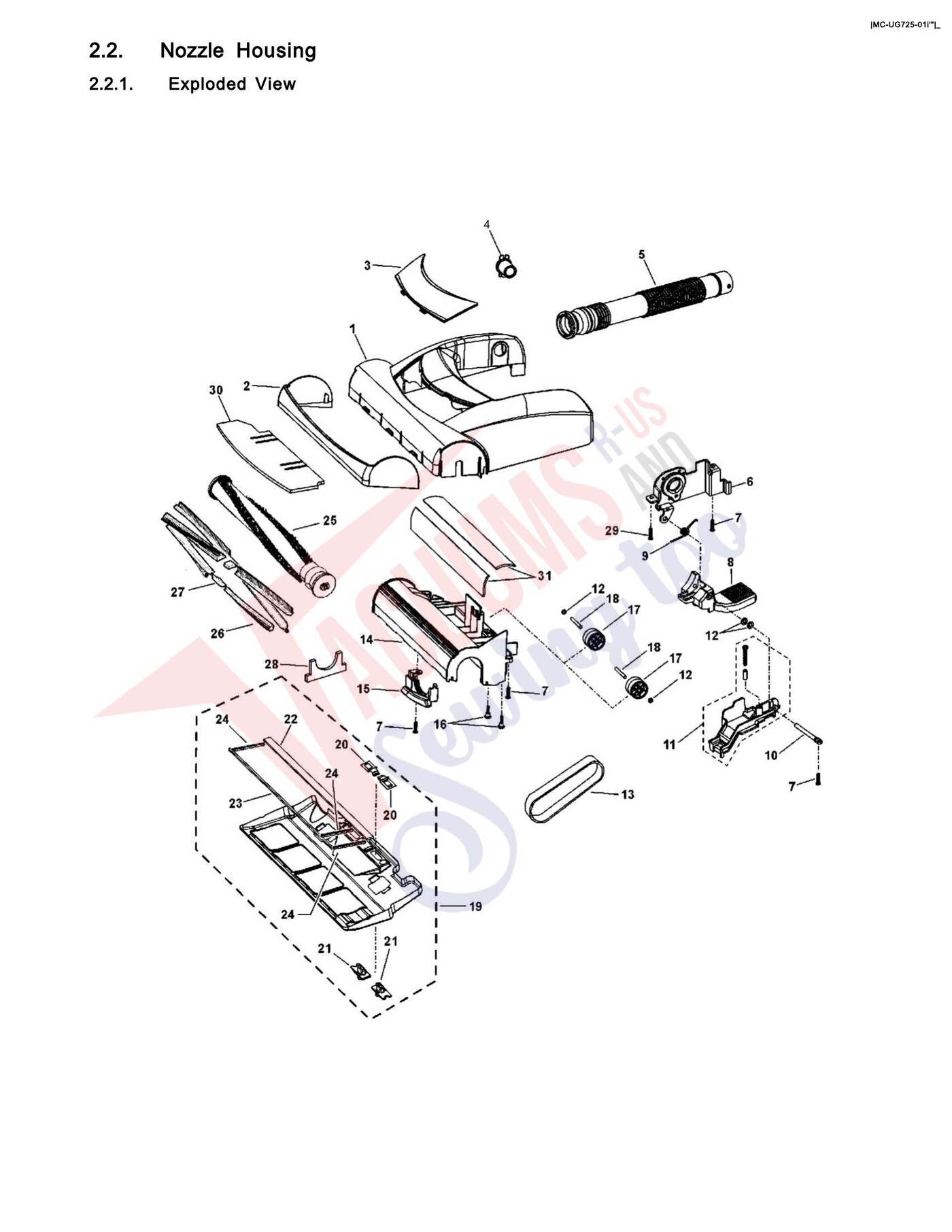

| # | Part image | Description | SKU | Price |
| 1 | Not Available | NOZZLE HOUSING | AC01ADUUZUU3 | Not Available |
| 2 |  | Bumper, Dark Gray Rubber V5210 Part Number: AC10ACRSZV07 for Panasonic | AC10ACRSZV07 | $28.81Read more |
| 3 | Not Available | WINDOW | AC21HCRSZU03 | Not Available |
| 4 | Not Available | PLASTIC SHAFT | AMC25S-V00 | Not Available |
| 5 | Not Available | PLASTIC HOSE | AC34PAJDZV07 | Not Available |
| 6 | Not Available | BRACKET ASSEMBLY | AC43AAFYZ00 | Not Available |
| 8 |  | Pedal, Blk Handle Release MC-V413/MC-V5210 Part Number: AC47A2VZV07 for Panasonic | AC47A2VZV07 | $10.03Read more |
| 9 | Not Available | 0 0 SPRING (PEDAL) | AC58AAFVZ | Not Available |
| 10 | Not Available | SHAFT (PEDAL) | AMC51A-V30 | Not Available |
| 11 | Not Available | BELT COVER ASSEMBLY | AC11S2VZW00 | Not Available |
| 12 | Not Available | COVER WASHER | AC62FAVGZ00 | Not Available |
| 13 | Not Available | BELT | AC28SJPZ00 | Not Available |
| 14 | Not Available | BODY UPPER | AC02ACRSZW0H | Not Available |
| 15 |  | Cap-Panasonic Mc-V5271 Body For: panasonic | AC12ACRSZW0H | $10.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | SCREW, NOZZLE HOUSING 10 PACK Part Number: AMC68A-V30 for Panasonic | AMC68AV30 | $6.66Read more |
| 17 |  | Wheel, Front V321/V225/V7314 2Pk Part Number: AC90QNGZV06 for Panasonic | AC90QNGZV06 | $20.33Read more |
| 18 | Not Available | SHAFT (WHEELS) | AC16CNXZ00 | Not Available |
| 19 | Not Available | LOWER PLATE ASSEMBLY | AC91ACRS1000 | Not Available |
| 20 | Not Available | SPRING (STOP LATCH) | AC70NYUZ00 | Not Available |
| 21 | Not Available | LATCH LOWER PLATE | AMC68N-V30K | Not Available |
| 22 | Not Available | PACKING (LOWER PLATE) | AC74ACRSZ000 | Not Available |
| 23 | Not Available | PACKING (LOWER PLATE) | AC74ACRRZ000 | Not Available |
| 24 | Not Available | PACKING (LOWER PLATE) | AMC39A-2V0 | Not Available |
| 25 |  | Brushroll, Metal V5203, V5204 V5278 & V7388 Part Number: AC92SBVNZ000 for Panasonic | AC92SBVNZ000 | $98.23Read more |
| 26 | Not Available | 000 BRUSH SET | AC85RBFT0 | Not Available |
| 27 | Not Available | SPACER (BRUSHES) | AC34SBYYZ000 | Not Available |
| 28 | Not Available | AGITATOR HOLDER | AC82ACRRZV07 | Not Available |
| 30 | Not Available | NOZZLE PACKING | AC04RDTAZ000 | Not Available |
| 31 | Not Available | PACKING | AC75ADSSZ000 | Not Available |
