Schematic and parts book for Panasonic MC-UG693 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

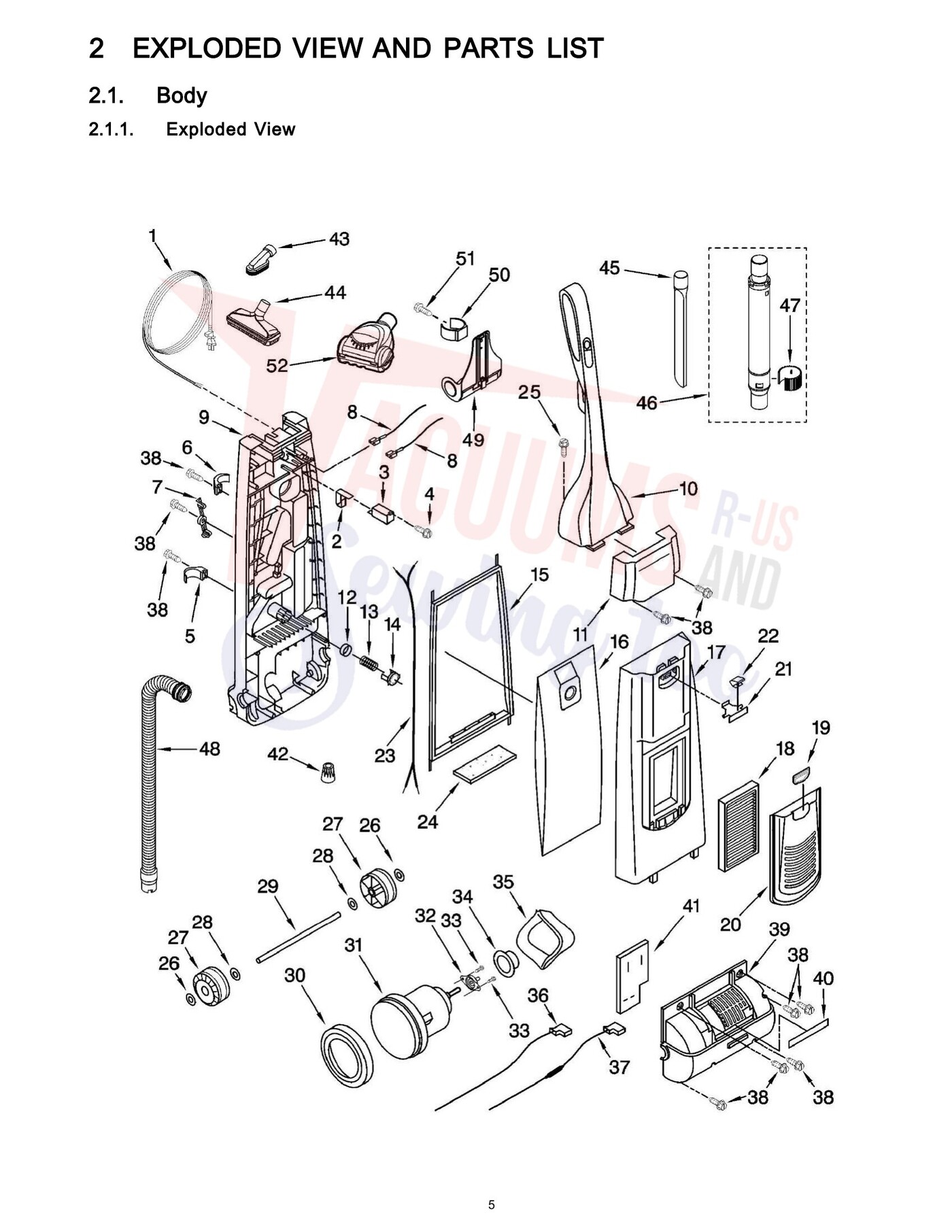

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Power Cord | AC97EBZXZV06 | Not Available |
| 2 | No Image | Switch Lever Pana Mc-V7335 Upright For: panasonic | AC15EZAZ00 | $8.82Read more |
| 3 |  | SWITCH, ON/OFF V7337/9901 INSIDE DUST COMPARTMENT Part Number: AC98EYUZ00 for Panasonic | AC98EYUZ00 | $10.55Read more |
| 4 |  | SCREW, UPPER CORD HOOK 6602 BASE PLATE V5745 Part Number: AC68AZAZ00 for Panasonic | AC68AZAZ00 | $32.15Read more |
| 5 | Not Available | Hose Holder | AC70PZAZV07 | Not Available |
| 6 | Not Available | Wand Holder | AC70PAEKZV07 | Not Available |
| 7 | Not Available | Holder | AC29FAMAZV07 | Not Available |
| 8 | Not Available | Lead Wire - Switch | AC38GARTZ000 | Not Available |
| 9 | Not Available | Dust Compartment | AC40KBGBZV07 | Not Available |
| 10 | Not Available | Handle Assy | AC95BCKTZP0B | Not Available |
| 11 | Not Available | Switch Cover | AC03EAMBZP0B | Not Available |
| 12 | Not Available | Protector | AC69KJMZV07 | Not Available |
| 13 | Not Available | Protector Spring | AC70KAMAZW00 | Not Available |
| 14 | Not Available | Protector Case | AC68KAJDZV07 | Not Available |
| 15 | Not Available | Dust Container Packing | AC66NAMAZV07 | Not Available |
| 16 | Not Available | Dust Bag | AC16KDDWZ000 | Not Available |
| 17 | Not Available | Dust Cover | AC60KDJUZPUB | Not Available |
| 18 | Not Available | Exhaust Filter (HEPA) | AC38KCNPZ000 | Not Available |
| 19 | Not Available | Filter Cover Latch | AC15KAMAZV06 | Not Available |
| 20 | No Image | COVER, FILTER MCUG693 Part Number: AC41KDJUZPUB for Panasonic | AC41KDJUZPUB | $25.76Read more |
| 21 |  | Lid Latch - Panasonic Mc-Ug693 Upright For: panasonic | AC08DANPZV06 | $4.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Latch Spring | AC87NTGZ000 | Not Available |
| 23 | Not Available | Wire Cord | AMC37G-V200U | Not Available |
| 24 |  | Filter, Motor Secondary Electrostatic MCV300 Part Number: AC30KAMAZ00 for Panasonic | AC30KAMAZ00 | $8.86Read more |
| 25 | Not Available | Handle Screw | AC73BAMAZ000 | Not Available |
| 26 | Not Available | Stopper Wheel | AC74SUSZ00 | Not Available |
| 27 | Not Available | Wheel | AC99CBSAZV06 | Not Available |
| 28 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | Not Available | Roller Shaft | AC16CUSZ00 | Not Available |
| 30 | Not Available | Motor Support Rubber (Front) | AC02FCJYZ000 | Not Available |
| 31 | No Image | MOTOR, V5745-02 V5706 V5710 V5715 V5716 V5720 Part Number: AC92FCJYZ000 for Panasonic | AC92FCJYZ000 | $161.77Read more |
| 32 | Not Available | Motor Flange | AC25SCJYZ000 | Not Available |
| 34 | Not Available | Motor Support Rubber (Rear) | AC03FAFYZ00 | Not Available |
| 35 | Not Available | Noise Suppressor | AC99GAMMZ00 | Not Available |
| 36 | Not Available | Lead Wire (Motor) | AC38GARTZ000 | Not Available |
| 37 | Not Available | Lead Assembly Fuse | AC99WAUDZ000 | Not Available |
| 39 | Not Available | Motor Case | AC09FBFEZP0B | Not Available |
| 40 | Not Available | Motor Case Packing | AC19AAMAZV06 | Not Available |
| 41 | Not Available | Exhaust Filter | AC38KBFEZV00 | Not Available |
| 42 | Not Available | Wire Connector | AMC-1CTCE23 | Not Available |
| 43 | Not Available | Dusting Brush | AC88RYUZV06 | Not Available |
| 44 | Not Available | Combination Brush | AC63RZFZVU6 | Not Available |
| 45 |  | Cervice Tool, Gray Friction Fit Long Part Number: AC60RZFZVU6 for Panasonic | AC60RZFZVU6 | $15.64Read more |
| 46 | Not Available | Extension Wand | AC93PHGZV06 | Not Available |
| 47 | Not Available | Suction Regulator | AC54PYUZV06 | Not Available |
| 48 | No Image | HOSE, MCUG693 Part Number: AC84PAMAZV06 for Panasonic | AC84PAMAZV06 | $70.56Read more |
| 49 | Not Available | Caddy (Turbine) | AC66PBPKZV06 | Not Available |
| 50 | Not Available | Locking Clip | AC82DCJRZV06 | Not Available |
| 52 | Not Available | Air Turbine | AC80SCWZZV0N | Not Available |

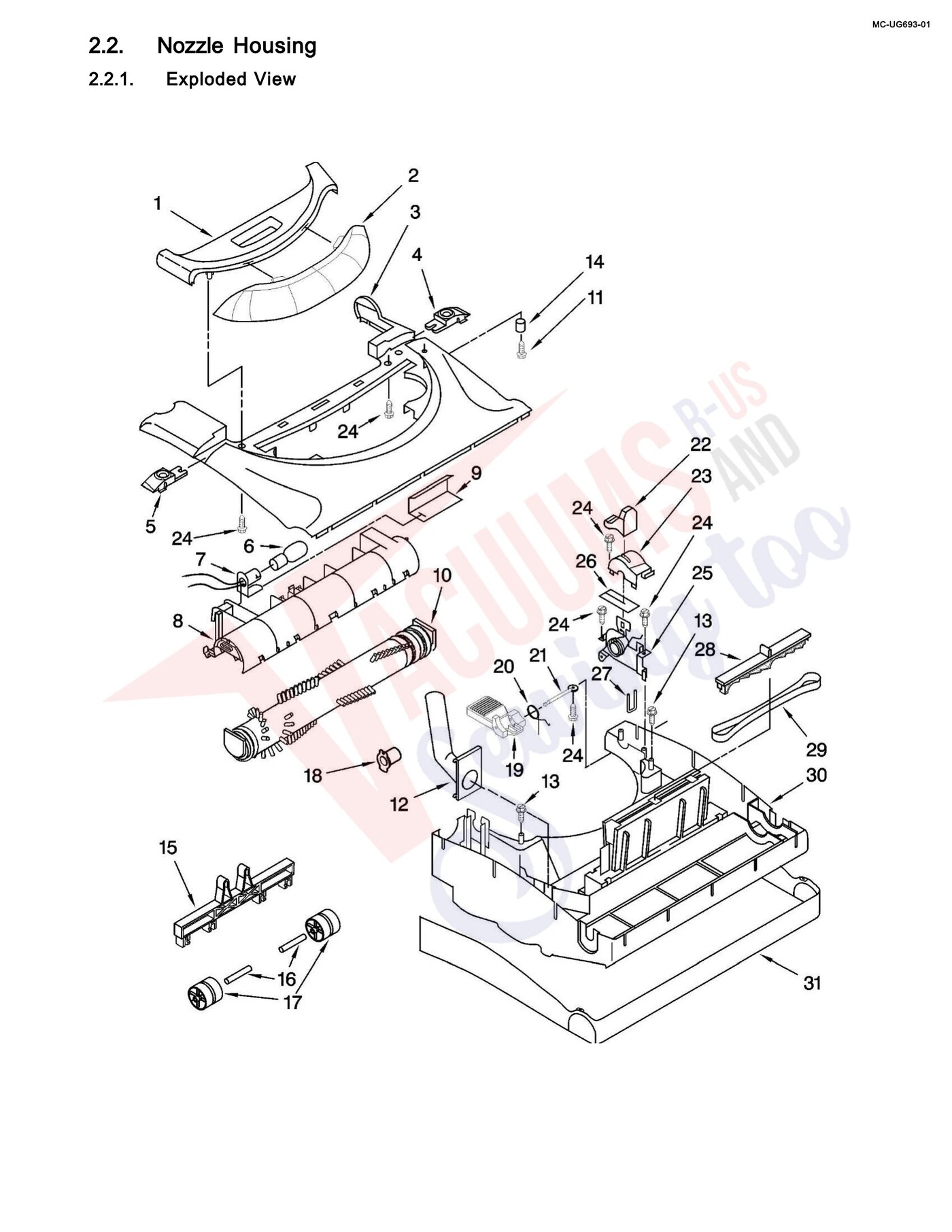

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Light Cover | AC24HAVPZVU6 | Not Available |
| 2 | Not Available | Window | AC21HAGZZ00 | Not Available |
| 3 | Not Available | Nozzle | AC01ADJU0PUB | Not Available |
| 4 | Not Available | Nozzle Latch Left | AC08DAMAZP0B | Not Available |
| 5 | Not Available | Nozzle Latch Right | AC08DAMBZP0B | Not Available |
| 6 | Not Available | Light Bulb | AC28GADFZ00 | Not Available |
| 7 | Not Available | Bulb Socket | AC93HURZ00 | Not Available |
| 8 | No Image | COVER, NOZZLE MCUG693 Part Number: AC01QAMDZ000 for Panasonic | AC01QAMDZ000 | $21.65Read more |
| 9 | Not Available | Reflector | AC22HAVGZ00 | Not Available |
| 10 |  | Brushroll, 14 In Ug693 Upright U-Shaped Ends Part Number: AC84RCJYZ000 for Panasonic | AC84RCJYZ000 | $73.94Read more |
| 12 | Not Available | Nozzle Pipe | AC70SZAZV06 | Not Available |
| 13 | No Image | SCREW, NOZZLE HOUSING 10 PACK Part Number: AMC68A-V30 for Panasonic | AMC68AV30 | $6.66Read more |
| 14 | Not Available | Belt Guard | AC43SANPZ000 | Not Available |
| 15 |  | Height Adj. Cam / Panasonic Mc-V300 Upright For: panasonic | AC61KJPZV06 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Roller Shaft | AC16CNXZ00 | Not Available |
| 17 | No Image | WHEEL, NOZZLE UG693 Part Number: AC99QCYBZV06 for Panasonic | AC99QCYBZV06 | $5.98Read more |
| 18 | Not Available | Plastic Shaft | AMC25S-V00 | Not Available |
| 19 | Not Available | Pedal | AC47A2VZV06 | Not Available |
| 20 |  | SPRING, HANDLE RELEASE 5995, 7300 SERIES Part Number: AC58AAFVZ00 for Panasonic | AC58AAFVZ00 | $19.78Read more |
| 21 | Not Available | Pedal Shaft | AMC51A-V30 | Not Available |
| 22 | No Image | COVER, HANDLE RELEASE PEDAL V5269 V7600 Part Number: AC42AAFYZV06 for Panasonic | AC42AAFYZV06 | $9.06Read more |
| 23 | Not Available | Belt Cover | AC43SAMAZP0B | Not Available |
| 25 |  | Handle Release Assembly - Panasonic Mc-V5269 - Upright For: panasonic | AC92BAMAZ000 | $59.91Read more |
| 26 | Not Available | Nozzle Packing | AC04RANPZV06 | Not Available |
| 27 | Not Available | Belt Cover | AMC43S-V00 | Not Available |
| 28 | Not Available | Sliding Knob Height Adjust | AC57HJPZV06 | Not Available |
| 29 | Not Available | Belt | AC28SCZPZ000 | Not Available |
| 30 | No Image | HOUSING, NOZZLE UG693 Part Number: AC27AAMDZV07 for Panasonic | AC27AAMDZV07 | $27.04Read more |
| 31 | Not Available | Furniture Guard | AC10AAMDZV06 | Not Available |
