Schematic and parts book for Panasonic MC-UG583 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

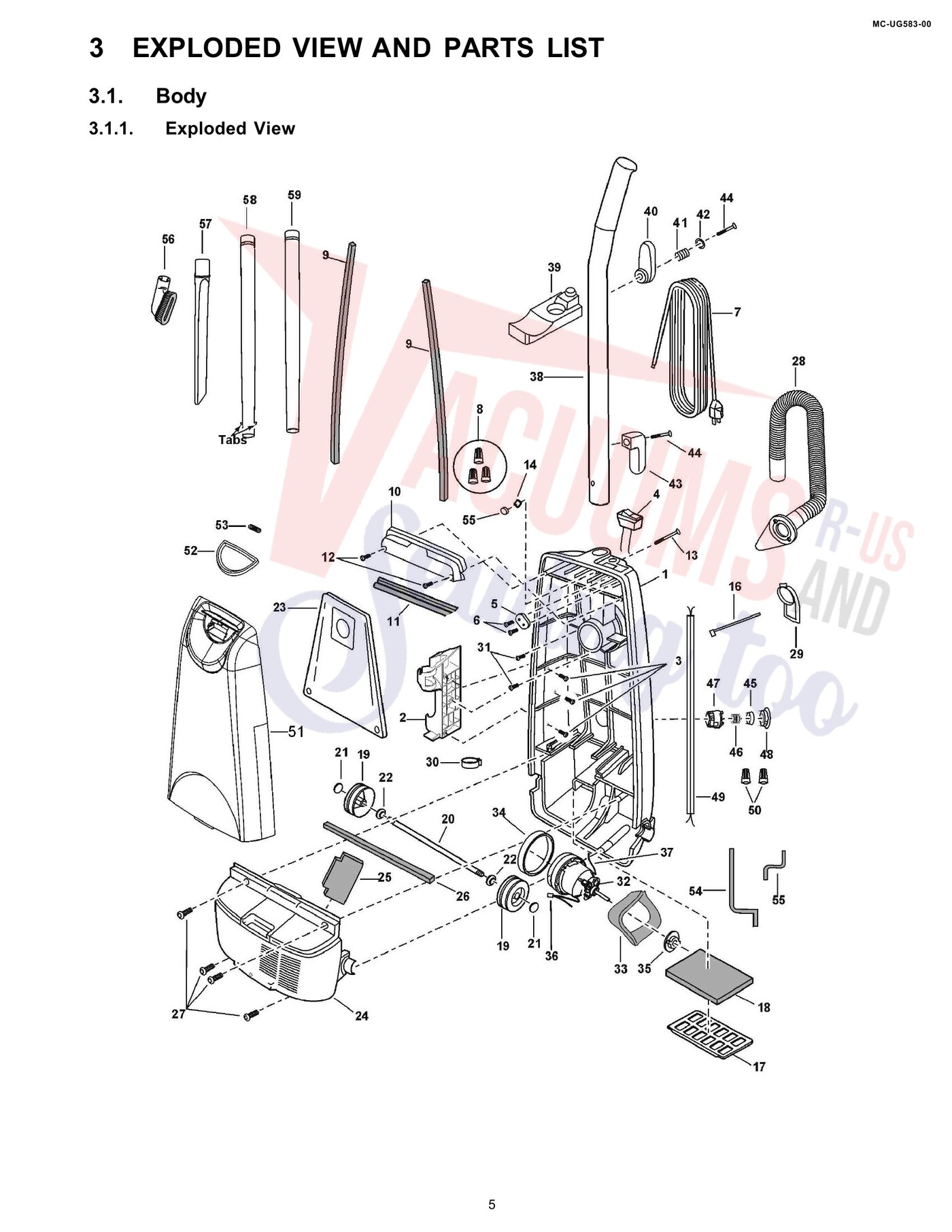

| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST COMPARTMENT | 75296 | Not Available |
| 2 | Not Available | WAND HOLDER | AC70PJPZV07 | Not Available |
| 4 | Not Available | SWITCH | AMC98E-V010U | Not Available |
| 5 | Not Available | CORD STOPPER | AMC62E-J20 | Not Available |
| 7 | Not Available | POWER CORD | AC97EBZXZV06 | Not Available |
| 8 | Not Available | WIRE CRIMP | AC44DCYKZ000 | Not Available |
| 9 | No Image | GASKET, DUST COMPARTMENT V5207 Part Number: AC66KV01V06 for Panasonic | AC66KV01V06 | $5.98Read more |
| 10 | Not Available | SWITCH COVER | AC03EDEVZV07 | Not Available |
| 11 | Not Available | SWITCH COVER PACKING | AC73KV0ZV06 | Not Available |
| 13 |  | SCREW, HANDLE 5100 SERIES AMC73B-V00 Part Number: AMC73B-V00 for Panasonic | AMC73BV00 | $4.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | NUT | AMP21B-17 | Not Available |
| 15 | Not Available | PACKING | AC61LAGMZ00 | Not Available |
| 16 | Not Available | CABLE TIE | AMC596-702 | Not Available |
| 17 | Not Available | FILTER SUPPORTER | AMC32K-V00 | Not Available |
| 18 | Not Available | HEPA FILTER | 1802 | Not Available |
| 19 | Not Available | WHEEL | AMC01C-V00U | Not Available |
| 20 | Not Available | SHAFT (WHEEL) | AC16CUSZ00 | Not Available |
| 21 | Not Available | STOPPER (WHEEL) | AC74SUSZ00 | Not Available |
| 22 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Bracket, Heat Sink | 75142 | $174.99Read more |
| 25 | Not Available | REAR COVER PACKING | AC02LBJYZ00 | Not Available |
| 26 | Not Available | MOTOR CASE PACKING | AC19FJPZV06 | Not Available |
| 28 | Not Available | HOSE ASSEMBLY | 73637 | Not Available |
| 29 |  | COVER, INLET 6815/6855/ 9901 GRAY Part Number: AC02HYUZV06 for Panasonic | AC02HYUZV06 | $9.65Read more |
| 30 |  | HOSE HOOK, V5300/V150 Part Number: AC53RJPZV06 for Panasonic | AC53RJPZV06 | $8.14Read more |
| 32 | Not Available | FAN MOTOR | 60145 | Not Available |
| 33 | Not Available | NOISE SUPPRESSOR | AC99GAMMZ00 | Not Available |
| 34 | Not Available | MOTOR SUPPORT (FRONT) | AMC02F-E00 | Not Available |
| 35 | Not Available | MOTOR SUPPORT (REAR) | AMC03F-V00 | Not Available |
| 36 | Not Available | LEAD WIRE (FUSE) | AC99WAJDZ00 | Not Available |
| 37 | Not Available | LEAD WIRE | AC38GARTZ000 | Not Available |
| 38 | Not Available | HANDLE | AMC64B-V2Z00 | Not Available |
| 39 | Not Available | HOSE HOLDER | AC23PJP1V07 | Not Available |
| 40 | Not Available | UPPER CORD STORAGE HOOK | AC53EV0ZV07 | Not Available |
| 41 | Not Available | SPRING (CORD HOOK) | AMC76N-F7 | Not Available |
| 42 | Not Available | WASHER (CORD HOOK) | AMC58B-F7 | Not Available |
| 43 | Not Available | LOWER CORD STORAGE HOOK | AC54EV0ZV07 | Not Available |
| 45 | Not Available | PROTECTOR | AC69KJMZV06 | Not Available |
| 46 |  | SPRING, PROTECTOR BLUE V5257 Part Number: AC70KAHHZB00 for Panasonic | AC70KAHHZB00 | $2.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | PROTECTOR CASE | AC68KJMZV06 | Not Available |
| 48 | Not Available | PROTECTOR SUPPORT | AC18MJMZV06 | Not Available |
| 49 | Not Available | WIRE CORD | AMC37G-V200U | Not Available |
| 50 | Not Available | WIRE CRIMP | AC44DCYKZ000 | Not Available |
| 51 | Not Available | DUST COVER | AC60KDEVZCUC | Not Available |
| 52 | Not Available | LATCH | AC01DDEVZV07 | Not Available |
| 53 |  | SPRING, BAG LATCH UG583 Part Number: AC23DDEVZ000 for Panasonic | AC23DDEVZ000 | $2.56Read more |
| 54 | Not Available | PACKING (RIGHT) | AC39AYUZV00 | Not Available |
| 55 | Not Available | PACKING (LEFT) | AC40AYUZV00 | Not Available |
| 56 | Not Available | DUSTING BRUSH | AC88RYUZV06 | Not Available |
| 57 |  | Cervice Tool, Gray Friction Fit Long Part Number: AC60RZFZVU6 for Panasonic | AC60RZFZVU6 | $15.64Read more |
| 58 | Not Available | WAND (WITH TABS) | AC40PJPZV06 | Not Available |
| 59 | Not Available | WAND (EXTENSION) | AC40PZG1V06 | Not Available |

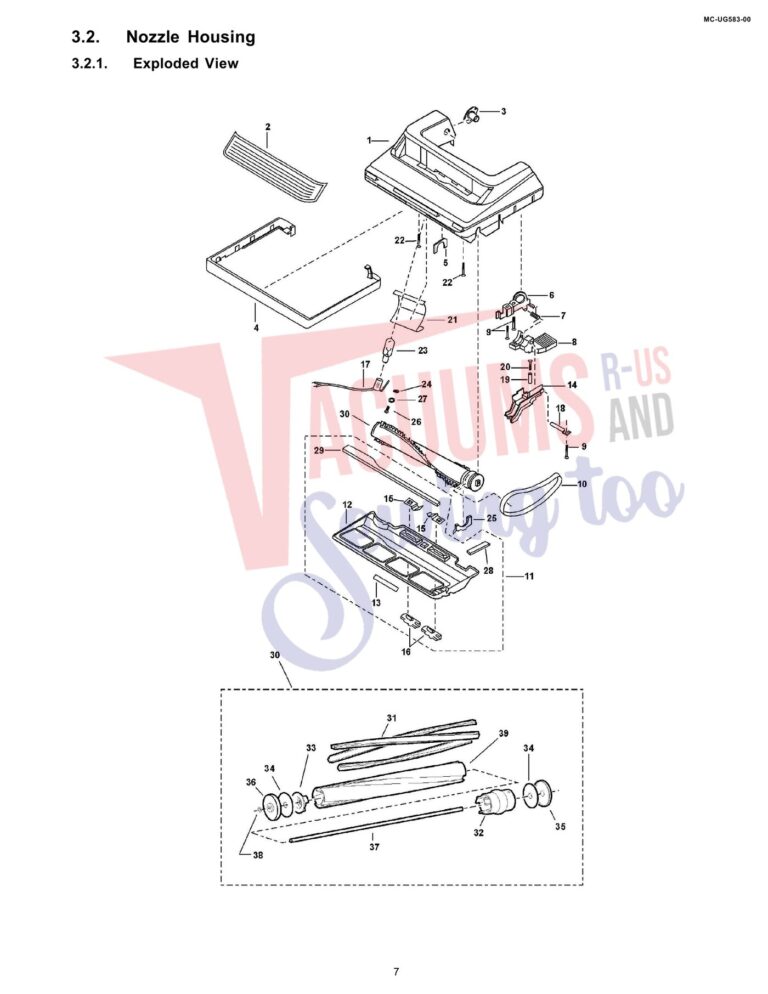

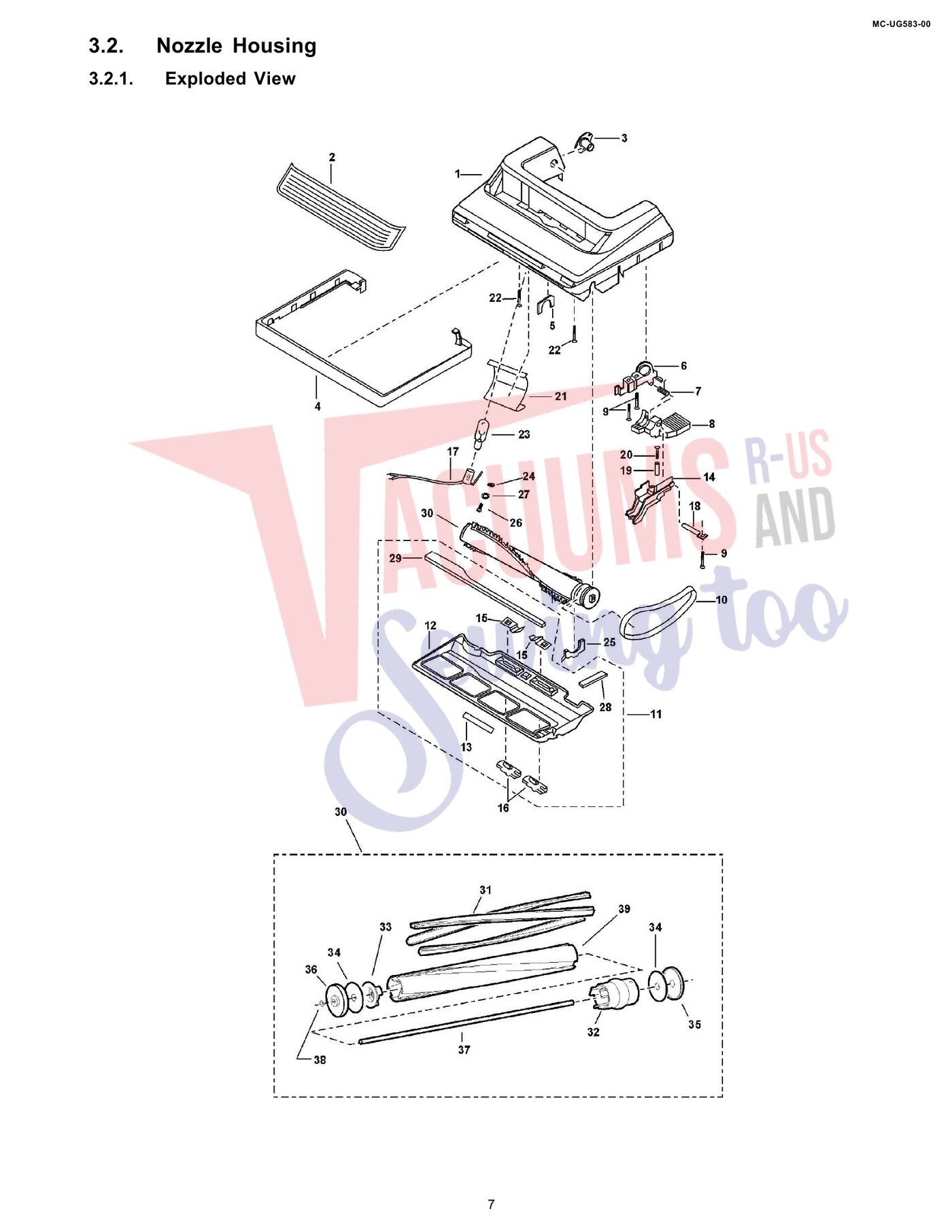

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing | 73208 | Not Available |
| 2 | Not Available | Window | AMC21H-2X0 | Not Available |
| 3 | Not Available | Shaft (Plastic) | AMC25S-V00 | Not Available |
| 4 | Not Available | Furniture Guard | AC10A2VZV07 | Not Available |
| 5 | Not Available | Packing (Nozzle) | AMC81A-V00 | Not Available |
| 6 | No Image | Frame-Trip Lever/Pan Mc5210 For: panasonic | AMC43A2V0 | $38.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Spring (Pedal) | AMC58A-2V0 | Not Available |
| 8 | Not Available | Pedal | AMC47A-2V0U | Not Available |
| 11 | Not Available | Lower Plate Assembly | 76017 | Not Available |
| 12 | Not Available | Lower Plate | AC27AADGZ00 | Not Available |
| 13 | Not Available | Warning Label | AC07ZADFZ00 | Not Available |
| 14 | Not Available | Belt Cover (Rear) | AMC11S-2V0W | Not Available |
| 15 | Not Available | Stop Latch Spring | AC70NYUZ00 | Not Available |
| 16 | Not Available | 0K Latch | AMC68N-V3 | Not Available |
| 17 | Not Available | Bulb Socket | AC93HURZ00 | Not Available |
| 18 | Not Available | Pedal Shaft | AMC51A-2V0 | Not Available |
| 19 | Not Available | Spacer | AMC74S-Z100G | Not Available |
| 21 | Not Available | Reflector | AC84HURZW00 | Not Available |
| 22 | Not Available | Screw (Nozzle) | AMC68A-V3 | Not Available |
| 23 | Not Available | Bulb | AC28GADFZ00 | Not Available |
| 25 | Not Available | Agitator Holder | AMC82A-2V0 | Not Available |
| 27 | Not Available | Washer | AMC58B-F7 | Not Available |
| 28 | Not Available | Packing (Lower Plate Right) | AMC39A-2V0 | Not Available |
| 29 | Not Available | Packing (Lower Plate Back) | AMC74A-2V0 | Not Available |
| 30 | Not Available | Agitator Assembly | 20043 | Not Available |
| 31 | Not Available | Brush (3 Pcs.) | AC85RBYYZ000 | Not Available |
| 32 | Not Available | Agitator Pulley | AC29SBYYZ000 | Not Available |
| 33 | Not Available | Agitator Holder | AC41SBVNZ000 | Not Available |
| 34 |  | FILTER, FELT BRUSHROLL V5204, V6603 COMM UPRT Part Number: AC44KBVNZ000 for Panasonic | AC44KBVNZ000 | $7.22Read more |
| 35 | No Image | HOUSING, REAR 9875 Part Number: 02055-1 for Eureka | 20551 | $28.71Read more |
| 36 | Not Available | Brush Support (Non-Pulley End) | 20550 | Not Available |
| 37 | Not Available | Agitator Shaft | AC57RBYYZ000 | Not Available |
| 38 | Not Available | Ring-Clip | AC23FBVNZ000 | Not Available |
| 39 | Not Available | Agitator | AC56RBVNZ000 | Not Available |
| 39 | Not Available | Nozzle Hose | 72408 | Not Available |
