Schematic and parts book for Panasonic MC-UG509 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

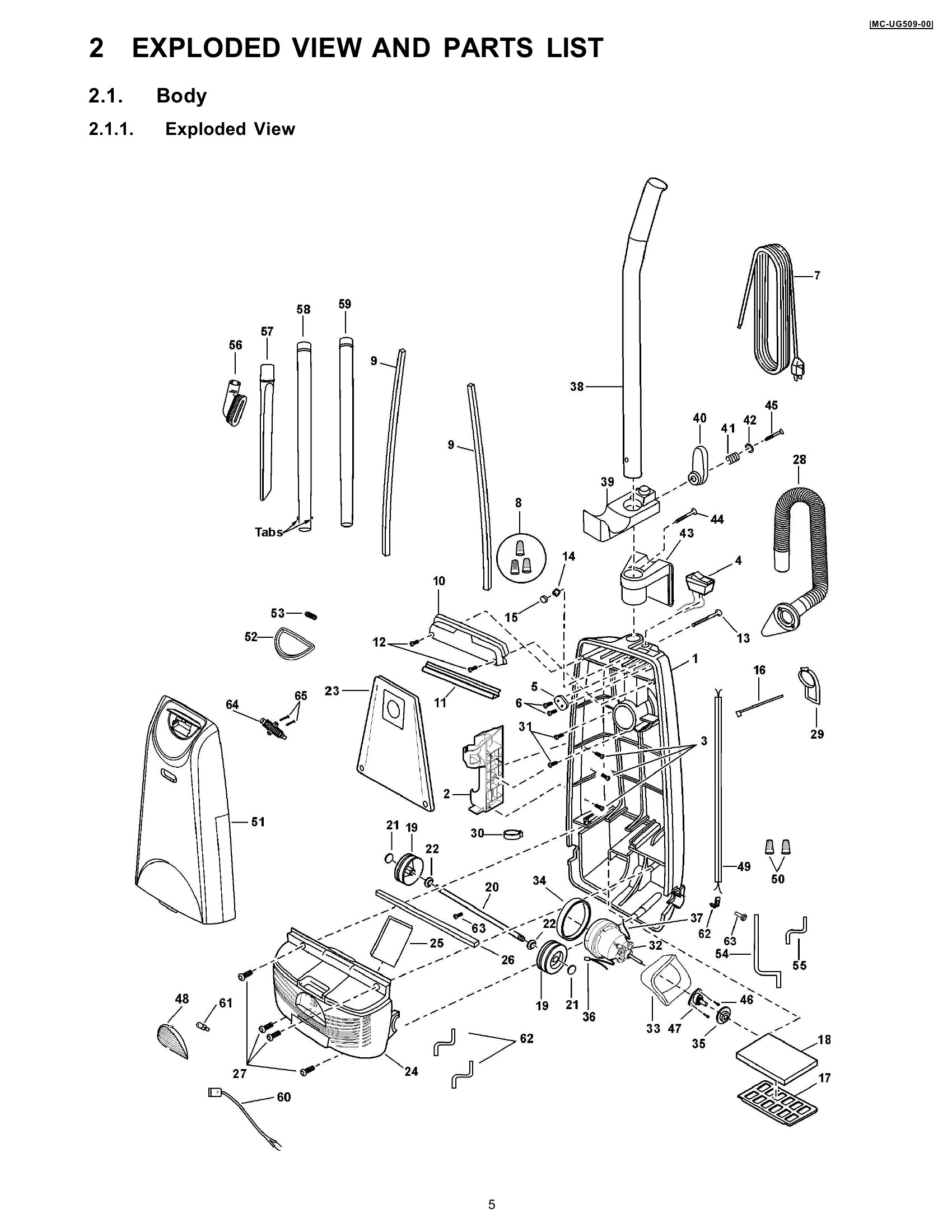

| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST COVER | AC78KDJGZV07 | Not Available |
| 2 | Not Available | WAND HOLDER | AC70PJPZV07 | Not Available |
| 4 | Not Available | SWITCH | AMC98E-V010U | Not Available |
| 5 | Not Available | CORD STOPPER | AMC62E-J20 | Not Available |
| 7 | Not Available | POWER CORD | AC97EAACZV06 | Not Available |
| 8 | Not Available | WIRE CRIMP | AC44DCYKZ000 | Not Available |
| 9 | No Image | GASKET, DUST COMPARTMENT V5207 Part Number: AC66KV01V06 for Panasonic | AC66KV01V06 | $5.98Read more |
| 10 | Not Available | SWITCH COVER | AC03EDEVZV07 | Not Available |
| 11 | Not Available | SWITCH COVER PACKING | AC73KV0ZV06 | Not Available |
| 13 |  | SCREW, HANDLE 5100 SERIES AMC73B-V00 Part Number: AMC73B-V00 for Panasonic | AMC73BV00 | $4.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Nut-Panasonic 5100 Handle Bolt - 10Pk For: panasonic | AMP21B170 | $4.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | PACKING | AC61LAGMZ00 | Not Available |
| 16 | Not Available | CABLE TIE | AMC596-702 | Not Available |
| 17 | Not Available | FILTER SUPPORTER | AMC32K-V00 | Not Available |
| 18 | Not Available | HEPA FILTER | AC37KAAEZ00 | Not Available |
| 19 | Not Available | WHEEL | AC99CBSAZV06 | Not Available |
| 20 | Not Available | SHAFT (WHEEL) | AC16CDEXZ000 | Not Available |
| 21 | Not Available | STOPPER (WHEEL) | AC74SUSZ00 | Not Available |
| 22 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | PAPER BAG, HEPA UG509 UG776 UG775 UG787 CLOTH TYPE Part Number: AC16KDABZ000 for Panasonic | AC16KDABZ000 | $41.82Read more |
| 24 | Not Available | MOTOR CASE | AC09FDKVZR03 | Not Available |
| 25 | Not Available | REAR COVER PACKING | AC02LDKVZ000 | Not Available |
| 26 | Not Available | MOTOR CASE PACKING | AC19FARSZV06 | Not Available |
| 28 | Not Available | HOSE ASSEMBLY | AC84PJPZV06 | Not Available |
| 29 |  | COVER, INLET 6815/6855/ 9901 GRAY Part Number: AC02HYUZV06 for Panasonic | AC02HYUZV06 | $9.65Read more |
| 30 |  | HOSE HOOK, V5300/V150 Part Number: AC53RJPZV06 for Panasonic | AC53RJPZV06 | $8.14Read more |
| 32 |  | MOTOR, V7571 V5481 V5454 V5485 V5491 V7600 V5485 Part Number: AC92FBSKZ000 for Panasonic | AC92FBSKZ000 | $144.43Read more |
| 33 | Not Available | NOISE SUPPRESSOR | AC99GAMMZ00 | Not Available |
| 34 | Not Available | MOTOR SUPPORT (FRONT) | AMC02F-E00 | Not Available |
| 35 | Not Available | MOTOR SUPPORT (REAR) | AC03FAFYZ000 | Not Available |
| 36 | Not Available | LEAD WIRE (FUSE) | AC99WDKXZ000 | Not Available |
| 37 | Not Available | LEAD WIRE | AC38GARTZ000 | Not Available |
| 39 | Not Available | HOSE HOLDER | AC23PJP1V07 | Not Available |
| 40 | Not Available | UPPER CORD STORAGE HOOK | AC53EV0ZV07 | Not Available |
| 41 | Not Available | SPRING (CORD HOOK) | AMC76N-F70 | Not Available |
| 42 |  | Washer For Cord Hook-5100/6200 Series-Oem Panasonc
10 Pack For: panasonic | AMC58BF70 | $13.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | Not Available | HANDLE GRIP | AC50BDEVZV07 | Not Available |
| 47 | Not Available | FLANGE | AC25SBSKZ000 | Not Available |
| 48 | Not Available | WINDOW | AC21HDKVZ000 | Not Available |
| 49 | Not Available | WIRE CORD | AMC37G-V200U | Not Available |
| 50 | Not Available | WIRE CRIMP | AC44DCYKZ000 | Not Available |
| 51 | Not Available | DUST COVER | AC60KDEXZRU3 | Not Available |
| 52 | Not Available | LATCH | AC01DDEVZV07 | Not Available |
| 53 |  | SPRING, BAG LATCH UG583 Part Number: AC23DDEVZ000 for Panasonic | AC23DDEVZ000 | $2.56Read more |
| 54 | Not Available | PACKING (RIGHT) | AC39AYUZV00 | Not Available |
| 55 | Not Available | PACKING (LEFT) | AC40AYUZV00 | Not Available |
| 56 | Not Available | DUSTING BRUSH | AC88RYUZV06 | Not Available |
| 57 |  | Cervice Tool, Gray Friction Fit Long Part Number: AC60RZFZVU6 for Panasonic | AC60RZFZVU6 | $15.64Read more |
| 58 | Not Available | WAND (WITH TABS) | AC40PJPZV06 | Not Available |
| 59 | Not Available | WAND (EXTENSION) | AC40PZG1V06 | Not Available |
| 60 | Not Available | BULB SOCKET | AC93HDDWZ000 | Not Available |
| 61 | Not Available | BULB LIGHT | AC28GBKHZ000 | Not Available |
| 62 | Not Available | LOCKING CAM | AC83DDAAZU00 | Not Available |
| 64 | Not Available | INDICATOR ASSEMBLY COMPLETE | AC98MRFZ000 | Not Available |
| 66 | Not Available | BODY PACKING | AC19ADHKZ000 | Not Available |
| # | Part image | Description | SKU | Price |

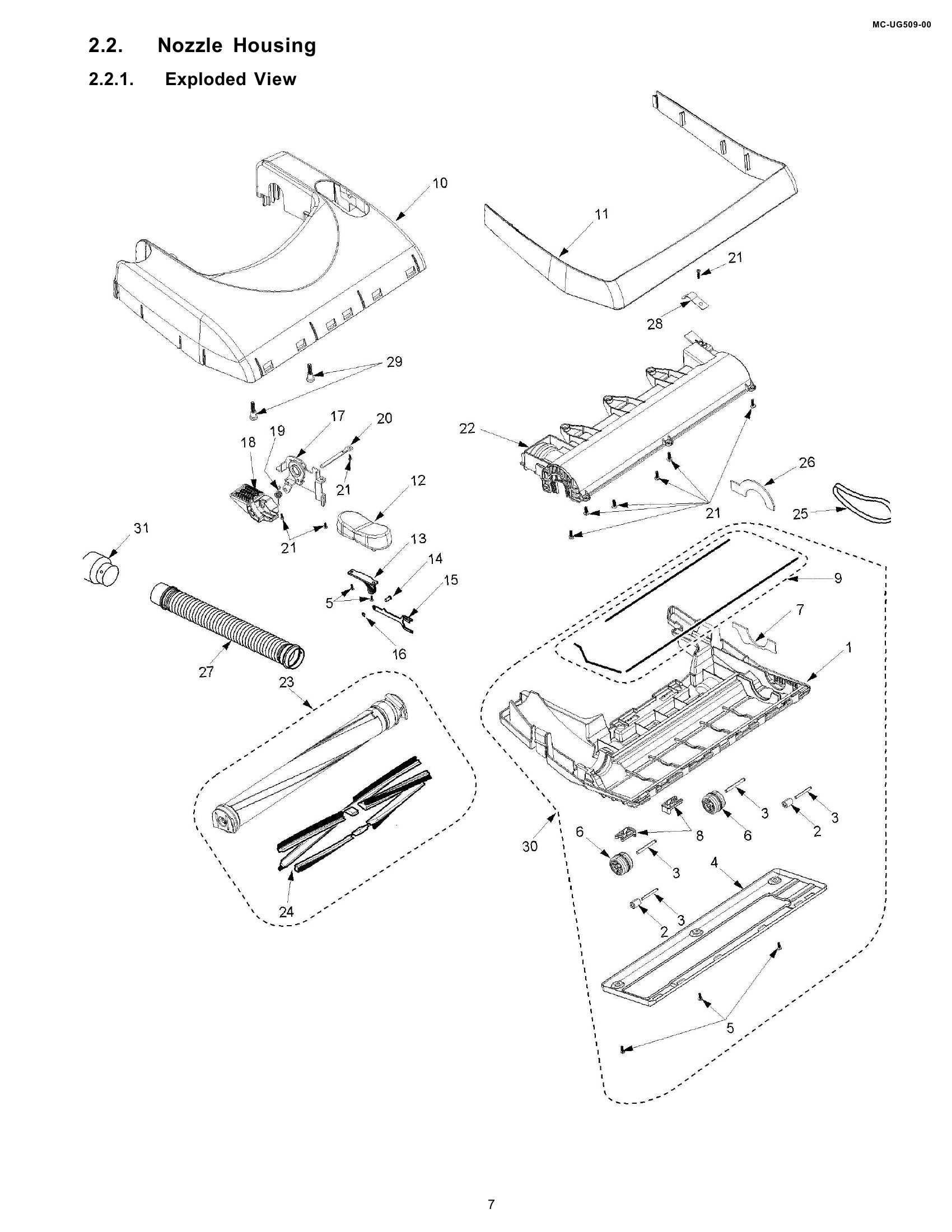

| 1 | Not Available | LOWER BODY UNIT | AC97ADDWZV07 | Not Available |
| 2 | Not Available | WHEEL | AC01CDDWZV07 | Not Available |
| 3 | Not Available | ROLLER SHAFT | AC16CNXZ00 | Not Available |
| 4 | Not Available | LOWER PLATE | AC27ADDWZ000 | Not Available |
| 6 | No Image | WHEEL, NOZZLE UG693 Part Number: AC99QCYBZV06 for Panasonic | AC99QCYBZV06 | $5.98Read more |
| 7 | Not Available | FELT (LOWER) | AC11ADDXZ000 | Not Available |
| 8 | Not Available | LATCH | AC68NCYZZV06 | Not Available |
| 9 | Not Available | BODY PACKING | AC19ADDWZ000 | Not Available |
| 10 | Not Available | BODY NOZZLE HOUSING (DECO) | AC01ADKXZRU3 | Not Available |
| 11 | No Image | BUMPER GUARD FOR PAN MC-UG509 Part Number: AC10ADDWZV07 for Panasonic | AC10ADDWZV07 | $0.00Read more |
| 12 | No Image | PEDAL, FOOT CARPET/FLOOR MCUG509 Part Number: AC70QDDWZV07 for Panasonic | AC70QDDWZV07 | $20.65Read more |
| 13 |  | SHIFT LEVER, MCUG775 Part Number: AC16UDDWZV07 for Panasonic | AC16UDDWZV07 | $19.38Read more |
| 14 | Not Available | CONNECTOR PIN | AC55VDDWZV07 | Not Available |
| 15 | Not Available | SLIDE PIECE | AC10DDDWZ000 | Not Available |
| 16 | Not Available | RING CLIP | AC23FBVNZ000 | Not Available |
| 17 | Not Available | BRACKET | AC43AAFYZ00 | Not Available |
| 18 | No Image | PEDAL, FOOT UPRIGHT V5261/V5271 METAL Part Number: AC47ADAAZM0E for Panasonic | AC47ADAAZM0E | $6.66Read more |
| 19 |  | SPRING, HANDLE RELEASE 5995, 7300 SERIES Part Number: AC58AAFVZ00 for Panasonic | AC58AAFVZ00 | $19.78Read more |
| 20 | Not Available | PEDAL SHAFT | AMC51A-YUZ0000 | Not Available |
| 22 | No Image | HOUSING, BRUSHROLL MCCG773 Part Number: AC02ADDWZV07 for Panasonic | AC02ADDWZV07 | $35.81Read more |
| 23 | Not Available | AGITATOR ASSEMBLY | AC92SDDWZ000 | Not Available |
| 24 | No Image | STRIP, BRUSH UG509 UG727 UG775 6PK Part Number: AC85RDDWZU01 for Panasonic | AC85RDDWZU01 | $109.93Read more |
| 25 | Not Available | BELT | AC28SCZPZ000 | Not Available |
| 26 | Not Available | FELT (UPPER) | AC11ADDWZ000 | Not Available |
| 27 | Not Available | NOZZLE HOSE | AC34PDDEZV06 | Not Available |
| 28 | Not Available | LEVER SUPPORT SPRING | AC76SDDWZ000 | Not Available |
| 29 | No Image | SCREW, NOZZLE HOUSING 10 PACK Part Number: AMC68A-V30 for Panasonic | AMC68AV30 | $6.66Read more |
| 30 |  | Bottom Plate - Panasonic Mc-Ug775 - Optiflow For: panasonic | AC91ADDWZV07 | $79.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | Not Available | HOSE PLUG B | AC29QDKVZV06 | Not Available |
