Schematic and parts book for Panasonic MC-UG502 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

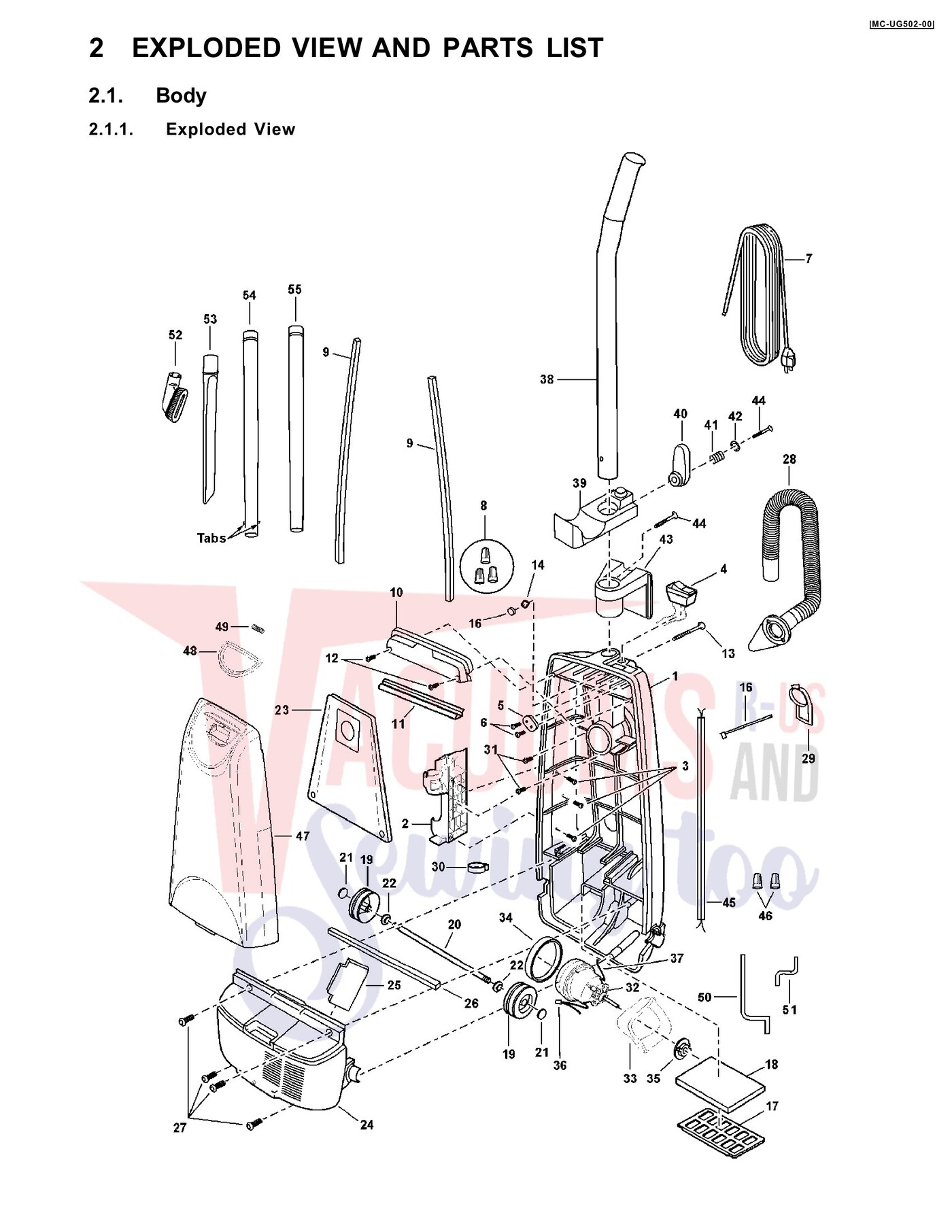

| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST COVER | AC78KDKUZV07 | Not Available |
| 1 | Not Available | SHIPPED 10 PER PACKAGE | AMC37G-V200U | Not Available |
| 1 | Not Available | AC44DCYKZ000 | AC60KDEVZYU7 | Not Available |
| 2 | Not Available | WAND HOLDER | AC70PJPZV07 | Not Available |
| 4 | Not Available | SWITCH | AMC98E-V010U | Not Available |
| 5 | Not Available | CORD STOPPER | AMC62E-J20 | Not Available |
| 7 | Not Available | POWER CORD | AC97EADGZV06 | Not Available |
| 8 | Not Available | WIRE CRIMP | AC44DCYKZ000 | Not Available |
| 9 | No Image | GASKET, DUST COMPARTMENT V5207 Part Number: AC66KV01V06 for Panasonic | AC66KV01V06 | $5.98Read more |
| 10 | Not Available | SWITCH COVER | AC03EDEVZV07 | Not Available |
| 11 | Not Available | SWITCH COVER PACKING | AC73KV0ZV06 | Not Available |
| 13 |  | SCREW, HANDLE 5100 SERIES AMC73B-V00 Part Number: AMC73B-V00 for Panasonic | AMC73BV00 | $4.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Nut-Panasonic 5100 Handle Bolt - 10Pk For: panasonic | AMP21B170 | $4.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | PACKING | AC61LAGMZ00 | Not Available |
| 16 | Not Available | CABLE TIE | AMC596-702 | Not Available |
| 17 | Not Available | FILTER SUPPORTER | AMC32K-V00 | Not Available |
| 18 | Not Available | HEPA FILTER | AC37KAAEZ00 | Not Available |
| 19 | Not Available | WHEEL | AMC01C-V00U | Not Available |
| 20 | Not Available | SHAFT (WHEEL) | AC16CUSZ00 | Not Available |
| 21 | Not Available | STOPPER (WHEEL) | AC74SUSZ00 | Not Available |
| 22 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | DUST BAG (Type U12) | AC16KDDWZ000 | Not Available |
| 24 | Not Available | MOTOR CASE | AC09FBJXZY07 | Not Available |
| 25 | Not Available | REAR COVER PACKING | AC02LBJYZ00 | Not Available |
| 26 | Not Available | MOTOR CASE PACKING | AC19FJPZV06 | Not Available |
| 28 | Not Available | HOSE ASSEMBLY | AC84PJPZV06 | Not Available |
| 29 |  | COVER, INLET 6815/6855/ 9901 GRAY Part Number: AC02HYUZV06 for Panasonic | AC02HYUZV06 | $9.65Read more |
| 30 |  | HOSE HOOK, V5300/V150 Part Number: AC53RJPZV06 for Panasonic | AC53RJPZV06 | $8.14Read more |
| 32 |  | Motor, V5451/UG502 Upright Part Number: AC92FBNUZ000 for Panasonic | AC92FBNUZ000 | $274.80Read more |
| 33 | Not Available | NOISE SUPPRESSOR | AC99GAMMZ00 | Not Available |
| 34 | Not Available | MOTOR SUPPORT (FRONT) | AMC02F-E00 | Not Available |
| 35 | Not Available | MOTOR SUPPORT (REAR) | AMC03F-V00 | Not Available |
| 36 | Not Available | LEAD WIRE (FUSE) | AC99WDKXZ000 | Not Available |
| 37 | Not Available | LEAD WIRE | AC38GARTZ000 | Not Available |
| 38 | Not Available | HANDLE | AC64BDKXZ000 | Not Available |
| 39 | Not Available | HOSE HOLDER | AC23PJP1V07 | Not Available |
| 40 | Not Available | UPPER CORD STORAGE HOOK | AC53EV0ZV07 | Not Available |
| 41 | Not Available | SPRING (CORD HOOK) | AMC76N-F70 | Not Available |
| 42 |  | Washer For Cord Hook-5100/6200 Series-Oem Panasonc
10 Pack For: panasonic | AMC58BF70 | $13.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | Not Available | HANDLE GRIP | AC50BDEVZV07 | Not Available |
| 45 | Not Available | WIRE CORD | AMC37G-V200U | Not Available |
| 46 | Not Available | WIRE CRIMP | AC44DCYKZ000 | Not Available |
| 47 | Not Available | DUST COVER | AC60KDEVZYU7 | Not Available |
| 48 | Not Available | LATCH | AC01DDEVZV07 | Not Available |
| 49 |  | SPRING, BAG LATCH UG583 Part Number: AC23DDEVZ000 for Panasonic | AC23DDEVZ000 | $2.56Read more |
| 50 | Not Available | PACKING (RIGHT) | AC39AYUZV00 | Not Available |
| 51 | Not Available | PACKING (LEFT) | AC40AYUZV00 | Not Available |
| 52 | Not Available | DUSTING BRUSH | AC88RYUZV06 | Not Available |
| 53 |  | Cervice Tool, Gray Friction Fit Long Part Number: AC60RZFZVU6 for Panasonic | AC60RZFZVU6 | $15.64Read more |
| 54 | Not Available | WAND (WITH TABS) | AC40PJPZV06 | Not Available |
| 55 | Not Available | WAND (EXTENSION) | AC40PZG1V06 | Not Available |

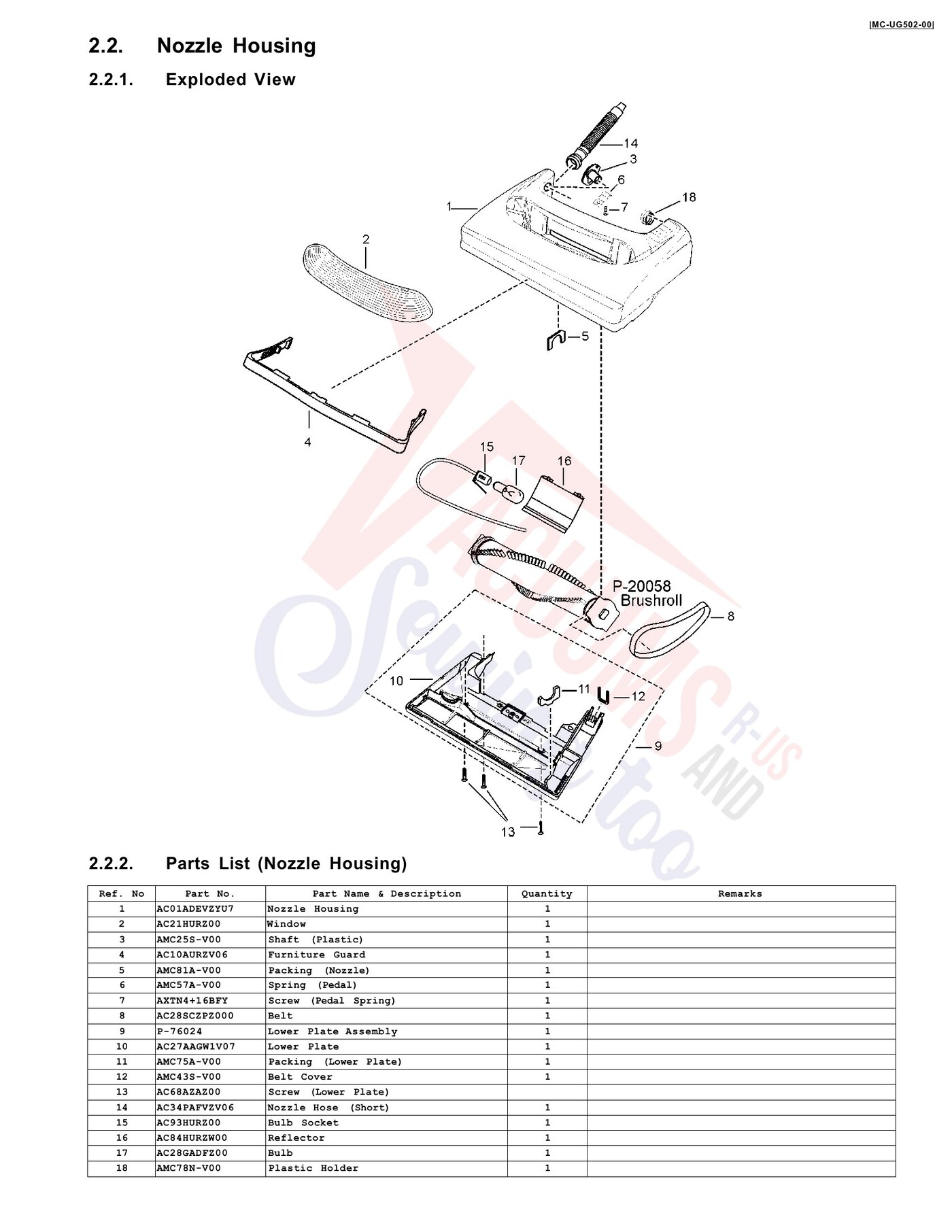

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing | AC01ADEVZYU7 | Not Available |
| 2 |  | Lens-Panasonic Mc-V5375 For: panasonic | AC21HURZ00 | $30.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Shaft (Plastic) | AMC25S-V00 | Not Available |
| 4 | Not Available | Furniture Guard | AC10AURZV06 | Not Available |
| 5 | Not Available | Packing (Nozzle) | AMC81A-V00 | Not Available |
| 6 |  | Spring, Release Lever 5100 Series Part Number: AMC57A-V00 for Panasonic | AMC57AV00 | $3.77Read more |
| 8 | Not Available | Belt | AC28SCZPZ000 | Not Available |
| 9 | Not Available | Lower Plate Assembly | 76024 | Not Available |
| 10 | Not Available | Lower Plate | AC27AAGW1V07 | Not Available |
| 11 | Not Available | Packing (Lower Plate) | AMC75A-V00 | Not Available |
| 12 | Not Available | Belt Cover | AMC43S-V00 | Not Available |
| 13 |  | SCREW, UPPER CORD HOOK 6602 BASE PLATE V5745 Part Number: AC68AZAZ00 for Panasonic | AC68AZAZ00 | $32.15Read more |
| 14 | Not Available | Nozzle Hose (Short) | AC34PAFVZV06 | Not Available |
| 15 | Not Available | Bulb Socket | AC93HURZ00 | Not Available |
| 16 | Not Available | Reflector | AC84HURZW00 | Not Available |
| 17 | Not Available | Bulb | AC28GADFZ00 | Not Available |
| 18 | Not Available | Plastic Holder | AMC78N-V00 | Not Available |
