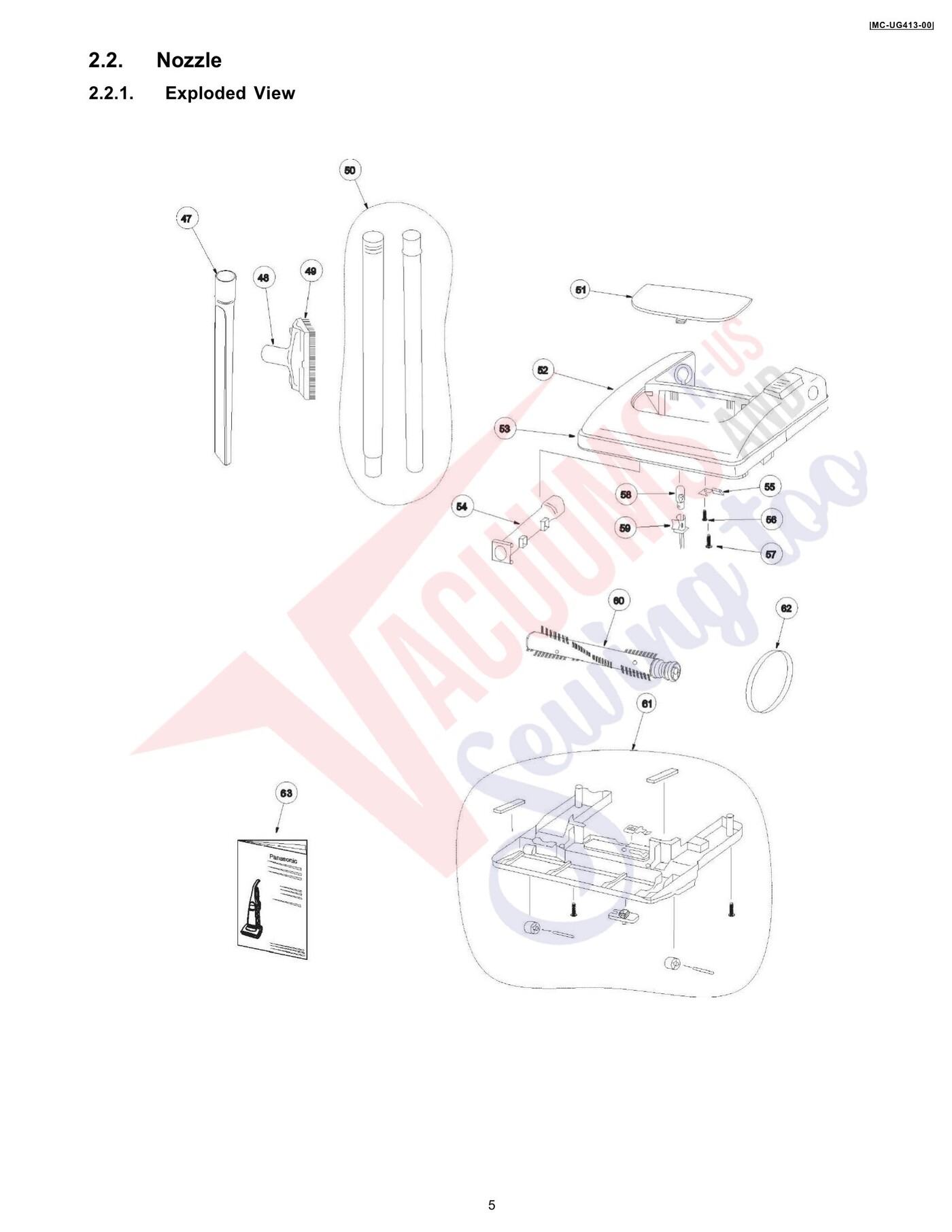

Schematic and parts book for Panasonic MC-UG413 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle Assembly | AC95BDRHZR03 | Not Available |
| 2 | Not Available | Cord Hook(NN-B) | AC53EDRHZU03 | Not Available |
| 3 | Not Available | Helical Spring B | AC57ADRHZ000 | Not Available |
| 4 | Not Available | SCR TPG PAN 4X20 | AC40DDRHZ007 | Not Available |
| 5 | Not Available | Washer Z 4x12x0.8 | AC62FDRHZ00Z | Not Available |
| 6 | Not Available | Screw (4x33) | AC40DDRHZ001 | Not Available |
| 7 | Not Available | Screw (4x16) | AC40DDRHZ002 | Not Available |
| 8 | Not Available | Suction Hose Retainer | AC24PDRHZ000 | Not Available |
| 9 | No Image | SCREW, HANDLE Part Number: AC73BDRHZ000 for Panasonic | AC73BDRHZ000 | $3.41Read more |
| 10 | Not Available | Dust Box Cover (R-03) | AC60KDRHZR03 | Not Available |
| 11 |  | FILTER, OUTLET UG413 Part Number: AC38KDRHZ000 for Panasonic | AC38KDRHZ000 | $2.15Read more |
| 12 | Not Available | Dust Box Packing A (NN-B) | AC19FDRHZU03 | Not Available |
| 13 | Not Available | Paper Filter Assembly | AC16KDDWZ000 | Not Available |
| 14 | Not Available | Ring E6 | AC60JDRHZ000 | Not Available |
| 15 | Not Available | Wheel Rear (NN-B) | AC01CDRHZU03 | Not Available |
| 16 | Not Available | Washer Z (7.2x12x0.5) | AC62FDRHZ000 | Not Available |
| 17 | Not Available | Shaft | AC16CDRHZ000 | Not Available |
| 18 |  | FILTER, MCUG415 Part Number: AC37KDRHZ000 for Panasonic | AC37KDRHZ000 | $1.83Read more |
| 19 | Not Available | Sleeve (NN-B) | AC25SDRHZU03 | Not Available |
| 20 | Not Available | Wire Connector | AMC-1CTCE23 | Not Available |
| 21 |  | Dust Compartment - Panasonic Mc-Ug413 - Upright For: panasonic | AC40KDRHZU03 | $50.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Switch, Black Rectangular Upright MCUG415/MCUG413 Part Number: AC98EDRHZ000 for Panasonic | AC98EDRHZ000 | $15.42Read more |
| 23 | Not Available | Dust Box Packing B (NN-B) | AC73KDRHZU03 | Not Available |
| 24 | Not Available | Case Cover (R-03) | AC03EDRHZR03 | Not Available |
| 25 | Not Available | Dust Box Packing C (NN-B) | AC66NDRHZU03 | Not Available |
| 26 | Not Available | Screw/WASHER (W) (4X14) | AC40DDRHZ003 | Not Available |
| 27 | Not Available | Nut HEX | AC33FDRHZ000 | Not Available |
| 28 | Not Available | Power Cord (U2) | AC97EBZXZV06 | Not Available |
| 29 | Not Available | Hose Joint Pipe A (NN-B) | AC96HDRHZU03 | Not Available |
| 30 | Not Available | Suction Hose Comp. | AC34PDRHZ000 | Not Available |
| 31 | Not Available | Attachment Supporter B | AC70PDRHZ00B | Not Available |
| 32 | Not Available | Attachment Supporter D | AC70PDRHZ00D | Not Available |
| 33 | Not Available | Attachment Supporter A | AC70PDRHZ00A | Not Available |
| 34 | Not Available | Name Plate | AC01TDRHZ000 | Not Available |
| 35 | Not Available | CORD ASS'Y | AC67VDRHZ000 | Not Available |
| 36 | Not Available | Motor Cushion Rear | AC03FDRHZ000 | Not Available |
| 37 | Not Available | THERMAL PROTECTOR | AC76FDRHZ000 | Not Available |
| 38 | Not Available | HEAT-SHRINKABEL TUBE | AC33TDRHZ000 | Not Available |
| 39 | Not Available | THERMAL PROTECTOR HOLDER | AC29FDRHZ000 | Not Available |
| 40 | Not Available | SCR TPG TRS4X6 | AC40DDRHZ006 | Not Available |
| 41 | Not Available | SILENCER COMP. | AC99GDRHZ000 | Not Available |
| 42 |  | MOTOR, UG415 Part Number: AC98FDRHZ000 for Panasonic | AC98FDRHZ000 | $126.26Read more |
| 43 | Not Available | Motor Cushion Front | AC02FDRHZ000 | Not Available |
| 44 | Not Available | Cord Assembly (White) L=350 | AC42GDRHZ000 | Not Available |
| 45 | Not Available | Outlet Filter Inner | AC02LDRHZ000 | Not Available |
| 46 | Not Available | Case Front (R-03) | AC09FDRHZR03 | Not Available |
| 47 | No Image | CREVICE TOOL, UG415 Part Number: AC60RDRHZU03 for Panasonic | AC60RDRHZU03 | $7.91Read more |
| 48 | No Image | BASE, UG415 Part Number: AC62RDRHZ000 for Panasonic | AC62RDRHZ000 | $7.82Read more |
| 49 | No Image | BRUSH Part Number: AC72RDRHZU03 for Panasonic | AC72RDRHZU03 | $6.42Read more |
| 50 | Not Available | Connection Pipe Assembly | AC99PDRHZU03 | Not Available |
| 51 | Not Available | Lens (N1-251) | AC21HDRHZ000 | Not Available |
| 52 | Not Available | Case Upper (R-03) | AC01ADRHZR03 | Not Available |
| 53 | Not Available | Bumper (NN-B) | AC31ADRHZU03 | Not Available |
| 54 | Not Available | Air Inlet (NN-B) | AC60HDRHZU03 | Not Available |
| 55 | No Image | SPRING, LEAF Part Number: AC87NDRHZ000 for Panasonic | AC87NDRHZ000 | $3.28Read more |
| 56 | Not Available | SCR TPG TRS 4X16 | AC40DDRHZ004 | Not Available |
| 57 | Not Available | Screw | AC40DDRHZ005 | Not Available |
| 58 | Not Available | LAMP | AC28GADFZ00 | Not Available |
| 59 | Not Available | LAMP HOLDER | AC93HURZ00 | Not Available |
| 60 | Not Available | Rotary Brush Comp. | AC84RDRHZ000 | Not Available |
| 61 | Not Available | Bottom Plate Assembly | AC91ADRHZU03 | Not Available |
| 62 | Not Available | Belt | AC28SCZPZ000 | Not Available |
| 63 | Not Available | OPERATING INSTRUCTIONS | AC01ZDRHZ000 | Not Available |
