Schematic and parts book for Panasonic MC-UG323, MC-UG327 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

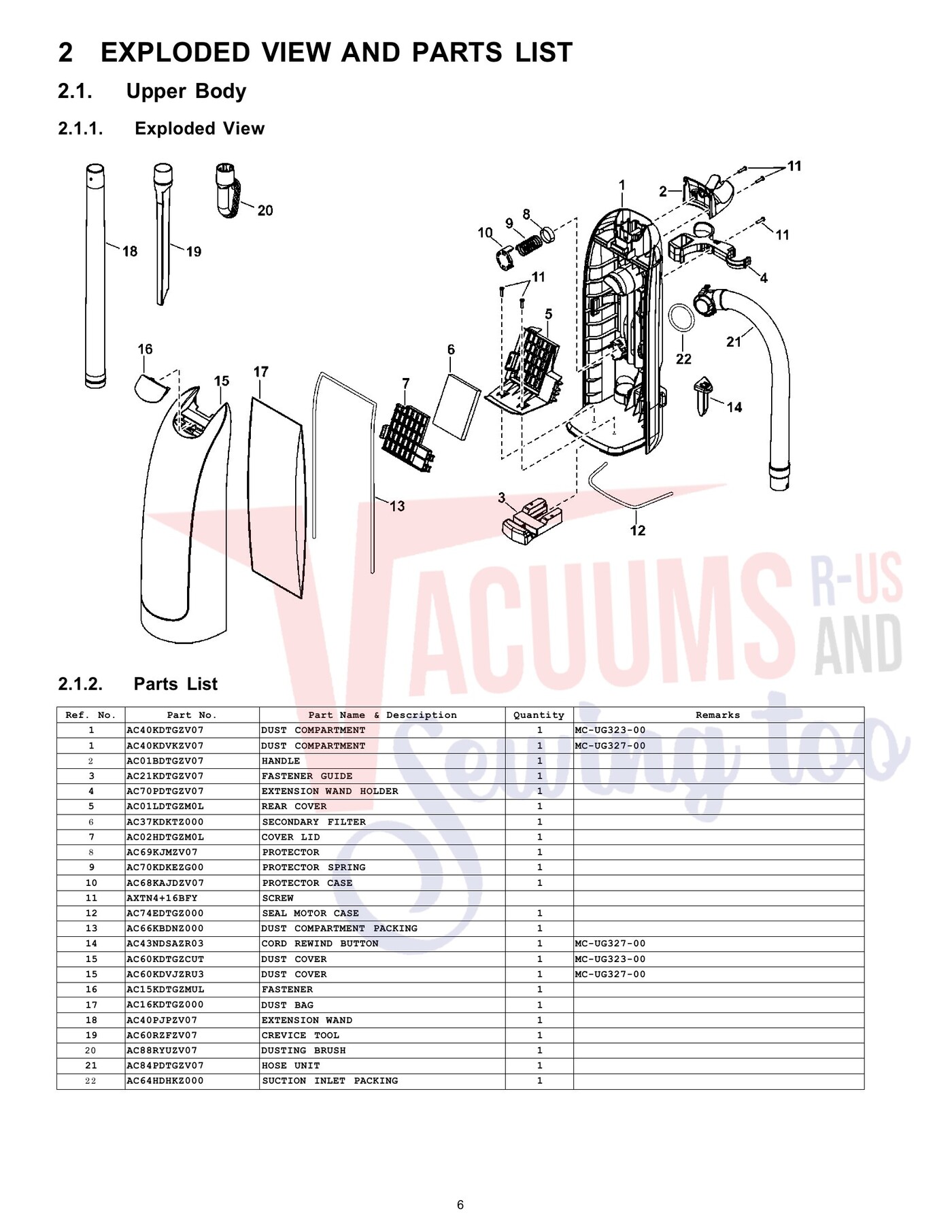

| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST COMPARTMENT | AC40KDTGZV07 | Not Available |
| 1 | Not Available | DUST COMPARTMENT | AC40KDVKZV07 | Not Available |
| 2 | Not Available | HANDLE | AC01BDTGZV07 | Not Available |
| 3 | Not Available | FASTENER GUIDE | AC21KDTGZV07 | Not Available |
| 4 | Not Available | EXTENSION WAND HOLDER | AC70PDTGZV07 | Not Available |
| 5 | Not Available | REAR COVER | AC01LDTGZM0L | Not Available |
| 6 | Not Available | SECONDARY FILTER | AC37KDKTZ000 | Not Available |
| 7 | Not Available | COVER LID | AC02HDTGZM0L | Not Available |
| 8 | Not Available | PROTECTOR | AC69KJMZV07 | Not Available |
| 9 | Not Available | PROTECTOR SPRING | AC70KDKEZG00 | Not Available |
| 10 | Not Available | PROTECTOR CASE | AC68KAJDZV07 | Not Available |
| 12 | Not Available | SEAL MOTOR CASE | AC74EDTGZ000 | Not Available |
| 13 | Not Available | DUST COMPARTMENT PACKING | AC66KBDNZ000 | Not Available |
| 14 | Not Available | CORD REWIND BUTTON | AC43NDSAZR03 | Not Available |
| 15 | Not Available | DUST COVER | AC60KDTGZCUT | Not Available |
| 15 | No Image | DUST COVER, MODEL UG327 Part Number: AC60KDVJZRU3 for Panasonic | AC60KDVJZRU3 | $44.31Read more |
| 16 | Not Available | FASTENER | AC15KDTGZMUL | Not Available |
| 17 | Not Available | DUST BAG | AC16KDTGZ000 | Not Available |
| 18 | No Image | WAND, EXTENSION MCUG327 Part Number: AC40PJPZV07 for Panasonic | AC40PJPZV07 | $27.13Read more |
| 19 | Not Available | CREVICE TOOL | AC60RZFZV07 | Not Available |
| 20 | Not Available | DUSTING BRUSH | AC88RYUZV07 | Not Available |
| 21 | Not Available | HOSE UNIT | AC84PDTGZV07 | Not Available |
| 22 | Not Available | SUCTION INLET PACKING | AC64HDHKZ000 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST COMPARTMENT | AC40KDSBZV07 | Not Available |
| 1 | Not Available | DUST COMPARTMENT | AC40KDRZZV07 | Not Available |
| 3 | Not Available | BRAKE LEVER | AC43NDRZZ000 | Not Available |
| 4 | Not Available | SPRING | AC47NATCZ00 | Not Available |
| 6 | Not Available | CORD GUIDE | AC14NDRZZR03 | Not Available |
| 7 | No Image | SWITCH, ON/OFF MCUG327 Part Number: AC01EDRZZ000 for Panasonic | AC01EDRZZ000 | $7.05Read more |
| 8 | Not Available | SWITCH PEDAL BUTTON | AC05EDRZZM0K | Not Available |
| 9 | Not Available | DUST COVER | AC60KDSAZC0T | Not Available |
| 9 | No Image | DUST COVER, MODEL UG327 Part Number: AC60KDVJZRU3 for Panasonic | AC60KDVJZRU3 | $44.31Read more |
| 10 | Not Available | EXHAUST FILTER - HEPA | AC38KDDJZ000 | Not Available |
| 11 | Not Available | FILTER COVER - DECO | AC41KDTGZCUT | Not Available |
| 11 | Not Available | FILTER COVER - DECO | AC41KDTGZRU3 | Not Available |
| 12 |  | Overload Protector - Panasonic Mc-Ug323 - Upright For: panasonic | AC76FDRZZ000 | $13.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | LEAD WIRE (BLACK) | AC85GDRZZ000 | Not Available |
| 14 | Not Available | LEAD WIRE (BLACK) | AC85GDSAZ000 | Not Available |
| 15 | Not Available | WHEEL UNIT | AC01CDSAZV07 | Not Available |
| 15 | Not Available | WHEEL UNIT | AC99CDRZZV07 | Not Available |
| 16 | Not Available | WHEEL SUPPORTER | AC02CDRZZV07 | Not Available |
| 17 | No Image | SCREW, HANDLE 6955 10PK Part Number: AC73BZAZ000 for Panasonic | AC73BZAZ000 | $4.32Read more |
| 18 | Not Available | CORD STOPPER | AC62ECWZZ000 | Not Available |
| 19 | Not Available | POWER CORD | AC97EDRZZ000 | Not Available |
| 19 | Not Available | CORD REEL ASSEMBLY | AC99NDMTZV07 | Not Available |
| 20 | Not Available | PLASTIC HOLDER | AC78NZAZ000 | Not Available |
| 21 | Not Available | LEAD WIRE (WHITE) | AC85WDRZZ000 | Not Available |
| 22 | Not Available | WIRE CONNECTOR | AMC-1CTCE23 | Not Available |
| 23 |  | MOTOR, MCUG323 MCUL423 MCUL425 Part Number: AC98FDSAZ000 for Panasonic | AC98FDSAZ000 | $123.97Read more |
| 23 |  | MOTOR, MODEL UG327 Part Number: AC98FDRZZ000 for Panasonic | AC98FDRZZ000 | $132.77Read more |
| 24 | Not Available | FAN MOTOR | AC92FDRZZ000 | Not Available |
| 25 | Not Available | NOISE SUPPRESSOR | AC99GAMMZ00 | Not Available |
| 26 | Not Available | MOTOR SUPPORT RUBBER (FRONT) | AC02FDRZZ000 | Not Available |
| 27 | Not Available | MOTOR SUPPORT RUBBER | AC03FAFVZ000 | Not Available |
| 27 | Not Available | MOTOR SUPPORT RUBBER | AC03FAFYZ00 | Not Available |
| 28 | Not Available | MOTOR FLANGE | AC25SAFYZ00 | Not Available |
| 30 | Not Available | BODY PACKING | AC19ADHJZ000 | Not Available |

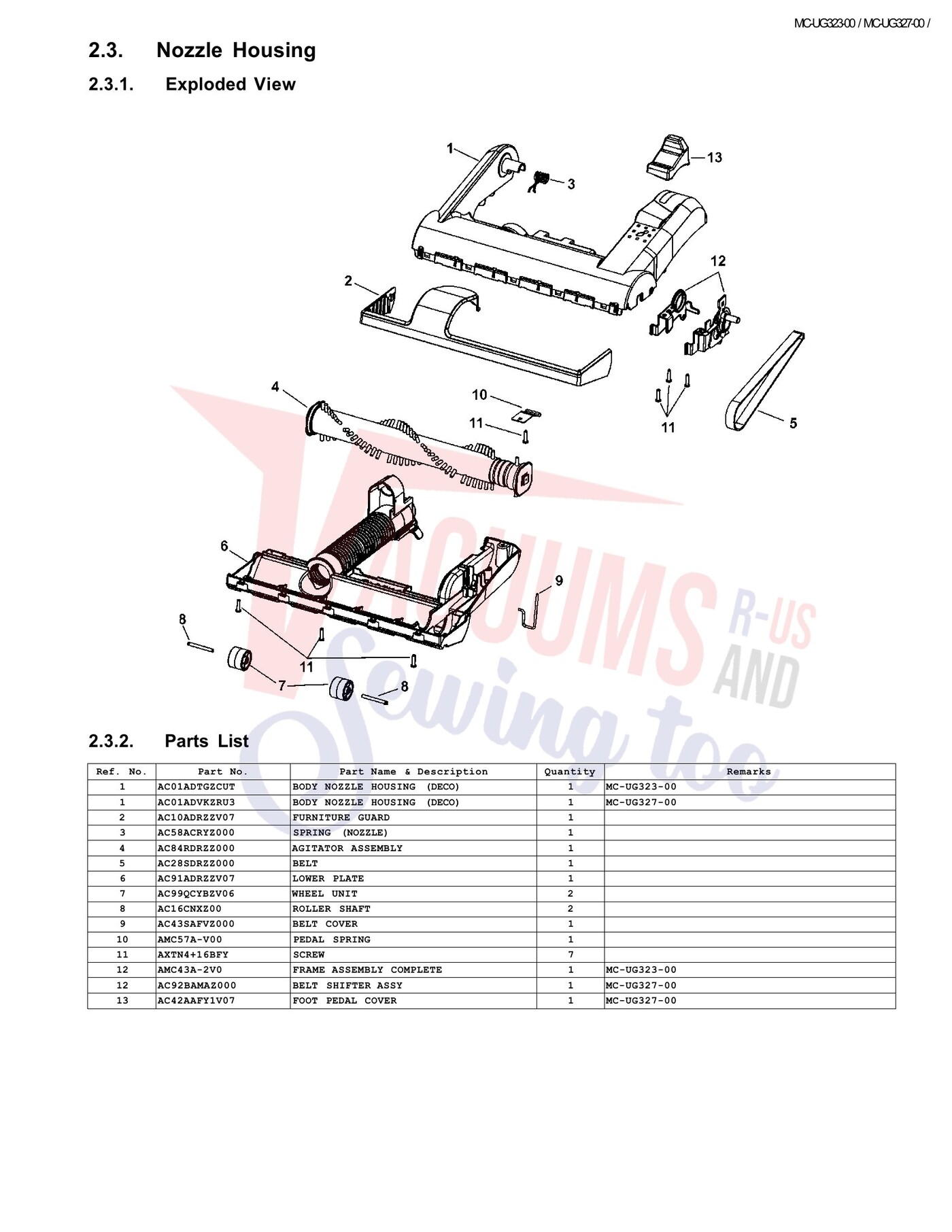

| # | Part image | Description | SKU | Price |
| 1 | No Image | NOZZLE HOUSING, MC-UG323-00 Part Number: AC01ADTGZCUT for Panasonic | AC01ADTGZCUT | $30.13Read more |
| 1 | No Image | HOUSING Part Number: AC01ADVKZRU3 for Panasonic | AC01ADVKZRU3 | $33.24Read more |
| 2 | Not Available | FURNITURE GUARD | AC10ADRZZV07 | Not Available |
| 3 | Not Available | SPRING (NOZZLE) | AC58ACRYZ000 | Not Available |
| 4 | Not Available | AGITATOR ASSEMBLY | AC84RDRZZ000 | Not Available |
| 5 | Not Available | BELT | AC28SDRZZ000 | Not Available |
| 6 | Not Available | LOWER PLATE | AC91ADRZZV07 | Not Available |
| 7 | No Image | WHEEL, NOZZLE UG693 Part Number: AC99QCYBZV06 for Panasonic | AC99QCYBZV06 | $5.98Read more |
| 8 | Not Available | ROLLER SHAFT | AC16CNXZ00 | Not Available |
| 9 | Not Available | BELT COVER | AC43SAFVZ000 | Not Available |
| 10 |  | Spring, Release Lever 5100 Series Part Number: AMC57A-V00 for Panasonic | AMC57AV00 | $3.77Read more |
| 12 | No Image | Frame-Trip Lever/Pan Mc5210 For: panasonic | AMC43A2V0 | $38.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Handle Release Assembly - Panasonic Mc-V5269 - Upright For: panasonic | AC92BAMAZ000 | $59.91Read more |
| 13 | Not Available | FOOT PEDAL COVER 1 MC-UG327-00 | AC42AAFY1V07 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE UNIT 1 MC-UG323-00 | AC95BDSAZC0T | Not Available |
| 1 | Not Available | HANDLE UNIT 1 MC-UG327-00 | AC95BDRZZR03 | Not Available |
| 2 | Not Available | HANDLE 1 MC-UG323-00 | AC64BDSAZV07 | Not Available |
| 2 | Not Available | HANDLE 1 MC-UG327-00 | AC64BDRZZV07 | Not Available |
| 3 | Not Available | HANDLE GRIP 1 MC-UG323-00 | AC50BDRZZC0T | Not Available |
| 3 | Not Available | HANDLE GRIP 1 MC-UG327-00 | AC50BDRZZR03 | Not Available |
| 4 | Not Available | HOSE HOOK / HOSE HANGER | AC53PDTGZV07 | Not Available |
| 6 | Not Available | HANDLE SCREW | AC73BAMAZ000 | Not Available |
| 7 | Not Available | CORD HOOK 1 MC-UG323-00 | AC53EZAZV07 | Not Available |
| 8 | Not Available | ATTACHMENT HOLDER 1 MC-UG327-00 | AC32RDRZZV07 | Not Available |
| 9 | No Image | TURBO TOOL, UG327 UG810 UG815 Part Number: AC80SCRZZV0N for Panasonic | AC80SCRZZV0N | $41.62Read more |
