Schematic and parts book for Panasonic MC-UG223 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

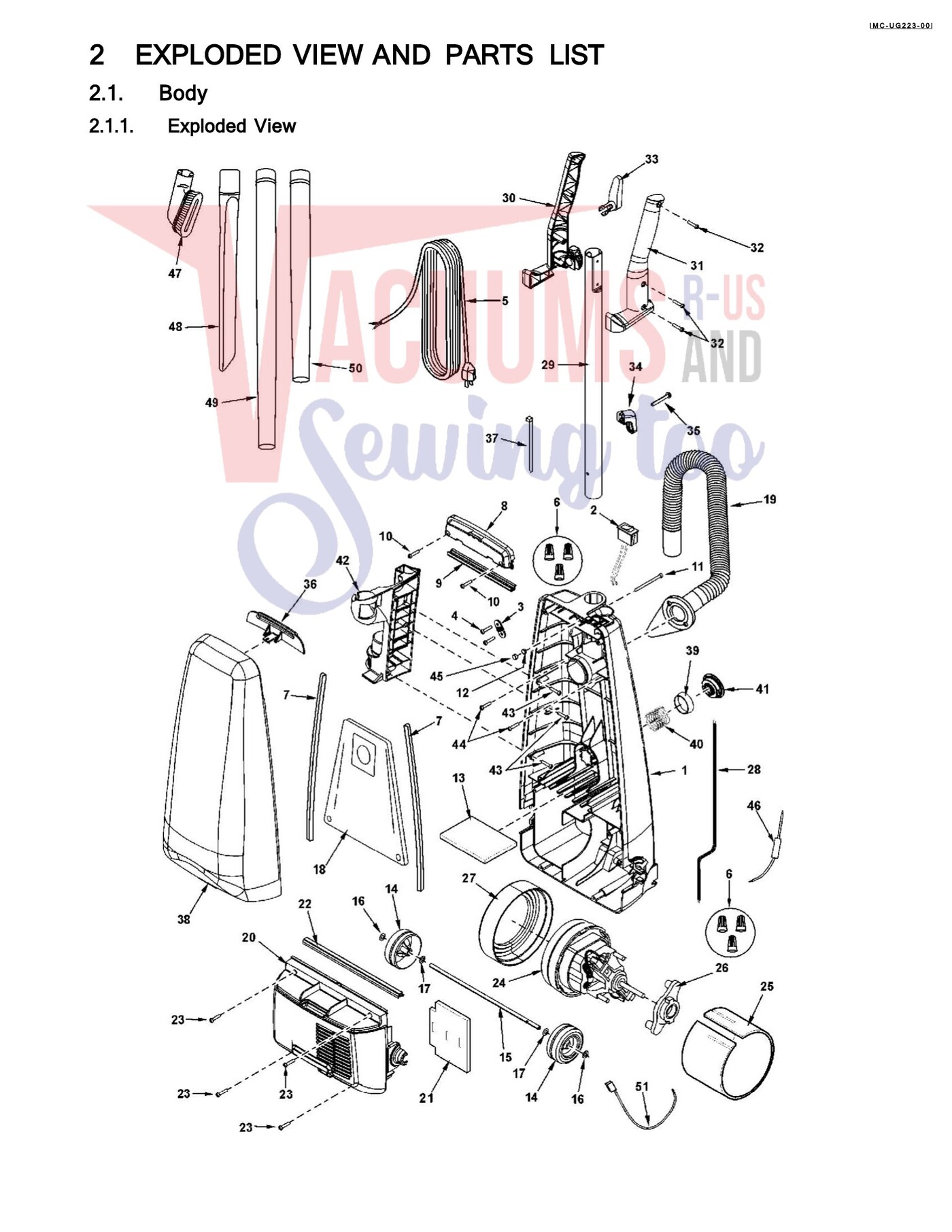

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment | AC40KBYL1V07 | Not Available |
| 2 | Not Available | ON/OFF Switch | AMC98E-V010U | Not Available |
| 3 | Not Available | Cord Stopper | AMC62E-J20 | Not Available |
| 5 | Not Available | Power Cord | AC97EPGZV06 | Not Available |
| 6 | Not Available | Wire Nut | AMC-1CTCE23 | Not Available |
| 7 | Not Available | Packing (Dust Container) | AC66KBYLZK12 | Not Available |
| 8 | No Image | COVER, SWITCH V5005 Part Number: AC03EBYLZV07 for Panasonic | AC03EBYLZV07 | $33.76Read more |
| 9 | Not Available | Packing (Switch Cover) | AC73KBYLZK12 | Not Available |
| 11 |  | SCREW, HANDLE 5100 SERIES AMC73B-V00 Part Number: AMC73B-V00 for Panasonic | AMC73BV00 | $4.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Nut-Panasonic 5100 Handle Bolt - 10Pk For: panasonic | AMP21B170 | $4.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Filter, Secondary Foam Panasonic Part Number: AMC37K-V00 for Panasonic | AMC37KV00 | $4.63Read more |
| 14 | Not Available | Wheel | AMC01C-V00U | Not Available |
| 15 | Not Available | Shaft (Wheel) | AC16CUSZ000 | Not Available |
| 16 | No Image | Wheel Retainer - Panasonic Mc-V5207/V6915/V7335
Sold Each For: panasonic | AC74SUSZ000 | $34.00Read more |
| 17 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Dust Bag (Type U6) | AC16KJYZ00 | Not Available |
| 19 | Not Available | Hose Assembly | AC94PDFJZV06 | Not Available |
| 20 | Not Available | Motor Case | AC09FBYLZG0V | Not Available |
| 21 | Not Available | Filter (Motor Case) | AC02LBYLZ00 | Not Available |
| 22 | Not Available | Packing (Motor Case) | AC19FBYLZK12 | Not Available |
| 24 |  | Motor, V5005/UG371/V7600/UG383 Upright Part Number: AC92FCHRZ000 for Panasonic | AC92FCHRZ000 | $209.11Read more |
| 25 | Not Available | Noise Suppressor | AC99GAMMZ00 | Not Available |
| 26 | Not Available | Motor Support Rubber (Rear) | AC03FCJUZ000 | Not Available |
| 27 |  | GASKET, MOTOR SUCTION SIDE V5005-02 Part Number: AC02FCHGZ000 for Panasonic | AC02FCHGZ000 | $34.19Read more |
| 28 | Not Available | Wire Cord | AMC37G-V200U | Not Available |
| 29 |  | HANDLE TUBE MC-UG383 Part Number: AC64BBYLZ00 for Panasonic | AC64BBYLZ00 | $21.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | ZV0 7 Handle Grip (Left) | AC23BBYL | Not Available |
| 31 | Not Available | ZV0 7 Handle Grip (Right) | AC22BBYL | Not Available |
| 33 | Not Available | Upper Cord Storage Hook | AC53EBYLZV07 | Not Available |
| 34 | Not Available | Lower Cord Storage Hook | AC54EV0ZV07 | Not Available |
| 36 | Not Available | Latch Dust Cover | AC08DBYLZV07 | Not Available |
| 37 | Not Available | Wire Tie | AMC596-702 | Not Available |
| 38 | No Image | DUST COVER UG223 Part Number: AC60KDVYZGUV for Panasonic | AC60KDVYZGUV | $65.23Read more |
| 39 | Not Available | Protector | AC69KJMZV07 | Not Available |
| 40 |  | SPRING, PROTECTOR BLUE V5257 Part Number: AC70KAHHZB00 for Panasonic | AC70KAHHZB00 | $2.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Protector Cover | AC18MJMZV07 | Not Available |
| 42 | Not Available | Wand Holder | AC70PDFJZV07 | Not Available |
| 46 | Not Available | Lead Assembly | AC99WCHRZ000 | Not Available |
| 48 |  | Cervice Tool, Gray Friction Fit Long Part Number: AC60RZFZVU6 for Panasonic | AC60RZFZVU6 | $15.64Read more |
| 49 | Not Available | Extension Wand (with tabs) | AC40PJPZV0 | Not Available |
| 50 |  | Wand, Extension Short W/Tabs V5485 Part Number: AC40PBRKZV06 for Panasonic | AC40PBRKZV06 | $37.59Read more |
| 51 | Not Available | Lead Wire | AC43GAWYZ000 | Not Available |

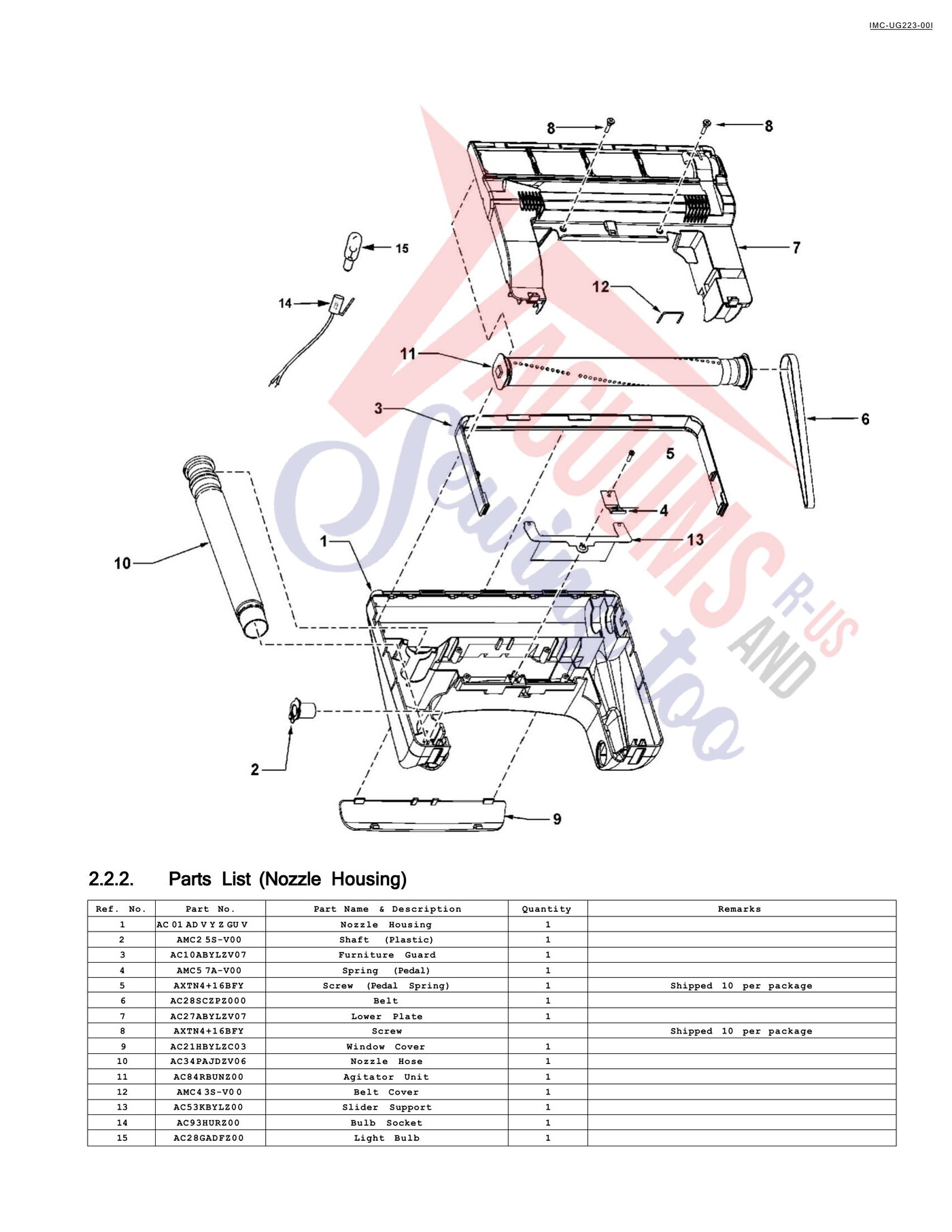

| # | Part image | Description | SKU | Price |
| 2 | Not Available | Shaft (Plastic) | AMC25S-V00 | Not Available |
| 3 | Not Available | Furniture Guard | AC10ABYLZV07 | Not Available |
| 4 |  | Spring, Release Lever 5100 Series Part Number: AMC57A-V00 for Panasonic | AMC57AV00 | $3.77Read more |
| 6 | Not Available | Belt | AC28SCZPZ000 | Not Available |
| 7 | Not Available | Lower Plate | AC27ABYLZV07 | Not Available |
| 9 | Not Available | Window Cover | AC21HBYLZC03 | Not Available |
| 10 |  | Hose, Black Nozzle Short Blow Molded Part Number: AC34PAJDZV06 for Panasonic | AC34PAJDZV06 | $40.07Read more |
| 11 | Not Available | Agitator Unit | AC84RBUNZ00 | Not Available |
| 12 | Not Available | Belt Cover | AMC43S-V0 | Not Available |
| 13 | Not Available | Slider Support | AC53KBYLZ00 | Not Available |
| 14 | Not Available | Bulb Socket | AC93HURZ00 | Not Available |
| 15 | Not Available | Light Bulb | AC28GADFZ00 | Not Available |
