Schematic and parts book for Panasonic MC-GG773 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

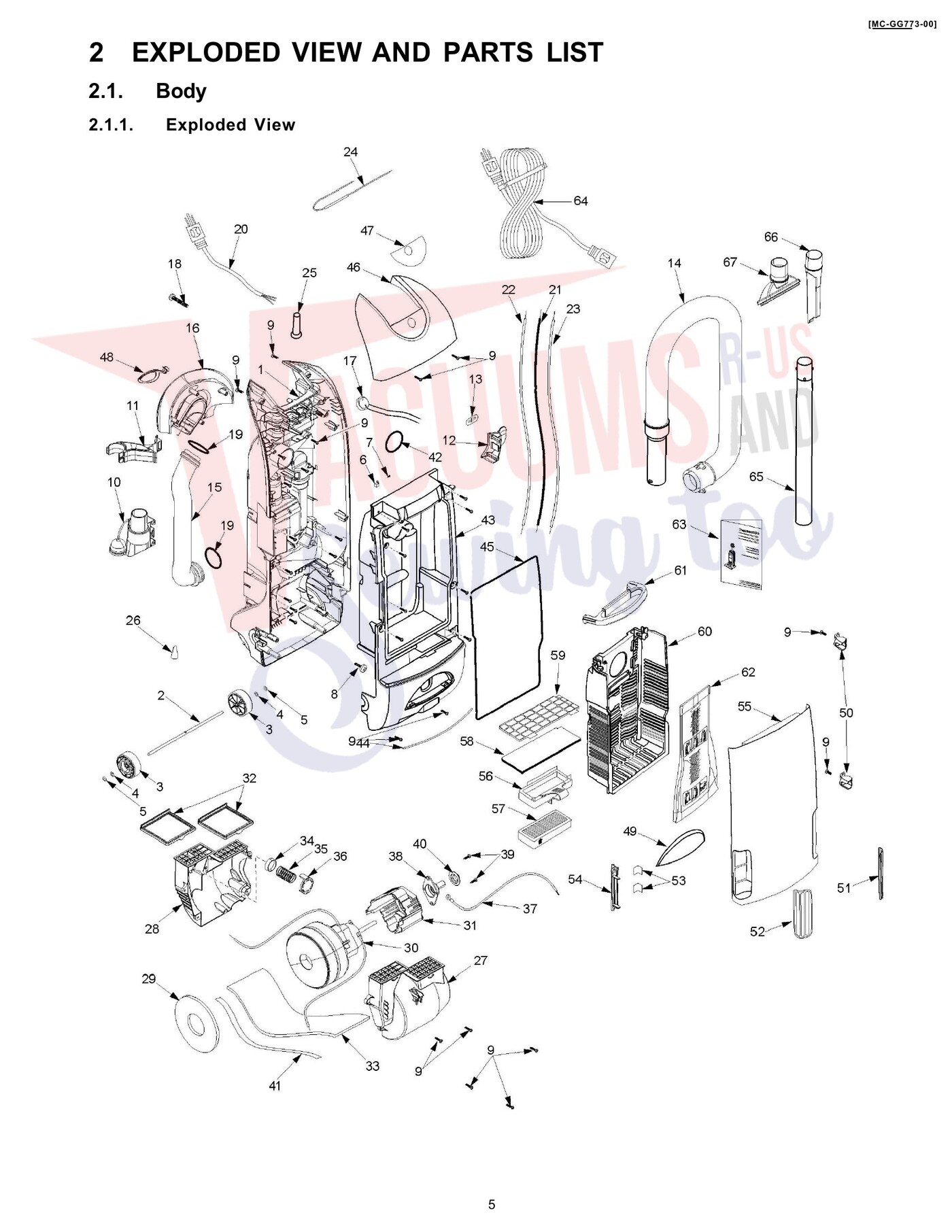

| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST COMPARTMENT | AC40KDEKZV07 | Not Available |
| 2 | Not Available | ROLLER SHAFT | AC16CDDWZ000 | Not Available |
| 3 | Not Available | WHEEL UNIT | AC01CV0ZV06 | Not Available |
| 4 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | STOPPER WHEEL | AC74SUSZ00 | Not Available |
| 6 | Not Available | LOCKING CAM | AC83DDAAZU00 | Not Available |
| 8 |  | SCREW, UPPER CORD HOOK 6602 BASE PLATE V5745 Part Number: AC68AZAZ00 for Panasonic | AC68AZAZ00 | $32.15Read more |
| 10 | Not Available | WAND HOLDER | AC70PDDWZV07 | Not Available |
| 11 | Not Available | ATTACHMENT HOLDER | AC32RDDWZV07 | Not Available |
| 12 | Not Available | HOSE FITTING (HOSE SUPPORT) | AC24PDDWZV07 | Not Available |
| 13 | Not Available | CORD STOPPER (C62EJ2) | AMC62E-J20 | Not Available |
| 14 |  | HOSE, UG773 Part Number: AC84PDDWZV07 for Panasonic | AC84PDDWZV07 | $79.16Read more |
| 15 | Not Available | CONNECTOR PIPE | AC52PDDWZV07 | Not Available |
| 16 | Not Available | HOSE HOLDER | AC23PDDWZV07 | Not Available |
| 17 | Not Available | ON-OFF SWITCH | AC01EDDXZ000 | Not Available |
| 19 | Not Available | SEAL (AIR PATH) | AC74EDDWZ000 | Not Available |
| 20 | No Image | CORD, POWER GG773 Part Number: AC94EDEKZY02 for Panasonic | AC94EDEKZY02 | $20.65Read more |
| 21 | Not Available | BLACK LEAD WIRE UNIT | AC85GDDWZ000 | Not Available |
| 22 | Not Available | WHITE LEAD WIRE UNIT | AC85WDDWZ000 | Not Available |
| 23 | Not Available | GREEN LEAD WIRE UNIT | AC39GDEKZ000 | Not Available |
| 24 | Not Available | LEAD ASSEMBLY FUSE | AC99WCYKZ000 | Not Available |
| 25 | Not Available | RUBBER PROTECTOR | AC51E4GZU01 | Not Available |
| 26 | Not Available | WIRE NUT | AMC-1CTCE23 | Not Available |
| 27 | Not Available | AIR GUIDE LEFT | AC54LDDWZU01 | Not Available |
| 28 | Not Available | AIR GUIDE RIGHT | AC55LDDWZU01 | Not Available |
| 29 | Not Available | SEAL-IMPELLER | AC4154151 | Not Available |
| 30 | Not Available | MOTOR ASSEMBLY | AC90FDEKZ000 | Not Available |
| 31 | Not Available | MOTOR CAP | AC26FDDWZU01 | Not Available |
| 32 | Not Available | AIR OUTLET PACKING | AC45LDDWZV07 | Not Available |
| 33 | Not Available | NOISE SUPPRESSOR | AC99GAMMZ00 | Not Available |
| 34 | Not Available | PROTECTOR | AC69KJMZV06 | Not Available |
| 35 | Not Available | PROTECTOR SPRING | AC70KCNFZG00 | Not Available |
| 36 | No Image | COVER, V5740 Part Number: AC68KAJDZV06 for Panasonic | AC68KAJDZV06 | $44.02Read more |
| 37 | Not Available | GREEN LEAD WIRE UNIT | AC39GDDXZ000 | Not Available |
| 38 | Not Available | FLANGE | AC25SBSKZ000 | Not Available |
| 40 | Not Available | MOTOR SUPPORT RUBBER | AC03FAFYZ00 | Not Available |
| 41 | Not Available | BODY PACKING RIGHT | AC39ADDWZ000 | Not Available |
| 42 | Not Available | SUCTION INLET PACKING | AC64HARTZ000 | Not Available |
| 43 | Not Available | DUST BOX UNIT | AC85KDDXZU01 | Not Available |
| 44 | Not Available | DUST COMPARTMENT PACKING | AC66KDDXZ000 | Not Available |
| 45 | Not Available | DUST COVER PACKING | AC66KCRCZ000 | Not Available |
| 46 | Not Available | SWITCH COVER | AC80FDDXZU01 | Not Available |
| 47 | Not Available | ORNAMENTAL PLATE | AC21TDDXZ000 | Not Available |
| 48 | Not Available | COVER LID | AC02HDDWZV07 | Not Available |
| 49 | Not Available | WINDOW | AC21HDEKZU01 | Not Available |
| 50 | Not Available | LID HOLDING BRACKET | AC44HDDWZU01 | Not Available |
| 51 | Not Available | AIR OUTLET GUIDE | AC28LDDXZU01 | Not Available |
| 52 | Not Available | AIR OUTLET GUIDE | AC28LDDWZU01 | Not Available |
| 53 | No Image | SPRING, UG773 Part Number: AC18DDDWZ000 for Panasonic | AC18DDDWZ000 | $6.92Read more |
| 54 | Not Available | FASTENER | AC15KDDWZU01 | Not Available |
| 55 | Not Available | COVER (DECO) | AC48HDEKZUU1 | Not Available |
| 56 | Not Available | FILTER CASE | AC42KDDWZM0H | Not Available |
| 57 |  | Filter, Exhaust Pleated HEPA V5481/V9658/CG973 Part Number: AC38KBRMZ000 for Panasonic | AC38KBRMZ000 | $38.23Read more |
| 58 |  | Filter, Foam Premotor UG773/UG775/UG787 Part Number: AC37KDDWZ000 for Panasonic | AC37KDDWZ000 | $15.72Read more |
| 59 | Not Available | FILTER SUPPORTER | AC32KDDWZV07 | Not Available |
| 60 | Not Available | BAG BRACKET | AC03KDDWZV07 | Not Available |
| 61 | Not Available | HANDLE | AC64BDDWZM0H | Not Available |
| 62 | Not Available | DUST BAG | AC16KCRRZ000 | Not Available |
| 63 | Not Available | OPERATING INSTRUCTIONS | AC01ZDEKZ000 | Not Available |
| 64 | Not Available | POWER CORD | AC94EDDWZY02 | Not Available |
| 65 |  | WAND, W/TABS 7522 7571 Part Number: AC40PBRLZV06 for Panasonic | AC40PBRLZV06 | $27.87Read more |
| 66 | Not Available | CREVICE TOOL | AC60RCNFZV06 | Not Available |
| 67 | Not Available | COMBINATION BRUSH | AC63RDDWZV06 | Not Available |

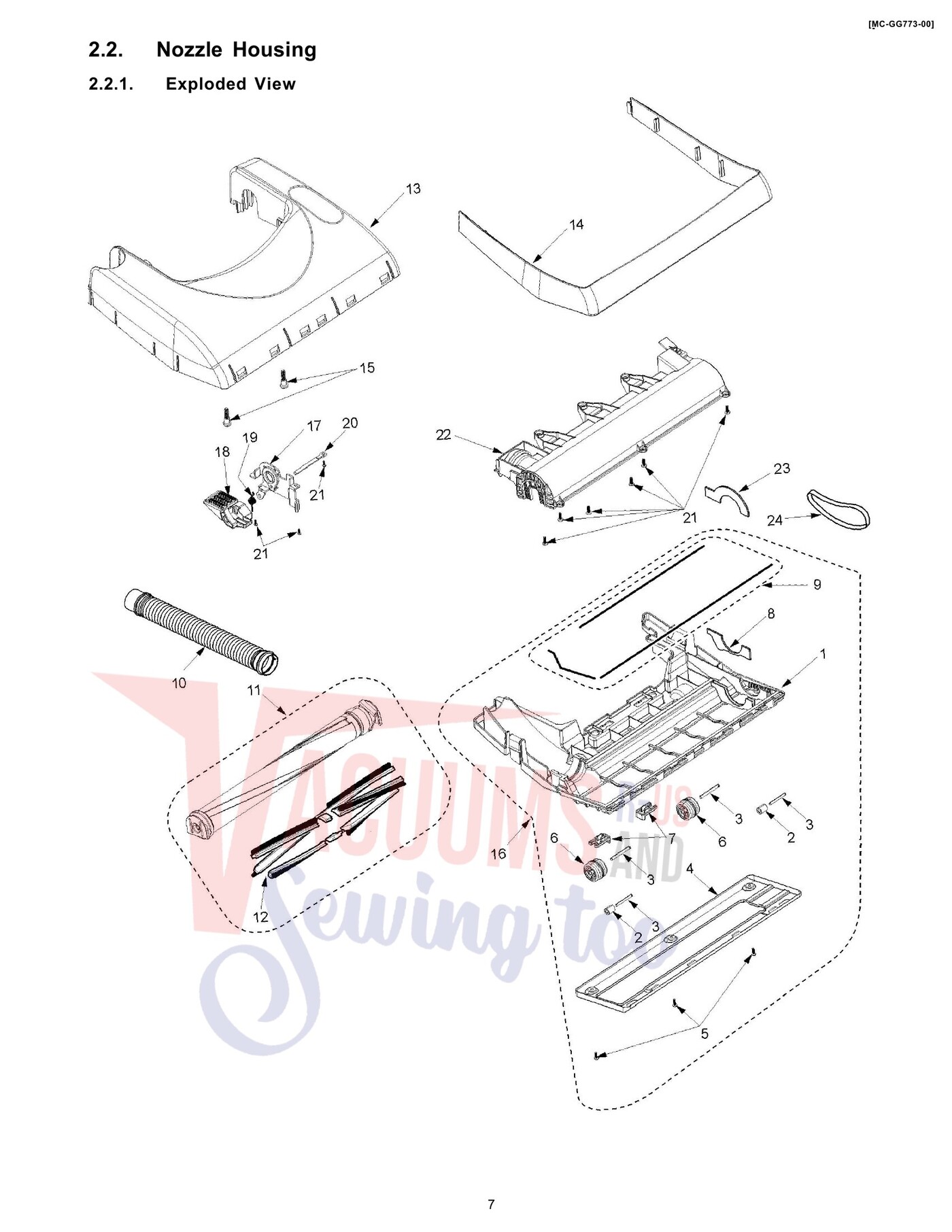

| # | Part image | Description | SKU | Price |
| 1 | Not Available | LOWER PLATE UNIT | AC97ADDWZV07 | Not Available |
| 2 | Not Available | WHEEL | AC01CDDWZV07 | Not Available |
| 3 | Not Available | ROLLER SHAFT | AC16CNXZ00 | Not Available |
| 4 | Not Available | LOWER PLATE | AC27ADDWZ000 | Not Available |
| 6 |  | Wheel, Front V321/V225/V7314 2Pk Part Number: AC90QNGZV06 for Panasonic | AC90QNGZV06 | $20.33Read more |
| 7 | Not Available | LATCH | AC68NCYZZV06 | Not Available |
| 8 | Not Available | FELT (LOWER) | AC11ADDXZ000 | Not Available |
| 9 | Not Available | BODY PACKING | AC19ACPSZ000 | Not Available |
| 10 | Not Available | NOZZLE HOSE | AC34PDDEZV06 | Not Available |
| 11 |  | BRUSHROLL, UG773 Part Number: AC92SDDXZ000 for Panasonic | AC92SDDXZ000 | $127.40Read more |
| 12 | No Image | STRIP, BRUSH UG509 UG727 UG775 6PK Part Number: AC85RDDWZU01 for Panasonic | AC85RDDWZU01 | $109.93Read more |
| 13 |  | HOUSING, NOZZLE MC-GG773 Part Number: AC01ADEKZYU2 for Panasonic | AC01ADEKZYU2 | $70.16Read more |
| 14 | No Image | BUMPER GUARD FOR PAN MC-UG509 Part Number: AC10ADDWZV07 for Panasonic | AC10ADDWZV07 | $0.00Read more |
| 15 | No Image | SCREW, NOZZLE HOUSING 10 PACK Part Number: AMC68A-V30 for Panasonic | AMC68AV30 | $6.66Read more |
| 16 | Not Available | LOWER PLATE UNIT | AC91ADDXZV07 | Not Available |
| 17 | Not Available | BRACKET | AC43AAFYZ00 | Not Available |
| 18 | No Image | PEDAL, FOOT UPRIGHT V5261/V5271 METAL Part Number: AC47ADAAZM0E for Panasonic | AC47ADAAZM0E | $6.66Read more |
| 19 |  | SPRING, HANDLE RELEASE 5995, 7300 SERIES Part Number: AC58AAFVZ00 for Panasonic | AC58AAFVZ00 | $19.78Read more |
| 20 | Not Available | PEDAL SHAFT | AMC51A-YUZ0000 | Not Available |
| 22 | No Image | HOUSING, BRUSHROLL MCCG773 Part Number: AC02ADDWZV07 for Panasonic | AC02ADDWZV07 | $35.81Read more |
| 23 | Not Available | FELT (UPPER) | AC11ADDWZ000 | Not Available |
| 24 | Not Available | BELT | AC28SCZPZ000 | Not Available |

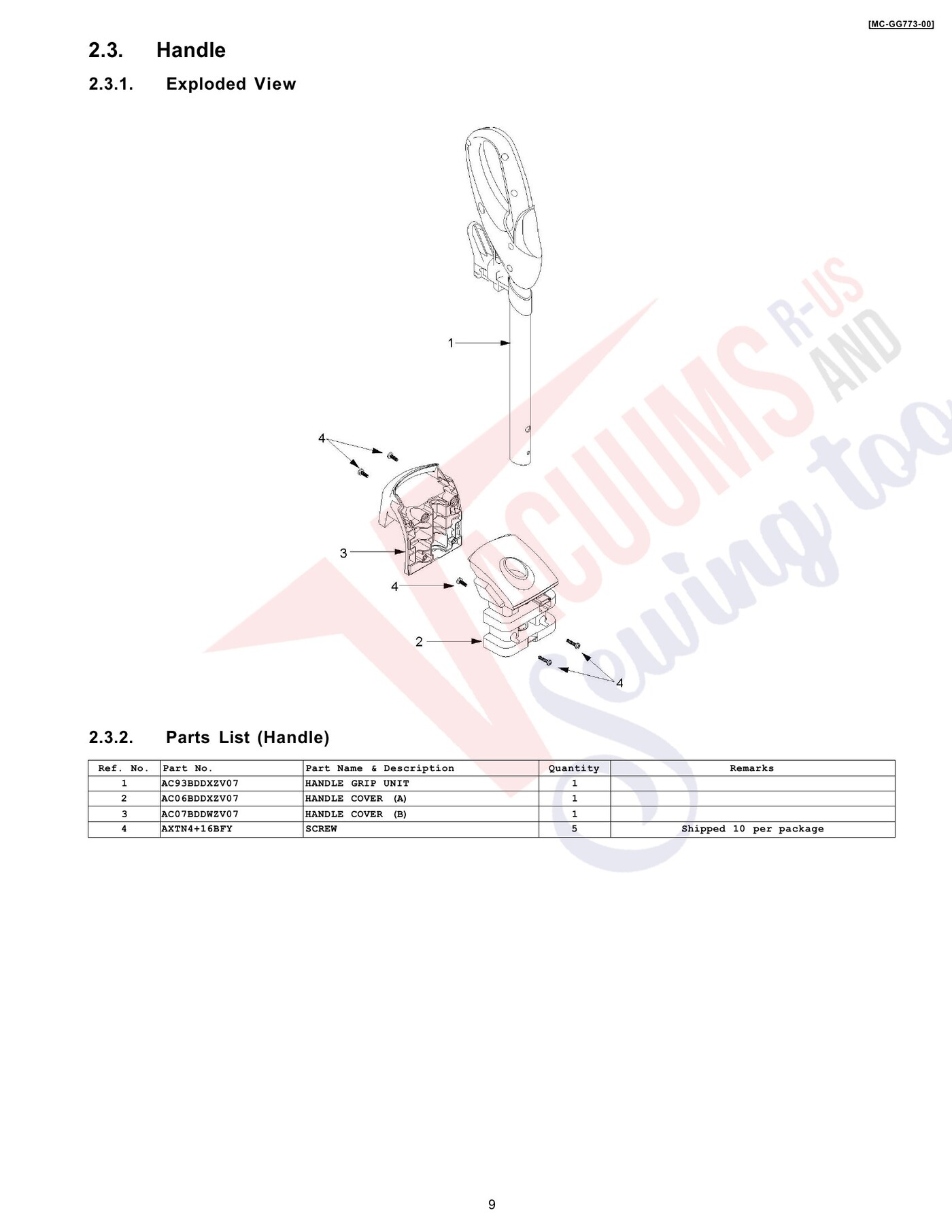

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE GRIP UNIT | AC93BDDXZV07 | Not Available |
| 2 | Not Available | HANDLE COVER (A) | AC06BDDXZV07 | Not Available |
| 3 | Not Available | HANDLE COVER (B) | AC07BDDWZV07 | Not Available |
