Schematic and parts book for Panasonic MC-GG213 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

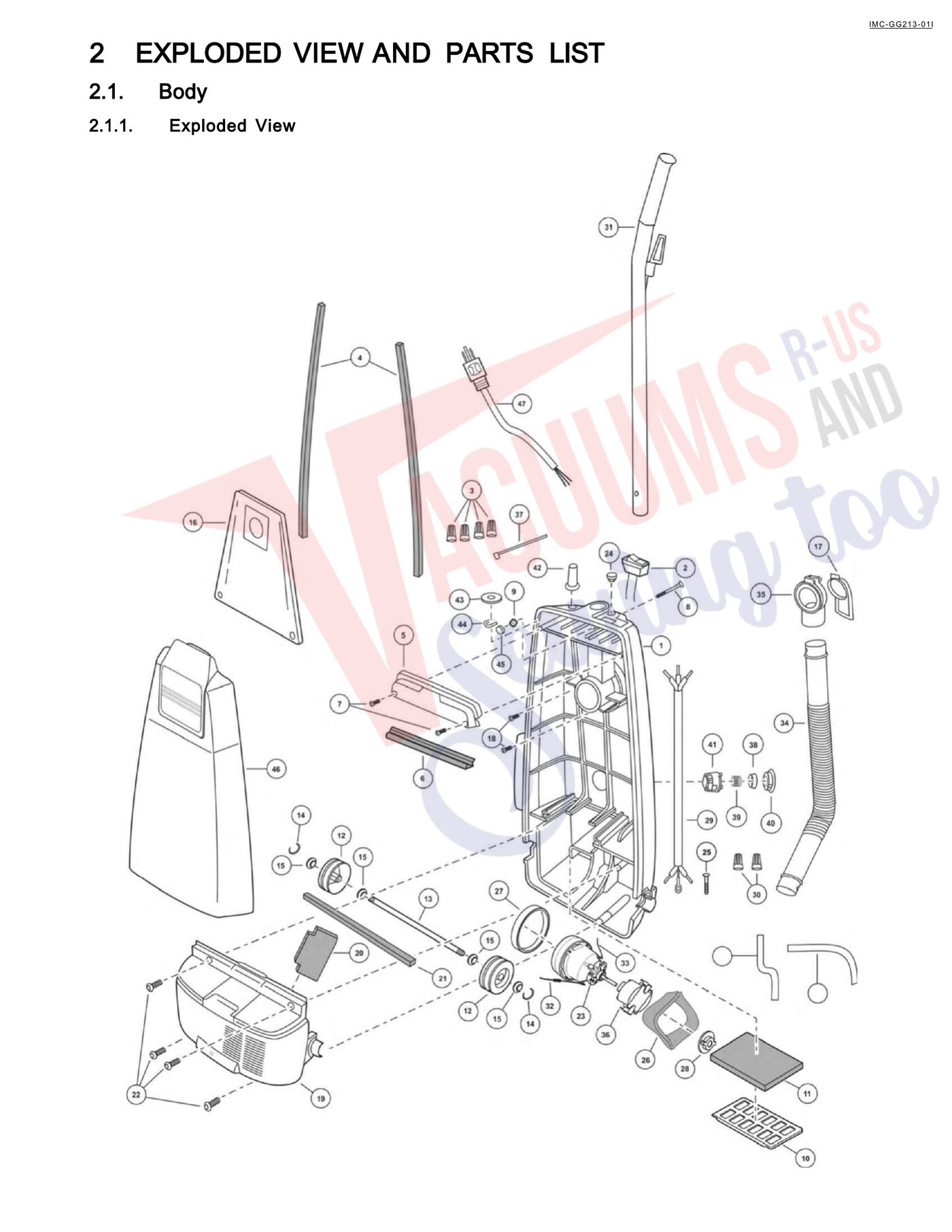

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment | AC78KDKPZU03 | Not Available |
| 3 | Not Available | Wire Crimp | AC44DCYKZ000 | Not Available |
| 8 |  | SCREW, HANDLE 5100 SERIES AMC73B-V00 Part Number: AMC73B-V00 for Panasonic | AMC73BV00 | $4.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Nut-Panasonic 5100 Handle Bolt - 10Pk For: panasonic | AMP21B170 | $4.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Filter Supporter | AMC32K-V0 | Not Available |
| 11 | Not Available | HEPA Filter | AC37KAAEZ00 | Not Available |
| 12 | Not Available | Wheel | AC99CBSAV06 | Not Available |
| 13 |  | Shaft-Panasonic Mc-Ug725 Optiflo Upright For: panasonic | AC16CDSSZ000 | $26.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Ring Clip | AC23FBVNZ000 | Not Available |
| 15 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Dust Bag | AC16KDDWZ 000 | Not Available |
| 17 | Not Available | Cover | AMC02H-F70E | Not Available |
| 19 | No Image | COVER, MOTOR V5027 Part Number: AC09FBJXZU01 for Panasonic | AC09FBJXZU01 | $39.89Read more |
| 20 | Not Available | Rear Cover | C02LDKCZ000 | Not Available |
| 21 | Not Available | Motor Case | AC19FJPZV06 | Not Available |
| 23 | Not Available | Fan Motor | AC92FBJXZ000 | Not Available |
| 24 | Not Available | Cover Cap | AC38HAPNZ0U | Not Available |
| 27 | Not Available | Motor Support | AMC02F-E00 | Not Available |
| 28 | Not Available | Motor Support | AMC03F-V00 | Not Available |
| 29 | Not Available | Wire Cord | AC37GTEZ0U | Not Available |
| 30 | Not Available | Wire Crimp | AC44DCYKZ000 | Not Available |
| 31 | Not Available | Handle Assembly | AC95BTEZVU7 | Not Available |
| 32 | Not Available | ZOO Lead Wire | AC99WAJD | Not Available |
| 33 | Not Available | Lead Wire | AC38GARTZ000 | Not Available |
| 34 | Not Available | Hose | AC34PV02V06 | Not Available |
| 35 | Not Available | Suction | AC60HF74VU6 | Not Available |
| 36 | Not Available | Motor Cap | AC26FCHT1000 | Not Available |
| 37 | Not Available | Wire Tie | AMC596-702 | Not Available |
| 38 | Not Available | Protector | AC69KJMZV06 | Not Available |
| 39 |  | SPRING, PROTECTOR BLUE V5257 Part Number: AC70KAHHZB00 for Panasonic | AC70KAHHZB00 | $2.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Protector | AC18MJMZV06 | Not Available |
| 42 | Not Available | Rubber Protector | AC51E4GZU01 | Not Available |
| 43 | Not Available | Flat Washer | AXWE10J223FE | Not Available |
| 44 | Not Available | Cord Retainer | AC06WAPNZ00 | Not Available |
| 45 | Not Available | Packing | AC61LAGMZ00 | Not Available |
| 46 | Not Available | Dust Cover | AC60KBFCZU1 | Not Available |
| 47 | No Image | CORD, POWER Part Number: AC94EDFEZY02 for Panasonic | AC94EDFEZY02 | $29.19Read more |

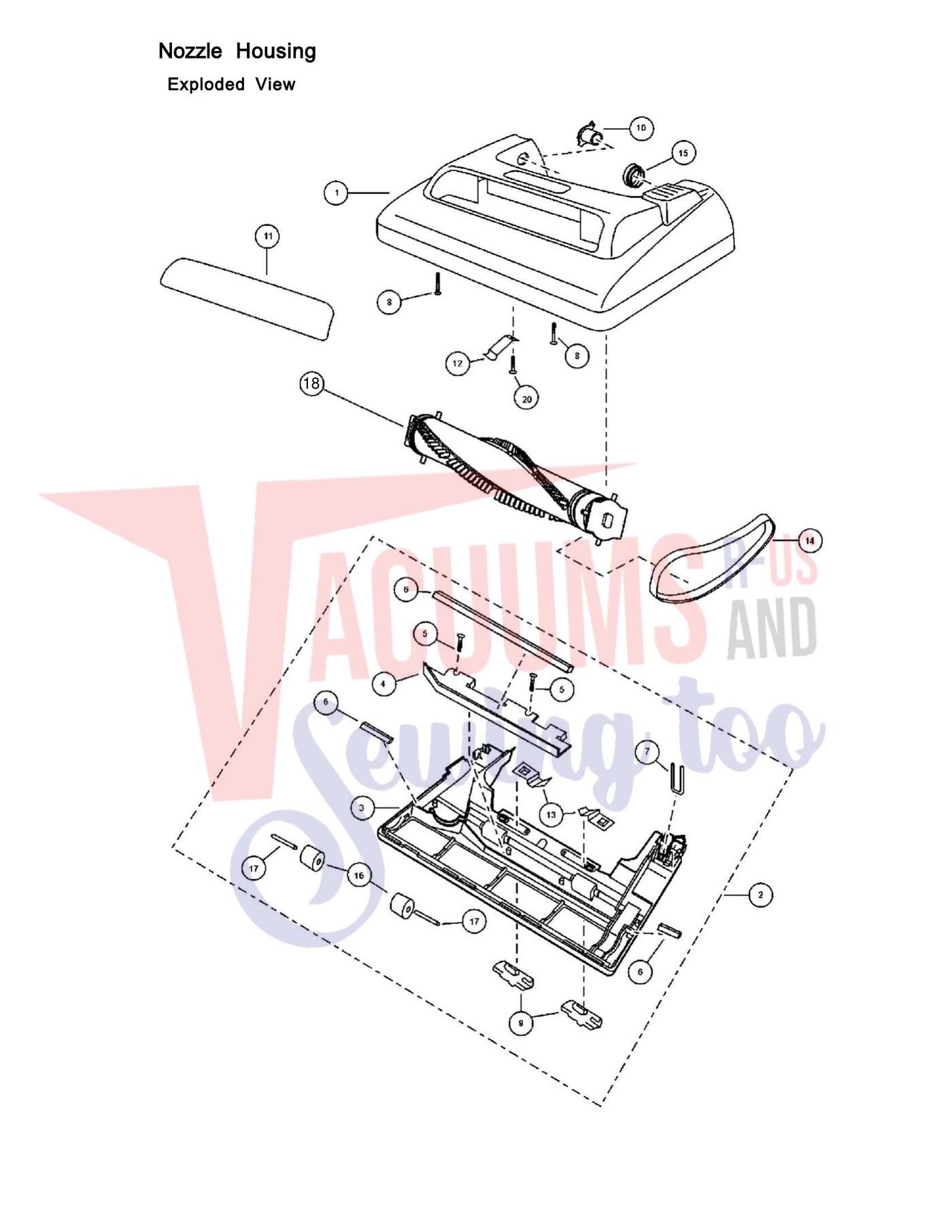

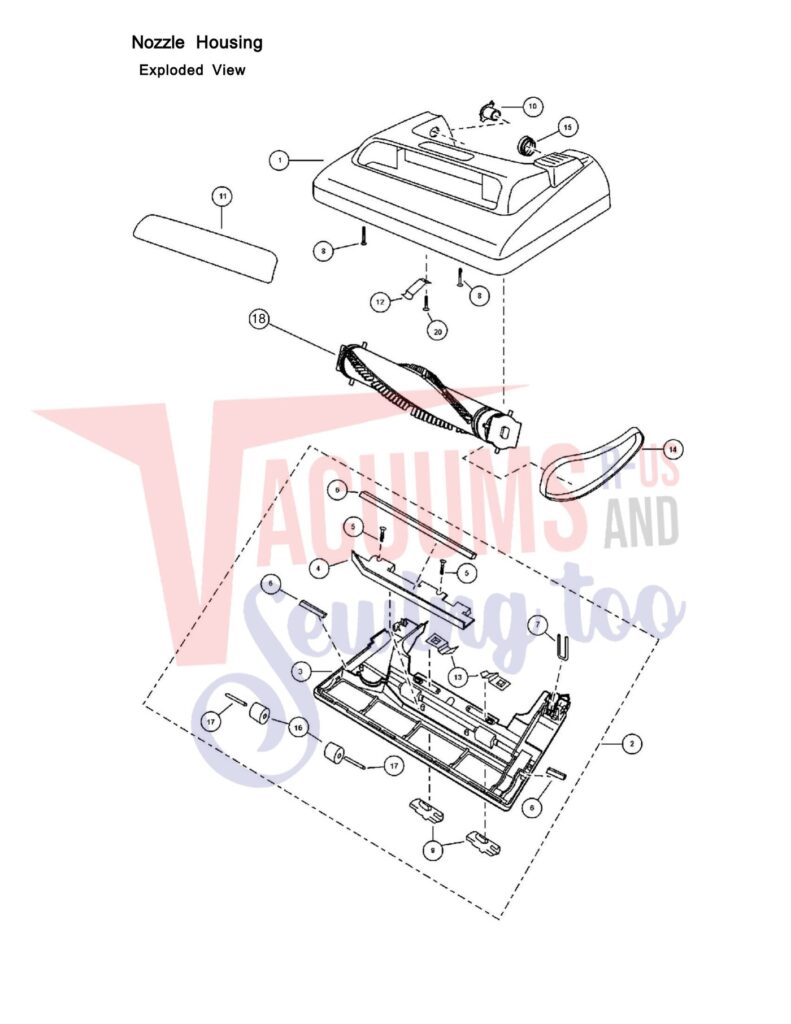

| # | Part image | Description | SKU | Price |
| 1 | No Image | HOUSING, NOZZLE MCGG213 Part Number: AC01ADKPZYU2 for Panasonic | AC01ADKPZYU2 | $39.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Lower Plate | AC91ADKPZV07 | Not Available |
| 3 | Not Available | Lower Plate | AC27ADKPZV07 | Not Available |
| 4 | Not Available | Body Lower | AC06AAJUZ00 | Not Available |
| 6 | Not Available | Packing | AC19AARKZV00 | Not Available |
| 7 | Not Available | S-V00 Belt Cover | AMC43 | Not Available |
| 9 | Not Available | Latch | AMC68N-AV0K | Not Available |
| 10 | Not Available | S-V00 Plastic | AMC25 | Not Available |
| 11 | Not Available | Window Cover | AC23HDKCZ000 | Not Available |
| 13 | Not Available | Stop Latch | AC70NYUZ00 | Not Available |
| 14 | Not Available | Belt | AC28SCZPZ000 | Not Available |
| 15 | Not Available | Plastic | AMC78N-V00 | Not Available |
| 17 | Not Available | Height Adjustment | AC16CNXZ00 | Not Available |
| 18 | Not Available | Agitator | 20061 | Not Available |
