Schematic and parts book for Panasonic MC-CG985 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

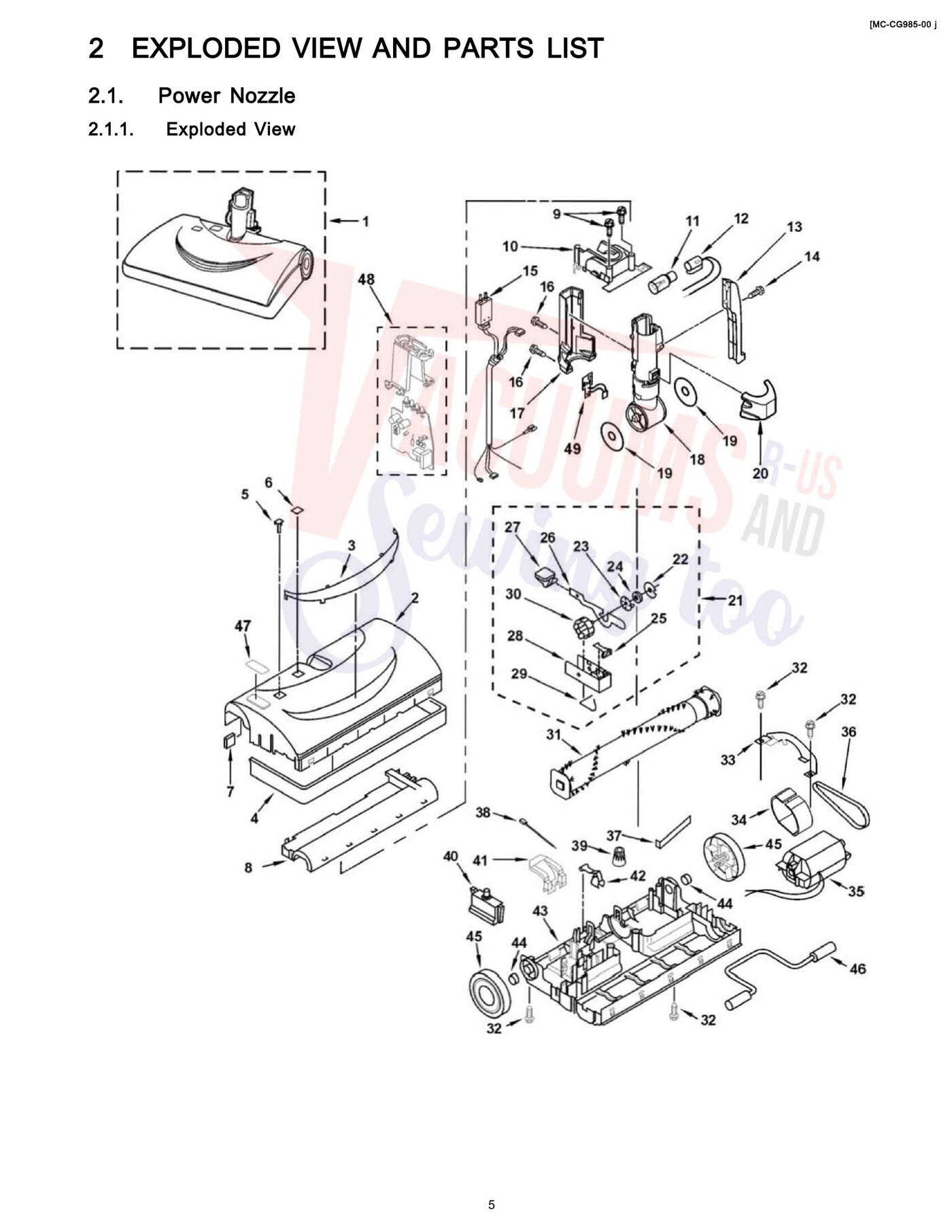

| # | Part image | Description | SKU | Price |
| 1 | Not Available | POWER NOZZLE ASSEMBLY | AC50XDGCZG0S | Not Available |
| 2 | No Image | HOUSING, NOZZLE CG985 Part Number: AC02RDGCZGUS for Panasonic | AC02RDGCZGUS | $45.82Read more |
| 3 | Not Available | WINDOW COVER | AC21HAKTZ000 | Not Available |
| 4 |  | BUMPER, POWER NOZZLE V9658 Part Number: AC10AAKTZV06 for Panasonic | AC10AAKTZV06 | $31.70Read more |
| 5 | Not Available | BUTTON EXT H.S. | AC13DAUJZVU6 | Not Available |
| 6 | Not Available | LENS HEIGHT ADJ. ASSY COMPLETE | AC21HGJZ00 | Not Available |
| 7 | Not Available | FILTER-INTAKE/EXHAUST | AC37KAKSZ000 | Not Available |
| 8 |  | COVER, BRUSHROLL V9658 Part Number: AC01QAKTZW03 for Panasonic | AC01QAKTZW03 | $24.55Read more |
| 9 | No Image | SCREW, 8-18 X 17/8 10PK Part Number: AMC681-550 for Panasonic | AMC681550 | $18.30Read more |
| 10 | Not Available | Swivel Cap Thermal Unit | AC62VAKTZV06 | Not Available |
| 11 | Not Available | BULB LIGHT | AC28GADFZ00 | Not Available |
| 12 | Not Available | BULB SOCKET ASSY COMPLETE | AC93HABFZ00 | Not Available |
| 13 |  | PEDAL, RELEASE V9658 Part Number: AC70QBEXZV06 for Panasonic | AC70QBEXZV06 | $12.47Read more |
| 14 |  | SCREW, UPPER CORD HOOK 6602 BASE PLATE V5745 Part Number: AC68AZAZ00 for Panasonic | AC68AZAZ00 | $32.15Read more |
| 15 | Not Available | LEAD WIRE UNIT | AC67VAXEZV06 | Not Available |
| 17 | No Image | COVER, REAR V9658 Part Number: AC69QAENZV06 for Panasonic | AC69QAENZV06 | $18.82Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | NOZZLE SWIVEL ASSEMBLY | AC92PBEYZV06 | Not Available |
| 19 | No Image | SEAL, P/N SWIVEL V9626/28/38/40 Part Number: AMC742-019 for Panasonic | AMC742019 | $38.18Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | COVER, FRONT V9638 Part Number: AC68QGJZV06 for Panasonic | AC68QGJZV06 | $25.39Read more |
| 21 | Not Available | INDICATOR BLOCK ASSEMBLY | AC83MAKSZV06 | Not Available |
| 22 | Not Available | WASHER THRUST ASSY. COMPLETE | AMC722-909 | Not Available |
| 23 | Not Available | CATCH-INDEXING ASSY. COMP. | AMC722-955 | Not Available |
| 24 | Not Available | WASHER ASSY. COMPLETE | AMC725-635 | Not Available |
| 25 | Not Available | RATCHET-CATCH ASSY. COMPLET | AMC742-016 | Not Available |
| 26 |  | Panasonic Lever-panasonic Mc-v9600 Series Pwr Nozzle | AMC747287 | $8.56Read more |
| 27 | No Image | PEDAL, HANDLE RELEASE V9600 SERIES Part Number: AC48AMGZV06 for Panasonic | AC48AMGZV06 | $10.87Read more |
| 28 | Not Available | INDICATOR BLOCK ASSY. COMPLETE | AMC742-015 | Not Available |
| 29 | Not Available | SPRING ASSIST ASSY. COMPLETE | AMC725-775 | Not Available |
| 30 | Not Available | CAM INDICATOR ASSY COMPELTE | AMC747-291 | Not Available |
| 31 | Not Available | AGITATOR | AC84RBZMZ000 | Not Available |
| 32 | Not Available | SCREW ASSY. COMPLETE | AMC681-297 | Not Available |
| 33 | Not Available | MOTOR BRIDGE ASSY. COMPLETE | AMC705-093 | Not Available |
| 34 | No Image | GASKET, PN MOTOR V9658 Part Number: AC747156 for Panasonic | AC747156 | $7.18Read more |
| 35 | Not Available | MOTOR | AC90FCBJZ000 | Not Available |
| 36 | Not Available | BELT MICRO GROOVE | AC28SAXAZ000 | Not Available |
| 37 | No Image | SPRING, MOTOR ADJUST POWER NOZZLE 9647 Part Number: AMC742-002 for Panasonic | AMC742002 | $38.56Read more |
| 38 | Not Available | LEAD WIRE | AC85GAXEZ000 | Not Available |
| 39 | Not Available | WIRE CONNECTOR | AMC-1CTCE23 | Not Available |
| 40 | Not Available | SERVICE OVERLOAD PROTECTOR | AC97KAXEZV04 | Not Available |
| 41 | Not Available | HANDLE RELEASE | AC47AGJZV06 | Not Available |
| 42 | Not Available | LIFTER ASSY. COMPLETE | AMC742-013 | Not Available |
| 43 | Not Available | FLOOR NOZZLE | AC03RAKTZU01 | Not Available |
| 44 | Not Available | BUSHING | AC64CAKTZ000 | Not Available |
| 45 | Not Available | WHEEL | AC99CDGBZV06 | Not Available |
| 46 | Not Available | AXLE-FRONT ASSY. COMPLETE | AMC744-029 | Not Available |
| 47 | Not Available | WINDOW - DIRT SENSOR | AC33MGJZ00 | Not Available |
| 48 | Not Available | PCB ASSEMBLY | AC87GGJZU01 | Not Available |
| 49 | Not Available | PCB B UNIT | AC85VGJZ00 | Not Available |

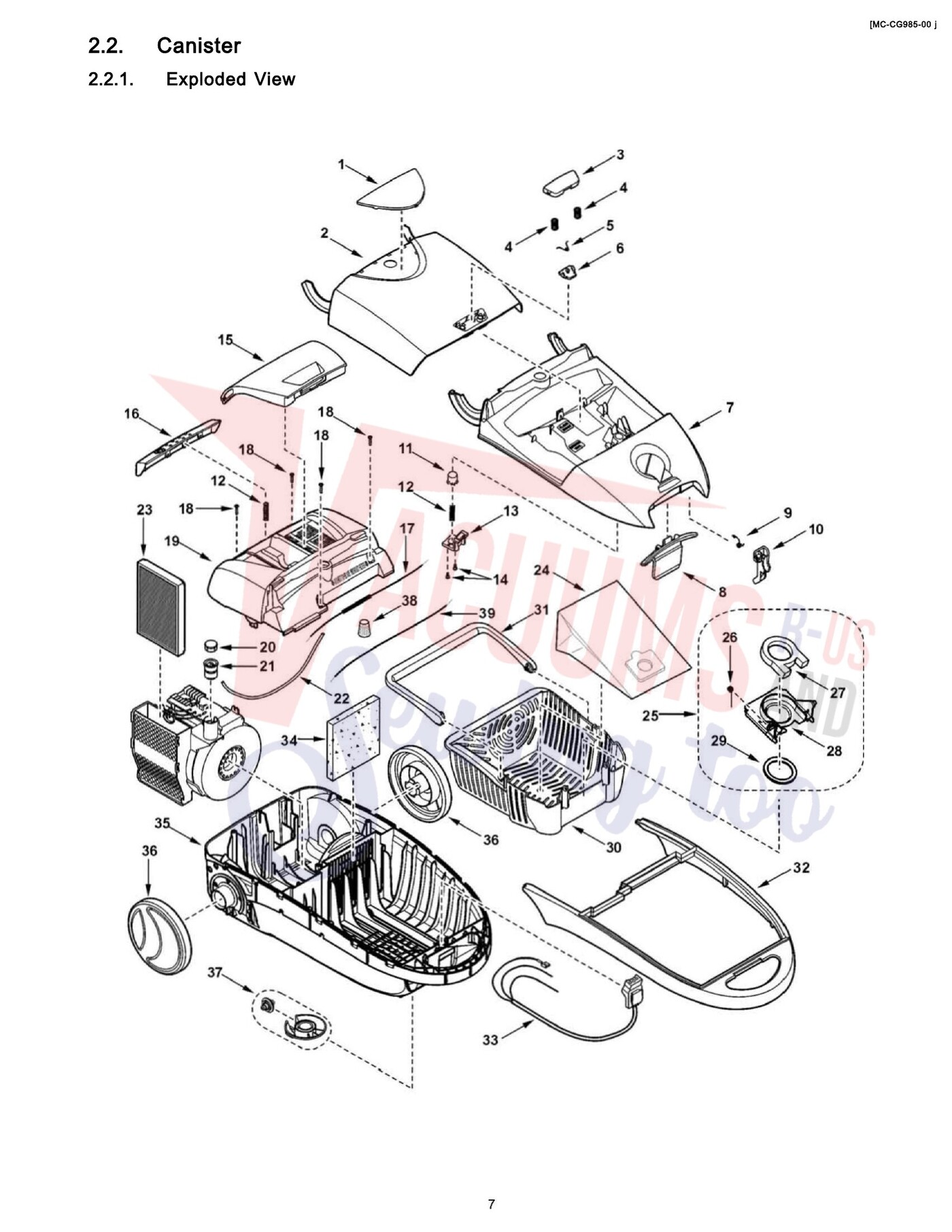

| # | Part image | Description | SKU | Price |
| 1 | Not Available | ORNAMENTAL PLATE | AC21TDGBZVUW | Not Available |
| 2 | No Image | COVER, CG985 Part Number: AC88PDGCZGUS for Panasonic | AC88PDGCZGUS | $53.37Read more |
| 3 | Not Available | PRESS BUTTON | AC51NDDUZM0K | Not Available |
| 4 | No Image | SPRING, BUTTON TOOL LID CG983 2PK Part Number: AC92HDDUZ000 for Panasonic | AC92HDDUZ000 | $2.56Read more |
| 5 |  | SPRING, STOP LATCH TOOL LID CG983 Part Number: AC70NDDUZ000 for Panasonic | AC70NDDUZ000 | $2.56Read more |
| 6 |  | Latch - Lid - Panasonic Mc-Cg973 Canister For: panasonic | AC68NDDUZV04 | $3.77Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | COVER, DUST COMPARTMENT CG985 Part Number: AC60KDGCZGUS for Panasonic | AC60KDGCZGUS | $69.48Read more |
| 8 | Not Available | BUCKLE | AC01DDGBZM0N | Not Available |
| 9 | Not Available | SPRING LOCKING CAM | AC65DDGBZ000 | Not Available |
| 10 | Not Available | LOCKING CAM | AC83DDGBZV07 | Not Available |
| 11 | Not Available | SPRING HOLDER | AC10NDDUZV04 | Not Available |
| 12 | Not Available | LID HOLDING SPRING | AC81HDDUZ000 | Not Available |
| 13 | Not Available | COVER CAP | AC38HDGBZV07 | Not Available |
| 15 | Not Available | FILTER COVER | AC41KDGBZVU7 | Not Available |
| 16 | Not Available | CORD REWIND BUTTON | AC46NDGBZV07 | Not Available |
| 17 | Not Available | LEAD ASSEMBLY | AC99WBARZ000 | Not Available |
| 18 | Not Available | SCREW THRD CUTTING | AMC414-8999 | Not Available |
| 19 | Not Available | CANOPY (PAINTED) | AC48HDGCZG0S | Not Available |
| 20 | Not Available | INDICATOR WINDOW | AC08MBZTZ000 | Not Available |
| 21 | Not Available | PERFORMANCE INDICATOR LIGHT | AC96MDDUZ000 | Not Available |
| 22 | Not Available | VAC SWITCH TUBE | AC62PAXKZ000 | Not Available |
| 23 | Not Available | HEPA FILTER ASSY COMP | AC38KCNPZ000 | Not Available |
| 24 | No Image | PAPER BAG, C19 EACH CG917 CG937 CG983 CG985 CG957 Part Number: AC16KDGBZ000 for Panasonic | AC16KDGBZ000 | $24.08Read more |
| 25 | Not Available | BAG SUPPORTER ASSEMBLY | AC11KDGBZR0K | Not Available |
| 26 | Not Available | SPRING BAG MOUNT | AC23DDGBZ000 | Not Available |
| 27 | Not Available | BAG MOUNT GASKET | AC03LDGBZ000 | Not Available |
| 28 | Not Available | DUST BAG SUPPORTER | AC10KAKTZR01 | Not Available |
| 29 | Not Available | INLET (BAG) PACKING | AC64HAKTZ000 | Not Available |
| 30 | Not Available | EXPANDER CAGE | AC18KDGBZV07 | Not Available |
| 31 | Not Available | HANDLE CAGE | AC01BDGBZM0L | Not Available |
| 32 | Not Available | FURNITURE GUARD | AC31AAXAZV06 | Not Available |
| 33 | Not Available | RECEPTACLE | AC90EBZTZV06 | Not Available |
| 34 | Not Available | SECONDARY FILTER | AC37KAKTZ000 | Not Available |
| 35 | Not Available | LOWER BODY BASE | AC03ADGBZV07 | Not Available |
| 36 | Not Available | WHEEL | AC99CAKTZV07 | Not Available |
| 37 | Not Available | CASTOR UNIT | AC93CAKTZV07 | Not Available |
| 38 | Not Available | WIRE CONNECTOR | AC4154460 | Not Available |
| 39 | Not Available | LEAD WIRE WHITE | AC43GBKGZ000 | Not Available |

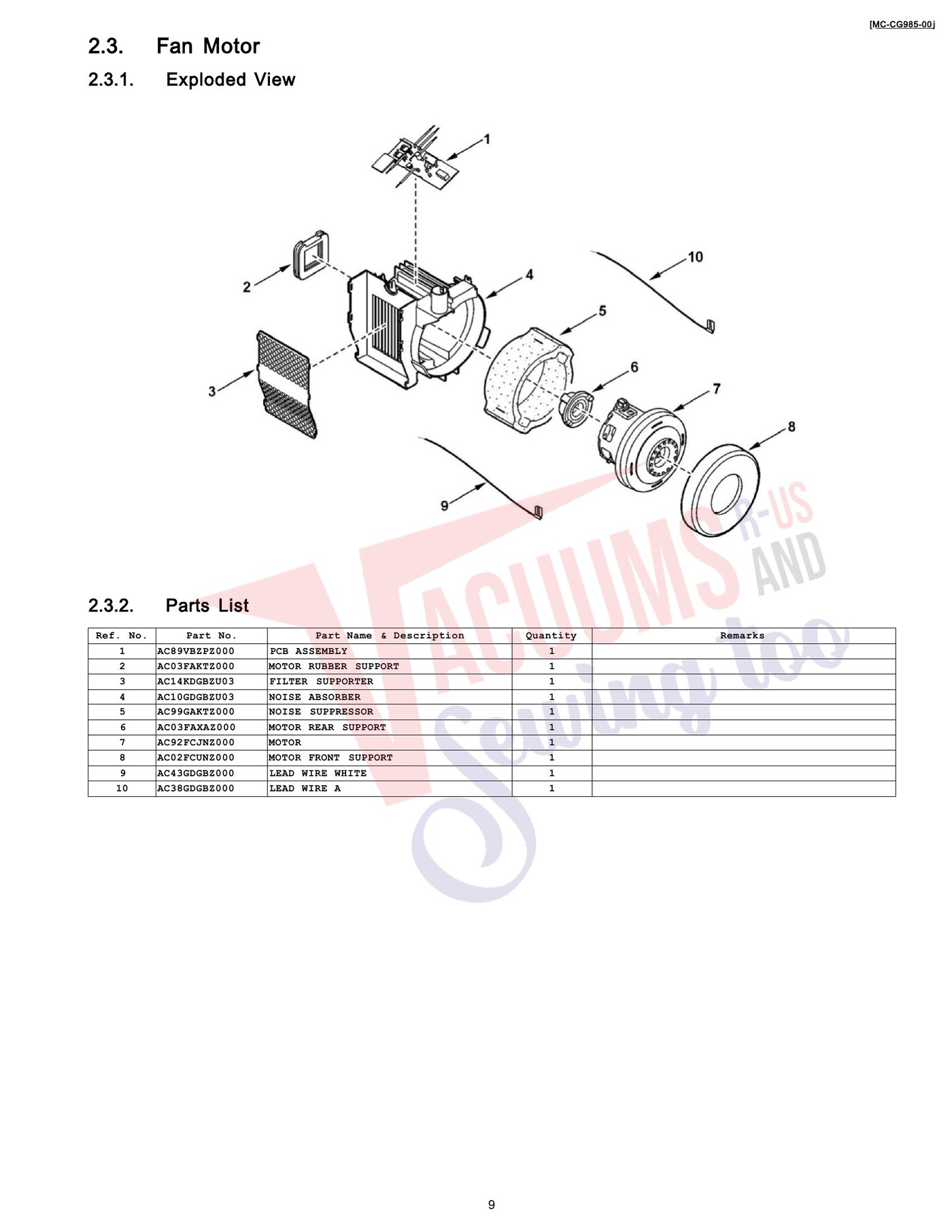

| # | Part image | Description | SKU | Price |
| 1 | Not Available | PCB ASSEMBLY | AC89VBZPZ000 | Not Available |
| 2 | Not Available | MOTOR RUBBER SUPPORT | AC03FAKTZ000 | Not Available |
| 3 | Not Available | FILTER SUPPORTER | AC14KDGBZU03 | Not Available |
| 4 | Not Available | NOISE ABSORBER | AC10GDGBZU03 | Not Available |
| 5 | Not Available | NOISE SUPPRESSOR | AC99GAKTZ000 | Not Available |
| 6 | Not Available | MOTOR REAR SUPPORT | AC03FAXAZ000 | Not Available |
| 7 | Not Available | MOTOR | AC92FCJNZ000 | Not Available |
| 8 | Not Available | MOTOR FRONT SUPPORT | AC02FCUNZ000 | Not Available |
| 9 | Not Available | LEAD WIRE WHITE | AC43GDGBZ000 | Not Available |
| 10 | Not Available | LEAD WIRE A | AC38GDGBZ000 | Not Available |

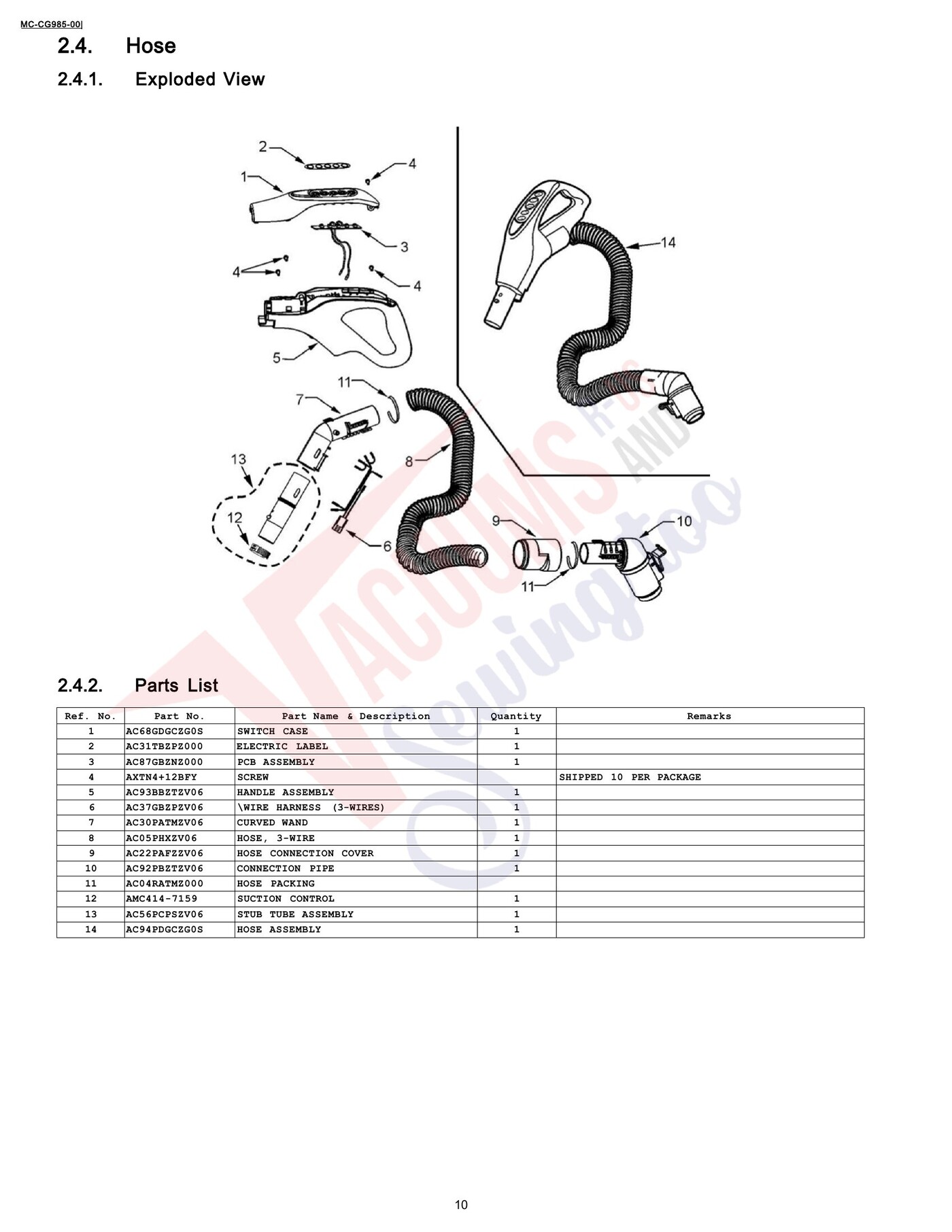

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SWITCH CASE | AC68GDGCZG0S | Not Available |
| 2 | Not Available | ELECTRIC LABEL | AC31TBZPZ000 | Not Available |
| 3 | Not Available | PCB ASSEMBLY | AC87GBZNZ000 | Not Available |
| 5 | Not Available | HANDLE ASSEMBLY | AC93BBZTZV06 | Not Available |
| 6 | Not Available | \WIRE HARNESS (3-WIRES) | AC37GBZPZV06 | Not Available |
| 7 | Not Available | CURVED WAND | AC30PATMZV06 | Not Available |
| 8 | Not Available | HOSE 3-WIRE | AC05PHXZV06 | Not Available |
| 9 | Not Available | HOSE CONNECTION COVER | AC22PAFZZV06 | Not Available |
| 10 | Not Available | CONNECTION PIPE | AC92PBZTZV06 | Not Available |
| 11 | Not Available | HOSE PACKING | AC04RATMZ000 | Not Available |
| 12 | Not Available | SUCTION CONTROL | AMC414-7159 | Not Available |
| 13 | Not Available | STUB TUBE ASSEMBLY | AC56PCPSZV06 | Not Available |
| 14 |  | HOSE, ELECTRIC W/ENDS CANISTER CG985 Part Number: AC94PDGCZG0S for Panasonic | AC94PDGCZG0S | $174.15Read more |

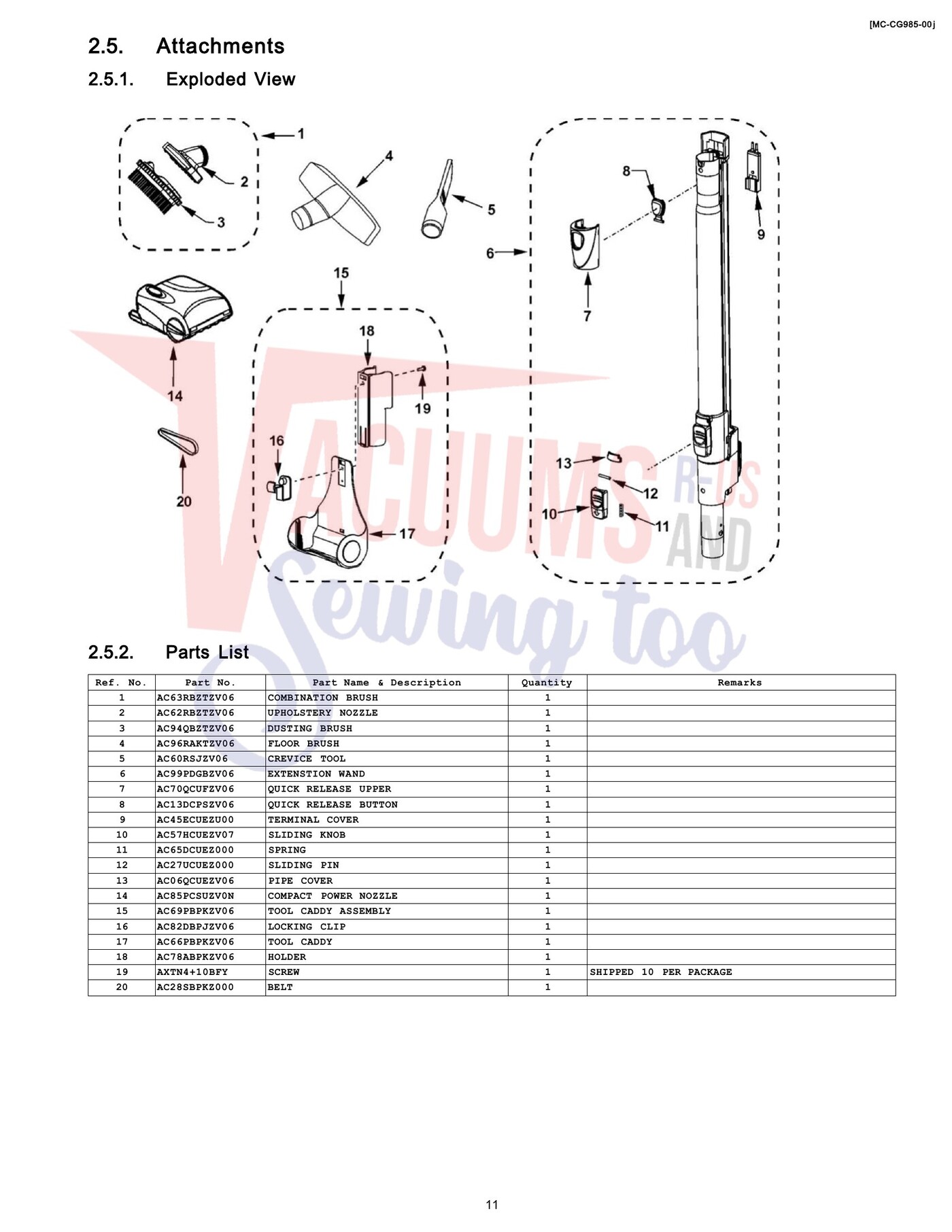

| # | Part image | Description | SKU | Price |
| 1 | Not Available | COMBINATION BRUSH | AC63RBZTZV06 | Not Available |
| 2 | Not Available | UPHOLSTERY NOZZLE | AC62RBZTZV06 | Not Available |
| 3 | Not Available | DUSTING BRUSH | AC94QBZTZV06 | Not Available |
| 4 |  | Floor Tool, Gray Horsehair Bristle Lock Pi Part Number: AC96RAKTZV06 for Panasonic | AC96RAKTZV06 | $41.04Read more |
| 5 |  | CREVICE TOOL, CG983/985 Part Number: AC60RSJZV06 for Panasonic | AC60RSJZV06 | $5.73Read more |
| 6 | Not Available | EXTENSTION WAND | AC99PDGBZV06 | Not Available |
| 7 | Not Available | QUICK RELEASE UPPER | AC70QCUFZV06 | Not Available |
| 8 | Not Available | QUICK RELEASE BUTTON | AC13DCPSZV06 | Not Available |
| 9 |  | COVER, TERMINAL CG985 Part Number: AC45ECUEZU00 for Panasonic | AC45ECUEZU00 | $61.16Read more |
| 10 | Not Available | SLIDING KNOB | AC57HCUEZV07 | Not Available |
| 11 | Not Available | SPRING | AC65DCUEZ000 | Not Available |
| 12 | Not Available | SLIDING PIN | AC27UCUEZ000 | Not Available |
| 13 | Not Available | PIPE COVER | AC06QCUEZV06 | Not Available |
| 14 | Not Available | COMPACT POWER NOZZLE | AC85PCSUZV0N | Not Available |
| 15 | Not Available | TOOL CADDY ASSEMBLY | AC69PBPKZV06 | Not Available |
| 16 |  | Clip - Panasonic Mc-V9658 Wand For: panasonic | AC82DBPJZV06 | $38.62Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | TOOL CADDY | AC66PBPKZV06 | Not Available |
| 18 | Not Available | HOLDER | AC78ABPKZV06 | Not Available |
| 20 | Not Available | BELT | AC28SBPKZ000 | Not Available |

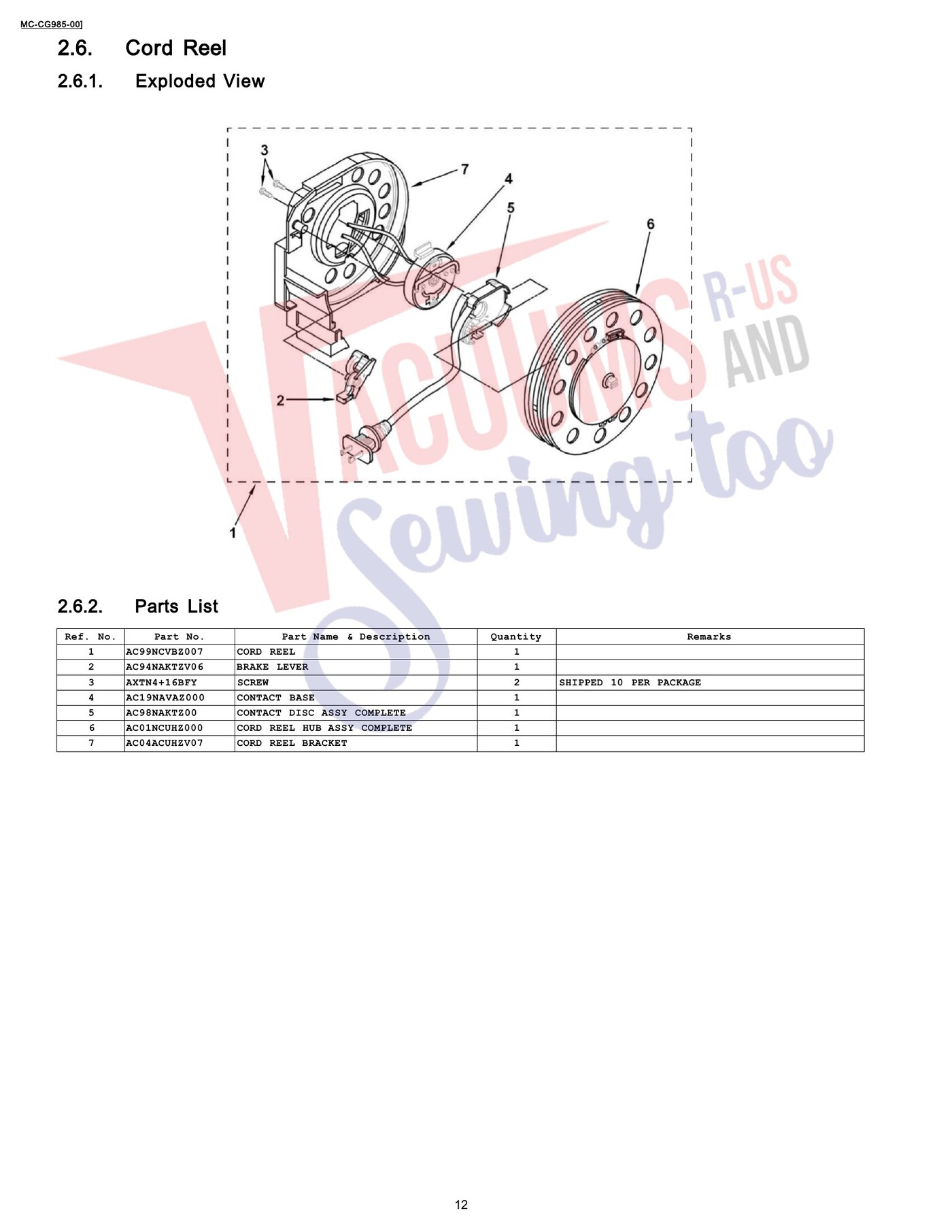

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CORD REEL | AC99NCVBZ007 | Not Available |
| 2 | Not Available | BRAKE LEVER | AC94NAKTZV06 | Not Available |
| 4 | Not Available | CONTACT BASE | AC19NAVAZ000 | Not Available |
| 5 | Not Available | CONTACT DISC ASSY COMPLETE | AC98NAKTZ00 | Not Available |
| 6 | Not Available | CORD REEL HUB ASSY COMPLETE | AC01NCUHZ000 | Not Available |
| 7 | Not Available | CORD REEL BRACKET | AC04ACUHZV07 | Not Available |
