Schematic and parts book for Panasonic MC-CG902 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

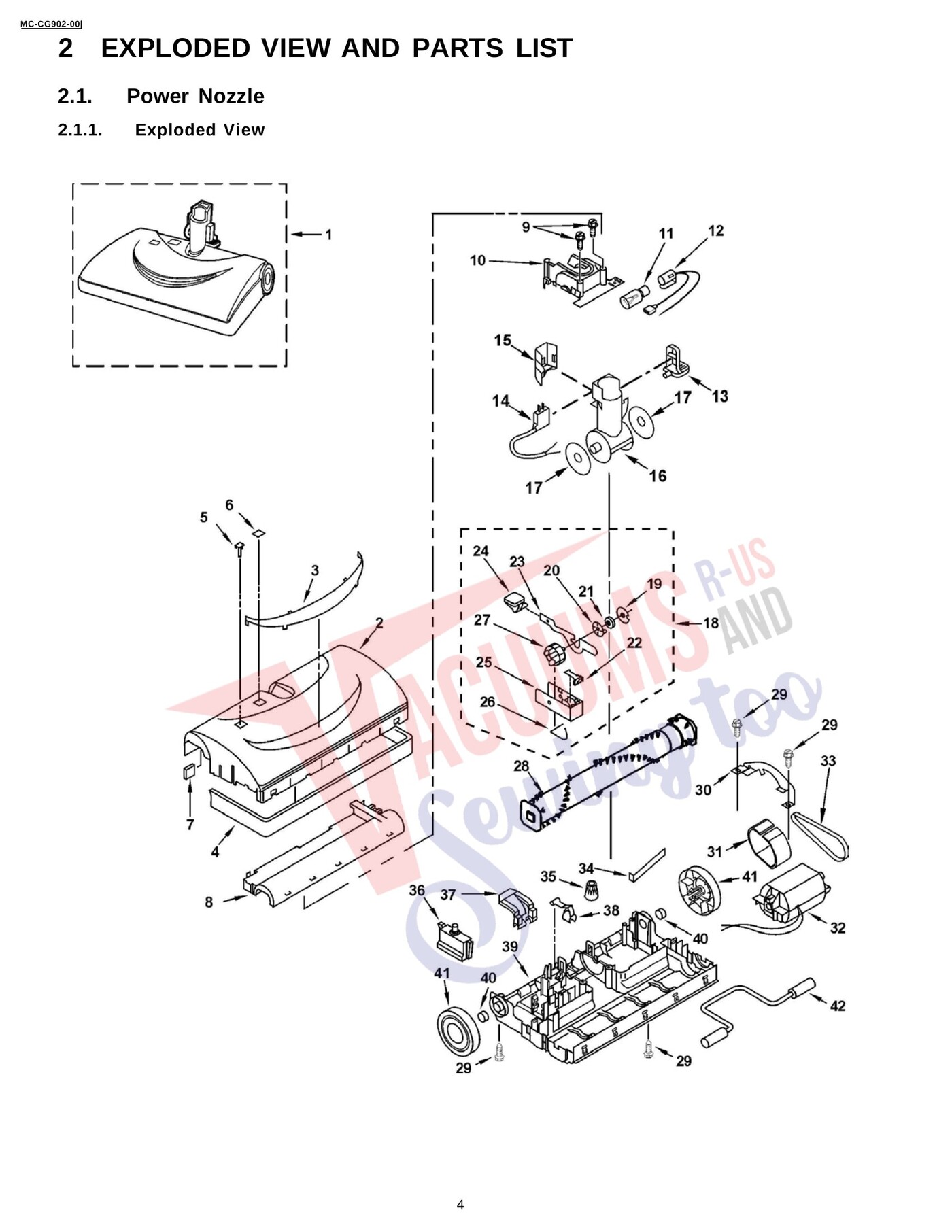

| # | Part image | Description | SKU | Price |
| 1 | Not Available | POWER NOZZLE ASSEMBLY | AC50XDMKZR03 | Not Available |
| 2 | Not Available | NOZZLE TOP | AC02RDGBZRU3 | Not Available |
| 3 | Not Available | WINDOW COVER | AC21HAKTZ000 | Not Available |
| 4 |  | BUMPER, POWER NOZZLE V9658 Part Number: AC10AAKTZV06 for Panasonic | AC10AAKTZV06 | $31.70Read more |
| 5 | Not Available | BUTTON EXTENSION | AC13DAUJZVU6 | Not Available |
| 6 | Not Available | LENS HEIGHT ADJUST | AC21HGJZ00 | Not Available |
| 7 | Not Available | FILTER-INTAKE/EXHAUST | AC37KAKSZ000 | Not Available |
| 8 |  | COVER, BRUSHROLL V9658 Part Number: AC01QAKTZW03 for Panasonic | AC01QAKTZW03 | $24.55Read more |
| 9 | No Image | SCREW, 8-18 X 17/8 10PK Part Number: AMC681-550 for Panasonic | AMC681550 | $18.30Read more |
| 10 | Not Available | SWIVEL CAP | AC62VAKTZV06 | Not Available |
| 11 | Not Available | LIGHT BULB | AC28GADFZ00 | Not Available |
| 12 | Not Available | BULB SOCKET | AC93HDAYZ000 | Not Available |
| 13 |  | Pedal Release - Panasonic Mc-Cg973 Power Nozzle For: panasonic | AC47AATYZV06 | $22.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | CORD & PLUG | AC64EAWBZV06 | Not Available |
| 15 | Not Available | COVER PLUG HOUSING | AC13DATYZV06 | Not Available |
| 16 | Not Available | SWIVEL | AMC415-3196 | Not Available |
| 17 | No Image | SEAL, P/N SWIVEL V9626/28/38/40 Part Number: AMC742-019 for Panasonic | AMC742019 | $38.18Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | INDICATOR BLOCK ASSEMBLY | AC83MAKSZV06 | Not Available |
| 19 | Not Available | WASHER THRUST | AMC722-909 | Not Available |
| 20 | Not Available | CATCH-INDEXING | AMC722-955 | Not Available |
| 21 | Not Available | WASHER | AMC725-635 | Not Available |
| 22 | Not Available | RATCHET-CATCH | AMC742-016 | Not Available |
| 23 |  | Panasonic Lever-panasonic Mc-v9600 Series Pwr Nozzle | AMC747287 | $8.56Read more |
| 24 | No Image | PEDAL, HANDLE RELEASE V9600 SERIES Part Number: AC48AMGZV06 for Panasonic | AC48AMGZV06 | $10.87Read more |
| 25 | Not Available | INDICATOR BLOCK | AMC742-015 | Not Available |
| 26 | Not Available | SPRING ASSIST | AMC725-775 | Not Available |
| 27 | Not Available | CAM INDICATOR | AMC747-291 | Not Available |
| 28 | Not Available | AGITATOR | AC84RBZMZ000 | Not Available |
| 29 | Not Available | SCREW | AMC681-297 | Not Available |
| 30 | Not Available | MOTOR BRIDGE | AMC705-093 | Not Available |
| 31 | No Image | GASKET, PN MOTOR V9658 Part Number: AC747156 for Panasonic | AC747156 | $7.18Read more |
| 32 | Not Available | MOTOR | AC90FCUZZ000 | Not Available |
| 33 | Not Available | BELT MICRO GROOVE | AC28SAXAZ000 | Not Available |
| 34 | No Image | SPRING, MOTOR ADJUST POWER NOZZLE 9647 Part Number: AMC742-002 for Panasonic | AMC742002 | $38.56Read more |
| 35 | Not Available | WIRE CONNECTOR | AMC-1CTCE23 | Not Available |
| 36 | Not Available | OVERLOAD PROTECTOR | AC97KAXEZV04 | Not Available |
| 37 | Not Available | HANDLE RELEASE | AC47AGJZV06 | Not Available |
| 38 | Not Available | LIFTER | AMC742-013 | Not Available |
| 39 | Not Available | FLOOR NOZZLE | AC03RAKTZU01 | Not Available |
| 40 | Not Available | BUSHING | AC64CAKTZ000 | Not Available |
| 41 | Not Available | WHEEL | AC01CAKSZV06 | Not Available |
| 42 | Not Available | FRONT AXLE | AMC744-029 | Not Available |

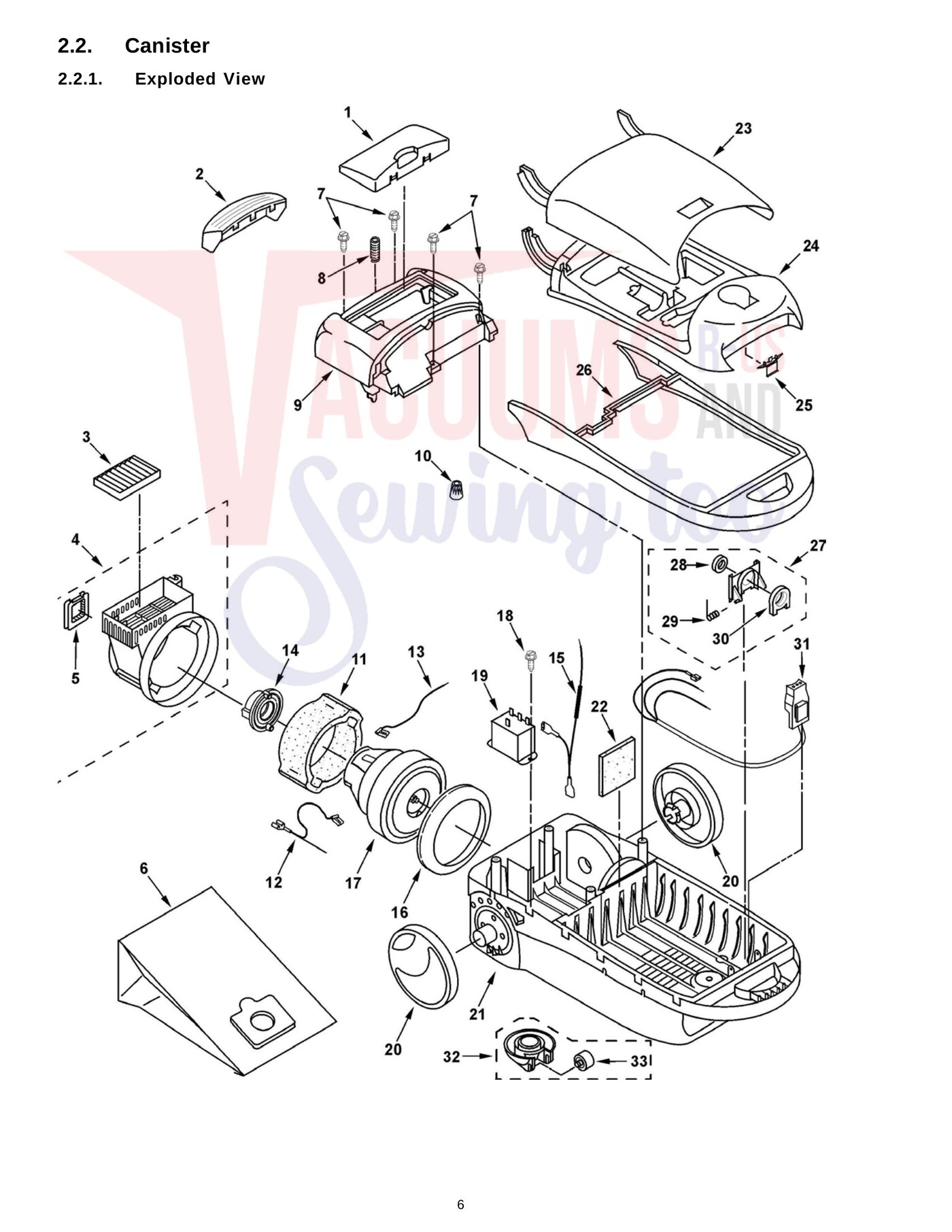

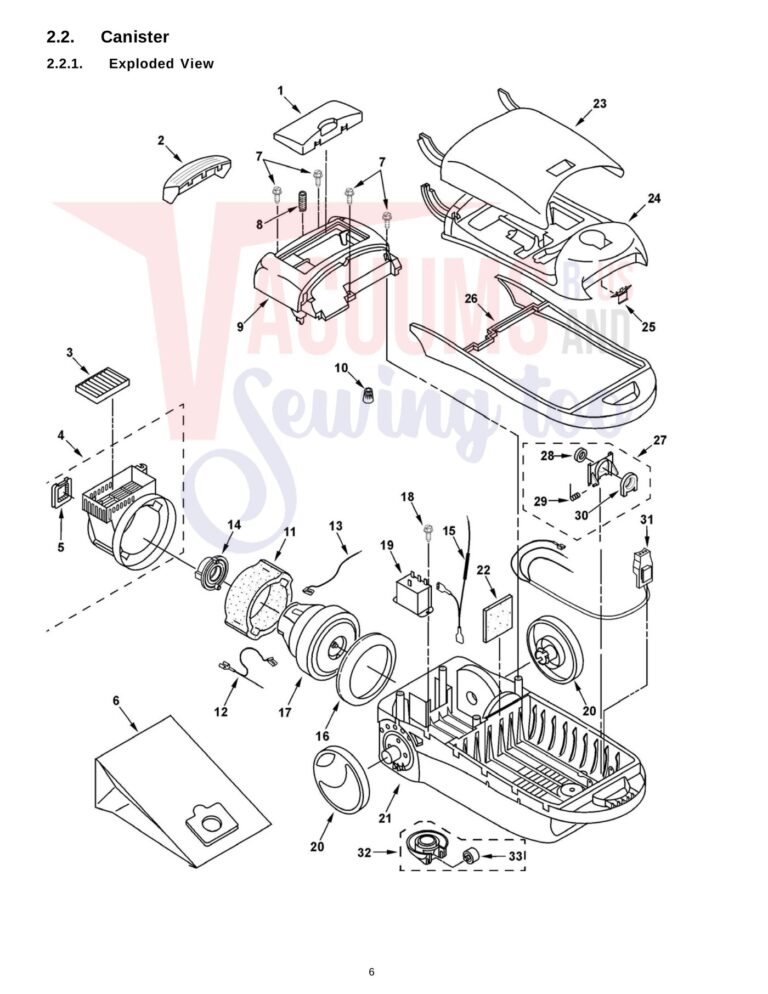

| # | Part image | Description | SKU | Price |
| 1 | Not Available | FILTER COVER | AC41KBAKZRU3 | Not Available |
| 2 | Not Available | CORD REWIND BUTTON | AC46NAKTZV06 | Not Available |
| 3 |  | Filter, Exhaust Pleated HEPA V5481/V9658/CG973 Part Number: AC38KBRMZ000 for Panasonic | AC38KBRMZ000 | $38.23Read more |
| 4 | Not Available | MOTOR ENCLOSURE | AC93FAUXZ000 | Not Available |
| 5 | Not Available | MOTOR RUBBER SUPPORT | AC03FAKTZ000 | Not Available |
| 7 | Not Available | SCREW | AMC414-8999 | Not Available |
| 8 | No Image | SPRING, CORD REEL PEDAL V9628 V9644 V9658 Part Number: AMC744-258 for Panasonic | AMC744258 | $6.06Read more |
| 9 | No Image | COVER, CANOPY MCCG902 Part Number: AC90QCZSZR03 for Panasonic | AC90QCZSZR03 | $41.36Read more |
| 10 | Not Available | WIRE CONNECTOR | AC4154460 | Not Available |
| 11 | Not Available | NOISE SUPPRESSOR | AC99GAKTZ000 | Not Available |
| 12 | Not Available | LEAD WIRE - BLACK | AC85GDMKZ000 | Not Available |
| 13 | Not Available | LEAD WIRE - WHITE | AC43GDGBZ000 | Not Available |
| 14 | Not Available | MOTOR REAR SUPPORT | AC03FAXAZ000 | Not Available |
| 15 | Not Available | LEAD WIRE ASSEMBLY | AC81GAWAZ000 | Not Available |
| 16 | Not Available | MOTOR FRONT SUPPORT | AC02FCUNZ000 | Not Available |
| 17 | Not Available | MOTOR | AC92FCJNZ000 | Not Available |
| 19 | Not Available | RELAY | AC30EAWPZ000 | Not Available |
| 20 | Not Available | WHEEL | AC99CAKTZV07 | Not Available |
| 21 | Not Available | LOWER BODY | AC03ACZSZV07 | Not Available |
| 22 | Not Available | SECONDARY FILTER | AC37KAKTZ000 | Not Available |
| 23 | No Image | Cover, Red Plastic Tool MC-CG902-00 Part Number: AC74PDMKZRU3 for Panasonic | AC74PDMKZRU3 | $32.79Read more |
| 24 | Not Available | HOOD | AC60KCRXZRU3 | Not Available |
| 25 | Not Available | BUCKLE | AC01DAKTZV07 | Not Available |
| 26 | Not Available | FURNITURE GUARD | AC31AAXAZV06 | Not Available |
| 27 | Not Available | BAG SUPPORTER ASSEMBLY | AC11KAKTZR0K | Not Available |
| 28 | Not Available | INLET (BAG) PACKING | AC64HAKTZ000 | Not Available |
| 29 | No Image | SPRING, BAG MOUNT V9647 Part Number: AMC706-024 for Panasonic | AMC706024 | $3.96Read more |
| 30 | No Image | Gasket, Circular Bag Mount MC-V9658/MC-CG902-00 Part Number: AC03LAKTZ000 for Panasonic | AC03LAKTZ000 | $7.43Read more |
| 31 | Not Available | RECEPTACLE | AC90EDBXZ006 | Not Available |
| 32 | Not Available | CASTER ROLLER UNIT | AC93CAKTZV07 | Not Available |
| 33 | No Image | WHEEL, CG973 Part Number: AC95CAKTZV06 for Panasonic | AC95CAKTZV06 | $20.25Read more |

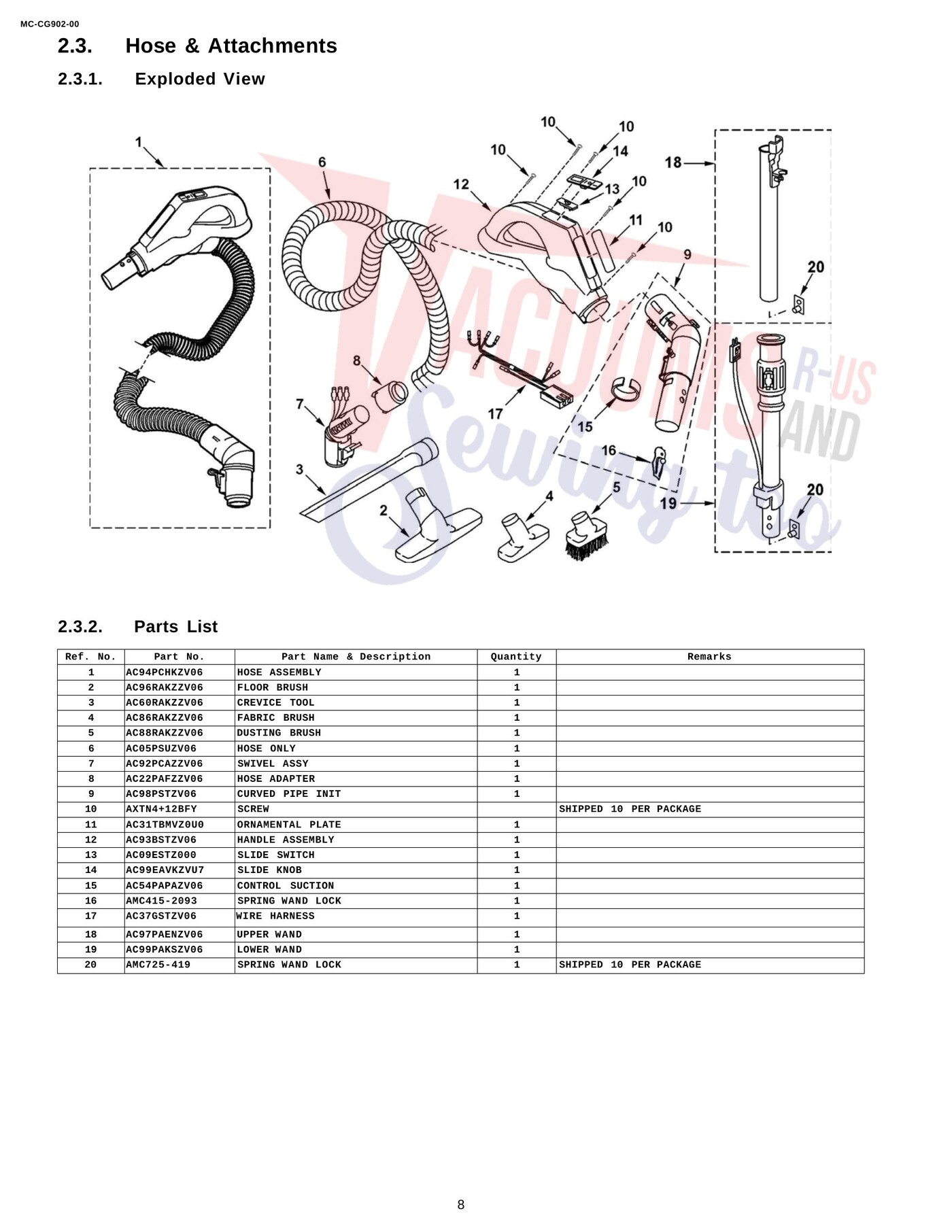

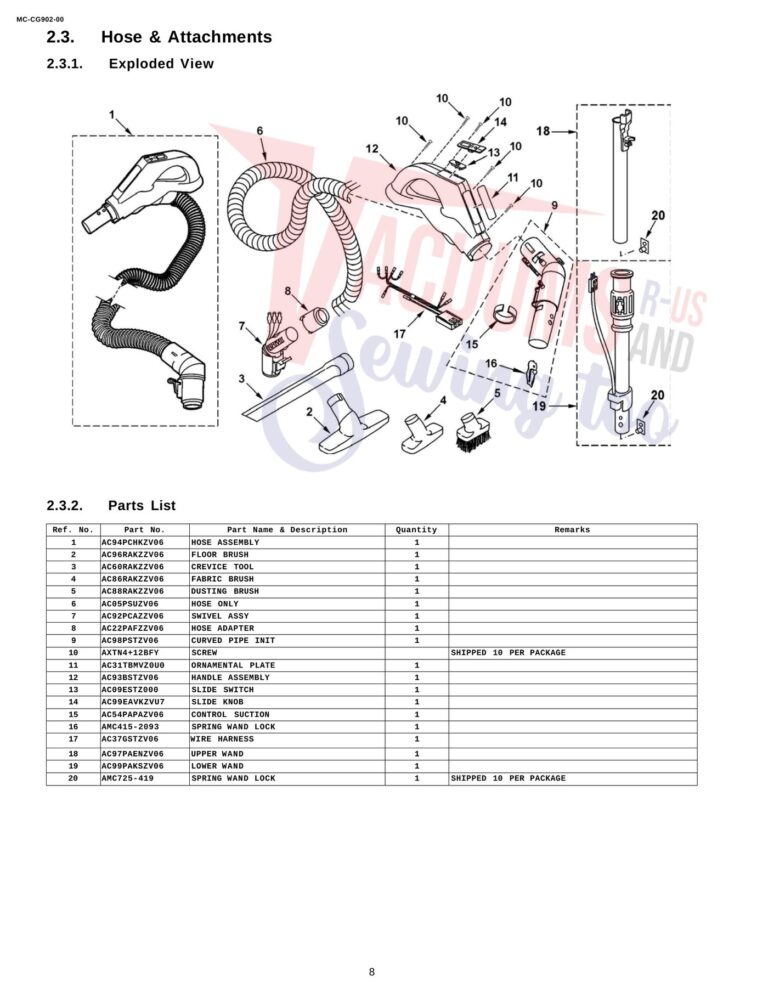

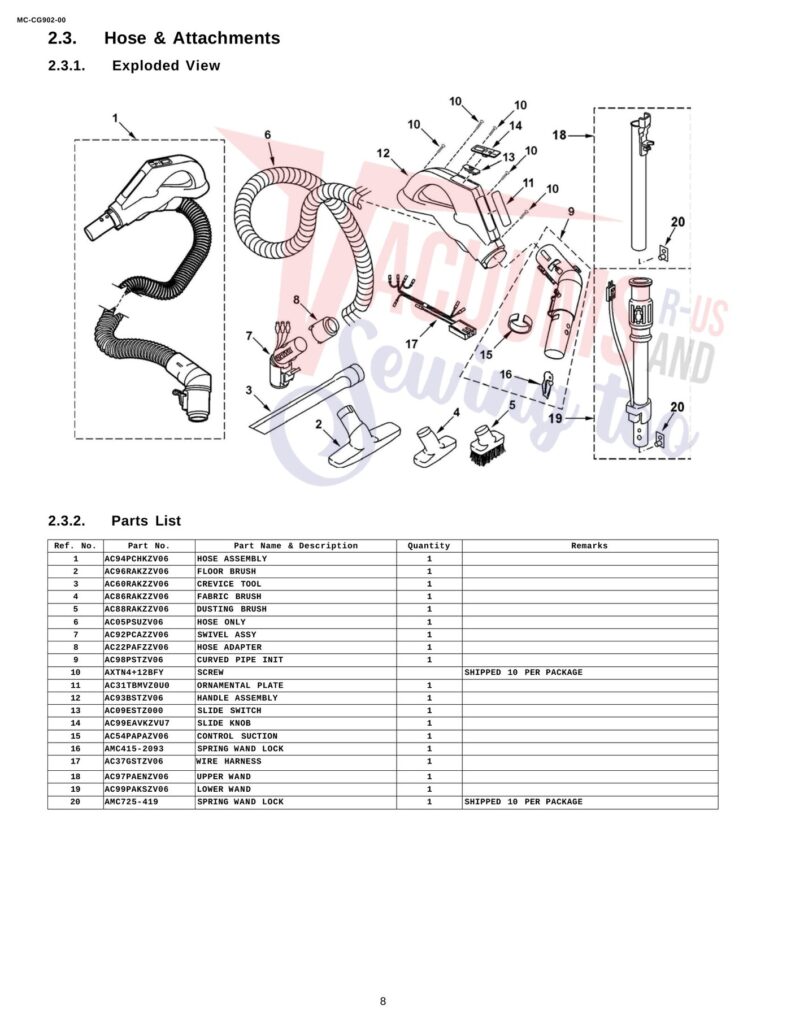

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOSE ASSEMBLY | AC94PCHKZV06 | Not Available |
| 2 | Not Available | FLOOR BRUSH | AC96RAKZZV06 | Not Available |
| 3 | Not Available | CREVICE TOOL | AC60RAKZZV06 | Not Available |
| 4 | Not Available | FABRIC BRUSH | AC86RAKZZV06 | Not Available |
| 5 | Not Available | DUSTING BRUSH | AC88RAKZZV06 | Not Available |
| 6 | Not Available | HOSE ONLY | AC05PSUZV06 | Not Available |
| 7 | Not Available | SWIVEL ASSY | AC92PCAZZV06 | Not Available |
| 8 | Not Available | HOSE ADAPTER | AC22PAFZZV06 | Not Available |
| 9 | Not Available | CURVED PIPE INIT | AC98PSTZV06 | Not Available |
| 11 | Not Available | ORNAMENTAL PLATE | AC31TBMVZ0U0 | Not Available |
| 12 | Not Available | HANDLE ASSEMBLY | AC93BSTZV06 | Not Available |
| 13 | Not Available | SLIDE SWITCH | AC09ESTZ000 | Not Available |
| 14 | No Image | COVER, SWITCH HOSE V9638 Part Number: AC99EAVKZVU7 for Panasonic | AC99EAVKZVU7 | $12.97Read more |
| 15 | Not Available | CONTROL SUCTION | AC54PAPAZV06 | Not Available |
| 16 | Not Available | SPRING WAND LOCK | AMC415-2093 | Not Available |
| 17 | Not Available | WIRE HARNESS | AC37GSTZV06 | Not Available |
| 18 | Not Available | UPPER WAND | AC97PAENZV06 | Not Available |
| 19 | Not Available | LOWER WAND | AC99PAKSZV06 | Not Available |
| 20 | Not Available | SPRING WAND LOCK 1 SHIPPED 10 PER PACKAGE | AMC725-419 | Not Available |

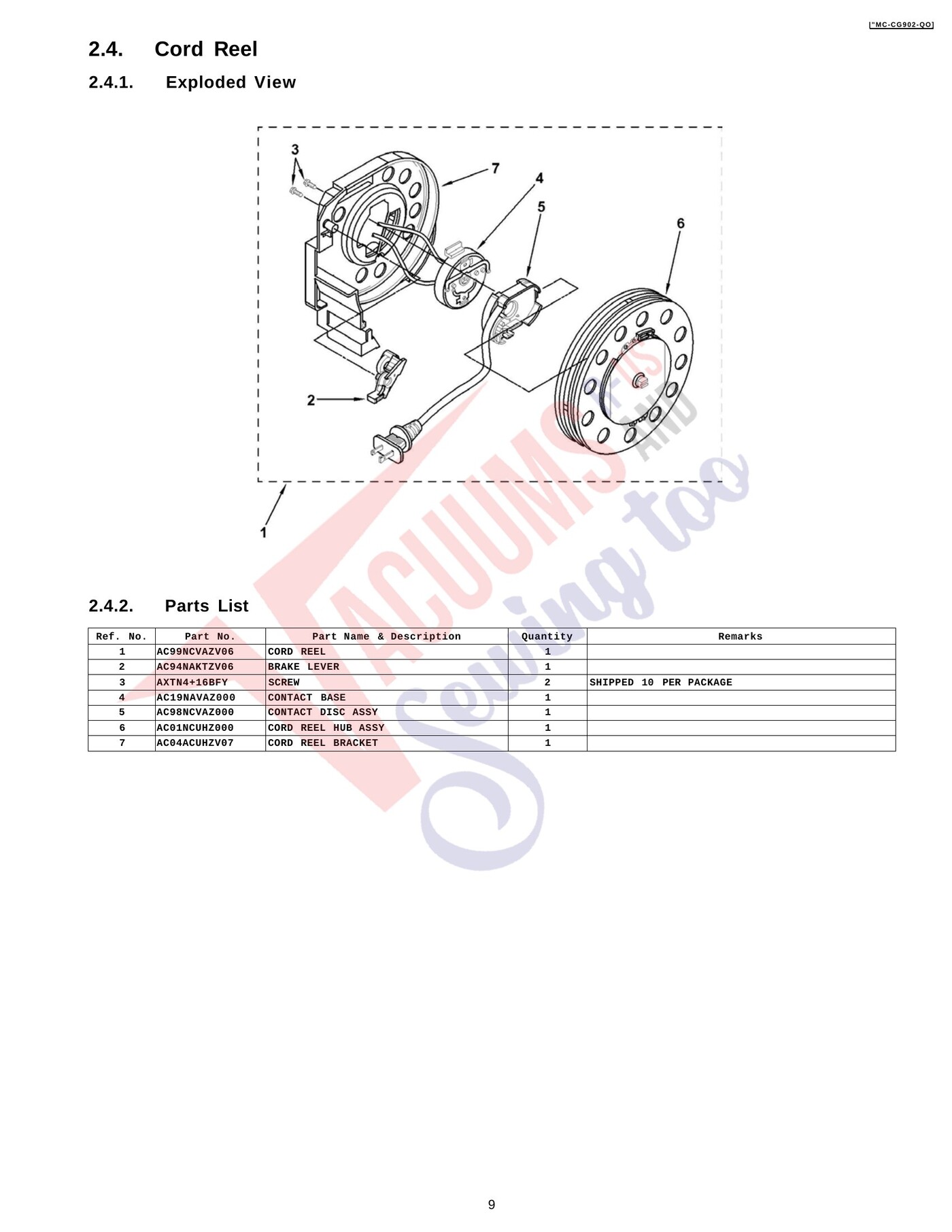

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CORD REEL | AC99NCVAZV06 | Not Available |
| 2 | Not Available | BRAKE LEVER | AC94NAKTZV06 | Not Available |
| 4 | Not Available | CONTACT BASE | AC19NAVAZ000 | Not Available |
| 5 | Not Available | CONTACT DISC ASSY | AC98NCVAZ000 | Not Available |
| 6 | Not Available | CORD REEL HUB ASSY | AC01NCUHZ000 | Not Available |
| 7 | Not Available | CORD REEL BRACKET | AC04ACUHZV07 | Not Available |
