Schematic and parts book for Panasonic MC-CG901 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

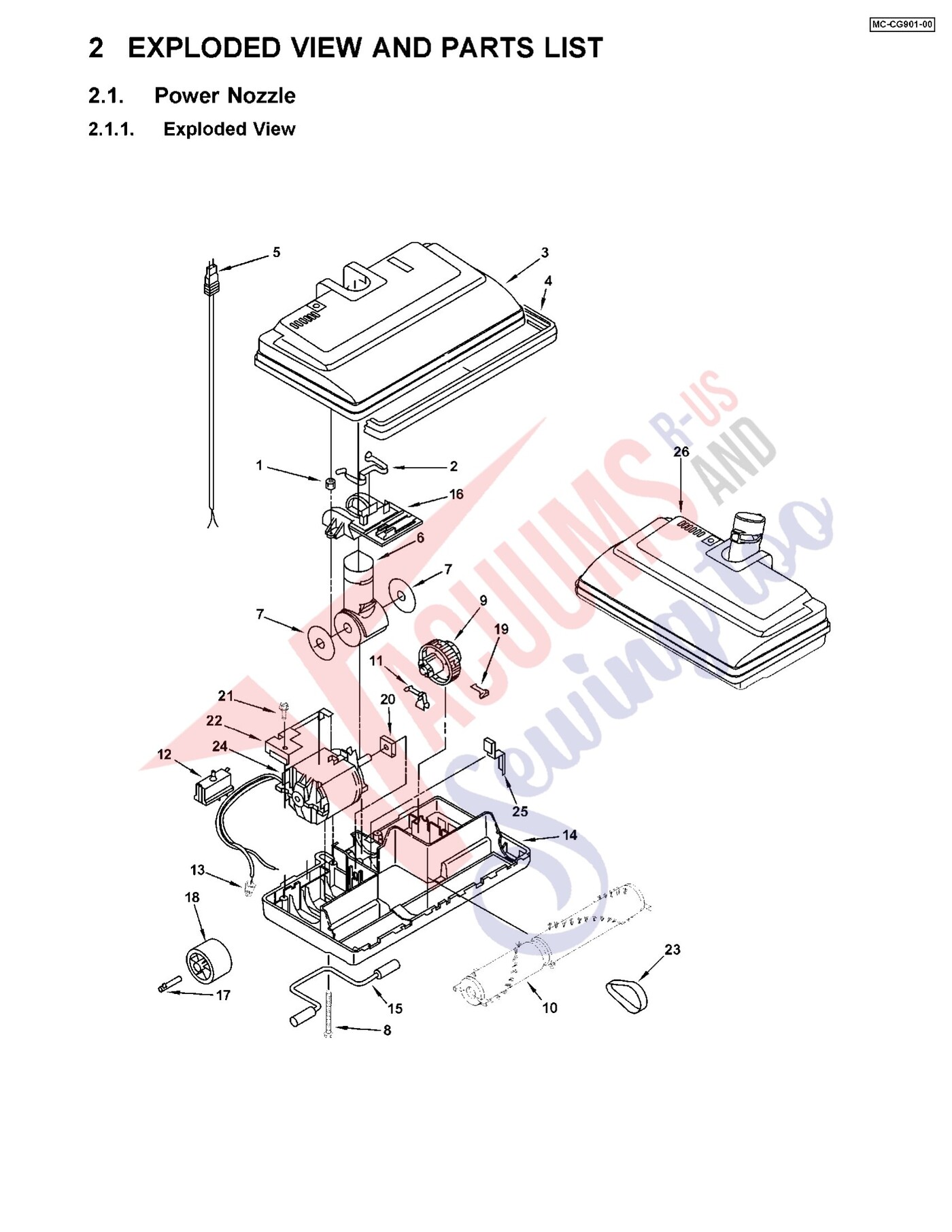

| # | Part image | Description | SKU | Price |
| 1 | Not Available | On-Sert | AMC681-267 | Not Available |
| 2 | Not Available | Swivel Catch | AMC741-720 | Not Available |
| 3 | Not Available | Nozzle-Upper | AC02RDNPZPUC | Not Available |
| 4 | Not Available | Bumper | AC10ANGZV06 | Not Available |
| 5 |  | CORD, POWER NOZZLE CG901 CANISTER Part Number: AC73EDFNZV06 for Panasonic | AC73EDFNZV06 | $24.27Read more |
| 6 | Not Available | Swivel | AC50PAMFZV06 | Not Available |
| 7 | Not Available | Swivel Seal | AMC741-423 | Not Available |
| 8 | Not Available | Screw | AMC681-638 | Not Available |
| 9 | Not Available | Indicator Cam | AMC414-7437 | Not Available |
| 10 |  | BRUSHROLL, CG901 CANISTER PN Part Number: AC84RCXSZ000 for Panasonic | AC84RCXSZ000 | $46.64Read more |
| 11 | Not Available | Lifter | AMC742-013 | Not Available |
| 12 | Not Available | Overload Protector | AC97KAXEZV04 | Not Available |
| 13 | Not Available | Wire Connector | AMC-1CTCE23 | Not Available |
| 14 | Not Available | Floor Nozzle-Lower | AC03RBBAZV07 | Not Available |
| 15 | Not Available | Front Axle | AMC742-939 | Not Available |
| 16 | Not Available | Swivel Cap | AC25QATTZV06 | Not Available |
| 17 | Not Available | Roller Shaft | AC16CNXZ00 | Not Available |
| 18 |  | Wheel, Front V321/V225/V7314 2Pk Part Number: AC90QNGZV06 for Panasonic | AC90QNGZV06 | $20.33Read more |
| 19 | Not Available | Ratchet Catch | AMC742-016 | Not Available |
| 20 | Not Available | Seal-Motor Shaft | AMC743-498 | Not Available |
| 21 | Not Available | Screw | AMC681-297 | Not Available |
| 22 | Not Available | Motor Bracket | AMC705-092 | Not Available |
| 23 | Not Available | Belt | AMC742-664 | Not Available |
| 24 |  | MOTOR, CG901 Part Number: AC90FCASZ000 for Panasonic | AC90FCASZ000 | $73.94Read more |
| 25 | Not Available | Belt Guard | AMC742-685 | Not Available |
| 26 | Not Available | Power Nozzle Assembly | AC50XDNPZP0C | Not Available |

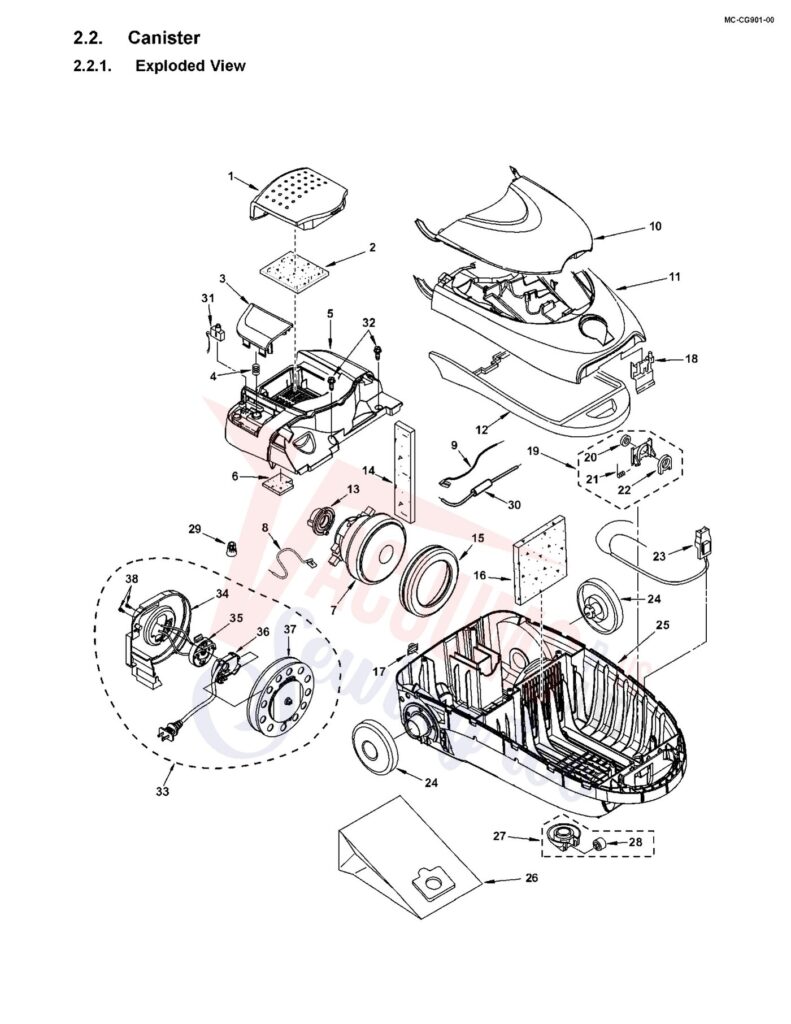

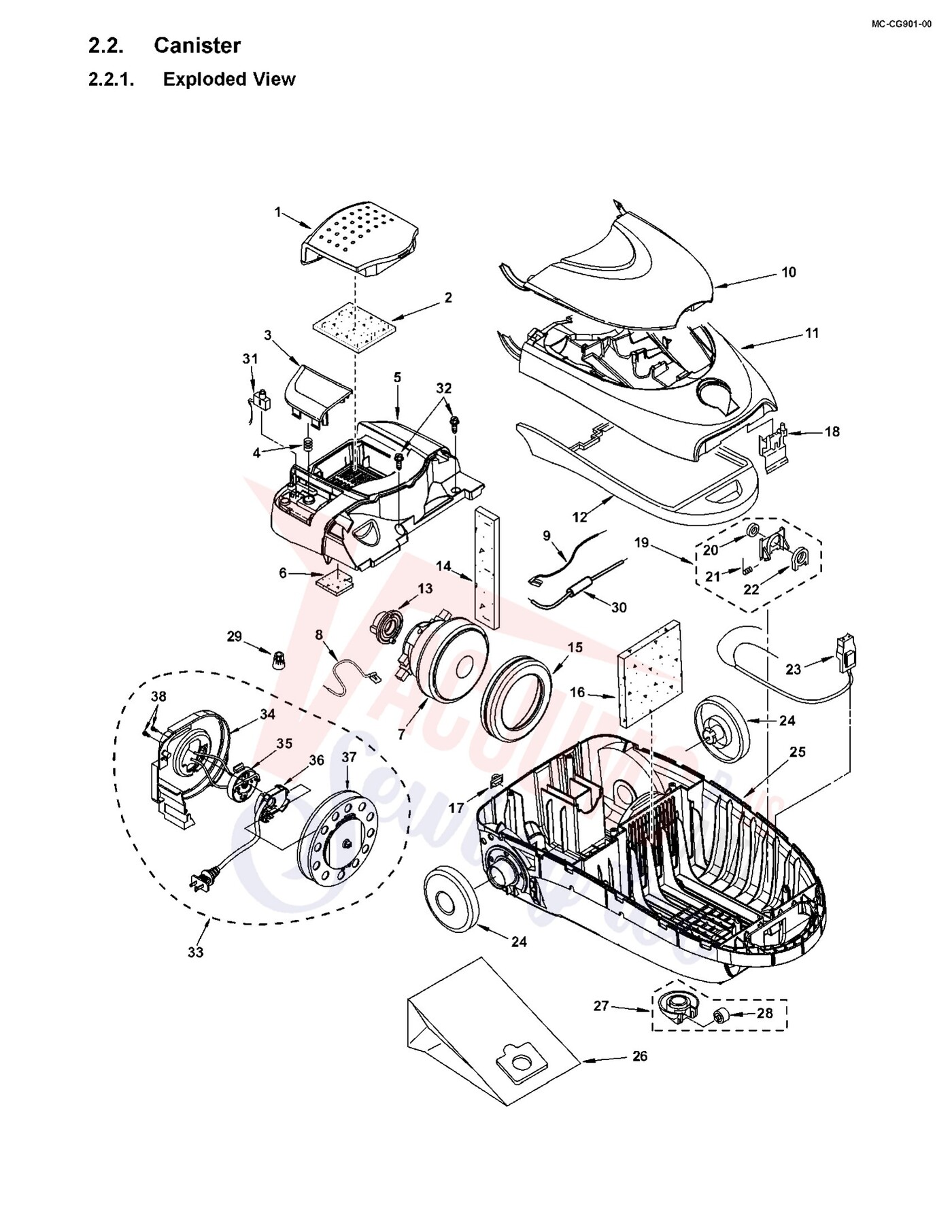

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Filter Cover | AC41KAKVZVU6 | Not Available |
| 2 |  | Filter, Exhaust Pleated HEPA V5481/V9658/CG973 Part Number: AC38KBRMZ000 for Panasonic | AC38KBRMZ000 | $38.23Read more |
| 3 | Not Available | ON/OFF Button | AC46NAXVZP0C | Not Available |
| 4 | Not Available | Cord Button Spring | AC71NBARZ000 | Not Available |
| 5 | Not Available | Canopy | AC90QBPJZP03 | Not Available |
| 6 | Not Available | Secondary Filter | AC38KBARZ000 | Not Available |
| 7 | Not Available | Fan Motor | AC92FDGWZ000 | Not Available |
| 8 | Not Available | Lead Wire - White | AC43GDGBZ000 | Not Available |
| 9 | Not Available | Lead Wire - Black | AC38GDCNZ000 | Not Available |
| 10 | Not Available | Tool Cover | AC74PDNPZPUC | Not Available |
| 11 | Not Available | Hood | AC60KBPJZPUC | Not Available |
| 12 | Not Available | Furniture Guard | AC31AAXAZV06 | Not Available |
| 13 | Not Available | Motor Support | AC03FAXAZ000 | Not Available |
| 14 | Not Available | Noise Suppressor | AC99GAMMZ00 | Not Available |
| 15 | Not Available | Motor Support | AC02FCPSZ000 | Not Available |
| 16 |  | FILTER, SECONDARY Part Number: AC37KAXAZ000 for Panasonic | AC37KAXAZ000 | $3.03Read more |
| 17 | Not Available | Cord Hook | AC14NNJZV06 | Not Available |
| 18 | Not Available | Hood Latch | AC01DAXAZV06 | Not Available |
| 19 | Not Available | Bag Support | AC11KAKTZR0K | Not Available |
| 20 | Not Available | Inlet Packing | AC64HAKTZ000 | Not Available |
| 21 | No Image | SPRING, BAG MOUNT V9647 Part Number: AMC706-024 for Panasonic | AMC706024 | $3.96Read more |
| 22 | No Image | Gasket, Circular Bag Mount MC-V9658/MC-CG902-00 Part Number: AC03LAKTZ000 for Panasonic | AC03LAKTZ000 | $7.43Read more |
| 23 | Not Available | Receptacle (2-wire) | AC90EAXAZV06 | Not Available |
| 24 | Not Available | Wheel | AC01CAXAZV07 | Not Available |
| 25 | No Image | LOWER HOUSING, MAIN BODY CANISTER MCCG901 Part Number: AC03AAXAZV07 for Panasonic | AC03AAXAZV07 | $58.06Read more |
| 27 | Not Available | Caster Roller | AC93CAKTZV07 | Not Available |
| 28 | No Image | WHEEL, CG973 Part Number: AC95CAKTZV06 for Panasonic | AC95CAKTZV06 | $20.25Read more |
| 29 | Not Available | Wire Connector | AC4154460 | Not Available |
| 30 | Not Available | Lead Assembly | AC99WBARZ000 | Not Available |
| 31 | Not Available | ON/OFF Switch | AC01EAMMZ000 | Not Available |
| 32 | Not Available | Screw | AMC414-8999 | Not Available |
| 33 |  | CORD REEL, CG901 Part Number: AC99NCZAZV06 for Panasonic | AC99NCZAZV06 | $122.45Read more |
| 34 | Not Available | Cord Reel Bracket | AC04ACZAZV07 | Not Available |
| 35 | Not Available | Contact Base | AC19NAVAZ000 | Not Available |
| 36 | Not Available | Contact Disc Assembly | AC98NBMYZV06 | Not Available |
| 37 | Not Available | Cord Reel Hub | AC01NAXAZ010 | Not Available |

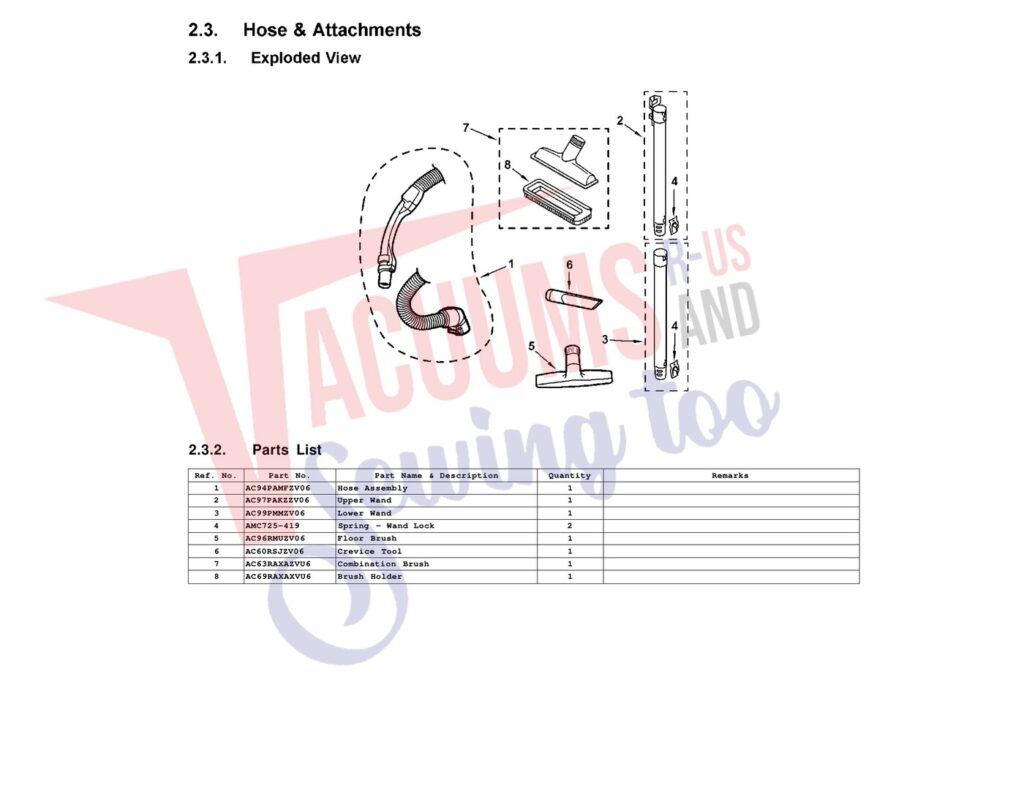

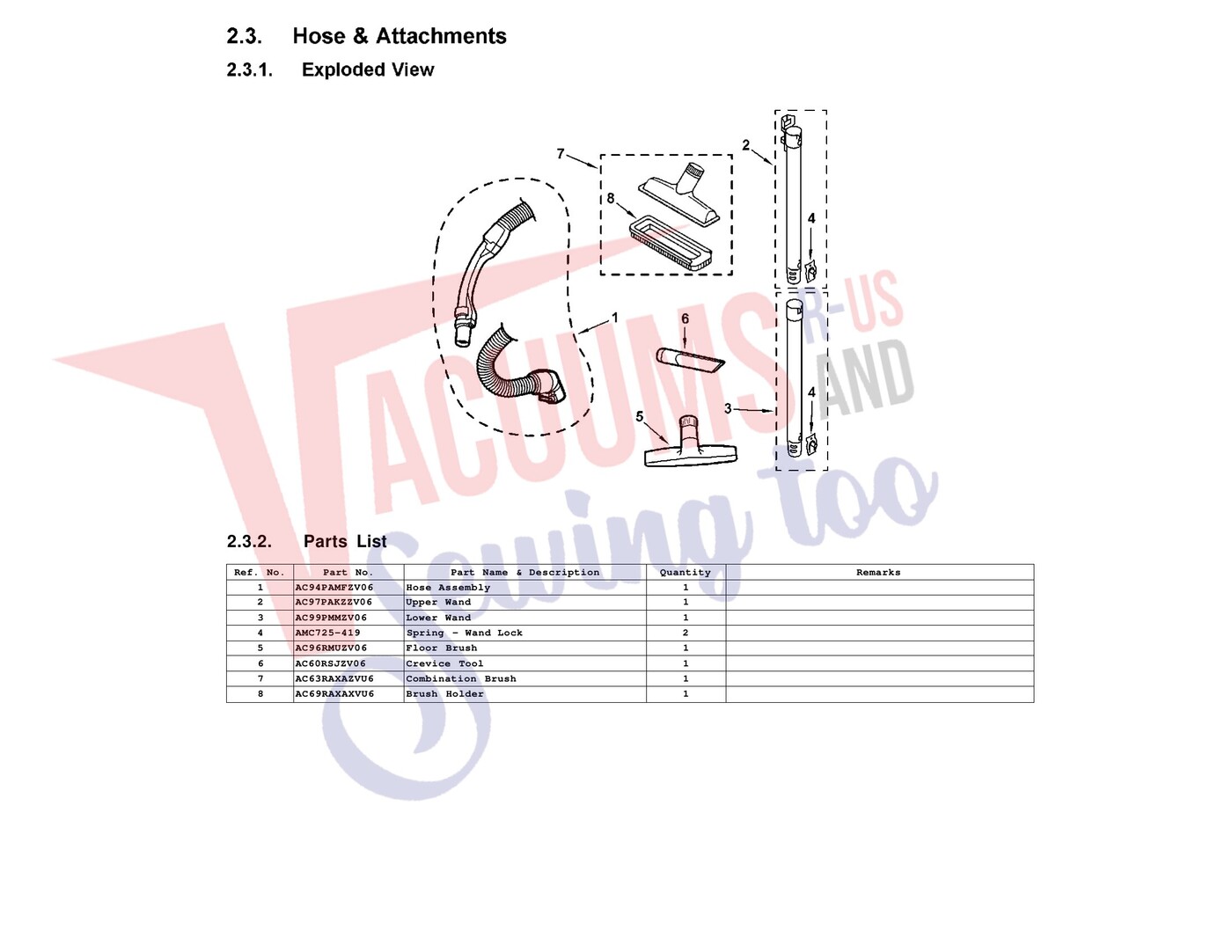

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hose Assembly | AC94PAMFZV06 | Not Available |
| 2 | No Image | WAND, UPPER V9626 Part Number: AC97PAKZZV06 for Panasonic | AC97PAKZZV06 | $51.83Read more |
| 3 | Not Available | Lower Wand | AC99PMMZV06 | Not Available |
| 4 | Not Available | Spring - Wand Lock | AMC725-419 | Not Available |
| 5 | Not Available | Floor Brush | AC96RMUZV06 | Not Available |
| 6 |  | CREVICE TOOL, CG983/985 Part Number: AC60RSJZV06 for Panasonic | AC60RSJZV06 | $5.73Read more |
| 7 | Not Available | Combination Brush | AC63RAXAZVU6 | Not Available |
| 8 | Not Available | Brush Holder | AC69RAXAXVU6 | Not Available |
