Schematic and parts book for Panasonic IMC-GG525 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

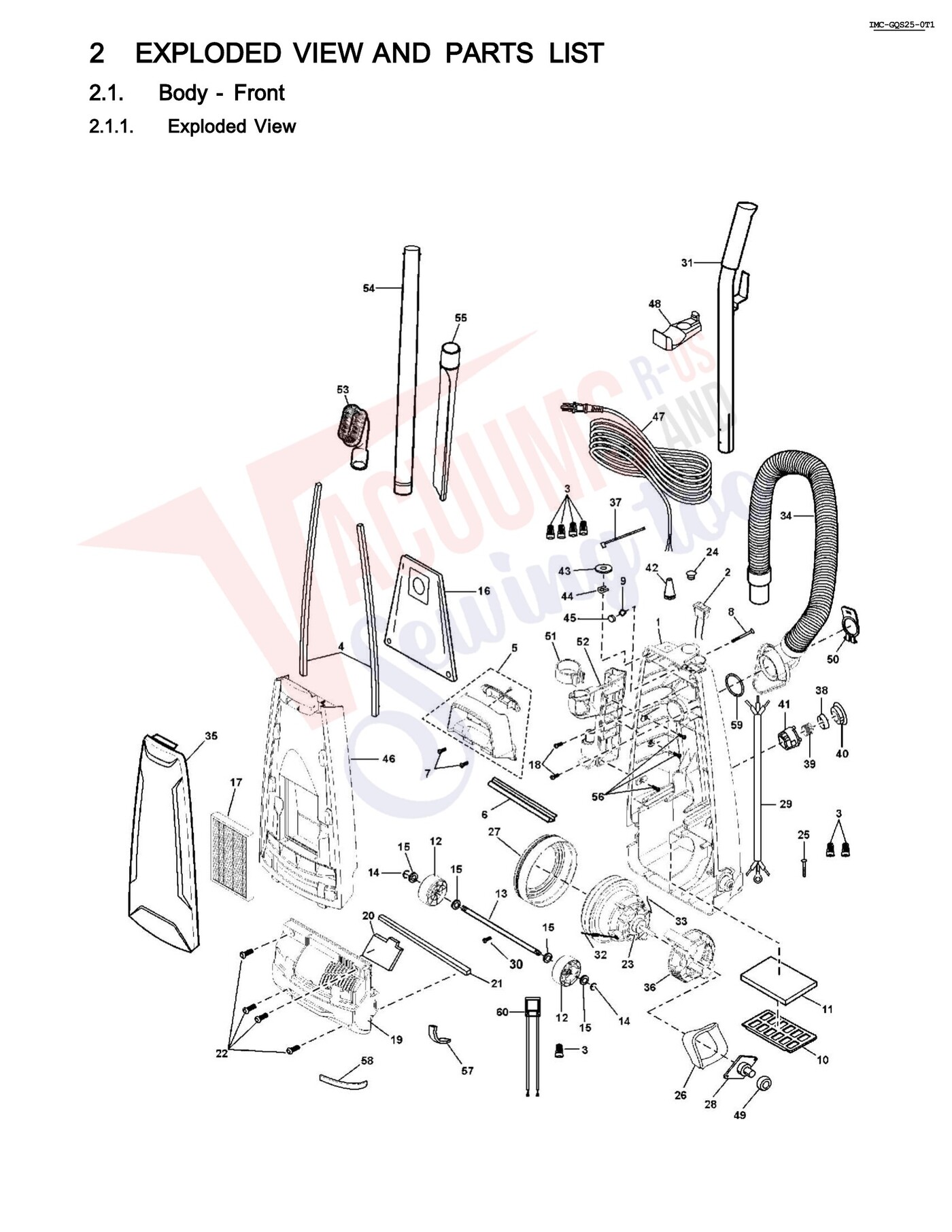

| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST COMPARTMENT UNIT | AC88KDKAZV07 | Not Available |
| 2 | Not Available | ON/OFF SWITCH | AC01EDEVZU00 | Not Available |
| 3 | Not Available | WIRE CONNECTOR | AMC-1CTCE23 | Not Available |
| 5 | Not Available | SWITCH COVER ASSEMBLY MACHINED | AC80FDTBZN05 | Not Available |
| 7 | Not Available | HANDLE SCREW | AC73BDTBZ000 | Not Available |
| 8 |  | SCREW, HANDLE 5100 SERIES AMC73B-V00 Part Number: AMC73B-V00 for Panasonic | AMC73BV00 | $4.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Nut-Panasonic 5100 Handle Bolt - 10Pk For: panasonic | AMP21B170 | $4.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | FILTER SUPPORTER | AMC32K-V00 | Not Available |
| 11 |  | Filter, Secondary Foam Panasonic Part Number: AMC37K-V00 for Panasonic | AMC37KV00 | $4.63Read more |
| 12 |  | WHEEL FOR P-MCUG729 Part Number: AC99CBSAZV07 for Panasonic | AC99CBSAZV07 | $8.67Read more |
| 13 |  | Shaft-Panasonic Mc-Ug725 Optiflo Upright For: panasonic | AC16CDSSZ000 | $26.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | RING CLIP | AC23FBVNZ000 | Not Available |
| 15 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | DUST BAG (TYPE U12) | AC16KDDWZ000 | Not Available |
| 17 | Not Available | EXHAUST FILTER (HEPA) LARGE | AC38KCNPZ000 | Not Available |
| 19 | Not Available | MOTOR CASE (MACHINED) | AC99FDUVZN05 | Not Available |
| 20 | Not Available | REAR COVER PACKING | AC02LDUVZ000 | Not Available |
| 21 | Not Available | MOTOR CASE PACKING | AC19FJPZV06 | Not Available |
| 23 |  | Motor, MCGG233/MCGG523/MCGG525/V5297/V5283/V5210 Part Number: AC92FBJZZ000 for Panasonic | AC92FBJZZ000 | $150.70Read more |
| 24 | Not Available | COVER CAP | AC38HAPNZU00 | Not Available |
| 26 | Not Available | NOISE SUPPRESSOR | AC99GAMMZ00 | Not Available |
| 27 | Not Available | MOTOR SUPPORT RUBBER (FRONT) | AMC02F-E00 | Not Available |
| 28 | Not Available | FLANGE | AC25SBSKZ000 | Not Available |
| 29 | Not Available | WIRE CORD | AC37GTEZ0U | Not Available |
| 31 |  | Handle-Panasonic Mc-V5210 Commercial Upright For: panasonic | AC95BATNZV07 | $67.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | LEAD WIRE FUSE ASSEMBLY | AC99WDEKZ000 | Not Available |
| 33 | Not Available | BLACK LEAD WIRE UNIT | AC38GDCNZ000 | Not Available |
| 34 | Not Available | HOSE UNIT (STRETCH) | AC84PJPZV07 | Not Available |
| 35 | Not Available | FRONT COVER (DECO) | AC01HDUTZUU3 | Not Available |
| 36 | Not Available | MOTOR CAP | AC26FCHTZ000 | Not Available |
| 37 | Not Available | WIRE TIE | AMC596-702 | Not Available |
| 38 | Not Available | PROTECTOR | AC69KJMZV07 | Not Available |
| 39 | No Image | SPRING, PROTECTION V5740 Part Number: AC70KAGZZR00 for Panasonic | AC70KAGZZR00 | $3.47Read more |
| 40 | Not Available | PROTECTOR SUPPORT | AC18MJMZV0 | Not Available |
| 41 | Not Available | PROTECTOR CASE | AC68KJMZV07 | Not Available |
| 42 | Not Available | RUBBER PROTECTOR | AC51E4GZU01 | Not Available |
| 43 | Not Available | FLAT WASHER | AXWE10J223FE | Not Available |
| 44 | Not Available | CORD STOPPER | AC06WAPNZ00 | Not Available |
| 45 | Not Available | PACKING | AC61LAGMZ00 | Not Available |
| 46 | Not Available | DUST COVER | AC60KDTBZN05 | Not Available |
| 47 | Not Available | POWER CORD | AC94EAPNZV07 | Not Available |
| 48 | Not Available | HOSE HOLDER | AC23PJPZV07 | Not Available |
| 49 | Not Available | MOTOR SUPPORT RUBBER | AC03FAFYZ000 | Not Available |
| 50 | Not Available | HYU ZV07 COVER | AC02 | Not Available |
| 51 | Not Available | HOSE HOOK | AC53RJPZV07 | Not Available |
| 52 | Not Available | WAND HOLDER | AC70PJPZV07 | Not Available |
| 53 | Not Available | DUSTING BRUSH | AC88RYUZV07 | Not Available |
| 54 | No Image | WAND, EXTENSION MCUG327 Part Number: AC40PJPZV07 for Panasonic | AC40PJPZV07 | $27.13Read more |
| 55 | Not Available | CREVICE TOOL | AC60RZFZV07 | Not Available |
| 57 | Not Available | BODY PACKING | AC19ADKJZ000 | Not Available |
| 58 | Not Available | BODY PACKING | AC19ADHKZ000 | Not Available |
| 59 | Not Available | PACKING | AC64HDHKZ000 | Not Available |
| 60 | Not Available | THERMAL PROTECTOR | AC98WDUSZ000 | Not Available |
| # | Part image | Description | SKU | Price |

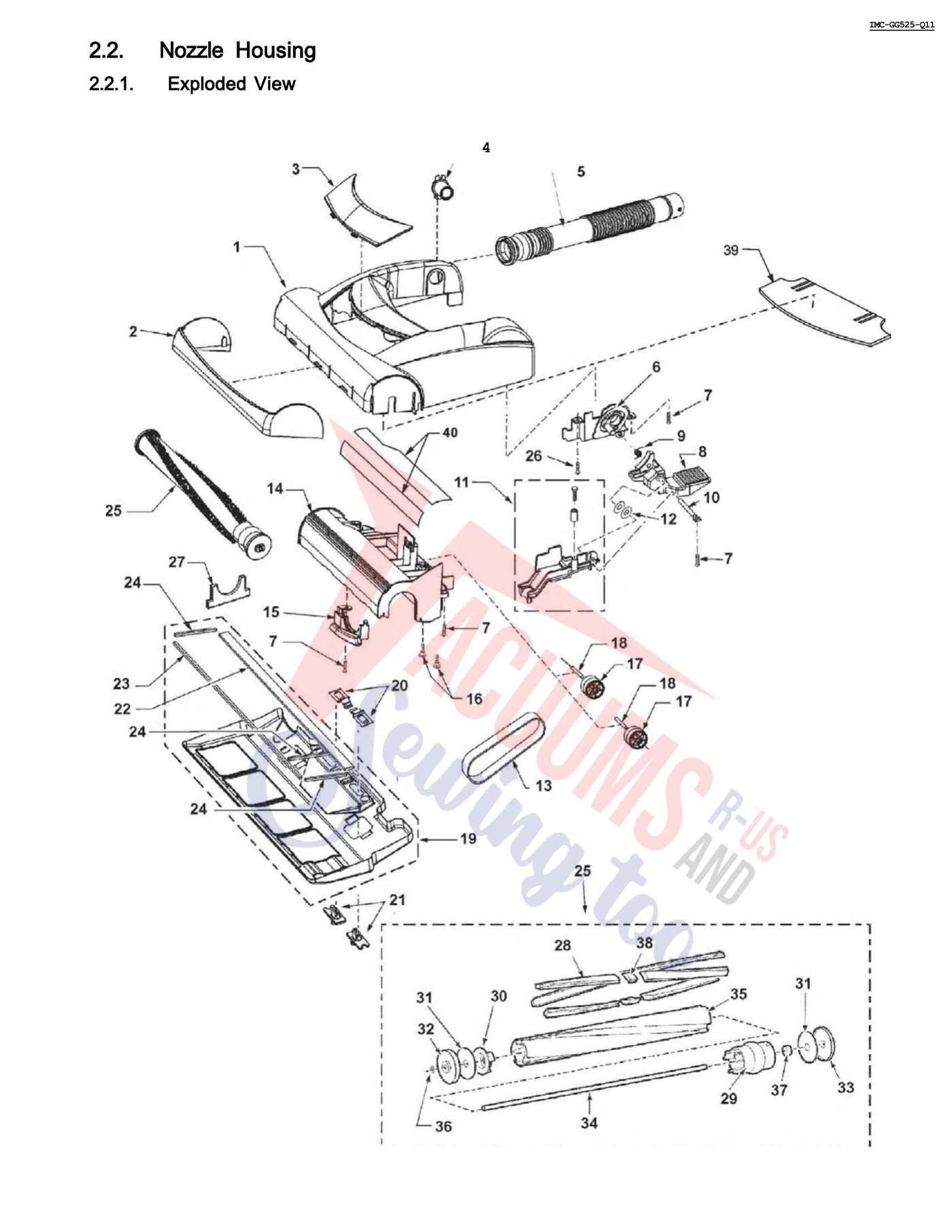

| 1 | Not Available | NOZZLE HOUSING | AC01ADUTZUU3 | Not Available |
| 2 |  | Bumper, Dark Gray Rubber V5210 Part Number: AC10ACRSZV07 for Panasonic | AC10ACRSZV07 | $28.81Read more |
| 3 | Not Available | WINDOW | AC21HCRSZU03 | Not Available |
| 4 | Not Available | PLASTIC SHAFT | AMC25S-V00 | Not Available |
| 5 | Not Available | PAJD ZV07 PLASTIC HOSE | AC34 | Not Available |
| 6 | Not Available | BRACKET ASSEMBLY | AC43AAFYZ00 | Not Available |
| 8 |  | Pedal, Blk Handle Release MC-V413/MC-V5210 Part Number: AC47A2VZV07 for Panasonic | AC47A2VZV07 | $10.03Read more |
| 9 | Not Available | 0 0 SPRING (PEDAL) | AC58AAFVZ | Not Available |
| 10 | Not Available | SHAFT (PEDAL) | AMC51A-2V0 | Not Available |
| 11 | Not Available | BELT COVER ASSEMBLY | AC11S2VZW00 | Not Available |
| 12 | Not Available | COVER WASHER | AC62FAVGZ00 | Not Available |
| 13 | Not Available | BELT | AC28SJPZ00 | Not Available |
| 14 | Not Available | BODY UPPER | AC02ACRSZWOH | Not Available |
| 15 | Not Available | CAP BODY | AC12ACRSZWOH | Not Available |
| 16 | No Image | SCREW, NOZZLE HOUSING 10 PACK Part Number: AMC68A-V30 for Panasonic | AMC68AV30 | $6.66Read more |
| 17 | Not Available | QNG ZV06 WHEELS | AC90 | Not Available |
| 18 | Not Available | SHAFT (WHEELS) | AC16CNXZ00 | Not Available |
| 19 |  | BOTTOM PLATE, WITHOUT WHEELS V5269 V5271 Part Number: AC91ACRSZ000 for Panasonic | AC91ACRSZ000 | $72.78Read more |
| 20 | Not Available | SPRING (STOP LATCH) | AC70NYUZ00 | Not Available |
| 21 | Not Available | LATCH LOWER PLATE | AMC68N-V30K | Not Available |
| 22 | Not Available | PACKING (LOWER PLATE) | AC74ACRSZ000 | Not Available |
| 23 | Not Available | PACKING (LOWER PLATE) | AC74ACRRZ000 | Not Available |
| 24 | Not Available | PACKING (LOWER PLATE) | AMC39A-2V0 | Not Available |
| 25 |  | Brushroll, Metal V5203, V5204 V5278 & V7388 Part Number: AC92SBVNZ000 for Panasonic | AC92SBVNZ000 | $98.23Read more |
| 27 | Not Available | AGITATOR HOLDER | AC82ACRRZV07 | Not Available |
| 28 |  | Brush Strip, V5203/V5204/V5210/V5269/V7319 6Pk Part Number: AC85RBFT0000 for Panasonic | AC85RBFT0000 | $69.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | Not Available | AGITATOR PULLEY | AC29SBVNZ000 | Not Available |
| 30 | Not Available | AGITATOR HOLDER | AC41SBVNZ000 | Not Available |
| 31 |  | FILTER, FELT BRUSHROLL V5204, V6603 COMM UPRT Part Number: AC44KBVNZ000 for Panasonic | AC44KBVNZ000 | $7.22Read more |
| 32 | Not Available | END CAP (RIGHT) | AC96DBVNZ000 | Not Available |
| 33 | Not Available | END CAP (LEFT) | AC97DBVNZ000 | Not Available |
| 34 | Not Available | AGITATOR SHAFT | AC57RBVNZ000 | Not Available |
| 35 | Not Available | AGITATOR | AC56RBYYZ000 | Not Available |
| 36 | Not Available | E-CLIP | AC23FBVNZ000 | Not Available |
| 37 | Not Available | SPACER | AC74SBVNZ000 | Not Available |
| 38 | Not Available | SPACER (BRUSHES) | AC34SBYYZ000 | Not Available |
| 39 | Not Available | NOZZLE PACKING | AC04RDTAZ000 | Not Available |
| 40 | Not Available | PACKING | AC75ADSSZ000 | Not Available |
