Schematic and parts book for Panasonic CG973, V9658 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

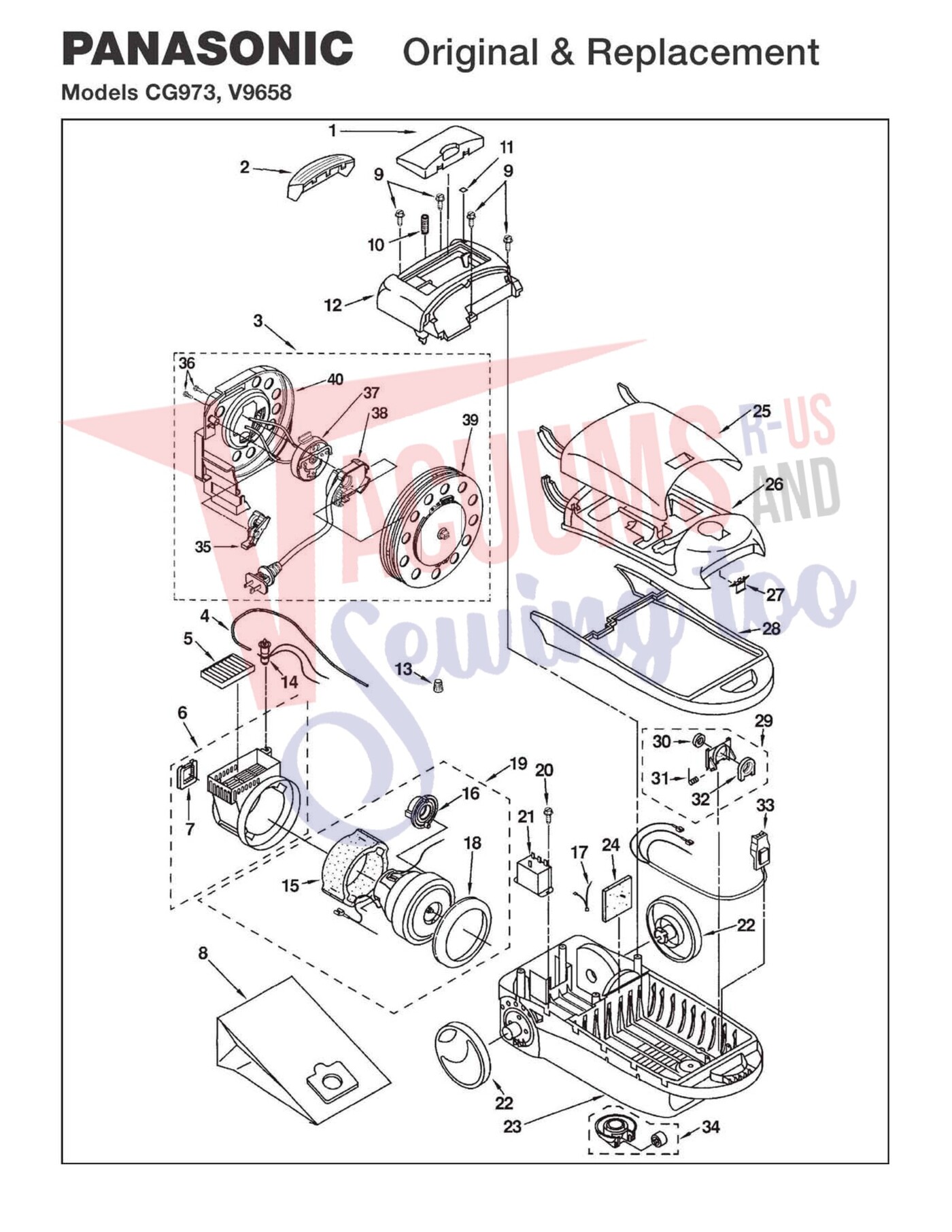

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Filter Cover v9658 | 41KBAKZBUZ | Not Available |
| 1 | Not Available | Filter Cover CG973 | 41KBAKZCU4 | Not Available |
| 2 | Not Available | Cord Rewind Button | 46NAKTZV06 | Not Available |
| 3 | Not Available | Cord Reel v9658 | 30786 | Not Available |
| 3 | Not Available | Cord Reel CG973 | 30777 | Not Available |
| 4 | Not Available | Tube switch v9658 | 62PAKTZ000 | Not Available |
| 5 | Not Available | Exhaust Filter (HEPA) | 18046 | Not Available |
| 5 | Not Available | Exhaust Filter (hePa) Packaged | 18047 | Not Available |
| 5 |  | Kenmore EF-2 HEPA Filter - 471194 | KER1805 | $10.99Add to cart |
| 6 | Not Available | Motor shield | 93FAUXZ000 | Not Available |
| 7 | Not Available | Rubber Motor support | 03FAKTZ000 | Not Available |
| 8 | Not Available | Paper Bag C5 Microfiltration 3 Pk | MC150M | Not Available |
| 8 | Not Available | Paper Bag C5 Micro-Lined | KER-14551 | Not Available |
| 8 | Not Available | Paper Bag C5 Microfiltration | KER-14550 | Not Available |
| 9 | Not Available | screw (Canopy Cover) | 414-8999 | Not Available |
| 10 | Not Available | screw (Cord Rewind Button) | 744-258 | Not Available |
| 11 | Not Available | Window indicator | 08MCRXZ000 | Not Available |
| 12 | Not Available | Canopy Cover v9658 | 95HAUYZBUZ | Not Available |
| 12 | Not Available | Canopy Cover CG973 | 90QCZSZC04 | Not Available |
| 13 | Not Available | Wire Nut | SS-3270 | Not Available |
| 14 | Not Available | Performance indicator Light v9658 | 96MAKTZ000 | Not Available |
| 15 | Not Available | Noise suppressor | 99GAKTZ000 | Not Available |
| 16 | Not Available | Motor support (Rear) | 03FAXAZ000 | Not Available |
| 17 | Not Available | Lead Wire | 81GAWAZ000 | Not Available |
| 18 | Not Available | Motor support (Front) v9658 | 02FBUYZ000 | Not Available |
| 18 | Not Available | Motor support (Front) CG973 | 02FCUNZ000 | Not Available |
| 19 | Not Available | Motor Ass'y v9658 | 60188 | Not Available |
| 19 | Not Available | Motor Ass'y CG973 | 60189 | Not Available |
| 20 | Not Available | screw | XTN4-14BFY | Not Available |
| 21 |  | Wand-Centec W/Button Lower - Button Down - Upper
1 1/4 For: cen-tec | 36027 | $48.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Wheel Rear | 71077 | Not Available |
| 23 | Not Available | Lower Body v9658 | 03AAUYZV07 | Not Available |
| 23 | Not Available | Lower Body CG973 | 03ACZSZV07 | Not Available |
| 24 | Not Available | secondary Filter | 18076 | Not Available |
| 25 | Not Available | Tool storage Cover v9658 | 74PCRXZBUZ | Not Available |
| 25 | Not Available | Tool storage Cover CG973 | 74PDDJZCU4 | Not Available |
| 26 | Not Available | Dust Cover v9658 | 60KCRXZBUZ | Not Available |
| 26 | Not Available | Dust Cover CG973 | 60KCRXZCU4 | Not Available |
| 27 | Not Available | DAKTZV07 Dust Cover Latch | 01 | Not Available |
| 28 | Not Available | Furniture Guard | 31AAXAZV06 | Not Available |
| 29 | Not Available | Bag Mount | 11KAKTZR01 | Not Available |
| 30 | Not Available | Packing (inlet) | 64HAKTZ000 | Not Available |
| 31 | Not Available | spring Bag Mount | 706-024 | Not Available |
| 32 | Not Available | Gasket Bag Mount | 03LAKTZ000 | Not Available |
| 33 | Not Available | Receptacle v9658 | 90EAKTZV06 | Not Available |
| 33 | Not Available | Receptacle CG973 | 90EDBXZ006 | Not Available |
| 34 | Not Available | Castor swivel Ass'y | 93CAKTZV07 | Not Available |
| 35 | Not Available | Brake Lever Ass'y | 94NAKTZV06 | Not Available |
| 36 | Not Available | screw | 77020 | Not Available |
| 37 | Not Available | Contact Base Ass'y | 19NAVAZ000 | Not Available |
| 38 | Not Available | Contact disc Ass'y v9658 | 98NAKTZ000 | Not Available |
| 38 | Not Available | Contact Disc Ass'y CG973 | 98NCVAZ000 | Not Available |
| 39 | Not Available | NAKTZ000 Cord Reel Hub Ass'y v9658 | 01 | Not Available |
| 39 | Not Available | NCUHZ000 Cord Reel Hub Ass'y CG973 | 01 | Not Available |
| 40 | Not Available | Cord Reel Bracket v9658 | 04ABEEZV07 | Not Available |
| 40 | Not Available | Cord Reel Bracket CG973 | 04ACUHZV07 | Not Available |

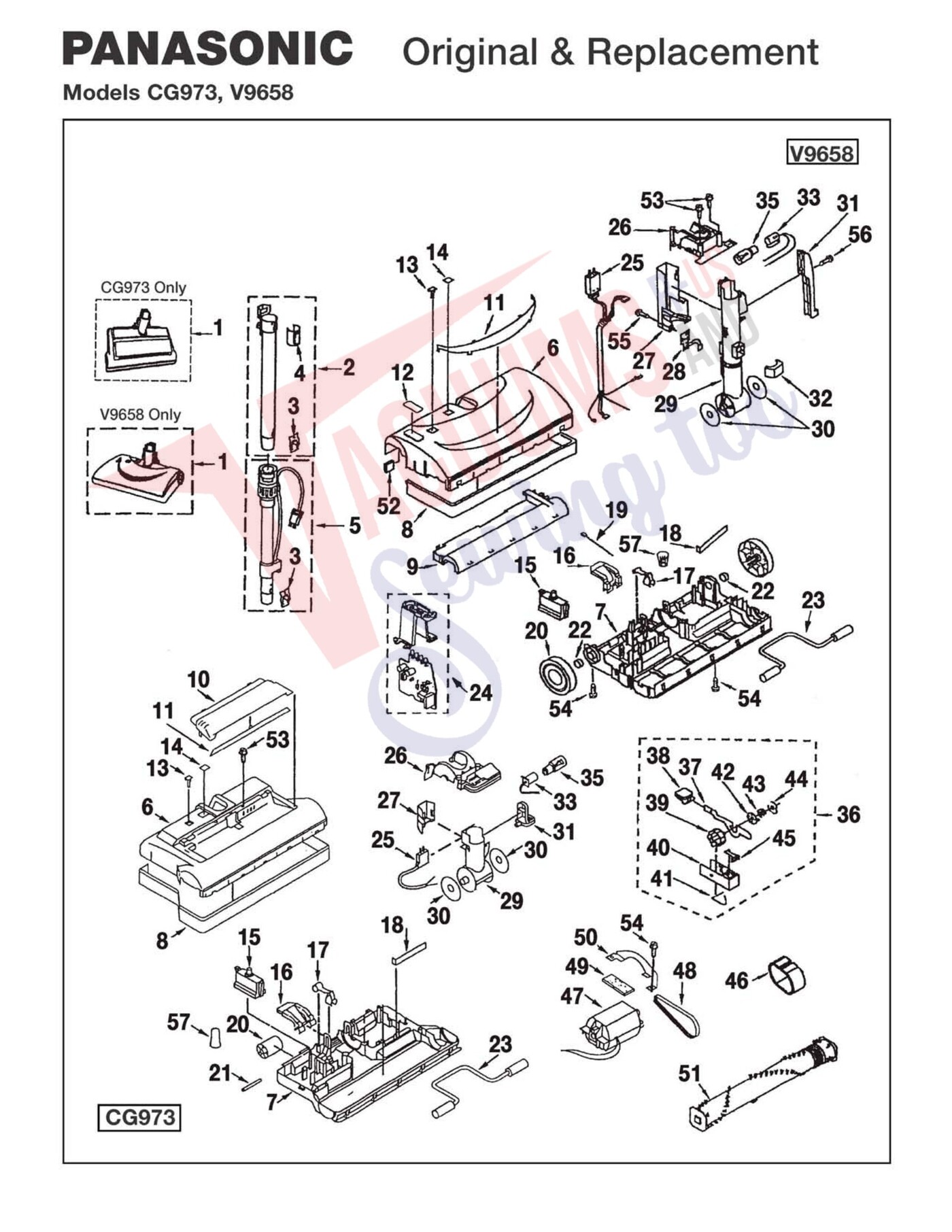

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Power Nozzle Complete v9658 | 50XCRXZB0Z | Not Available |
| 1 | Not Available | Power Nozzle Complete CG973 | 50XDDJZC04 | Not Available |
| 2 | Not Available | Upper Wand Ass'y v9658 | 50054 | Not Available |
| 2 | Not Available | Upper Wand Ass'y CG973 | 50070 | Not Available |
| 3 | Not Available | spring Wand Lock | 725-419 | Not Available |
| 4 | Not Available | Quick Release v9658 | 73926 | Not Available |
| 5 | Not Available | Lower Wand Ass'y v9658 | 50072 | Not Available |
| 5 | Not Available | Lower Wand Ass'y CG973 | 50068 | Not Available |
| 6 | Not Available | Nozzle Housing v9658 | 73164 | Not Available |
| 6 | Not Available | Nozzle Housing CG973 | 73206 | Not Available |
| 7 | Not Available | Nozzle Base v9658 | 72152 | Not Available |
| 7 | Not Available | Nozzle Base CG973 | 72151 | Not Available |
| 8 | Not Available | Furniture Guard v9658 | 10AAKTZV06 | Not Available |
| 8 | Not Available | Furniture Guard CG973 | 10AAXAZV06 | Not Available |
| 9 | Not Available | QAKTZW03 Brushroll Cover v9658 | 01 | Not Available |
| 10 | Not Available | Panel Light CG973 | 24HDDHZCU4 | Not Available |
| 11 | Not Available | HAKTZ000 Lens v9658 | 21 | Not Available |
| 11 | Not Available | Lens CG973 | 747-286 | Not Available |
| 12 | Not Available | Window Dust sensor v9658 | 33MGJZ00 | Not Available |
| 13 | Not Available | Extension Button | 13DAUJZVU6 | Not Available |
| 14 | Not Available | HGJZ0000 Lens Height Adjustment | 21 | Not Available |
| 15 | Not Available | Overload Protector | 97KAXEZV04 | Not Available |
| 16 | Not Available | Handle Release Pedal v9658 | 47AGJZV06 | Not Available |
| 16 | Not Available | Handle Release Pedal CG973 | 73723 | Not Available |
| 17 | Not Available | Lifter | 742-013 | Not Available |
| 18 | Not Available | spring Motor Adjust | 742-002 | Not Available |
| 19 | Not Available | Lead Wire v9658 | 85GAXEZ000 | Not Available |
| 20 | Not Available | Rear Wheel v9658 | 71062 | Not Available |
| 20 | Not Available | CAKZZv06 Rear Wheel CG973 | 01 | Not Available |
| 21 | Not Available | Rear Axle CG973 | 742-006 | Not Available |
| 22 | Not Available | Bushing v9658 | 71550 | Not Available |
| 23 | Not Available | Axle Ass'y Front | 744-029 | Not Available |
| 24 | Not Available | PCB Ass'y P/N v9658 | 87GGJZU01 | Not Available |
| 25 | Not Available | Cord & Plug Ass'y v9658 | 36018 | Not Available |
| 25 | Not Available | Cord & Plug Ass'y CG973 | 72520 | Not Available |
| 26 | Not Available | swivel Cap v9658 | 62VAKTZV06 | Not Available |
| 26 | Not Available | swivel Cap CG973 | 25QRDZV06 | Not Available |
| 27 | Not Available | Plug Cover v9658 | 69QAENZV06 | Not Available |
| 27 | Not Available | Plug Cover CG973 | 13DATYZV06 | Not Available |
| 28 | Not Available | PCB Ass'y swivel v9658 | 85VGJZ00 | Not Available |
| 29 | Not Available | swivel v9658 | 72424 | Not Available |
| 29 | Not Available | swivel CG973 | 415-3196 | Not Available |
| 30 | Not Available | swivel seal | 742-019 | Not Available |
| 31 | Not Available | Quick Release Pedal v9658 | 73731 | Not Available |
| 31 | Not Available | Quick Release Pedal CG973 | 47AATYZV06 | Not Available |
| 32 | Not Available | Front Cover v9658 | 75547 | Not Available |
| 33 | Not Available | Bulb socket v9658 | 93HABFZ00 | Not Available |
| 33 | Not Available | Bulb socket CG973 | 93HAXEZ000 | Not Available |
| 35 | Not Available | Bulb | FA-3515 | Not Available |
| 36 | Not Available | indicator Block Ass'y | 83MAKSZV06 | Not Available |
| 37 | Not Available | indicator Lever | 747-287 | Not Available |
| 38 | Not Available | Foot Pedal Pad | 48AMGZV06 | Not Available |
| 39 | Not Available | Cam indicator | 747-291 | Not Available |
| 40 | Not Available | indicator Block | 742-015 | Not Available |
| 41 | Not Available | spring Adjust | 725-775 | Not Available |
| 42 | Not Available | indexing Catch | 722-955 | Not Available |
| 43 | Not Available | Washer | 725-635 | Not Available |
| 44 | Not Available | Thrust Washer | 722-909 | Not Available |
| 45 | Not Available | Catch Ratchet | 742-016 | Not Available |
| 46 | Not Available | Motor Gasket v9658 | 747-156 | Not Available |
| 47 | Not Available | Motor Power Nozzle v9658 | 60521 | Not Available |
| 47 | Not Available | Motor Power Nozzle CG973 | 60519 | Not Available |
| 48 | Not Available | serpentine Belt (Type CB-6) | MC330B | Not Available |
| 48 | Not Available | Serpentine Belt (Type CB-6) | KER-1079 | Not Available |
| 49 | Not Available | Motor Gasket CG973 | 747156 | Not Available |
| 50 | Not Available | Motor Bridge | 705-093 | Not Available |
| 51 | Not Available | Brushroll serpentine v9658 | 20006 | Not Available |
| 51 | Not Available | Brushroll serpentine CG973 | 20086 | Not Available |
| 52 | Not Available | intake Filter v9658 | 37KAKSZ000 | Not Available |
| 53 | Not Available | screw | 681-550 | Not Available |
| 54 | Not Available | screw | 681-297 | Not Available |
| 55 | Not Available | screw | XTN4+24BFY | Not Available |
| 56 | Not Available | screw | 77012 | Not Available |
| 57 | Not Available | Wire Nut | SS-3270 | Not Available |

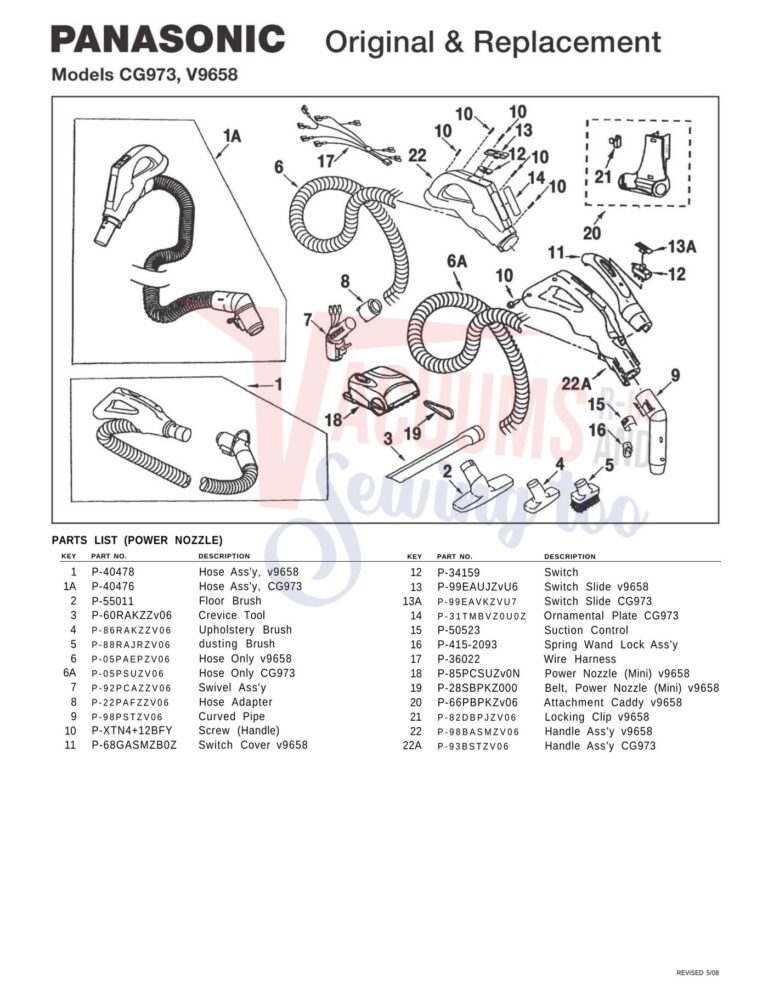

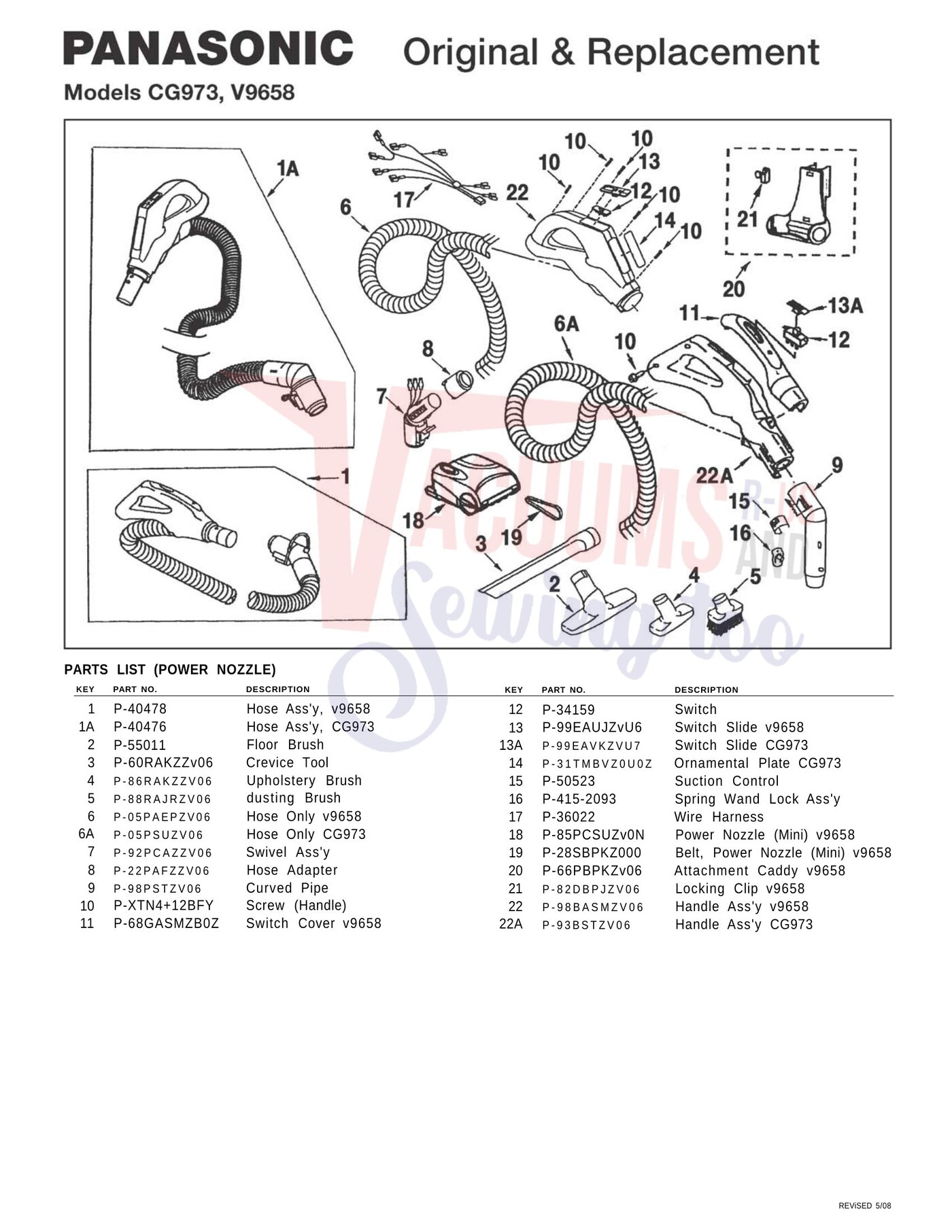

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hose Ass'y v9658 | 40478 | Not Available |
| 1A | Not Available | Hose Ass'y CG973 | 40476 | Not Available |
| 2 | Not Available | Floor Brush | 55011 | Not Available |
| 3 | Not Available | Crevice Tool | 60RAKZZV06 | Not Available |
| 4 | Not Available | Upholstery Brush | 86RAKZZV06 | Not Available |
| 5 | Not Available | dusting Brush | 88RAJRZV06 | Not Available |
| 6 | Not Available | Hose Only v9658 | 05PAEPZV06 | Not Available |
| 6A | Not Available | Hose Only CG973 | 05PSUZV06 | Not Available |
| 7 | Not Available | Swivel Ass'y | 92PCAZZV06 | Not Available |
| 8 | Not Available | Hose Adapter | 22PAFZZV06 | Not Available |
| 9 | Not Available | Curved Pipe | 98PSTZV06 | Not Available |
| 10 | Not Available | Screw (Handle) | XTN4+12BFY | Not Available |
| 11 | Not Available | Switch Cover v9658 | 68GASMZB0Z | Not Available |
| 12 | Not Available | Switch | 34159 | Not Available |
| 13 | Not Available | Switch Slide v9658 | 99EAUJZVU6 | Not Available |
| 13A | Not Available | Switch Slide CG973 | 99EAVKZVU7 | Not Available |
| 14 | Not Available | Ornamental Plate CG973 | 31TMBVZ0U0Z | Not Available |
| 15 | Not Available | Suction Control | 50523 | Not Available |
| 16 | Not Available | Spring Wand Lock Ass'y | 415-2093 | Not Available |
| 17 | Not Available | Wire Harness | 36022 | Not Available |
| 18 | Not Available | Power Nozzle (Mini) v9658 | 85PCSUZV0N | Not Available |
| 19 | Not Available | Belt Power Nozzle (Mini) v9658 | 28SBPKZ000 | Not Available |
| 20 | Not Available | Attachment Caddy v9658 | 66PBPKZV06 | Not Available |
| 21 | Not Available | Locking Clip v9658 | 82DBPJZV06 | Not Available |
| 22 | Not Available | Handle Ass'y v9658 | 98BASMZV06 | Not Available |
| 22A | Not Available | Handle Ass'y CG973 | 93BSTZV06 | Not Available |
