Schematic and parts book for Panasonic 9510, 9520, 9527, 9530, 9537, 9540 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

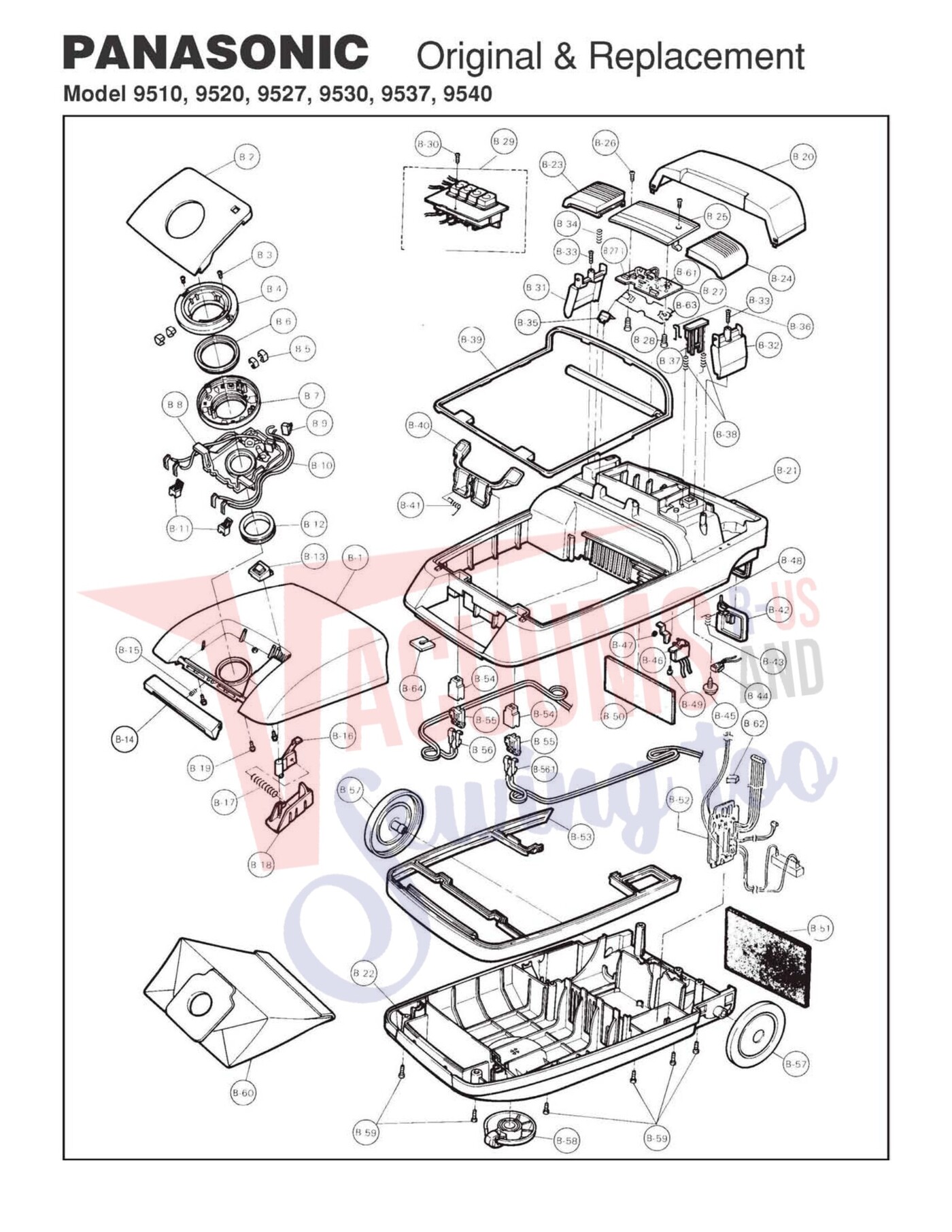

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Cover 9527/9537 KEY PART NO. DESCRIPTION | 60K-4P0VU | Not Available |
| 1 | Not Available | Dust Cover 9510/9520/9530/9540 | 60K-4P0JU | Not Available |
| 1 | Not Available | Terminal W/Lead Wire 9540 | 67A-4S00U | Not Available |
| 1 | Not Available | Cord Reel Unit 9510 | 30760 | Not Available |
| 1 | Not Available | Cord Reel Unit 9527 | NLA | Not Available |
| 1 | Not Available | Cord Reel Unit 9520/9530/9540 | NLA | Not Available |
| 1 | Not Available | Cord Reel Unit 9537 | 30757 | Not Available |
| 1 | Not Available | LED (PCB {B}) 9540 | LN0202GP3 | Not Available |
| 2 | Not Available | Front Cover 9527/9537 | 25K-4P0VU | Not Available |
| 2 | Not Available | Front Cover 9510/9520/9530 9510/9520/9530/9540 | 25K-4P0J | Not Available |
| 2 | Not Available | Front Cover 9540 | 25K-4POJU | Not Available |
| 2 | Not Available | Power Cord W/Rail Base 9510 | 98N-F2U | Not Available |
| 2 | Not Available | Power Cord W/Rail Base 9527 | 98N-AM0VU | Not Available |
| 2 | Not Available | Power Cord W/Rail Base | 98N-4R00U | Not Available |
| 2 | Not Available | Power Cord W/Rail Base 9537 | 98N-4R0VU | Not Available |
| 3 | Not Available | Screw (Connection Upper) 9510/9520/9530/9540 | XTN35+12B | Not Available |
| 3 | Not Available | Brake Lever | 94N-4P0 | Not Available |
| 4 | Not Available | Connection Upper | 60H-4P0K | Not Available |
| 4 | Not Available | Brake Spring | 47N-B80 | Not Available |
| 5 | Not Available | Terminal (Connection Upper) | NLA | Not Available |
| 5 | Not Available | Contact Base Unit 9510 | 19N-4P00U | Not Available |
| 5 | Not Available | Contact Base Unit 9520-9540 | 75685 | Not Available |
| 6 | Not Available | Hose Fitting Rubber | 75940 | Not Available |
| 6 | Not Available | Body Partition | 36050 | Not Available |
| 7 | Not Available | Connection Lower | 75935 | Not Available |
| 7 | No Image | 16' Crush-Proof Hose Assembly | 77010 | $0.00Read more |
| 8 | Not Available | Contact Base 9527/9537 | 39W-4P0L | Not Available |
| 8 | Not Available | Contact Base 9510/9520/9530/9540 | 39W-4P0 | Not Available |
| 8 | No Image | 16' Crush-Proof Hose Assembly | 77010 | $0.00Read more |
| 9 | Not Available | ON/OFF Sub-Switch | AV3242619 | Not Available |
| 10 | Not Available | Terminal W/Lead Wire | 34500 | Not Available |
| 11 | Not Available | Terminal Holder 9510/9520/9530/9540 | 45E-4P0K | Not Available |
| 12 | Not Available | Dust Bag Fitting (Rubber) | 19K-4P0 | Not Available |
| 13 | Not Available | Window 9510-9537 | 08M-4P000 | Not Available |
| 13 | Not Available | Front Cover Lid 9540 | 08M-4S0J | Not Available |
| 14 | Not Available | Dust Cover Catch 9527/9537 | 17M-4P0V | Not Available |
| 14 | Not Available | Dust Cover Catch B-56- | 75300 | Not Available |
| 15 | Not Available | Spring (Dust Cover Catch) | 77212 | Not Available |
| 16 | Not Available | Indicator | 03M-4P0R | Not Available |
| 17 | Not Available | Spring (Indicator) 9510 | 04M-4P0 | Not Available |
| 17 | Not Available | Spring 9520-9540 | 04M-4Q0 | Not Available |
| 18 | Not Available | Vac Gauge Cover 9527/9537 | 17M-4P0V | Not Available |
| 18 | Not Available | Vac Gauge Cover | 17M-4P0J | Not Available |
| 19 | Not Available | Screw (Dust Cover) | 77030 | Not Available |
| 20 | Not Available | Tool Storage Cover 9527/9537 NLA Thermo Protector | NLA | Not Available |
| 20 | Not Available | Tool Storage Cover (Not Shown) 9520/9537 | NLA | Not Available |
| 21 | Not Available | Upper Body 9510-9537 (Not Shown) 9510-9537 | 02A-4P0K | Not Available |
| 21 | Not Available | Upper Body 9540 | 02A-4S0K | Not Available |
| 22 | Not Available | Lower Body W/Furniture Guard | NLA | Not Available |
| 23 | Not Available | Cord Rewind Button | 46N-4P0K | Not Available |
| 24 | Not Available | ON/OFF Switch Button PARTS LIST (CORD REEL UNIT) | 05E-4P0K | Not Available |
| 25 | Not Available | Ornamental Plate 9510 | 92A-4P0 | Not Available |
| 25 | Not Available | Ornamental Plate 9520 | 92A-4Q0 | Not Available |
| 25 | Not Available | Ornamental Plate 9527 | 92A-4M0 | Not Available |
| 25 | Not Available | Ornamental Plate 9530 | 92A-4R0 | Not Available |
| 25 | Not Available | Ornamental Plate 9537 | 92A-BK00U | Not Available |
| 25 | Not Available | Ornamental Plate 9540 | 92A-4S0 | Not Available |
| 26 | Not Available | Screw (Ornamental Plate) | XTN3+12B | Not Available |
| 27 | Not Available | PCB (B) 9540 | 34405 | Not Available |
| 28 | Not Available | Screw (PCB {B}) 9540 | XTN3+8B | Not Available |
| 29 | Not Available | Power Control Switch 9527/9537 | 34160 | Not Available |
| 29 | Not Available | Power Control Switch 9520/9530 | NLA | Not Available |
| 30 | Not Available | Screw (Power Control Switch) | XTN3+12B | Not Available |
| 31 | Not Available | Brake Cover 9527/9537 | 48N-4P0V | Not Available |
| 31 | Not Available | Brake Cover 9510/9520/9530/9540 | 48N-4P0J | Not Available |
| 32 | Not Available | Switch Cover 9527/9537 | 03E-4P0V | Not Available |
| 32 | Not Available | Switch Cover 9510/9520/9530/9540 | 03E-4P0J | Not Available |
| 33 | Not Available | Screw (B-31 B-32) | XTN3+12B | Not Available |
| 34 | Not Available | Spring (Cord Rewind Button) | 71N-4P0 | Not Available |
| 35 | Not Available | Leaf Spring | 71K-4P0 | Not Available |
| 36 | Not Available | Indicator Lever | 34925 | Not Available |
| 37 | Not Available | Pedal Spacer | 72435 | Not Available |
| 38 | Not Available | Spring (Pedal Spacer) | 77210 | Not Available |
| 39 | Not Available | Dust Box Packing 9527/9537 | 73K-4P0L | Not Available |
| 39 | Not Available | Dust Box Packing 9510/9520/9530 | 73K-4P0K | Not Available |
| 39 | Not Available | Dust Box Packing 9540 | 73K-4S0K | Not Available |
| 40 | Not Available | Dust Bag Holder 9527/9537 | 23K-4P0L | Not Available |
| 40 | Not Available | Dust Bag Holder | 23K-4P0K | Not Available |
| 41 | Not Available | Spring (Dust Bag Holder) | 46H-4P0 | Not Available |
| 42 | Not Available | Blower Cover | 29L-4P0K | Not Available |
| 43 | Not Available | Spring (Blower Cover) | 33L-4P0 | Not Available |
| 44 | Not Available | Blower Switch | AH16829 | Not Available |
| 45 | Not Available | Screw (Blower Switch) | 38N-4S0 | Not Available |
| 46 | Not Available | ON/OFF Switch | 34153 | Not Available |
| 47 | Not Available | Push Nut | XLPMC4 | Not Available |
| 48 | Not Available | Switch Indicator | 93D-4P0R0 | Not Available |
| 49 | Not Available | Screw (ON/OFF Switch) | 38N-740 | Not Available |
| 50 | Not Available | Rear Filter | 18060 | Not Available |
| 51 | Not Available | Filter 9510-9527 | 18055 | Not Available |
| 51 | Not Available | Filter 9530-9540 | 18057 | Not Available |
| 52 | Not Available | PCB (A) 9540 | 89V-4S0 | Not Available |
| 53 | Not Available | Furniture Guard 9527/9537 | 31A-4P0U | Not Available |
| 53 | Not Available | Furniture Guard | 31A-4P0K0 | Not Available |
| 54 | Not Available | Terminal Holder | 39D-4P0K | Not Available |
| 55 | Not Available | Mounting Terminal Plate | 77B-4P0K | Not Available |
| 56 | Not Available | Terminal W/Lead Wire 9510-9537 | 66A-4P00U | Not Available |
| 56 | Not Available | Terminal W/Lead Wire 9540 | 66A-4S00U | Not Available |
| 57 | Not Available | Wheel 4 1/2" Diameter | 71330 | Not Available |
| 58 | Not Available | Caster | NLA | Not Available |
| 59 | Not Available | Screw (Ftr Lower Body) | 77030 | Not Available |
| 60 | Not Available | Dust Bag (Paper 3 pcs.) | MC125P | Not Available |
| 60 |  | Panasonic Type C Paper Bags 3pk | PR1425 | $9.89Read more |
| 61 | Not Available | LED (Vac Gauge) 9540 | LN0401RP2 | Not Available |
| 62 | Not Available | Packing 9540 | 81A-4S0 | Not Available |
| 63 | Not Available | Insulation Pack 9540 | 23E-4S0 | Not Available |
| 64 | Not Available | Packing (Upper Body) 9520-9540 | 11E-5H0 | Not Available |
| # | Part image | Description | SKU | Price |

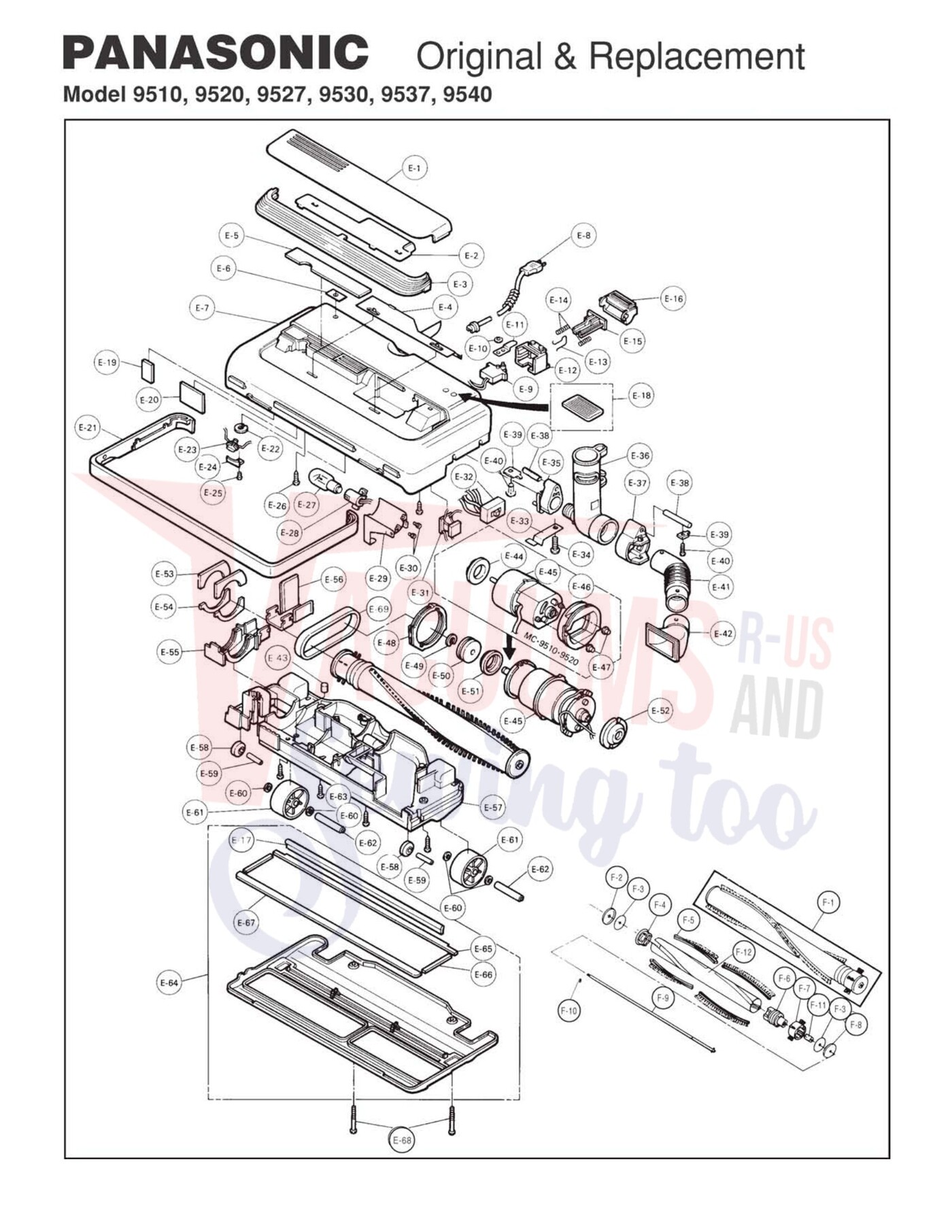

| 1 | Not Available | Power Head Cover 9510 | 24H-4P0K | Not Available |
| 1 | Not Available | Power Head Cover 9520 (Center) 9530-9540 | 24H-4Q0K | Not Available |
| 1 | Not Available | Power Head Cover 9527 | 24H-AM0KU | Not Available |
| 1 | Not Available | Power Head Cover 9530-9540 | 24H-4R0K | Not Available |
| 1 | Not Available | Agitator Assembly | NLA | Not Available |
| 2 | Not Available | Reflector Plate (Upper) 9527-9540 | 84H-4R0 | Not Available |
| 2 | Not Available | End Cap (Left) | NLA | Not Available |
| 2 | Not Available | End Cap Pulley End W/Slot | PR-2052 | Not Available |
| 3 | Not Available | Window Cover 9510/9520 (Front) 9530-9540 | 21H-4P0 | Not Available |
| 3 | Not Available | Window Cover 9537 | 21H-4R0 | Not Available |
| 3 | Not Available | Window Cover 9527/9530/9540 (Rear) 9530-9540 | 21H-4R0K | Not Available |
| 3 | Not Available | Filter | NLA | Not Available |
| 3 | Not Available | Filter Brushroll 1.5" Dia | PR-2066 | Not Available |
| 4 | Not Available | Reflector Plate (Lower) 9527-9540 | 86H-4R0 | Not Available |
| 4 | Not Available | Agitator Holder (W/Bearing) | 20840 | Not Available |
| 4 | Not Available | Holder Brushroll W/Bearing | PR-2058 | Not Available |
| 5 | Not Available | Filter (Upper) | 18061 | Not Available |
| 5 | Not Available | Brush (4 Pcs.) | 22020 | Not Available |
| 5 | Not Available | Brush Strip Pair | NLA | Not Available |
| 6 | Not Available | Label 9530-9540 | 46R-4R0 | Not Available |
| 6 | Not Available | Agitator Pulley (W/Bearing) | NLA | Not Available |
| 7 | Not Available | Body 9510 | 72030 | Not Available |
| 7 | Not Available | Body 9520 | NLA | Not Available |
| 7 | Not Available | Body 9527 | NLA | Not Available |
| 7 | Not Available | Body 9537 | NLA | Not Available |
| 7 | Not Available | Body 9530/9540 | 72050 | Not Available |
| 7 | Not Available | Brush Holder | NLA | Not Available |
| 7 | Not Available | Edge Cleaning Brush | PR-2056 | Not Available |
| 8 | Not Available | Cord Unit 9510/9520/9530/9537 | NLA | Not Available |
| 8 | Not Available | Cord Unit 9527/9540 | NLA | Not Available |
| 8 | Not Available | End Cap (Right) | 20517 | Not Available |
| 9 | Not Available | ON/OFF Switch 9520-9540 | 34153 | Not Available |
| 9 | Not Available | Agitator Shaft | 57R-X60 | Not Available |
| 10 | Not Available | Push Nut 9520-9540 | XPLMC4 | Not Available |
| 10 | Not Available | E-Clip | 77110 | Not Available |
| 11 | Not Available | Switch Indicator 9520-9540 | 93D-4Q0R | Not Available |
| 11 | Not Available | Spacer | 74S-X60 | Not Available |
| 12 | Not Available | Switch Holder 9520-9540 | 03E-4Q0 | Not Available |
| 12 | Not Available | Agitator Cylinder | 84R-V10 | Not Available |
| 13 | Not Available | Switch Lever 9520-9540 | 34925 | Not Available |
| 14 | Not Available | Spring (Pedal Spacer) 9520-9540 | 77210 | Not Available |
| 15 | Not Available | Pedal Spacer 9520-9540 | 72435 | Not Available |
| 16 |  | Floor Tool, Black 1-1/4"x12" Horse Hair Fitall Part Number: 34905 for Fitall | 34905 | $27.50Read more |
| 17 | Not Available | Nozzle Rubber | 76910 | Not Available |
| 18 | Not Available | Pedal Cover 9510 | 42A-4P0J | Not Available |
| 19 | Not Available | Filter (Side) | NLA | Not Available |
| 20 | Not Available | Filter (Front) | 37K-4P0 | Not Available |
| 21 | Not Available | Furniture Guard | 74060 | Not Available |
| 22 | Not Available | Protector Button 9530-9540 | 04E-4R0 | Not Available |
| 23 | Not Available | Thermo Protector 9530-9540 | 98W-4R0 | Not Available |
| 24 | Not Available | Protector Support 9530-9540 | 19M-4R0 | Not Available |
| 25 | Not Available | Screw (Protector Support) | XTN3+8B | Not Available |
| 26 | Not Available | Screw (Power Nozzle Lower) KEY PART NO. DESCRIPTION | 77030 | Not Available |
| 27 |  | Bulb, Double Pole 505-1CR Part Number: 1650 S for Kirby | 1650S | $18.06Read more |
| 28 | Not Available | Lamp Holder 9527-9540 | 93H-4R00U | Not Available |
| 29 | Not Available | Partition Plate 9527-9540 | 85H-4R0 | Not Available |
| 30 | Not Available | Screw (Partition Plate) 9527-9540 | XYN3+C6FYS | Not Available |
| 31 | Not Available | P.C.B. 9527-9540 | NLA | Not Available |
| 32 | Not Available | Reverse Switch 9530-9540 | NLA | Not Available |
| 33 | Not Available | Leaf Spring 9530-9540 | 70N-4R0 | Not Available |
| 34 | No Image | 16' Crush-Proof Hose Assembly | 77010 | $0.00Read more |
| 35 | Not Available | Pipe Insert (Right) 9530-9540 | NLA | Not Available |
| 36 | Not Available | Wand Connection | NLA | Not Available |
| 37 | Not Available | Pipe Insert (Left) 9530-9540 | 72410 | Not Available |
| 38 | Not Available | Pipe Insert Shaft 9530-9540 | NLA | Not Available |
| 39 | Not Available | Stopper 9530-9540 | NLA | Not Available |
| 40 | No Image | 16' Crush-Proof Hose Assembly | 77010 | $0.00Read more |
| 41 | Not Available | Nozzle Hose | NLA | Not Available |
| 42 | Not Available | Nozzle Pipe | 40S-4P0 | Not Available |
| 44 | Not Available | Motor Support Rubber | 14F-4P0 | Not Available |
| 45 | Not Available | Motor 9510-9527 | NLA | Not Available |
| 45 | Not Available | Motor 9530-9540 | 60510 | Not Available |
| 46 | Not Available | Motor Support Rubber | 16F-4P0 | Not Available |
| 47 | Not Available | Motor Support Rubber | 15F-4P0 | Not Available |
| 48 | Not Available | Motor Support Rubber | NLA | Not Available |
| 49 | Not Available | E-Clip 9530-9540 | 77115 | Not Available |
| 50 | Not Available | Motor Pulley 9530-9540 | NLA | Not Available |
| 51 | Not Available | Motor Support Rubber | 14F-4R0 | Not Available |
| 52 | Not Available | Motor Support Rubber | 15F-4R0 | Not Available |
| 53 | Not Available | Tight Packing | NLA | Not Available |
| 54 | Not Available | Belt Cover Packing | 76755 | Not Available |
| 55 | Not Available | Belt Cover 9527/9537 | 59S-4P0V | Not Available |
| 55 | Not Available | Belt Cover 9510/9520/9530/9540 | 72600 | Not Available |
| 56 | Not Available | Belt Cover (Metal) 9530-9540 | 57S-4R0 | Not Available |
| 57 | Not Available | Power Nozzle Lower 9510/9520 | 72044 | Not Available |
| 57 | Not Available | Power Nozzle Lower 9527/9537 | 03R-4P0V | Not Available |
| 57 | Not Available | Power Nozzle Lower 9530/9540 | 72100 | Not Available |
| 58 | Not Available | Power Nozzle Roller | 76841 | Not Available |
| 59 | Not Available | Roller Shaft | 71380 | Not Available |
| 60 | Not Available | Washer | XWG6 | Not Available |
| 61 | No Image | BROCHURE, EUREKA CENTRAL VAC Part Number: 071020 for Electrolux | 71020 | $0.00Read more |
| 61 | Not Available | Roller (Large) 9527/9537 | 01C-F00K | Not Available |
| 62 | Not Available | Roller Shaft (Large Roller) | 16C-4P0 | Not Available |
| 63 | Not Available | Screw (Power Nozzle Lower) | 77030 | Not Available |
| 64 | Not Available | Bottom Plate Unit | NLA | Not Available |
| 65 | Not Available | Packing (Rear) | 74A-4P0 | Not Available |
| 66 | Not Available | Packlng (Side) | 39A-4P0 | Not Available |
| 67 | Not Available | Packing (Front) | 19A-4P0 | Not Available |
| 68 |  | 33ft Crush Proof Hose Asssembly | 77017 | $883.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 | Not Available | Belt 9510-9527 | MC220B | Not Available |
| 69 | Not Available | Belt Type CB 9510-9527 | ER-1050 | Not Available |
| 69 |  | Belt,Panasonic CB1 9510/9520/9527/9530/954 | MC-225B | $12.09Read more |

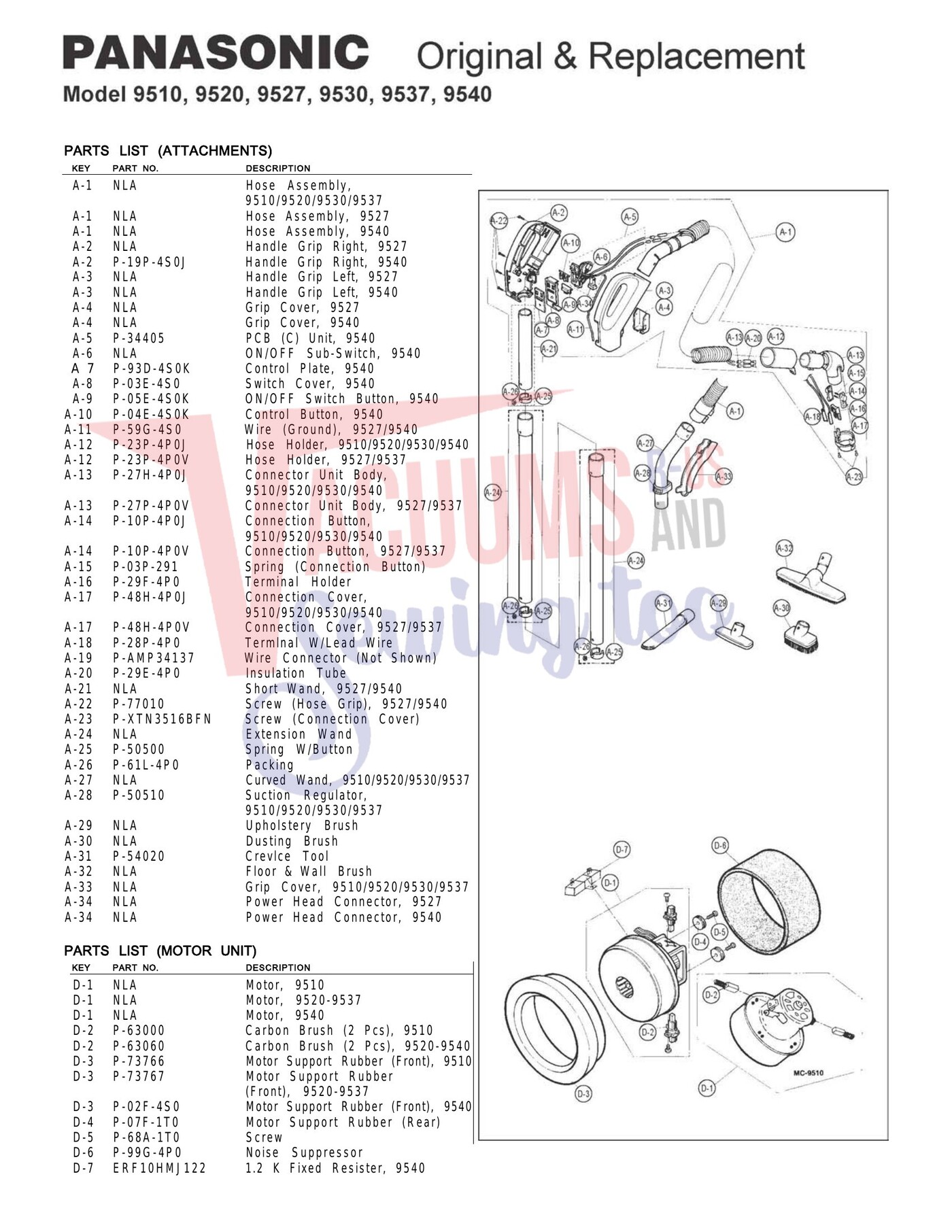

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hose Assembly | NLA | Not Available |
| 1 | Not Available | Hose Assembly 9527 | NLA | Not Available |
| 1 | Not Available | Hose Assembly 9540 | NLA | Not Available |
| 1 | Not Available | Motor 9510 | NLA | Not Available |
| 1 | Not Available | Motor 9520-9537 | NLA | Not Available |
| 1 | Not Available | Motor 9540 | NLA | Not Available |
| 2 | Not Available | Handle Grip Right 9527 | NLA | Not Available |
| 2 | Not Available | Handle Grip Right 9540 | 19P-4S0J | Not Available |
| 2 | Not Available | Carbon Brush (2 Pcs) 9510 | 63000 | Not Available |
| 2 | Not Available | Carbon Brush (2 Pcs) 9520-9540 | 63060 | Not Available |
| 3 | Not Available | Handle Grip Left 9527 | NLA | Not Available |
| 3 | Not Available | Handle Grip Left 9540 | NLA | Not Available |
| 3 | Not Available | Motor Support Rubber (Front) 9510 | 73766 | Not Available |
| 3 | Not Available | Motor Support Rubber | 73767 | Not Available |
| 3 | Not Available | Motor Support Rubber (Front) 9540 | 02F-4S0 | Not Available |
| 4 | Not Available | Grip Cover 9527 | NLA | Not Available |
| 4 | Not Available | Grip Cover 9540 | NLA | Not Available |
| 4 | Not Available | Motor Support Rubber (Rear) | 07F-1T0 | Not Available |
| 5 | Not Available | PCB (C) Unit 9540 | 34405 | Not Available |
| 5 | Not Available | Screw | 68A-1T0 | Not Available |
| 6 | Not Available | ON/OFF Sub-Switch 9540 | NLA | Not Available |
| 6 | Not Available | Noise Suppressor | 99G-4P0 | Not Available |
| 7 | Not Available | Control Plate 9540 | 93D-4S0K | Not Available |
| 8 | Not Available | Switch Cover 9540 | 03E-4S0 | Not Available |
| 9 | Not Available | ON/OFF Switch Button 9540 | 05E-4S0K | Not Available |
| 10 | Not Available | Control Button 9540 | 04E-4S0K | Not Available |
| 11 | Not Available | Wire (Ground) 9527/9540 | 59G-4S0 | Not Available |
| 12 | Not Available | Hose Holder 9510/9520/9530/9540 | 23P-4P0J | Not Available |
| 12 | Not Available | Hose Holder 9527/9537 | 23P-4P0V | Not Available |
| 13 | Not Available | Connector Unit Body | 27H-4P0J | Not Available |
| 13 | Not Available | Connector Unit Body 9527/9537 | 27P-4P0V | Not Available |
| 14 | Not Available | Connection Button | 10P-4P0J | Not Available |
| 14 | Not Available | Connection Button 9527/9537 | 10P-4P0V | Not Available |
| 15 | Not Available | Spring (Connection Button) | 03P-291 | Not Available |
| 16 | Not Available | Terminal Holder | 29F-4P0 | Not Available |
| 17 | Not Available | Connection Cover | 48H-4P0J | Not Available |
| 17 | Not Available | Connection Cover 9527/9537 | 48H-4P0V | Not Available |
| 18 | Not Available | Termlnal W/Lead Wire | 28P-4P0 | Not Available |
| 19 | Not Available | Wire Connector (Not Shown) | AMP34137 | Not Available |
| 20 | Not Available | Insulation Tube | 29E-4P0 | Not Available |
| 21 | Not Available | Short Wand 9527/9540 | NLA | Not Available |
| 22 | No Image | 16' Crush-Proof Hose Assembly | 77010 | $0.00Read more |
| 23 | Not Available | Screw (Connection Cover) | XTN3516BFN | Not Available |
| 24 | Not Available | Extension Wand | NLA | Not Available |
| 25 | Not Available | Spring W/Button | 50500 | Not Available |
| 26 | Not Available | Packing | 61L-4P0 | Not Available |
| 27 | Not Available | Curved Wand 9510/9520/9530/9537 | NLA | Not Available |
| 28 | Not Available | Suction Regulator | 50510 | Not Available |
| 29 | Not Available | Upholstery Brush | NLA | Not Available |
| 30 | Not Available | Dusting Brush | NLA | Not Available |
| 31 | Not Available | Crevlce Tool | 54020 | Not Available |
| 32 | Not Available | Floor & Wall Brush | NLA | Not Available |
| 33 | Not Available | Grip Cover 9510/9520/9530/9537 | NLA | Not Available |
| 34 | Not Available | Power Head Connector 9527 | NLA | Not Available |
| 34 | Not Available | Power Head Connector 9540 | NLA | Not Available |
Report errors on this page HERE
