Schematic and parts book for Panasonic 6810, 6815, 6855, 6915, 6955 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

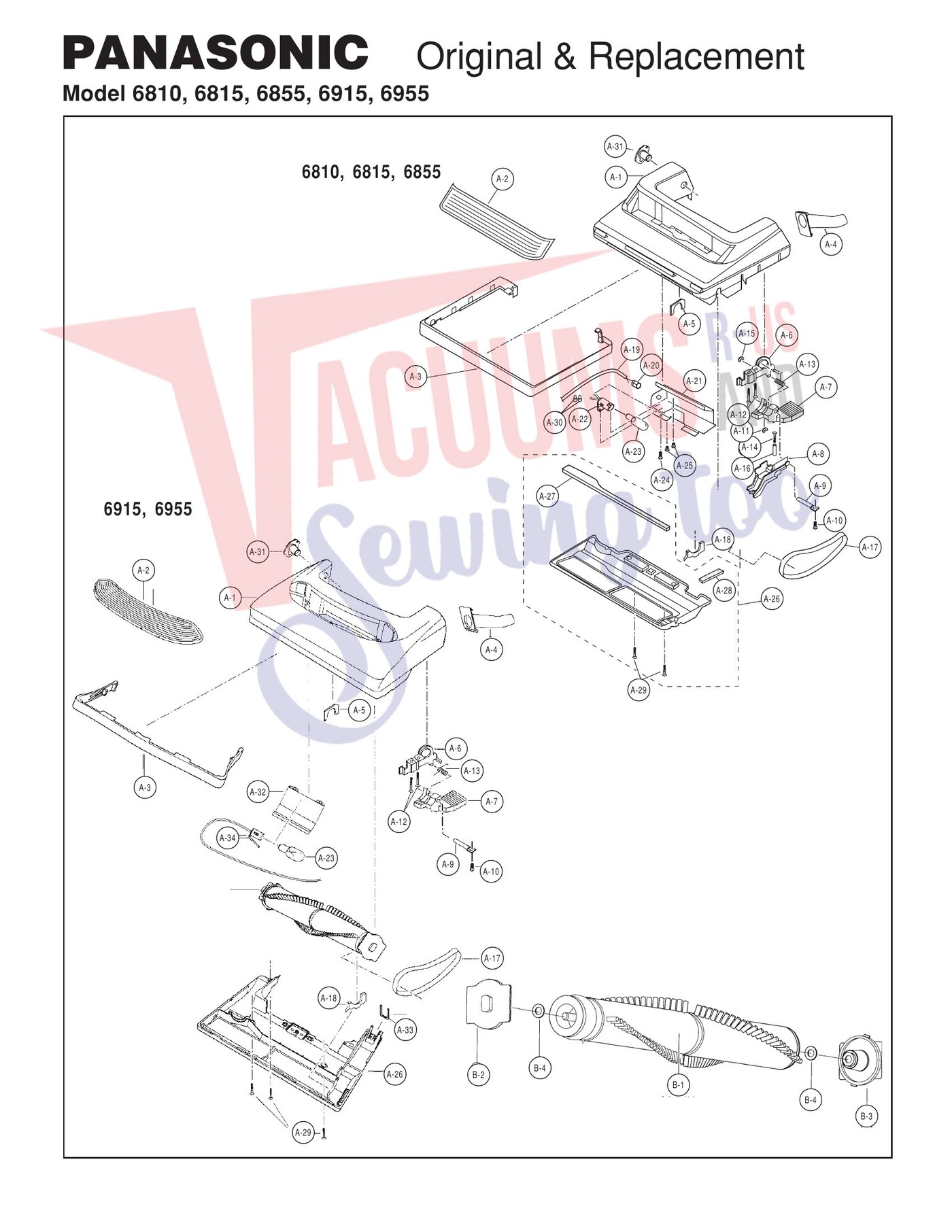

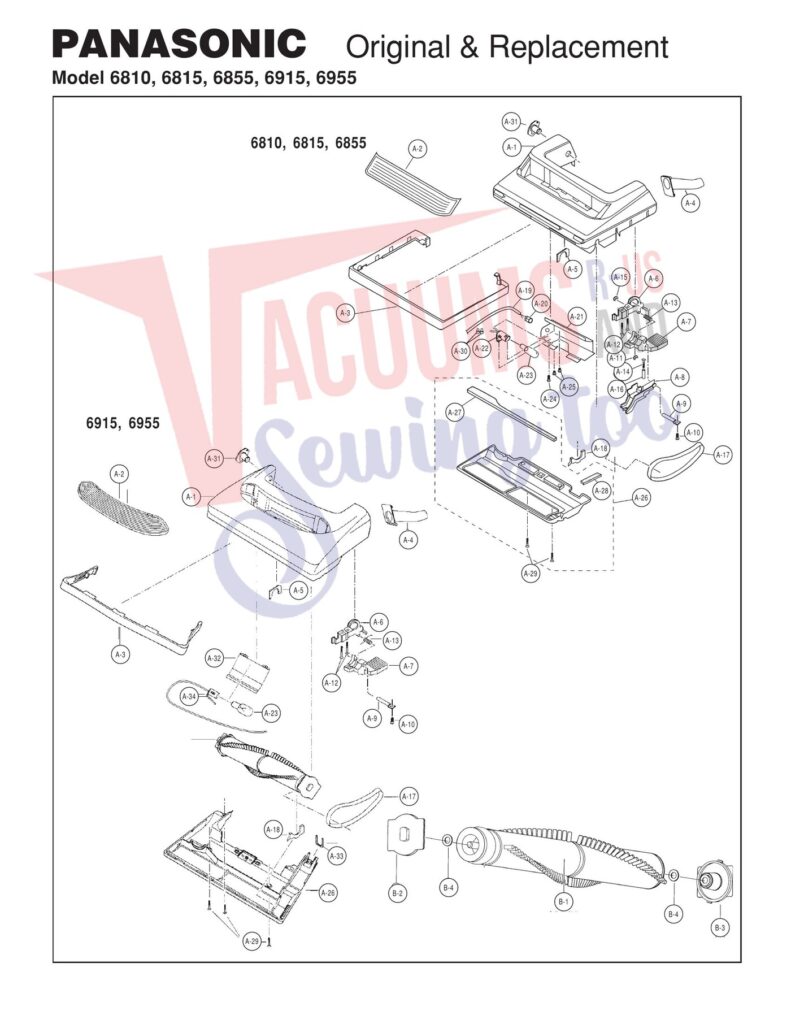

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing 6810 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing 6815 | 73097 | Not Available |
| 1 | Not Available | Nozzle Housing 6915 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing 6855 | 73098 | Not Available |
| 1 | Not Available | Nozzle Housing 6955 | NLA | Not Available |
| 1 | Not Available | Agitator Unit | 20020 | Not Available |
| 1 | Not Available | Motor Support (Rubber Front) | 76768 | Not Available |
| 2 | Not Available | Window 6810/6815/6855 | 75814 | Not Available |
| 2 | Not Available | Window 6915/6955 | 75812 | Not Available |
| 2 | Not Available | End Cap “A” | 20525 | Not Available |
| 2 | Not Available | Fan Motor Unit 6815/6855 | 60125 | Not Available |
| 2 | Not Available | Fan Motor Unit | 60135 | Not Available |
| 3 | Not Available | Furniture Guard 6810/6815/6855 | 74048 | Not Available |
| 3 | Not Available | Furniture Guard 6915/6955 | 74027 | Not Available |
| 3 | Not Available | End Cap “B” | 20535 | Not Available |
| 3 | Not Available | Carbon Brush Ass’y | 63052 | Not Available |
| 4 | Not Available | Nozzle Pipe | 73436 | Not Available |
| 4 | Not Available | Washer | 681-424 | Not Available |
| 4 | Not Available | Carbon Brush Retainer Bracket | 02D-V300U | Not Available |
| 5 | Not Available | Tight Packing | 76425 | Not Available |
| 5 | Not Available | Screw (Brush Retainer Bracket) | 40D-V300U | Not Available |
| 6 | Not Available | Frame | 73421 | Not Available |
| 6 | Not Available | Motor Support (Rubber Rear) | 76769 | Not Available |
| 7 | Not Available | Pedal (Black) | 73728 | Not Available |
| 7 | No Image | Wire Tie 15 Blk | 18706 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Belt Cover 6810/6815/6855 | 73425 | Not Available |
| 8 | Not Available | Wire Nuts | 1CTCE23 | Not Available |
| 9 | Not Available | Pedal Shaft | 51A-2V0 | Not Available |
| 9 | No Image | Motor, 24V, 2200 Rpm, .75Hp | 75085 | $1,867.99Read more |
| 10 | Not Available | Screw (Pedal Shaft) | 77020 | Not Available |
| 10 | Not Available | Packing (Motor Case) | 19FV0ZKU12 | Not Available |
| 11 | Not Available | E-Clip 6810/6815/6855 | NLA | Not Available |
| 11 | No Image | Label, Instruction, Battery | 75080 | $7.99Read more |
| 11 | No Image | Controller, I-Drive, S-20 | 75120 | $1,018.99Read more |
| 11 | No Image | Wheel, Traction, 200mm | 75125 | $417.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Screw (Frame) | 77020 | Not Available |
| 12 | Not Available | Motor Case Screws | 77020 | Not Available |
| 13 | Not Available | Pedal Spring | 77206 | Not Available |
| 13 | Not Available | Plastic Holder | 75930 | Not Available |
| 14 | Not Available | Screw (Spacer) 6810/6815/6855 | 77033 | Not Available |
| 14 | Not Available | Cooling Guide 6855/6915/6955 | 41FURZ000 | Not Available |
| 15 | Not Available | E-Clip 6810/6815/6855 | NLA | Not Available |
| 16 | Not Available | Spacer 6810/6815/6855 | 72070 | Not Available |
| 17 | Not Available | Belt UB 2 Pk | MC210B | Not Available |
| 17 | Not Available | Belt UB | PR-1015 | Not Available |
| 18 | Not Available | Agitator Holder 6810/6815/6855 | 76435 | Not Available |
| 18 | Not Available | Lower Plate Packing 6915/6955 | 76740 | Not Available |
| 19 | Not Available | Wire Cord 6810/6815/6855 | 37G-V30 | Not Available |
| 20 | Not Available | Wire Bushing 6810/6815/6855 | 58E-V30 | Not Available |
| 21 | Not Available | Bulb Supporter 6810/6815/6855 | 85H-2X0 | Not Available |
| 22 | Not Available | Lamp Holder 6810/6815/6855 | 93HZK000 | Not Available |
| 23 |  | Bulb, Double Pole 505-1CR Part Number: 1650 S for Kirby | 1650S | $18.06Read more |
| 24 | Not Available | Screw (Bulb Supporter) 6810-6855 | 77020 | Not Available |
| 25 | Not Available | Screw (Lamp Holder) 6810-6855 | XTN3+9BFY | Not Available |
| 26 | Not Available | Lower Plate Ass’y 6810/6815/6855 | 76057 | Not Available |
| 26 | Not Available | Lower Plate 6915/6955 | NLA | Not Available |
| 27 | Not Available | Packing (Lower Plate Back) 6810-6855 | 76107 | Not Available |
| 28 | Not Available | Packing (Lower Plate Right) 6810-6855 | 39A-2V0 | Not Available |
| 29 | Not Available | Screw (Lower Plate) | 77012 | Not Available |
| 30 | Not Available | Wire Nut 6810-6855 | SS-3270 | Not Available |
| 31 | Not Available | Plastic Shaft | 73900 | Not Available |
| 32 | Not Available | Reflector 6915/6955 | 84HURZW000 | Not Available |
| 33 | Not Available | Belt Cover 6915/6955 | 76315 | Not Available |
| 34 | Not Available | Bulb Socket 6915/6955 | 93HUKZ0000 | Not Available |

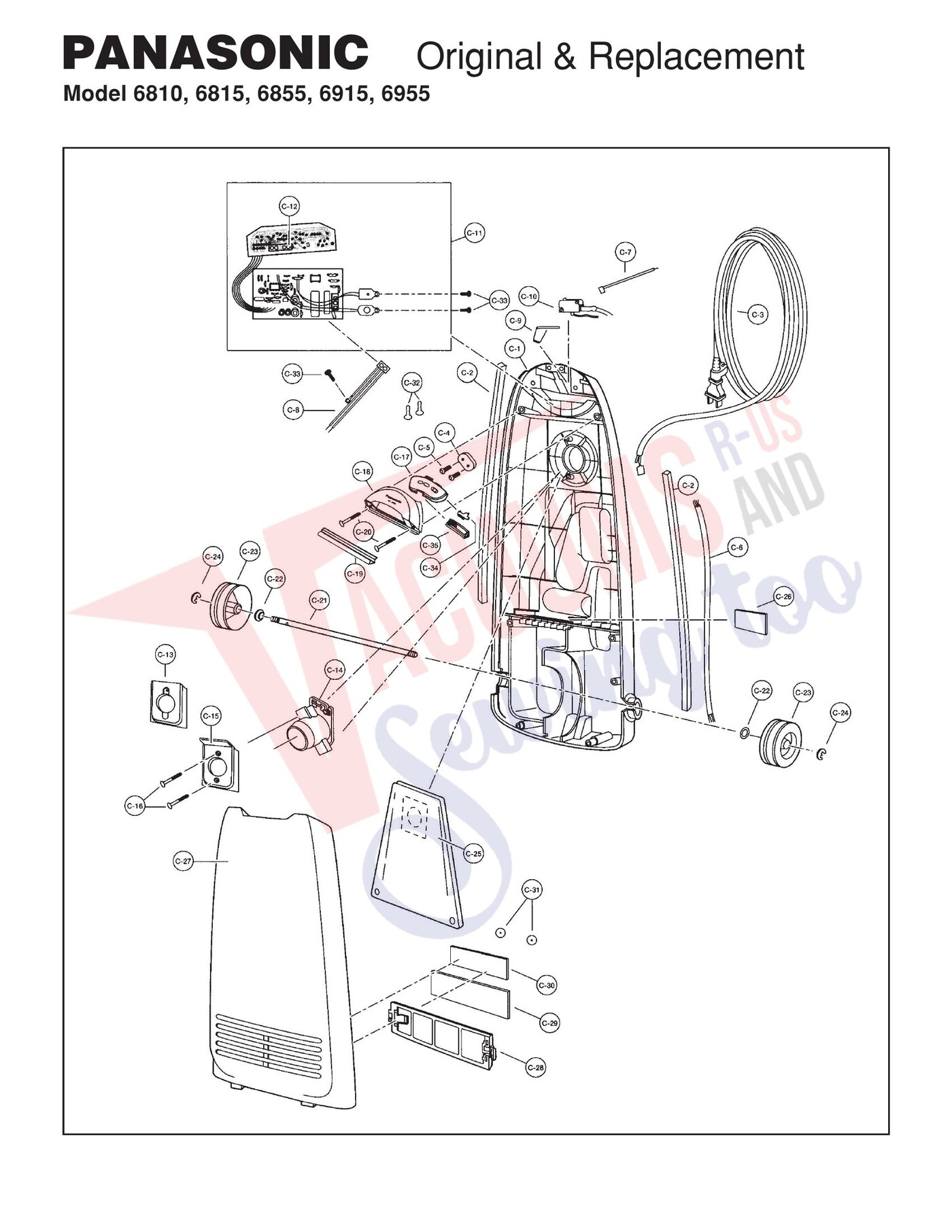

| # | Part image | Description | SKU | Price |
| 1 | No Image | Key, Woodruff, 5mm | 75275 | $15.99Read more |
| 1 | Not Available | Dust Compartment 6810/6855/6915/6955 | NLA | Not Available |
| 1 | No Image | Key, Woodruff, 5mm | 75275 | $15.99Read more |
| 1 | Not Available | Dust Compartment 6810/6855/6915/6955 | NLA | Not Available |
| 2 | Not Available | Dust Compartment Packing | 66K-V30J | Not Available |
| 2 | Not Available | Handle Ass’y 6815/6855/6915/6955 | 70140 | Not Available |
| 2 | Not Available | Handle Ass’y 6810 | 95BYZZV07 | Not Available |
| 3 | Not Available | Power Cord 6810 | 97EYXZV000 | Not Available |
| 3 | No Image | Wheel Bumper 3 x 7/8 Grey | 30044 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Manifold Spraybar Aluminum 98190 | 30045 | $49.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Shaft, Brush 20 (98190) | 30047 | $278.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Upper Cord Hook | 70842 | Not Available |
| 4 | Not Available | Cord Stopper | 62E-J20 | Not Available |
| 4 | Not Available | Screw (Handle) | 73BZA000 | Not Available |
| 5 | Not Available | Screw (Cord Stopper) | 77020 | Not Available |
| 5 | Not Available | Suction Inlet Cover | 75690 | Not Available |
| 6 | Not Available | Wire Cord | 37G-V200U | Not Available |
| 6 | Not Available | Suction Inlet Packing | 75419 | Not Available |
| 7 | Not Available | Lead Wire | 36024 | Not Available |
| 7 | Not Available | Hose Ass’y | 73660 | Not Available |
| 8 | Not Available | Lead Wire AU 6855/6955 | 67VZAZ0000 | Not Available |
| 8 | Not Available | Dusting Brush | 53020 | Not Available |
| 9 | Not Available | Switch Lever | 34921 | Not Available |
| 9 | Not Available | Upholstery Nozzle | 52020 | Not Available |
| 10 | Not Available | Switch On/Off | 34127 | Not Available |
| 10 | Not Available | Crevice Tool | 54017 | Not Available |
| 11 | Not Available | PC Ass’y 6855/6955 (Includes C-12) | 87GZAZ0000 | Not Available |
| 11 | Not Available | Extension Wand Unit | 50025 | Not Available |
| 12 | Not Available | PCB Holder 6855/6955 | 59VZAZ0000 | Not Available |
| 12 | Not Available | Protector Case | 68K-D20 | Not Available |
| 13 | Not Available | Bag Supporter 6810/6815/6915 | 10KYYZV007 | Not Available |
| 13 | Not Available | Protector Spring | 76865 | Not Available |
| 14 | Not Available | Bag Supporter 6855/6955 | 10KZAZK012 | Not Available |
| 14 | Not Available | Protector | 50521 | Not Available |
| 15 | Not Available | Fin Cover 6855/6955 | 28MZAZV007 | Not Available |
| 15 | Not Available | Protector Supporter | 50520 | Not Available |
| 16 | Not Available | Screw | 77020 | Not Available |
| 16 | Not Available | Hose Hook | 75920 | Not Available |
| 17 | Not Available | Ornamental Plate 6855/6955 | 21TYZZU001 | Not Available |
| 17 | Not Available | Wand Holder | 75925 | Not Available |
| 18 | Not Available | Switch Cover 6915 | 03EUSZGU06 | Not Available |
| 18 | Not Available | Switch Cover 6955 | NLA | Not Available |
| 18 | Not Available | Switch Cover 6810 | NLA | Not Available |
| 18 | Not Available | Switch Cover 6815 | NLA | Not Available |
| 18 | Not Available | Switch Cover 6855 | NLA | Not Available |
| 18 | Not Available | Screw | 77020 | Not Available |
| 19 | Not Available | Packing (Switch Cover) | 73KZAZK012 | Not Available |
| 19 | Not Available | Holder | 75932 | Not Available |
| 20 | Not Available | Screw (Switch Cover) | 77020 | Not Available |
| 21 | Not Available | Roller Shaft | 71350 | Not Available |
| 22 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Wheel (Black) | 71125 | Not Available |
| 24 | Not Available | E-Clip | XUC5FY | Not Available |
| 25 | Not Available | Dust Bag U3 3 Pack | MC115P | Not Available |
| 26 | Not Available | Secondary Filter | 18067 | Not Available |
| 27 | Not Available | Dust Cover 6810 | 60KYYZB013 | Not Available |
| 27 | Not Available | Dust Cover 6815/6855 | 60KYYZR009 | Not Available |
| 27 | Not Available | Dust Cover 6915 | 60KYYZG006 | Not Available |
| 27 | Not Available | Dust Cover 6955 | 60KYYZR003 | Not Available |
| 28 | No Image | Battery Gauge | 18460 | $0.00Read more |
| 29 | Not Available | Electrostatic Filter 6855-6955 | MC180E | Not Available |
| 30 | Not Available | Filter 6810/6815 | 18038 | Not Available |
| 31 | Not Available | 1/8 Spring Push Nut 6810/6815 | 415-5375 | Not Available |
| 32 | Not Available | Wire Nut | SS-3270 | Not Available |
| 33 | Not Available | Screw 6855/6955 | XTN3+8B | Not Available |
| 34 | Not Available | Sensor Knob 6855/6955 | 04EZAZV007 | Not Available |
| 35 | Not Available | LED Lens 6855/6955 | 33MZAZ0000 | Not Available |
