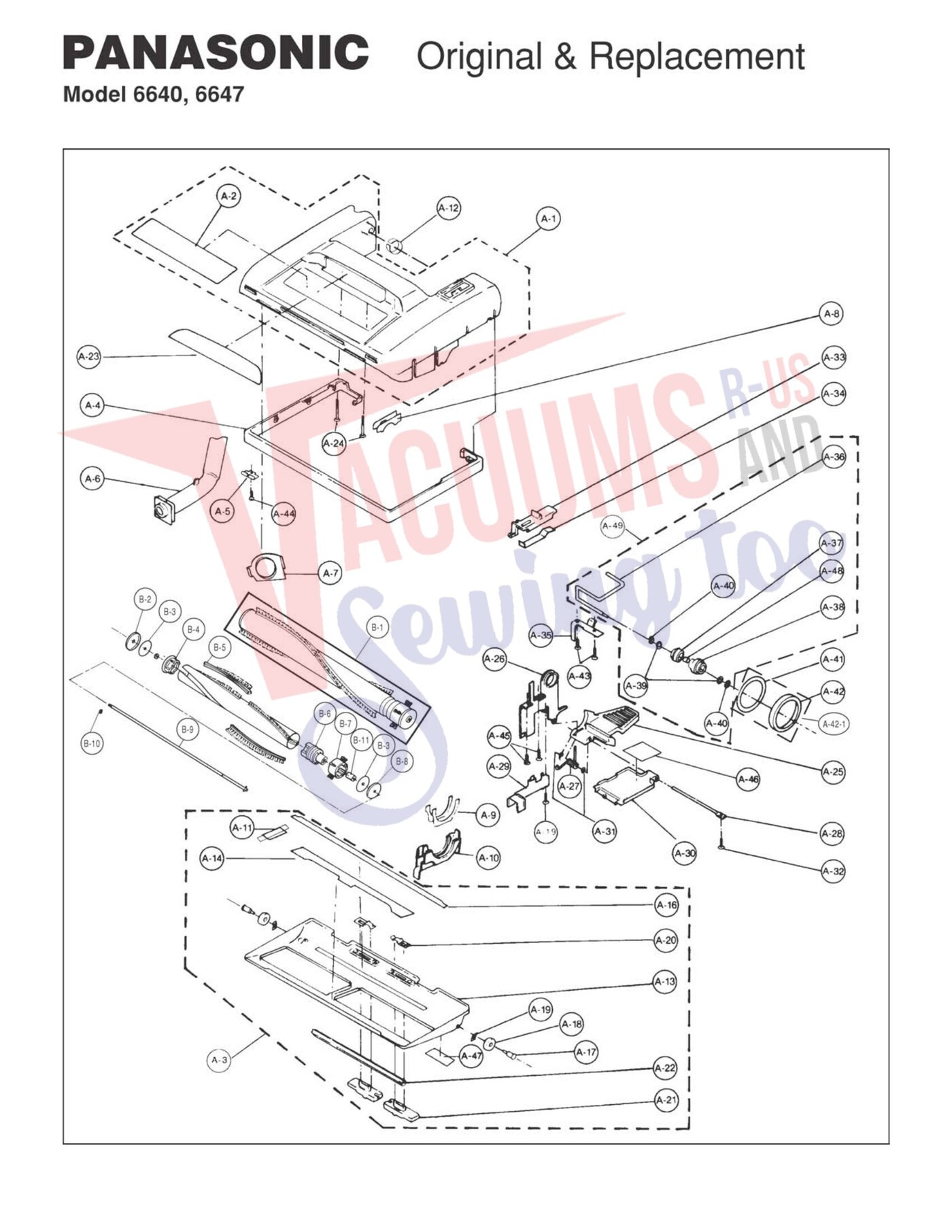

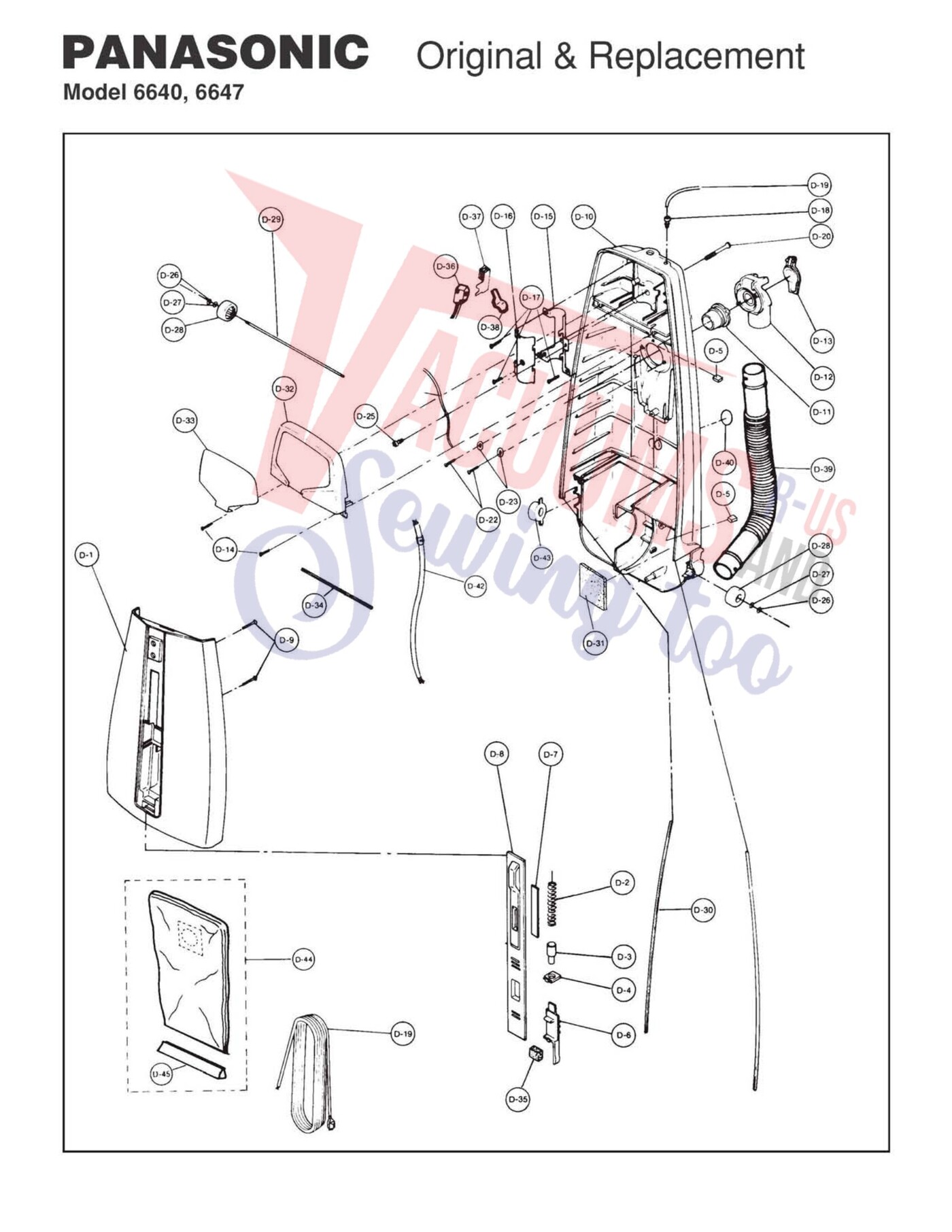

Schematic and parts book for panasonic 6640, 6647 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Cover 6640 | 75530 | Not Available |
| 1 | Not Available | Dust Cover 6647 | 60K-V404 | Not Available |
| 1 | No Image | LATCH, MACHINE END EXL HOSE Part Number: 70261 for Compact | 70261 | $3.62Read more |
| 1 | No Image | COUPLING, MACHINE END A101 BOTTOM Part Number: 70263 for Compact | 70263 | $11.03Read more |
| 2 | Not Available | Indicator Spring | 04M-1L0 | Not Available |
| 2 | Not Available | Handle Grip Left 6640 | 70262 | Not Available |
| 2 | No Image | Switch, Blk Rect On/Off for Powrhead EXL/MG Series Part Number: 70264 for Compact | 70264 | $13.24Read more |
| 3 | Not Available | Indicator Lead | 97M-V30 | Not Available |
| 3 | Not Available | Handle | 70130 | Not Available |
| 4 | Not Available | Indicator Lead Supporter | 20M-V30 | Not Available |
| 4 | Not Available | Switch Window 6640 | 34820 | Not Available |
| 4 | Not Available | Switch Window 6647 | 93P-1G0KU | Not Available |
| 5 | Not Available | Tight Packing | 81A-1L0 | Not Available |
| 5 | Not Available | Switch Knob 6640 | 73880 | Not Available |
| 5 | Not Available | Switch Knob 6647 | 69G-V30V | Not Available |
| 6 | Not Available | Suction Control Lever 6640 | 06M-V30 | Not Available |
| 6 | Not Available | Suction Control Lever 6647 | 06M-V30V | Not Available |
| 6 | No Image | 16' Crush-Proof Hose Assembly | 77010 | $0.00Read more |
| 7 | Not Available | Indicator Window | 08M-V30 | Not Available |
| 7 | Not Available | Upper Cord Hook 6640 | NLA | Not Available |
| 7 | Not Available | Upper Cord Hook 6647 | NLA | Not Available |
| 8 | Not Available | Front Cover 6640 | 01H-V40Q | Not Available |
| 8 | Not Available | Front Cover 6647 | 01H-BH0VU | Not Available |
| 8 | No Image | 16' Crush-Proof Hose Assembly | 77010 | $0.00Read more |
| 9 | No Image | 16' Crush-Proof Hose Assembly | 77010 | $0.00Read more |
| 9 | Not Available | Handle Lever | 73885 | Not Available |
| 10 | No Image | Contactor, 24V, 100A | 75270 | $174.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Suction Inlet Packing | 75418 | Not Available |
| 12 | Not Available | Suction Inlet 6640 | 75680 | Not Available |
| 12 | Not Available | Suction Inlet 6647 | 60H-F709 | Not Available |
| 13 | Not Available | Cover 6640 | 75650 | Not Available |
| 13 | Not Available | Cover 6647 | 75625 | Not Available |
| 14 | No Image | 16' Crush-Proof Hose Assembly | 77010 | $0.00Read more |
| 15 | Not Available | Handle Supporter | 53B-1L0 | Not Available |
| 16 | Not Available | Handle Fitting | 69B-V30 | Not Available |
| 17 | No Image | 16' Crush-Proof Hose Assembly | 77010 | $0.00Read more |
| 18 | Not Available | Wire Bushing (Not Shown) | 62E-M10 | Not Available |
| 19 | Not Available | Power Cord | 94E-1L00U | Not Available |
| 20 | Not Available | Handle Screw | 77045 | Not Available |
| 21 | Not Available | Bag Supporter Old Syle Not Shown | 75420 | Not Available |
| 22 | Not Available | Screw (Bag Supporter) | 77030 | Not Available |
| 23 | Not Available | Washer | 77120 | Not Available |
| 24 | Not Available | Spacer Old Syle Not Shown | 75910 | Not Available |
| 25 | Not Available | Screw (Connection Cord) | XTN4+C20FY | Not Available |
| 26 | Not Available | E-Clip | 77115 | Not Available |
| 27 | Not Available | Washer | XWG6 | Not Available |
| 28 | Not Available | Roller 6640 | 71060 | Not Available |
| 28 | Not Available | Roller 6647 | 71125 | Not Available |
| 29 | Not Available | Roller Shaft | 71370 | Not Available |
| 30 | Not Available | Dust Box Packing | 66K-V30K | Not Available |
| 31 | Not Available | Packing | 18300 | Not Available |
| 32 | Not Available | Switch Cover 6640 | 03E-V30R | Not Available |
| 32 | Not Available | Switch Cover 6647 | 03E-9G04 | Not Available |
| 33 | Not Available | Ornamental Plate 6640 | 21T-1L0 | Not Available |
| 33 | Not Available | Ornamental Plate 6647 | 21T-BH00U | Not Available |
| 34 | Not Available | Dust Cover Packing | 73K-V30K | Not Available |
| 35 | Not Available | Indicator Packing | 09M-V30 | Not Available |
| 36 | Not Available | Main Switch | 34150 | Not Available |
| 37 | Not Available | Temminal Cover | 45E-V30 | Not Available |
| 38 | Not Available | Switch Lever | 15E-V30 | Not Available |
| 39 | Not Available | Nozzle Hose 6640 | NLA | Not Available |
| 39 | Not Available | Nozzle Hose 6647 | 73655 | Not Available |
| 40 | Not Available | Sticker | 05T-F70Q | Not Available |
| 41 | Not Available | Partion Board 6640 | 46Z-V30 | Not Available |
| 42 | Not Available | Connection Cord | 64E-1L0 | Not Available |
| 43 | Not Available | Plastic Shaft | 25S-V31W | Not Available |
| 44 | Not Available | Dust Bag (Cloth) | MC161C | Not Available |
| 44 | Not Available | Cloth Bag Ass'y | PR-1225 | Not Available |
| 44 | Not Available | Paper Bag Type U 3 Pk | MC115P | Not Available |
| 44 | Not Available | Paper Bag Type U 3 Pk | PR-14005 | Not Available |
| 45 | Not Available | Dust Bag Supporter | 75430 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing 6640 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing 6647 | 73087 | Not Available |
| 1 | Not Available | Belt 1 Round/1 Flat | MC241B | Not Available |
| 1 | Not Available | Packing Lower Plate (Right) | 76140 | Not Available |
| 1 | Not Available | Agitator Ass'y | 20040 | Not Available |
| 1 | Not Available | Brushroll 14" Metal | PR-2010 | Not Available |
| 1 | Not Available | Motor Case 6640 | NLA | Not Available |
| 1 | Not Available | Motor Case 6647 | NLA | Not Available |
| 2 | Not Available | Top Mark 6640 | 02T-1L0 | Not Available |
| 2 | Not Available | Top Mark 6647 | 02T-BH00U | Not Available |
| 2 | Not Available | Body Supporter | 02C-1L0 | Not Available |
| 2 | Not Available | End Cap Left | NLA | Not Available |
| 2 | Not Available | End Cap Non Pulley End | PR-2052 | Not Available |
| 2 | Not Available | Rear Cover Packing | 18300 | Not Available |
| 3 | Not Available | Lower Plate Unit | 76030 | Not Available |
| 3 | Not Available | Lower Plate | 76035 | Not Available |
| 3 | Not Available | Filter | NLA | Not Available |
| 3 | Not Available | Filter Brushroll | PR-2066 | Not Available |
| 3 | Not Available | Motor Case Support Rubber | 19F-V30K | Not Available |
| 4 | Not Available | Furniture Guard 6640 | 74045 | Not Available |
| 4 | Not Available | Furniture Guard 6647 | 76046 | Not Available |
| 4 | Not Available | Packing Lower Plate (Front) | 76125 | Not Available |
| 4 | Not Available | Brushroll Holder | 20840 | Not Available |
| 4 | Not Available | Brushroll Holder W/Bearing | PR-2058 | Not Available |
| 4 | Not Available | Filter Supporter | 18420 | Not Available |
| 5 | Not Available | Hose Fitting Plate | 27S-V30 | Not Available |
| 5 | Not Available | Screw (Frame) Not Shown | 26A-V30 | Not Available |
| 5 | Not Available | Brush Strip Set 4 PC | 22020 | Not Available |
| 5 | Not Available | Brush Strip Pair | PR-2215 | Not Available |
| 5 | Not Available | Filter | 18030 | Not Available |
| 5 | Not Available | Filter Motor Housing | PR-1810 | Not Available |
| 6 | Not Available | Nozzle Pipe A-42- | 73435 | Not Available |
| 6 | Not Available | Packing; Lower Plate (Back) | 76142 | Not Available |
| 6 | Not Available | Agitator Pulley | 20656 | Not Available |
| 6 | Not Available | Brushroll Pulley W/Bearing | PR-2062 | Not Available |
| 6 | Not Available | Motor | NLA | Not Available |
| 7 | No Image | Sand Paper Grain 120 | 73450 | $6.60Read more |
| 7 | Not Available | Brush Holder | NLA | Not Available |
| 7 | Not Available | Edge Cleaning Brush | PR-2056 | Not Available |
| 7 | Not Available | Carbon Brush (2 PCS) | 63000 | Not Available |
| 8 | Not Available | Tight Packing | 76450 | Not Available |
| 8 | Not Available | Floor Nozzle Roller | 76841 | Not Available |
| 8 | Not Available | End Cap Right | 20517 | Not Available |
| 8 | Not Available | Motor Support Rubber (Front) | 76925 | Not Available |
| 9 | No Image | Brush Kit Replacement Tranaxel 75237 and 75121 | 75150 | $248.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Push On Spring Nut | 77150 | Not Available |
| 9 | Not Available | Agitator Shaft | 20610 | Not Available |
| 9 | Not Available | Motor Support Rubber (Rear) | 76930 | Not Available |
| 10 | Not Available | Belt Cover | 76325 | Not Available |
| 10 | Not Available | E-Clip | 77110 | Not Available |
| 10 | Not Available | Noise Suppressor | 18705 | Not Available |
| 11 | Not Available | Spacer | 20735 | Not Available |
| 11 | Not Available | Lead Wires With AMP Terminal | 44G-V00 | Not Available |
| 12 | Not Available | Screw (Ground Wire) | XSN4+8S | Not Available |
| 13 | Not Available | Screw (Motor Case) | 77030 | Not Available |
| 20 | Not Available | Stop Latch Spring | 76870 | Not Available |
| 21 | Not Available | Latch | 76415 | Not Available |
| 22 | Not Available | Floor Nozzle Rubber | 76900 | Not Available |
| 23 | Not Available | Window 6640 | 21H-1L0R | Not Available |
| 23 | Not Available | Window 6647 | 21H-1L04 | Not Available |
| 24 | Not Available | Screw (Nozzle Housing) | 68A-V30 | Not Available |
| 25 | Not Available | Pedal | 73726 | Not Available |
| 26 | Not Available | Frame | 73419 | Not Available |
| 27 | Not Available | Pedal Spring | 77207 | Not Available |
| 28 | Not Available | Pedal Shaft | 73741 | Not Available |
| 29 | Not Available | Guide Lever | 73745 | Not Available |
| 30 | Not Available | Rear Belt Cover | 73430 | Not Available |
| 31 | Not Available | E-Clip | 77110 | Not Available |
| 32 | No Image | 16' Crush-Proof Hose Assembly | 77010 | $0.00Read more |
| 33 | Not Available | Selector Lever 6640 | 73740 | Not Available |
| 33 | Not Available | Selector Lever 6647 | 18R-V30V | Not Available |
| 34 | Not Available | Selector Spring | 73860 | Not Available |
| 35 | Not Available | Fitting Board | 59D-V30 | Not Available |
| 36 | Not Available | Idler Pulley Shaft | NLA | Not Available |
| 37 | Not Available | Pulley | NLA | Not Available |
| 38 | Not Available | Idler Pulley | 73415 | Not Available |
| 39 | Not Available | Washer | 77116 | Not Available |
| 40 | Not Available | E-Clip | 77115 | Not Available |
| 41 | Not Available | Belt Round UB2 | HR-1011 | Not Available |
| 42 | Not Available | Belt Flat 2 Pk | MC245B | Not Available |
| 42 | Not Available | Belt Flat UB3 | PR-1000 | Not Available |
| 43 | Not Available | Screw (Fitting Board) | 77030 | Not Available |
| 44 | No Image | 16' Crush-Proof Hose Assembly | 77010 | $0.00Read more |
| 45 | Not Available | Screw (Frame) | 77030 | Not Available |
| 46 | Not Available | Caution Label (A) | 07Z-V30 | Not Available |
| 47 | Not Available | Caution Label (B) | 08Z-V30 | Not Available |
| 48 | Not Available | Spacer | 74S-1L0 | Not Available |
| 49 | Not Available | Pulley Ass'y | NLA | Not Available |
| 77 | Not Available | Floor Nozzle Roller Shaft KEY PART NO. DESCRIPTION | 76845 | Not Available |
