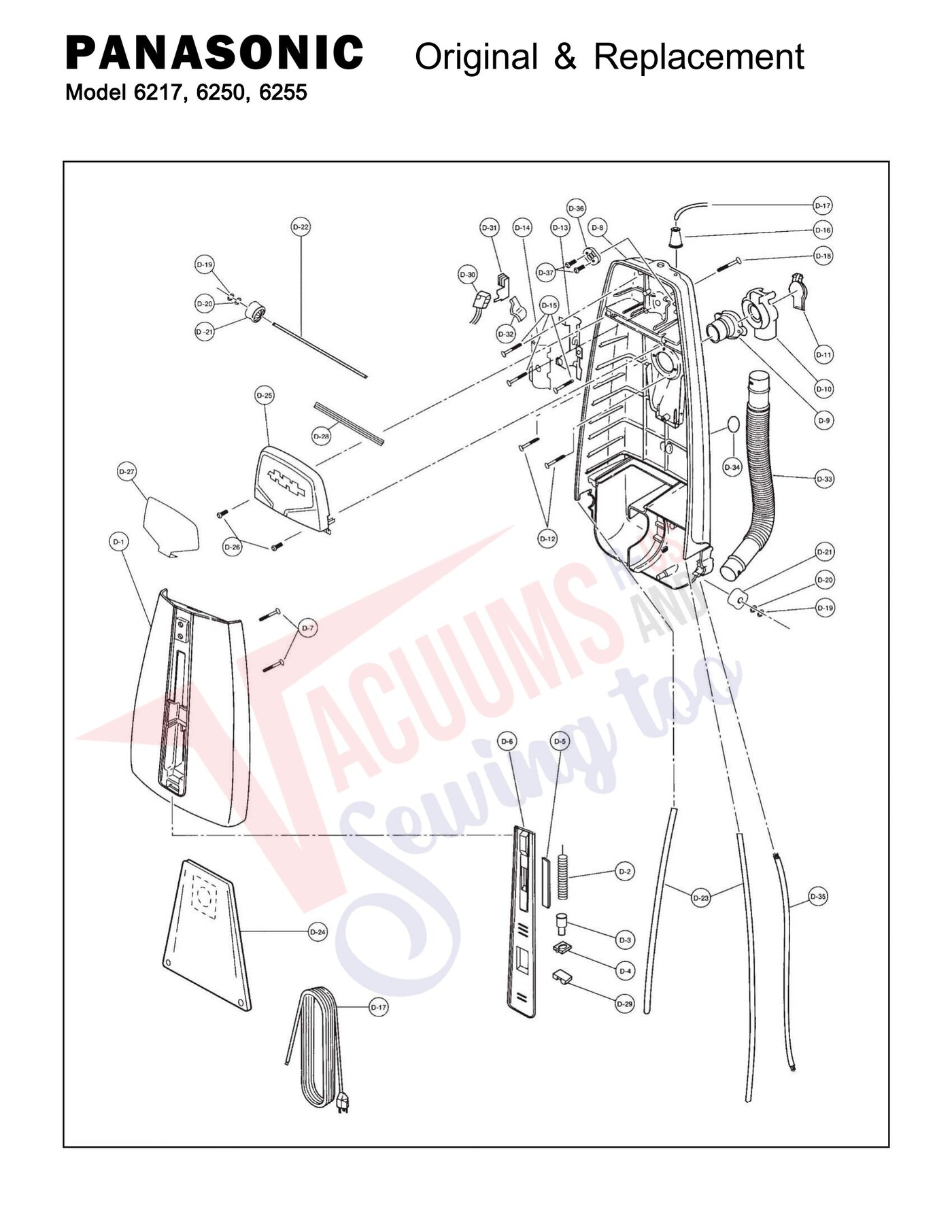

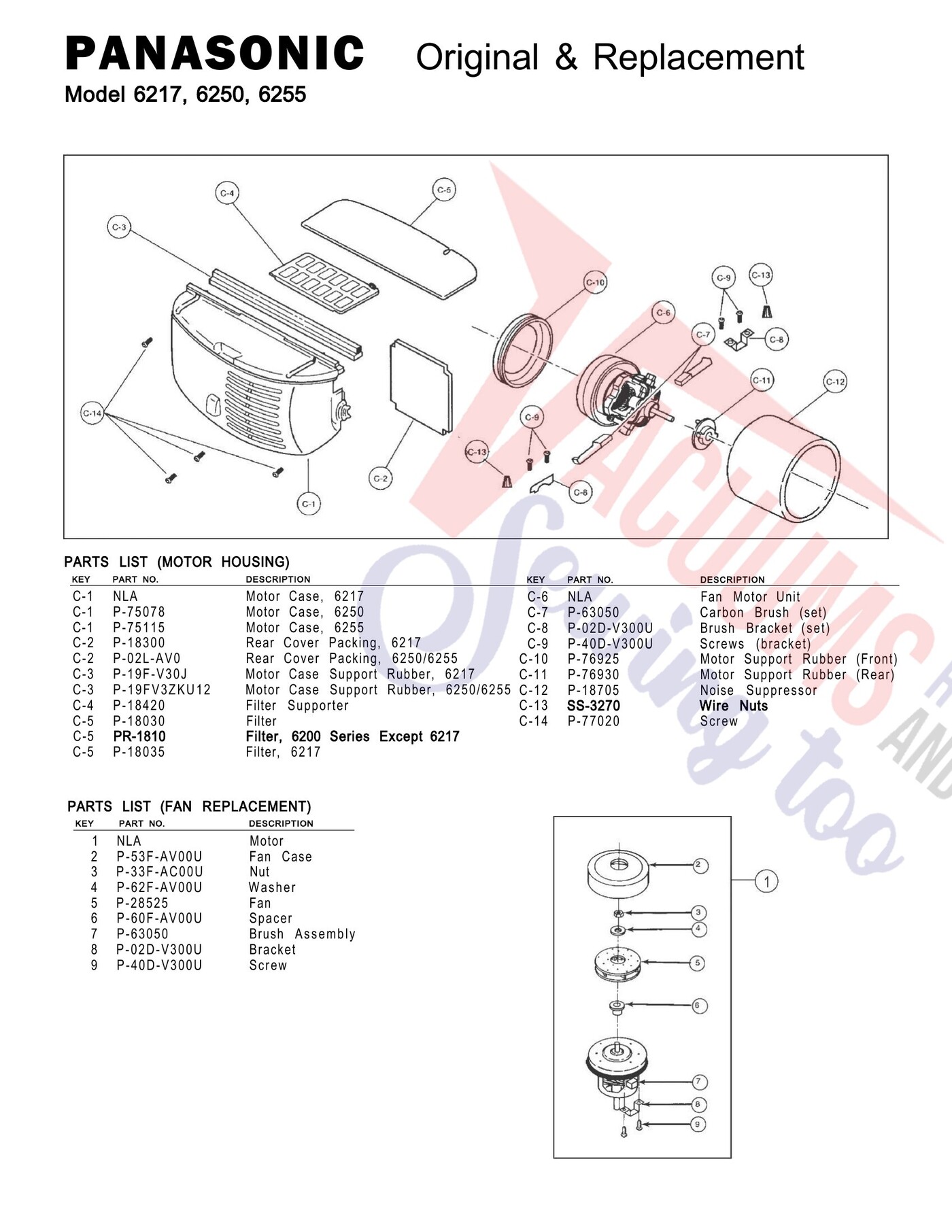

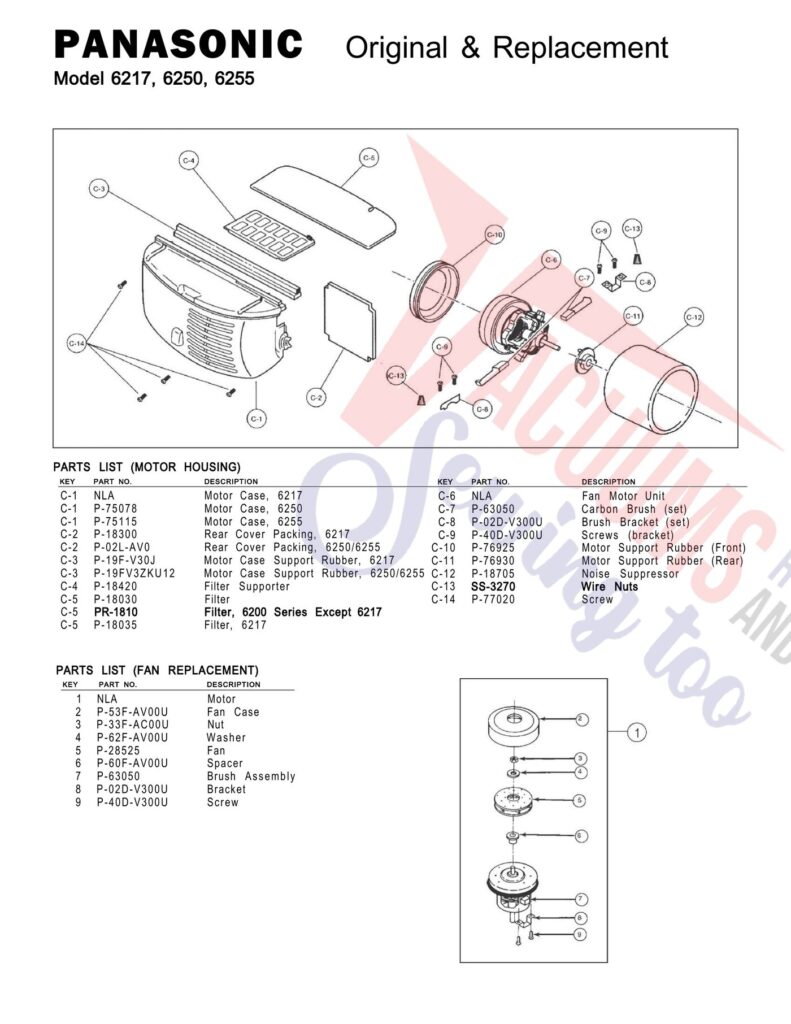

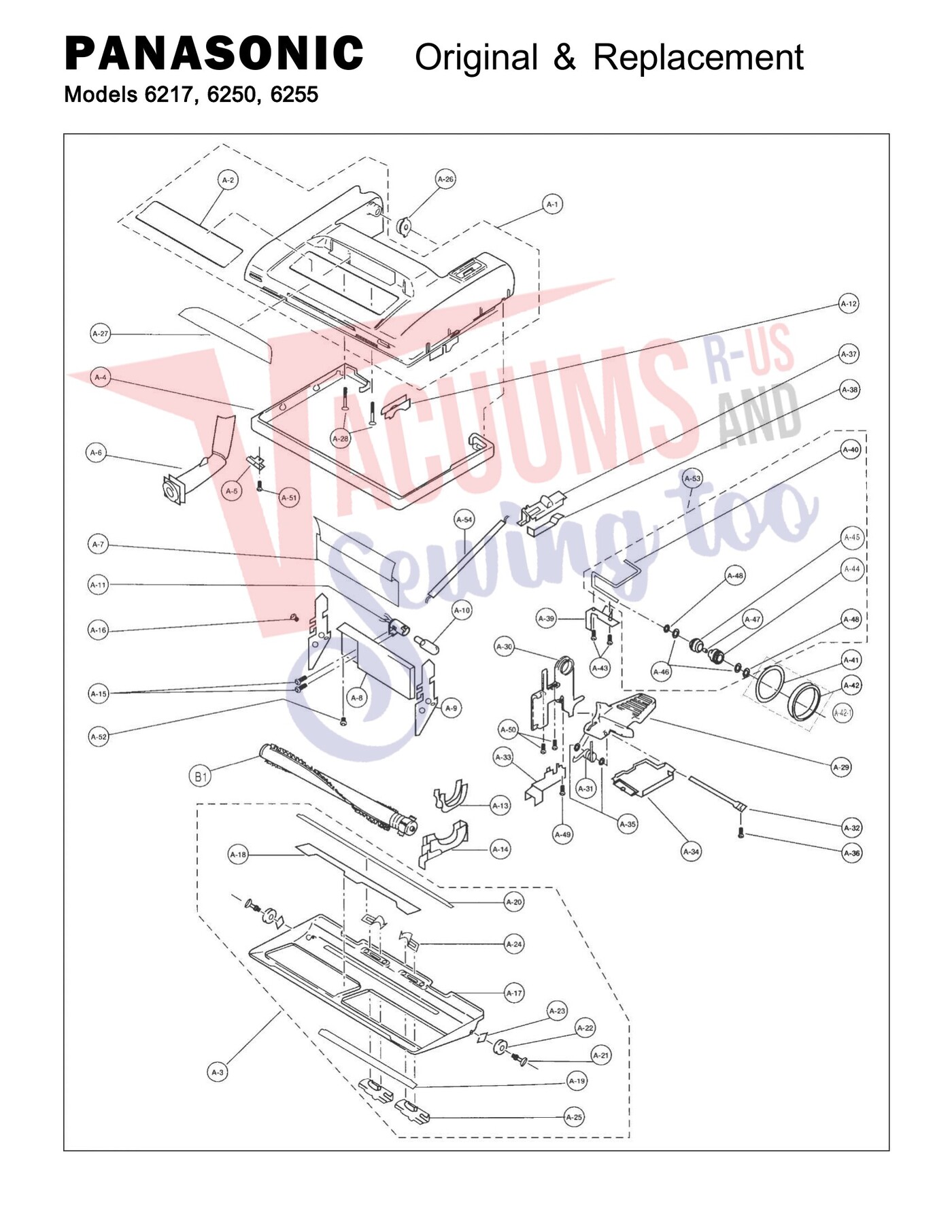

Schematic and parts book for Panasonic 6217, 6250, 6255 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing 6217 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing 6250 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing 6255 | NLA | Not Available |
| 1 | Not Available | Belt 1 Round 1 Flat UB2/UB3 | MC241B | Not Available |
| 1 | Not Available | Brushroll Dowel Only | 20050 | Not Available |
| 1 |  | Gasket, Seal A101 PN Part Number: 70287 for Compact | 70287 | $7.57Read more |
| 1 | Not Available | Handle Grip Right 6217/6255 | NLA | Not Available |
| 2 | Not Available | Top Mark 6217 | 02T-9G00U | Not Available |
| 2 | Not Available | Top Mark 6250 | 02T-ZJU | Not Available |
| 2 | Not Available | Top Mark 6255 | 02T-ZKU | Not Available |
| 2 | No Image | STRIP, ISOLATOR EXL PN Part Number: 70288 for Compact | 70288 | $1.69Read more |
| 2 | Not Available | Handle Grip Left 6217/6255 | 70290 | Not Available |
| 3 | Not Available | Lower Plate Assembly | 76030 | Not Available |
| 3 | Not Available | Handle 6217 | NLA | Not Available |
| 3 |  | Genuine Compact/Tristar Crevice Tool for EXL, MG1 and MG2 | 70275 | $19.99Read more |
| 3 | No Image | Clip, Spring EXL/MG Series For P/N Elbow Release Part Number: 70280 for Compact | 70280 | $5.32Read more |
| 4 | Not Available | Furniture Guard 6217 | 74045 | Not Available |
| 4 | Not Available | Furniture Guard 6250 | 74035 | Not Available |
| 4 | Not Available | Furniture Guard 6255 | 74040 | Not Available |
| 4 | Not Available | Switch Window | 93D-9G00U | Not Available |
| 5 | Not Available | Hose Fitting Plate | 27S-V30 | Not Available |
| 5 | Not Available | Switch Knob | NLA | Not Available |
| 6 | Not Available | Nozzle Pipe | 73435 | Not Available |
| 6 | Not Available | Screw | 77020 | Not Available |
| 7 | Not Available | Reflector | 73910 | Not Available |
| 7 | Not Available | Upper Cord Hook | 70830 | Not Available |
| 8 | Not Available | Bulb Supporter | 85H-V30 | Not Available |
| 8 | Not Available | Screw | 77020 | Not Available |
| 9 | Not Available | Side Plate (Bulb Supporter) | 86H-V30 | Not Available |
| 9 | Not Available | Handle Washer | 77120 | Not Available |
| 10 |  | Bulb, Double Pole 505-1CR Part Number: 1650 S for Kirby | 1650S | $18.06Read more |
| 10 | Not Available | Cord Hook Spring | 77200 | Not Available |
| 11 | Not Available | Bulb Socket A-42- | 93H-F800U | Not Available |
| 11 | Not Available | Lower Cord Hook 6250 | 70880 | Not Available |
| 11 | Not Available | Lower Cord Hook 6217/6255 | 70885 | Not Available |
| 12 | Not Available | Tight Packing | 76450 | Not Available |
| 12 | Not Available | Screw | 77020 | Not Available |
| 13 | Not Available | Body Packing | 76750 | Not Available |
| 13 | Not Available | Handle Lever | 73885 | Not Available |
| 14 | Not Available | Belt Cover | 76325 | Not Available |
| 15 | Not Available | Screw | XYN3+C6FYS | Not Available |
| 16 | Not Available | Wire Bushing | 58E-V30 | Not Available |
| 17 | Not Available | Lower Plate | 76035 | Not Available |
| 18 | Not Available | Packing (Lower Plate Front) | 76125 | Not Available |
| 19 | Not Available | Floor Nozzle Rubber | 76900 | Not Available |
| 20 | Not Available | Floor Nozzle Rubber Rear | 76127 | Not Available |
| 20 | Not Available | Switch Knob Spring | NLA | Not Available |
| 21 | Not Available | Floor Nozzle Roller Shaft | 76845 | Not Available |
| 22 | Not Available | Floor Nozzle Roller | 76841 | Not Available |
| 23 | Not Available | Push On Spring Nuts | 77150 | Not Available |
| 24 | Not Available | Stop Latch Spring | 76870 | Not Available |
| 25 | Not Available | Latch | 76415 | Not Available |
| 26 | Not Available | Plastic Shaft | 25S-V31W | Not Available |
| 27 | Not Available | Window | 75815 | Not Available |
| 28 | Not Available | Screw | 68A-V30 | Not Available |
| 29 | Not Available | Pedal 6250 | 47A-V30U | Not Available |
| 29 | Not Available | Pedal 6255/6217 | 73726 | Not Available |
| 30 | Not Available | Frame | 73419 | Not Available |
| 31 | Not Available | Pedal Spring | 77207 | Not Available |
| 32 | Not Available | Pedal Shaft | 73741 | Not Available |
| 33 | Not Available | Guide Lever | 73745 | Not Available |
| 34 | Not Available | Rear Belt Cover | 73430 | Not Available |
| 35 | Not Available | E-Clip | 77110 | Not Available |
| 36 | Not Available | Screw | 77030 | Not Available |
| 37 | Not Available | Lever-Floor Nozzle 6217 | 18R-V30J | Not Available |
| 37 | Not Available | Lever-Floor Nozzle 6250 | 18R-V30V | Not Available |
| 37 | Not Available | Lever-Floor Nozzle 6255 | 18RV3ZKU10 | Not Available |
| 38 | Not Available | Selector Spring | 73860 | Not Available |
| 39 | Not Available | Fitting Board | 59D-V30 | Not Available |
| 40 | Not Available | Idler Pulley Shaft | 73420 | Not Available |
| 41 | Not Available | Belt Round UB2 | HR-1011 | Not Available |
| 42 | Not Available | Flat Belt 2 Pk | MC245B | Not Available |
| 42 | Not Available | Belt Flat UB3 | PR-1000 | Not Available |
| 43 | Not Available | Screw | 77030 | Not Available |
| 44 | Not Available | Idler Pulley | 73415 | Not Available |
| 45 | Not Available | Pulley | NLA | Not Available |
| 46 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | Spacer | 74S-1L0 | Not Available |
| 48 | Not Available | E-Clip | 77115 | Not Available |
| 49 | Not Available | Screw | 26A-V30 | Not Available |
| 50 | Not Available | Screw | 77030 | Not Available |
| 51 | Not Available | Screw | 77020 | Not Available |
| 52 | Not Available | Screw | 77020 | Not Available |
| 53 | Not Available | Idler Pulley Unit | NLA | Not Available |
| 54 | Not Available | Wire Cord 6250/6255 | 37G-V30 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Cover 6217 | 60K-V403 | Not Available |
| 1 | Not Available | Dust Cover 6250 | 60KV41BU05 | Not Available |
| 1 | Not Available | Dust Cover 6255 | 60KV41KU09 | Not Available |
| 1 | Not Available | Agitator Unit 6250/6255 | 20050 | Not Available |
| 2 | Not Available | Indicator Spring | 04M-V30 | Not Available |
| 2 | Not Available | End Cap "A" 6250/6255 | 20525 | Not Available |
| 3 | Not Available | Indicator Lead | 97M-V30 | Not Available |
| 3 | Not Available | End Cap "B" 6250/6255 | 20535 | Not Available |
| 4 | Not Available | Indicator Lead Supporter | 20M-V30 | Not Available |
| 4 | Not Available | Washer 6250/6255 | 681-424 | Not Available |
| 5 | Not Available | Indicator Window | 08M-V30 | Not Available |
| 6 | Not Available | Front Cover 6217 | 01H-V40KU | Not Available |
| 6 | Not Available | Front Cover 6250 | 01HZJZVU12 | Not Available |
| 6 | Not Available | Front Cover 6255 | 01HZJZKU10 | Not Available |
| 7 | Not Available | Screw | 77020 | Not Available |
| 8 | No Image | Rig and Axle only, 4in Caster | 75217 | $34.99Read more |
| 8 | No Image | Harness, Power, Orbital, S-20 | 75263 | $754.99Read more |
| 8 | No Image | Meter, Hour, Digital (Optional) | 75258 | $218.99Read more |
| 9 | Not Available | Suction Inlet Packing | 75415 | Not Available |
| 10 | Not Available | Suction Inlet 6217 | 60-F703 | Not Available |
| 10 | Not Available | Suction Inlet 6250 | 75640 | Not Available |
| 10 | Not Available | Suction Inlet 6255 | NLA | Not Available |
| 11 | Not Available | Cover 6217 | 02H-F703 | Not Available |
| 11 | Not Available | Cover 6250 | 75678 | Not Available |
| 11 | Not Available | Cover 6255 | NLA | Not Available |
| 12 | Not Available | Screw | XTN4+14B | Not Available |
| 13 | Not Available | Handle Supporter | 53B-V30 | Not Available |
| 14 | Not Available | Handle Fitting | 69B-V30 | Not Available |
| 15 | Not Available | Screw | 77020 | Not Available |
| 16 | Not Available | Cord Bushing 6217 | 62E-V30 | Not Available |
| 16 | Not Available | Cord Bushing 6250 | 51E-L00V | Not Available |
| 16 | Not Available | Cord Bushing 6255 | 51E-L00 | Not Available |
| 17 | Not Available | Power Cord 6217 | 97E-V40V | Not Available |
| 17 | Not Available | Power Cord 6250 | 97E-ZJZVU | Not Available |
| 17 | Not Available | Power Cord 6255 | 97E-ZKZ0U | Not Available |
| 18 | Not Available | Handle Screw | 77045 | Not Available |
| 19 | Not Available | E-Clip | 77115 | Not Available |
| 20 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Roller (Wheel) | 71125 | Not Available |
| 22 | Not Available | Roller Shaft | NLA | Not Available |
| 23 | Not Available | Dust Box Packing | 66K-V30J | Not Available |
| 24 | Not Available | Dust Bag Paper U3 3 PK | MC115P | Not Available |
| 24 |  | Paper Bag, DVC Style U6 Microlined 10Pk Part Number: 456799 for Panasonic Replacement | 456799 | $14.59Read more |
| 25 | Not Available | Switch Cover 6217 | 03E-9G0VU | Not Available |
| 25 | Not Available | Switch Cover 6250 | 03E9GZBU05 | Not Available |
| 25 | Not Available | Switch Cover 6255 | 03E9GZKU09 | Not Available |
| 26 | Not Available | Screw (Switch Cover) | 77020 | Not Available |
| 27 | Not Available | Ornamental Plate 6217 | 21T-9G00U | Not Available |
| 27 | Not Available | Ornamental Plate 6250 | 21T-ZJZ0U | Not Available |
| 27 | Not Available | Ornamental Plate 6255 | 21T-ZKZ0U | Not Available |
| 28 | Not Available | Switch Cover Packing 6217 | 73K-V30J | Not Available |
| 28 | Not Available | Switch Cover Packing 6250/6255 | 73KV3ZKU12 | Not Available |
| 29 | Not Available | Indicator Packing | 09M-V30 | Not Available |
| 30 | Not Available | Main Switch | 34150 | Not Available |
| 31 | Not Available | Terminal Cover | 45E-V31 | Not Available |
| 32 | Not Available | Switch Lever | 15E-V30 | Not Available |
| 33 | Not Available | Nozzle Hose 6217 | 73618 | Not Available |
| 33 | Not Available | Nozzle Hose 6250 | NLA | Not Available |
| 34 | Not Available | Nozzle Hose 6255 | NLA | Not Available |
| 34 | Not Available | Sticker Warning | 05T-F70Q | Not Available |
| 35 | Not Available | Wire Cord | 38G-V3000 | Not Available |
| 36 | Not Available | Cord Stopper | 62E-J20 | Not Available |
| 37 | Not Available | Screw | 77020 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor Case 6217 | NLA | Not Available |
| 1 | No Image | Dual Downpressure Lever | 75078 | $0.00Read more |
| 1 | No Image | Stand-Off, Insulated, .25-20 | 75115 | $19.99Read more |
| 1 | Not Available | Motor | NLA | Not Available |
| 2 | Not Available | Rear Cover Packing 6217 | 18300 | Not Available |
| 2 | Not Available | Rear Cover Packing 6250/6255 | 02L-AV0 | Not Available |
| 2 | Not Available | Fan Case | 53F-AV00U | Not Available |
| 3 | Not Available | Motor Case Support Rubber 6217 | 19F-V30J | Not Available |
| 3 | Not Available | Motor Case Support Rubber 6250/6255 | 19FV3ZKU12 | Not Available |
| 3 | Not Available | Nut | 33F-AC00U | Not Available |
| 4 | Not Available | Filter Supporter | 18420 | Not Available |
| 4 | Not Available | Washer | 62F-AV00U | Not Available |
| 5 | Not Available | Filter | 18030 | Not Available |
| 5 | Not Available | Filter 6200 Series Except 6217 | PR-1810 | Not Available |
| 5 | Not Available | Filter 6217 | 18035 | Not Available |
| 5 | Not Available | Fan | 28525 | Not Available |
| 6 | Not Available | Fan Motor Unit | NLA | Not Available |
| 6 | Not Available | Spacer | 60F-AV00U | Not Available |
| 7 | Not Available | Carbon Brush (set) | 63050 | Not Available |
| 7 | Not Available | Brush Assembly | 63050 | Not Available |
| 8 | Not Available | Brush Bracket (set) | 02D-V300U | Not Available |
| 8 | Not Available | Bracket | 02D-V300U | Not Available |
| 9 | Not Available | Screws (bracket) | 40D-V300U | Not Available |
| 9 | Not Available | Screw | 40D-V300U | Not Available |
| 10 | Not Available | Motor Support Rubber (Front) | 76925 | Not Available |
| 11 | Not Available | Motor Support Rubber (Rear) | 76930 | Not Available |
| 12 | Not Available | Noise Suppressor | 18705 | Not Available |
| 13 | Not Available | Wire Nuts | SS-3270 | Not Available |
| 14 | Not Available | Screw | 77020 | Not Available |
Report errors on this page HERE
