Schematic and parts book for panasonic 6210, 6215, 6220, 6225, 6230 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

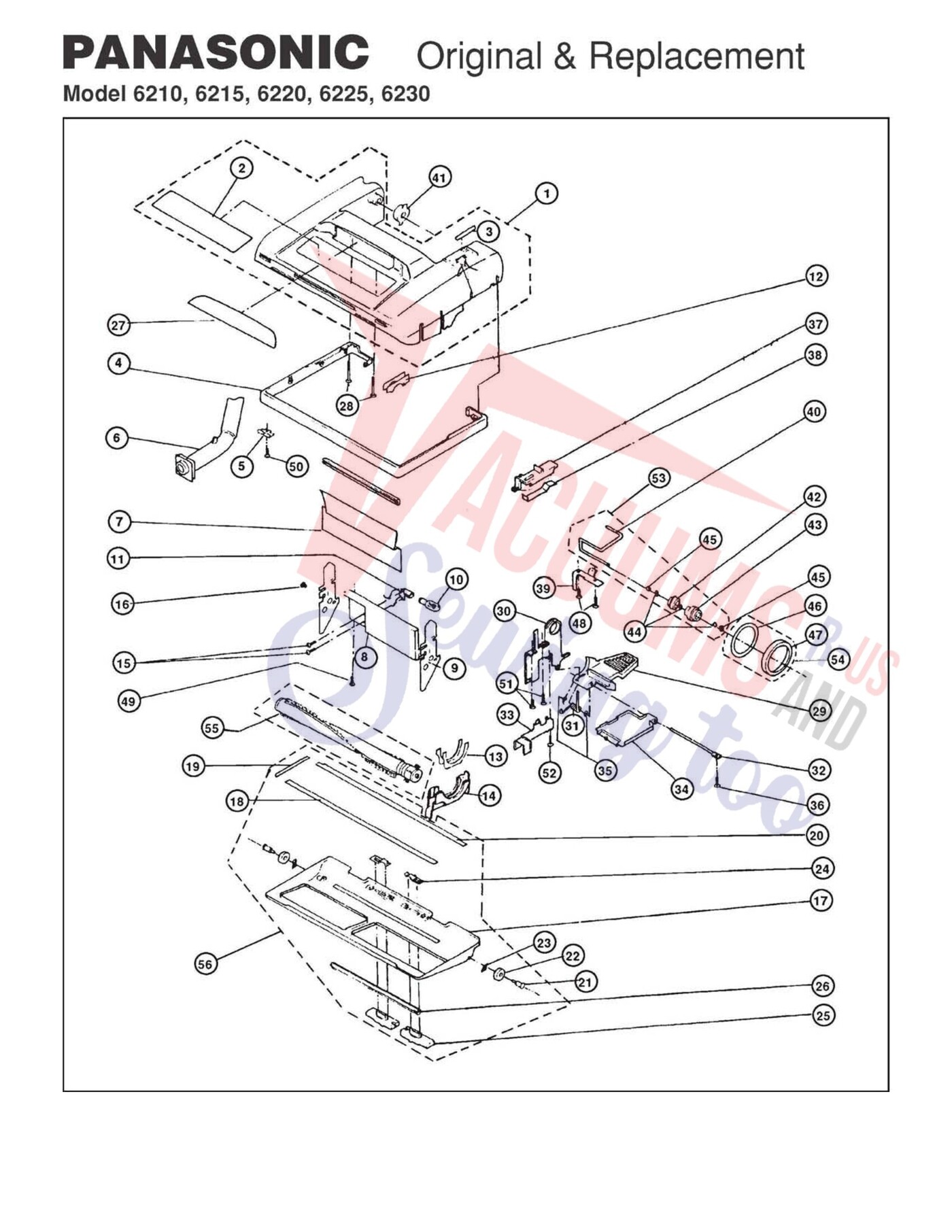

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing 6210 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing 6215/6225 | 73077 | Not Available |
| 1 | Not Available | Nozzle Housing 6220 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing 6230 | NLA | Not Available |
| 2 | Not Available | Top Mark 6210 | 02T-V30 | Not Available |
| 2 | Not Available | Top Mark 6215 | 02T-V30B | Not Available |
| 2 | Not Available | Top Mark 6220 | 02T-V40 | Not Available |
| 2 | Not Available | Top Mark 6225 | 01A-V40B | Not Available |
| 2 | Not Available | Top Mark 6230 | 02T-V50 | Not Available |
| 3 | Not Available | Selector Mark 6210 6220 6230 | 49R-V30 | Not Available |
| 3 | Not Available | Selector Mark 6215 6225 | 49R-1G00U | Not Available |
| 4 | Not Available | Furniture Guard 6210 6220 6230 | 74030 | Not Available |
| 4 | Not Available | Furniture Guard 6215 6225 | 10A-V30B | Not Available |
| 5 | Not Available | Hose Fitting Plate | 27S-V30 | Not Available |
| 6 | Not Available | Nozzle Pipe | 73435 | Not Available |
| 7 | Not Available | Reflector | 73910 | Not Available |
| 8 | Not Available | Bulb Support | 85H-V30 | Not Available |
| 9 | Not Available | Side Plate (Bulb Supporter) | 86H-V30 | Not Available |
| 10 | Not Available | BuIb 25 Watt | FA-3500 | Not Available |
| 11 | Not Available | Bulb Socket | 93H-F800U | Not Available |
| 12 | Not Available | Tight Packing | 76450 | Not Available |
| 13 | Not Available | Body Packing | 76750 | Not Available |
| 14 | Not Available | Belt Cover | 76325 | Not Available |
| 15 | Not Available | Screw | XYN3+C6S | Not Available |
| 16 | Not Available | Wire Bushing | 58E-V30 | Not Available |
| 17 | Not Available | Bottom Plate Only | 76035 | Not Available |
| 18 | Not Available | Packing Lower Plate (Front) | 76125 | Not Available |
| 19 | Not Available | Packing Lower Plate (Right) | NLA | Not Available |
| 20 | Not Available | Packing Lower Plate (Rear) | 76127 | Not Available |
| 21 | Not Available | Floor Nozzle Roller Shaft | 76845 | Not Available |
| 22 | Not Available | Floor Nozzle Roller | 76841 | Not Available |
| 23 | Not Available | Push On Spring Nuts | 77150 | Not Available |
| 24 | Not Available | Stop Latch Spring | 76870 | Not Available |
| 25 | Not Available | Latch 6210 6220 6230 | 76420 | Not Available |
| 25 | Not Available | Latch 6215 6225 | 76415 | Not Available |
| 26 | Not Available | Floor Nozzle Rubber | 76900 | Not Available |
| 27 | Not Available | Window | 75815 | Not Available |
| 28 | Not Available | Screw | 68A-V30 | Not Available |
| 29 | Not Available | Pedal 6210 6220 6230 | 73725 | Not Available |
| 29 | Not Available | Pedal 6215 6225 | 47A-V30B | Not Available |
| 30 | Not Available | Frame | 43A-V30 | Not Available |
| 31 | Not Available | Pedal Spring | 77207 | Not Available |
| 32 | Not Available | Pedal Shaft | 73741 | Not Available |
| 33 | Not Available | Guide Lever | 73745 | Not Available |
| 34 | Not Available | Rear Belt Cover | 73430 | Not Available |
| 35 | Not Available | E-Clip | 77110 | Not Available |
| 36 | Not Available | Screw | 70020 | Not Available |
| 37 | Not Available | Selector Lever | 73740 | Not Available |
| 37 | Not Available | Selector Lever 6215 6225 | 18R-V30B | Not Available |
| 38 | Not Available | Selector Spring | 73860 | Not Available |
| 39 | Not Available | Fitting Board | 59D-V30 | Not Available |
| 40 | Not Available | Idler Pulley Shaft | 73420 | Not Available |
| 41 | Not Available | Plastic Shaft | 25S-V30 | Not Available |
| 42 | Not Available | Idler Pulley Ball Bearing | 73415 | Not Available |
| 43 | Not Available | Pulley Ball Bearing | NLA | Not Available |
| 44 | Not Available | Washer | XWG6 | Not Available |
| 45 | Not Available | E-Clip | 77115 | Not Available |
| 46 | Not Available | Belt Round UB2 | HR-1011 | Not Available |
| 47 | Not Available | Belt Flat 2 Pk | MC245B | Not Available |
| 47 | Not Available | Belt Flat UB3 | PR-1000 | Not Available |
| 48 | Not Available | Screw | 70020 | Not Available |
| 49 | Not Available | Screw | 70020 | Not Available |
| 50 | Not Available | Screw | 70020 | Not Available |
| 51 | Not Available | Screw | 77030 | Not Available |
| 52 | Not Available | Screw | 26A-V30 | Not Available |
| 53 | Not Available | Idler Pulley Ass'y | NLA | Not Available |
| 54 | Not Available | Belts UB2 UB3 2 Pk | MC241B | Not Available |
| 54 | Not Available | Belt UB2 Round | HR-1011 | Not Available |
| 54 | Not Available | Belt UB3 Flat | PR-1000 | Not Available |
| 55 | Not Available | Agitator Ass'y Complete | 20040 | Not Available |
| 55 | Not Available | Agitator Ass'y Complete | PR-2010 | Not Available |
| 56 | Not Available | Bottom Plate Complete | 76030 | Not Available |

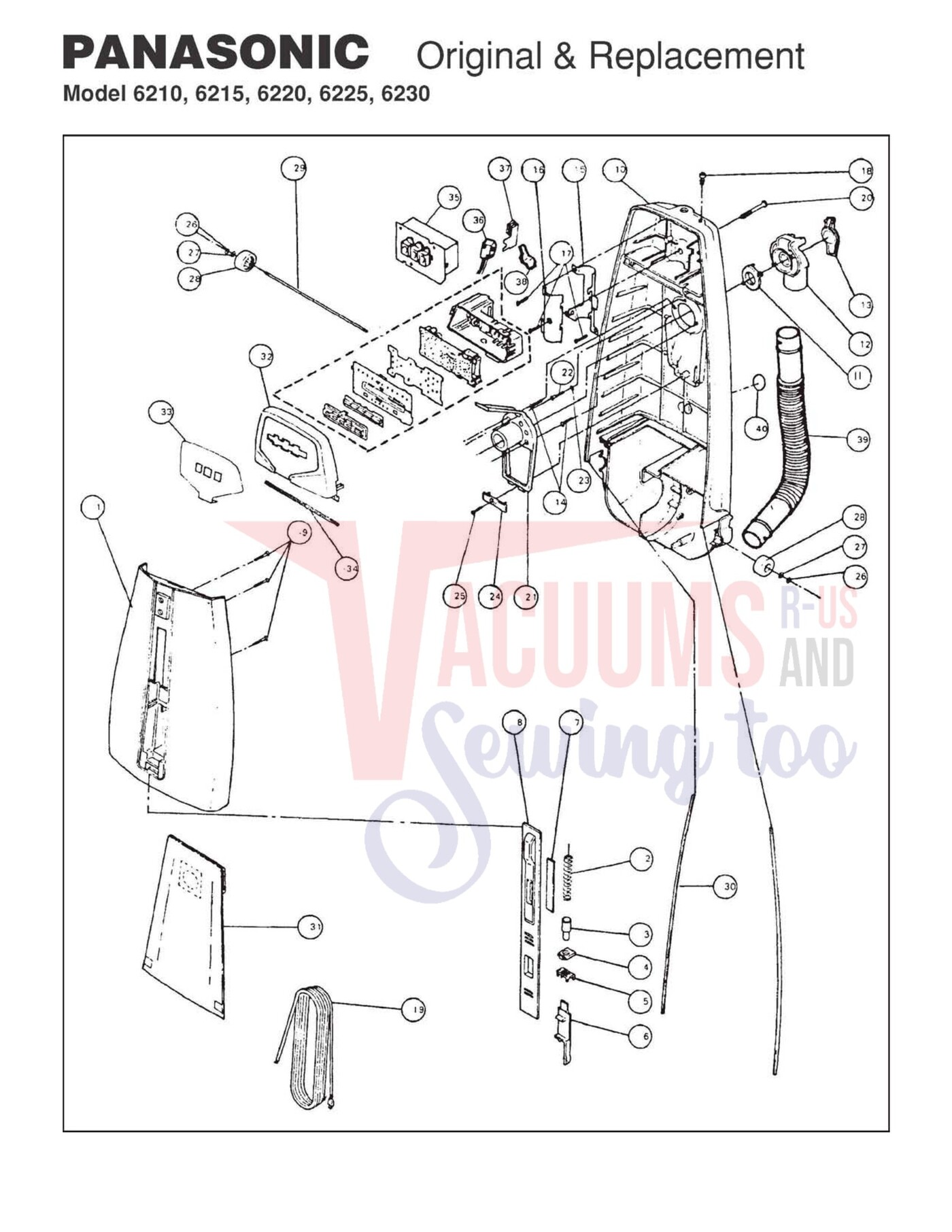

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Cover 6210 6220 6230 | NLA | Not Available |
| 1 | Not Available | Dust Cover 6215 | 60K-V40B | Not Available |
| 1 | Not Available | Dust Cover 6225 | 60K-V30B | Not Available |
| 2 | Not Available | Indicator Spring | 04M-V30 | Not Available |
| 3 | Not Available | Indicator Lead | 97M-V30 | Not Available |
| 4 | Not Available | Indicator Lead Supporter 6210 6220 6230 | 20M-V30 | Not Available |
| 5 | Not Available | Alarm Blade | 43M-M400A | Not Available |
| 6 | Not Available | Alarm Switch Lever | 06M-V30 | Not Available |
| 7 | Not Available | Indicator Window | 08M-V30 | Not Available |
| 8 | Not Available | Front Cover 6120 6220 6230 | 01H-V30R | Not Available |
| 8 | Not Available | Front Cover 6215 | 01H-V40B | Not Available |
| 8 | Not Available | Front Cover 6225 | 01H-V30B | Not Available |
| 9 | Not Available | Screw | 77020 | Not Available |
| 10 | Not Available | Dust Compartment 6210 | NLA | Not Available |
| 10 | No Image | Guide, Roller, Squeegee | 75216 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Control Wiring Harness Traction Drive TS120-S53-U | 75261 | $565.99Read more |
| 10 | No Image | Wheel Only, Caster 4in | 75241 | $80.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Dust Compartment 6230 6210 6220 6230 | NLA | Not Available |
| 11 | Not Available | Suction Inlet Packing | NLA | Not Available |
| 12 | Not Available | Suction Inlet 6210 6220 6230 6215 6225 | 75680 | Not Available |
| 12 | Not Available | Suction Inlet 6215 6225 | 60H-1G0 | Not Available |
| 13 | Not Available | Cover 6210 6220 6230 | 75627 | Not Available |
| 13 | Not Available | Cover 6215 6225 6215 6225 | 02H-F71C | Not Available |
| 14 | Not Available | Screw | 70020 | Not Available |
| 15 | Not Available | Handle Supporter | 53B-V30 | Not Available |
| 16 | Not Available | Handle Fitting | 69B-V30 | Not Available |
| 17 | Not Available | Screw | 77020 | Not Available |
| 18 | Not Available | Wire Bushing | 62E-V30 | Not Available |
| 19 | Not Available | Power Cord 6210 6215 | 97E-V30 | Not Available |
| 19 | Not Available | Power Cord 6220 6225 | 97E-V40 | Not Available |
| 19 | Not Available | Power Cord 6230 | 97E-V50 | Not Available |
| 20 | Not Available | Handle Screw | 77045 | Not Available |
| 21 | Not Available | Bag Supporter | NLA | Not Available |
| 22 | Not Available | Screw | 27K-P30 | Not Available |
| 23 | Not Available | Washer | XWG4FY | Not Available |
| 24 | Not Available | Bag Supporter Spacer | 13K-F70Q | Not Available |
| 25 | Not Available | Screw | 77020 | Not Available |
| 26 | Not Available | E-Clip | 77110 | Not Available |
| 27 | Not Available | Washer | XWG6E13FY | Not Available |
| 28 | Not Available | Rear Wheel | 71125 | Not Available |
| 29 | Not Available | Rear Wheel Shaft | NLA | Not Available |
| 30 | Not Available | Dust Box Packing | 66K-V30R | Not Available |
| 30 | Not Available | Dust Box Packing 6215 6225 | 66K-V30B | Not Available |
| 31 | Not Available | Paper Bag Type U 3 Pk | MC115P | Not Available |
| 31 | Not Available | Paper Bag Type U 3 Pk | PR-14005 | Not Available |
| 32 | Not Available | Switch Cover 6210 6220 6230 | 03E-V30W | Not Available |
| 32 | Not Available | Switch Cover 6215 6225 | 03E-V30B | Not Available |
| 33 | Not Available | Ornamental Plate 6210 | 21T-V300 | Not Available |
| 33 | Not Available | Ornamental Plate 6215 | 21T-1G00U | Not Available |
| 33 | Not Available | Ornamental Plate 6220 | 21T-V40 | Not Available |
| 33 | Not Available | Ornamental Plate 6225 | 21T-1HZZU | Not Available |
| 33 | Not Available | Ornamental Plate 6230 | 21T-V50 | Not Available |
| 34 | Not Available | Dust Cover Packing | 73K-V30R | Not Available |
| 34 | Not Available | Dust Cover Packing | 73K-V30B | Not Available |
| 35 | Not Available | Power Control Switch 6220 | NLA | Not Available |
| 35 | Not Available | Power Control Switch | 89E-1H00U | Not Available |
| 36 | Not Available | Main Switch | 34150 | Not Available |
| 37 | Not Available | Terminal Cover 6210 6220 | 45E-V30 | Not Available |
| 38 | Not Available | Switch Lever 6210 6220 | 15E-V30 | Not Available |
| 39 | Not Available | Nozzle Hose 6210 6220 6230 | NLA | Not Available |
| 39 | Not Available | Nozzle Hose 6215 6225 | 73641 | Not Available |
| 40 | Not Available | Sticker | 05T-F70Q | Not Available |
| # | Part image | Description | SKU | Price |

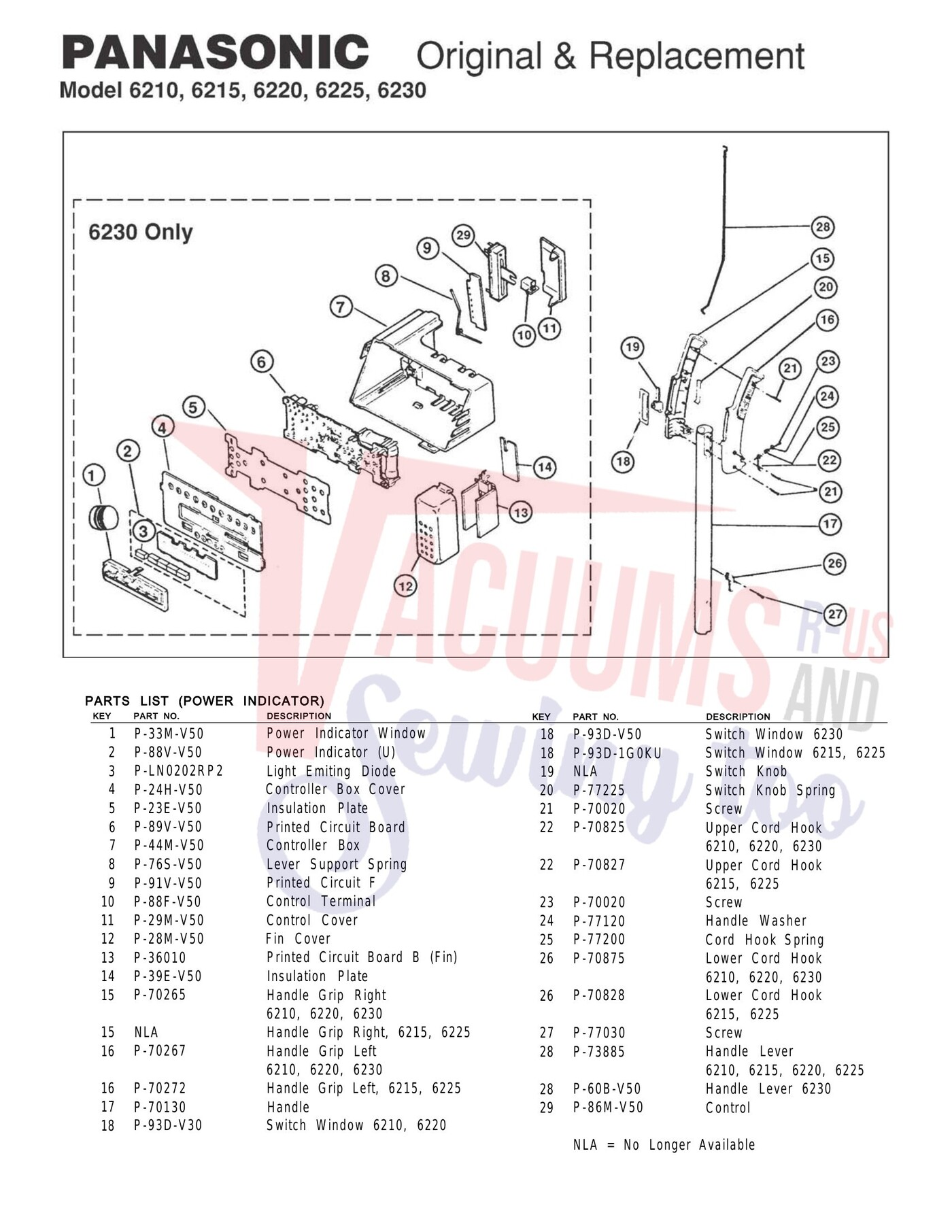

| 1 | Not Available | Power Indicator Window | 33M-V50 | Not Available |
| 2 | Not Available | Power Indicator (U) | 88V-V50 | Not Available |
| 3 | Not Available | Light Emiting Diode | LN0202RP2 | Not Available |
| 4 | Not Available | Controller Box Cover | 24H-V50 | Not Available |
| 5 | Not Available | Insulation Plate | 23E-V50 | Not Available |
| 6 | Not Available | Printed Circuit Board | 89V-V50 | Not Available |
| 7 | Not Available | Controller Box 6210 6220 6230 | 44M-V50 | Not Available |
| 8 | Not Available | Lever Support Spring | 76S-V50 | Not Available |
| 9 | Not Available | Printed Circuit F 6215 6225 | 91V-V50 | Not Available |
| 10 | Not Available | Control Terminal | 88F-V50 | Not Available |
| 11 | Not Available | Control Cover | 29M-V50 | Not Available |
| 12 | Not Available | Fin Cover | 28M-V50 | Not Available |
| 13 | Not Available | Printed Circuit Board B (Fin) | 36010 | Not Available |
| 14 | Not Available | Insulation Plate 6210 6220 6230 | 39E-V50 | Not Available |
| 15 | No Image | Terminal, Machine End EXL/MG Series/A101 Hose Part Number: 70265 for Compact | 70265 | $19.43Read more |
| 15 | Not Available | Handle Grip Right 6215 6225 | NLA | Not Available |
| 16 | Not Available | Handle Grip Left | 70267 | Not Available |
| 16 | Not Available | Handle Grip Left 6215 6225 | 70272 | Not Available |
| 17 | Not Available | Handle | 70130 | Not Available |
| 18 | Not Available | Switch Window 6230 | 93D-V50 | Not Available |
| 18 | Not Available | Switch Window 6215 6225 | 93D-1G0KU | Not Available |
| 18 | Not Available | Switch Window 6210 6220 | 93D-V30 | Not Available |
| 19 | Not Available | Switch Knob | NLA | Not Available |
| 20 | Not Available | Switch Knob Spring | 77225 | Not Available |
| 21 | Not Available | Screw | 70020 | Not Available |
| 22 | Not Available | Upper Cord Hook | 70825 | Not Available |
| 22 | Not Available | Upper Cord Hook | 70827 | Not Available |
| 23 | Not Available | Screw | 70020 | Not Available |
| 24 | Not Available | Handle Washer | 77120 | Not Available |
| 25 | Not Available | Cord Hook Spring | 77200 | Not Available |
| 26 | Not Available | Lower Cord Hook | 70875 | Not Available |
| 26 | Not Available | Lower Cord Hook | 70828 | Not Available |
| 27 | Not Available | Screw | 77030 | Not Available |
| 28 | Not Available | Handle Lever | 73885 | Not Available |
| 28 | Not Available | Handle Lever 6230 | 60B-V50 | Not Available |
| 29 | Not Available | Control | 86M-V50 | Not Available |

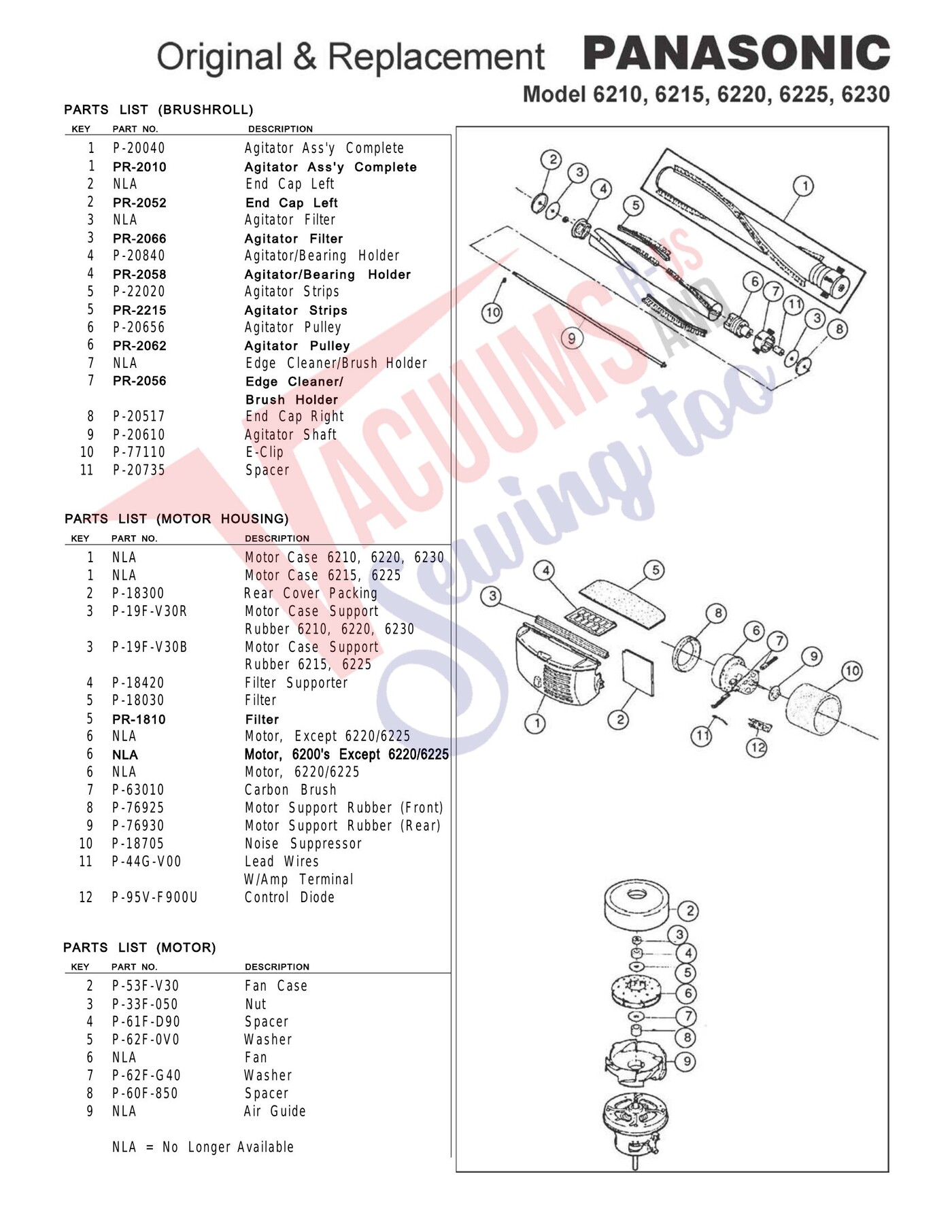

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Agitator Ass'y Complete | 20040 | Not Available |
| 1 | Not Available | Agitator Ass'y Complete | PR-2010 | Not Available |
| 1 | Not Available | Motor Case 6210 6220 6230 | NLA | Not Available |
| 1 | Not Available | Motor Case 6215 6225 | NLA | Not Available |
| 2 | Not Available | End Cap Left | NLA | Not Available |
| 2 | Not Available | End Cap Left | PR-2052 | Not Available |
| 2 | Not Available | Rear Cover Packing | 18300 | Not Available |
| 2 | Not Available | Fan Case | 53F-V30 | Not Available |
| 3 | Not Available | Agitator Filter | NLA | Not Available |
| 3 | Not Available | Agitator Filter | PR-2066 | Not Available |
| 3 | Not Available | Motor Case Support | 19F-V30R | Not Available |
| 3 | Not Available | Motor Case Support | 19F-V30B | Not Available |
| 3 | Not Available | Nut | 33F-050 | Not Available |
| 4 | Not Available | Agitator/Bearing Holder | 20840 | Not Available |
| 4 | Not Available | Agitator/Bearing Holder | PR-2058 | Not Available |
| 4 | Not Available | Filter Supporter | 18420 | Not Available |
| 4 | Not Available | Spacer | 61F-D90 | Not Available |
| 5 | Not Available | Agitator Strips | 22020 | Not Available |
| 5 | Not Available | Agitator Strips | PR-2215 | Not Available |
| 5 | Not Available | Filter | 18030 | Not Available |
| 5 | Not Available | Filter | PR-1810 | Not Available |
| 5 | Not Available | Washer | 62F-0V0 | Not Available |
| 6 | Not Available | Agitator Pulley | 20656 | Not Available |
| 6 | Not Available | Agitator Pulley | PR-2062 | Not Available |
| 6 | Not Available | Motor Except 6220/6225 | NLA | Not Available |
| 6 | Not Available | Motor 6200's Except 6220/6225 | NLA | Not Available |
| 6 | Not Available | Motor 6220/6225 | NLA | Not Available |
| 6 | Not Available | Fan | NLA | Not Available |
| 7 | Not Available | Edge Cleaner/Brush Holder | NLA | Not Available |
| 7 | Not Available | Edge Cleaner/ | PR-2056 | Not Available |
| 7 | Not Available | Carbon Brush | 63010 | Not Available |
| 7 | Not Available | Washer | 62F-G40 | Not Available |
| 8 | Not Available | End Cap Right | 20517 | Not Available |
| 8 | Not Available | Motor Support Rubber (Front) | 76925 | Not Available |
| 8 | Not Available | Spacer | 60F-850 | Not Available |
| 9 | Not Available | Agitator Shaft | 20610 | Not Available |
| 9 | Not Available | Motor Support Rubber (Rear) | 76930 | Not Available |
| 9 | Not Available | Air Guide | NLA | Not Available |
| 10 | Not Available | E-Clip | 77110 | Not Available |
| 10 | Not Available | Noise Suppressor | 18705 | Not Available |
| 11 | Not Available | Spacer | 20735 | Not Available |
| 11 | Not Available | Lead Wires | 44G-V00 | Not Available |
| 12 | Not Available | Control Diode | 95V-F900U | Not Available |
Report errors on this page HERE
