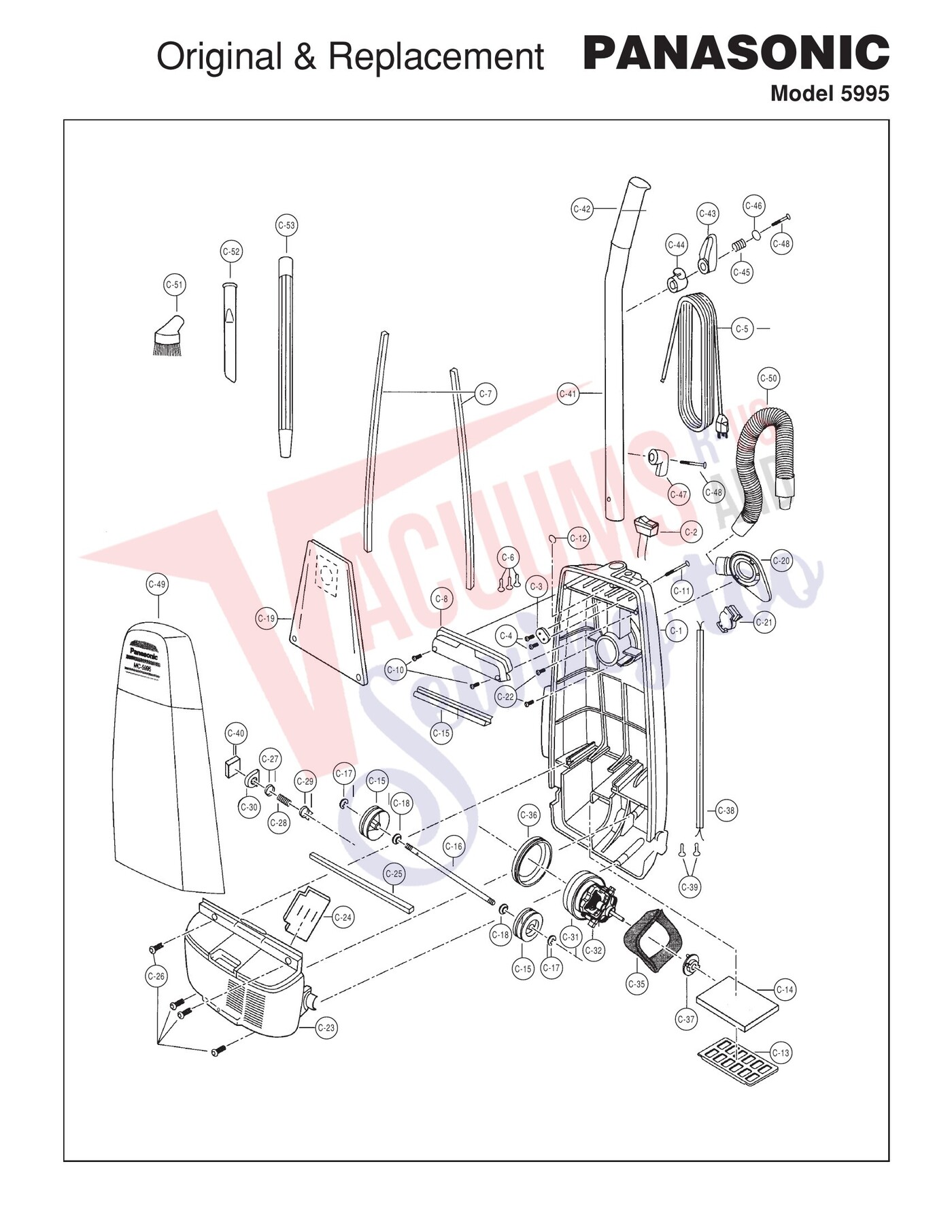

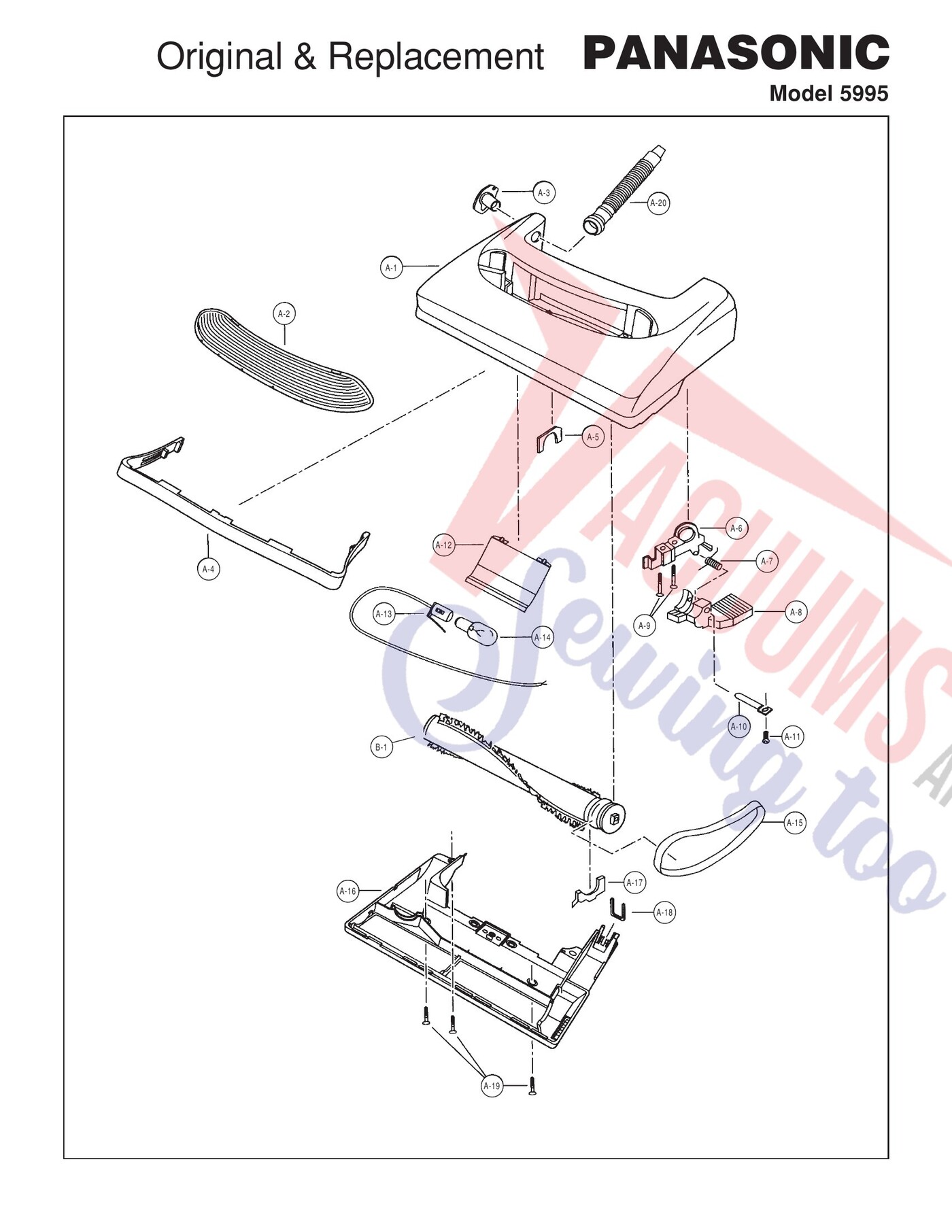

Schematic and parts book for Panasonic 5995 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing | 73074 | Not Available |
| 1 | Not Available | Agitator Unit | 20020 | Not Available |
| 1 | Not Available | Fan Case | 53F-AV00U | Not Available |
| 2 | Not Available | Window | 75812 | Not Available |
| 2 | Not Available | End Cap “A” | 20525 | Not Available |
| 2 | Not Available | B-1 | 4 | Not Available |
| 2 | Not Available | Nut | 33F-AC00U | Not Available |
| 3 | Not Available | Plastic Shaft | 73900 | Not Available |
| 3 | Not Available | End Cap “B” | 20535 | Not Available |
| 3 | Not Available | Washer (a) | 62F-AV00U | Not Available |
| 4 | Not Available | Furniture Guard | 74027 | Not Available |
| 4 | Not Available | Washer | 681-424 | Not Available |
| 4 | Not Available | Fan | 98FRFZ0000 | Not Available |
| 5 | Not Available | Tight Packing | 76425 | Not Available |
| 5 | Not Available | Washer (b) | 62FRFZ0000 | Not Available |
| 6 | Not Available | Frame | 73421 | Not Available |
| 6 | Not Available | Spacer | 60FRFZ0000 | Not Available |
| 7 | Not Available | Pedal Spring | 77206 | Not Available |
| 7 | Not Available | Brush Ass’y | 27FRFZ0000 | Not Available |
| 8 | Not Available | Pedal | 73728 | Not Available |
| 8 | Not Available | Bracket | 02D-V300U | Not Available |
| 9 | Not Available | Screw Frame | 77020 | Not Available |
| 9 | Not Available | Screws | 40D-V300U | Not Available |
| 10 | Not Available | Shaft Pedal | 73742 | Not Available |
| 11 | Not Available | Screw Pedal Shaft B-4 | 77020 | Not Available |
| 12 | Not Available | Reflector | 84HURZW000 | Not Available |
| 13 | Not Available | Bulb Socket | 93HURZ0000 | Not Available |
| 14 |  | Bulb, Double Pole 505-1CR Part Number: 1650 S for Kirby | 1650S | $18.06Read more |
| 15 | Not Available | Belt 2 Pk | MC210B | Not Available |
| 15 | Not Available | Belt UB | PR-1015 | Not Available |
| 16 | Not Available | Lower Plate | NLA | Not Available |
| 17 | Not Available | Lower Plate Packing | 76740 | Not Available |
| 18 | Not Available | Belt Cover | 76315 | Not Available |
| 19 | Not Available | Screw Lower Plate | 77012 | Not Available |
| 20 | Not Available | Nozzle Hose Short | NLA | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment Unit | NLA | Not Available |
| 2 | Not Available | On/Off Switch | 34100 | Not Available |
| 3 | Not Available | Cord Stopper | 62E-J20 | Not Available |
| 4 | Not Available | Screw | 77020 | Not Available |
| 5 | Not Available | Power Cord | NLA | Not Available |
| 6 | Not Available | Wire Connector | SS-3270 | Not Available |
| 7 | Not Available | Dust Container Packing (Not Illustrated) | 66KV01KU12 | Not Available |
| 8 | Not Available | Switch Cover | 03EV02UU01 | Not Available |
| 9 | Not Available | Switch Cover Packing (Not Illustrated) | 73KV0ZKU12 | Not Available |
| 10 | Not Available | Screw | 77020 | Not Available |
| 11 | Not Available | Handle Screw | 77043 | Not Available |
| 12 | Not Available | Nut | 21B-170 | Not Available |
| 13 | Not Available | Filter Supporter | 18420 | Not Available |
| 14 |  | Wheel 1-5/8dia Blk Rubber | 18400 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Secondary Filter | PR-1800 | Not Available |
| 15 | Not Available | Roller | 71125 | Not Available |
| 16 | Not Available | Roller Shaft | 71350 | Not Available |
| 17 | Not Available | E-Clip | 77115 | Not Available |
| 18 | Not Available | Washer | XW6E115FT | Not Available |
| 19 | Not Available | Paper Bag 3 Pk | MC115P | Not Available |
| 19 | Not Available | Paper Bag U3 3 Pk | PR-14005 | Not Available |
| 20 | Not Available | Suction Inlet | 60HVWZB010 | Not Available |
| 21 | Not Available | Cover | 02HYUZB010 | Not Available |
| 22 | Not Available | Screw | 77020 | Not Available |
| 23 | No Image | Fitting, Reducer, 1/2 Inch to 1/4 Inch | 75050 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Rear Cover Packing | 76850 | Not Available |
| 25 | Not Available | Motor Case Packing | 19FV0ZKU12 | Not Available |
| 26 | Not Available | Screw | 77020 | Not Available |
| 27 | Not Available | Protector | 50521 | Not Available |
| 28 | Not Available | Protector Spring | 76865 | Not Available |
| 29 | Not Available | Protector Case | 68K-D20 | Not Available |
| 30 | Not Available | Protector Supporter | 50520 | Not Available |
| 31 | Not Available | Fan Motor Unit | 60105 | Not Available |
| 32 | Not Available | Carbon Brush | 63052 | Not Available |
| 33 | Not Available | Brush Retainer Bracket | 02D-V300U | Not Available |
| 34 | Not Available | Screw (Brush) | 40D-V300U | Not Available |
| 35 | No Image | Wire Tie 15 Blk | 18706 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | Motor Support Rubber Front | 76768 | Not Available |
| 37 | Not Available | Motor Support Rubber Rear | 76769 | Not Available |
| 38 | Not Available | Wire Cord | 37G-V02GU | Not Available |
| 39 | Not Available | Wire Connector | SS-3720 | Not Available |
| 40 | Not Available | Protector Filter | 33K-V000U | Not Available |
| 41 | Not Available | Handle | 64BV1ZV007 | Not Available |
| 42 | Not Available | Handle Grip | 50BV1ZV007 | Not Available |
| 43 | Not Available | Upper Cord Storage Hook | 70912 | Not Available |
| 44 | Not Available | Cord Storage Base | 70915 | Not Available |
| 45 | Not Available | Cord Hook Spring | 77200 | Not Available |
| 46 | Not Available | Washer | 77120 | Not Available |
| 47 | Not Available | Lower Cord Storage Hook | 54EV0ZV007 | Not Available |
| 48 | Not Available | Screw | 77040 | Not Available |
| 49 | Not Available | Dust Cover | NLA | Not Available |
| 50 | Not Available | Stretch Hose | NLA | Not Available |
| 51 | Not Available | Dusting Brush | NLA | Not Available |
| 52 | Not Available | Crevice Tool | 60RZSZVU07 | Not Available |
| 53 | Not Available | Wand | NLA | Not Available |
