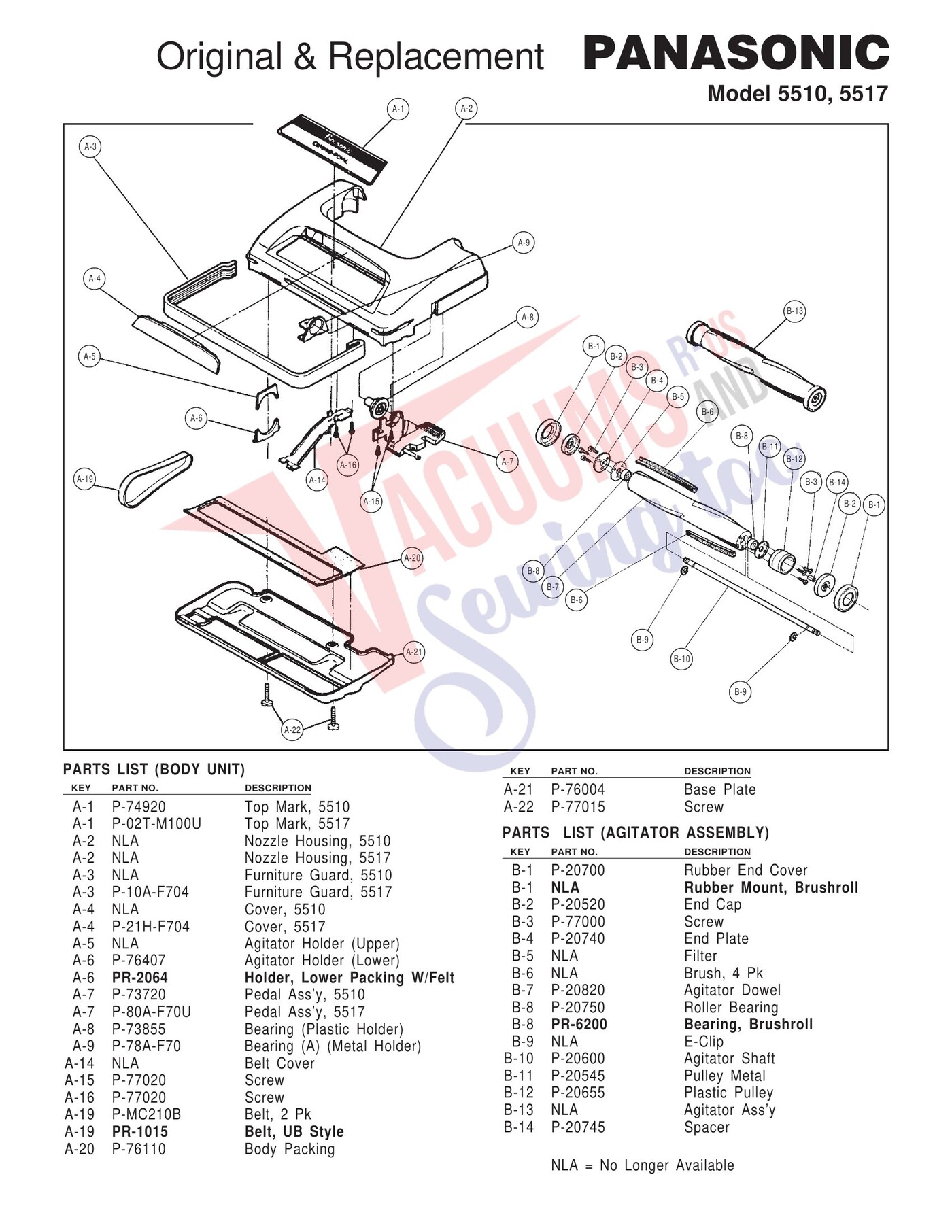

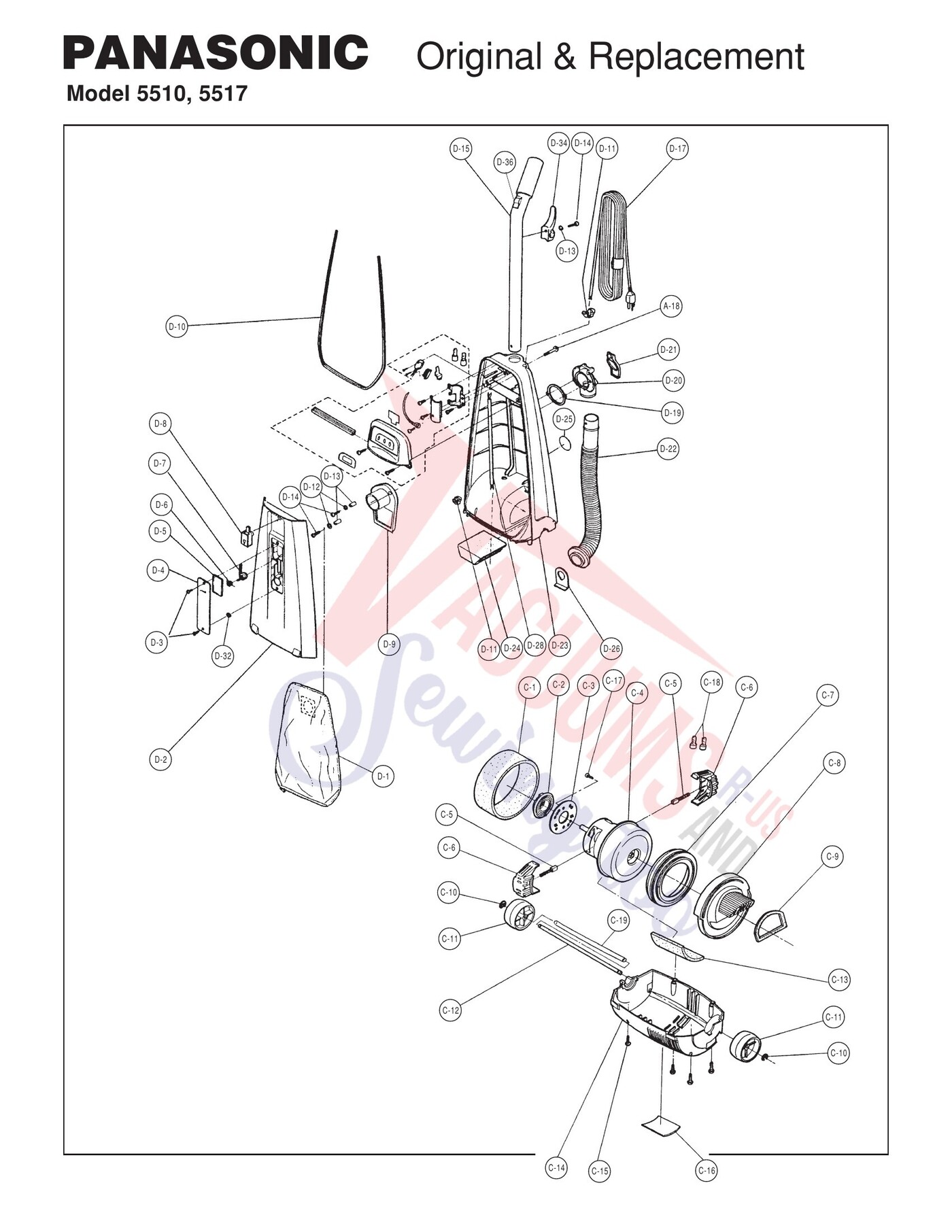

Schematic and parts book for Panasonic 5510, 5517 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | No Image | Vacuum Motor Assembly | A2 | $0.00Read more |
| 1 | Not Available | Top Mark 5510 | 74920 | Not Available |
| 1 | Not Available | Top Mark 5517 | 02T-M100U | Not Available |
| 1 | Not Available | Rubber End Cover | 20700 | Not Available |
| 1 | Not Available | Rubber Mount Brushroll | NLA | Not Available |
| 2 | Not Available | Nozzle Housing 5510 | NLA | Not Available |
| 2 | Not Available | Nozzle Housing 5517 KEY PART NO. DESCRIPTION | NLA | Not Available |
| 2 | Not Available | End Cap | 20520 | Not Available |
| 3 | Not Available | Furniture Guard 5510 | NLA | Not Available |
| 3 | Not Available | Furniture Guard 5517 | 10A-F704 | Not Available |
| 3 | No Image | WAND, 11 IN RAPID RECOVERY | 77000 | $1,701.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Cover 5510 | NLA | Not Available |
| 4 | Not Available | Cover 5517 | 21H-F704 | Not Available |
| 4 | Not Available | End Plate | 20740 | Not Available |
| 5 | Not Available | B-1 B-3 | 2 | Not Available |
| 5 | Not Available | Agitator Holder (Upper) | NLA | Not Available |
| 5 | Not Available | Filter | NLA | Not Available |
| 6 | Not Available | Agitator Holder (Lower) | 76407 | Not Available |
| 6 | Not Available | Brush 4 Pk | NLA | Not Available |
| 6 | Not Available | Holder Lower Packing W/Felt | PR-2064 | Not Available |
| 7 | Not Available | Agitator Dowel | 20820 | Not Available |
| 7 | Not Available | Pedal Ass’y 5510 | 73720 | Not Available |
| 7 | Not Available | Pedal Ass’y 5517 | 80A-F70U | Not Available |
| 8 | Not Available | Roller Bearing | 20750 | Not Available |
| 8 | Not Available | Bearing Brushroll | PR-6200 | Not Available |
| 8 | Not Available | Bearing (Plastic Holder) | 73855 | Not Available |
| 9 | Not Available | E-Clip | NLA | Not Available |
| 9 | Not Available | Bearing (A) (Metal Holder) | 78A-F70 | Not Available |
| 10 | Not Available | Agitator Shaft | 20600 | Not Available |
| 11 | Not Available | Pulley Metal | 20545 | Not Available |
| 12 | Not Available | Plastic Pulley | 20655 | Not Available |
| 13 | Not Available | Agitator Ass’y | NLA | Not Available |
| 14 | Not Available | Belt Cover | NLA | Not Available |
| 14 | Not Available | Spacer | 20745 | Not Available |
| 15 | Not Available | B-1 | 2 | Not Available |
| 15 | Not Available | Screw | 77020 | Not Available |
| 16 | Not Available | B-12 | A-7 | Not Available |
| 16 | Not Available | Screw | 77020 | Not Available |
| 19 | Not Available | B- | A-14 | Not Available |
| 19 | Not Available | Belt 2 Pk | MC210B | Not Available |
| 19 | Not Available | Belt UB Style | PR-1015 | Not Available |
| 20 | Not Available | Body Packing | 76110 | Not Available |
| 21 | Not Available | Base Plate | 76004 | Not Available |
| 22 | Not Available | Screw | 77015 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Noise Suppressor | 10G-F20 | Not Available |
| 1 | Not Available | Screw | 77020 | Not Available |
| 1 | Not Available | Dust Bag | MC161C | Not Available |
| 1 | Not Available | Bag Cloth | PR-1225 | Not Available |
| 1 | Not Available | Bag Paper Type U 3 Pk | MC115P | Not Available |
| 1 | Not Available | Bag Paper Type U 3 Pk | PR-14005 | Not Available |
| 2 | Not Available | Motor Support Rubber | 76927 | Not Available |
| 2 | Not Available | Ornamental Plate 5510 | 21T-M100U | Not Available |
| 2 | Not Available | Ornamental Plate 5517 | 21T-BJ00U | Not Available |
| 2 | Not Available | Dust Cover 5510 | 75520 | Not Available |
| 2 | Not Available | Dust Cover 5517 | 75522 | Not Available |
| 3 | Not Available | Motor Cover | 63F-F70 | Not Available |
| 3 | Not Available | Dust Box Packing | 73K-F70 | Not Available |
| 3 | Not Available | Screw | 77050 | Not Available |
| 4 | Not Available | Motor | 60000 | Not Available |
| 4 | Not Available | Top Plate 5510 | 11M-M100U | Not Available |
| 4 | Not Available | Top Plate 5517 | 11M-BJ00U | Not Available |
| 5 | Not Available | Carbon Brush | 63000 | Not Available |
| 5 | Not Available | Screw | 77020 | Not Available |
| 5 | Not Available | Insulator Window | 08M-F70 | Not Available |
| 6 | Not Available | Carbon Brush Cap | 63100 | Not Available |
| 6 | Not Available | Handle Fitting | 69B-F70 | Not Available |
| 6 | Not Available | Spring | 04M-F70 | Not Available |
| 7 | Not Available | Motor Supporter Rubber (Front) | 02GD40 | Not Available |
| 7 | Not Available | Handle Supporter | 53B-M10 | Not Available |
| 7 | Not Available | Indicator Needle | 03M-F70 | Not Available |
| 8 | Not Available | Rear Partition | 20L-F70 | Not Available |
| 8 | Not Available | Screw | 77025 | Not Available |
| 8 | Not Available | Knob 5510 | NLA | Not Available |
| 8 | Not Available | Knob 5517 | 010-F70V | Not Available |
| 9 | Not Available | Body Partition Packing | 76855 | Not Available |
| 9 | Not Available | Terminal Cover 5510 | 45E-F70 | Not Available |
| 9 | Not Available | Terminal Cover 5517 | 45E-F700U | Not Available |
| 9 | Not Available | Bag Supporter 5510 | NLA | Not Available |
| 9 | Not Available | Bag Supporter 5517 | 10K-V30L | Not Available |
| 10 | Not Available | C-Clip PARTS LIST (POWER SWITCH UNIT) | 77115 | Not Available |
| 10 | Not Available | Main Switch | 34150 | Not Available |
| 10 | Not Available | Dust Box Packing | 75905 | Not Available |
| 10 | Not Available | E- | 9 | Not Available |
| 11 | Not Available | Roller KEY PART NO. DESCRIPTION | 71000 | Not Available |
| 11 | Not Available | Switch Lever | 34920 | Not Available |
| 11 | Not Available | E- | 6 | Not Available |
| 11 | Not Available | Wire Bushing | 62D-M10 | Not Available |
| 12 | Not Available | Roller Shaft | 71360 | Not Available |
| 12 | Not Available | Wire Connector | SS-3270 | Not Available |
| 12 | Not Available | Washer | 77120 | Not Available |
| 13 | Not Available | Rear Cover Packing | 76848 | Not Available |
| 13 | Not Available | Switch Cover 5510 | 03E-M10 | Not Available |
| 13 | Not Available | Switch Cover 5517 | 03E-F704 | Not Available |
| 13 | Not Available | Spacer | 75910 | Not Available |
| 14 | No Image | Clamp, Wire, P-Shaped | 75040 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Lower Motor Case 5517 | NLA | Not Available |
| 14 | Not Available | Insulating Plate | 24E-M10 | Not Available |
| 14 | Not Available | Screw | 77030 | Not Available |
| 15 | Not Available | Screw | 77030 | Not Available |
| 15 | Not Available | Handle 5510 | 70150 | Not Available |
| 15 | Not Available | Handle 5517 | 64B-M104 | Not Available |
| 16 | Not Available | Name Plate | 01T-M1Z00 | Not Available |
| 16 | Not Available | Insulating Tube | 60G-MZ00 | Not Available |
| 17 | Not Available | Screw | XTN4+8FFYG | Not Available |
| 17 | Not Available | Ground Wire | 59G-M100U | Not Available |
| 17 | Not Available | Power Cord | NLA | Not Available |
| 18 | Not Available | Wire Connector | SS-3270 | Not Available |
| 18 | Not Available | Ground Screw | 83H-M1Z00 | Not Available |
| 18 | Not Available | E- | 17 | Not Available |
| 18 | Not Available | Handle Screw | NLA | Not Available |
| 19 | Not Available | Insulating Tube | 29E-F700G | Not Available |
| 19 | Not Available | Washer | XWA4BPW | Not Available |
| 19 | Not Available | E- | 8 | Not Available |
| 19 | Not Available | Suction Inlet Packing | NLA | Not Available |
| 20 | Not Available | Cord Retainer | 06W-ML0 | Not Available |
| 20 | Not Available | Suction Inlet 5510 E-16 | 75675 | Not Available |
| 20 | Not Available | Suction Inlet 5517 | 73636 | Not Available |
| 21 | Not Available | Cover 5510 | NLA | Not Available |
| 21 | Not Available | Cover 5517 | 02H-F707 | Not Available |
| 22 | Not Available | Nozzle Hose 5510 5517 | NLA | Not Available |
| 23 | No Image | Potentiometer Assy, 5K | 75260 | $183.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Cord 18/3 X 10' Sjt | 75252 | $0.00Read more |
| 24 | Not Available | Filter | 18005 | Not Available |
| 24 | Not Available | Filter | PR-1805 | Not Available |
| 25 | Not Available | Sticker 5517 | 05T-F70V | Not Available |
| 25 | Not Available | Sticker 5510 E-2 | 05T-F70 | Not Available |
| 26 | Not Available | Hose Fitting | NLA | Not Available |
| 28 | Not Available | Inter Connection Cord | 64E-M100U | Not Available |
| 32 | Not Available | Spring Washer | XWA26BFY | Not Available |
| 34 | Not Available | Cord Storage Hook | NLA | Not Available |
| 35 | Not Available | Screw | XSN4+20S | Not Available |
| 36 | Not Available | Switch Push Button | 04E-F70 | Not Available |
| 36 | Not Available | Dust Bag Supporter (Not Shown) | 75430 | Not Available |
