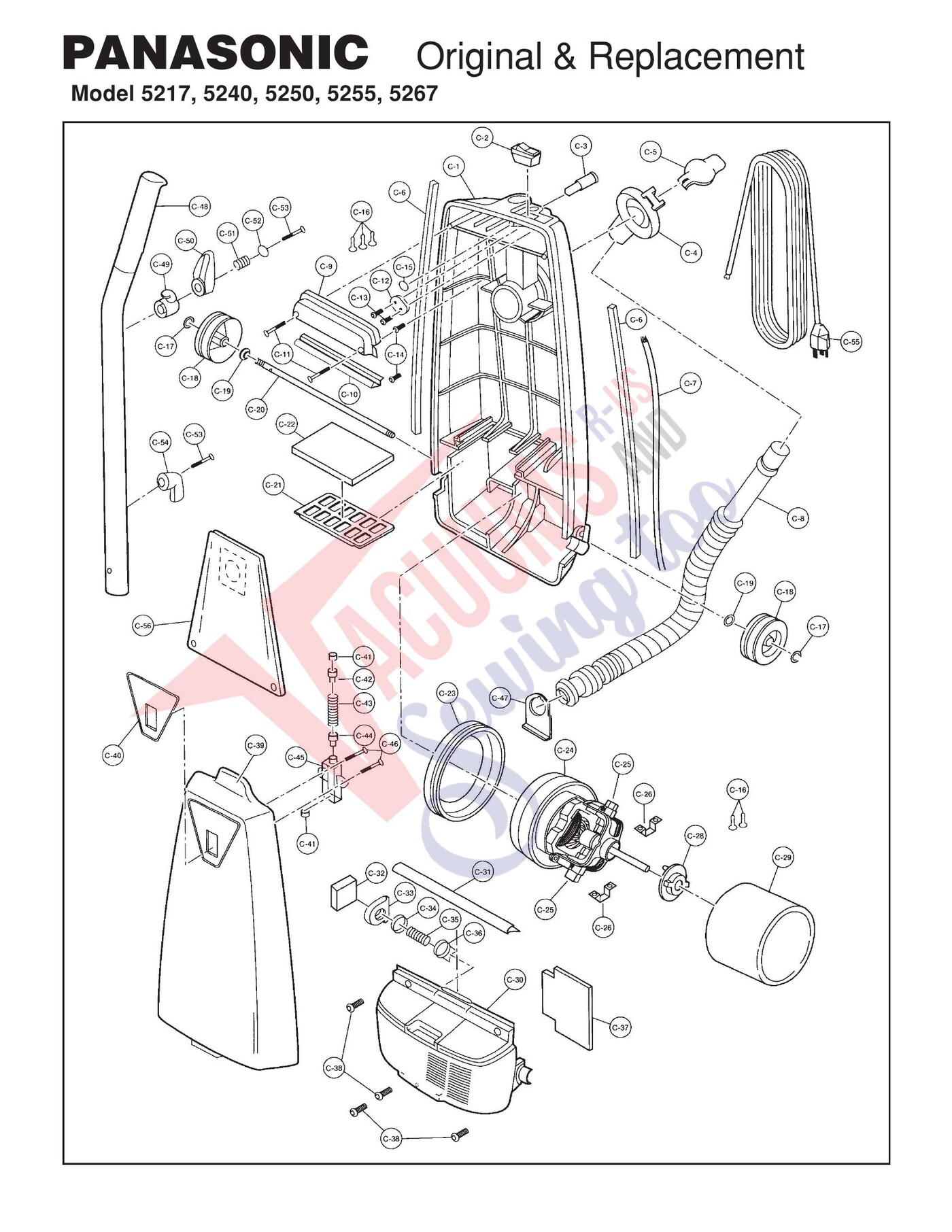

Schematic and parts book for Panasonic 5217, 5240, 5250, 5255, 5267 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | No Image | Skirt, Bristle | 75229 | $431.99Read more |
| 1 | No Image | Spacer, Idler, Plain | 75220 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | Strap, Grounding, Static | 75230 | $41.99Read more |
| 1 | No Image | Circuit Breaker, 30 Amps | 75250 | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | Not Available | Dust Compartment 5267 | NLA | Not Available |
| 2 | Not Available | ON/OFF Switch | 34100 | Not Available |
| 2 | Not Available | Switch 1 Speed Rocker Type | HR-3415 | Not Available |
| 3 | Not Available | Handle Screw | 77043 | Not Available |
| 4 | Not Available | Suction Inlet 5217 | F70E | Not Available |
| 4 | Not Available | Suction Inlet 5240 | 75640 | Not Available |
| 4 | Not Available | Suction Inlet 5250 | 60HF72RU06 | Not Available |
| 4 | Not Available | Suction Inlet 5255 | 60HF72RU09 | Not Available |
| 4 | Not Available | Suction Inlet 5267 | NLA | Not Available |
| 5 | Not Available | Cover 5217 | 75690 | Not Available |
| 5 | Not Available | Cover 5240 | 75640 | Not Available |
| 5 | Not Available | Cover 5250 | 75642 | Not Available |
| 5 | Not Available | Cover 5255 | 75610 | Not Available |
| 5 | Not Available | Cover 5267 | 02HF71G004 | Not Available |
| 6 | Not Available | Rubber Gasket 5217 | 66K-V00 | Not Available |
| 6 | Not Available | Rubber Gasket 5240/5267 | 66KV01KU12 | Not Available |
| 6 | Not Available | Rubber Gasket 5250/5255 | 66KV01KU13 | Not Available |
| 7 | Not Available | Wire Cord | 37G-V200U | Not Available |
| 8 | Not Available | Nozzle Hose 5217 | NLA | Not Available |
| 8 | Not Available | Nozzle Hose 5240 | 73625 | Not Available |
| 8 | Not Available | Nozzle Hose 5250 | 73635 | Not Available |
| 8 | Not Available | Nozzle Hose 5255 | 73620 | Not Available |
| 8 | Not Available | Nozzle Hose 5267 | 73628 | Not Available |
| 9 | Not Available | Switch Cover 5217 | 03E-V00Q | Not Available |
| 9 | Not Available | Switch Cover 5240 | 03EV02UU01 | Not Available |
| 9 | Not Available | Switch Cover 5250 | 03EV02RU06 | Not Available |
| 9 | Not Available | Switch Cover 5255 | 03EV02RU09 | Not Available |
| 9 | Not Available | Switch Cover 5267 | 03EXYZG004 | Not Available |
| 10 | Not Available | Switch Cover Packing 5217 | 73K-V00 | Not Available |
| 10 | Not Available | Switch Cover Packing 5240/5267 | 73KV0ZKU12 | Not Available |
| 10 | Not Available | Switch Cover Packing 5250/5255 | 73KV0ZKU13 | Not Available |
| 11 | Not Available | Screw (Switch Cover) | 77020 | Not Available |
| 12 | Not Available | Cord Stopper | 62E-J20 | Not Available |
| 13 | Not Available | Screw (Cord Stopper) | 77020 | Not Available |
| 14 | Not Available | Screw (Suction Inlet) | 77020 | Not Available |
| 15 |  | Nut-Panasonic 5100 Handle Bolt - 10Pk For: panasonic | AMP21B170 | $4.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Wire Nut | SS-3270 | Not Available |
| 17 | Not Available | E-Clip (Roller Shaft) | 77115 | Not Available |
| 18 | Not Available | Roller (Wheel) | 71125 | Not Available |
| 19 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Roller Shaft | 71350 | Not Available |
| 21 | Not Available | Filter Supporter | 18420 | Not Available |
| 22 |  | Wheel 1-5/8dia Blk Rubber | 18400 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Filter Secondary | PR-1800 | Not Available |
| 23 | Not Available | Motor Supporter (Rubber Front) | 76768 | Not Available |
| 24 | Not Available | Motor Assembly | 60100 | Not Available |
| 25 | Not Available | Carbon Brush USA Motor | 63050 | Not Available |
| 25 | Not Available | Carbon Brush Non USA Motor | 63000 | Not Available |
| 26 | Not Available | Brush Retainer Bracket | 02D-V300U | Not Available |
| 27 | Not Available | Screw (Brush) Not Illustrated | 40D-V300U | Not Available |
| 28 | Not Available | Motor Support (Rubber Rear) | 76769 | Not Available |
| 29 | No Image | Wire Tie 15 Blk | 18706 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Spacer, Link, Squeegee | 75110 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Handle Rod, for SOFTCASE | 75033 | $24.00Read more |
| 30 | Not Available | Motor Case 5240 | NLA | Not Available |
| 30 | No Image | Bail, Molded | 75035 | $34.99Read more |
| 30 | No Image | Wheel, 2 OD, .31 ID | 75015 | $51.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | Not Available | Motor Case Packing 5217 | 19F-V00 | Not Available |
| 31 | Not Available | Motor Case Packing 5240/5267 | 19FV0ZKU12 | Not Available |
| 31 | Not Available | Motor Case Packing 5250/5255 | 19FV0ZKU13 | Not Available |
| 32 | Not Available | Protector Filter | 33K-V000U | Not Available |
| 33 | Not Available | Protector Supporter | 50520 | Not Available |
| 34 | Not Available | Protector | 50521 | Not Available |
| 35 | Not Available | Protector Spring | 76865 | Not Available |
| 36 | Not Available | Protector Case | 68K-D20 | Not Available |
| 37 | Not Available | Rear Cover Packing | 76850 | Not Available |
| 38 | Not Available | Screw (Motor Case) | 77020 | Not Available |
| 39 | Not Available | Dust Cover 5217 | 60K-BF0RU | Not Available |
| 39 | Not Available | Dust Cover 5240 | 78515 | Not Available |
| 39 | Not Available | Dust Cover 5250 | 60K2CZRU06 | Not Available |
| 39 | Not Available | Dust Cover 5255 | 60K2EZRU09 | Not Available |
| 39 | Not Available | Dust Cover 5267 | 60KXZZG004 | Not Available |
| 40 | Not Available | Ornamental Plate 5217 | 21TBF00U | Not Available |
| 40 | Not Available | Ornamental Plate 5240 | 21T-ZPU | Not Available |
| 40 | Not Available | Ornamental Plate 5250 | 21T-ZMU | Not Available |
| 40 | Not Available | Vac Gauge Plate 5255 | 11M-ZNU | Not Available |
| 40 | Not Available | Vac Gauge Plate 5267 | 11MXYZ0U00 | Not Available |
| 41 | Not Available | Indicator Packing 5255/5267 | 09M-L30 | Not Available |
| 42 | Not Available | Indicator Cap 5255/5267 | 17M-V20 | Not Available |
| 43 | Not Available | Indicator Spring 5255/5267 | 04M-V20 | Not Available |
| 44 | Not Available | Indicator Lead 5255/5267 | 03M-68Z0 | Not Available |
| 45 | Not Available | Indicator Body 5255/5267 | 15M-V20 | Not Available |
| 46 | Not Available | Screw (Indicator) 5255/5267 | XTN4+10B | Not Available |
| 47 | Not Available | Hose Supporter | 73840 | Not Available |
| 48 | No Image | COLLAR, FLOOR TOOL Part Number: 70124 for Compact | 70124 | $2.59Read more |
| 48 | Not Available | Handle 5240 | 70120 | Not Available |
| 48 |  | Bumper, 5.5" Black Rubber Rug Nozzle TriStar Part Number: 70122 for Compact | 70122 | $9.94Read more |
| 48 | Not Available | Handle 5255 | 70110 | Not Available |
| 48 | Not Available | Handle 5267 | 64B-V20L | Not Available |
| 49 | Not Available | Cord Base 5217 | NLA | Not Available |
| 49 | Not Available | Cord Base 5240 | 70925 | Not Available |
| 49 | Not Available | Cord Base 5250 | 55EV0ZRU06 | Not Available |
| 49 | Not Available | Cord Base 5255 | 70922 | Not Available |
| 49 | Not Available | Cord Base 5267 | 55E-V007 | Not Available |
| 50 | Not Available | Upper Cord Hook 5217 | 53E-V00Q | Not Available |
| 50 | Not Available | Upper Cord Hook 5240 | NLA | Not Available |
| 50 | Not Available | Upper Cord Hook 5250 | 70816 | Not Available |
| 50 | Not Available | Upper Cord Hook 5255 | 70818 | Not Available |
| 50 | Not Available | Upper Cord Hook 5267 | 53E-V007 | Not Available |
| 51 | Not Available | Cord Hook Spring | 77200 | Not Available |
| 52 | Not Available | Washer | 77120 | Not Available |
| 53 | Not Available | Screw (Cord Storage Hook) | 77040 | Not Available |
| 54 | Not Available | Lower Cord Hook 5217 | 54E-V00Q | Not Available |
| 54 | Not Available | Lower Cord Hook 5240 | 70867 | Not Available |
| 54 | Not Available | Lower Cord Hook 5250 | 70865 | Not Available |
| 54 | Not Available | Lower Cord Hook 5255 | 70870 | Not Available |
| 54 | Not Available | Lower Cord Hook 5267 | 54E-V007 | Not Available |
| 55 | Not Available | Power Cord 5217 | NLA | Not Available |
| 55 | Not Available | Power Cord (Gray) 5240/5267 | 97E-ZPZVU | Not Available |
| 55 | Not Available | Power Cord (Gray) 5250 | 97E-ZRZOU | Not Available |
| 55 | Not Available | Power Cord (Gray) 5255 | 97E-ZNZOU | Not Available |
| 56 | Not Available | Dust Bag (Paper) | MC115P | Not Available |
| 56 | Not Available | Paper Bag Type U 3 Pk | PR-14005 | Not Available |

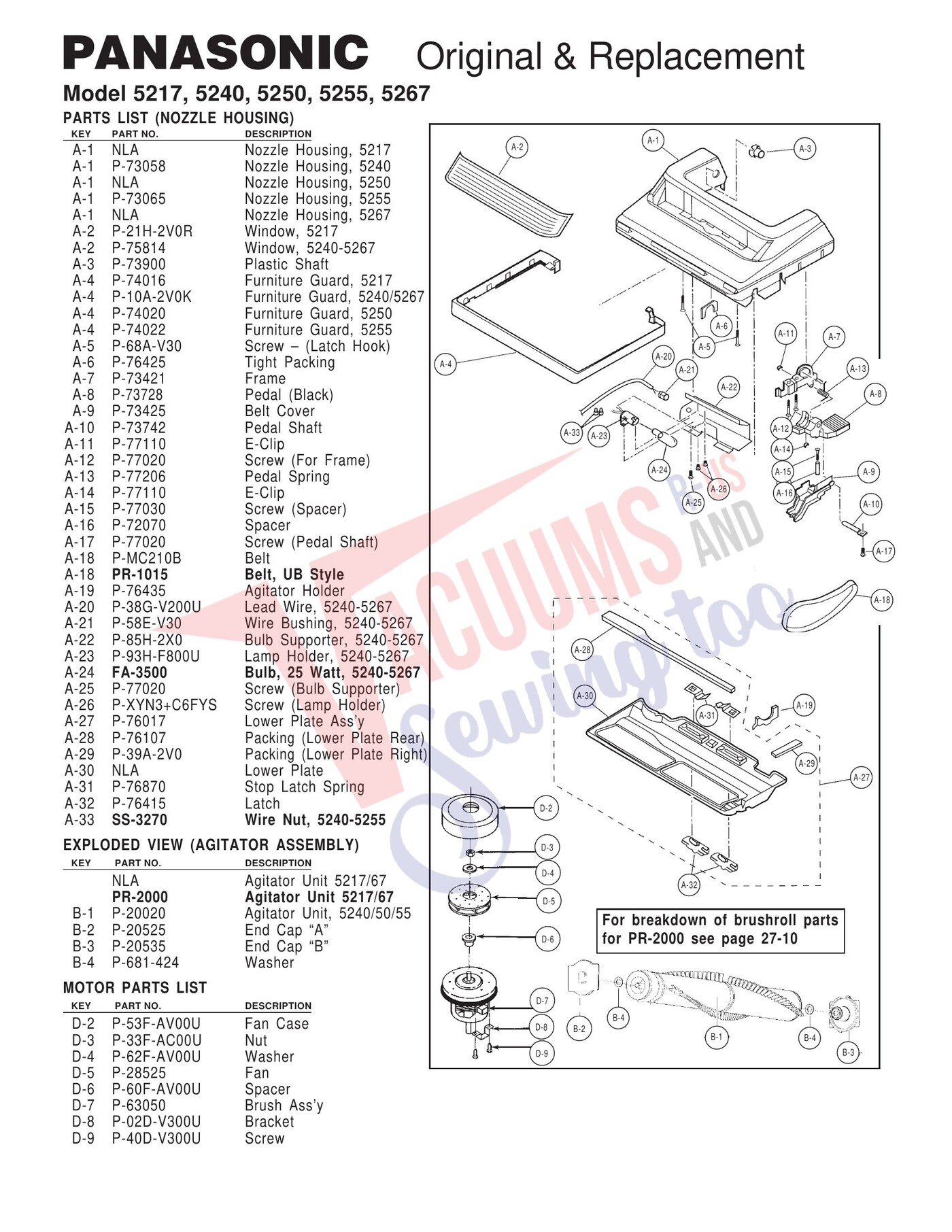

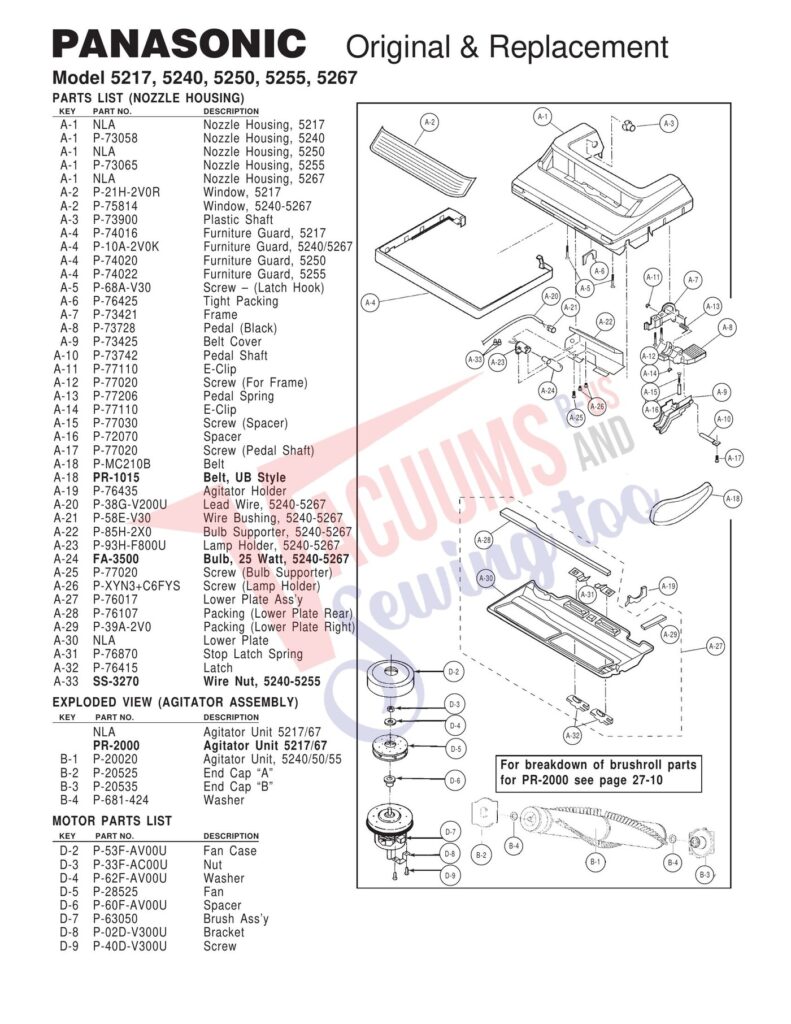

| # | Part image | Description | SKU | Price |
| XX |  | Brushroll, 12 In 5110/5210/5230/8320/8330 Acrylic Part Number: AMC92S-V00 for Panasonic | AMC92SV00 | $79.53Read more |
| 1 | Not Available | Nozzle Housing 5217 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing 5240 | 73058 | Not Available |
| 1 | Not Available | Nozzle Housing 5250 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing 5255 | 73065 | Not Available |
| 1 | Not Available | Nozzle Housing 5267 | NLA | Not Available |
| 1 | Not Available | Agitator Unit 5240/50/55 | 20020 | Not Available |
| 2 | Not Available | Window 5217 | 21H-2V0R | Not Available |
| 2 | Not Available | Window 5240-5267 | 75814 | Not Available |
| 2 | Not Available | End Cap “A” | 20525 | Not Available |
| 2 | Not Available | Fan Case B-4 | 53F-AV00U | Not Available |
| 3 | Not Available | Plastic Shaft | 73900 | Not Available |
| 3 | Not Available | End Cap “B” D-6 for | 20535 | Not Available |
| 3 | Not Available | Nut | 33F-AC00U | Not Available |
| 4 | Not Available | Furniture Guard 5217 | 74016 | Not Available |
| 4 | Not Available | Furniture Guard 5240/5267 | 10A-2V0K | Not Available |
| 4 | Not Available | Furniture Guard 5250 | 74020 | Not Available |
| 4 | Not Available | Furniture Guard 5255 A-6 | 74022 | Not Available |
| 4 | Not Available | A-13 | A-21 | Not Available |
| 4 | Not Available | Washer | 681-424 | Not Available |
| 4 | Not Available | Washer | 62F-AV00U | Not Available |
| 5 | Not Available | Screw – (Latch Hook) A-5 | 68A-V30 | Not Available |
| 5 | Not Available | Fan | 28525 | Not Available |
| 6 | Not Available | Tight Packing A-20 | 76425 | Not Available |
| 6 | Not Available | Spacer | 60F-AV00U | Not Available |
| 7 | Not Available | Frame | 73421 | Not Available |
| 7 | Not Available | Brush Ass’y | 63050 | Not Available |
| 8 | Not Available | Pedal (Black) A-8 | 73728 | Not Available |
| 8 | Not Available | Bracket | 02D-V300U | Not Available |
| 9 | Not Available | Belt Cover | 73425 | Not Available |
| 9 | Not Available | Screw | 40D-V300U | Not Available |
| 10 | Not Available | Pedal Shaft | 73742 | Not Available |
| 11 | Not Available | E-Clip | 77110 | Not Available |
| 12 | Not Available | Screw (For Frame) | 77020 | Not Available |
| 13 | Not Available | Pedal Spring | 77206 | Not Available |
| 14 | Not Available | E-Clip | 77110 | Not Available |
| 15 | Not Available | Screw (Spacer) | 77030 | Not Available |
| 16 | Not Available | Spacer | 72070 | Not Available |
| 17 | Not Available | Screw (Pedal Shaft) | 77020 | Not Available |
| 18 | Not Available | Belt A-17 | MC210B | Not Available |
| 18 | Not Available | Belt UB Style | PR-1015 | Not Available |
| 19 | Not Available | Agitator Holder | 76435 | Not Available |
| 20 | Not Available | Lead Wire 5240-5267 A-18 | 38G-V200U | Not Available |
| 21 | Not Available | Wire Bushing 5240-5267 | 58E-V30 | Not Available |
| 22 | Not Available | Bulb Supporter 5240-5267 | 85H-2X0 | Not Available |
| 23 | Not Available | Lamp Holder 5240-5267 A-28 | 93H-F800U | Not Available |
| 24 | Not Available | A-9 | A-15 | Not Available |
| 24 |  | Bulb, Double Pole 505-1CR Part Number: 1650 S for Kirby | 1650S | $18.06Read more |
| 25 | Not Available | Screw (Bulb Supporter) | 77020 | Not Available |
| 26 | Not Available | Screw (Lamp Holder) A-19 | XYN3+C6FYS | Not Available |
| 27 | Not Available | Lower Plate Ass’y A-31 | 76017 | Not Available |
| 28 | Not Available | Packing (Lower Plate Rear) | 76107 | Not Available |
| 29 | Not Available | Packing (Lower Plate Right) | 39A-2V0 | Not Available |
| 30 | Not Available | Lower Plate A-29 | NLA | Not Available |
| 31 | Not Available | Stop Latch Spring | 76870 | Not Available |
| 32 | Not Available | Latch | 76415 | Not Available |
| 33 | Not Available | A-12 | A-23 | Not Available |
| 33 | Not Available | Wire Nut 5240-5255 | SS-3270 | Not Available |
Report errors on this page HERE
