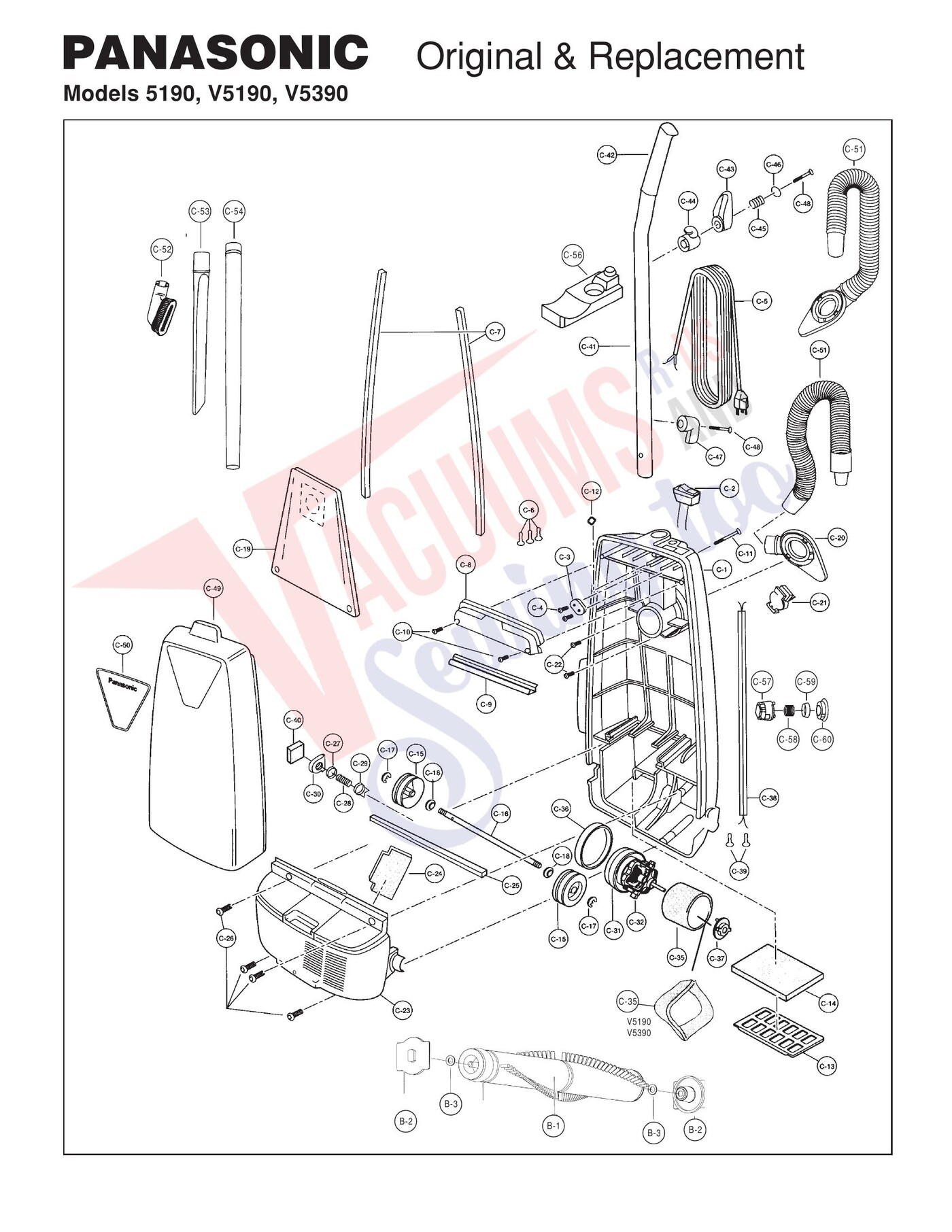

Schematic and parts book for Panasonic 5190, V5190, V5390 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX | Not Available | Nozzle Hose V5100 Series A-8 | 72403 | Not Available |
| 1 | No Image | Spring, Extension | 75227 | $97.99Read more |
| 1 | No Image | Belt, V-Groove, Stretch | 75247 | $220.99Read more |
| 1 | No Image | Harness, Conn, Battery | 75251 | $54.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | Not Available | Nozzle Housing 5190 | 73042 | Not Available |
| 1 | Not Available | Nozzle Housing V5190 | 73043 | Not Available |
| 1 | Not Available | Nozzle Housing V5390 | 73026 | Not Available |
| 1 | Not Available | Agitator Unit | 20020 | Not Available |
| 2 | Not Available | On/Off Switch | 34100 | Not Available |
| 2 | Not Available | Top Mark 5190 | 02TVWI0U00 | Not Available |
| 2 | Not Available | End Cap “A” | 20525 | Not Available |
| 2 | Not Available | Top Mark V5190 | 02TAEHZ0U00 | Not Available |
| 2 | Not Available | Top Mark V5390 | 02TAEJZ0U00 | Not Available |
| 2 | Not Available | A- | A-5 | Not Available |
| 3 | Not Available | Cord Stopper | 62E-J20 | Not Available |
| 3 | Not Available | Washer | 681-424 | Not Available |
| 3 | Not Available | Plastic Shaft | 73900 | Not Available |
| 4 | Not Available | Screw | 77020 | Not Available |
| 4 | Not Available | Plastic Holder | 73905 | Not Available |
| 5 | Not Available | Power Cord 5190 V5190 | NLA | Not Available |
| 5 | Not Available | Power Cord V5390 | NLA | Not Available |
| 5 | Not Available | Screw | 77020 | Not Available |
| 6 | Not Available | Pedal Spring | 77205 | Not Available |
| 7 | Not Available | Dust Container Packing 5190 | 66KV01KU12 | Not Available |
| 7 | Not Available | Dust Container Packing V5190 V5390 | 66KVO1V006 | Not Available |
| 7 | Not Available | Furniture Guard A-10 | 74018 | Not Available |
| 8 | Not Available | Switch Cover 5190 | 03EV02RU09 | Not Available |
| 8 | Not Available | Switch Cover V5190 V5390 | 03EV04V006 | Not Available |
| 8 | Not Available | Body Packing A-6 | 76425 | Not Available |
| 9 | Not Available | Switch Cover Packing 5190 | 73KV0ZKU13 | Not Available |
| 9 | Not Available | Switch Cover Packing V5190 V5390 | 73KV0ZV006 | Not Available |
| 9 | Not Available | Belt 2 Pk | MC210B | Not Available |
| 9 | Not Available | Belt UB | PR-1015 | Not Available |
| 10 | Not Available | Screw | 77020 | Not Available |
| 10 | Not Available | Lower Plate Ass’y | 76015 | Not Available |
| 11 | Not Available | Handle Screw | 77043 | Not Available |
| 11 | Not Available | Lower Plate | 76032 | Not Available |
| 12 | Not Available | Nut | 21B-170 | Not Available |
| 12 | Not Available | Screw (Coin Head) | 68AZAZ0000 | Not Available |
| 13 | Not Available | Filter Supporter | 18420 | Not Available |
| 13 | Not Available | A-4 | A-14 | Not Available |
| 13 | Not Available | Body Packing | 76740 | Not Available |
| 14 |  | Wheel 1-5/8dia Blk Rubber | 18400 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Belt Cover A-11 | 76315 | Not Available |
| 15 | Not Available | Roller | 71125 | Not Available |
| 15 | Not Available | Nozzle Hose 5190 | NLA | Not Available |
| 16 | Not Available | Roller Shaft 5190 | 71350 | Not Available |
| 16 | Not Available | Roller Shaft V5190 V5390 | 71375 | Not Available |
| 17 | Not Available | E-Clip 5190 | 77115 | Not Available |
| 17 | Not Available | Wheel Stopper V5190 V5390 | 71500 | Not Available |
| 18 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Paper Bag 3 Pk | MC115P | Not Available |
| 20 | Not Available | Suction Inlet 5190 | 75623 | Not Available |
| 20 | Not Available | Suction Inlet V5190 V5390 | 60HJPV006 | Not Available |
| 21 | Not Available | Cover 5190 | 75610 | Not Available |
| 21 | Not Available | Cover V5190 V5390 | 75612 | Not Available |
| 22 | Not Available | Screw | 77020 | Not Available |
| 23 | No Image | Wheel, 2 OD, .31 ID | 75015 | $51.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Bracket, Link, Squeegee | 75030 | $210.99Read more |
| 23 | No Image | -Handle Grey | 75032 | $17.25Read more |
| 24 | Not Available | Rear Cover Packing | 76850 | Not Available |
| 25 | Not Available | Motor Case Packing 5190 | 19FV0ZKU13 | Not Available |
| 25 | Not Available | Motor Case Packing V5190 V5390 | 19FVOZV006 | Not Available |
| 26 | Not Available | Screw | 77020 | Not Available |
| 27 | Not Available | Protector 5190 | 50521 | Not Available |
| 28 | Not Available | Protector Spring 5190 | 76865 | Not Available |
| 29 | Not Available | Protector Case 5190 | 68K-D20 | Not Available |
| 30 | Not Available | Protector Supporter 5190 | 50520 | Not Available |
| 31 | Not Available | Motor Unit 5190 | 60100 | Not Available |
| 31 | Not Available | Motor Unit V5190 | 60105 | Not Available |
| 31 | Not Available | Motor Unit V5390 | 60135 | Not Available |
| 32 | Not Available | Carbon Brush 5190 | 63050 | Not Available |
| 32 | Not Available | Carbon Brush V5190 | 63054 | Not Available |
| 32 | Not Available | Carbon Brush V5390 | 63056 | Not Available |
| 33 | Not Available | Brush Retainer Bracket | 02D-V300U | Not Available |
| 34 | Not Available | Screw (Brush) | 40D-V300U | Not Available |
| 35 | No Image | Wire Tie 15 Blk | 18706 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | Motor Support Rubber (Front) | 76768 | Not Available |
| 37 | Not Available | Motor Support Rubber (Rear) | 76769 | Not Available |
| 38 | Not Available | Wire Cord | 37G-V020U | Not Available |
| 39 | Not Available | Wire Connector | SS-3270 | Not Available |
| 40 | Not Available | Protector Filter V5190 | 33K-V000U | Not Available |
| 41 | No Image | COLLAR, FLOOR TOOL Part Number: 70124 for Compact | 70124 | $2.59Read more |
| 42 | Not Available | Handle Grip | 50BV1ZRU08 | Not Available |
| 43 | Not Available | Upper Cord Hook 5190 | NLA | Not Available |
| 43 | Not Available | Upper Cord Hook V5190 V5390 | 70818 | Not Available |
| 44 | Not Available | Cord Storage Base 5190 V5390 | 70909 | Not Available |
| 44 | Not Available | Cord Storage Base V5190 | 70867 | Not Available |
| 45 | Not Available | Cord Hook Spring | 77200 | Not Available |
| 46 | Not Available | Washer | 77120 | Not Available |
| 47 | Not Available | Lower Cord Hook | 54EV0ZR008 | Not Available |
| 48 | Not Available | Screw | 77040 | Not Available |
| 49 | Not Available | Dust Cover 5190 V5190 | 75543 | Not Available |
| 49 | Not Available | Dust Cover V5390 | 60K2CZR003 | Not Available |
| 50 | Not Available | Ornamental Plate 5190 | 21T-VWZ0U | Not Available |
| 50 | Not Available | Ornamental Plate V5190 | 21TAEHZ0U00 | Not Available |
| 50 | Not Available | Ornamental Plate V5390 | 21TAEJZ0U00 | Not Available |
| 51 | Not Available | Nozzle Hose Stretch 5190 | NLA | Not Available |
| 51 | Not Available | Nozzle Hose Molded V5190 | 73632 | Not Available |
| 51 | Not Available | Nozzle Hose Stretch V5390 | 73658 | Not Available |
| 52 | Not Available | Dust Brush | 53020 | Not Available |
| 53 | Not Available | Crevice Tool 5190 | 60RZSZVU07 | Not Available |
| 53 | Not Available | Crevice Tool V5190 V5390 | 54017 | Not Available |
| 54 | Not Available | Wand 5190 V5190 V5390 | 50030 | Not Available |
| 54 |  | Wand, 1-1/4"x19" Black Friction Fit | FA-5005-3 | $4.74Add to cart |
| 54 |  | Compatible alternateExtension Wand Part Number BA00381 for Riccar and Simplicity Models RSQ1.6,S100.6,S100, S100.2 More Product Details | BA00381 | $13.99Add to cart Special order — allow 2-4 weeks. |
| 56 | Not Available | Hose Holder V5190 | 70500 | Not Available |
| 57 | Not Available | Protector Case V5190 V5390 | 75682 | Not Available |
| 58 | Not Available | Protector Spring V5190 V5390 | 70KAECZY000 | Not Available |
| 59 | Not Available | Protector V5190 V5390 | 50522 | Not Available |
| 60 | Not Available | Proctector Supporter V5190 V5390 | 50525 | Not Available |
