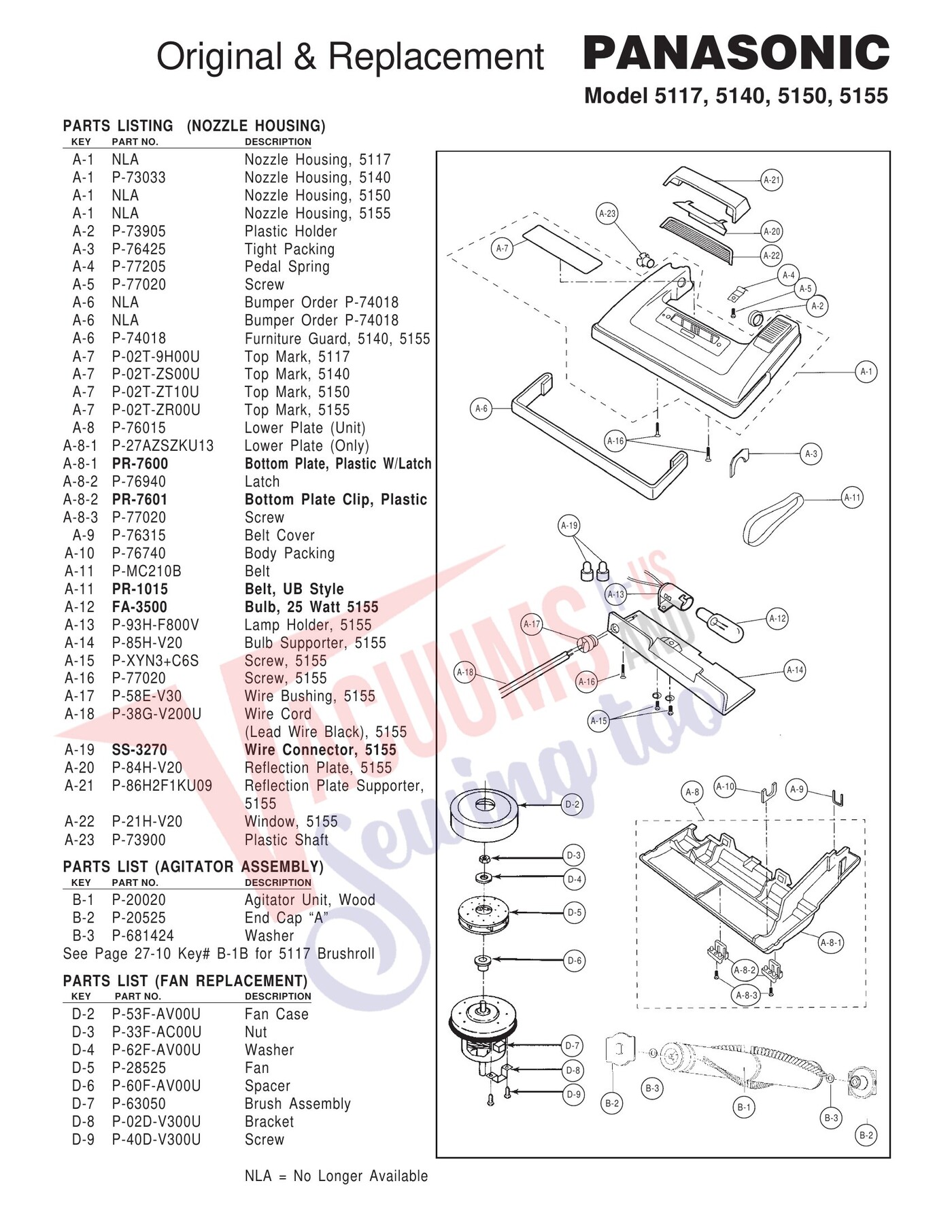

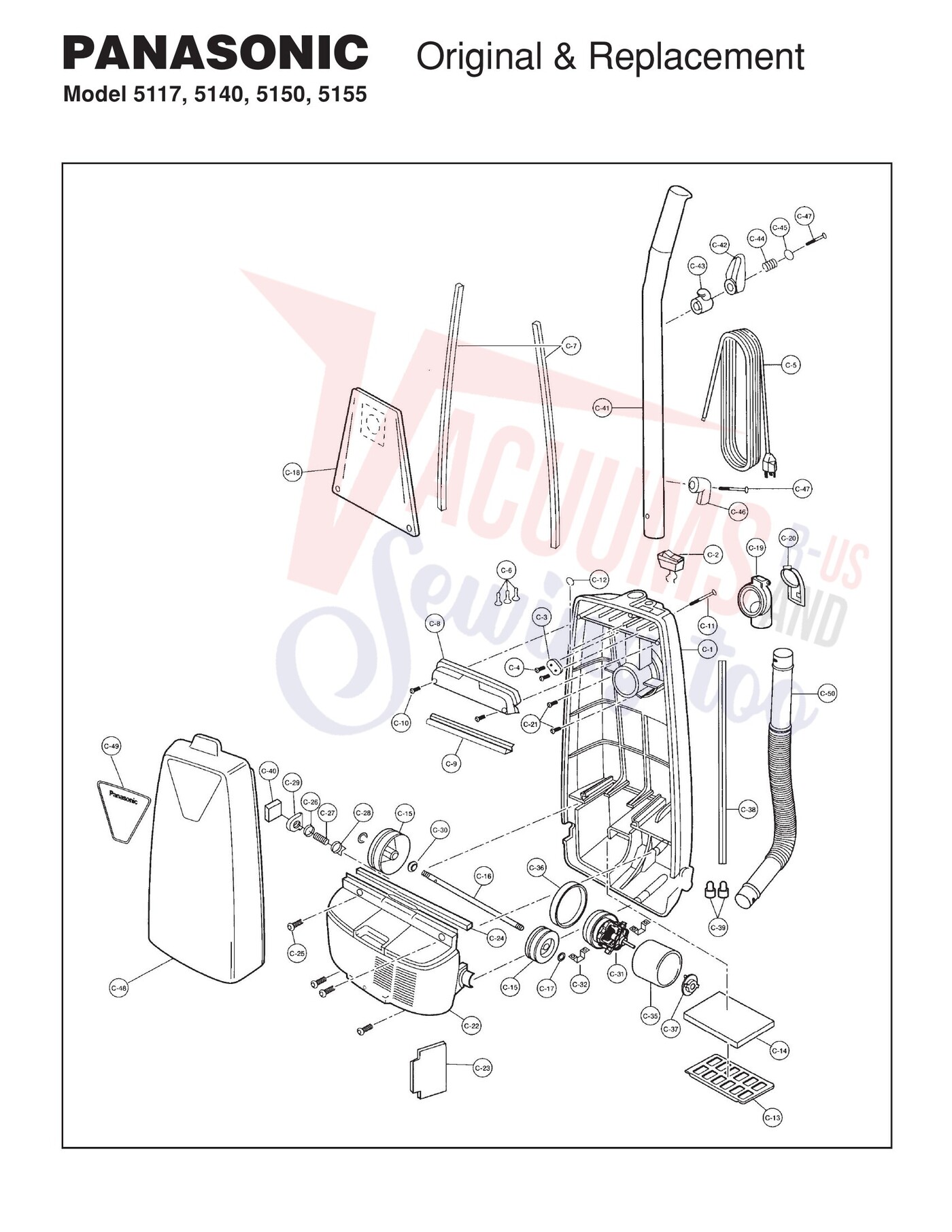

Schematic and parts book for Panasonic 5117, 5140, 5150, 5155 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing 5117 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing 5140 | 73033 | Not Available |
| 1 | Not Available | Nozzle Housing 5150 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing 5155 A-23 | NLA | Not Available |
| 1 | Not Available | Lower Plate (Only) A-16 | 27AZSZKU13 | Not Available |
| 1 | Not Available | Bottom Plate Plastic W/Latch | PR-7600 | Not Available |
| 1 | Not Available | Agitator Unit Wood | 20020 | Not Available |
| 2 | Not Available | Plastic Holder A-20 | 73905 | Not Available |
| 2 | Not Available | Latch | 76940 | Not Available |
| 2 | Not Available | Bottom Plate Clip Plastic A-11 | PR-7601 | Not Available |
| 2 | Not Available | End Cap “A” D-5 | 20525 | Not Available |
| 2 | Not Available | Fan Case | 53F-AV00U | Not Available |
| 3 | Not Available | Tight Packing A-7 | 76425 | Not Available |
| 3 | Not Available | Screw | 77020 | Not Available |
| 3 | Not Available | Washer | 681424 | Not Available |
| 3 | Not Available | Nut | 33F-AC00U | Not Available |
| 4 | Not Available | Pedal Spring | 77205 | Not Available |
| 4 | Not Available | Washer D-7 | 62F-AV00U | Not Available |
| 5 | Not Available | Screw | 77020 | Not Available |
| 5 | Not Available | Fan | 28525 | Not Available |
| 6 | Not Available | Bumper Order P-74018 | NLA | Not Available |
| 6 | Not Available | Bumper Order P-74018 | NLA | Not Available |
| 6 | Not Available | Furniture Guard 5140 5155 | 74018 | Not Available |
| 6 | Not Available | Spacer | 60F-AV00U | Not Available |
| 7 | Not Available | Top Mark 5117 | 02T-9H00U | Not Available |
| 7 | Not Available | Top Mark 5140 A-1 | 02T-ZS00U | Not Available |
| 7 | Not Available | Top Mark 5150 | 02T-ZT10U | Not Available |
| 7 | Not Available | Top Mark 5155 A-6 | 02T-ZR00U | Not Available |
| 7 | Not Available | Brush Assembly | 63050 | Not Available |
| 8 | Not Available | Lower Plate (Unit) | 76015 | Not Available |
| 8 | Not Available | A-9 | A-10 | Not Available |
| 8 | Not Available | Bracket B-3 | 02D-V300U | Not Available |
| 9 | Not Available | Belt Cover | 76315 | Not Available |
| 9 | Not Available | Screw B-2 | 40D-V300U | Not Available |
| 10 | Not Available | Body Packing | 76740 | Not Available |
| 11 | Not Available | Belt | MC210B | Not Available |
| 11 | Not Available | Belt UB Style | PR-1015 | Not Available |
| 12 |  | Bulb, Double Pole 505-1CR Part Number: 1650 S for Kirby | 1650S | $18.06Read more |
| 13 | Not Available | Lamp Holder 5155 | 93H-F800V | Not Available |
| 14 | Not Available | Bulb Supporter 5155 | 85H-V20 | Not Available |
| 15 | Not Available | Screw 5155 | XYN3+C6S | Not Available |
| 16 | Not Available | Screw 5155 | 77020 | Not Available |
| 17 | Not Available | Wire Bushing 5155 | 58E-V30 | Not Available |
| 18 | Not Available | A-16 | A-14 | Not Available |
| 18 | Not Available | Wire Cord | 38G-V200U | Not Available |
| 19 | Not Available | Wire Connector 5155 | SS-3270 | Not Available |
| 20 | Not Available | Reflection Plate 5155 | 84H-V20 | Not Available |
| 21 | Not Available | Reflection Plate Supporter | 86H2F1KU09 | Not Available |
| 22 | Not Available | Window 5155 | 21H-V20 | Not Available |
| 23 | Not Available | Plastic Shaft | 73900 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Retainer, Squeegee Rear, 35 Inch | 75212 | $119.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | Circuit Breaker, 30 Amps | 75250 | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | Spacer, Idler, Plain | 75220 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | Spacer Lift Arm | 75225 | $49.99Read more |
| 2 | Not Available | ON/OFF Switch | 34100 | Not Available |
| 2 | Not Available | Switch 1 Speed Rocker Type | HR-3415 | Not Available |
| 3 | Not Available | Cord Stopper | 62E-J20 | Not Available |
| 4 | Not Available | Screw | 77020 | Not Available |
| 5 | Not Available | Power Cord 5117 | 97E-9H0VU | Not Available |
| 5 | Not Available | Power Cord 5140 | NLA | Not Available |
| 5 | Not Available | Power Cord 5150 (Not Illustrated) | 97E-V02VU | Not Available |
| 5 | Not Available | Power Cord 5155 | 97E-ZRZ0U | Not Available |
| 6 | Not Available | Wire Connector | SS-3270 | Not Available |
| 7 | Not Available | Dust Box Packing 5140 | 66KV01KU13 | Not Available |
| 7 | Not Available | Dust Box Packing5150 | 66KV01KU12 | Not Available |
| 7 | Not Available | Dust Box Packing 5155/5117 | 66K-V00 | Not Available |
| 8 | Not Available | Switch Cover 5140 | 03EV02RU09 | Not Available |
| 8 | Not Available | Switch Cover 5150 | 03EV02UU01 | Not Available |
| 8 | Not Available | Switch Cover 5155/5117 | 03EV02KU09 | Not Available |
| 9 | Not Available | Switch Cover Packing 5140 | 73KV0ZKU13 | Not Available |
| 9 | Not Available | Switch Cover Packing 5150 | 73KV0ZKU12 | Not Available |
| 9 | Not Available | Switch Cover Packing 5155/5117 | 73K-V00 | Not Available |
| 10 | Not Available | Screw | 77020 | Not Available |
| 11 | Not Available | Handle Screw | 77043 | Not Available |
| 12 |  | Nut-Panasonic 5100 Handle Bolt - 10Pk For: panasonic | AMP21B170 | $4.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Filter Supporter 5140 (Order P-70818) | 18420 | Not Available |
| 14 |  | Wheel 1-5/8dia Blk Rubber | 18400 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Filter Secondary | PR-1800 | Not Available |
| 15 | Not Available | Roller 5140/5155/5117 | 71050 | Not Available |
| 15 | Not Available | Roller 5150 | 71125 | Not Available |
| 16 | Not Available | Roller Shaft | 71350 | Not Available |
| 17 | Not Available | E-Clip | 77115 | Not Available |
| 18 | Not Available | Dust Bag Paper | MC115P | Not Available |
| 18 | Not Available | Bag Paper Type U3 3 Pk | PR-14005 | Not Available |
| 19 | Not Available | Suction Inlet 5117 | NLA | Not Available |
| 19 | Not Available | Suction Inlet 5140 | 60HF72RU09 | Not Available |
| 19 | Not Available | Suction Inlet 5150 | 60HF72UU01 | Not Available |
| 19 | Not Available | Suction Inlet 5155 5150 5155 | 60HF72KU09 | Not Available |
| 20 | Not Available | Cover 5117 | 02H-F704 | Not Available |
| 20 | Not Available | Cover 5140 | 75610 | Not Available |
| 20 | Not Available | Cover 5150 | 75678 | Not Available |
| 20 | Not Available | Cover 5155 Use P-75690 | NLA | Not Available |
| 21 | Not Available | Screw | 77020 | Not Available |
| 22 | Not Available | Motor Case 5117 | NLA | Not Available |
| 22 | No Image | Wheel, 2 OD, .31 ID | 75015 | $51.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Motor Case 5150 | NLA | Not Available |
| 22 | No Image | Bracket, Retaining, Trans | 75025 | $39.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Rear Cover Packing | 76850 | Not Available |
| 24 | Not Available | Motor Case Packing 5140 | 19FV0ZKU13 | Not Available |
| 24 | Not Available | Motor Case Packing 5150 | 19FV0ZKU12 | Not Available |
| 24 | Not Available | Motor Case Packing 5155/5117 | 19F-V00 | Not Available |
| 25 | Not Available | Screw | 77020 | Not Available |
| 26 | Not Available | Protector | 50521 | Not Available |
| 27 | Not Available | Protector Spring | 76865 | Not Available |
| 28 | Not Available | Protector Case | 68K-D20 | Not Available |
| 29 | Not Available | Protector Supporter | 50520 | Not Available |
| 30 | No Image | Washer-(10 Pak)-Panasnic For: panasonic | AXWG6E115FY | $34.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | Not Available | Motor Assembly | 60100 | Not Available |
| 32 | Not Available | Carbon Brush USA Motors | 63050 | Not Available |
| 32 | Not Available | Carbon Brush Non USA Motor | 63000 | Not Available |
| 33 | Not Available | Brush Retainer Bracket | 02D-V300U | Not Available |
| 34 | Not Available | Screw (Brush) (Not Illustrated) | 40D-V300U | Not Available |
| 35 | No Image | Wire Tie 15 Blk | 18706 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | Motor Support Rubber Front | 76768 | Not Available |
| 37 | Not Available | Motor Support Rubber Rear | 76769 | Not Available |
| 38 | Not Available | Wire Cord 5140/5150/5117 | 37G-V020U | Not Available |
| 38 | Not Available | Wire Cord 5155 | 37G-V200U | Not Available |
| 39 | Not Available | Wire Connector | SS-3270 | Not Available |
| 40 | Not Available | Protector Filter | 33K-V000U | Not Available |
| 41 | Not Available | Handle 5117 | 64B-V10L | Not Available |
| 41 |  | Bumper, 5.5" Black Rubber Rug Nozzle TriStar Part Number: 70122 for Compact | 70122 | $9.94Read more |
| 41 | Not Available | Handle 5150 | 70120 | Not Available |
| 41 | Not Available | Handle 5155 | 70115 | Not Available |
| 42 | Not Available | Upper Cord Hook 5117 | 53E-V007 | Not Available |
| 42 | Not Available | Upper Cord Hook | NLA | Not Available |
| 42 | Not Available | Upper Cord Hook 5150 | NLA | Not Available |
| 42 | Not Available | Upper Cord Hook 5155 | 70817 | Not Available |
| 43 | Not Available | Cord Base 5117 | 55E-V007 | Not Available |
| 43 | Not Available | Cord Base 5140 | NLA | Not Available |
| 43 | Not Available | Cord Base 5150 | 70915 | Not Available |
| 43 | Not Available | Cord Base 5155 | 55EV0ZKU09 | Not Available |
| 44 | Not Available | Cord Hook Spring | 77200 | Not Available |
| 45 | Not Available | Washer | 77120 | Not Available |
| 46 | Not Available | Lower Cord Hook 5117 | 54E-V007 | Not Available |
| 46 | Not Available | Lower Cord Hook 5140 | 70870 | Not Available |
| 46 | Not Available | Lower Cord Hook | 70867 | Not Available |
| 47 | Not Available | Screw | 77040 | Not Available |
| 48 | Not Available | Dust Cover 5117 | 60K-2V0VU | Not Available |
| 48 | Not Available | Dust Cover 5140 | 60K2CZRU09 | Not Available |
| 48 | Not Available | Dust Cover 5150 | 78515 | Not Available |
| 48 | Not Available | Dust Cover 5155 | 60K2CZRU06 | Not Available |
| 49 | Not Available | Ornamental Plate 5117 | 21T-9H00U | Not Available |
| 49 | Not Available | Ornamental Plate 5140 | 21T-Z5ZOU | Not Available |
| 49 | Not Available | Ornamental Plate 5150 | 21T-ZTIOU | Not Available |
| 49 | Not Available | Ornamental Plate 5155 | 21T-ZRZ0U | Not Available |
| 50 | Not Available | Nozzle Hose 5117 | NLA | Not Available |
| 50 | Not Available | Nozzle Hose 5140 | 73620 | Not Available |
| 50 | Not Available | Nozzle Hose 5150 | 73625 | Not Available |
| 50 | Not Available | Nozzle Hose 5155 | NLA | Not Available |
