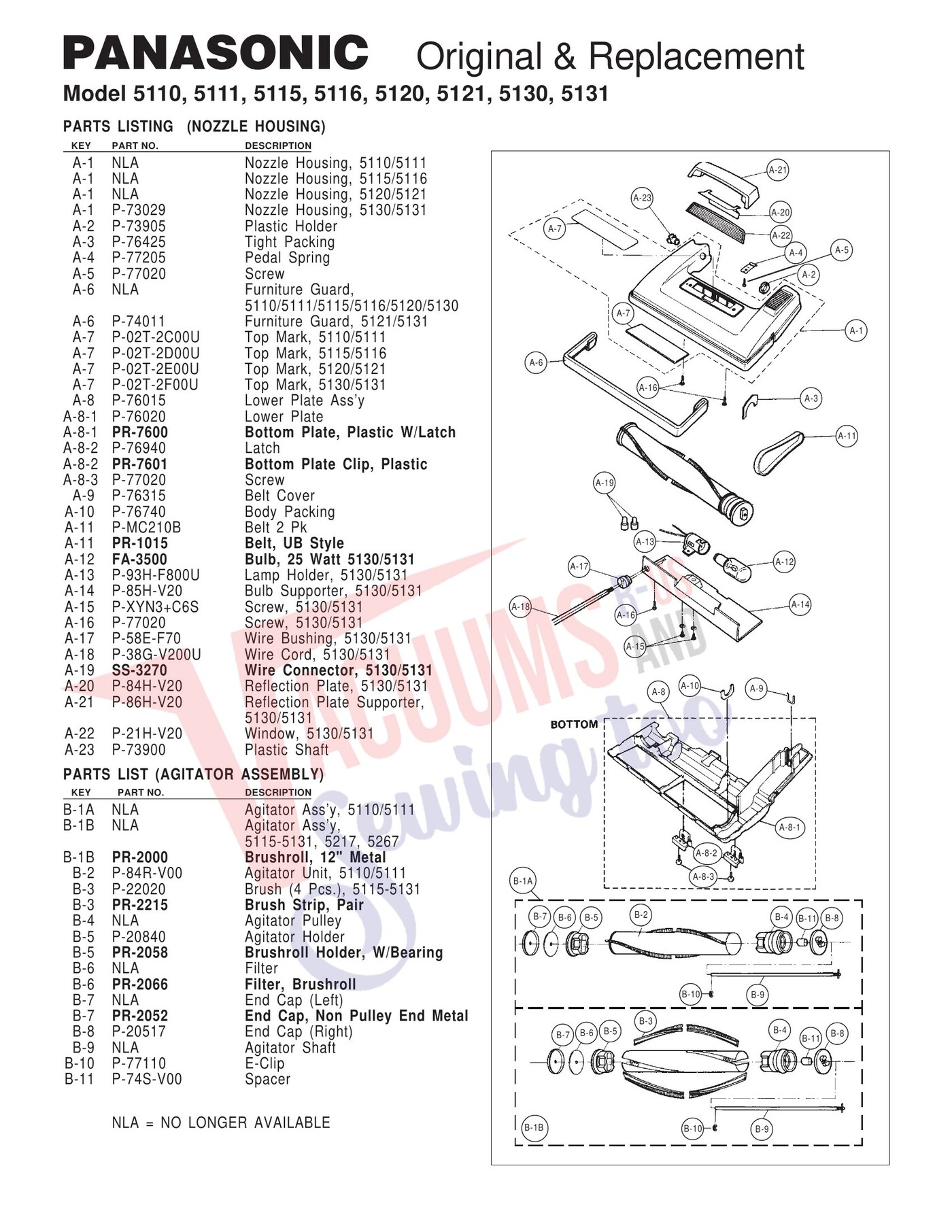

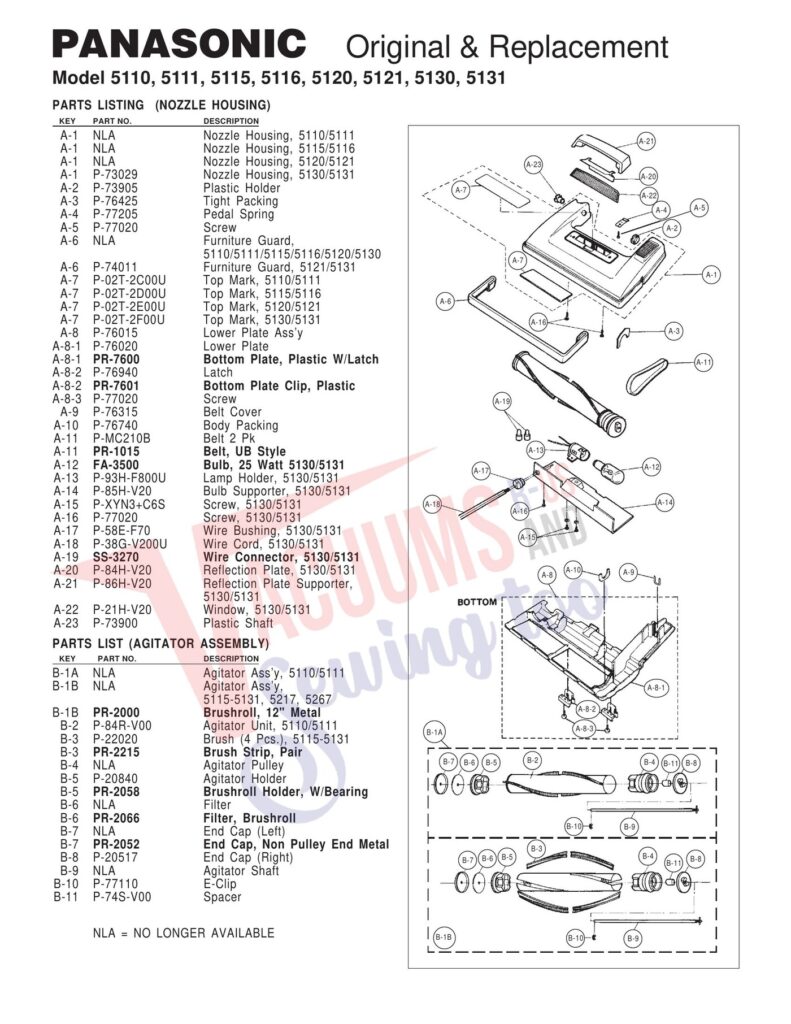

Schematic and parts book for Panasonic 5110, 5111, 5115, 5116, 5120, 5121, 5130, 5131 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing 5110/5111 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing 5115/5116 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing 5120/5121 | NLA | Not Available |
| 1 | Not Available | Nozzle Housing 5130/5131 | 73029 | Not Available |
| 1 | Not Available | Lower Plate | 76020 | Not Available |
| 1 | Not Available | Bottom Plate Plastic W/Latch | PR-7600 | Not Available |
| 1A | Not Available | Agitator Ass’y 5110/5111 | NLA | Not Available |
| 1B | Not Available | Agitator Ass’y A-8-1 | NLA | Not Available |
| 1B |  | Brushroll, 12 In 5110/5210/5230/8320/8330 Acrylic Part Number: AMC92S-V00 for Panasonic | AMC92SV00 | $79.53Read more |
| 1B | Not Available | B-9 | 10 | Not Available |
| 2 | Not Available | Plastic Holder | 73905 | Not Available |
| 2 | Not Available | Latch | 76940 | Not Available |
| 2 | Not Available | Bottom Plate Clip Plastic | PR-7601 | Not Available |
| 2 | Not Available | Agitator Unit 5110/5111 | 84R-V00 | Not Available |
| 3 | Not Available | Tight Packing A-22 | 76425 | Not Available |
| 3 | Not Available | Screw | 77020 | Not Available |
| 3 | Not Available | Brush (4 Pcs.) 5115-5131 | 22020 | Not Available |
| 3 | Not Available | Brush Strip Pair | PR-2215 | Not Available |
| 4 | Not Available | Pedal Spring | 77205 | Not Available |
| 4 | Not Available | Agitator Pulley | NLA | Not Available |
| 4 | Not Available | B-8 | 11 | Not Available |
| 5 | Not Available | Screw A-2 | 77020 | Not Available |
| 5 | Not Available | B- | 2 | Not Available |
| 5 | Not Available | Agitator Holder | 20840 | Not Available |
| 5 | Not Available | Brushroll Holder W/Bearing | PR-2058 | Not Available |
| 5 | Not Available | B- | 4 | Not Available |
| 6 | Not Available | Furniture Guard | NLA | Not Available |
| 6 | Not Available | Furniture Guard 5121/5131 | 74011 | Not Available |
| 6 | Not Available | Filter | NLA | Not Available |
| 6 | Not Available | Filter Brushroll | PR-2066 | Not Available |
| 7 | Not Available | Top Mark 5110/5111 A-1 | 02T-2C00U | Not Available |
| 7 | Not Available | Top Mark 5115/5116 | 02T-2D00U | Not Available |
| 7 | Not Available | Top Mark 5120/5121 A-6 | 02T-2E00U | Not Available |
| 7 | Not Available | Top Mark 5130/5131 | 02T-2F00U | Not Available |
| 7 | Not Available | B- | 6 | Not Available |
| 7 | Not Available | End Cap (Left) | NLA | Not Available |
| 7 | Not Available | End Cap Non Pulley End Metal | PR-2052 | Not Available |
| 7 | Not Available | B- | 6 | Not Available |
| 8 | Not Available | Lower Plate Ass’y A-3 | 76015 | Not Available |
| 8 | Not Available | A-9 | A-10 | Not Available |
| 8 | Not Available | End Cap (Right) | 20517 | Not Available |
| 9 | Not Available | Belt Cover | 76315 | Not Available |
| 9 | Not Available | Agitator Shaft | NLA | Not Available |
| 10 | Not Available | Body Packing | 76740 | Not Available |
| 10 | Not Available | E-Clip | 77110 | Not Available |
| 11 | Not Available | Belt 2 Pk | MC210B | Not Available |
| 11 | Not Available | Belt UB Style A-13 | PR-1015 | Not Available |
| 11 | Not Available | Spacer | 74S-V00 | Not Available |
| 12 |  | Bulb, Double Pole 505-1CR Part Number: 1650 S for Kirby | 1650S | $18.06Read more |
| 13 | Not Available | Lamp Holder 5130/5131 | 93H-F800U | Not Available |
| 14 | Not Available | Bulb Supporter 5130/5131 | 85H-V20 | Not Available |
| 15 | Not Available | Screw 5130/5131 | XYN3+C6S | Not Available |
| 16 | Not Available | Screw 5130/5131 | 77020 | Not Available |
| 17 | Not Available | Wire Bushing 5130/5131 | 58E-F70 | Not Available |
| 18 | Not Available | A-16 | A-14 | Not Available |
| 18 | Not Available | Wire Cord 5130/5131 | 38G-V200U | Not Available |
| 19 | Not Available | Wire Connector 5130/5131 | SS-3270 | Not Available |
| 20 | Not Available | Reflection Plate 5130/5131 | 84H-V20 | Not Available |
| 21 | Not Available | Reflection Plate Supporter | 86H-V20 | Not Available |
| 22 | Not Available | Window 5130/5131 | 21H-V20 | Not Available |
| 23 | Not Available | Plastic Shaft | 73900 | Not Available |
