Schematic and parts book for Necchi TM8 TM8. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

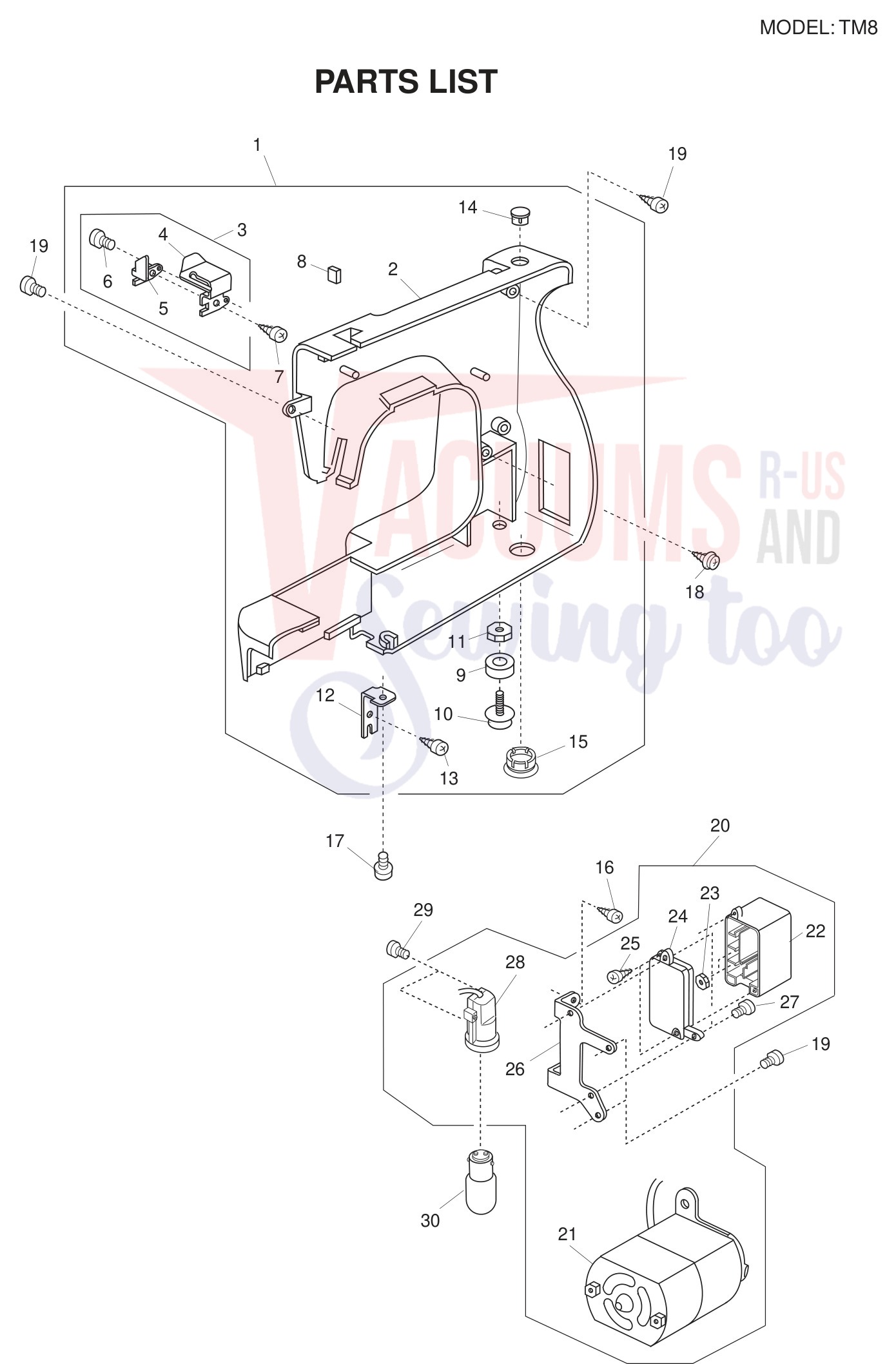

| 1 |  | Rear cover (unit) sewing machine part or accessory For Janome Models: TM8 | 660606408 | $40.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Rear cover sewing machine part or accessory For Janome Models: TM8 | 660002534 | $28.52Read more |
| 3 |  | THREAD GUIDE PLATE UNIT 660 sewing machine part or accessory For Janome Models: 662, AQS2009, JEM... | 660618001 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Thread guide plate sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/6... | 660046002 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Pretension spring sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/66... | 660047003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set screw 3x6(B) sewing machine part or accessory For Janome Models: 6147, 662, CE2200, JEM GOLD ... | 000107905 | $0.60Read more |
| 8 | | Felt sewing machine part or accessory For Janome Models: AQS2009, Jem Gold III, Jem Gold Plus, My... | 660077002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Rubber foot sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 3160QDC,... | 639005003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Tapping screw 4x16 sewing machine part or accessory For Janome Models: 1110DX, 3160QDC, 4045LX, 4... | 000201405 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Rear cover bracket sewing machine part or accessory For Janome Models: 2040, 3022, 509, 521, 525S... | 827006003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Cap sewing machine part or accessory For Janome Models: 1017, 639, 639B, AQS2009, HARMONY 1017, H... | 733003202 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set screw sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DEL... | 000149507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Electric device (unit) | 660626002 | Not Available |
| 21 | | MOTOR UNIT 660 sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661, Jem Gold ... | 660623009 | $86.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Machine socket unit sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 204... | 739505403 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Nut sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041NX, 2041... | 000060802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Socket Lid sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041N... | 739037007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | +PAN HEAD TAP TIGHT SCREW 3X10 sewing machine part or accessory For Janome Models: 1117S, 134D, 2... | 000107802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Machine socket fixing plate sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/6... | 660004008 | $2.40Read more |
| 27 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Lamp socket unit sewing machine part or accessory For Janome Models: 662, HARMONY 1017, JEM GOLD ... | 639512008 | $11.80Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Threaded Light Bulb sewing machine part or accessory For Janome Models: 108, 1117S, 1200D, 203, 2... | 000008606 | $4.00Add to cart Special order: ships in 2 to 4 weeks |

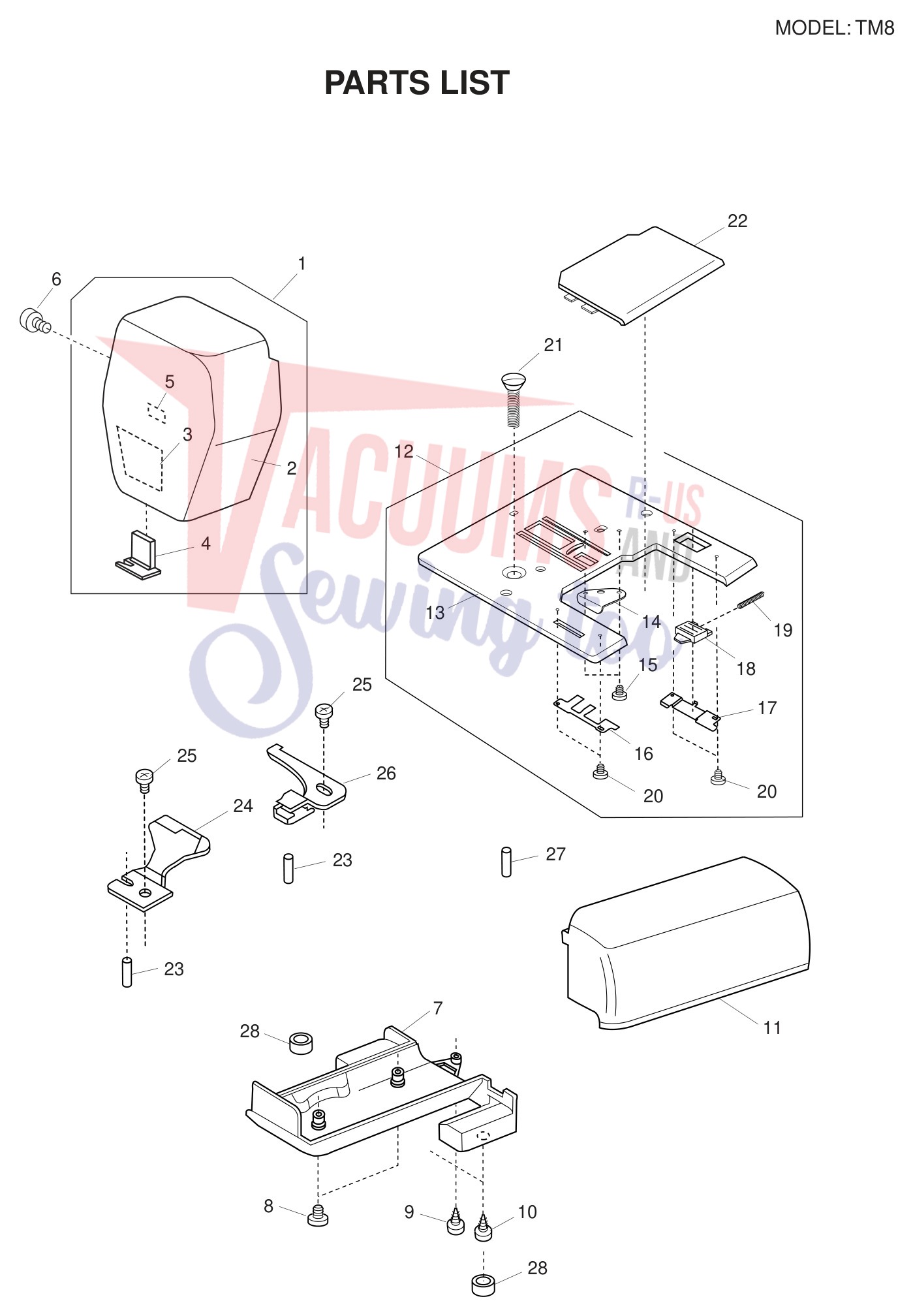

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Face plate (unit) | 660603210 | Not Available |
| 2 | | Face plate sewing machine part or accessory For Janome Models: TM8 | 660009195 | $10.60Read more |
| 3 |  | Sticker sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 2003P, 2041, 2041LX,... | 724025006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Sticker sewing machine part or accessory For Janome Models: 106, 108, 110, 2018S, 2041, 2041LX, 2... | 100411104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Setscrew 4x14 | 000070012 | Not Available |
| 7 |  | BED COVER sewing machine part or accessory For Janome Models: 662, JEM GOLD/660, Necchi TM8 | 660006000 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | TAPPING SCREW sewing machine part or accessory For Janome Models: 1017, 1110DX, 134D, 2003P, 2018... | 000121905 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | EXTENSION TABLE sewing machine part or accessory For Janome Models: 662, JEM GOLD/660, Necchi TM8 | 660007001 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Needle plate unit sewing machine part or accessory For Janome Models: 659, 662, JEM GOLD 2/661, J... | 751603101 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Needle Plate | 653179209 | Not Available |
| 14 | | Bobbin holder stopper sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 659, 66... | 654078004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Setscrew | 820373003 | $0.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Slide plate holder (left) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 752005007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Slide plate holder (right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 825015010 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Hook Cover Plate | 825018035 | Not Available |
| 23 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 662, 7061NX... | 000122504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Bobbin case stopper(left) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 827011001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Bobbin Holder Stopper(Right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 627567001 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, 733... | 000122700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Cushion sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 739064003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |

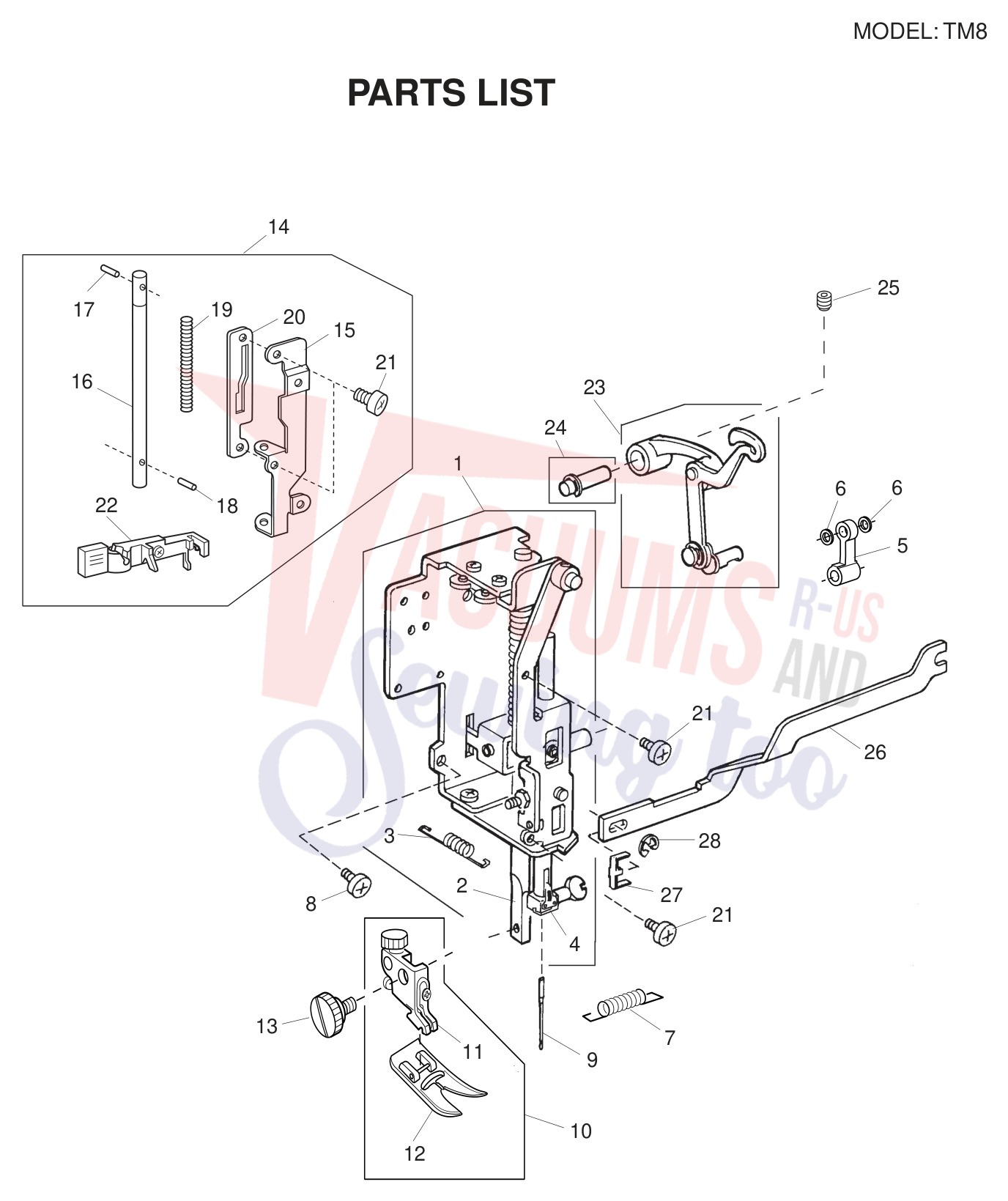

| # | Part image | Description | SKU | Price |
| 1 |  | PRESSER BAR UNIT 660 sewing machine part or accessory For Janome Models: 662, JEM GOLD/660, Necch... | 660604004 | $59.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | PRESSER BAR sewing machine part or accessory For Janome Models: 662, JEM GOLD/660, Necchi TM8 | 660003007 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Supporter spring (2) sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128,... | 639110002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | NEEDLE BAR UNIT 660 sewing machine part or accessory For Janome Models: 662, JEM GOLD/660, Necchi... | 660620006 | $16.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | NEEDLE BAR CRANK ROD FOR 639 sewing machine part or accessory For Janome Models: 1017, 1117S, 312... | 639016007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | WASHER FT-80 sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, 4045LX, 4045... | 000036902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Supporter spring sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639... | 639017008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Presser Foot Unit (low shank 7mm) sewing machine part or accessory For Janome Models: 2040, HF302... | 685503010 | $12.70Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Genuine Janome/Elna Standard Presser Foot Holder (top load low shank) For: 2040, HF3022, 6260QC... | 804509000 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Zig Zag Foot(top load 5mm-7mm) sewing machine part or accessory For Janome Models: CE2200, ML3023... | 685502019 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Thumb Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 360, 3... | 647112009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Needle threader (unit) sewing machine part or accessory For Janome Models: JEM GOLD 2/661, Jem Go... | 660647009 | $15.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Needle threader shaft plate sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/6... | 639122007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Needle threader shaft sewing machine part or accessory For Janome Models: JEM GOLD 2/661, Jem Gol... | 660100005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Slotted pin(E)2x14 sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 000122906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Threader shaft spring sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661, Je... | 639125000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Needle threader guide sewing machine part or accessory For Janome Models: JEM GOLD 2/661, Jem Gol... | 660053002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Needle threader supp. unit sewing machine part or accessory For Janome Models: 2139N, AQS2009, HT... | 639643009 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Thread take-up lever (unit) sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4... | 660510013 | $19.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Take-up lever sup. pin unit sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, ... | 731511006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Zigzag rod sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639, 639B... | 639072001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Zigzag rod plate sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639... | 639098003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| # | Part image | Description | SKU | Price |

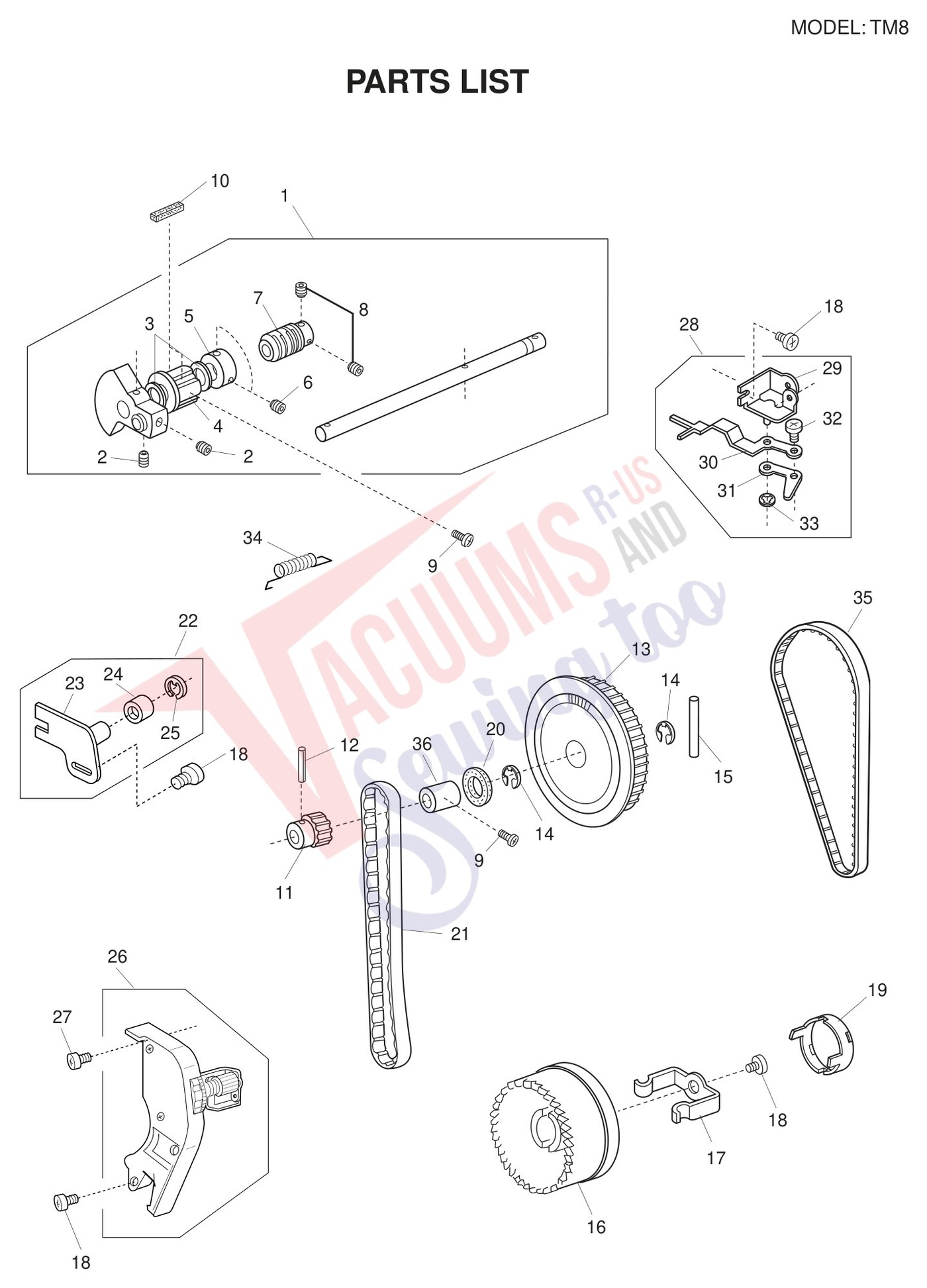

| 1 | | Upper shaft (unit) sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661, Jem G... | 660608008 | $25.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Washer sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 20... | 000036717 | $0.80Read more |
| 4 | | Bushing sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/661, Jem Gol... | 829042007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 7 | Not Available | Worm | 749011109 | Not Available |
| 8 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | SET SCREW 5X10 DISCONTINUED sewing machine part or accessory For Janome Models: 104, 106, 108, 11... | 000101301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Felt sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509, 521, ... | 731384008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Upper shaft timing gear sewing machine part or accessory For Janome Models: AQS2009, JEM GOLD 2/6... | 660103008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Spring pin sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 000020501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Belt wheel sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639B, 662... | 639096012 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | PIN 4X40 sewing machine part or accessory For Janome Models: 1117S, 2003P, 2018S, 2039SN, 2041, 2... | 000023803 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Balance wheel sewing machine part or accessory For Janome Models: 2003P, 2118S, 2139S, 2149SX, 62... | 639097024 | $5.80Add to cart |
| 17 |  | CLUTCH SPRING sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039... | 639113016 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Clutch Cap sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 4618LE, 4623... | 650070509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Felt sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, 662, AQS2009, HELLO K... | 639119001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Synchro-belt sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S ... | 660017015 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | IDLER UNIT 660 sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/661, ... | 660609009 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Idler base sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/661, Jem ... | 660018005 | $1.40Read more |
| 24 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | THREAD TENSION UNIT 660 sewing machine part or accessory For Janome Models: JEM GOLD/660, Necchi TM8 | 660506005 | $25.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Thread tension fixing plate (unit) sewing machine part or accessory For Janome Models: 660 Jem Gold | 660607007 | $6.00Read more |
| 29 | | Thread tension fixing plate sewing machine part or accessory For Janome Models: 660 Jem Gold | 660014001 | $2.40Read more |
| 30 | | Thread release arm sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/6... | 639024008 | $1.61Read more |
| 31 | | Tension release arm sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/... | 639025009 | $0.92Read more |
| 32 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Spring sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639, 639B, 66... | 639026000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Motor belt sewing machine part or accessory For Janome Models: 7318, AQS2009, JEM GOLD 2/661, Jem... | 653139023 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 36 | Not Available | UPPER SHAFT BUSHING(RIGHT) | 673062004 | Not Available |

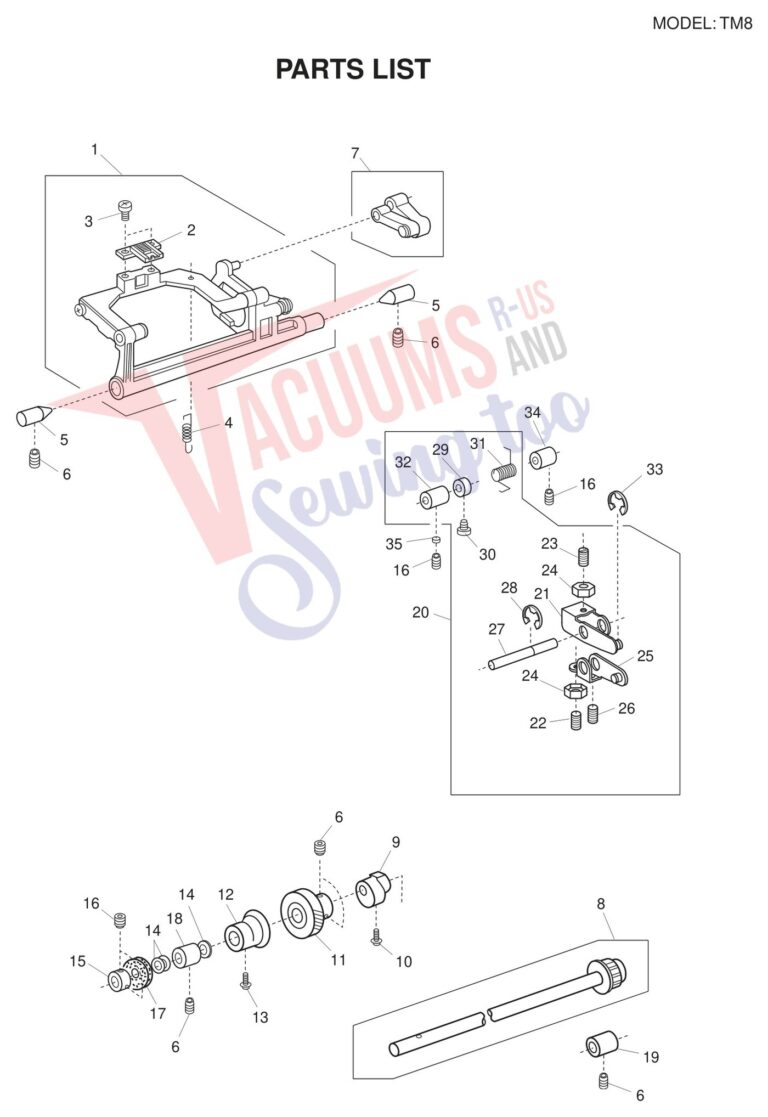

| # | Part image | Description | SKU | Price |

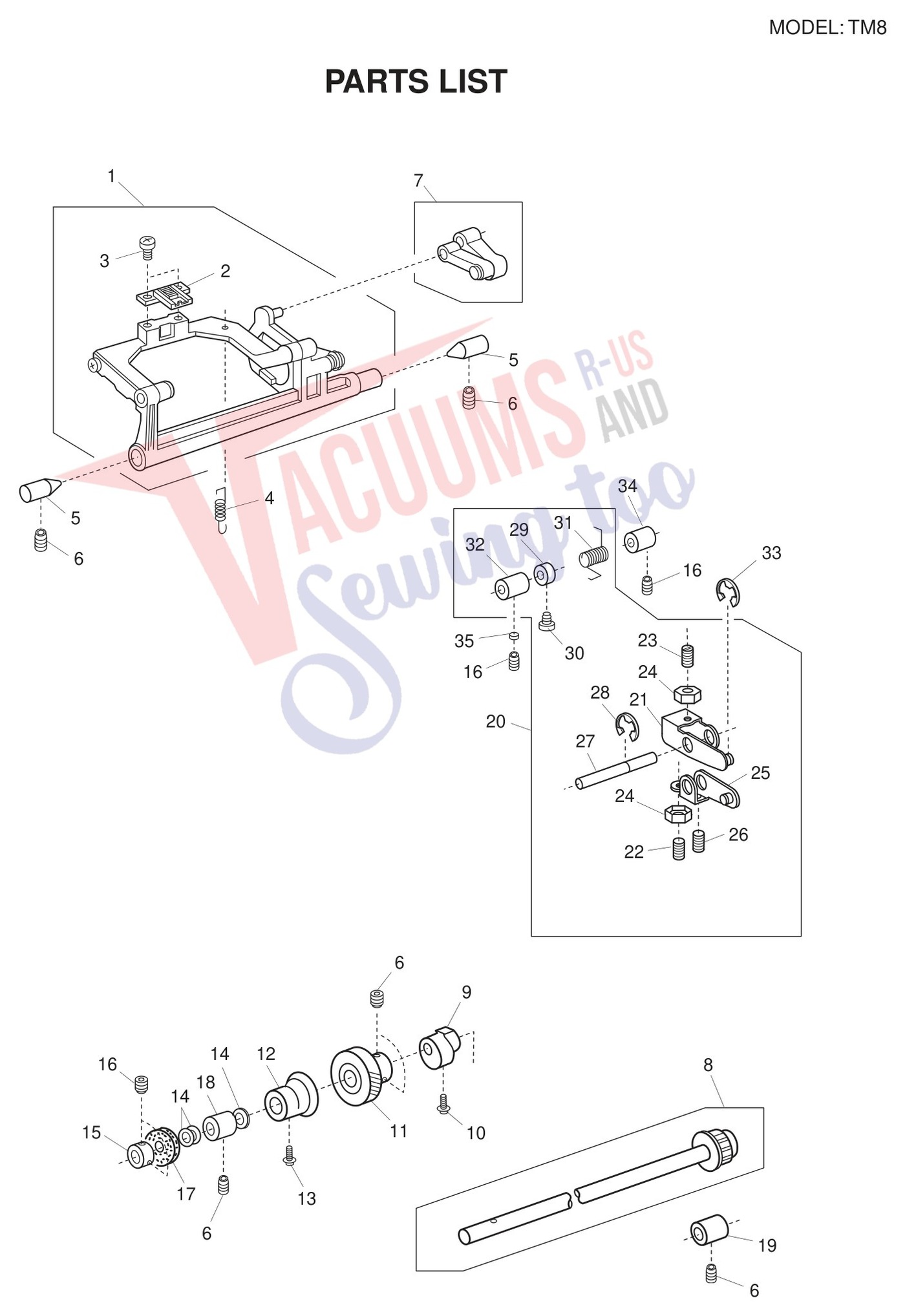

| 1 |  | FEED ROCK SHAFT UNIT ME-4014 sewing machine part or accessory For Janome Models: 509, 521, 525S, ... | 751666009 | $36.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | FEED DOG FOR 4014 sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 662, ... | 653193003 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 404... | 000104005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Feed Dog Base Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 650085002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Straight pin sewing machine part or accessory For Janome Models: 662, 712T, AQS2009, JEM GOLD 2/6... | 749024002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 7 |  | FEED REG. UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 650612004 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Lower shaft (unit) sewing machine part or accessory For Janome Models: 660 Jem Gold | 660610003 | $9.20Read more |
| 9 | | FEED LIFT CAM 5000 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 751148000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Lower shaft gear sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4119 (QU... | 650955002 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | FEED LIFT CAM 4014 sewing machine part or accessory For Janome Models: 662, CE2200, JEM GOLD/660,... | 650077001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Tapping screw 3x12S sewing machine part or accessory For Models: , Necchi TM8 | 000121606 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Felt sewing machine part or accessory 735143005 Felt | 735143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | LOWER SHAFT BUSHING (LEFT) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 650078002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Feed regulating crank (unit) sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/... | 660612108 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Feed regulating arm sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661, Jem ... | 660021001 | $1.60Read more |
| 22 | | Set screw sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639, 639B,... | 000114008 | $0.60Read more |
| 23 |  | Set screw sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S, 20... | 648010009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Feed shaft plate sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661, Jem Gol... | 660022105 | $1.60Read more |
| 26 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Feed shaft sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661, Jem Gold III,... | 660023003 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Ring | 820387000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Regulator spring sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661, Jem Gol... | 751246009 | $0.60Read more |
| 32 |  | Feed shaft bushing (front) sewing machine part or accessory 625144002 Feed shaft bushing (front) | 625144002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 34 |  | FEED REG SHAFT BUSHING REAR 9 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 650092002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Washer sewing machine part or accessory 650175000 Washer | 650175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

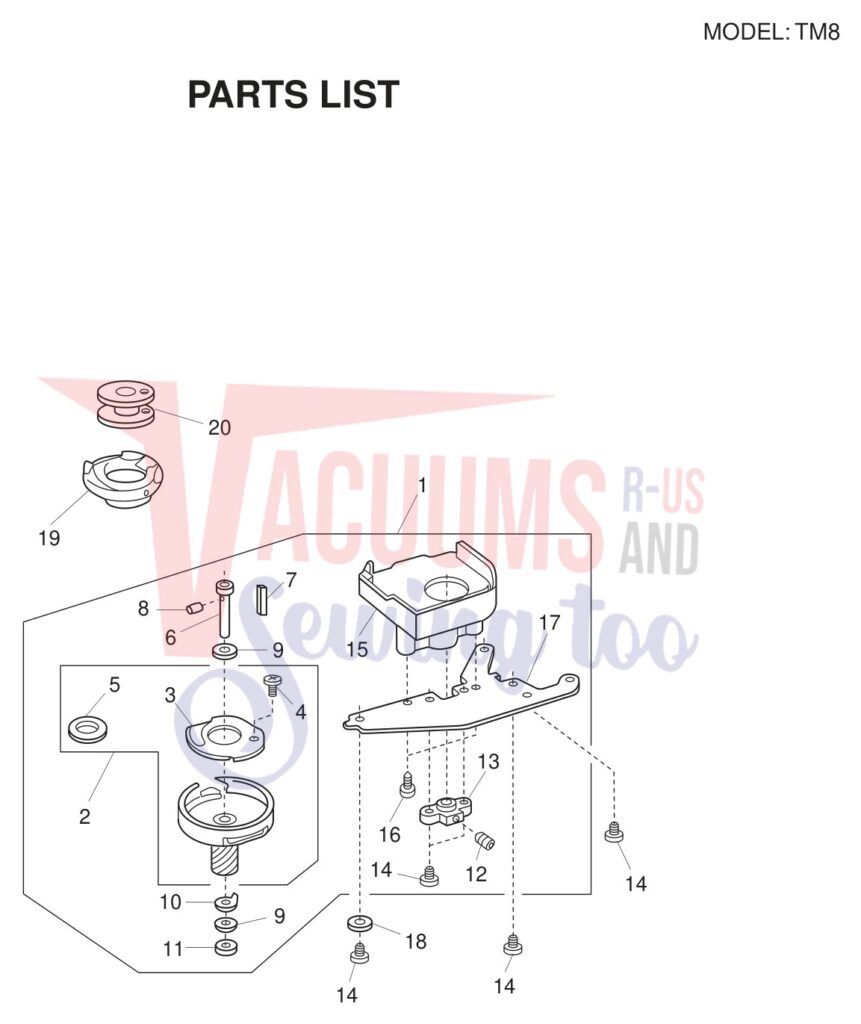

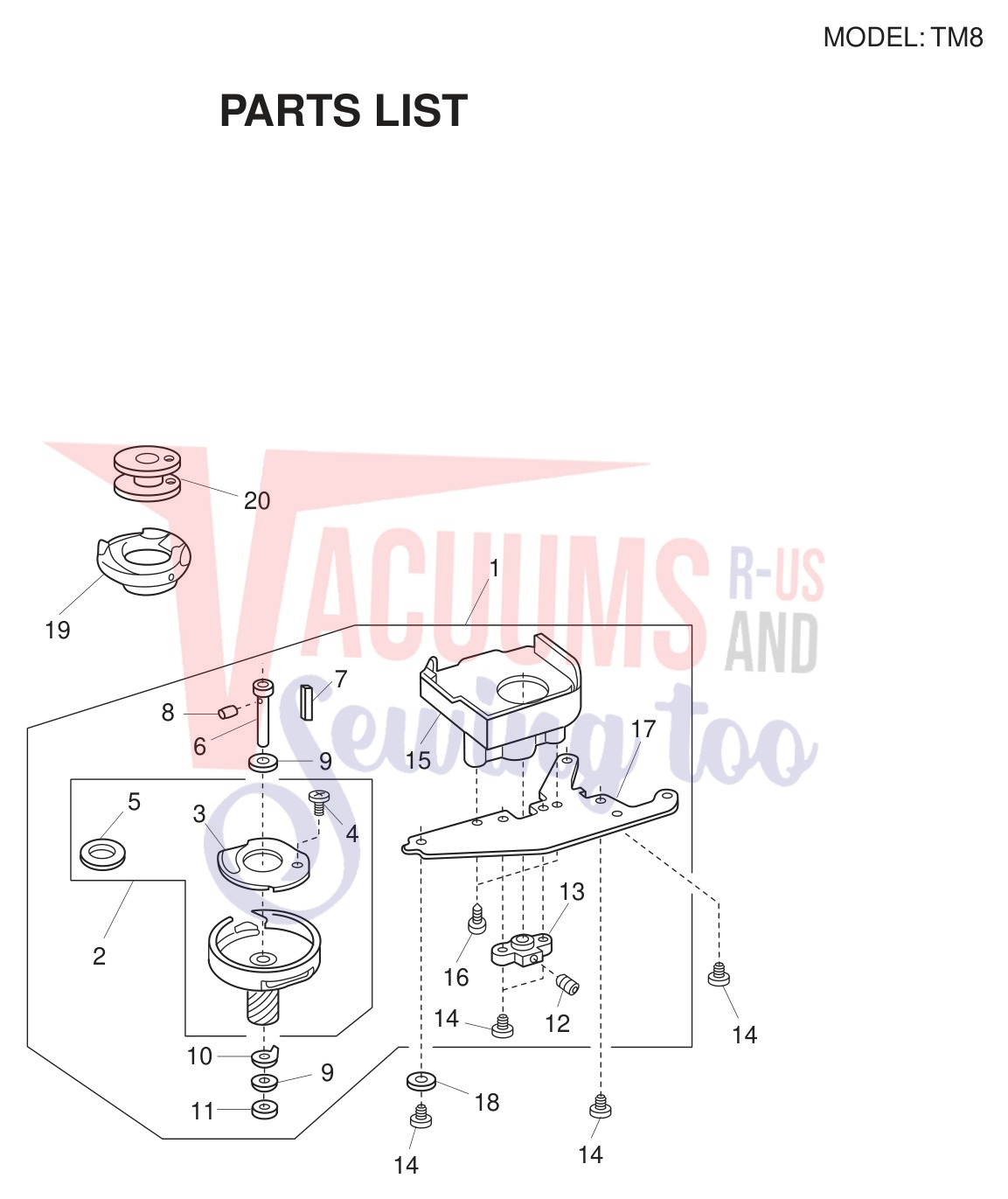

| 1 | Not Available | Hook race (unit) | 827614066 | Not Available |
| 2 |  | Hook Race Unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 650623008 | $66.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hook Race Bottom Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/... | 627191000 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Hook shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 820123006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Oil wick (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820124007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Oil wick (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820125008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 13 | | Hook shaft base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 650094004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Hook race cover sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 827040009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Hook race set plate | 823106105 | Not Available |
| 18 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Janome Jem Gold Bobbin Holder Unit - 627569106 | 627569106 | $30.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Plastic bobbin | 102261000 | Not Available |
| # | Part image | Description | SKU | Price |

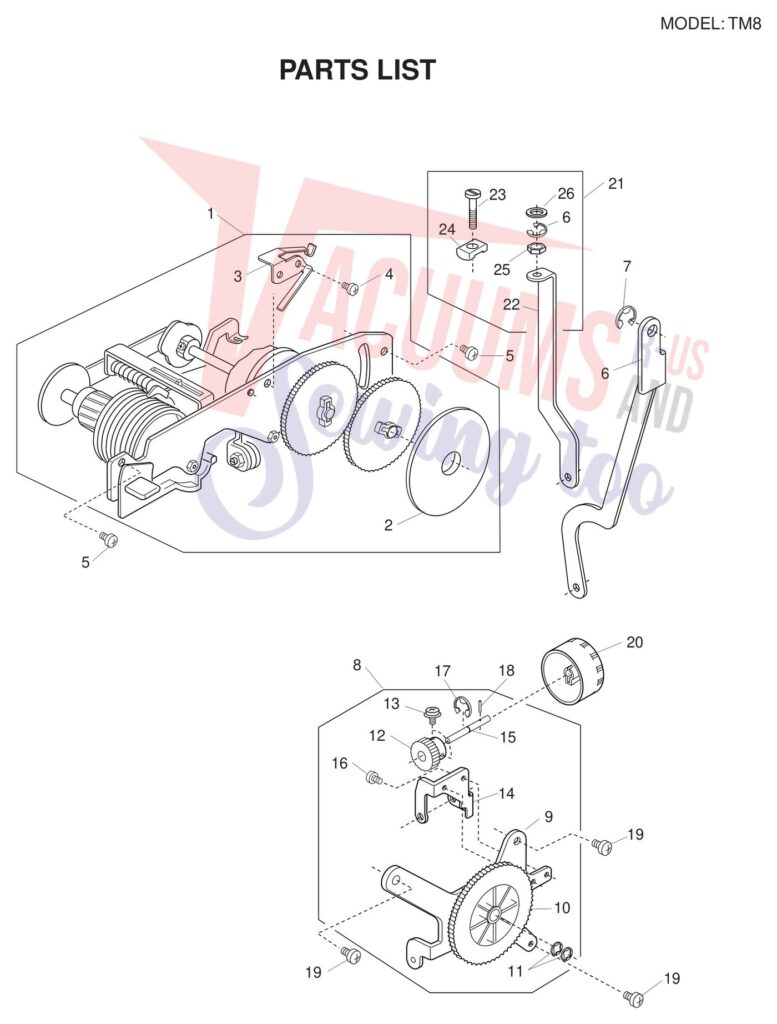

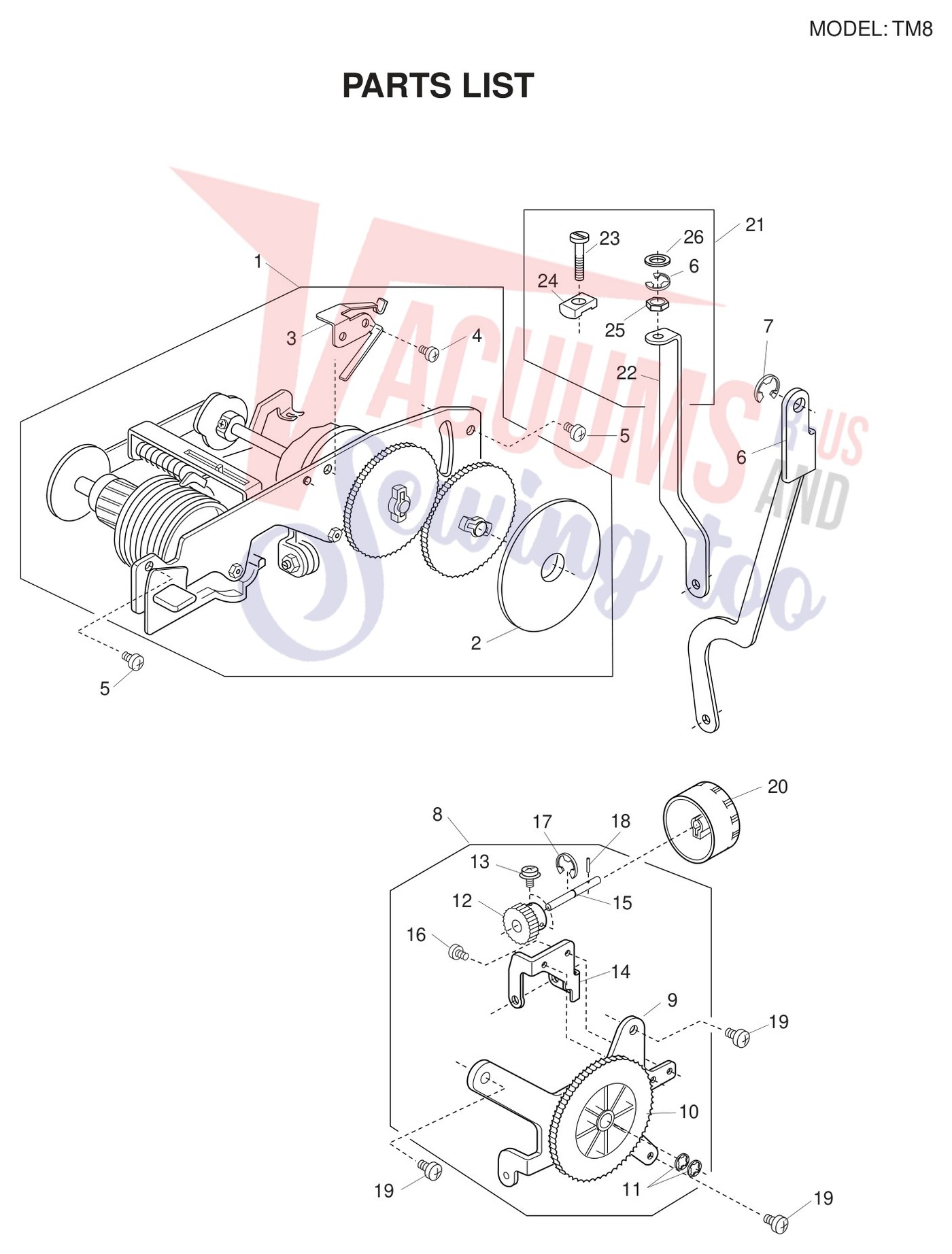

| 1 | | Cam block (unit) sewing machine part or accessory For Janome Models: TM8 | 660619507 | $71.60Read more |
| 2 | Not Available | Pattern indication plate | 660029180 | Not Available |
| 3 | | Separate spring sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661, Jem Gold... | 660049005 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Feed regulating rod sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661, Jem ... | 660027007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 8 | | GEAR SETTING PLATE 660 sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661, J... | 660617000 | $16.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Selector gear base plate sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661,... | 660044000 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Selector dial gear sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661, Jem G... | 660035008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Dial gear | 308028007 | Not Available |
| 13 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Dial supporter plate sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661, Jem... | 660036009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Dial shaft | 660048107 | Not Available |
| 16 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Spring pin 2x16 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER... | 000019806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | PATTERN SELECTOR DIAL sewing machine part or accessory For Janome Models: JEM GOLD 2/661, Jem Gol... | 660037000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | SS rod (unit) sewing machine part or accessory For Janome Models: 662, Jem Gold III, Jem Gold Plu... | 660611004 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | SS rod | 660020000 | Not Available |
| 23 |  | SS ADJUSTING SCREW sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 735074004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | SS ROD BLOCK sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041NX, 20... | 735076006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

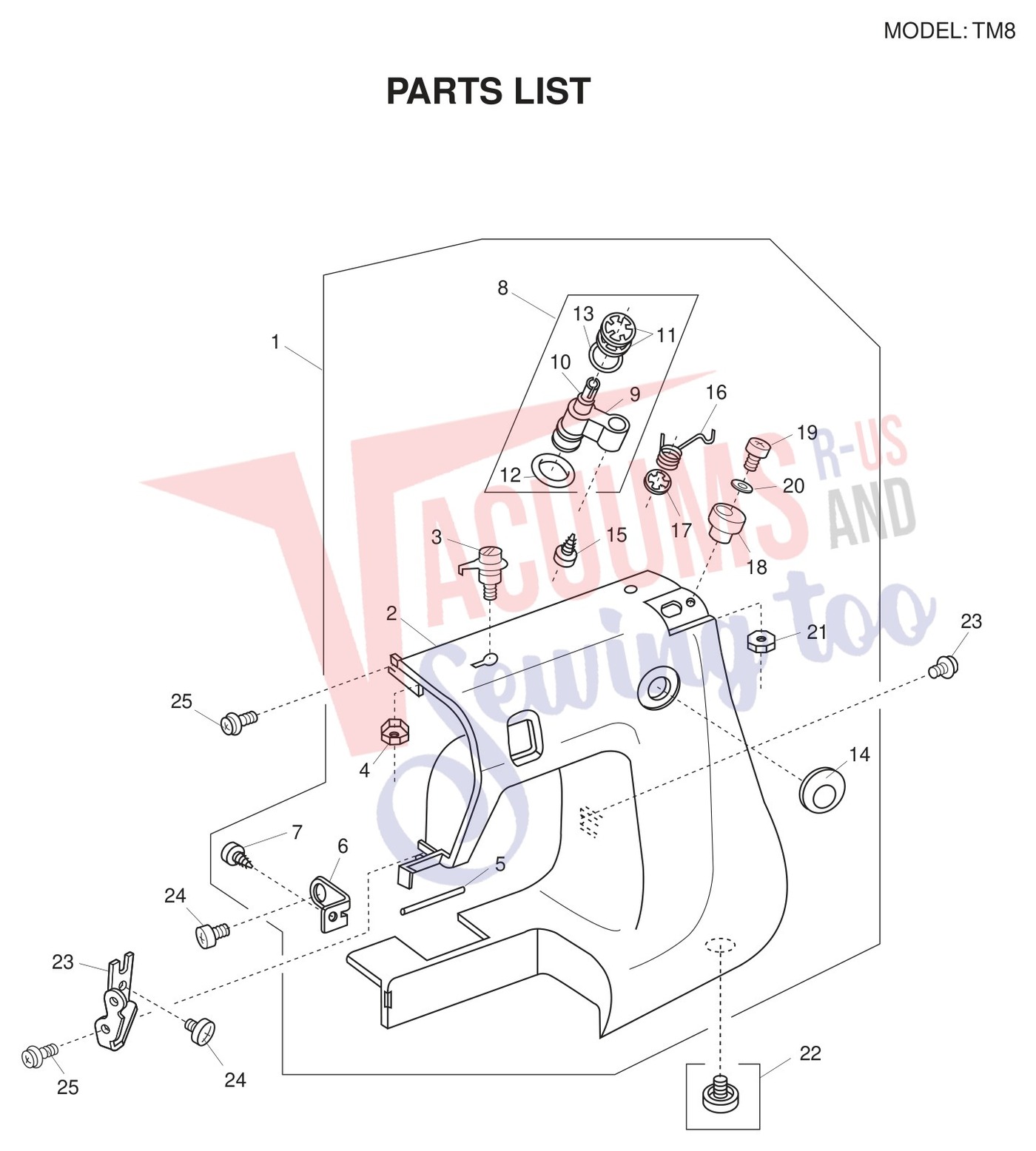

| 1 | | Front cover (unit) sewing machine part or accessory For Janome Models: TM8 | 660621409 | $59.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Front cover | 660038816 | Not Available |
| 3 |  | Thead guide plate unit sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661, J... | 730501206 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Thread guide sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639, 63... | 639075004 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Front cover bracket (lower) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/... | 827069004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Bobbin Winder Arm for Model 639 sewing machine part or accessory For Janome Models: 1017, 639, 63... | 639612009 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Bobbin winder spindle sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/661, Je... | 639076005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Bobbin winder shaft sewing machine part or accessory For Janome Models: 660 Jem Gold | 639077006 | $1.20Read more |
| 11 | | Snap ring CS-8 sewing machine part or accessory For Janome Models: 1017, 1117S, 2040, 3022, 3125,... | 000014409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Bobbin Winder Tire sewing machine part or accessory For Janome Models: 639, 662, AQS2009, HARMONY... | 639078007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | WASHER FT-80 sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, 4045LX, 4045... | 000036902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | PATTERN INDICATION WINDOW 660 sewing machine part or accessory For Janome Models: JEM GOLD/660, N... | 660040305 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Setscrew 4 x 12 sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, AQS2009, H... | 000109103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Bobbin winding arm spring sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, ... | 639079008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Bobbin winder stopper sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128... | 652016101 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Set Screw sewing machine part or accessory For Janome Models: T923, TB12, TB30 HF8050, HF5812, MC... | 000101828 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Cushion sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639, 639B, 6... | 639613000 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Front cover set plate sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, 3160... | 639080002 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

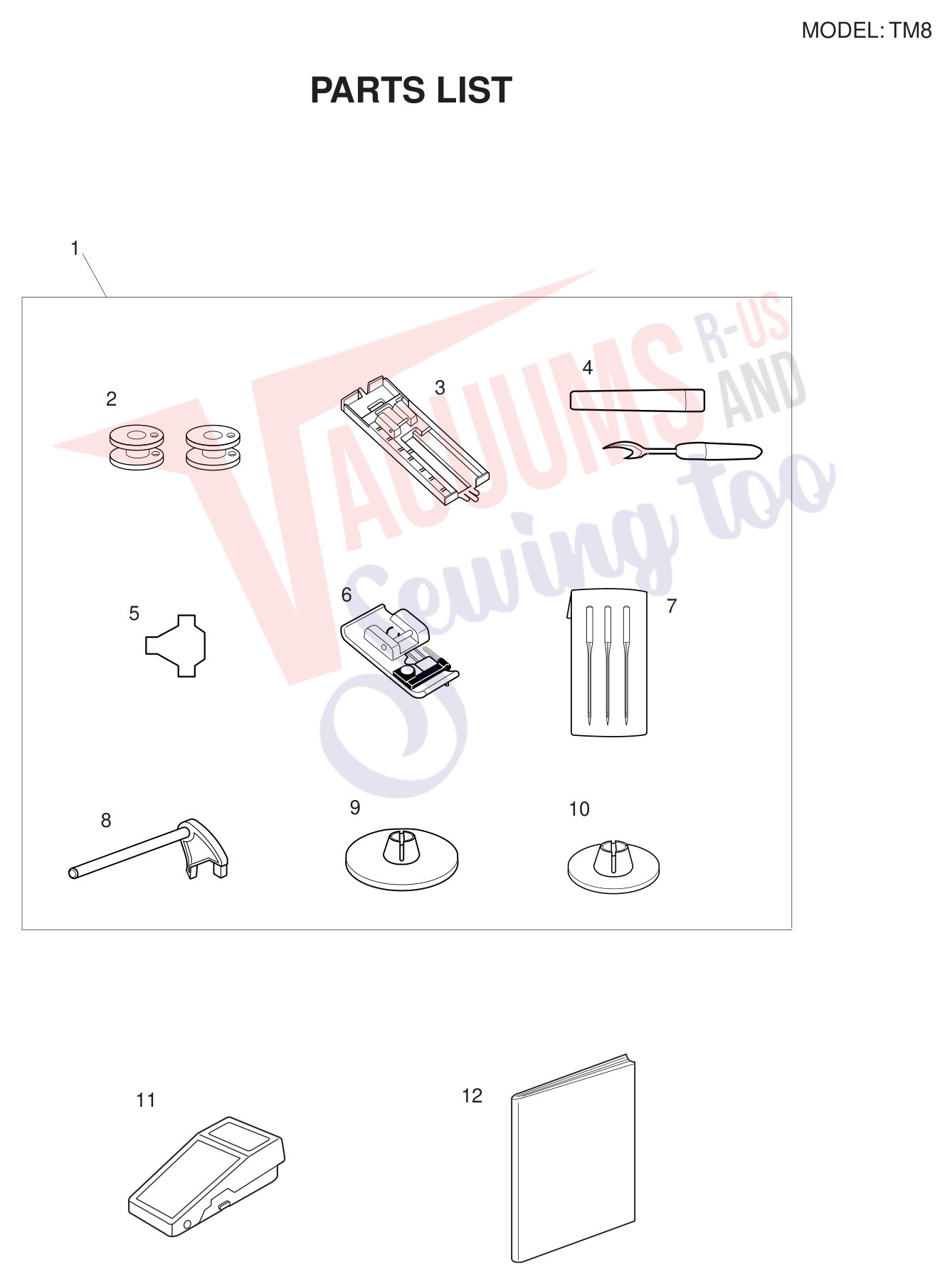

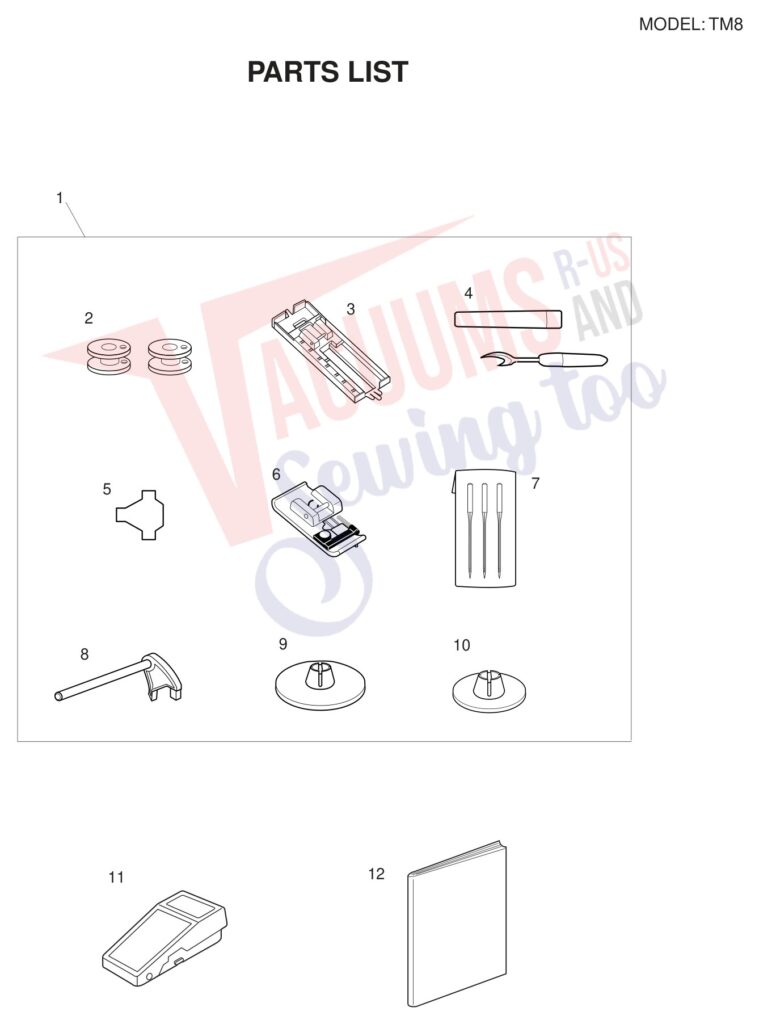

| 1 | | ACCESSORY KIT 660-JEM GOLD sewing machine part or accessory For Janome Models: 662, JEM GOLD 2/66... | 660870209 | $25.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 3 | | Sliding BH Foot sewing machine part or accessory For Janome Models: 509, 521, 7318, JEM GOLD 2/66... | 825813016 | $16.58Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Triangle Screwdriver sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 653802002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Overlock Foot C (top load) sewing machine part or accessory For Janome Models: MC11000 Special Ed... | 822801001 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Organ needle set #14 sewing machine part or accessory Organ needle set #14Use with: All Janome ... | 639804000 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Genuine Janome/Elna SPOOL PIN For: AQS2009, Jem Gold III, Jem Gold Plus, Mystyle100 HF5812, Nec... | 660005010 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Elna and Janome Foot Control and Power Cord | C1028 | $49.99Add to cart |
| 12 |  | Instruction book sewing machine part or accessory For Janome Models: TM8 | 660800286 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
